Harbor Breeze BRADBURY BRD48BNK6LRS User manual

BRADBURY CEILING FAN
ITEM #1597000
1596999
MODEL #BRD48BNK6LRS
BRD60BNK6LRS
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Purchase Date
1
Español p. 22
4007498
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ

Safety Information ................................................................................................................2
Package Contents ................................................................................................................5
Hardware Contents ...............................................................................................................6
Preparation ...........................................................................................................................6
Initial Installation ...................................................................................................................
. 6
Downrod-Style Fan Mounting .............................................................................................. . 8
Closemount-Style Fan Mounting ........................................................................................10
Wiring .................................................................................................................................. . 11
Final Installation .................................................................................................................. . 14
Operating Instructions .........................................................................................................17
Care and Maintenance ........................................................................................................19
Troubleshooting ..................................................................................................................20
Limited Lifetime Warranty ....................................................................................................21
Replacement Parts List .......................................................................................................21
TABLE OF CONTENTS
2
Modifications not approved by the party responsible for compliance could void the user's authority to
operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: Dimmable to 10%.
SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of the BRD48BNK6LRS fan including the light kit is: 16.98 lbs.
The net weight of the BRD60BNK6LRS fan including the light kit is: 20.93 lbs.
SAFETY INFORMATION
3
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.

4
SAFETY INFORMATION
CAUTION
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
WARNING
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to
avoid electrical shock.
WARNING

A
D
B
F
M
L
J
I
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.

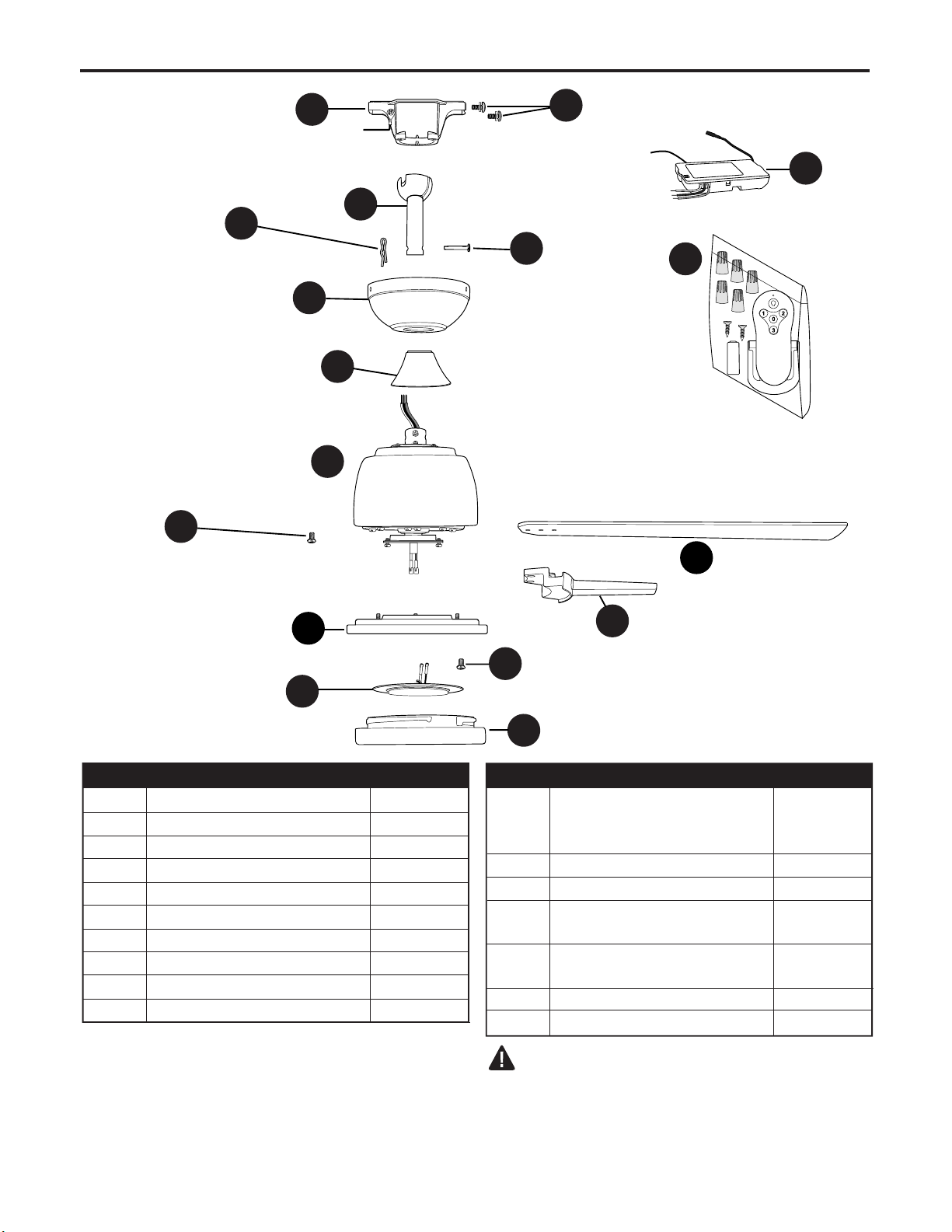

A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Yoke Cover 1
F LED Light Kit 1
G Blade 6
H Fitter Plate 1
I Shade 1
J Blade Arm 6
DESCRIPTIONPART QUANTITY
PACKAGE CONTENTS
5
E
N
O
DESCRIPTIONPART QUANTITY
K Canopy Mounting Screw/ 4
Lock Washer
(preassembled)
L Pin (preassembled) 1
M Clip (preassembled) 1
N Motor Plate Screw 3
(preassembled)
O Fitter Plate Screw 3
(preassembled)
P Remote Pack 1
Q Remote Control Receiver 1
H
G
Q
P
CK

6
PREPARATION
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
Wire
Connector
Qty. 4
AA BB
Blade
Screw
Qty. 18
+ 1 extra
CC
INITIAL INSTALLATION
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
Fiber
Blade
Washer
Qty. 18
+ 1 extra
Motor Screw
/Lock Washer
Qty. 12
+ 1 extra
DD

7
Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (G) will be at least 7 ft.
above the floor.
3.
INITIAL INSTALLATION
2. Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
7 ft.
min.
30 in.
min.
3
G
A
B
2
19° max.
4.
Open End
4
C
C
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (C) is installed facing
the higher point of the ceiling, and ensure the
ceiling angle is not steeper than 19°.

8
INITIAL INSTALLATION
5. Remove preassembled motor blocks from
underside of motor housing (D). Discard the
motor blocks.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
DOWNROD-STYLE FAN MOUNTING
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and nut
in motor housing yoke at top of motor housing (D).
1A.
2. Insert downrod (A) through canopy (B) and yoke
cover (E). Thread wires from motor housing (D)
up through downrod (A).
2
B
A
1A
M
L
1B
A
Set Screw
Sideview
D
Yoke
1B.
E
5
D
Motor
Block
Motor
Block

9
DOWNROD-STYLE FAN MOUNTING
3. Slip downrod (A) into motor housing yoke, align
holes and re-install pin (L) and clip (M). Tighten
set screws in motor housing yoke and then tighten
preassembled nut on one of the set screws. Then,
slide yoke cover (E) down until it rests on top of
motor housing (D).
3
D
E
L
M
Yoke
M
L
Set Screw
and Nut
Sideview
A
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Hanging
Ball
4
8 in.
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
5. 5

10
DOWNROD-STYLE FAN MOUNTING

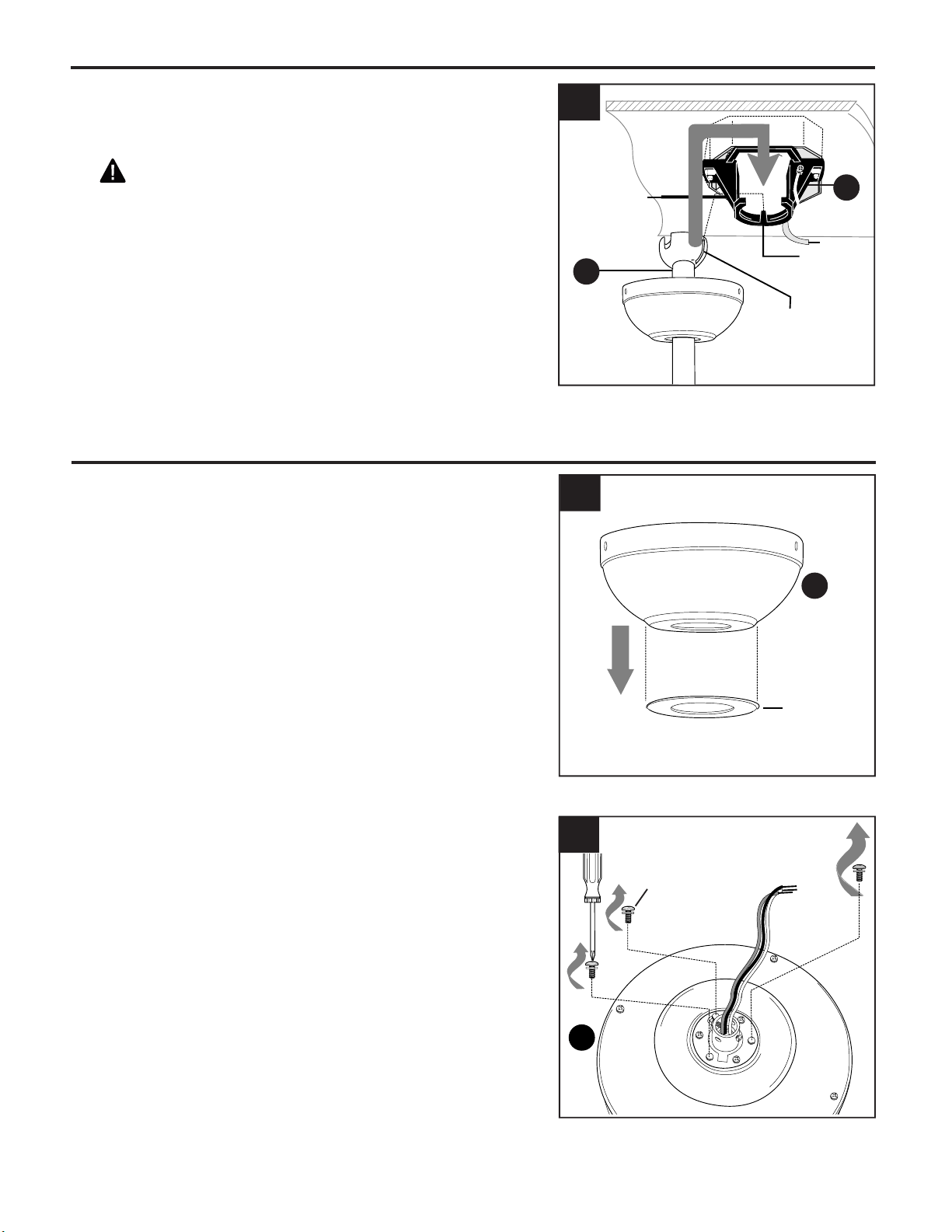

Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align slot in hanging ball
with tab in mounting bracket (C).
DANGER: Failure to align the slot in the ball
with the tab may result in serious injury or death.
Continue to WIRING on page 11.
6.
Slot
Tab
C
6
A
CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom
of canopy (B). To remove canopy cover from
canopy (B), twist canopy cover until the two small

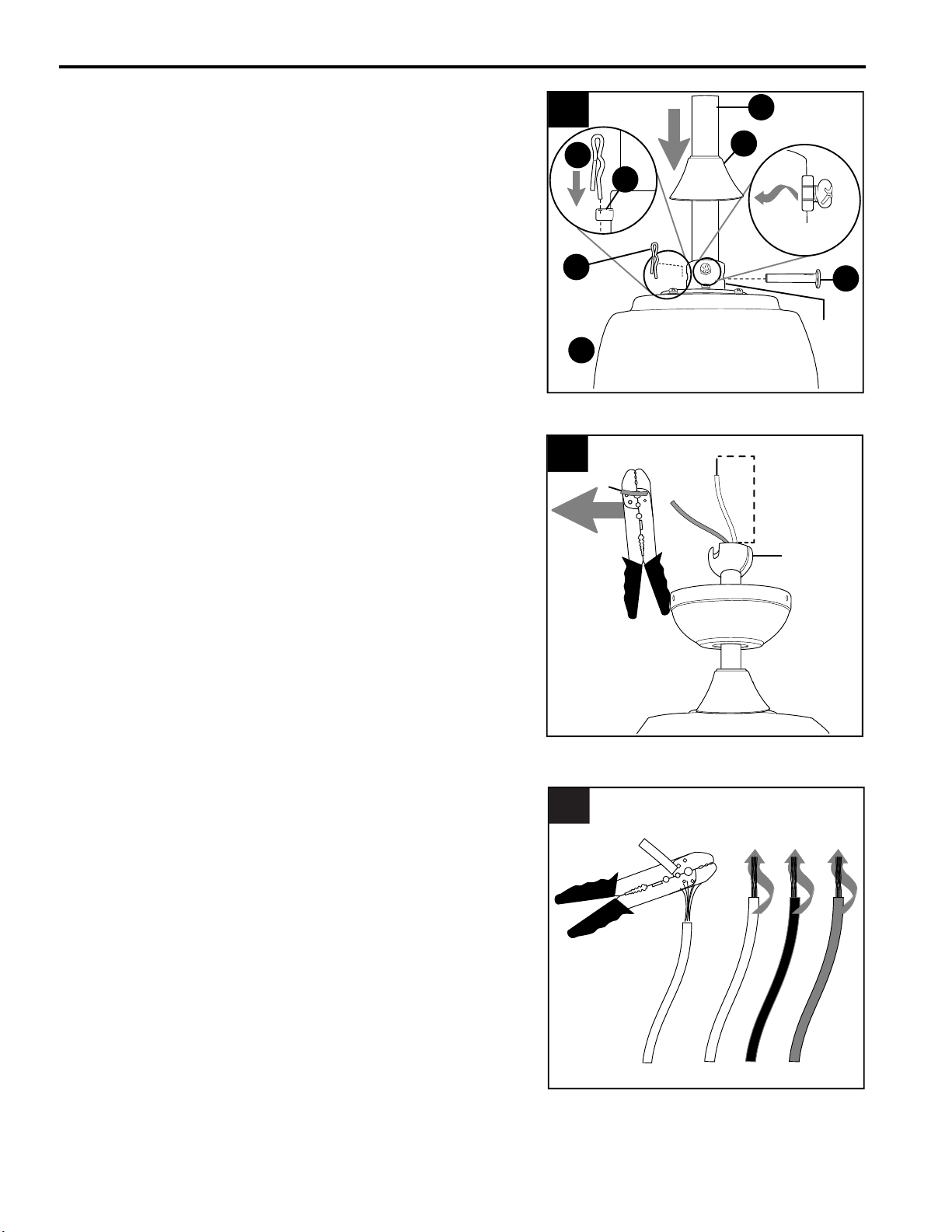

protrusions on the inner lip of the canopy cover
align with the two notches on the bottom of the
canopy (B). Pull on canopy cover to remove.
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
1.
Canopy
Cover
Remove every other preassembled screw/
lock washer from top of motor housing (D).
2.
Screw/
Lock Washer
1
B
2
D

11
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
CLOSEMOUNT-STYLE FAN MOUNTING
3. Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws/lock washers.
3
B
D
Screw/Lock Washer
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
Tab
C
4
B

12
WIRNG
1. Make the necessary wiring connections for remote
control operation as detailed below and in the
accompanying drawing. To make wire connections,
use wire connectors (AA) in hardware pack and wire
connectors in remote pack (P), making sure to
screw each wire connector on in a clockwise
direction.
CAUTION: Assistance from another person is
recommended for this step.
Hardware Used
Wire Connector x 3
AA
Connect all GROUND (GREEN) wires from fan (on
downrod (A), if applicable, and mounting bracket
(C)) to BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (Q) to BLACK supply wire
from ceiling.
Connect WHITE wire (labeled AC IN N) from remote
control receiver (Q) to WHITE supply wire from
ceiling.
Connect WHITE wire (labeled TO MOTOR N) from
remote control receiver (Q) to WHITE wire from
motor housing (D).
Connect BLACK wire (labeled TO MOTOR L) from
remote control receiver (Q) to BLACK wire from
motor housing (D).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (Q) to BLUE wire from
motor housing (D).
Q
1WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUEWHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
AA
AA
A
C
AA
GROUND
(GREEN
OR BARE)

13

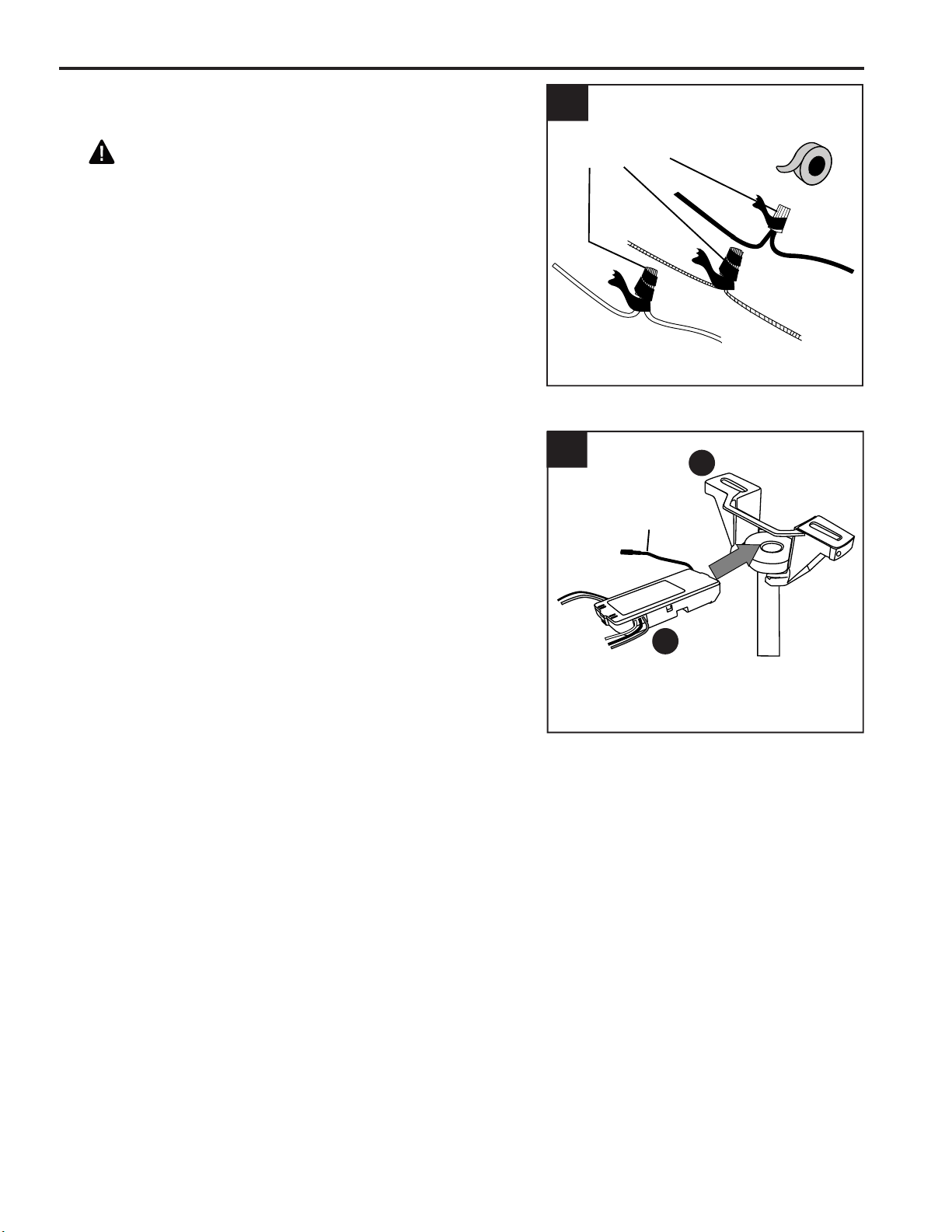

WIRING
Wrap electrical tape (not included) around each
individual wire connector down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of the outlet box from the BLACK and BLUE (if
applicable) connections.
2. 2
3
Gently slide remote control receiver (Q) flat-side up
into mounting bracket (C). Turn spliced/taped wires
upward and gently push wires and wire connectors
(CC) into outlet box. Let antenna from remote
control receiver (Q) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
Q
C
Wire
Connectors

14
FINAL INSTALLATION
Temporarily lift canopy (B) to mounting bracket (C) to
determine which two canopy mounting screws/lock
washers (K) in mounting bracket (C) align with slotted
holes in canopy (B) and partially loosen these two
canopy mounting screws/lock washers (K). Remove the
other two canopy mounting screws/lock washers (K).
Now, lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws/lock washers (K) in mounting
bracket (C). Twist canopy (B) to lock. Re-insert the two
canopy mounting screws/lock washers (K) that were
just removed and tighten all canopy mounting
screws/lock washers (K) securely.
1.
B
K
1
2.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and break.

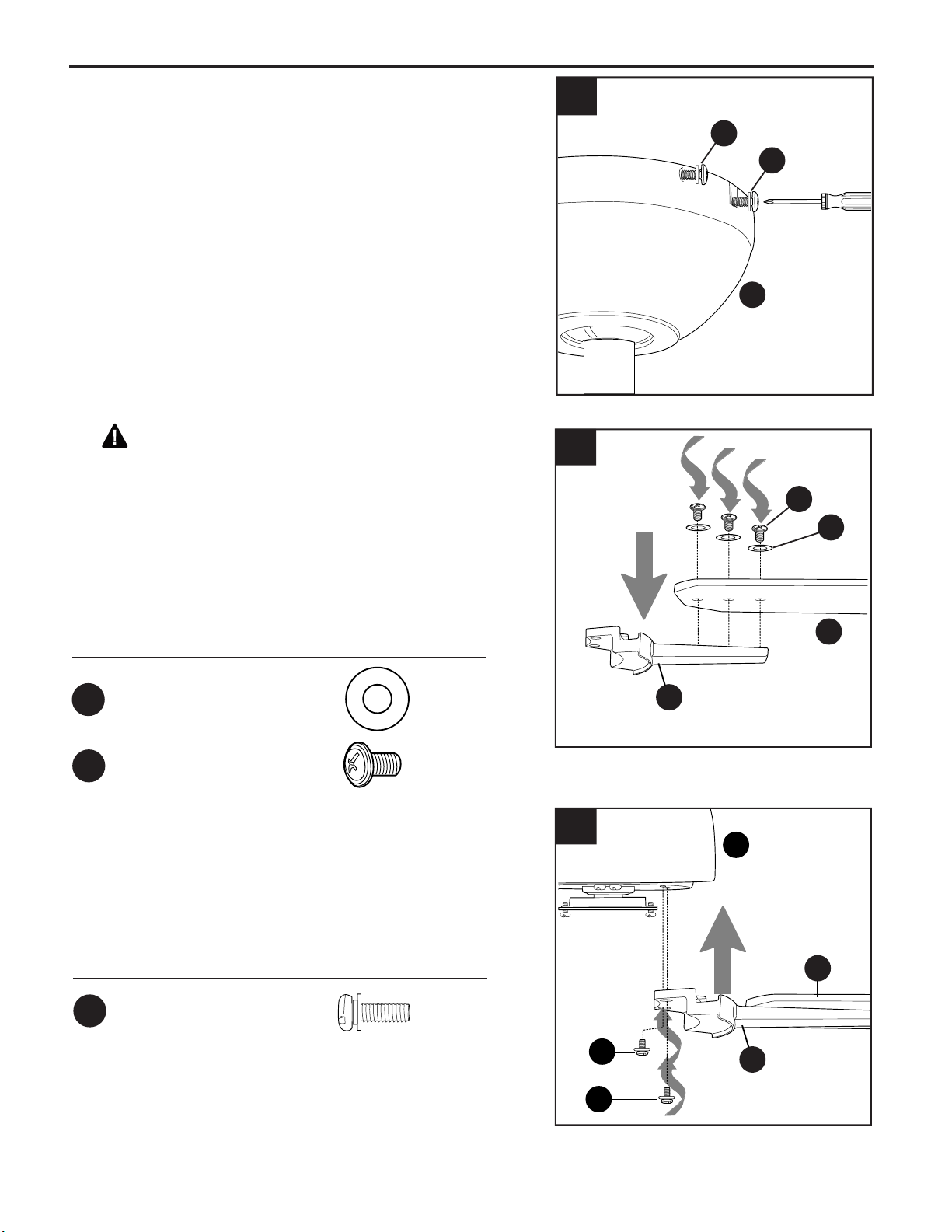

Partially insert three blade screws (CC) along with
three fiber blade washers (BB) into holes in blade (G)
to attach blade arm (J) to blade (G). Then, tighten
each blade screw (CC) starting with the one in the
middle. Repeat with remaining blades (G).
2
CC
BB
J
G
Hardware Used
Blade Screw x 18
CC
Fiber Blade Washer x 18
BB
K
Insert two motor screws/lock washers (DD) through
one blade arm (J) to attach blade arm (J) to motor
housing (D). Tighten motor screws/lock washers (DD)
securely. Repeat with remaining blade arms (J),
making sure to completely secure each blade arm (J)
before proceeding with the next.
3.
G
J
3D
DD
DD
Hardware Used
Motor Screw x 12
/Lock Washer
DD

15
FINAL INSTALLATION

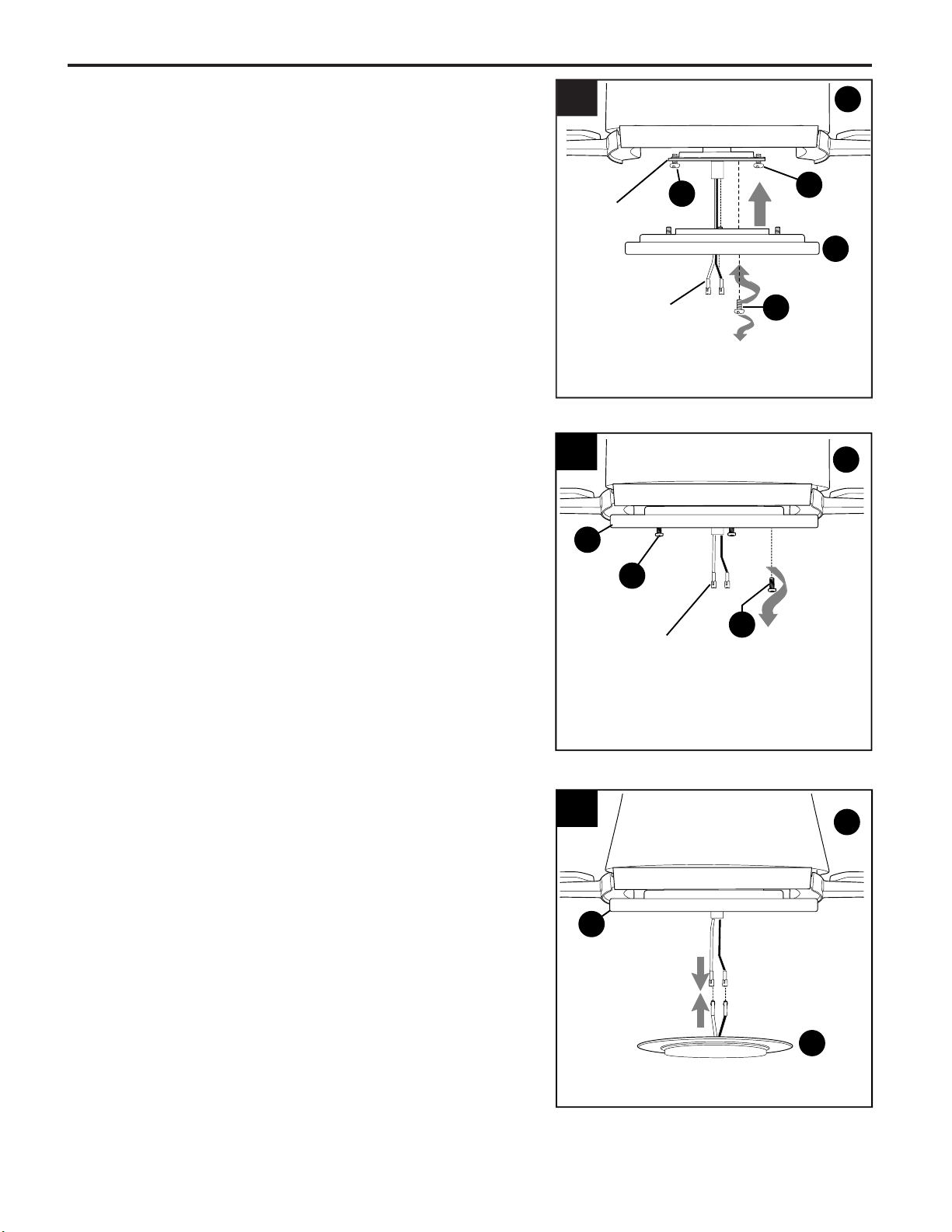

4. Partially loosen two motor plate screws (N) in motor
plate on underside of motor housing (D) and
remove the other motor plate screw (N). Align
slotted holes in fitter plate (H) with loosened motor
plate screws (N), allowing molex connections from
motor housing (D) to come through hole in fitter
plate (H). Twist fitter plate (H) to lock. Re-insert the
motor plate screw (N) that was removed and
securely tighten all three motor plate screws (N).
4
Motor
Plate
Molex
Connections
I
H
D
5. Partially loosen two fitter plate screws (O) on the
underside of the fitter plate (H) and remove the
other fitter plate screw (O).
Locate molex conections from motor housing (D)
and remove plastic that holds these wires together. H
5
Molex
Connections
O
D
I
NI
N
6. Connect WHITE wire from LED light kit (F) to
WHITE wire from motor housing (D). Connect BLUE
wire from LED light kit (F) to BLUE (or BLACK) wire
from motor housing (D). Make sure molex
connections are secure.
F
6
WHITE BLUE (or BLACK)
WHITE BLUE
D
H
I
N
O

16
FINAL INSTALLATION

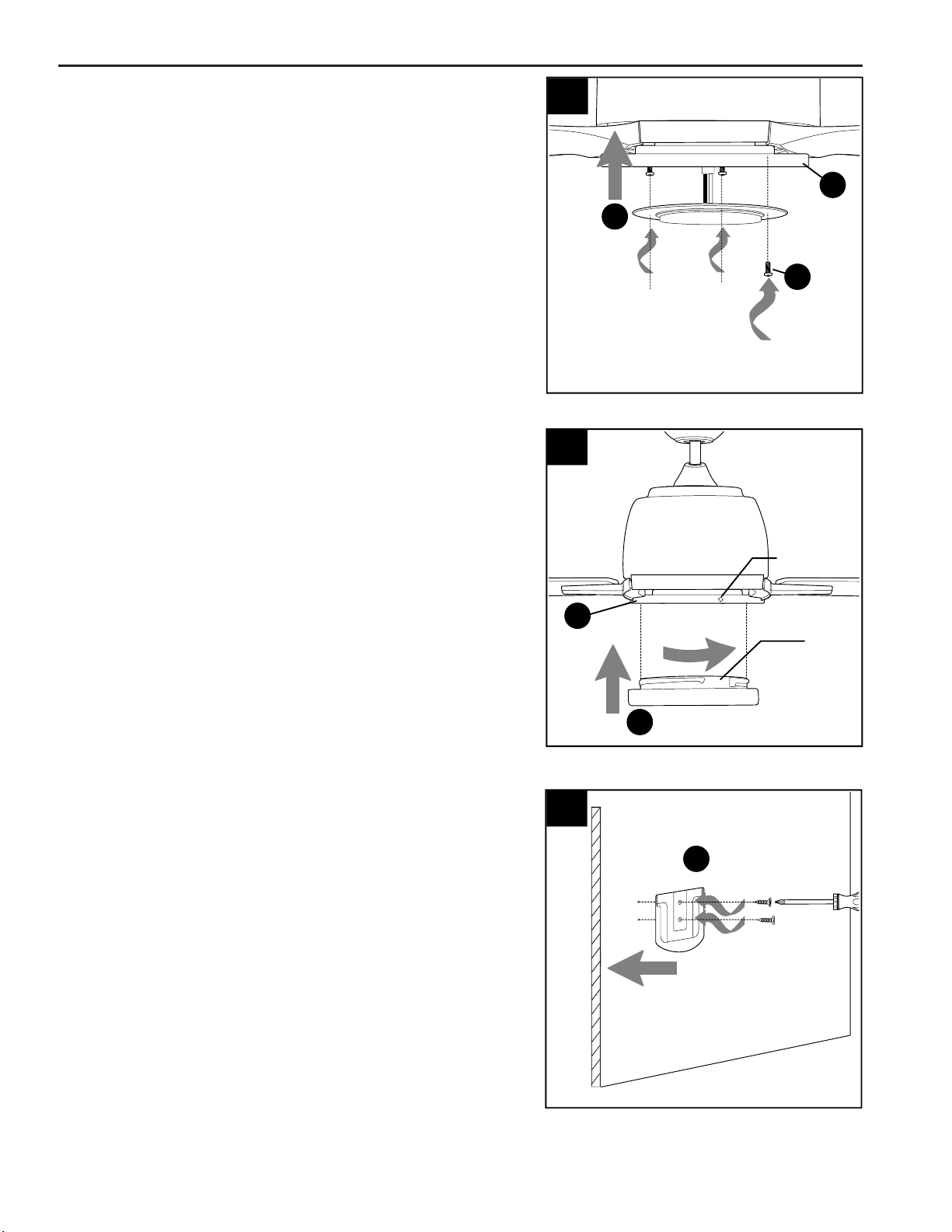

7. Carefully arrange wiring within the fitter plate (H) to
ensure wires do not get pinched when attaching the
LED light kit (F).
Align slotted holes in LED light kit (F) with loosened
fitter plate screws (O) on fitter plate (H). Twist LED
light kit (F) to lock in place. Re-insert the previously
removed fitter plate screw (O) and securely tighten
all fitter plate screws (O).
8. Align slots on shade (I) with protrusions on
underside of fitter plate (H). Turn shade (I)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (I) to make
sure it is secured completely.
8
H
9
Remote Control
Bracket
Wall
9. If you wish to use the remote control bracket from
remote pack (P), install screws from remote pack (P)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (P)
rests inside the bracket. Bracket
Screws
P
Slot
I
Protrusion
H
7
F
O

17
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans.
If this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Remove protective covering from battery in
remote pack (P) and discard protective covering.
Remove battery cover from back of remote
control transmitter in remote pack (P). Install
battery from remote pack (P) with positive (+)
end toward top of remote control transmitter.
Replace battery cover on remote control
transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
1. 1
Battery
Cover
NOTE: Battery is NOT rechargeable. Remove battery with low or no charge and dispose of
properly.
Remote Control
Transmitter (back side)
Battery
P
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.

18

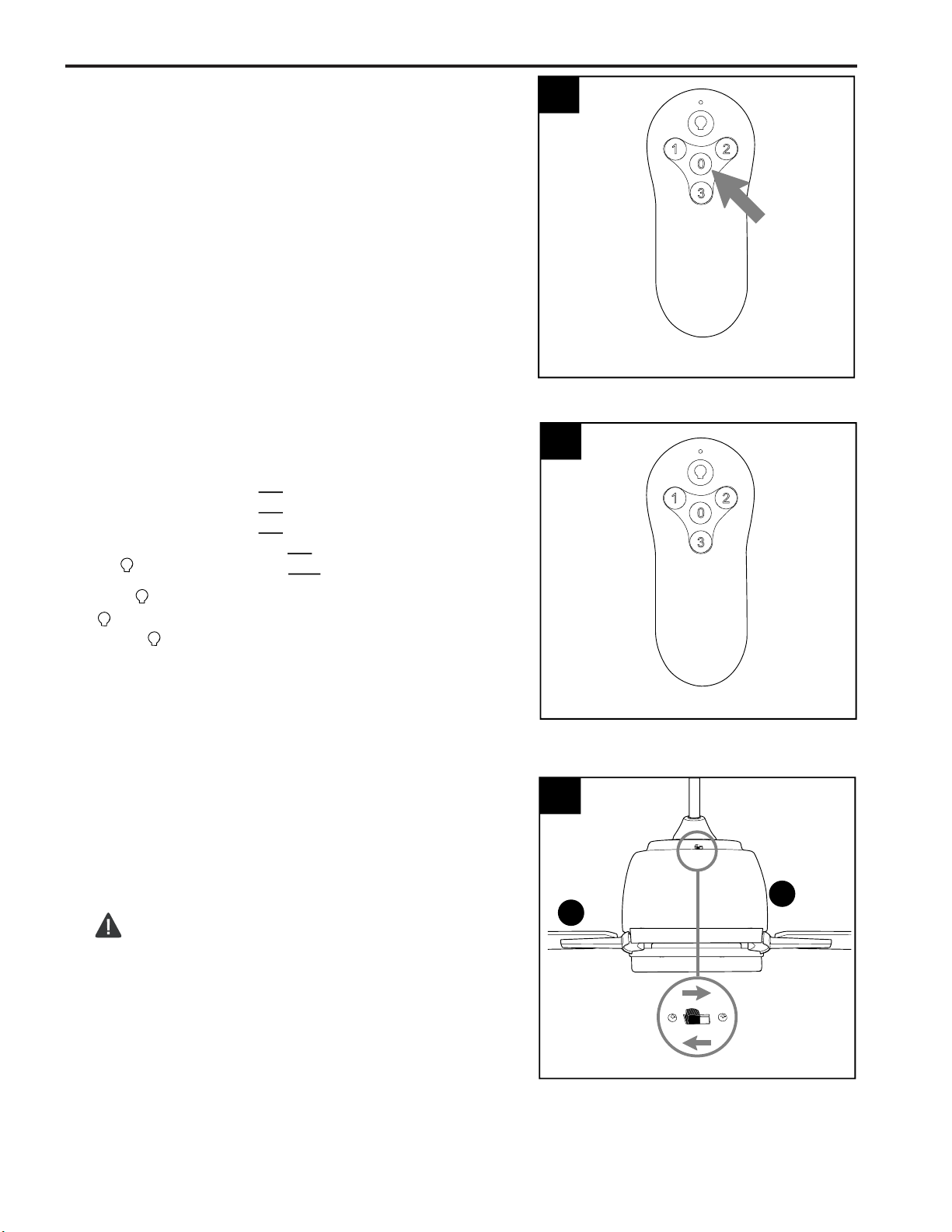

2. Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the “0”
button on the remote control transmitter for 5 seconds
or until light on the fan blinks twice. Use the remote
control transmitter to test the light and fan functions to
confirm the learning process is complete.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
Remote Control Transmitter
OPERATING INSTRUCTIONS
Operation buttons on the panel of the remote control
transmitter:
3 button
for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3. 3
Remote Control Transmitter
4. Use the fan reverse switch, located on the top of the
motor housing (D), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before manually
activating the reverse switch.
4
Reverse Switch
D
G
2

19
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS
4A 4B
4C
4C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
4A. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
4B. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
At least twice each year, lower canopy (B) to check downrod (A) assembly and tighten all screws on
fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the LED light kit on this fan is 18 watts; do not attempt to replace the LEDs.

20
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Wires in LED light kit not wired
correctly.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that molex connections in
LED light kit are connected
properly according to instructions
on page 15.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all motor screws/washers.
2. Replace blade.
3. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive
wobbling. 1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all motor screws/washers.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan
to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower canopy
and verify that set screw on
hanging ball is tightened securely.
TROUBLESHOOTING
Fan operates but
lights fail (if
applicable).
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 - 13.
2. Make sure wall switch to fan is on.
3. Check wires from LED light kit and,
if necessary, re-wire according to
instructions on page 15.
