Harbor Breeze MAZON MZ44MBLK3LR User manual

HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
1
Purchase Date
AS21351
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
also contact us at [email protected] or visit www.lowespartsplus.com.
4007498
ITEM #0807421
1059534
2599776
MAZON CEILING FAN
MODEL #MZ44BNK3LR
MZ44WW3LR
MZ44MBLK3LR
Español p. 18
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ

2
Safety Information .................................................................................................................2
Package Contents ...............................................................................................................
. .5
Hardware Contents ...............................................................................................................6
Preparation .......................................................................................................................
. .. . .6
Initial Installation ....................................................................................................................6
Wiring ..............................................................................................................................
. .. .... .9
Final Installation ...................................................................................................................10
Operating Instructions .........................................................................................................13
Care and Maintenance ......................................................................................................
. .15
Troubleshooting ..................................................................................................................16
Limited Lifetime Warranty ...................................................................................................17
Replacement Parts List .....................................................................................................
. .17
TABLE OF CONTENTS
Modifications not approved by the party responsible for compliance could void the user's authority to
operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation..
Distributed by: Lowe’s Home Centers LLC, 1000 Lowe’s Blvd., Mooresville, NC 28117;
1-888-251-1026
NOTE: Dimmable to 10%.
SAFETY INFORMATION

3
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 14.77 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.

4
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing or balancing them, or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
CAUTION

5
PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Mounting Plate 1
B Canopy Ring 1
C Motor Assembly 1
D Fitter Plate 1
E Shade 1
F Fitter Plate Screw 3
(preassembled)
G Blade 3
DESCRIPTIONPART QUANTITY
H LED Light Kit 1
I Mounting Plate Lock 4
Washer (preassembled)
JMounting Plate Screw 4
(preassembled)
K Motor Plate Screw 3
(preassembled)
L Remote Pack
1
DESCRIPTIONPART QUANTITY
B
G
I
H
K
C
E
A
J
D
F
L

HARDWARE CONTENTS (shown actual size)
6
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook and
Wire Cutters
PREPARATION
AA CC
Wire
Connector
Qty. 3
+ 1 extra
CC
Blade
Screw
Qty. 9
+ 1 extra
Fiber
Blade
Washer
Qty. 9
+ 1 extra
BB
INITIAL INSTALLATION
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1

7
INITIAL INSTALLATION
Remove all three preassembled motor stabilization
pieces from motor assembly (C). The motor
stabilization pieces may be discarded at this time.
3.
This fan can be mounted as a flushmount on a
regular (no-slope) ceiling only.
Check to make sure blades (G) will be at least
30 inches from any obstruction and at least 7 ft.
above the floor.
2. 2
7 ft.
min.
30 in.
min.
G
3
3
C
Secure mounting plate (A) to outlet box using
screws, spring washers, and flat washers provided
with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting plate (A) as
this will support the fan.
Pull electrical wiring from outlet box through center
hole in the mounting plate (A).
4. 3
4
Motor
Stabilization
Piece
A

Lift motor assembly (C) to mounting plate (A).
Hang motor assembly (C) on j-hook on underside
of mounting plate (A). [IMPORTANT: Use one of
the non-slotted holes on the rim of the motor
assembly (C) to do so.]
This will allow motor assembly (C) to hang out of
the way while wiring.
With wider opening facing up, place canopy
ring (B) over top of motor assembly (C).
Allow canopy ring (B) to rest on top of motor
for the time being.
Motor
"J" Hook
8
6.
7.
INITIAL INSTALLATION
3
5
Locate mounting plate screw (J)/mounting plate
lock washer (I) on outer edge of mounting plate
(A) that is closest to the j-hook and remove that
mounting plate screw (J)/mounting plate lock
washer (I). Also, remove mounting plate screw
(J)/mounting plate lock washer (I) on outer edge
of mounting plate (A) directly opposite the one
that was just removed. Partially loosen the other
two mounting plate screws (J)/mounting plate
lock washers (I).
5.
3
6
A
J
J
II
B
3
7
Non-slotted
Hole
"J" Hook
C
C
A

WIRING
9
1.
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge
house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more
than one house wire to connect to the corresponding
fan lead wires, consult an electrician for the proper
size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded
and that a ground (green or bare) wire is present.
IMPORTANT: For each wire connection below,
use one of the wire connectors (CC) provided,
making sure to screw wire connector (CC) on in a
clockwise direction.
Connect BLACK wire from fan to BLACK wire
from ceiling. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on motor
assembly (C) and mounting plate (A)) to
BARE/GREEN wire from ceiling.
ROUND/GREEN (BARE)
WHITE
BLACK
B
LA
C
K
W
HITE
R
O
U
N
D/G
REE
N (
BAR
E)
GROUND/GREEN
BLACK
WHITE
WHITE
FROM FAN
N
BLACK
WHITE
F
R
O
M FA
N
WHI
TE
G
R
O
U
N
D/GREE
G
R
O
U
N
D/G
WHITE
BLACK
120 V Power
from ceiling
1
C
A
WARNING: The wires from the outlet box must be
connected to a corresponding color of the fan's wires.
Be sure wire colors match before making connections.
If house wires are different colors than referred to in
the following steps, stop immediately. A professional
electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not
included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or
electrical shock, do NOT use a full range dimmer
switch to control fan speed.
NOTE: Black wire is hot power for fan. White
wire is common for fan and light kit. Green or
bare wire is ground.
Wire Connector x 3
Hardware Used
CC

WIRING

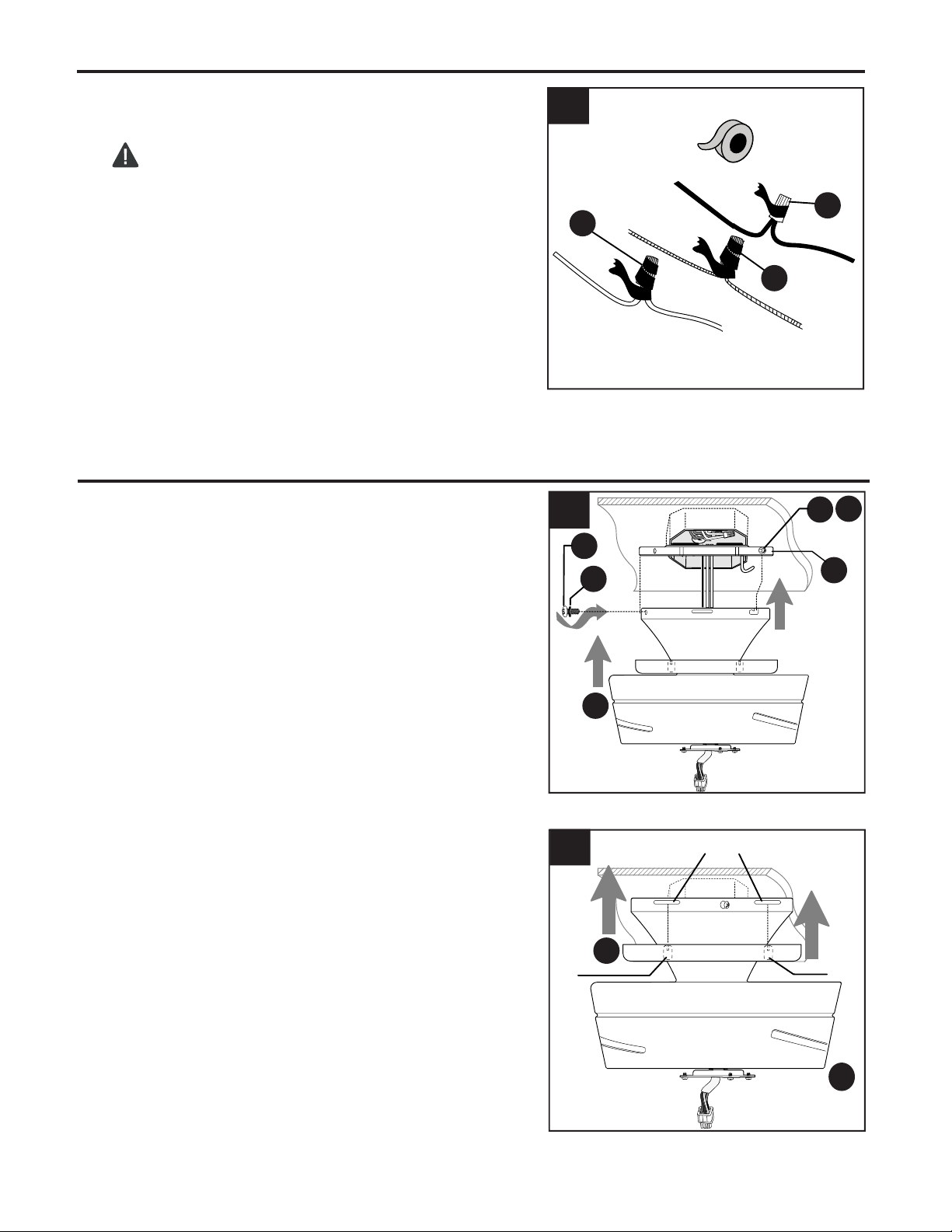

Wrap electrical tape around each individual wire
connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place green and white connections on opposite
side of box from the black and blue (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
10
2.
CC
2
CC
CC
Locate four tabs inside canopy ring (B). Align tabs
in canopy ring (B) with four grooves at top of motor
assembly (C) and raise canopy (B) until you hear
tabs snap into grooves.
NOTE: Canopy ring (B) should fit flush to ceiling
when done correctly.
Remove motor assembly (C) from "J" hook and
slide top of motor assembly (C) over mounting plate
(A), aligning slotted holes in motor assembly (C)
with loosened mounting plate screws (J)/mounting
plate lock washers (I) in mounting plate (A). Twist
motor assembly (C) to lock. Re-insert the other two
mounting plate screws (J)/mounting plate lock
washers (I) previously removed (Step 5, page 8) to
secure motor assembly (C). Tighten all mounting
plate screws (J) securely.
1.
2.
1
2
C
J
IA
Tab
J
C
I
FINAL INSTALLATION
B
Grooves
Tab

11
FINAL INSTALLATION
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and break.
Insert the blade (G) through the slot on the band of
the motor assembly (C). Align holes in blade (G)
with holes in plate on underside of motor. Attach the
blade (G) with blade screws (AA) and fiber blade
washers (BB). Then, tighten each blade screw (AA),
starting with the one in the middle. Repeat for
remaining blades (G).
3. 3
3
C
G
BB
AA
AA Blade Screw x 9
Fiber Blade Washer x 9
BB
Hardware Used
Band
5. Remove one fitter plate screw (F) from fitter
plate (D) and partially loosen the other two fitter
plate screws (F).
Connect male plug from motor assembly (C) to
female plug from fitter plate (D), matching up the
colors on the plugs for correct fit. Make sure plugs
connect tightly.
4.
3
5
Remove one motor plate screw (K) from motor
plate preassembled on the underside of the motor
assembly (C) and partially loosen the other two
motor plate screws (K). Align slotted holes in fitter
plate (D) with loosened motor plate screws (K),
allowing male plug from motor assembly (C) to
come through hole in fitter plate (D). Twist fitter
plate (D) to lock. Re-insert the motor plate screw
(K) that was removed and securely tighten all
three motor plate screws (K).
4
Male Plug
Male Plug Female Plug
I
K
I
K
I
K
D
F
F
C
C
D
Motor
Plate

FINAL INSTALLATION
12

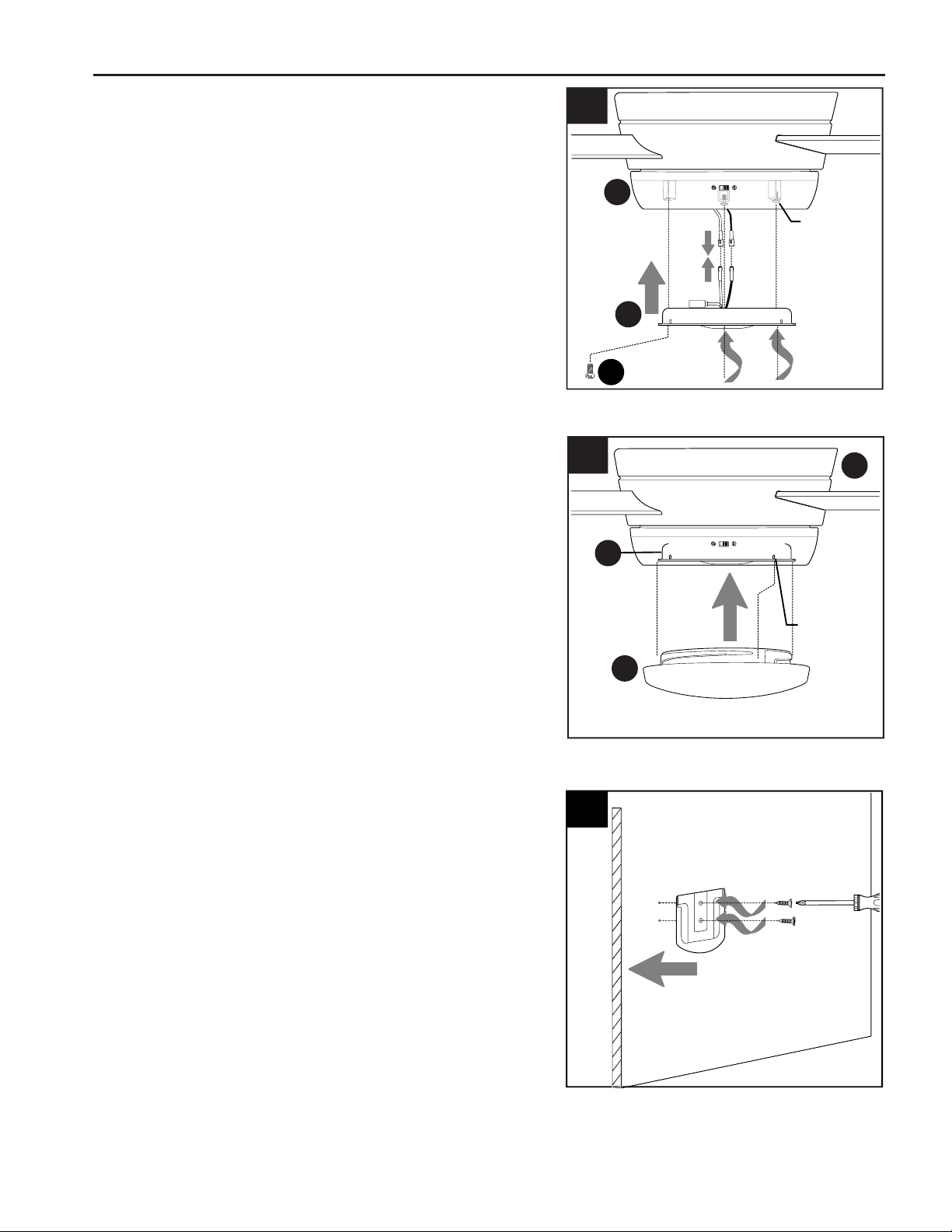

Locate BLUE and WHITE wires in fitter plate (D).
Connect WHITE wire from LED light kit (H) to
WHITE wire from fitter plate (D). Connect BLUE
wire from LED light kit (H) to BLUE wire from fitter
plate (D). Make sure molex connections are
secure.
Carefully arrange wires inside fitter plate (D).
Align slotted holes in LED light kit (H) with
loosened screws in fitter plate (D). Re-insert fitter
plate screw (F) previously removed. Tighten all
three fitter plate screws (F) securely.
6. 3
6
BLUE
WHITE
WHITE BLUE
Loosened
Screws
H
D
F
Align slots on shade (E) with protrusions on the
inside of the fitter plate (D). Turn shade (E) to the
right (clockwise) until it no longer turns.
NOTE: Pull down gently on the shade (E) to make
sure that it is secured completely.
7. 3
7C
E
8
Remote Control
Bracket
Wall
8. If you wish to use the remote control bracket from
remote pack (L), install screws from remote pack (L)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (L)
rests inside the bracket.
Bracket
Screws
Protrusions
D

13
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

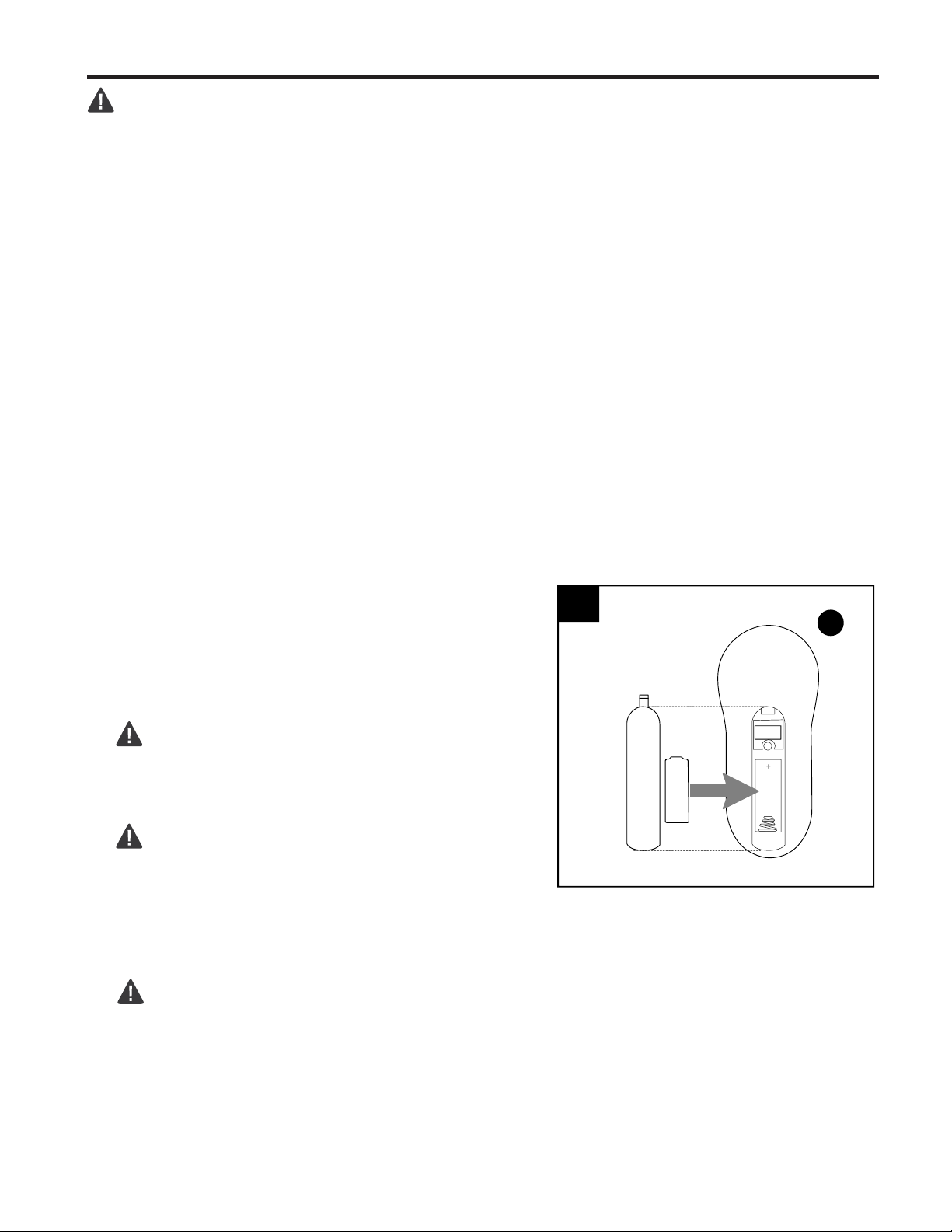

Remove contents of remote pack (L). Remove
battery cover from back of remote control transmitter.
Remove protective covering from battery--protective
covering may be discarded. Install battery with
positive (+) end toward top of remote control
transmitter.
WARNING: Battery is to be inserted with the
correct polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
1.
(back
side)
1
Battery
Cover
L
Remote
Control
Transmitter
Battery
NOTE: Battery is NOT rechargeable. Remove
battery with low or no charge and dispose of
properly.
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.

14

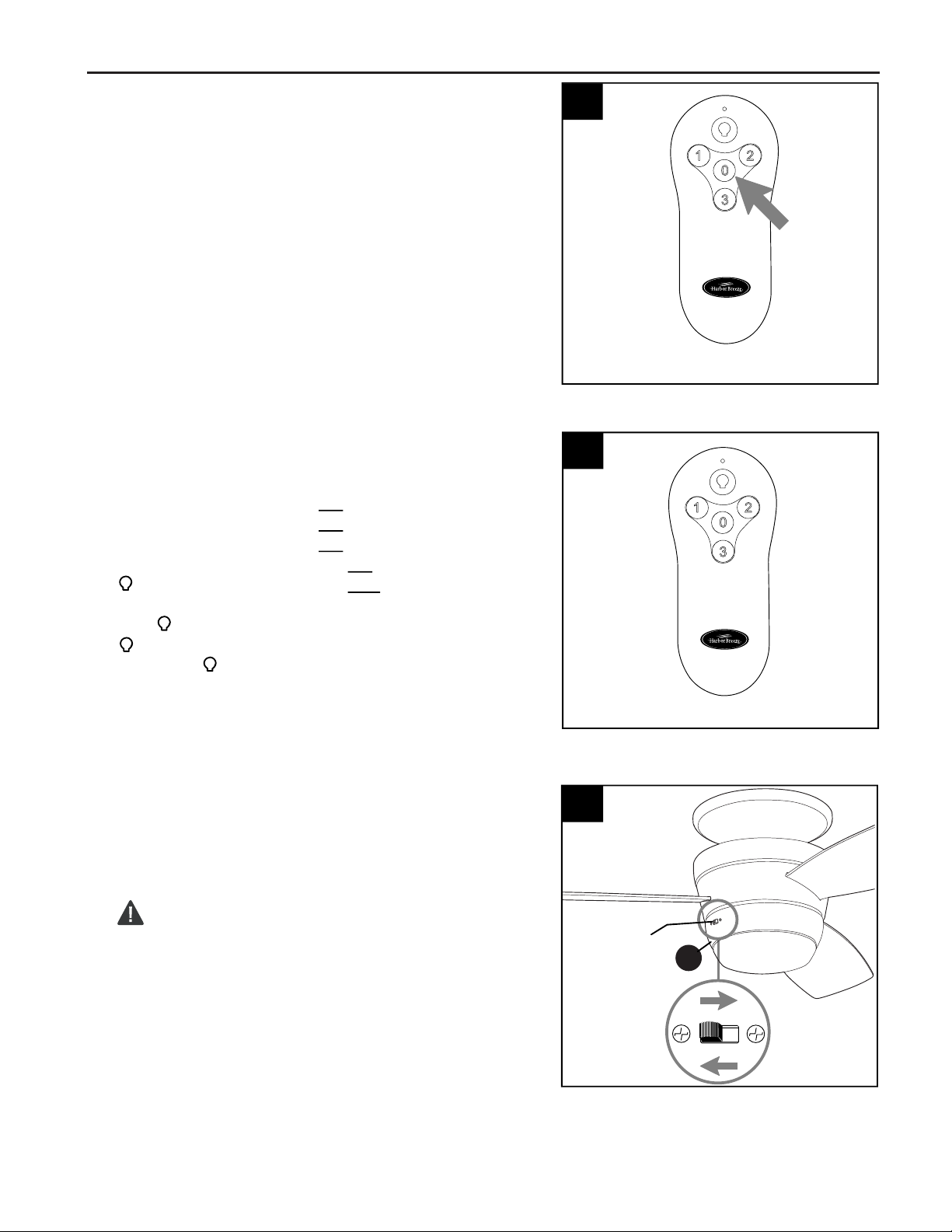

2. Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
“0” button on the remote control transmitter for
5 seconds or until light on the fan blinks twice.
Use the remote control transmitter to test the light
and fan functions to confirm the learning process is
complete.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
IMPORTANT: To prevent damage to remote
control transmitter, remove the battery if not used
for long periods. Store the remote control
transmitter away from excess heat or humidity.
2
Remote Control Transmitter
OPERATING INSTRUCTIONS
Operation buttons on the panel of the remote
control transmitter:
3button for fan HIGH speed
2button for fan MEDIUM speed
1button for fan LOW speed
0button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If
you press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3. 3
Remote Control Transmitter
4. Use the fan reverse switch on the fitter plate (D) to
optimize the fan for seasonal performance. A ceiling
fan will allow you to raise your thermostat setting in
summer and lower your thermostat setting in winter
without feeling a difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before
manually activating the reverse switch.
4
Reverse
Switch D

15
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS
4a
4b
4c

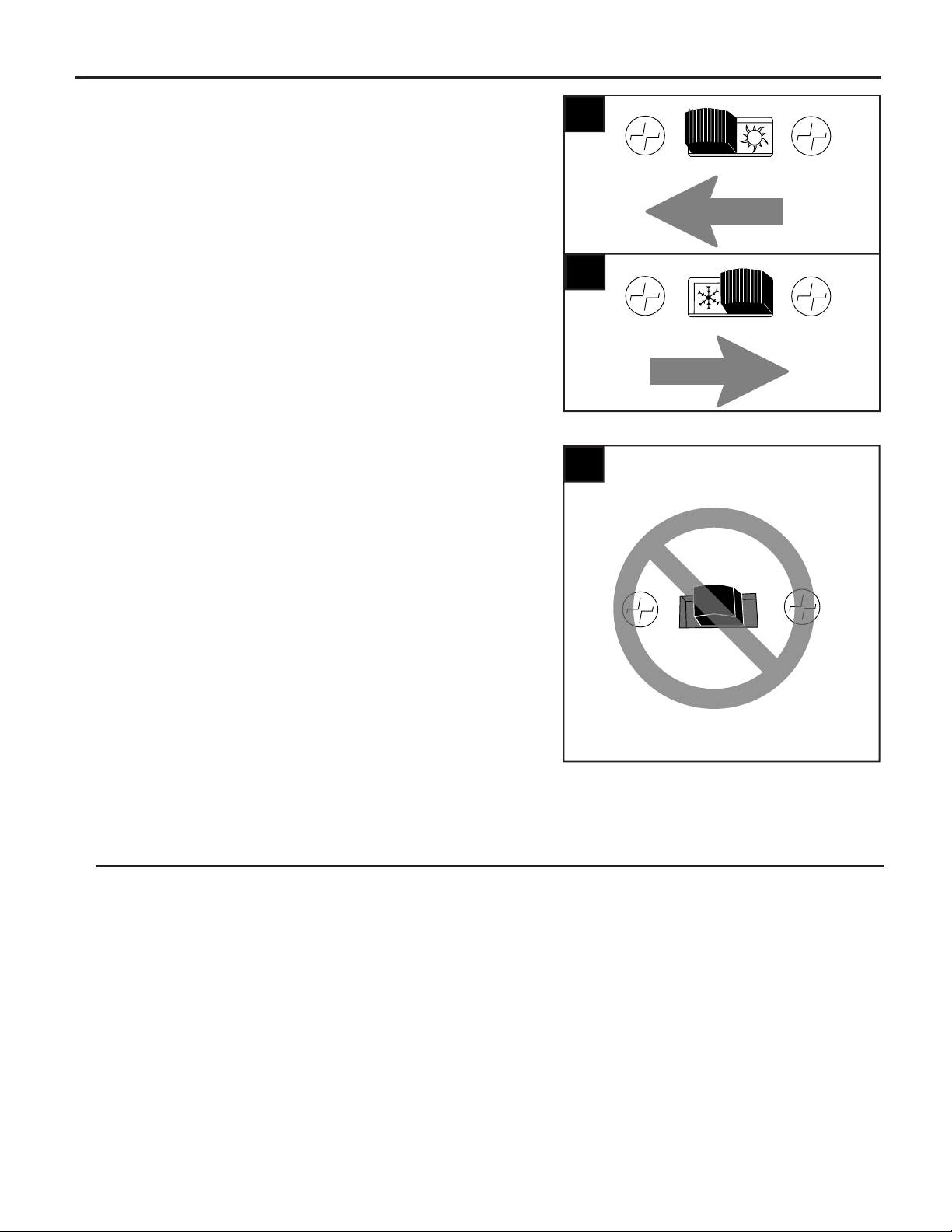

4c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
4a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
4b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
At least twice each year, check mounting plate screws (J) and then tighten all screws on the fan.
Clean motor assembly (C) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 18 watts; do not attempt to replace the LEDs.

16
1. Push switch firmly either left or
right.
2. Turn power on or check fuse at
circuit breaker.
3. Turn power off. Loosen motor
assembly and check all
connections.
4. Check that male and female plugs
in fitter plate are connected
properly according to instructions
on page 11.
5. Turn off power and repeat
instructions in Step 2 on page 14.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Wires in light kit fitter not wired
correctly.
5. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
5. Motor assembly is loose.
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
5. Verify mounting plate screws are
secure according to instructions
on page 10.
TROUBLESHOOTING
Excessive
wobbling.
1. Blades are loose.
2. Blade incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade
from the opposite side.
4. Verify mounting plate is secure.
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 9.
2. Make sure wall switch to light is
on.
3. Check that molex connections in
fitter plate are connected properly
according to instructions on page
12.
1. Wires in outlet box not wired
properly.
2. Wall switch to light is off.
3. Wires in fitter plate not wired
correctly.
Fan operates but
light fails.

17
LIMITED LIFETIME WARRANTY
Printed in China
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-888-251-1003)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
REPLACEMENT PARTS LIST
KHLI2107
For replacement parts, call our customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit
www.lowespartsplus.com.
0807421-A
0807421-B
0807421-D
0807421-E
0807421-G
A Mounting Plate
B Canopy Ring
D Fitter Plate
E Shade
G Blade
PART DESCRIPTION
#0807421
PART #
1059534-A
1059534-B
1059534-D
1059534-E
1059534-G
#1059534
PART #
#2599776
PART #
2599776-A
2599776-B
2599776-D
2599776-E
2599776-G
DEG
A
B
