Harbor Breeze 41239 User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
1
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Español p. 18
H
a
r
b
o
r
B
r
e
e
z
e
EB16218
ITEM #0732082, 0807429, 0807432, 0807433
42-INCH CENTREVILLE
CEILING FAN
MODEL #41239, 40689, 40687, 40688

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................6
Wiring ..........................................................................9
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions .............................................................14
Care and Maintenance ............................................................15
Troubleshooting..................................................................15
Warranty .......................................................................16
Replacement Parts List ............................................................17

3

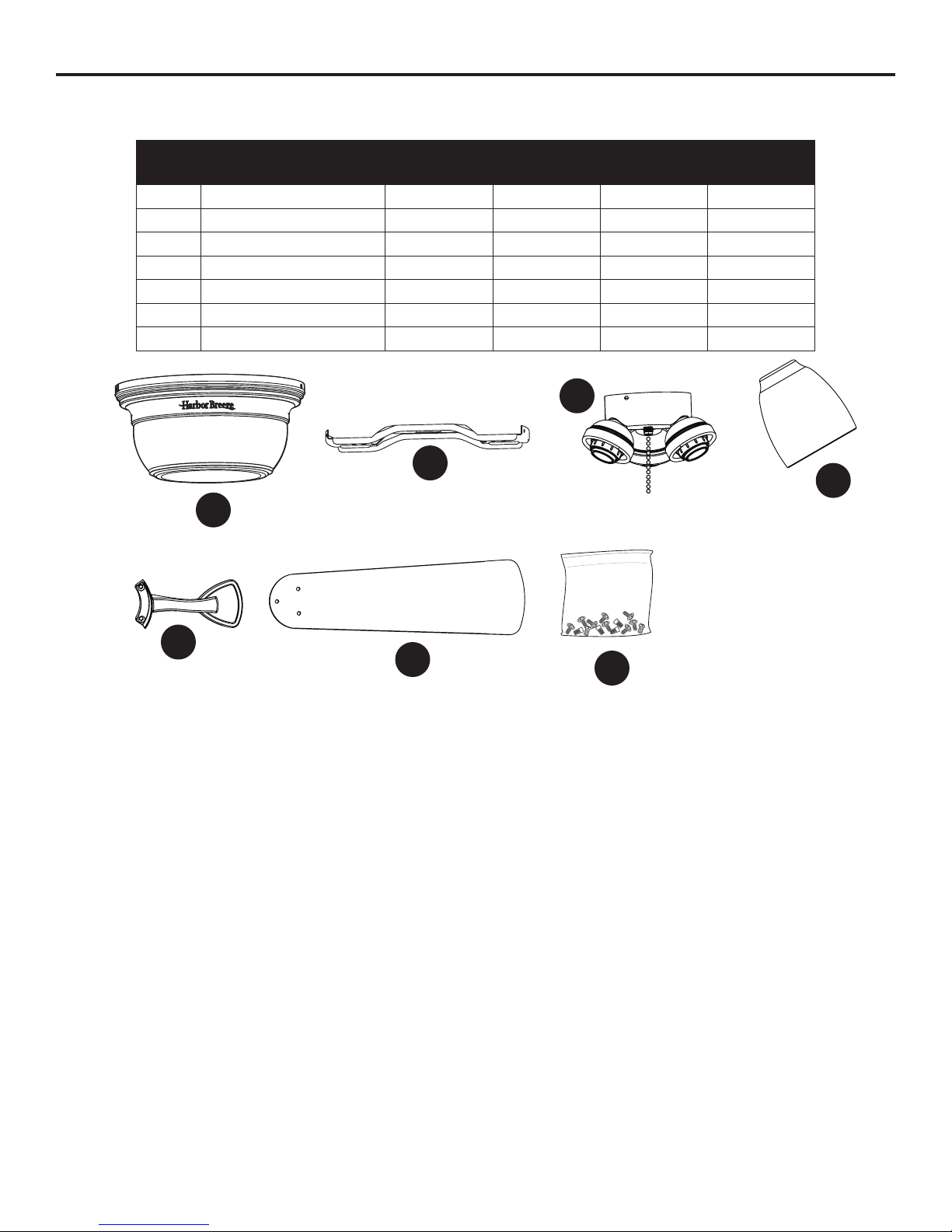

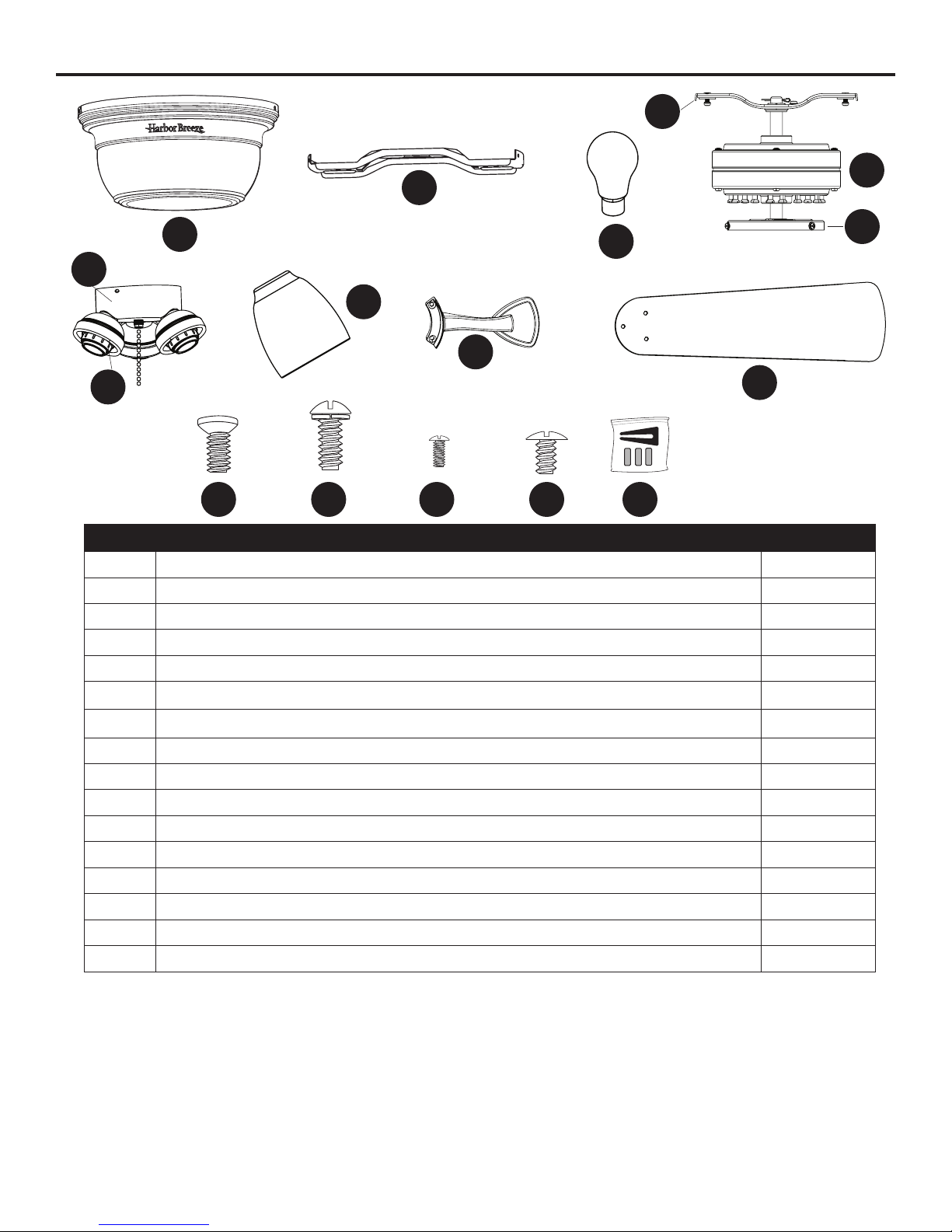

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Motor Housing 1
B Upper Mounting Bracket 1
C Bulb 3
D Lower Mounting Bracket (preassembled to Motor [E]) 1
E Motor 1
F Fitter Plate (preassembled to Motor [E]) 1
G Light Kit 1
H Glass Shade 3
IBlade Arm 5
J Blade 5
K Socket Ring (preassembled to Light Kit [G]) 3
L Motor Screw (preassembled to Motor [E]) 10 + 1 extra
M Lower Bracket Scew (preassembled to Lower Mounting Bracket [D]) 4
N Fitter Plate Screw (preassembled to Fitter Plate [F]) 3
O Motor Housing Screw (preassembled to Upper Mounting Bracket [B]) 4
P Blade Balancing Kit 1
A
B
D
C
E
G
F
H
I
J
K
L M N O P

4

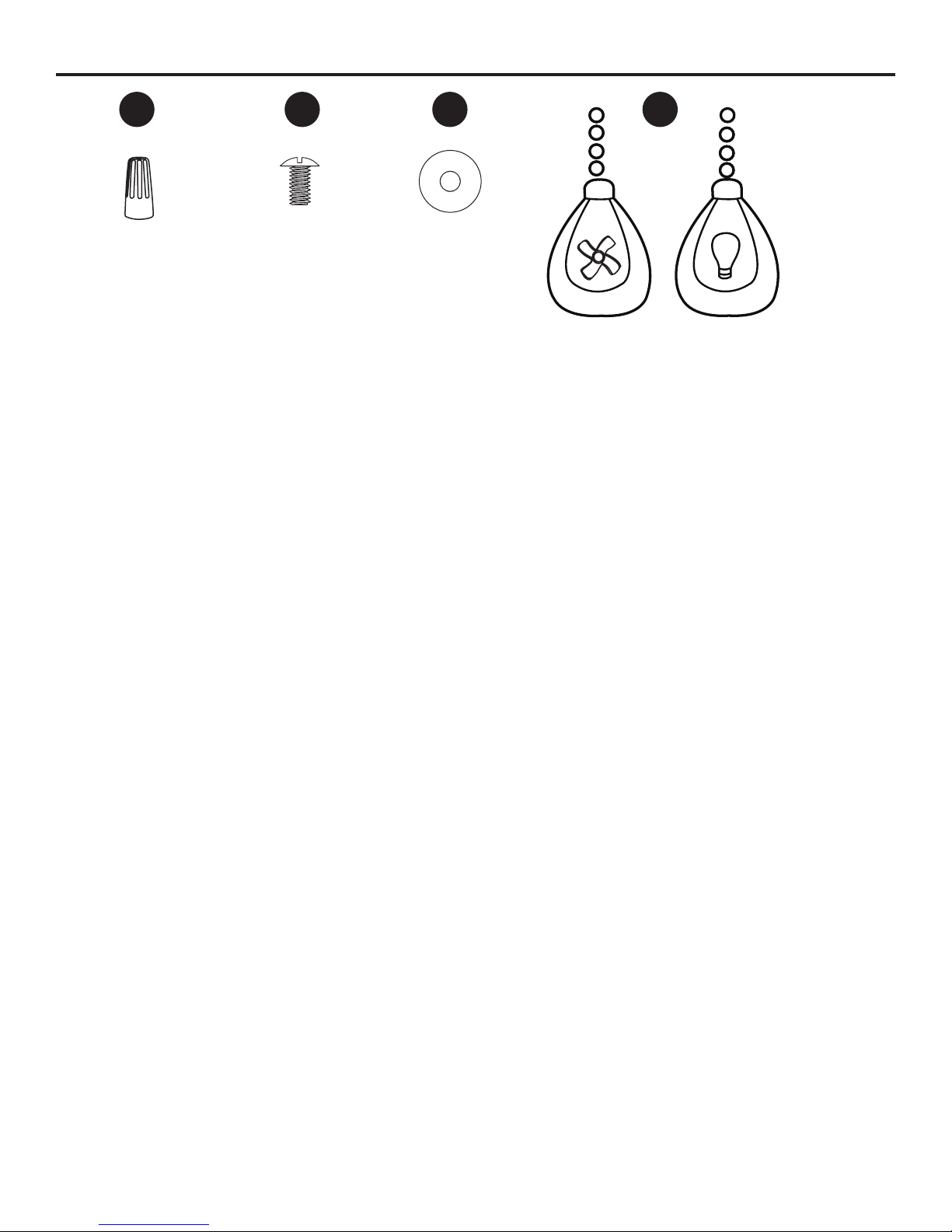

HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain Extension
Qty. 2
AA BB CC DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Beforeyoubegininstallingthefan,disconnectthepowerbyremovingfusesorturningo󰀨thecircuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 13.45 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoan
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
theoutletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipmento󰀨andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connecttheequipmentintoandoutletonacircuitdi󰀨erentfromthattowhichthereceiverisconnected.
--Consult the dealer or an experienced radio/TV technician for help.
Pleasenotechangesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
INITIAL INSTALLATION
1. Turno󰀨thecircuitbreakersandthewallswitchtothe
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1

7
INITIAL INSTALLATION
2. This fan is intended for Flushmount installation.
Standard Mounting, Angle Mounting, and Closemount
installations are not available.
3. Ensure the blades (J) will be at least 30 in. from any
obstructionsandwillbeatleast7ft.abovetheoor.
7 ft. Min
30 in. Min
4. Secure the upper mounting bracket (B) to the
outlet box (not included) using screws and washers
provided with the outlet box.
CAUTION: It is very important that you use the proper
hardware when installing the upper mounting bracket
(B) as it will support the fan.
3
B
Outlet Box
J
4
2
Standard Mounting
Flushmount Closemount
Angle Mounting

8
INITIAL INSTALLATION
5. Remove the lower bracket screws (M) from
underneath the lower mounting bracket (D).
Note: Make sure to keep loose hardware separate to
avoid confusion during installation.
6. Place one tab of the lower mounting bracket (D) into a
slot in the upper mounting bracket (B). Then slide the
second tab of the lower mounting bracket (D) into the
second slot on the upper mounting bracket (B) until all
four holes are in alignment.
7. Re-install the previously removed lower bracket
screws (M) to secure the lower mounting bracket (D)
and the upper mounting bracket (B).
5
6
5
M
D
7
M
D
B
B
B
D
Tab
Tab
Slot
Slot
D

9
WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
•ConnecttheGreenwirefromfantotheBare/Green
supply wire.
•ConnecttheWhitewirefromthefantotheWhite
supply wire.
•ConnecttheBlackandBluewiresfromthefantothe
Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Blue wire is hot power for light. The Green wire is the
groundwire.Ifhouseholdsupplywiresaredi󰀨erent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the
Green and White wire connections on the opposite
side of the outlet box from the Black and Blue wire
connections.
1
3
AA
AA
2
AA

10
FINAL INSTALLATION

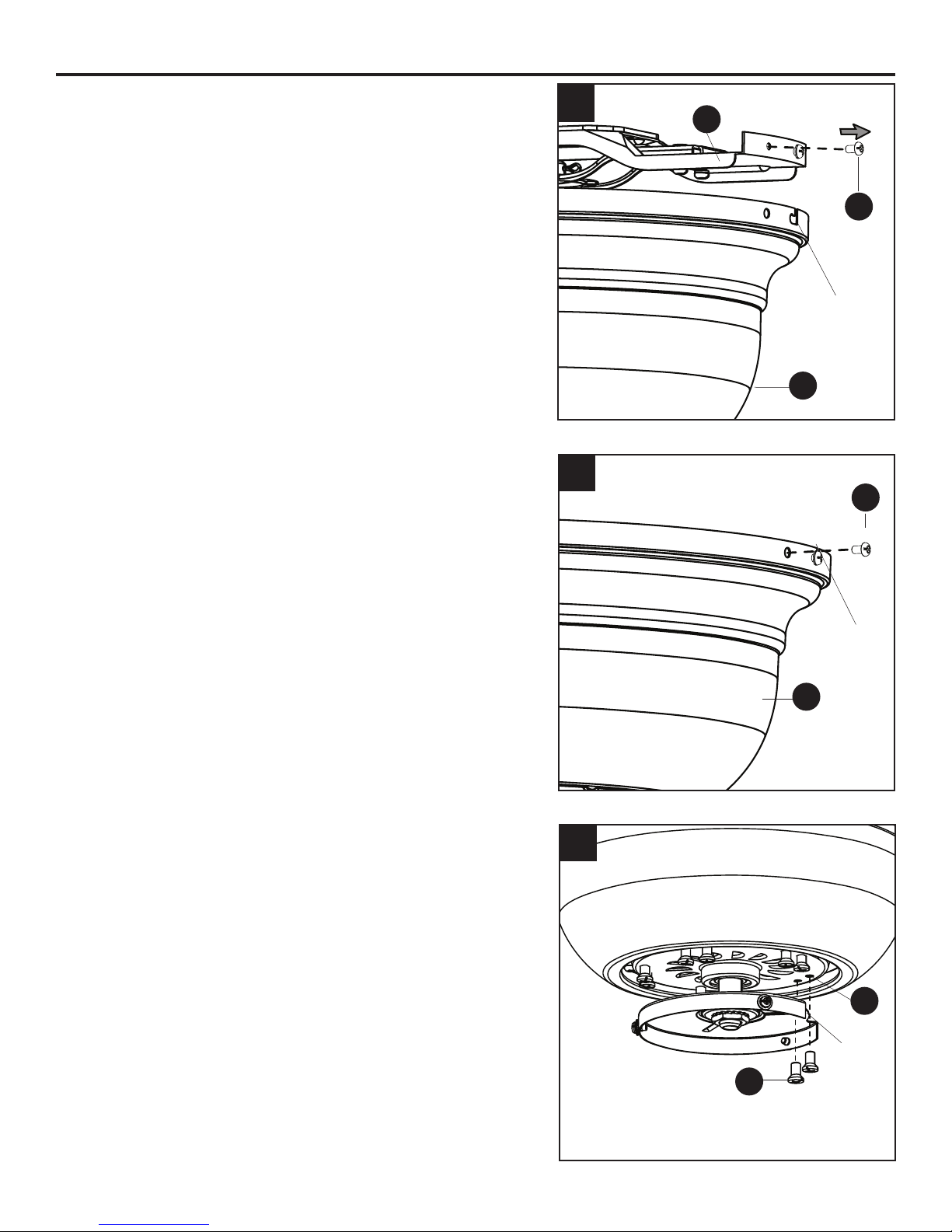

1. Temporarily lift the motor housing (A) to the upper
mounting bracket (B) to determine which two motor
housing screws (O) in the sides of the upper mounting
bracket (B) align with the slotted holes in the top edge
of the motor housing (A). Partially loosen the two motor
housing screws (O) that align with the slotted holes.
Remove the other two motor housing screws (O) from
the upper mounting bracket (B).
2. Slide the motor housing (A) over the motor (E),
aligning the slotted holes in the motor housing (A) with
the loosened motor housing screws (O) in the upper
mounting bracket (B). Twist the motor housing (A)
clockwise to lock. Then re-insert the two previously
removed motor housing screws (O) and securely
tighten all screws.
3. Remove the 10 motor screws (L) from the motor (E)
and save for later use.
Note:ThenotchinthetterplateallowsaPhillips
screwdriver (not included) access to motor screws (L).
3
1
2
A
L
E
B
O
A
Slotted
Hole
Notch
Slotted
Hole
O

11
FINAL INSTALLATION
4. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (J) and into
the blade arm (I). Tighten each blade screw (BB) with
a Phillips screwdriver, starting with the one in the
middle. Repeat this step for the remaining blades (J)
and blade arms (I).
Hardware Used
BB Blade Screw x 15
CC Blade Washer x 15
5. Install the blade arm (I) to the underside of the motor
(E) with motor screws (L) previously removed (Step 3,
page 10). Tighten with Phillips screwdriver.
Repeat for each blade arm (I).
6.Removethetterplatescrews(N)preassembled
tothetterplate(F).Then,connectthesingle-pin
connectorsfromthetterplate(F)andthelightkit
(G) -- blue to black and white to white.
6
4
I
E
L
G
N F
5
Single-pin
Connectors
J
I
BB
CC

12
FINAL INSTALLATION
7.Securethelightkit(G)tothetterplate(F)by
reinstallingthetterplatescrews(N).
8. Unscrew the socket ring (K) from the socket of the
light kit (G). Then lift the glass shade (H) into the light
cup. Secure the glass shade (H) by reinstalling the
socket ring (K).
9. Install bulbs (C) into the sockets of the light kit (G).
N
G
H
G
K
7
8
C
9

13
FINAL INSTALLATION
10. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains (if applicable).
Hardware Used
DD Pull Chain
Extension x 2
11. Turn on power supply to the fan.
Assembly is complete.
10
11
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

14
Fig. 2a Fig. 2b
Fig. 2c
OPERATING INSTRUCTIONS
1. The pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW, and four turns the fan OFF. The pull chain in the
center of the light kit (G) turns the lights ON and OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostatsettinginwinterwithoutfeelingadi󰀨erence
in your comfort. Note: Wait for the fan to stop before
movingthereverseswitchlocatedonthetterplate(F).
In warmer weather, push the reverse switch left to
displayasunicon,whichwillresultindownwardairow
creatingawindchille󰀨ect(Fig.2a).
In cooler weather, push the reverse switch right to
displayasnowakeicon,whichwillresultinupward
airowthatcanhelpmovehotairo󰀨theceilingarea
(Fig. 2b).
Important:The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
1
2
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
F
Fan Pull
Chain
Light Pull
Chain
G

15
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
orlint-freeclothtoavoidscratchingthenish.Cleanthebladeswithalint-freecloth.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shuto󰀨themainpowersupplybeforeyoubeginanymaintenancetasks.Donotuse
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. Thepoweriso󰀨orthefuseis
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the fuse.
2. Turnthepowero󰀨.Loosenthe
canopy and check all connections.
3. Check that the connectors from the
light kit and fan are connected properly.
4. Push the reverse switch completely
to the left or right.
There is excessive
wobbling.
1. The blades and/or blade are loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
1. Check and tighten all screws that
hold the fan blades to the blade arms
and the blade arms to the motor.
2. Switch one blade with a blade from
the opposite side. Or balance the fan
using the blade balancing kit (P).
3. Turno󰀨thepower.Loosenthe
motor housing and verify the upper
mounting bracket is secure to the
electrical outlet box. The bracket must
beushwithoutmovementagainst
the outlet box.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire connection.
1. Re-install the bulb(s).
2. Ensure the single-pin connectors in
the light kit are connected properly.
3. Turnthepowero󰀨andcheckall
connections at the ceiling outlet box.

16
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbya󰀩xinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. Wall control is not compatible with
the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade arms
and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that the
screws are tight.

17 Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION #0732082
PART#
#0807429
PART#
#0807432
PART#
#0807433
PART#
A Motor Housing 0732082-A 0807429-A 0807432-A 0807433-A
B Upper Mounting Bracket 0732082-B 0807429-B 0807432-B 0807433-B
G Light Kit 0732082-G 0807429-G 0807432-G 0807433-G
H Glass Shade 0732082-H 0807429-H 0807432-H 0807433-H
IBlade Arm 0732082-I 0807429-I 0807432-I 0807433-I
J Blade 0732082-J 0807429-J 0807432-J 0807433-J
HW Hardware Kit 0732082-HW 0807429-HW 0807432-HW 0807433-HW
9193 ·102416
A
B
G
H
IJHW

18
H
a
r
b
o
r
B
r
e
e
z
e
ARTÍCULO #0732082, 0807429, 0807432, 0807433
VENTILADOR DE TECHO
CENTREVILLE DE 106,68 CM
MODELO #41239, 40689, 40687, 40688
Harbor Breeze®es una marca registrada de LF, LLC.
Todos los derechos reservados.
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m. a 6 p.m.,
y los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
ADJUNTE SU RECIBO AQUÍ
Fecha de compra _________________________

19
Contenido del paquete ............................................................20
Aditamentos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Información de seguridad ..........................................................22
Preparación .....................................................................23
Instalación inicial .................................................................23
Cableado .......................................................................26
Instalación nal ..................................................................27
Instrucciones de funcionamiento.....................................................31
Cuidado y mantenimiento ..........................................................32
Solución de problemas ............................................................32
Garantía limitada de por vida .......................................................34
Lista de piezas de repuesto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
ÍNDICE

20
CONTENIDO DEL PAQUETE
PIEZA DESCRIPCIÓN CANTIDAD
A Carcasa del motor 1
B Abrazadera de montaje superior 1
C Bombilla 3
D Abrazadera inferior de montaje (preensamblada al motor [E]) 1
E Motor 1
F Placa de soporte (preensamblada al motor [E]) 1
G Kit de iluminación 1
H Pantalla de vidrio 3
I Brazo del aspa 5
J Aspa 5
K Anillo del portalámpara (preensamblado en el kit de iluminación [G]) 3
L Tornillo del motor (preensamblada al motor [E]) 10 y 1 adicional
M Tornillo de abrazadera de montaje (preensamblada en abrazadera
inferior de montaje [D]) 4
N Tornillo de placa de soporte (preensamblado en la placa de soporte [F]) 3
OTornillo de la carcasa del motor (preensamblado en la abrazadera de
montaje superior [B]) 4
P Kit de equilibrio 1
A
B
D
C
E
G
F
K
H
I
J
L M N O P
