Harman JBL VM200 User manual

QUICK START GUIDE
VERSION: 25/12/2019
VM200 WIRELESS MICROPHONE SYSTEM
Thanks for purchasing JBL VM200 wireless microphone system.
JBL VM200 boasts ultra-clarity and reliable wireless performance, and meets the high standard from either small karaoke entertainment
sound application, or professional applications, such as small flowing performance and small hall sound reinforcement. It provides the
following features:
• Preset frequency/channel module for Ch-A and Ch-B
• Auto Scan
• Synchronization through IR
• Auto Mute
• Auto Sleep
• Auto Wakeup
Each package includes one SR200 receiver and two HT200 hand-held transmitters.
Remind: Please do not use more than 18 sets in one Karaoke venue. (Based on one set per room)
11. Pick-up:For vocal or instrument sound pick-up.
DON'T hand hold or block this area when using HT200.
12. LCD: Shows status of HT200: battery level, frequency/channel, mute, etc.
13. On/Off button: Long press the button to turn HT200 on or off. This button can also be
used to activate or deactivate its auto mute function.
14. Grip/Battery compartment: Hold this area when using HT200. Twist it off to install
or replace the batteries or prepare HT200 for frequency/channel synchronization with
SR200 through IR.
15 Antenna: For wireless transmission of RF signal.
DON'T block this area when using HT200.
ABOUT VM200 PACKING LIST
1) 1 ×SR200 receiver
2) 2 ×HT200 hand-held transmitters
3) 2 ×Antennas
4) 1 ×Power adapter(plug type varies by region)
5) 1 ×Audio cable (with 6.35 mm plug)
6) 2 ×Anti-rolling rubber rings
7) 4 ×AA batteries
8) 1 ×Quick Start Guide
USER INTERFACE
1. Volume (A/B):To lock/unlock SR200, adjust channel volume, or configure channel
settings, etc.
NOTE: Settings of each channel include: (to set the channel frequency),
(to output of HT200), (to set auto attenuation of the output gain of
the channel), (to set the display mode).
2. Auto Scan: To enable or disable automatic search for available frequencies. Only
effective when SR200 is unlocked.
3. Auto Sync: To enable or disable automatic frequency synchronization between SR200
and HT200. Only effective when SR200 is unlocked.
4. IR Sensor: For frequency synchronization with HT200.
5. LCD: Shows status of Ch-A and Ch-B: audio signal level, RF signal level, frequency/
channel, mute,HT200 handheld battery level,etc.
6. Frequency/Channel Module:To select preset frequency/channel module for Ch-A
and Ch-B. Only effective when SR200 is unlocked.
7. Antenna: Connect the UHF antennas provided.
DON'T block this area when using SR200.
8. On/Off button: To turn SR200 on or off.
9. Power Input:Power requirement: 12V DC, 1A. Connect the power adapter
provided.
10. Mix Out: 6.35 mm unbalanced TS connector. Use the 6.35 mm audio cable supplied
and connect it to downstream audio devices (e.g. audio processors).
System Frequency Band: 640 MHz - 690 MHz
Channels: 40
Operating Range: ≈ 40 meters
Frequency Increment: 1 MHz
Frequency Bandwidth: 50 MHz
S/N Ratio: ≥ 50 dB (including pickup,
according to China GB
standard)
Shipping Weight: 2.5 kg
Dimensions (L×W×D): 480 ×340 ×70 mm
SR200 Display: LCD
Power Requirement: 12V DC, 1A
Connector: 1 ×6.35mm unbalanced TS
HT200 Transmission Power: < 30 mW
Frequency Deviation: ±10 kHz
Display: LCD
Microphone capsule: Dynamic (super cardioid)
RF Output power: High, Low
Battery: 2 x AA
SPECIFICATIONS
Lock/Unlock SR200
①Long press the Volume knobs (1) of both Ch-A and Ch-B to lock or unlock SR200.
②When SR200 is locked, its LCD shows " "; When SR200 is unlocked, its LCD
shows " ".
Adjust Channel Volume
①Unlock SR200.
②Rotate the Volume knob (1) of Ch-A or Ch-B to adjust the volume of the channel.
Select Frequency/Channel Module
①Unlock SR200.
②Short press the Module buttons (6) to select preset frequency/channel group for Ch-A and
Ch-B. When selection is done, the system stores the selection automatically.
Configure Channel Settings
①Unlock SR200.
②Long press the Volume knob (1) of Ch-A or Ch-B to start setting of the selected channel.
The LCD shows " ".
③Rotate the Volume knob (1) to select the target setting.
④Short press the Volume knob (1) to see parameters of the setting.
⑤Rotate the Volume knob (1) again to select the target parameter.
⑥To confirm the selection, short press the Volume knob (1). The LCD shows " " or
" ".
Start Auto Scan
①Short press the Auto Scan button (2). The LCD shows " ".
②Short press the Volume knob (1) of Ch-A or Cha-B to start searching for available
frequency/channel for the channel.
③When searching is done, the LCD shows the available frequency/channel for the channel.
Synchronize through IR
①Unlock SR200.
②Short press Auto Sync button (3). The LCD shows " ".
③Short press the Volume knob (1) of Ch-A or Cha-B to start automatic synchronization for
the channel. The LCD shows the frequency/channel by flashing.
④Turn one HT200 on. Twist its Grip (14) off.
⑤Place the HT200 near SR200, and ensure that its front or LCD is facing the IR Sensor (4) of
SR200.
⑥When synchronization is successful, the LCD (12) of the HT200 displays the same
frequency/channel as shown on SR200.
Activate / Deactivate Auto Mute of HT200
①When HT200 is on, long press its On/Off button (13) for 10 seconds to activate or
deactivate the auto mute function of HT200.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accord-
ance with manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus that produce
heat.
9. Do not defeat the safety purpose of the grounding type
plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacle and the
point where the power cord connects to the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Unplug this apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servic-
ing is required when the apparatus has been damaged
in any way, including: power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
14. The appliance coupler of the power supply cord is used
as the ultimate disconnect device from the mains. The
appliance coupler shall remain readily operable.
15. The apparatus shall be connected to mains socket outlet
with a protective earthing connection.
16. Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
WARNING:
•To reduce the risk of fire or electrical shock, do not
expose the apparatus to rain or moisture.
•Do not expose the apparatus to dripping or splashing
and do not place objects filled with liquids, such as vas-
es, on the apparatus. No naked flame sources, such as
lighted candles, should be placed on the apparatus.
CAUTION: TO REDUCE THE RISK OF ELECTRONIC
SHOCK - DO NOT REMOVE COVER. NO USER SERVICE-
ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
PERSONNEL. DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
OPERATION INSTRUCTIONS
SAFETY INSTRUCTIONSMENU TREE (SR200)
Settings Parameters
(set frequency of the
channel)
Short press the Volume knob (1) of the channel
... ...
Short press the Volume knob (1) of the channel,
then LCD display (5)shows
or
(set RF output of HT200
of the channel)
(set RF output of HT200 to high)
(set RF output of HT200 to low)
(set auto attenuation of
the output gain of the
channel)
(auto attenuation by 0 dB)
(auto attenuation by -2 dB)
(auto attenuation by -4 dB)
(set channel display
mode of the channel)
(display the channel in "Channel")
(display the channel in "Frequency")
* Default value of the setting.
** Only effective when two HT200s are working.
WARRANTY
If your JBL product ever needs service, please contact
your local dealer, Harman Authorized Service Center or
Harman China Professional Product Customer Service
Hotline (400 166 7806). We may direct you to an
authorized JBL Service Agency or ask you to send your
unit to the factory for repair. Either way, you’ll need to
present the original bill of sale to establish the date of
purchase. Please do not ship your JBL product to the
factory without prior authorization. If transportation of your
JBL product presents any unusual difficulties, please
advise us and we may make special arrangements with
you. Otherwise, you are responsible for transporting your
product for repair or arranging for its transportation and for
payment of any initial shipping charges. However, we will
pay the return shipping charges if repairs are covered by
the warranty.
How To Obtain Warranty Performance
All implied warranties, including warranties of merchantabili-
ty and fitness for particularpurpose, are limited in duration to
the length of this warranty.
LIMITATION OF IMPLIED WARRANTIES
JBL’s liability is limited to the repair or replacement, at our
option, of any defective product and shall not include
incidental or consequential damages of any kind. some
states do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion of
incidental or consequential damages, so the above
limitations and exclusions may not apply to you. this
warranty gives you specific legal rights, and you may also
have other rights, which vary, from state to state.
EXCLUSION OF CERTAIN DAMAGES
JBL offers a limited warranty on the VM200 wireless
microphone from the data of the original purchase.
Your JBL Warranty protects the original owner and all
subsequent owners for one year, so long as: A.) Your JBL
product has been purchased in China, Japan and/or other
Asian countries. (This Warranty does not apply to JBL
products purchased elsewhere except for purchases by
military outlets. Other purchasers should contact the local
JBL distributor for warranty information.); and B.) The original
dated bill of sale is presented whenever warranty service is
required.
JBL will pay all labor and material expenses for all repairs
covered by this warranty. Please be sure to save the original
shipping cartons because a charge will be made if
replacement cartons are requested. Payment of shipping
charges is discussed in the next section of this warranty.
Who Is Protected By This Warranty?
WHO PAYS FOR WHAT?
Except as specified below, your JBL Warranty covers all
defects in material and workmanship. The following are not
covered: Damage caused by accident, misuse, abuse,
product modification or neglect; damage occurring during
shipment; damage resulting from failure to follow instructions
contained in your Instruction Manual; damage resulting from
the performance of repairs by someone not authorized by
JBL; claims based upon any misrepresentations by the seller;
any JBL product on which the serial number has been
defaced, modified or removed.
WHAT DOES THE JBL WARRANTY COVER?
CONTACT
JBL Professional
8500 Balboa Blvd.
Northridge, CA 91329
Monday through Friday
8:00am - 5:00pm
Pacific Coast Time in the U.S.A.
(800) 8JBLPRO (800.852.5776)
www.jblproservice.com
www.jblpro.com
Mailing Address:
Customer Service:
On The World Wide Web:
JBL Professional
8500 Balboa Blvd., Dock 15
Northridge, CA 91329
(Do not return product to this address
without first obtaining prior authorization
from JBL)
Contact the JBL Professional Distributor in
your area. A complete list of JBL Profession-
al international distributors is provided at our
U.S.A. website: www.jblpro.com
Shipping Address:
Professional Contacts, Outside the USA:
Register your product online at
www.jblpro.com
Product Registration:
MHz
MHz
© 2019 HARMAN International Industries, Incorporated. All rights reserved.
Features, specifications and appearance are subject to change without notice.
HARMAN Professional 8500 Balboa Blvd. Northridge, CA 91329 USA

Other Harman Microphone System manuals

Harman AKG DMS800 User manual

Harman

Harman AKG DMS800 User manual

Harman AKG KM200 User manual

Harman

Harman AKG KM200 User manual

Harman AKG CMS380 User manual

Harman

Harman AKG CMS380 User manual

Harman JBL VM300 User manual

Harman

Harman JBL VM300 User manual

Harman AKG DMM12 User manual

Harman

Harman AKG DMM12 User manual

Harman AKG DMS70 Quattro/Dual User manual

Harman

Harman AKG DMS70 Quattro/Dual User manual

Harman AKG WMS420 User manual

Harman

Harman AKG WMS420 User manual

Harman AKG WMS420 User manual

Harman

Harman AKG WMS420 User manual

Harman DMS 70 QUATTRO User manual

Harman

Harman DMS 70 QUATTRO User manual

Harman AKG WMS4500 User manual

Harman

Harman AKG WMS4500 User manual

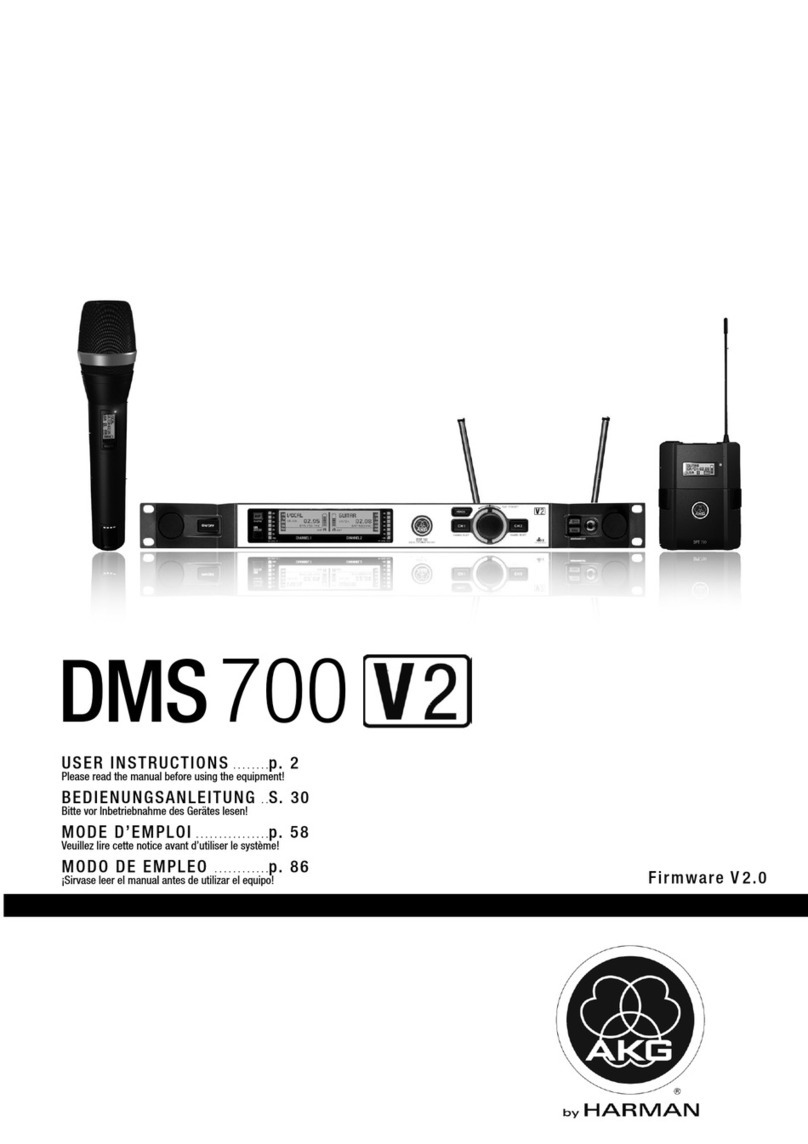

Harman AKG DMS 700 V2 User manual

Harman

Harman AKG DMS 700 V2 User manual

Harman AKG WMS420 User manual

Harman

Harman AKG WMS420 User manual

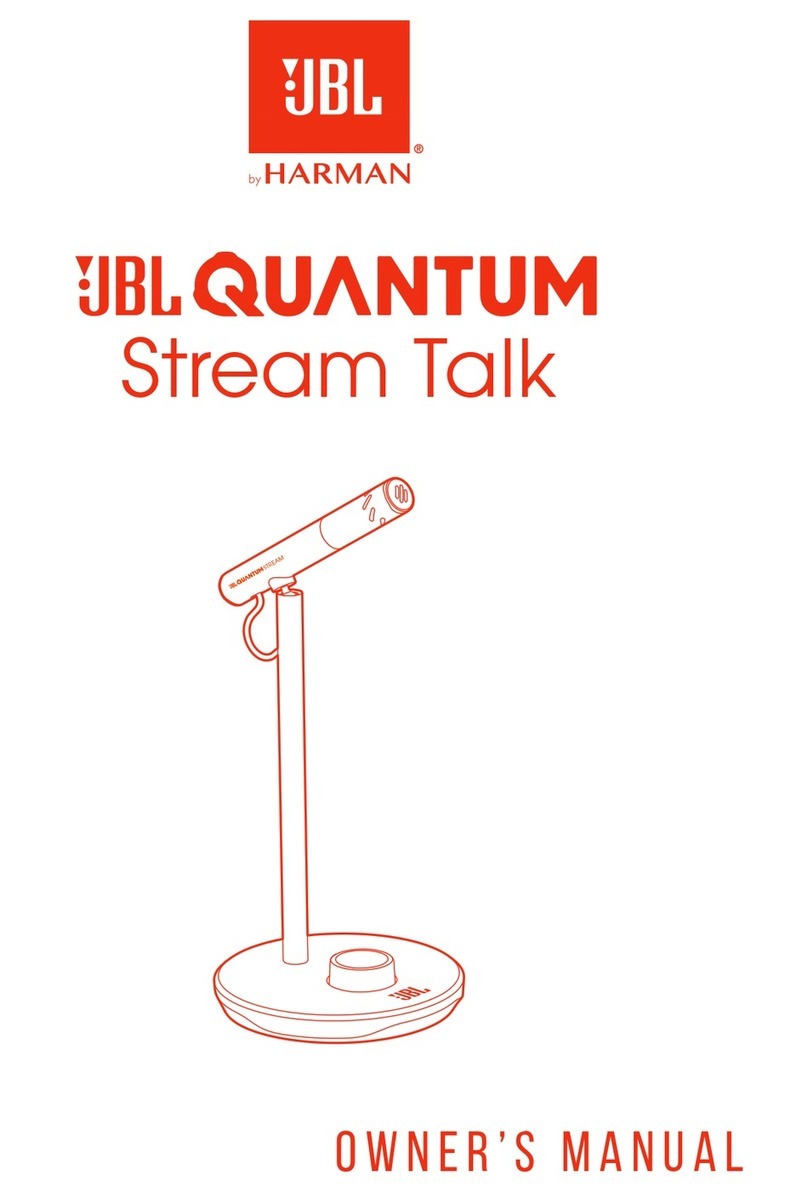

Harman JBL QUANTUM Stream Talk User manual

Harman

Harman JBL QUANTUM Stream Talk User manual

Harman AKG DHT800 User manual

Harman

Harman AKG DHT800 User manual

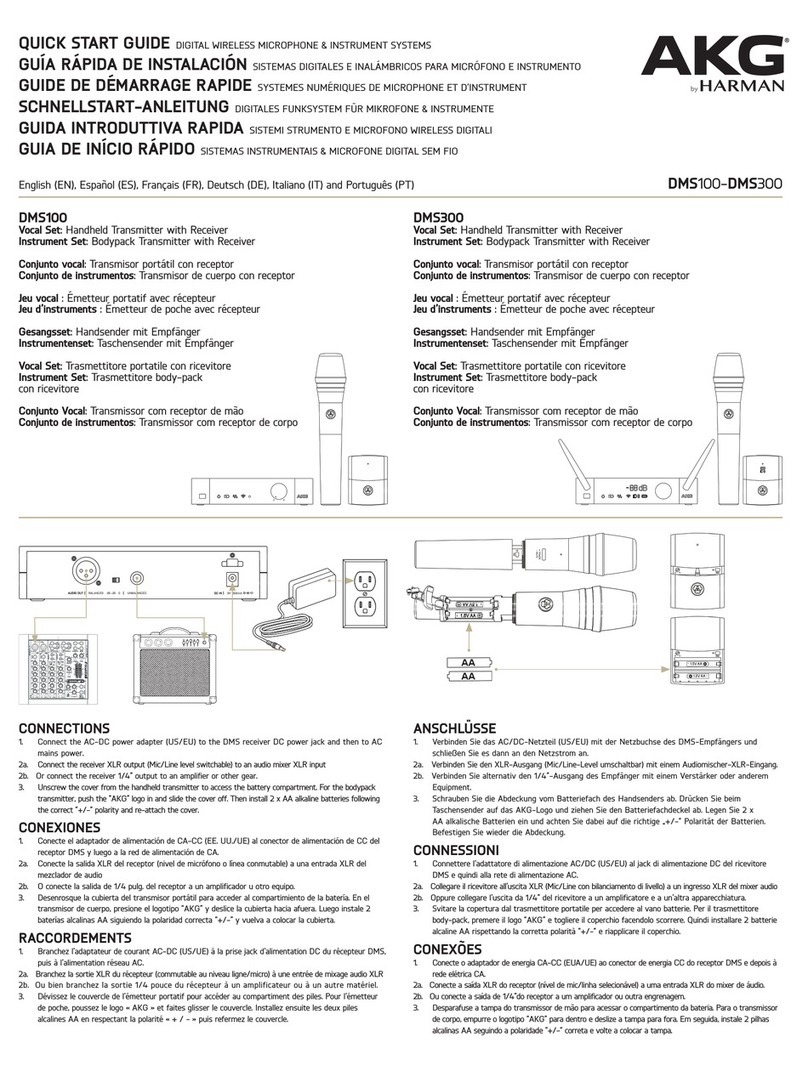

Harman AKG DMS100 User manual

Harman

Harman AKG DMS100 User manual

Popular Microphone System manuals by other brands

AKG PT 400 User instructions

AKG

AKG PT 400 User instructions

Auburn Gear Power Wheel Model 6 Service manual

Auburn Gear

Auburn Gear Power Wheel Model 6 Service manual

Otto NoizeBarrier quick start guide

Otto

Otto NoizeBarrier quick start guide

American Audio UHF Series user manual

American Audio

American Audio UHF Series user manual

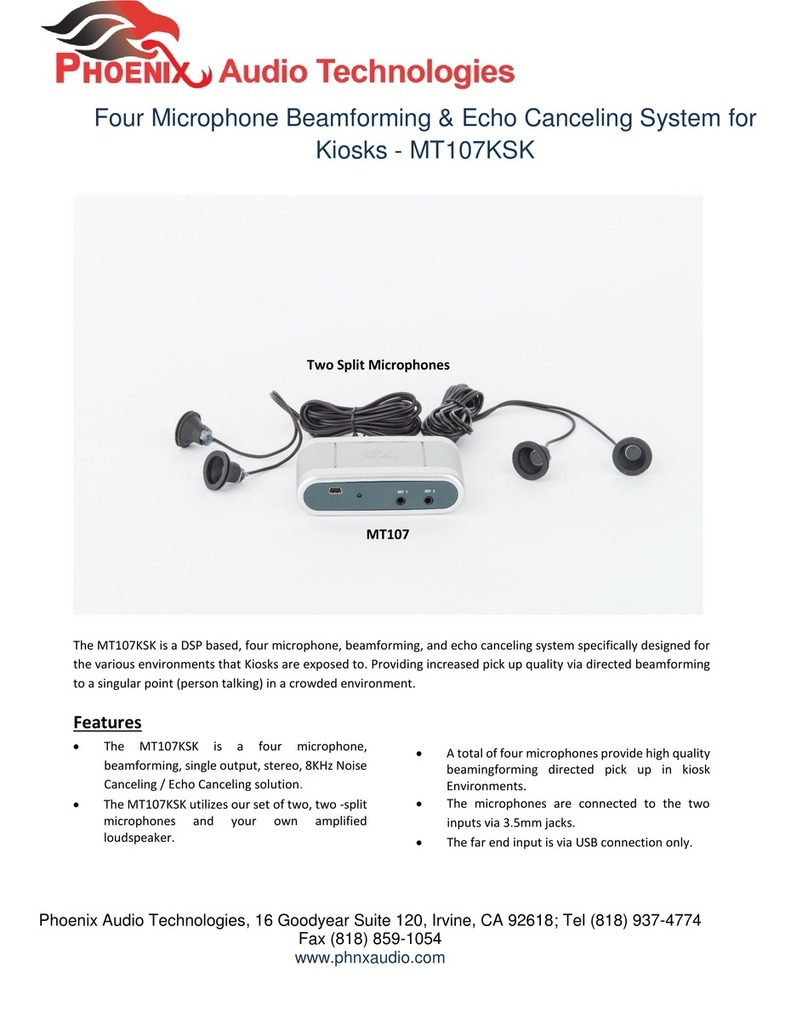

Pheonix Kiosks MT107KSK user guide

Pheonix

Pheonix Kiosks MT107KSK user guide

Beyerdynamic Opus 910 operating instructions

Beyerdynamic

Beyerdynamic Opus 910 operating instructions

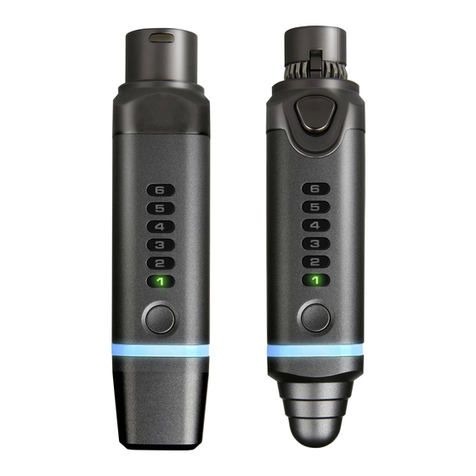

nux B-3 Plus manual

nux

nux B-3 Plus manual

Topp Music Gear TMW-9161 user manual

Topp Music Gear

Topp Music Gear TMW-9161 user manual

Hollyland CH12 Product information

Hollyland

Hollyland CH12 Product information

Voscom VOS-4020FDT/R Series installation manual

Voscom

Voscom VOS-4020FDT/R Series installation manual

PROEL BPLL manual

PROEL

PROEL BPLL manual

Nady Systems ALD-800 owner's manual

Nady Systems

Nady Systems ALD-800 owner's manual

Porsche 930 TURBO - 1989 GENERAL DATA manual

Porsche

Porsche 930 TURBO - 1989 GENERAL DATA manual

Phoenix Contact RAD-ISM-2400-SET-UD-ANT manual

Phoenix Contact

Phoenix Contact RAD-ISM-2400-SET-UD-ANT manual

HME ION IQ operating instructions

HME

HME ION IQ operating instructions

RELACART PM-160 Installation and operation

RELACART

RELACART PM-160 Installation and operation

Huawei OptiX RTN 980 Quick installation guide

Huawei

Huawei OptiX RTN 980 Quick installation guide

Godox WMicS1 instruction manual

Godox

Godox WMicS1 instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
