HENNESSY INDUSTRIES coats 525 User manual

525 Light Duty Tire Lift
For Use With COATS Direct Drive Series Wheel Balancers
READ these instructions before placing unit in
service. KEEP these and other materials delivered
with the unit in a binder near the machine for ease
of reference by supervisors and operators.
Safety Instructions
Setup Instructions
Operating Instructions
Maintenance Instructions
with Parts Identification
1601 J. P. Hennessy Drive, La Vergne, TN USA 37086 615/641-7533 800/688-6359 www.coatsgarage.com Manual Part No.: 85611991 00
HENNESSY INDUSTRIES LLC Manufacturer of COATS®, AMMCO® and BADA® Automotive Service Equipment and Tools. Revision: 12/20

2 • Important: Always read and follow instructions.
Safety Instructions
Safety Notices and Decals
Failure to follow danger, warning, and
caution instructions may lead to serious
personal injury or death to operator or
bystander or damage to property. Do not
operate this machine until you read and
understand all the dangers, warnings and
cautions in this manual. For additional cop-
ies of either, or further information, contact:
Hennessy Industries LLC
1601 J.P. Hennessy Drive
LaVergne, TN 37086-3565
[phone] or [phone]
www.hennessyind.com
Definitions of Hazard Levels
Identify the hazard levels used in this manual with the
following definitions and signal words:
DANGER
Watch for this symbol:
It Means: Immediate hazards, which will result in
severe personal injury or death.
WARNING
Watch for this symbol:
It Means: Hazards or unsafe practices, which could
result in severe personal injury or death.
CAUTION
Watch for this symbol:
It Means: Hazards or unsafe practices, which may
result in minor personal injury or product or property
damage.
Watch for this symbol! It means BE ALERT! Your
safety, or the safety of others, is involved!
Readentiremanualbeforeassembling,installing,
operating, or servicing this equipment.
NOTICE

Important: Always read and follow instructions. • 3
1. Read and understand this manual and all on-
machine labels before operating this equipment.
Abuse and misuse will shorten the functional life.
2. Do not operate equipment if the equipment has
been dropped or damaged until a qualified service
technician has examined it.
3. Keep hair, loose clothing, fingers and all other body
parts away from moving parts.
4. Use only as described in this manual. Use only
manufacturer’s recommended attachments.
5. ALWAYS WEAR SAFETY GLASSES. Everyday
glasses only have impact resistant lenses; they are
NOT safety glasses.
6. Keep guards and safety features in place and in
working order.
7. Wear proper clothing. Safety toe, non-slip footwear
and protective hair covering to contain hair are rec-
ommended. Do not wear jewelry, loose clothing,
neckties when operating the tire lift.
8. Keep work area clean and well lighted. Cluttered
and/or dark areas invite accidents.
9. Repair or replace any part that is damaged or worn
and that may cause unsafe operation.
10. Never overload or stand on the tire lift.
11. Do not allow untrained persons to operate
machinery.
12. Disconnect lift from air source and activate valve
in both directions to ensure stored air is bled to
atmosphere before servicing.
Operator Protective Equipment
Personal protective equipment helps make tire servic-
ing safer. However, equipment does not take the place
of safe operating practices. Always wear durable work
clothing during tire service activity. Loose fitting cloth-
ing should be avoided. Tight fitting leather gloves are
recommended to protect operator’s hands when han-
dling worn tires and wheels. Sturdy leather work shoes
with steel toes and oil resistant soles should be used
by tire service personnel to help prevent injury in typi-
cal shop activities. Eye protection is essential during
tire service activity. Safety glasses with side shields,
goggles, or face shields are acceptable. Back belts pro-
vide support during lifting activities and are also helpful
in providing operator protection. Consideration should
also be given to the use of hearing protection if tire
service activity is performed in an enclosed area, or if
noise levels are high.
Owner’s Responsibility
To maintain machine and user safety, the responsibil-
ity of the owner is to read and follow these instructions:
• Follow all installation instructions.
• Make sure installation conforms to all appli-
cable Local, State, and Federal Codes, Rules,
and Regulations; such as State and Federal
OSHA Regulations and Electrical Codes.
• Carefully check the unit for correct initial
function.
• Read and follow the safety instructions. Keep
them readily available for machine operators.
• Make certain all operators are properly
trained, know how to safely and correctly oper-
ate the unit, and are properly supervised.
• Allow unit operation only with all parts in
place and operating safely.
• Carefully inspect the unit on a regular basis
and perform all maintenance as required.
• Service and maintain the unit only with
authorized or approved replacement parts.
• Keep all instructions permanently with the
unit and all decals/labels/notices on the unit
clean and visible.
• Do not override safety features.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

4 • Important: Always read and follow instructions.
Introduction
When attached to a Coats®wheel balancer, use
the Coats 525 Light Duty Tire Lift to position wheel
assemblies for mounting on the balancer stub shaft.
Any other use is improper. Before beginning any kind
of work on or with this machine, carefully read and
understand the contents of these operating instruc-
tions. Keep this manual near the machine and consult
it as needed during operations.
Specifications
Working Pressure.................................120-150 PSI
Maximum Wheel Diameter ......................44 inches
Maximum Wheel Weight ........................... 160 lbs.
Tire Lift Weight ........................................... 140 lbs.
Before you Begin
The shipment should be thoroughly inspected as
soon as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in good con-
ditions of the shipment covered by our invoice. If any of
the goods called for on this bill of lading are shorted or
damaged, do not accept them until the carrier makes a
notation on the freight bill of the shorted or damaged
goods. Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any hidden loss
or damage is discovered after receipt and ask the car-
rier to make an inspection. If the carrier will not do so,
prepare a signed statement to the effect that you have
notified the carrier (on a specific date) and that the car-
rier has failed to comply with your request.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAM-
AGE AFTER YOU HAVE GIVEN THE CARRIER A CLEAR
RECEIPT.
File your claim with the carrier promptly. Support
your claim with copies of the bill of lading, freight bill,
invoice, and photographs, if available.
Although COATS responsibility ceases upon delivery
of the shipment to the carrier, we will gladly assist in
tracing lost shipments. Our willingness to assist in
every possible manner does not make COATS respon-
sible for collection of claims or replacement of lost or
damaged materials. Shipping damage claims will not
be handled under warranty.
Transport
Overall Packing Size ................ 44 x 25 x 11 inches
Gross Weight (Tire Lift on Pallet)................ 185 lbs.
Unpacking
Once the packing material has been removed, check
the unit visually for any signs of damage. Remove the
shipping bolts that secure the unit to the pallet.
Figure 1 - Packaged Unit

Important: Always read and follow instructions. • 5
Principal Operating Parts ( Lift P/N: 800525)
5
1
3
1VALVE BOX — Supports toggle pedal to raise /
lower the WHEEL TRAY and holds valve
2BACK PLATE ASSY — To clamp the Lift and Bal-
ancer together and bolt the BOTTOM BASETRACK
to Wheel Balancer via this BACK PLATE ASSY.
3TOP TRACK — A TRACK that supports and guides
the WHEEL TRAY
4WHEEL TRAY — Holds tire/wheel assembly. Use
to load or unload a tire/wheel assembly to or from
the 525Tire Lift.
5WHEEL RAMP — Use to load or unload a tire/
wheel assembly to or from the 525 Tire Lift.
6SCISSOR FEATURE — Use to raise/lower the
TOP TRACK
7BASE TRACK — A TRACK that holds the SCIS-
SOR ASSEMBLY and CYLINDER,also supplies con-
nection to Wheel Balancer.
8CYLINDER — To supply power to drive scissor
open/close in order to raise / lower the WHEEL
TR AY.
9PEDAL — Actuate toggle pedal right/left. to raise /
lower the WHEEL CARRIER/TRAY.
10 INLET LEADER HOSE — used to attach the Lift
to an air source.Customer suppliers the proper fit-
ting for their air system.
2
4
6
87
9
10

6 • Important: Always read and follow instructions.
Installation
Pneumatic Connection
Connect air intake to a compressed air system with
a working pressure of 120-150 PSI. Use a compressed
air hose with an inside diameter of 1/4” - 3/8”.
Make sure air hose is free of the BASE
TRACK area. If the air hose is damaged, the
Tire Lift may descend unexpectedly.
Assembly Instructions
Tools Required:
• Marker
• Tape or Ruler
• 13-mm Socket
• 13-mm Spanner
• 3/8-in Socket
• Ratchet
• Claw Hammer
• Customer supplied fitting
525 Light Duty Tire Lift Components:
• PEDAL BOX ASSY (1,9)
• BACK PLATE ASSY (2)
• LIFT ASSY (3,4,6,7,8)
• WHEEL RAMP (5)
1. Position unit by the wheel balancer;
unpack the box as (fig 2) shown, and remove
all side walls
Figure 2 - Unpack the box remove all side walls.
2. Remove 2 screws as (fig 3) shown, then slide the
PEDAL BOX ASSY along the direction as the arrow
showing to disenagage from the BASE TRACK. Put it
aside,and then put WHEEL RAMP aside for later use.
Figure 3 - Remove 2 screws and slide the PEDAL BOX ASSY
as shown by arrow.
3. Remove 2 screws (fig 4)and move LIFT ASSY below
the Balancer stub shaft.
Figure 4 - 2 screws
4. Slide LIFT ASSY so the BASE TRACK is up against
the wheel balancer chassis;below the stub shaft. With
the aid of a tape measure,place the BASE TRACK
2.8-inches from the balancer edge as shown (fig 5)
Figure 5 - Position LIFT ASSY against Wheel Balancer
5. Loosen the 2 bolts, lift the BACK PLATE upward
until the bolt is against the chassis edge( fig 6),and then
tighten the bolts.

Important: Always read and follow instructions. • 7

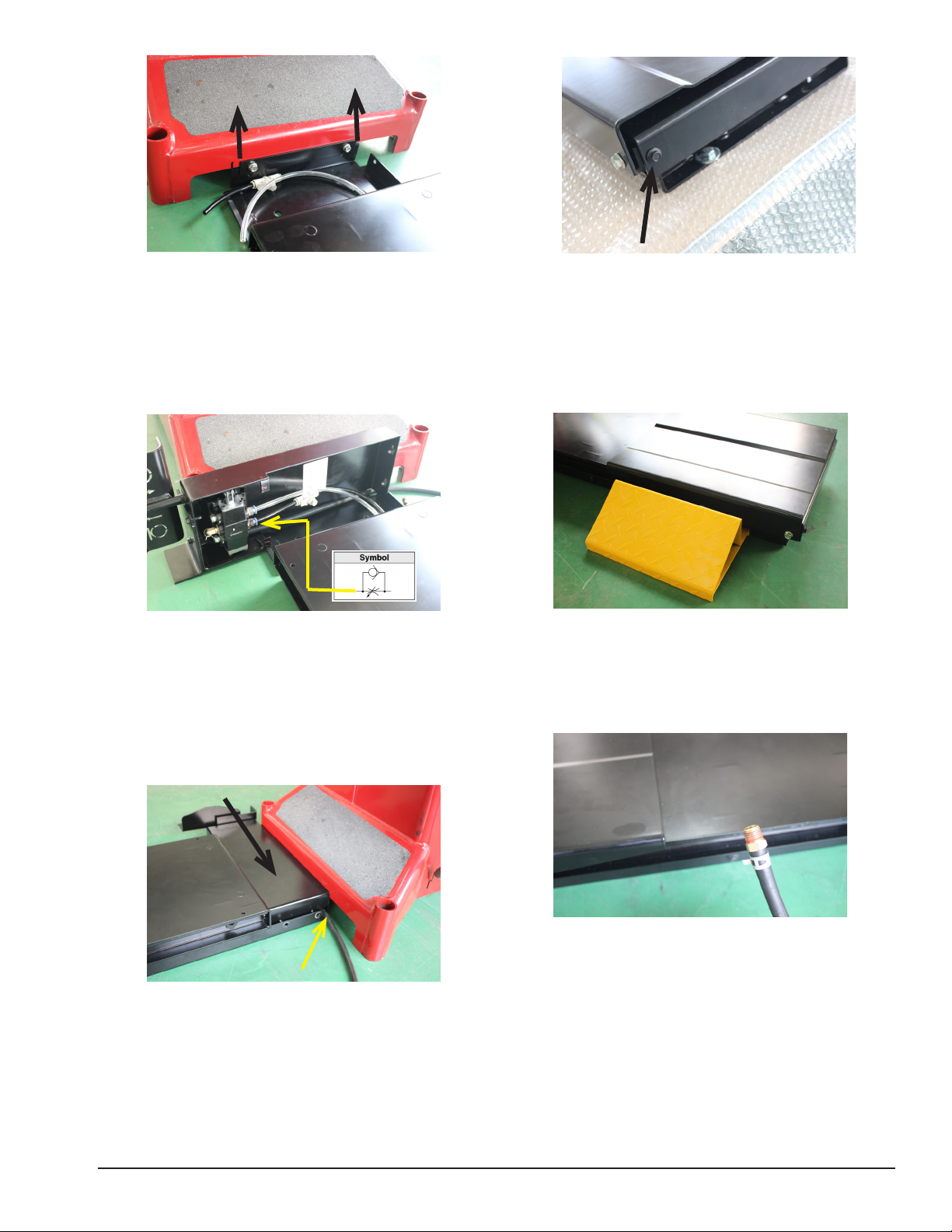

Figure 6 - Loosen the bolts and move BACK PLATE upward
against the chassis edge,then tighten them.
6. Place PEDAL BOX ASSY to the right orientation as
(fig 7) shown and connect tubes by color,(black tube to
black fitting and clear tube to the plain plated fitting).
Figure 7 - Connect tubes
7. Lay PEDAL BOX ASSY between chassis and the
LIFT ASSY, Route the INLET LEADER HOSE out of the
rear corner.Slide the PEDAL BOX ASSY back against
the rear wall of the BASE TRACK as shown ( fig
8), tighen the (2) bolts.
Figure 8 - Bolt PEDAL BOX ASSY to BASE TRACK
8. Remove the bolt to let WHEEL TRAY move free
(fig 9)
Figure 9 - Remove the bolt
9. Insert rear WHEEL RAMP lip into the slot of BASE
TRACK (fig 10).
Figure 10 - Setup RAMP
10. Prepare the hose fitting 1/4-NPT (NOT SUP-
PLIED) for connection to the main air supply (fig 11).
Figure 11 - Prepare the fitting [Customer-supplied]
11. Connect to air supply. Actuate VALVE PEDAL to
and move the WHEEL TRAY up and down two or three
times with the WHEEL TRAY unloaded.
Important: It is normal if the Tire Lift jumps 2 or 3
inches the first time it lifts after air has been applied.

8 • Important: Always read and follow instructions.
Operation
ALWAYS make sure the 525 Tire Lift is not
touching the wheel assembly before using
the wheel balancer. Personal injury or dam-
age to the unit could result if neglected.
ALWAYS make sure to hold the wheel assy
UPRIGHT any time the wheel/tyre assem-
bly is on the WHEEL TRAY.Personal injury or
damage to the unit could result if neglected.
Do not leave WHEEL Lift in raised position
and in contact WITH WHEEL before initiat-
ing Wheel Balancing cycle
Before moving the WHEEL TRAY, make sure
the BASE TRACK area is clear of debris.
525 Light Duty Lift Operation
1. Actuate the PEDAL to lower; making sure the
WHEEL CARRIER/TRAY is completely lowered before
loading.
2. Use foot to slide the WHEEL TRAY to align with
the WHEEL RAMP.
3. Roll the wheel assembly to load it onto the
WHEEL TRAY.
4. Actuate the PEDAL to raise the wheel assembly;
centering it with the balancer stub shaft.
5. Hold the wheel assembly upright while sliding
the WHEEL TRAY left until the wheel assembly is on
the balancer stub shaft, ready to be mounted on the
balancer.
6. Secure the wheel to the balancer using suitable
mounting adapters.
7. Actuate the PEDAL to fully lower the WHEEL
TRAY/CARRIER,ensuring the WHEEL TRAY clears the
balancer chassis during movement.
8. Balance the wheel.
9. Loosen and remove the hubnut, and any accesso-
ries blocking the removal of the wheel assembly.
10. Actuate the PEDAL to raise the WHEEL TRAY/
CARRIER.
11. Move the WHEEL TRAY left under the wheel
assembly.
• Do not activate the lift when the tire/wheel
assembly is rigidly attached. Ensure the lift
does not apply any lifting force on the bal-
ancer shaft.
• Damage can occur to the balancer and the
balancer can be lifted off its original position.
12. Actuate the PEDAL so the WHEEL TRAY will
support the wheel assembly as it lifts.
13. Remove the wheel assembly from the balancer
stub shaft.
14. Hold the wheel assembly upright and slide the
WHEEL TRAY back away from the balancer.
15. Actuate the PEDAL to lower the WHEEL.
16. Unload the wheel assembly by rolling it out of
the WHEEL TRAY.

Important: Always read and follow instructions. • 9
Routine Maintenance
The Coats 525 Tire Lift requires minimal mainte-
nance to ensure correct functional performance and
smooth operation. Keep the BASE TRACK area that
the CARRIAGE slides on clean and clear of debris.
Wheel weights, debris, and hand tools can get caught
between the track.
Pinch Point - Use Caution when cleaning track
area of debris.

10 • Important: Always read and follow instructions.
Parts Identication
Item Part No. Description
1 8000376 ELL 90° 1/4 Hose Fitting
2 8000378 1/4" Brass St. Fitting
3 8105615 1/4" NPT Muffler
4 8106301 1/4" Hex Hd Self Tap Screw,
5 8182001 Screw,SHCS 10-24x3/4
6 85000088 Elbow-90° 1/8 NPTx8mm
7 85606917 Washer-Flat
8 85606919 Retaining ring
9 85606977 Screw-SHCS M5-0.8x16mm
10 85607170 Fitting P-T-C, 1/4NPTx8mm
11 85607346 Screw,flange
12 85607362 Screw,flange
13 85607648 Bolt-HHCS
14 85608816 Nut,nylonlock M12x1.75
15 85608892 Nut,nylonlock M10x1.75
16 85609275 Screw,SHCS,M8X1.25-20
17 85609466 Nut-Hex,M12x1.75
18 85610688 Clamp,13mm
19 85611042 Orifice
20 85611651 Bearing,698-2Z
21 85611652 Shaft bearing
22 85611655 Guiding block
23 NS 85611658 Base track, weldment
24 85611665 Screw,Shoulder,12mmx30mm
25 85611667 Ramp
26 85611672 Cylinder,80mm
27 NS 85611680 Top track,weldment
28 NS 85611682 Plate,scissor weldment
29 85611684 Carrier,wheel
30 85611689 Valve
31 NS 85611690 Bracket,weldment
32 85611698 Lever
33 NS 85611699 Pedal weldment
34 85611700 Bolt-HHCS,M12-1.75x55mm
35 85611705 Shift
36 85611708 Bolt,Shoulder,12mmx25mm
37 8561713 Bolt,Shoulder,10mmx10mm
38 85611714 Fence
39 85611715 Plate
40 85611720 Plate
41 85611721 Bearing,6301 E-2RS
42 85611764 Scissor ASSY
43 85611896 Bushing
44 85611930 Fitting
Item Part No. Description
45 85611931 Washer,M6
46 85612032 Plate
47 * NA Tie
* 85612072 Cylinder, SVC,Kits
A
* 8x5mm,Plastic Tube,Black
B
* 8x5mm,Plastic Tube,Clear
C
* 1/4,Black Rubber Hose
** 8099993 8x5mm,Plastic Tube,Black
** 85607319 8x5mm,Plastic Tube,Clear
** 8099053 1/4,Black Rubber Hose
* Not Shown
** Bulk Tubing/Hose stock
NA = Not Available
NS = Non-stocking

Important: Always read and follow instructions. • 11
A
A
A
A
B
B
C
C
15
15

85611991 00 12/2020 © Copyright 2020 Hennessy Industries LLC
