1
Kombinierbar mit Lock it Kofferträger 650675 00 01
oder C-Bow Softtaschenhalter 630675 00 01
Combinable with Original BMW side carrier
Kombinierbar mit Original BMW Kofferträger
Combinable with Lock it side carrier 650675 00 01
or C-Bow softbag holder 630675 00 01
für Original Topcaseträger
for original rear rack
1x 700009093 Gepäckplatte
1x 700009094 Schraubensatz: 1x 700009094 Screw kit:
300915/300120
1x 700009093 Adapter plate
Bei Bestellung eines Aluracks zusätzlich:
1x 799.901HB Alu-Rack
1x 799.902HB TC-Bügel für Alu-Rack
1x 799.903HB Abdeckplatte für Rack
Bei Bestellung eines Easyracks zusätzlich:
1x 700008650 Easyrack
1x 700008647 Abdeckblende links
1x 700008648 Abdeckblende rechts
When ordering a Alurack:
1x 799.901HB alu-rack
1x 799.902HB bow for Alu-rack
1x 799.903HB plastic cover for rack
When ordering a Easyrack:
1x 700008650 Easyrack
1x 700008647 plastic cover left
1x 700008648 plastic cover right
4x countersunk screw M6x30
4x allen screw M6 x 20
4x allen screw M6 x 12
2x special washer 20 x 20 x ø6,4
4x washer ø6,4
2x self lock nut M6
4x Senkkopfschraube M6x30
4x Zylinderschrauben M6 x 20
4x Zylinderschrauben M6 x 12
2x Viereck-Scheiben 20 x 20 x ø6,4
4x U-Scheiben ø6,4
2x selbstsichernde Muttern M6
INHALT
CONTENTS
BMW S 1000 XR
Baujahr 2015-2019 / date of manufacture 2015-2019
Easyrack
Artikel Nr.: / Item-no.:
662675 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
655675 01 01 schwarz/black
2
Preparing of the Alurack:
Fix the bow to the rack with allen screws M6 x 12.
NOTICE:
The bow is needed in use with a Hepco & Becker topcase only .
Vorbereitung des Aluracks:
Den beiliegenden TC-Bügel mit den Zylinderkopf-
schrauben M6 x 12 hinten unter dem Alurack
verschrauben.
HINWEIS:
Der TC-Bügel ist nur bei Anbringung eines Hepco & Becker
Topcases erforderlich.
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,
wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen sie alle zugänglichen
Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente
beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
WICHTIG
IMPORTANT
VORBEREITUNG
PREPARING
4x
Ratsche/Ratchet
Verlängerung/extension
Set
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
Die 4 Schrauben aus der Original Top-case Halterung entfernen, sie entfallen.
Dismantle the 4 screws of the original topcase holder - screws are obsolete.
BMW S 1000 XR
Baujahr 2015-2019 / date of manufacture 2015-2019
Easyrack
Artikel Nr.: / Item-no.:
662675 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
655675 01 01 schwarz/black
3
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
Fastening of the adapter plate:
at the now free borings. Use allen
screws M6x30 and Loctite 243.
Montage der Gepäckplatte:
Die Gepäckplatte auflegen und von oben
mit den Senkkopfschrauben M6x30 und
Loctite 243 (mittelfest) in den nun freien
Gewinden verschrauben.
4x
1
Alurack:
4x 4x 2x
2x
2
Montage des Aluracks:
vorne
mit den Zylinderschrauben M6x20,
U-Scheiben ø6,4 und selbstsichernden
Muttern M6.
Hinten
mit den Zylinderschrauben M6x20 und
den Viereck-Scheiben 20x20x ø6,4 in
den vorhandenen Gewinden.
Anschließend die Kunststoffabdeckung
montieren.
Fastening of the Alurack:
front
with allen screws M6 x 20 and washers
ø6,4 and self-lock nuts M6.
Rear
with allen screws M6 x 20 and special
washer 20 x 20 x ø6,4 in the threads of
the adapter plate.
Mount the plastic cover.
BMW S 1000 XR
Baujahr 2015-2019 / date of manufacture 2015-2019
Easyrack
Artikel Nr.: / Item-no.:
662675 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
655675 01 01 schwarz/black
3
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
3

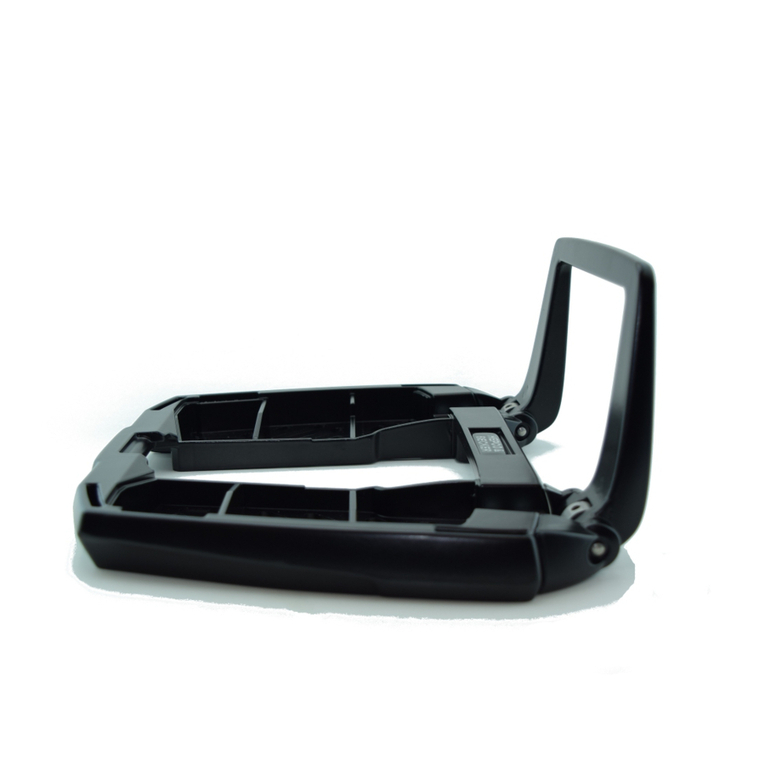

Easyrack:
4x 4x 2x
2x
Als weiteres Zubehör lieferbar:/ Also available:
Hepco & Becker GmbH
An der Steinmauer 6
D-66955 Pirmasens
Germany
Tel.: +49 (0)6331 - 1453 - 100
Fax: +49 (0)6331 - 1453 - 120
eMail: [email protected]
www.hepco-becker.de
Weiteres Zubehör auf unsere Homepage. More accessories: see our homepage.
ACHTUNG
CAUTION
Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren ! Abgebaute Teile
wieder montieren. Bitte beachten Sie unsere beigefügten Serviceinformationen.
Control all screw connections after the assembling for tightness! Reassemble the
dismanteled parts. Please notice our enclosed service information.
Montage des Easyracks:
vorne
mit den Zylinderschrauben M6x20,
U-Scheiben ø6,4 und selbstsichernden
Muttern M6.
Hinten
mit den Zylinderschrauben M6x20 und
den Viereck-Scheiben 20x20x ø6,4 in
den vorhandenen Gewinden.
Anschließend die Kunststoff-
abdeckungen montieren.
Fastening of the Easyrack:
front
with allen screws M6 x 20 and washers
ø6,4 and self-lock nuts M6.
Rear
with allen screws M6 x 20 and special
washer 20 x 20 x ø6,4 in the threads of
the adapter plate.
Mount the plastic covers.
650675 00 01 Kofferträger Lock it System / Side carrier
630675 00 01 C-Bow Halter / C-Bow holder
501675 00 01 Motorschutzbügel / Engine guard
BMW S 1000 XR
Baujahr 2015-2019 / date of manufacture 2015-2019
Easyrack
Artikel Nr.: / Item-no.:
662675 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
655675 01 01 schwarz/black
