HiB Solstice 60 User manual

T: [phone] F: [phone] E: [e-mail] hib.co.uk
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the
interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.
This product is IP44 rated and suitable for installation in
zones:
FI#01 027 R190710 Ver No. 1.0 Oct 2019
2 &Outside Zone

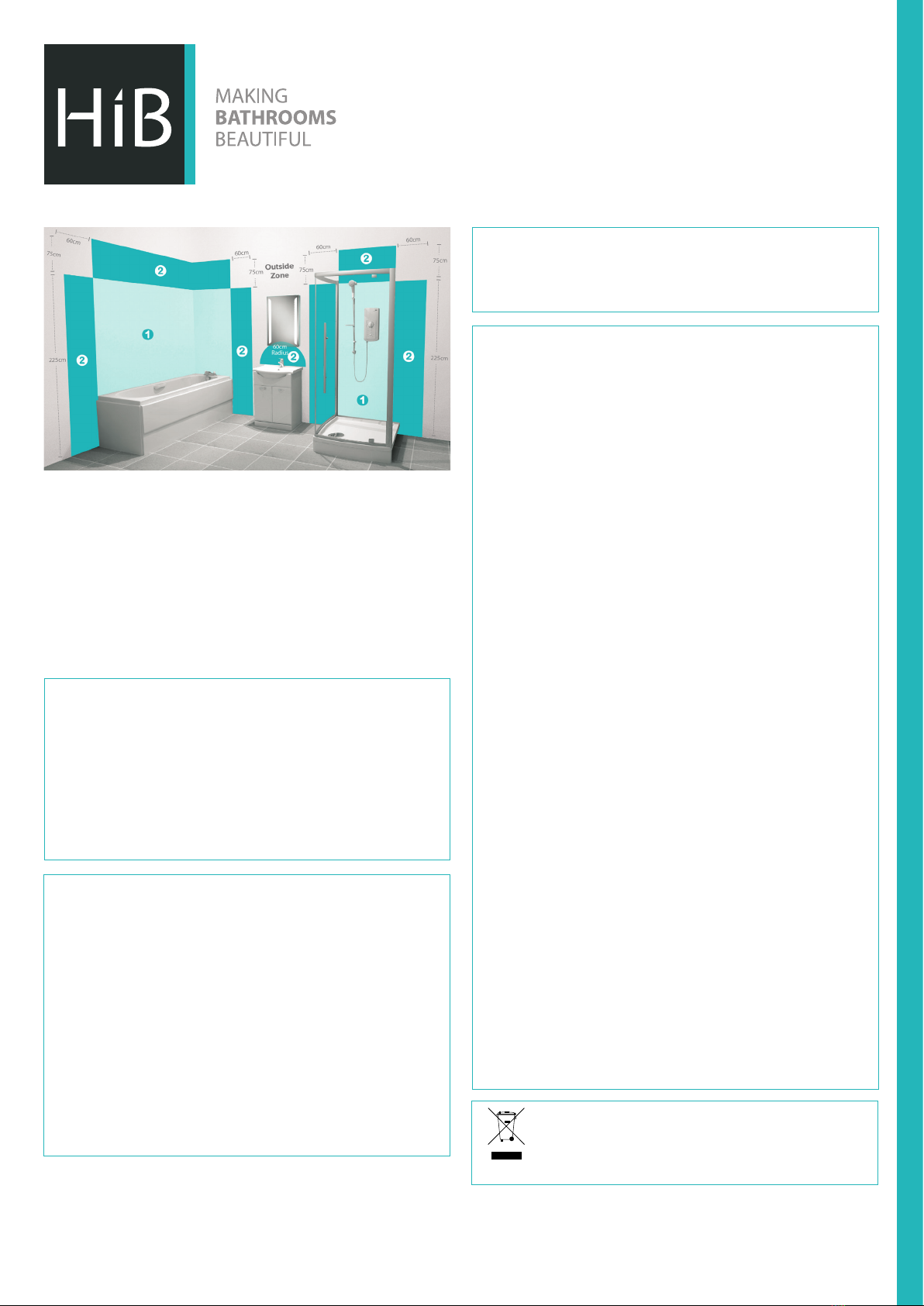

All installations must comply with guidelines which are based on a
zonal concept. The diagram above illustrates this concept and must
be followed to ensure the safe installation of electrical appliances in
the bathroom. These regulations apply to domestic installations only.
Installations must be made in accordance with the current IEE wiring
regulations and relevant building regulations. HiB recommends that
all electrical bathroom products should only be fitted by a suitably
qualified, Part P registered electrician.
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them
during installation to ensure that your product is fitted safely and that it
retains its high quality finish.
Please retain this leaflet for future reference.
Before installation, ensure the domestic electrical mains supply to
which the mirror is to be connected is turned off. Before drilling,
ensure that there are no hidden cables or pipes in the wall.
(Fig. 1)
Illuminated Mirrors
Solstice 60 Art No. 79520700 / Solstice 80 Art No. 79520800
Operation Instructions
To turn illumination on touch the sensor located on the front of the
mirror once. To change the colour temperature, touch and hold the
sensor until desired colour is obtained. The colour temperature is then
set until changed again.
Heated pad is only on when mirror is illuminated.
Care Instructions
Do not use abrasives or solvents when cleaning this product.
Wipe off all water spillages as soon as possible using a so, damp
cloth.
Aercare Service
In the unlikely event that this product should fail please contact HiB
customer services, details shown below.
Installation
1. Position the mirror in a suitable location (according to the zonal
diagram - Fig. 1), ensuring that the domestic electrical mains
supply is within reach of the cable connection point of the
product.
2. Carefully mark the position of the mirror using a so pencil
ensuring it is level. Remove the mirror and mark the mounting
points (see Fig. A overleaf). Please ensure that all marked
mounting points accurately match up with the fixing points
on the mirror.
3. Using a suitable drill bit, drill holes in the marked positions to a
suitable depth. If drilling through tile, use a ceramic drill bit.
4. Insert wall plugs level with the surface of the wall. If fitting to a
tiled surface, wall plugs should be inserted below the tile surface
to avoid cracking. NB. For plasterboard walls, specialist fixings
should be purchased, available from any DIY or hardware store.
5. Screw supplied fixings into wall plugs.
6. Attach the decorative strap to the side of the mirror frame using
the bolts provided. (see Fig. B overleaf). Please note this is not
intended to be used as the main weight bearing fixing.
7. With the mirror in position, carefully mark the position of the strap
support hook using a so pencil and ensuring the strap is taut and
the hook is central to the mirror. (see Fig. C overleaf)
8. Remove the mirror from the wall.
9. Again, using a suitable drill bit, drill holes in the marked position
to a suitable depth and insert wall plugs.
10.Position the strap support hook and fix in place with the supplied
fixings.
11.Ensure the domestic electrical mains supply to which the
mirror is being connected is turned off. Connect the domestic
mains supply to the terminal box according to the wiring diagram.
(see Fig. D overleaf)
12.Hang the mirror into position and locate the strap over the
hanging support hook
13.Remove the adhesive pad cover from the support hook finishing
cap and apply to the support hook.
14.Switch the domestic electrical mains supply for the mirror back
on.
WEEE compliance
Must not be mixed with general household waste

T: [phone] F: [phone] E: [e-mail] hib.co.uk
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the
interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.
live
earth
neutral
MAINS SUPPLYLUMINAIRE
Wiring Diagram
Live supply can be Red or Brown
Earth supply is Green and Yellow
Neutral supply can be Blue or Black
Live is Brown
Neutral is Blue
Wiring Diagram (Fig. D)
Fixing point locations
mounting points
REAR VIEW
500mm
electrical output
Mounting Points Diagram (Fig. A) Securing hanging strap bolts (Fig. B)
Fixing support hook (Fig. C)
CAUTION!
We recommend that you place this mirror on a so flat surface to
ensure no breakages. We also recommend that you leave corner
protectors on until final fitting
