HiB Vega 50 Install guide

T: [phone] F: [phone] E: [e-mail] hib.co.uk
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the
interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.
This product is suitable for installation in zones:
FI#01 017 R160727 Ver No. 1.0 Aug 2016
2 &Outside Zone

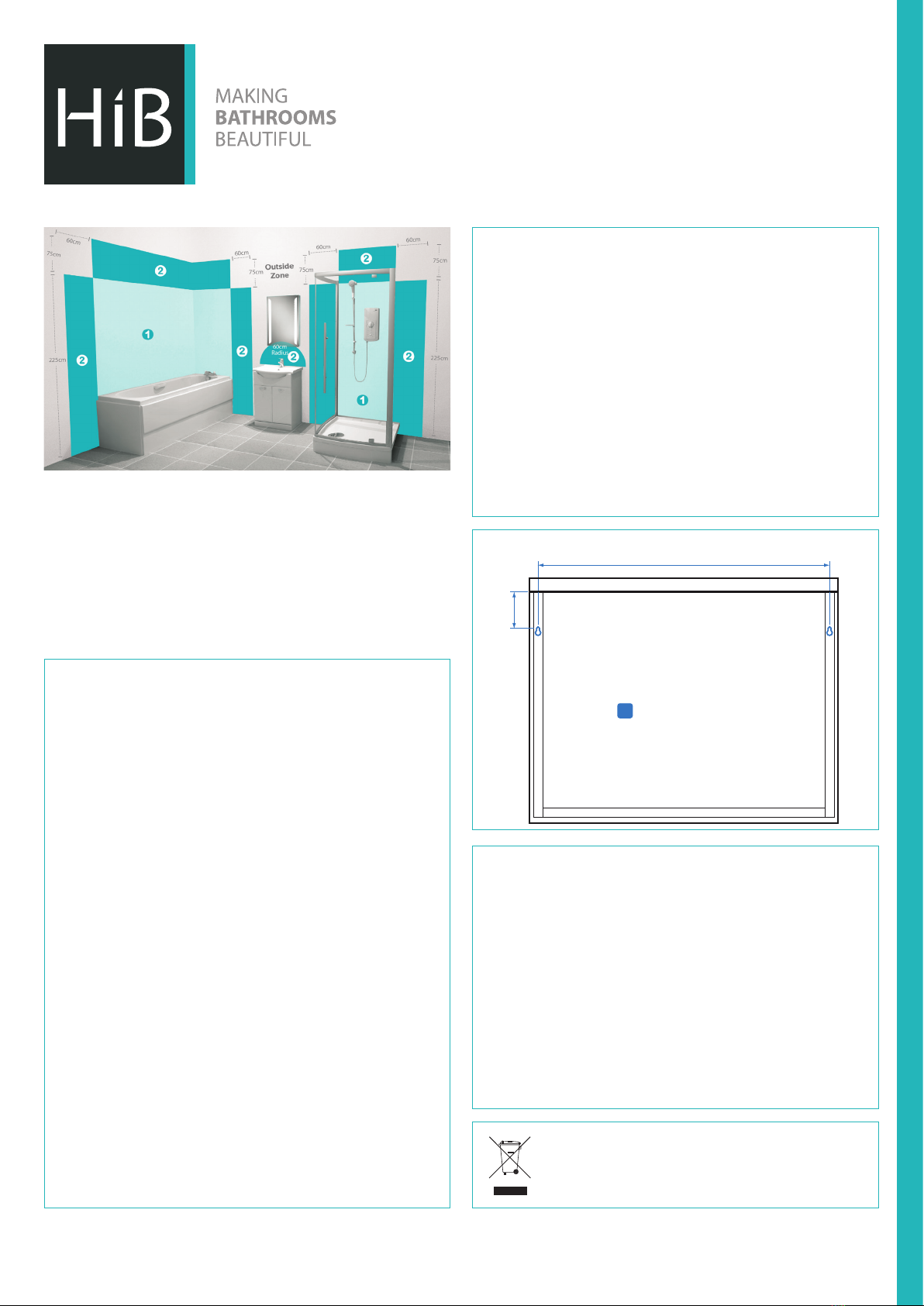

All installations must comply with guidelines which are based on a zonal
concept. The diagram above illustrates this concept and must be followed
to ensure the safe installation of electrical appliances in the bathroom.
These regulations apply to domestic installations only. Installations must be
made in accordance with the current IEE wiring regulations and relevant
building regulations. HiB recommends that all electrical bathroom
products should only be fitted by a suitably qualified, Part P registered
electrician.
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them
during installation to ensure that your product is fitted safely and that it
retains its high quality finish.
Please retain this leaflet for future reference.
Before installation, ensure the domestic electrical mains supply to
which the mirror is to be connected is turned off. Before drilling,
ensure that there are no hidden cables or pipes in the wall.
(Fig. 1)
Mounting Points Diagram (Fig. A)
Illuminated Mirrors
Vega 50 Art No. 78750000 /Vega 60 Art No. 78751000
Vega 80 Art No. 78752000 / Alpine 50 Art No. 78753000
Alpine 60 Art No. 78754000 / Alpine 80 Art No. 78755000
/ Alpine 100 Art No. 78756000
Installation
1. Position the mirror in a suitable location (according to the zonal
diagram - Fig. 1), ensuring that the domestic electrical mains
supply is within reach of the electrical entry point of the product.
2. Carefully mark the position of the mirror using a so pencil
ensuring it is level. Remove the mirror and mark the mounting
points. Please ensure that all marked mounting points
accurately match up with the fixing points on the mirror.
3. Using a suitable drill bit, drill holes in the marked positions to a
suitable depth. If drilling through tile, use a ceramic drill bit.
4. Insert wall plugs level with the surface of the wall. If fitting to a tiled
surface, wall plugs should be inserted below the tile surface to
avoid cracking. NB. For plasterboard walls, specialist fixings should
be purchased, available from any DIY or hardware store.
5. Screw supplied fixings into wall plugs.
6. Ensure the domestic electrical mains supply to which the
mirror is being connected is turned off. Connect the domestic
mains supply to the terminal box according to the wiring diagram
(Fig. B).
7. Hang the mirror in position.
8. Switch the domestic electrical mains supply for the mirror back on.
NB. LED Mirrors with charging socket only; On first use of the charging
socket, there may be resistance when inserting the plug. Make sure
that the mirror is held firmly so that it is not pushed off the wall. Aer a
few uses, resistance will ease and the socket will function as normal.
mounting points
REAR VIEW
Operation Instructions
To turn illumination on or off, press the touch sensor.
To cycle through warm to cool colour temperature, press and hold
the touch sensor - release when the desired colour temperature has
been reached.
Heated Pad is only on when mirror is illuminated.
Care Instructions
Do not use abrasives or solvents when cleaning this product.
Aercare Service
In the unlikely event that this product should fail please contact HiB
customer services, details shown below.
Wipe off all water spillages as soon as possible using a so, damp cloth.
WEEE compliance
Must not be mixed with general household waste

T: [phone] F: [phone] E: [e-mail] hib.co.uk
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the
interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.
Caution Please do not li the product by the plastic diffusers as
this may cause damage to your product.
We recommend that you place this mirror on a so flat surface to ensure
no breakages. We also recommend that you leave corner protectors on
until final fitting
live
earth
neutral
MAINS SUPPLYLUMINAIRE
Wiring Diagram
Live supply can be Red or Brown
Earth supply is Green and Yellow
Neutral supply can be Blue or Black
Live is Brown
Earth is Green and Yellow
Neutral is Blue
Wiring Diagram (Fig. B)
