This product is IP44 rated and suitable for installation in
zones:
FI#01 024 R181005 Ver No. 1.0 Jan 2019
2 &Outside Zone

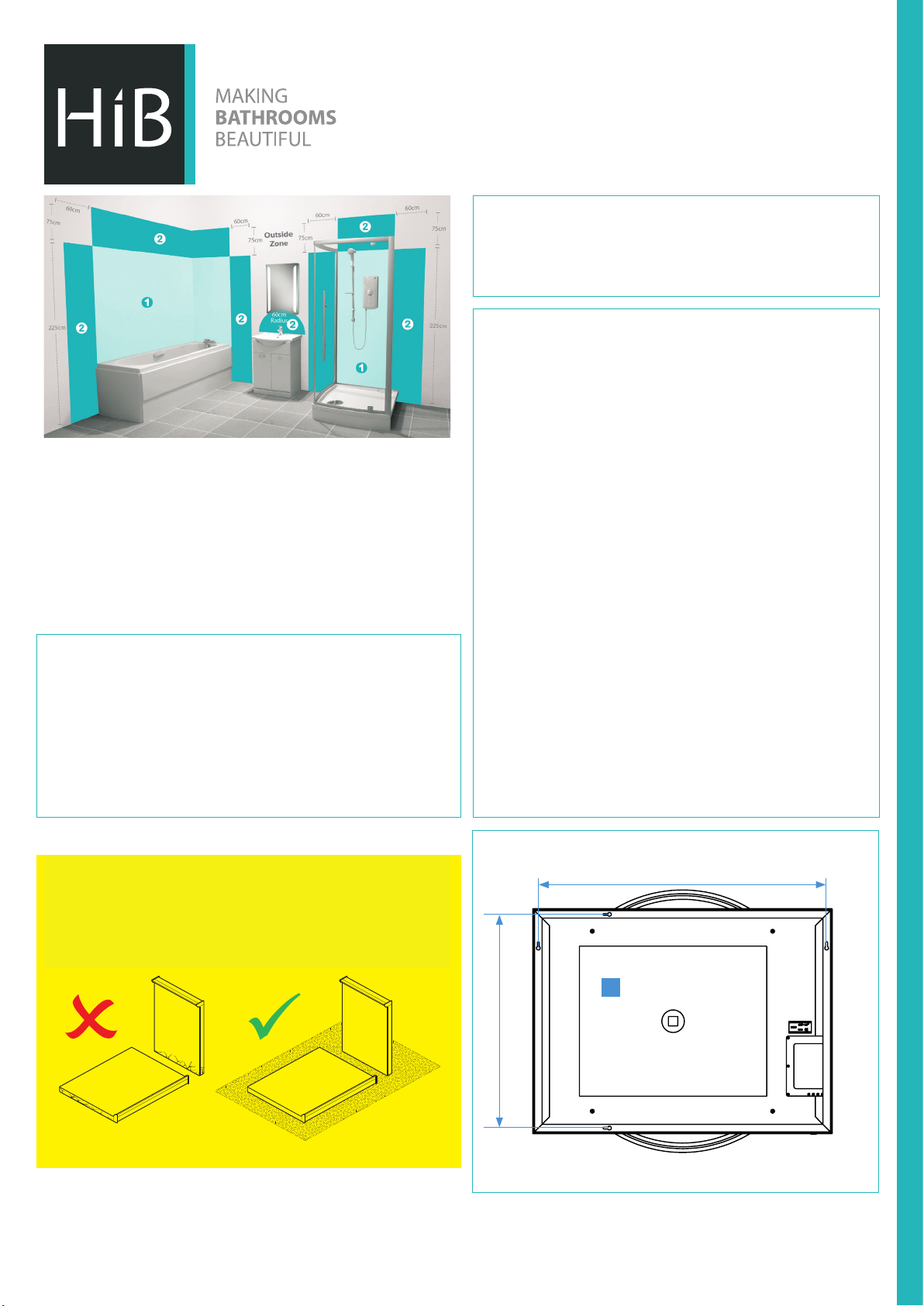

All installations must comply with guidelines which are based on a zonal
concept. The diagram above illustrates this concept and must be followed
to ensure the safe installation of electrical appliances in the bathroom.
These regulations apply to domestic installations only. Installations must be
made in accordance with the current IEE wiring regulations and relevant
building regulations. HiB recommends that all electrical bathroom
products should only be fitted by a suitably qualified, Part P registered
electrician.
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them during
installation to ensure that your product is fitted safely and that it retains its
high quality finish.
Please retain this leaflet for future reference.
Before installation, ensure the domestic electrical mains supply to which
the mirror is to be connected is turned off. Before drilling, ensure that
there are no hidden cables or pipes in the wall.
Mounting Points Diagram (Fig. A)
Illuminated Mirrors
Solas 50-C Art No. 79510500 / Solas 60-C Art No. 79510600
Solas 50-B Art No. 79520500 / Solas 60-B Art No. 79520600
Installation
NB. SOLAS mirrors must be installed with a minimum distance of 150mm
between the infra-red sensor switch and any adjacent wall or object to
ensure correct operation of the sensor.
1. Position the mirror in a suitable location (according to the zonal
diagram - Fig. 1), ensuring that the domestic electrical mains supply
is within reach of the electrical entry point of the product.
2. Carefully mark the position of the mirror using a so pencil
ensuring it is level. Remove the mirror and mark the mounting
points. Please ensure that all marked mounting points
accurately match up with the fixing points on the mirror.
3. Using a suitable drill bit, drill holes in the marked positions to a
suitable depth. If drilling through tile, use a ceramic drill bit.
4. Insert wall plugs level with the surface of the wall. If fitting to a tiled
surface, wall plugs should be inserted below the tile surface to
avoid cracking. NB. For plasterboard walls, specialist fixings should
be purchased, available from any DIY or hardware store.
5. Screw supplied fixings into wall plugs.
6. Ensure the domestic electrical mains supply to which the
mirror is being connected is turned off. Connect the domestic
mains supply to the terminal box according to the wiring diagram
(Fig. B) overleaf.
7. Hang the mirror in position.
8. Switch the domestic electrical mains supply for the mirror back on.
Note: Solas is dual orientation.
REAR VIEW
MOUNTING LOCATIONS
Caution
We recommend that you place this mirror on a so flat surface to ensure no
breakages. We also recommend that you leave corner protectors on until
final fitting.
Do not li this product via the illuminated frame
CAUTION
(Fig. 1)

T: [phone] F: [phone] E: [e-mail] hib.co.uk
Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the
interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.
Aercare Service
In the unlikely event that this product should fail please contact HiB customer services, details shown below. Wipe off all water spillages as soon as
possible using a so, damp cloth.
To switch on/off
1. Slowly move your hand past the sensor to turn the mirror on
2. Slowly move your hand past the sensor again to turn the mirror off
To change the colour temperature
1. To alter the colour temperature of the mirror, hold your hand
underneath the sensor and the colour temperature will start to
change.
2. Simply move your hand away from the sensor when the desired
colour temperature has been reached and continue to operate the
mirror as normal.
3. The chosen colour temperature will remain set even aer power is
switched off and on again.
Care Instruction
Do not use abrasives or solvents when cleaning this product. Wipe off all water spillages as soon as possible using a so, damp cloth.
live
earth
neutral
MAINS SUPPLYLUMINAIRE
Wiring Diagram
Live supply can be Red or Brown
Neutral supply can be Blue or Black
Live is Brown
Neutral is Blue
Wiring Diagram (Fig. B)
Operation Instructions
This mirror is fitted with colour temperature changing technology and heated de-mister pad
WEEE compliance
Must not be mixed with general household waste
3. Heated de-mister pad is on when the mirror is on
Mirror shown in landscape orientation
Mirror shown in landscape orientation
