HIK VISION MinMoe DS-K1T671TM-3XF User manual

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
1
DS-K1T671TM-3XF MinMoe Temperature Screening
Face Recognition Terminal Installation Guide
Date
Content
Person
Version
2020/04/26
Create
Morgen
1.0

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
2
Content
1. System structure & Function description......................................................................................................................... 3
2. Installation process................................................................................................................................................................ 4
3. System implementation considerations ........................................................................................................................... 4
3.1 Site survey precautions............................................................................................................................................. 4
3.2 Precautions when measuring human temperature............................................................................................ 4
4. Preparation before installation........................................................................................................................................... 5
4.1 Safety instruction........................................................................................................................................................ 5
4.2 Device preparation..................................................................................................................................................... 5
4.3 Site survey .................................................................................................................................................................... 6
5. Installation and configuration ............................................................................................................................................. 6
5.1 Temperature screening face recognition terminal.............................................................................................. 6
5.2 Temperature displayed on the screen................................................................................................................... 9
6. Delivery acceptance.............................................................................................................................................................10
7. FAQ: .........................................................................................................................................................................................12

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
3
1. System structure & Function description
This solution is designed to control the entrance and exit of office building, factory, cell and so on through temperature
measurement and face verification, and the event can be managed and monitored on iVMS-4200 client software or
HikCentral Professional platform.
Structure for access control & temperature screening system
Temperature screening thermographic camera mainly performs rapid preliminary screening by measuring the
temperature of the human skin-surface. If the temperature is found to exceed the normal range, medical
temperature measurement equipment should be used to conduct secondary screening and confirmation of
suspicious personnel. Because the facial skin is exposed to the air and affected by the ambient temperature
and the evaporation of sweat, there will be some changes in the skin-surface temperature. It is recommended
to wait for 3 to 5 minutes and wait for the body surface temperature to stabilize.

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
4
2. Installation process
3. System implementation considerations
3.1 Site survey precautions
It is not recommended for outdoor use. It is recommended to install in indoor closed, constant temperature,
no wind (including natural wind, air conditioning wind, etc.) and no direct sunlight.
For indoor use, the indoor ambient temperature must be 10 ~ 35 ° C. If beyond this range, the temperature
measurement accuracy of the device cannot be guaranteed.
When used outdoors (including semi-open scenes such as doorways), human body temperature measurement
accuracy cannot be guaranteed steadily, and guests / users should be guided to move the equipment indoors
for installation.
MinMoe face recognition terminal installation requirements: the visible light channel has enough illumination,
and avoid backlighting / reflecting / blocking / etc.
Avoid non-human high-temperature targets and reflective surfaces in the detection scene
The above installation precautions, please explain to the user before the project and should be strictly
implement;
3.2 Precautions when measuring human temperature
When an outdoor person first enters the room, they need to take off their hats and lift their bangs. It is
recommended to wait for 3 to 5 minutes and wait for the body surface temperature to stabilize.
When moving from far to near, the temperature measurement results in the vicinity may appear high; the flow
guidance line needs to be arranged at the site, when the temperature of the human body is measured at a fixed
distance (recommend 0.5 to 1.5 m), person should walk to left or right side to avoid moving toward the device.
When measuring human body temperature, personnel need to stand at a fixed distance, pass one by one, make
a short stop, and face directly to the camera.
The above temperature measurement precautions should be strictly implemented in project site.
Preparation before installation
1. Safety instruction
2. Function instruction
3. Installation site survey
4. Product selection
Site installation
1. Installation guide
2. Parameter configuration
3. Device debug
Project delivery
1. Delivery acceptance checklist
2. Routine maintenance and
recommendations

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
5
4. Preparation before installation
Please read and follow the requirements before using the devices.
4.1 Safety instruction
Precautions for use
Do not point the device directly to the strong light such as lights and sunlight;
Please ensure that the thermal camera can dissipate heat normally;
Please transport, store, and use within the temperature and humidity range indicated in the instruction manual
of the thermal camera;
Please use the factory packaging during transportation, and avoid dropping, heavy pressure, bumping, soaking,
etc. during transportation.
Power requirements
Please use a qualified adapter;
Meet local electrical safety standards;
Please ensure that the equipment is powered off during the installation and wiring of the equipment;
During use, please avoid the power and other cables from being heavy pressed, twisted or stepped on;
Others
Do not disassemble the device body without permission;
Please refer to the actual product, this document is for reference only;
Please contact our technical support for latest version and document.
4.2 Device preparation
DS-K1T671TM-3XF
302917210
50,000 faces, 50,000 cards;
Wall mounting and floor standing with
mounting pole.
DS-KAB671-B
(Optional)
305700583
The mounting pole for DS-K1T671TM-3XF
Material：SPCC
Weight：6.7 kg (14.8 lb.)
Dimension (W × H × D)：
98.5 mm × 1342 mm × 225 mm (3.9" ×
52.8" × 8.9")
Including screws, mounting plate, network
and power extension cords
Recommend tools
(not included in the
package)
Impact drill, screwdriver, socket
If the equipment does not need to be fixed
with expansion screws, no impact drill and
sleeve are required

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
6
4.3 Site survey
Installation site survey
Project Name
Note
Entrance Name
1
Installation environment (Indoor,
outdoor)
Photos and videos for
site
2
Power supply and network cable
(surface installation or bury in the
tube)
3
Device installation method（surface
or with stand）
Note:
1) Take more pictures or record videos for the installation site and ground, pictures and videos for every installation
site should be provided.
5. Installation and configuration
5.1 Temperature screening face recognition terminal
5.1.1 Device installation with floor stand DS-KAB671-B (optional)
DS-K1T671TM-3XF can be installed for temporary (without install expansion screw), or fixed on the ground with
optional floor stand DS-KAB671-B, instruction as below:
1. Unscrew the two screws on the side of the bottom cover and remove;
2. Install the expansion screws in the package into the holes at the bottom. Make sure the expansion screw is
slightly above the ground and secure it with the expansion nut;
3. Move back the bottom cover and screw back the two screws on the side.

MinMoe Temperature Screening Terminal Installation Guide
Hikvision Product Support Team
7
5.1.2 Device wiring
1. Install bracket on the stand with 4 screws, connect network, power and other external devices' cables to
device interface;
2. Install device on the bracket（unscresw 2 screws on both sides, press device bottom and secure 2
screws）

MinMoe Temperature Screening Terminal Installation Guide
Hikvision Product Support Team
8
3. Connect 220V AC power cable and power cable to floor stand
5.1.3 Device debugging and configuration
5.1.3.1 Debugging process
5.1.3.2 Temperature measurement configuration
1) Activate terminal with SADP/iVMS-4200 or from device local UI
2）Temperature settings
Default enable: device will verify face and measure temperature
If temperature is higher than the value, device will alarm
If temperature is lower than the value, device will alarm
Default enable: If temperature is not in the normal range, door will not open
Default enable: temperature measurement only; Disable: permission + temperature
The parameters have been adjusted at the factory, no need to configure
The parameters have been adjusted at the factory, no need to configure
Reserved function

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
9
5.1.3.3 Face with mask configuration
5.2 Temperature displayed on the screen
1) Normal face recognition, normal and abnormal body temperature
2) Unregistered face (device will prompt Stranger, contact security guard)
Default enable: must wear face mask or authentication will be failed
1:N : face comparison similarity
Default disable:after enable, authentication will not be granted without face mask
Default disable:after enable, device will show prompt and play audio

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
10
3) After enable temperature only, device will not verify face permission, only check temperature is normal or
abnormal, if temperature is normal, authentication will device will output I/O signal.
6. Delivery acceptance
In order to ensure that the temperature measurement effect and accuracy meet the requirements of customer, after
the completion of the project implementation work, on-site installation and construction personnel and commissioning
personnel need to complete the corresponding work, check and fill in the installation, commissioning, and delivery
acceptance form according to the following table. After checking and filling as required, the acceptance form and related
videos / pictures shall be reported. Hikvision technical engineers shall conduct inspection. after the inspection is correct,
the delivery acceptance list shall be provided to Party A for signature and retention.

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
11
6.1.1 Construction acceptance
Construction Acceptance List
No.
Content
Meets the
standard(√/×)
Remark
1.1
Whether it is installed in a
room with constant
temperature, no wind and
no direct sunlight
Outdoor environment is greatly affected by environmental
changes such as temperature, wind, and humidity, which
will affect the temperature measurement accuracy of the
thermal imaging human surface, it is recommended to be
installed in a location with constant temperature, no wind,
and no direct sunlight
1.2
The actual installation
environment and location
determination
Take pictures and record video to confirm
6.1.2 Commissioning acceptance
Commissioning Acceptance List
No.
Content
Meets the
standard(√/×)
Remark
2.1
Take pictures of the ACS configuration
page of the face terminal
Take pictures and record video to confirm
2.2
Take pictures of the Temperature
settings page of the face terminal
Take pictures and record video to confirm
2.3
Take pictures of the web
configuration page of the
temperature measurement camera
Take pictures and record video to confirm
2.4
Take video of barrier study mode and
normal mode
Record video to confirm
6.1.3 Function acceptance
Function Acceptance List
No.
Content
Meets the
standard(√/×)
Remark
3.1
Test the temperature measurement effect when the
flow of people is large, compare the effect and
check the temperature measurement value is
accurate, provide 3 minutes of video files.
Record video to confirm

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
12
3.2
Take video confirmation of normal temperature and
abnormal temperature, test comparison video
Record video to confirm
3.3
Whether the device normally uploads photo
capture, temperature and other information
Take pictures and record video to
confirm
7. FAQ:
1. Temperature module is offline
1) It shows “connecting thermal module exception” after device reboot, because module has longer
booting time than face terminal, please wait about 1 minute more during face terminal connecting
temperature measurement module.
2) Check whether thermal module is online or offline, if offline, it will prompt on main screen, please
check cable connect in the back
2. Temperature measurement failed
1) Check thermal module is online or offline on main screen

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
13
2) Open device menu and check whether terminal can get video stream from thermal camera or not.
3) Temperature measurement result is not accurate
1) In order to get an accurate temperature, after the device is powered on, you should wait for 90 min to
warm the device up.
2) Open mouth and deep exhalation will affect the temperature measurement results
3) Please check and upgrade device and thermal module to latest firmware version
4) Whether device can be used for temperature measurement for strangers.
Enable temperature measurement only option from device
5) Whether device support ehome(ISUP) protocol or not
Limited by protocol, currently only support device network sdk
6) Whether device can be used for time attendance
Yes, device will upload log to iVMS4200 or Hikcentral platform, calculation will be done in the software.

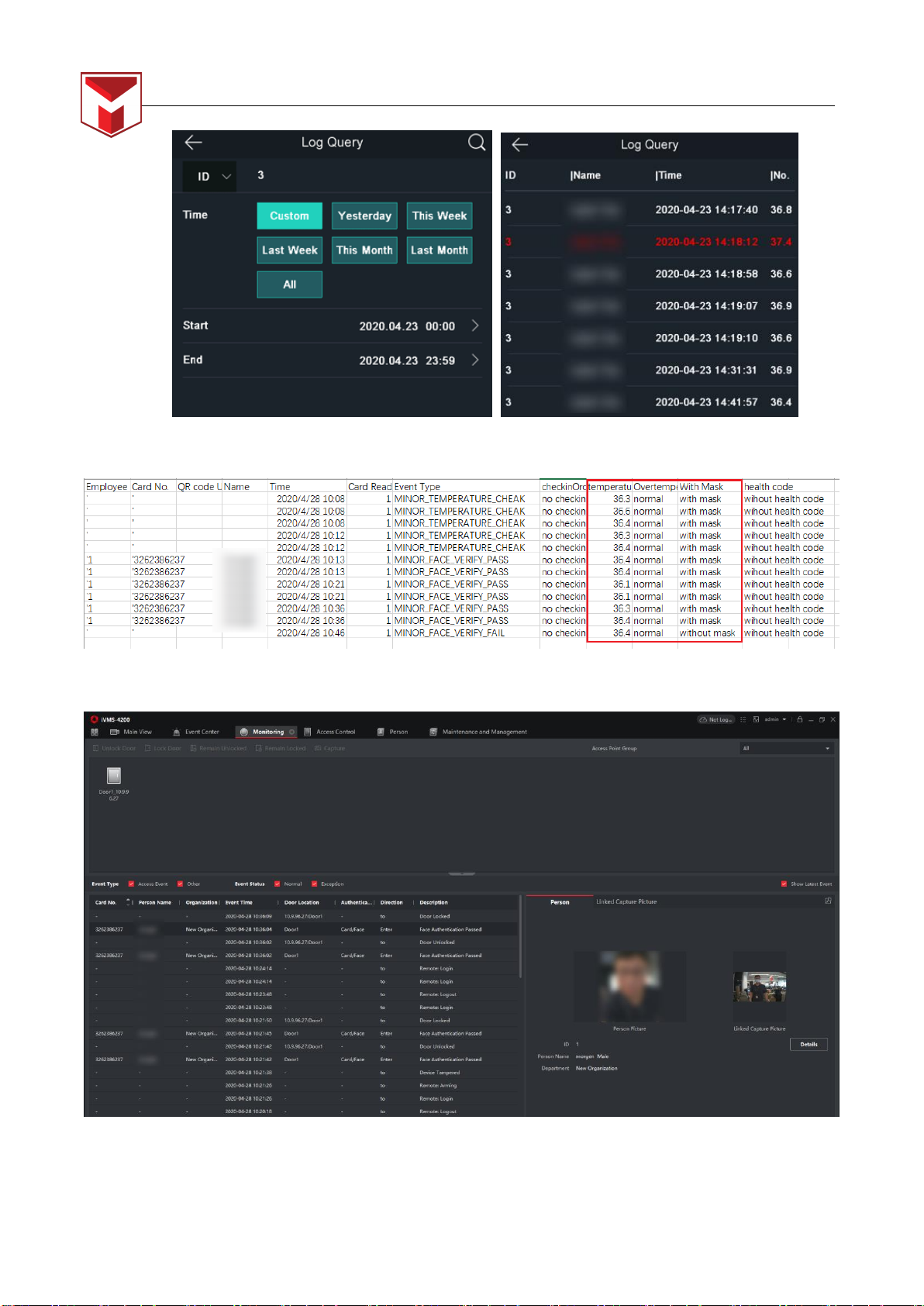

7) Log search and export
Log query from device local, Abnormal temperature will be marked as red.
a. Only registered persons’ authenticated record can be searched.
b. Strangers and temperature measurement only record can’t be searched from local screen.

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
14
Export from device local to USB drive, CSV format, including employee id, card no, name, time,
attendance status, temperature info, overtemperature or not, with mask or not
Monitoring will not show temperature information.
Real time event in Event Center, temperature, captured normal and thermal pictures are available.

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
15
Search event in iVMS-4200, please select device type as Access Control, then you can find temperature,
captured normal and thermal picture (without temperature OSD information)
Export captured picture and event from iVMS-4200 to PC, CSV format for event log and captured
pictures

MinMoe Temperature Screening Terminal Installation Guide
Mercury SD Product Support Team
16
