Home Styles 20 05064 0088 User manual

Hardware List
Part List
Home Styles Customer Service: www.homestyles-furniture.com,
[email protected], 888-680-7460, 877-831-0319
20 05064 0088

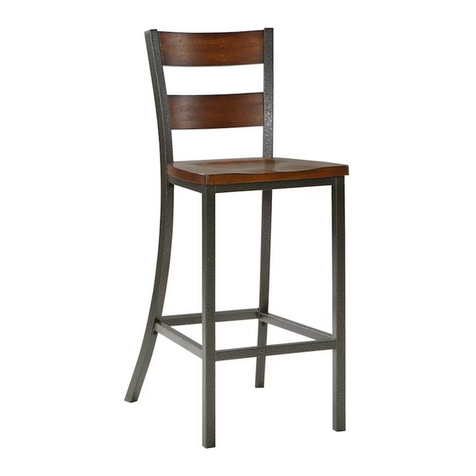

Bar Stool
IMPORTANT
A.
Seat
1 pc.
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Spring Washer
4 pcs. (+1 extra)
Small
Flat Washer
5 pcs. (+1 extra)
Small
Hex Wrench
1 pc.
M6x16
Head Cap Bolt
4 pcs. (+1 extra)
M6x60
Bolt (long)
2 pcs. (+1 extra)
Nut Cap
5 pcs. (+1 extra)
M6x40
Bolt
2 pcs. (+1 extra)
Hex Wrench
1 pc.
Key Wrench
1 pc.
Flat Washer
4 pcs. (+1 extra)
C.
Top Rail
1 pc.
D.
Side Rail
2 pcs.
E.
Back Rail
2 pcs.
M6x30
Flat Head Bolt
12 pcs. (+1 extra)
M6x13
Bolt (short)
3 pcs. (+1 extra)
F.
Back Leg
1 pc.
B.
Front Leg
1 pc.
G.
Foot Rest
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level

Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
Keep Hex Wrench and Key Wrench as the bolts may need to be tightened in the future.
STEP 1
Attach Front Leg (B) to Seat (A) with Flat Washers, Spring Washers, Head Cap Bolts
and Flat Head Bolt, tightening bolts only halfway. (See Figures 1 and 2)
Attach Side Rails (D) to unit with Flat Head Bolts, tightening bolts only halfway.
(See Figures 2 and 3)
tightening bolts only halfway.
Attach Back Leg (F) to unit with Flat Head Bolts,
Orientate Foot Rest (G) with Arrow label at back of unit, then attach
Foot Rest (G) to unit with Flat Head Bolts, tightening bolts only halfway.
Tighten all bolts used in this step.
Figure 2
Figure 3
Figure 1
Arrow label at back
G
F
A
D
D
B
Flat Head Bolt
Flat Head Bolt
Flat Washer
Spring Washer
Head Cap Bolt

Assembly Instructions 3/3
Figure 4 Figure 5
C
E
E
Small
Flat Washer
Nut Cap
Small Flat Washer
Bolt (long)
Bolt (short)
Nut Cap
Arrow label
pointing up
STEP 2
Orientate Top Rail (C) so Arrow label points up, then
attach Top Rail (C) and Back Rail (E) to unit with Bolt (long)
Small Flat Washer and Nut Cap, tightening bolt only halfway.
(See Figure 4)
Attach other Back Rail (E) to unit with Bolt (long), Bolt (short),
Small Flat Washers and Nut Caps, tightening bolts only halfway.
(See Figure 5)
E
Bolt (short)
Bend Back Rail (E) here
Small Flat Washer
Nut Cap
Figure 6 Figure 7 Figure 8
STEP 3
Attach Back Rails (E) to back leg and seat
with Bolts, Small Washers, Nut Caps and
Bolts (short), bending Back Rails (E) slightly to align
holes in Back Rails (E) to holes in back leg and seat.
(See Figures 6 and 7)
Tighten all bolts and nut caps used in Steps 2 and 3.
Level unit by adjusting the adjustable levelers on bottom of legs.
(See Figure 8)
Note: Unit must be level to work properly.
E
Bolt
Bolt (short)

NEVER
use glass cleaners on
finished furniture. Ammonia
chemically attacks the finish.
allow liquids to remain on furniture.
Absorption causes parts to warp
and split and finishes to delaminate.
NEVER
CARE INSTRUCTIONS
Do not use rubber
based placemats.
PREVENT
DISCOLORING
Do not use commercial
waxes and polishes.
PREVENT
YELLOWING
Do not place hot
objects on surface.
PREVENT
FINISH DAMAGE
Do not write
directly on surface.
PREVENT
MARKING
Do not use power tools
above 8 volts to assemble.
PREVENT
CRACKING
Do not place
in direct sunlight.
PREVENT
FADING
with a soft cloth moistened
in lukewarm soap and water.
Buff with a dry clean cloth.
CLEAN
Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of
purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized
retail affiliate, Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled
items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at:
www.homestyles-furniture.com/customer-service/replacement-parts
Home Styles Customer Service: www.homestyles-furniture.com,
[email protected], 888-680-7460, 877-831-0319
