Horizon Fitness T74 User manual

HORIZON SERIES
TREADMILL USER’S GUIDE
FOR MODELS :
T73
T74
PRESS
TOSET
INCLINE
PRESS
TOSET
SPEED
ENTER
INCLINE SP E E D
10%
9%
8%
7%
6%
5%
4%
3%
2%
1%
10
MPH
9
MPH
8
MPH
7
MPH
6
MPH
5
MPH
4
MPH
3
MPH
2
MPH
1
MPH
MANUAL INTERVALS HILLS WEIGHT
LOSS
THR
ZONE1
THR
ZONE2
PRESSENTERDURING WORKOUT TO CHANGE DISPLAY
READING
HEARTRA T E
SPEED
INCLINE
ST A R T
PAUSE
STOP
HOLD TORESET
STEP1 :S E L E C T PROGRAM
STEP 3: PRESS START TO B E G I N
STEP 2: PROGRAM SETUP

3
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Series Treadmill!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Series treadmill
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
The Horizon Series delivers.
INTRODUCTION
Important Precautions
Assembly
Before You Begin
Treadmill Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
6
13
16
23
31
34
Back Panel
TABLE OF CONTENTS

4
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.

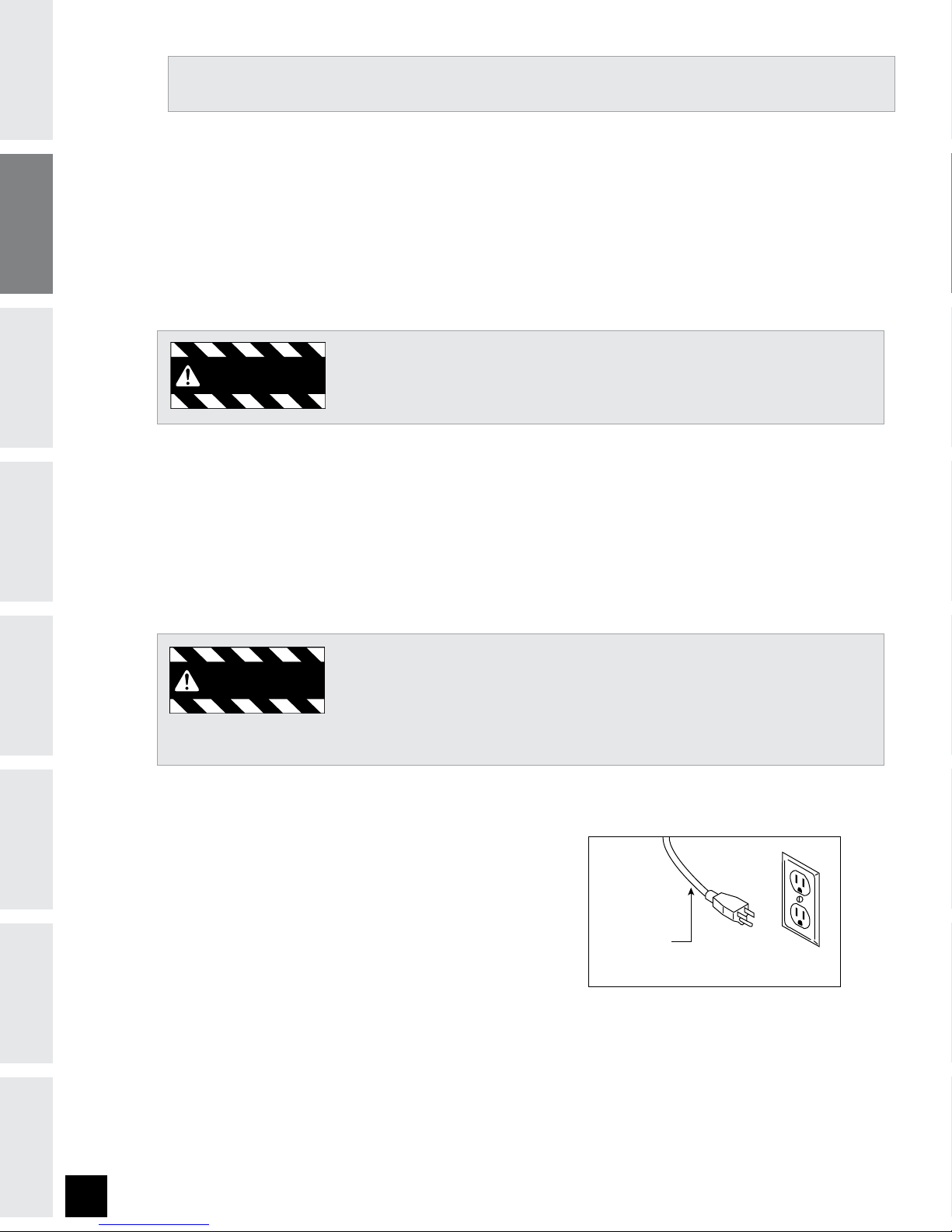

This product is for use on a nominal 110-volt circuit and
has a grounding plug that looks like the illustration
below. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
IMPORTANT PRECAUTIONS
WARNING
WARNING
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD

5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmill’s should not be used by persons weighing more than 325 pounds (T73) or 350 pounds (T74).
Failure to comply will void the warranty.
• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to complay may
void the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING

6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
Before proceeding, find your treadmill’s serial number
and model name located under the deck on the frame
crossbar and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER:
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
WARNING

7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TOOLS INCLUDED
PARTS INCLUDED
1 Safety Key
1 Console Assembly (located under treadmill deck)
1 Power Cord
3 Hardware Bags (T73)
4 Hardware Bags (T74)
2 Handgrips
2 Handlebars
2 Support Bars
1 Magazine Rack (T74)
READING RACK
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
MAGAZINE RACK (T74)
ON/OFF SWITCH
CIRCUIT BREAKER
FOOT LOCK LATCH
TRANSPORT WHEEL
C3™CUSHIONING SYSTEM
POWER CORD

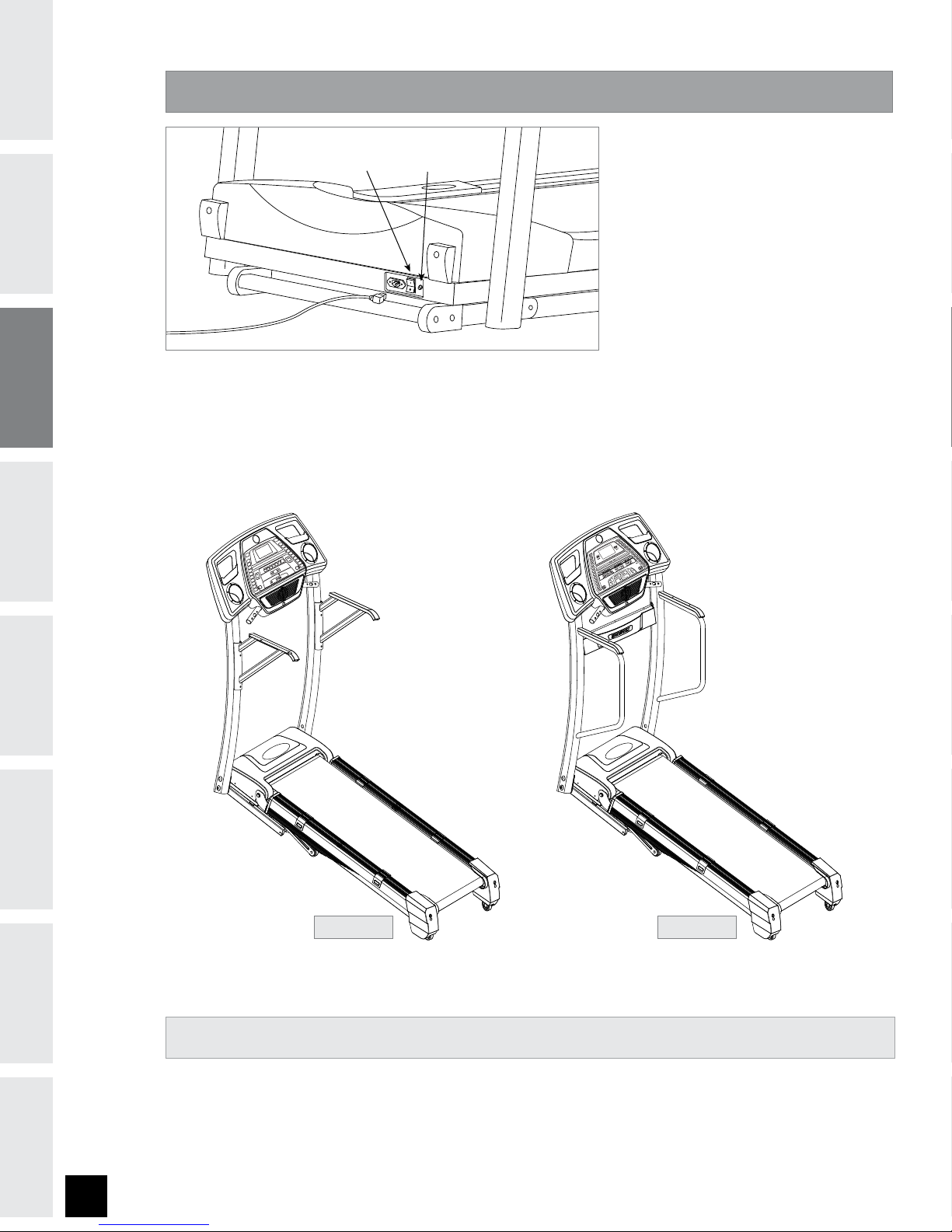

CONSOLE (T74 SHOWN)
STORAGE AREA
FAN
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT / RUNNING DECK
ROLLER END CAP
CONSOLE MAST
REAR ROLLER
ADJUSTMENT BOLTS
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
Phillips Screwdriver
L-shape Phillips & Allen Wrench
6 mm T-wrench
HANDLEBARS
SIDE RAIL

8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Disassemble box and remove the cardboard packaging that is not beneath the treadmill. Do not attempt to
lift the treadmill at this time. Remove plastic wrap from console masts.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
Open HARDWARE BAG 1.
Pull LEAD WIRE through RIGHT CONSOLE
MAST to drag upward.
Place LEFT CONSOLE MAST into upright
position. Be sure to hold the console mast
firmly, as it will not stay in the upright
position on its own.
Use BOLTS (A), 2 SPRING WASHERS (B),
and 2 FLAT WASHERS (C) to attach console
mast to the MAIN FRAME.
Repeat on the right side.
PRE-ASSEMBLY
ASSEMBLY STEP 1
A
B
C
D
E
BOLT (A)
65 mm
Qty: 4
FLAT WASHER (B)
16 mm
Qty: 4
SPRING WASHER (C)
16 mm
Qty: 4
HARDWARE BAG 1 CONTENTS :
CONSOLE MAST
FLAT WASHER
BOLT (A)
SPRING WASHER
MAIN FRAME
CONSOLE CABLE
LEAD WIRE

9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Open HARDWARE BAG 2.
Lift the RUNNING DECK until lock
latch on side of treadmill is fully
engaged (See step 1).
Remove CONSOLE from box
and place out of the way
(See step 2).
Lower the treadmill RUNNING
DECK from the folded position
by stepping on LOCK LATCH on
lower left side (See step 3).
With running deck in lowered
position, place CONSOLE on
upright masts.
Place FLAT WASHER (E) and
BOLT (D) into LEFT upright
MAST and CONSOLE and
lightly tighten.
Gently lift RIGHT side of the
console to connect the CONSOLE
CABLE. Carefully tuck wires in
mast to avoid damage. Note: Do
not pinch console cable. Be sure
the console cable prongs are
aligned and the ends are tightly
seated into each other.
Repeat steps F-G above to
assemble the right side upright
mast and console.
Tighten all bolts completely.
* NOTE: Be careful not to pinch any
wires while assembling the masts.
ASSEMBLY STEP 2
A
B
C
D
E
F
G
H
I
* Be sure to tighten bolts after all are lined up.
WASHERS (E)
BOLT (D)
ASSEMBLED IN STEP 2-C
BOLT (D)
20 mm
Qty: 4
top view
FLAT WASHER (E)
16 mm Diameter
Qty: 4
HARDWARE BAG 2 CONTENTS :
2
1
3

10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY STEP 3
BOLT (F)
115 mm
Qty: 4
top view
ARC WASHER (G)
Qty: 4
SPRING WASHER (H)
Qty: 4
HARDWARE BAG 3 CONTENTS :
A Open HARDWARE BAG 3.
B Attach left HANDLEBAR to
CONSOLE MAST using 2 BOLTS
(F), 2 SPRING WASHERS (G),
and 2 ARC WASHERS (H).
C Repeat on other side.
CONSOLE MAST
ARC WASHER (G)
SPRING WASHER (H)
BOLT (F)
T73 ASSEMBLY
STEP 1 :SELECT PROGRAM STEP 2 :PROGRAM SETUP ST E P 3 : STA R T
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
HILLS
THR ZONE
CUSTOM 1
CUSTOM 2
ENTER
PRESS START
TO BEGIN
PRESS
TOSET
INCLINE
PRESS
TOSET
SPEED
SPEED
INCLINE
PREMIUM SERIES
INCLINE SPEED
12%
11%
10%
9%
8%
7%
6%
5%
4%
3%
2%
1%
12
MPH
11
MPH
10
MPH
9
MPH
8
MPH
7
MPH
6
MPH
5
MPH
4
MPH
3
MPH
2
MPH
1
MPH
STOP
HOLD TO RESET
S T A R T
PAUSE
CONSOLE MAST
ARC WASHER (G)
SPRING WASHER (H)
BOLT (F)
T74 ASSEMBLY

11
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
BOLT (I)
MAGAZINE RACK FLAT WASHER (J)
ASSEMBLY STEP 4 (T74 ONLY)
AOpen HARDWARE BAG 4.
BAlign MAGAZINE RACK with holes
in CONSOLE MAST.
CInsert 1 BOLT (I) and 1 FLAT
WASHER (J) into each of the 4
holes of the MAGAZINE RACK.
DTighten all 4 BOLTS (H).
BOLT (I)
20 mm
Qty: 4
top view
FLAT WASHER (J)
Qty: 4
HARDWARE BAG 4 CONTENTS FOR T74:

12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
YOU’RE FINISHED!
POWER SWITCH CIRCUIT BREAKER
Connect power plug to the treadmill
and connect the cord to a power
outlet. The on/off switch is located
next to the power cord. Flip this
switch to the 'ON' position, so that
the switch is lit. You will hear a beep
and the console will light up.
ASSEMBLY STEP 5
PRESS
TOSET
INCLINE
PRESS
TOSET
SPEED
ENTER
INCLINE SP E E D
10%
9%
8%
7%
6%
5%
4%
3%
2%
1%
10
MPH
9
MPH
8
MPH
7
MPH
6
MPH
5
MPH
4
MPH
3
MPH
2
MPH
1
MPH
MANUAL INTERVALS HILLS WEIGHT
LOSS
THR
ZONE1
THR
ZONE2
PRESSENTERDURING WORKOUT TO CHANGE DISPLAY
READING
HEARTRA T E
SPEED
INCLINE
ST A R T
PAUSE
STOP
HOLD TORESET
STEP1 :S E L E C T PROGRAM
STEP 3: PRESS START TO B E G I N
STEP 2: PROGRAM SETUP
T73 T74

13
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.

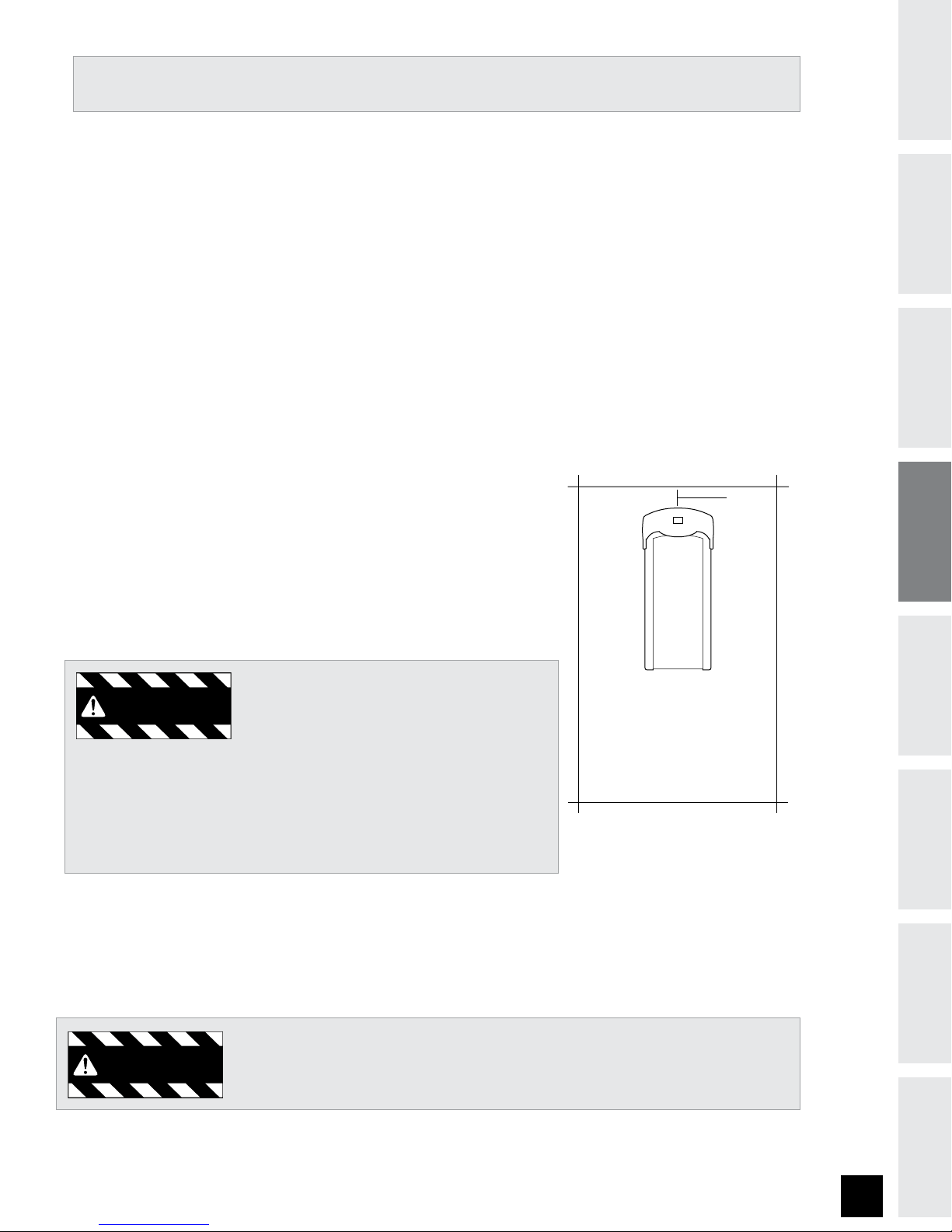

LOCATION OF THE TREADMILL
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
WARNING
3 feet
6 feet
3 feet
1 foot
WARNING

14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PROPER USAGE
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 27 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
FOLDING
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground. NOTE: The foot lock latch is located
on the bottom left side of the deck.
MOVING
Your treadmill has a pair of transport wheels built
into the frame. To move, make sure the treadmill is
folded and securely latched. Then firmly grasp the
handlebars, tilt the treadmill back and roll.
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
WARNING
WARNING

15
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

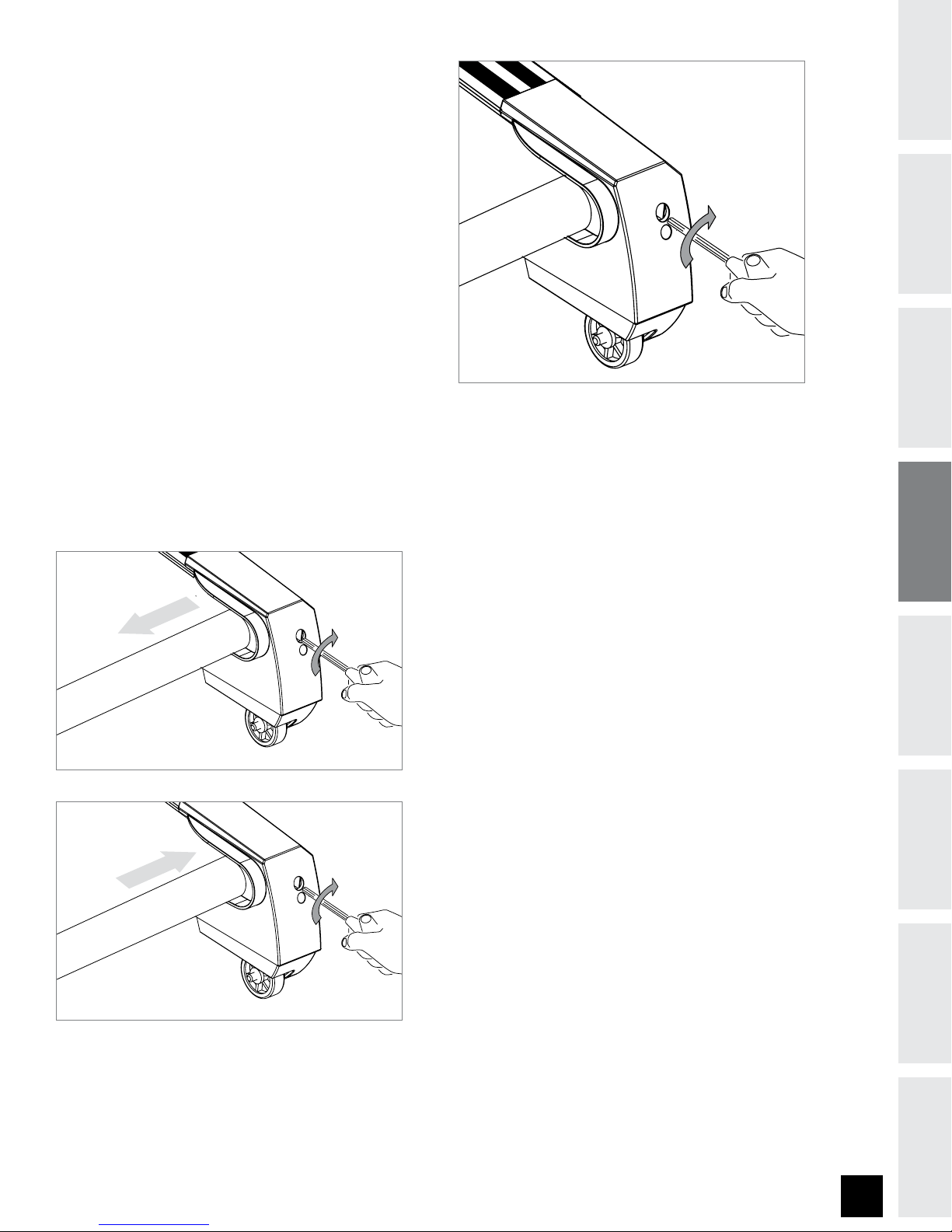

CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
If the running belt is too far to the right side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 TURN at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
If the running belt is too far to the left side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 TURN at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
Belt is too far to the right side
Belt is too far to the left side
TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, TURN THE TREADMILL OFF
and tension BOTH THE REAR ROLLER BOLTS using the
supplied Allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.

16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
TREADMILL OPERATION
MA DFP PG
L
KBR
OH IC
JP PNQ
E

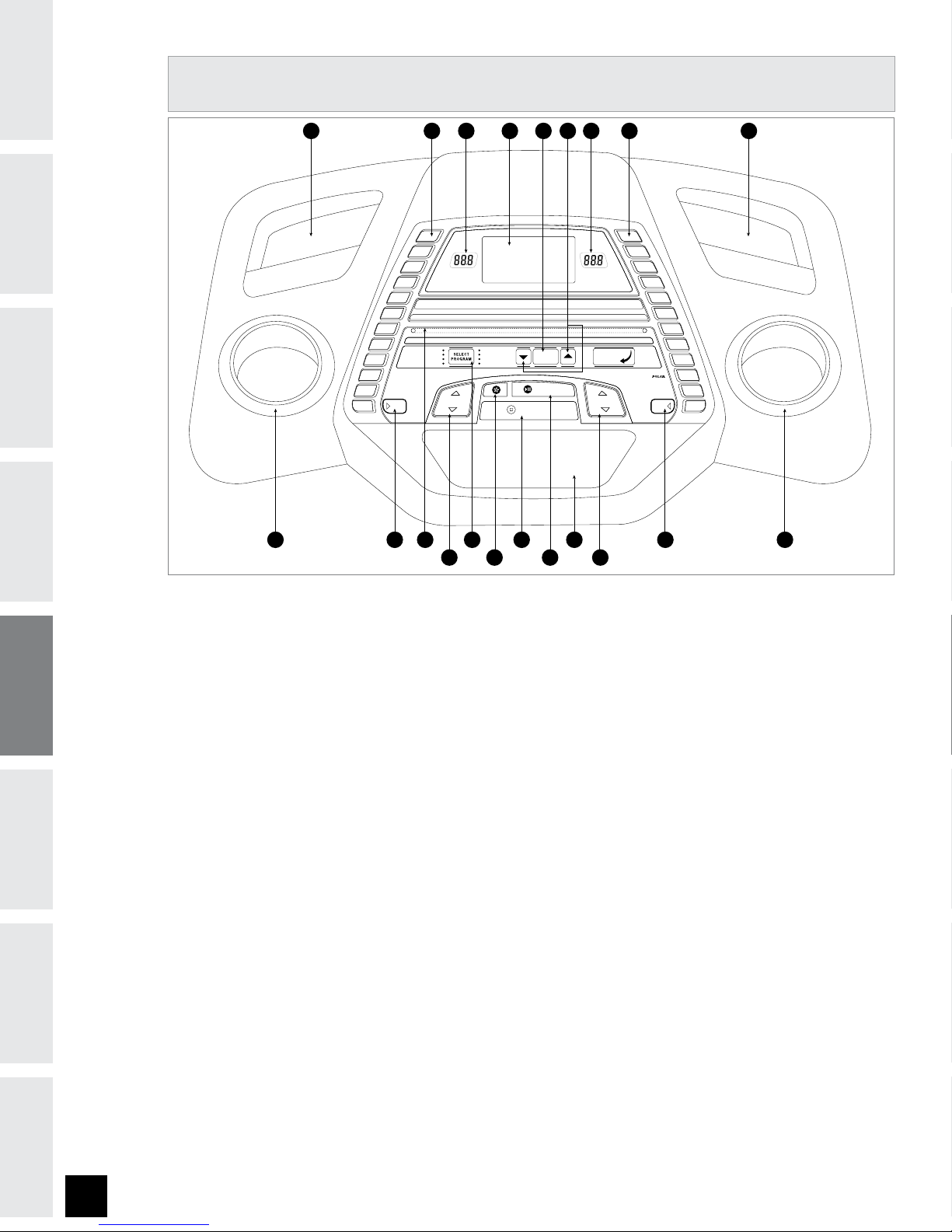

STEP 1 : SELECT PROGRAM STEP 2 : PROGRAM SETUP STEP 3 : START
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
HILLS
THR ZONE
CUSTOM 1
CUSTOM 2
ENTER PRESS START
TO BEGIN
PRESS
TO SET
INCLINE
PRESS
TO SET
SPEED
SPEEDINCLINE
PREMIUM SERIES
INCLINE SPEED
12 %
11 %
10 %
9 %
8 %
7 %
6 %
5 %
4 %
3 %
2 %
1 %
12 MPH
11 MPH
10 MPH
9 MPH
8 MPH
7 MPH
6 MPH
5 MPH
4 MPH
3 MPH
2 MPH
1 MPH
STOP
HOLD TO RESET
S T A R T
PAUSE
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) MONITOR DISPLAY: Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles.
B) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
C) START/PAUSE: Simply press to begin exercising, starts your program or pauses current workout.
D) ARROW KEYS: Used to scroll through programming options such as Program, Level , Time, Speed & Weight.
E) ENTER: Press to confirm the selected Program, Time, Level, Speed and Weight.
F) QUICK ADJUST INCLINE KEYS: Used to reach desired incline more quickly. Press before SET INCLINE key.
G) QUICK ADJUST SPEED KEYS: Used to reach desired speed more quickly. Press before SET SPEED key.
H) INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
I) SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
J) PRESS TO SET INCLINE KEY: Press to confirm one-touch incline selection. Press after QUICK ADJUST INCLINE key.
K) PRESS TO SET SPEED KEY: Press to confirm one-touch speed selection. Press after QUICK ADJUST SPEED key.
L) INCLINE LED DISPLAY: Illuminate to indicate current incline.
M) SPEED LED DISPLAY: Illuminate to indicate current speed.
N) FAN: Personal workout fan.
O) FAN BUTTON: Press the fan button ON / OFF.
P) WATER BOTTLE / CD / MP3 HOLDERS: Holds personal workout equipment.
Q) READING RACK: Holds reading material. (Remove sales sticker before use)
R) SELECT PROGRAM: Used to select a program.

17
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TIME • Shown as Minutes:Seconds. View the time
remaining or the time elapsed in your workout.
PULSE • Shown as Beats Per Minute. Used to
monitor your heart rate (displayed when contact is
made with both pulse grips or wireless chest strap is
used (purchased separately for T74 model only.)
DISTANCE • Shown as Miles. Indicates distance
traveled during your workout.
CALORIES • Total Calories burned during your workout.
PROGRAM PROFILES • Represents the profile of the program being used (speed during speed based
programs and incline during incline based programs).
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your
heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When
gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure.
Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse
handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
MONITOR DISPLAY
HEART RATE

18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Check to make sure nothing is on or will hinder the movement of the treadmill.
Plug in the power cord and turn the treadmill ON.
Stand on the side rails of the treadmill.
Attach the safety key clip to part of your clothing.
Insert the safety key into the safety keyhole in the console.
You have two options to start your workout:
QUICK START UP
Simply press the START key to begin working out. OR...
SELECT A PROGRAM
Select a PROGRAM using the SELECT PROGRAM key.
Once a PROGRAM has been chosen, press ENTER.
SELECT A TIME
Select a Time using the ARROW keys or use the default time.
Once a TIME has been chosen, press ENTER.
SELECT A LEVEL
Select a PROGRAM LEVEL using the ARROW keys.
Once a PROGRAM LEVEL has been chosen, press ENTER.
SELECT A WEIGHT
Select a WEIGHT using the ARROW keys.
Once a WEIGHT has been chosen, press START.
FINISHING YOUR WORKOUT
When your workout is complete, the MONITOR DISPLAY will flash and beep. Your workout information will
stay displayed on the console for 45 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP button for 3 seconds.
GETTING STARTED / SELECTING A PROGRAM
1)
2)
3)
4)
5)
6)
A)
B)

19
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROGRAM INFORMATION
PROGRAM: MANUAL
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Walk or run a series of alternating SPEED levels. Time-based goal with 10 difficulty levels to choose from.
INTERVALS PROGRAM SEGMENTS
(peak segments last 30 seconds, valley segments last 90 seconds)
MPH WARM-UP 1 2
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL DOWN
Level 1 1.0 1.5 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7.0 2.6 1.8
Level 8 1.8 2.6 3.5 7.5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 3.0 2.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: INTERVALS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal.
Motivates with different combinations of SPEED. Time-based goal with 10 difficulty levels to choose from.
ROLLING PROGRAM SEGMENTS (all segments last 30 seconds)
MPH WARM-UP 12345678
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL-DOWN
Level 1 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5
Level 2 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8
Level 3 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0
Level 4 1.8 2.6 3.5 4.0 4.5 5.0 5.5 5.0 4.5 4.0 3.4 2.3
Level 5 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5
Level 6 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8
Level 7 2.5 3.8 5.0 5.5 6.0 6.5 7.0 6.5 6.0 5.5 4.5 3.0
Level 8 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3
Level 9 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5
Level 10 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.0 7.5 7.0 5.6 3.8
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: ROLLING
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR

20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Challenges with various combinations of hills and valleys (INCLINE & SPEED levels). Time-based goal with 10
difficulty levels to choose from.
WEIGHT LOSS PROGRAM SEGMENTS (all segments last 30 seconds)
WARM-UP 12345678
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
COOL-DOWN
Level 1 Elevation 0.0 0.5 1.5 1.5 1.0 0.5 0.5 0.5 1.0 1.5 0.5 0.0
Speed 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5
Level 2 Elevation 0.0 0.5 1.5 1.5 1.0 0.5 1.0 0.5 1.0 1.5 0.5 0.0
Speed 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8
Level 3 Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5
Speed 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0
Level 4 Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5
Speed 1.8 2.6 3.5 4.0 4.5 5.0 5.5 5.0 4.5 4.5 3.4 2.3
Level 5 Elevation 1.0 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0
Speed 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5
Level 6 Elevation 1.0 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0
Speed 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8
Level 7 Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5
Speed 2.5 3.8 5.0 5.5 6.0 6.5 7.0 6.5 6.0 5.5 4.5 3.0
Level 8 Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5
Speed 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3
Level 9 Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0
Speed 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5
Level 10 Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0
Speed 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.5 7.5 7.0 5.6 3.8
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: WEIGHT LOSS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Motivates with different inclines. Time-based goal with 10 difficulty levels to choose from.
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: HILLS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
HILLS PROGRAM SEGMENTS (all segments last 30 seconds)
Segments 1-15 repeated until selected time is reached
Warm Up 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Cool Down
Level 1 0.0 0.5 0.0 0.5 1.0 3.0 1.0 3.0 2.0 3.0 2.0 3.5 2.0 3.0 2.0 3.0 1.0 3.0 1.0 0.5 0.0 0.5 0.0
Level 2 0.0 0.5 0.0 0.5 1.0 3.0 2.0 3.0 2.0 3.0 2.5 3.5 2.5 3.0 2.0 3.0 2.0 3.0 1.0 0.5 0.0 0.5 0.0
Level 3 0.5 1.0 0.5 1.0 1.5 3.5 1.5 3.5 2.5 3.5 2.5 4.0 2.5 3.5 2.5 3.5 1.5 3.5 1.5 1.0 0.5 1.0 0.5
Level 4 0.5 1.0 0.5 1.0 1.5 3.5 2.5 3.5 2.5 3.5 3.0 4.0 3.0 3.5 2.5 3.5 2.5 3.5 1.5 1.0 0.5 1.0 0.5
Level 5 1.0 1.5 1.0 1.5 2.0 4.0 2.0 4.0 3.0 4.0 3.0 4.5 3.0 4.0 3.0 4.0 2.0 4.0 2.0 1.5 1.0 1.5 1.0
Level 6 1.0 1.5 1.0 1.5 2.0 4.0 3.0 4.0 3.0 4.0 3.5 4.5 3.5 4.0 3.0 4.0 3.0 4.0 2.0 1.5 1.0 1.5 1.0
Level 7 1.5 2.0 1.5 2.0 2.5 4.5 2.5 4.5 3.5 4.5 3.5 5.0 3.5 4.5 3.5 4.5 2.5 4.5 2.5 2.0 1.5 2.0 1.5
Level 8 1.5 2.0 1.5 2.0 2.5 4.5 3.5 4.5 3.5 4.5 4.0 5.0 4.0 4.5 3.5 4.5 3.5 4.5 2.5 2.0 1.5 2.0 1.5
Level 9 2.0 2.5 2.0 2.5 3.0 5.0 3.0 5.0 4.0 5.0 4.0 5.5 4.0 5.0 4.0 5.0 3.0 5.0 3.0 2.5 2.0 2.5 2.0
Level 10 2.0 2.5 2.0 2.5 3.0 5.0 4.0 5.0 4.0 5.0 4.5 5.5 4.5 5.0 4.0 5.0 4.0 5.0 3.0 2.5 2.0 2.5 2.0
