TREADMILL OWNER’S MANUAL
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
T-PRO

2

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions
before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of
all warnings and precautions. If you have any questions after reading this manual, contact your local dealer.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than Max. user weight. Failure to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or
immersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to porches, pool rooms, bathrooms,
car ports or outdoors. Failure to comply may void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by your local dealer. Service should only be done by an authorized service
technician
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before
first time use. Failure to do so may cause premature electronic failure.
WARNING

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or break down, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact your local dealer for replacement or repair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 220 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure
that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one
circuit. This treadmill should be used with a minimum 10-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number and model name located on a
white barcode sticker near the on/off power switch and power cord and enter them in the
space provided below.
ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING
SERIAL NUMBER LOCATION
MODEL NAME: HORIZON TREADMILL

8

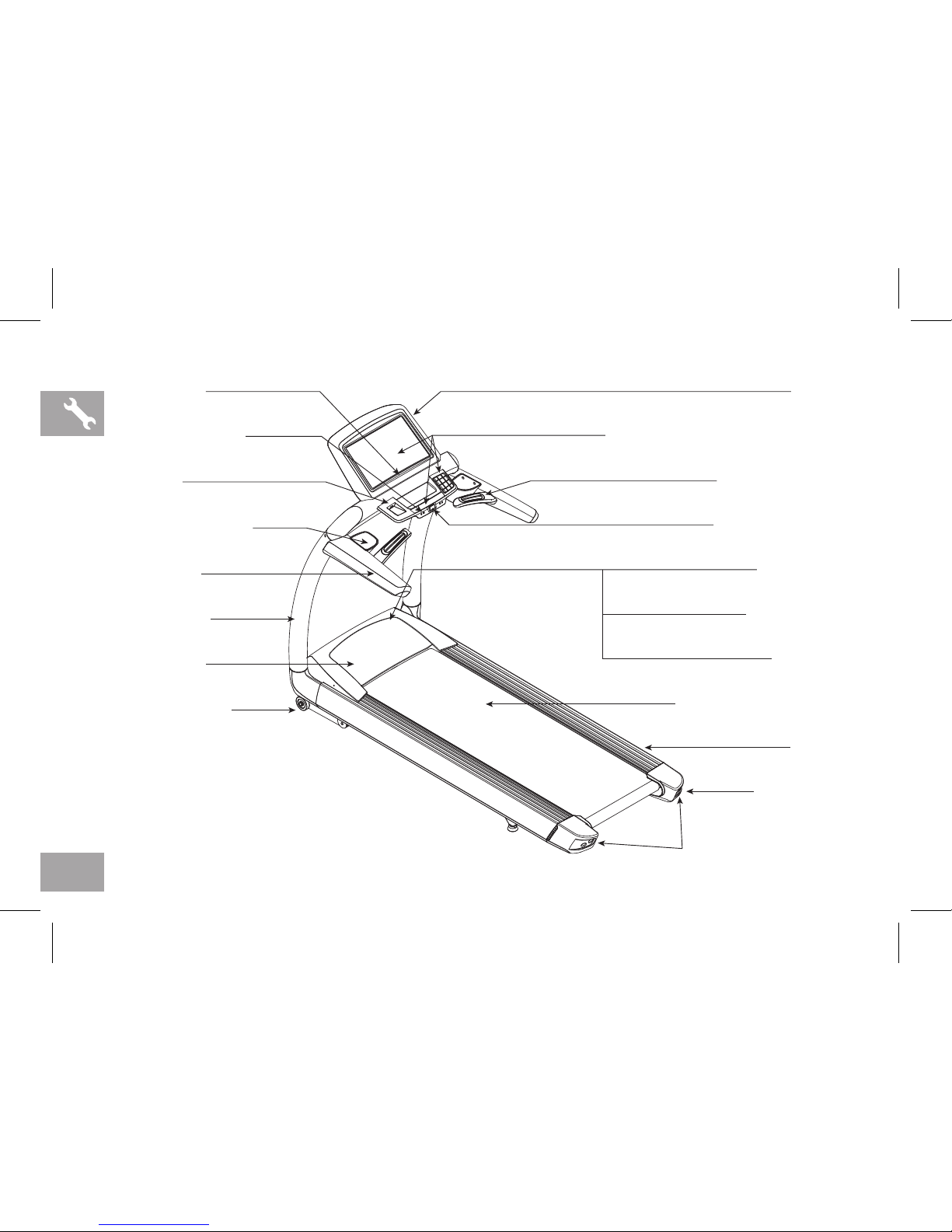

USB PORT
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
CONSOLE
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
POWER CORD
READING RACK
HANDLEBARS

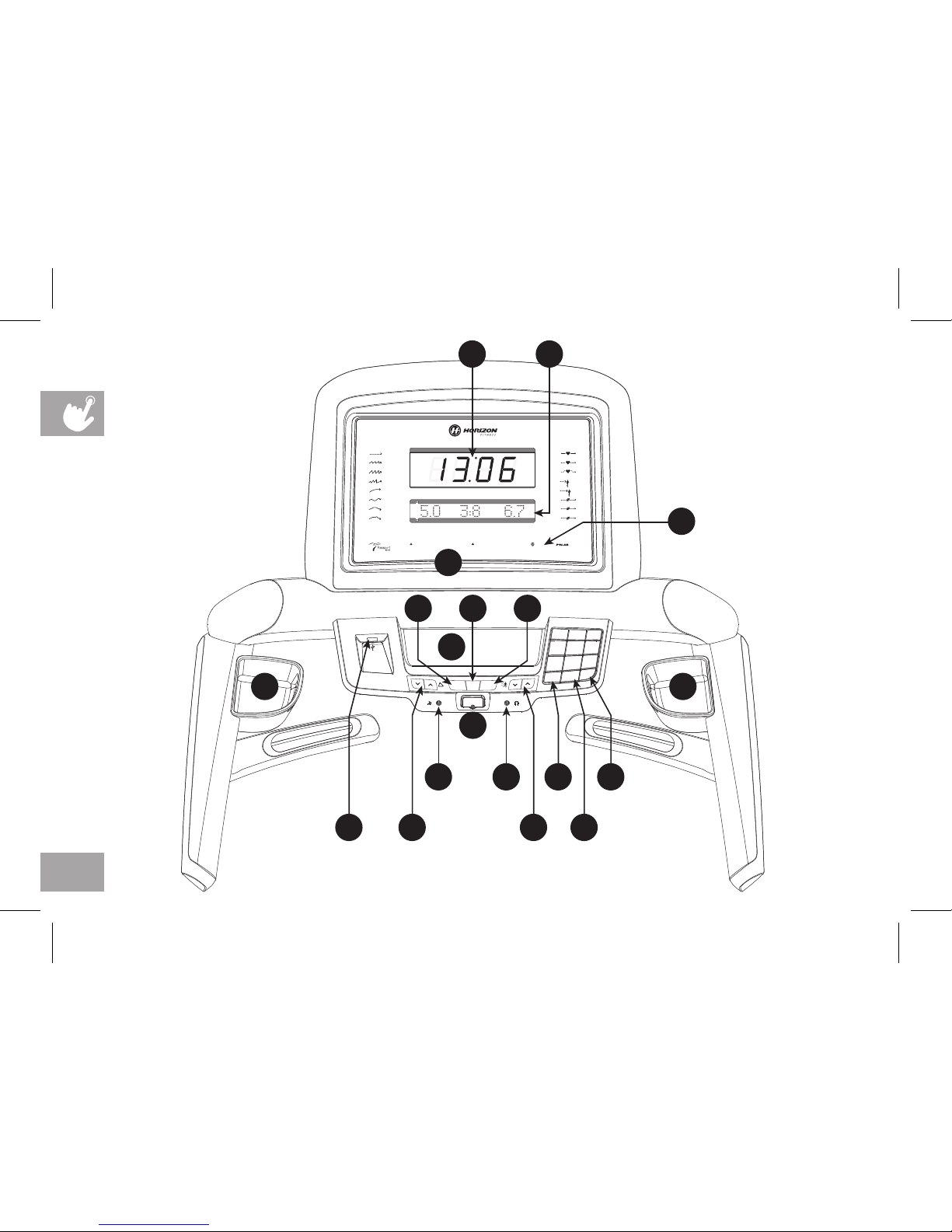

CONSOLE CONTROLS AND DISPLAY WINDOWS
AUDIO IN / OUT JACKS
SAFETY KEY PLACEMENT
MOTOR COVER
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ADJUSTMENT BOLTS
CONSOLE MAST
RUNNING BELT / RUNNING DECK
T-PRO
Max. User Weight: 182 kg / 400 lbs
Product Weight: 130 kg / 286 lbs
Overall Dimensions: 196.5 x 95.5 x 151 cm / 77.5” x 37.5”x 59.5”

9
TOOLS INCLUDED:
F5 mm T-Wrench
F8 mm T-Wrench
FScrewdriver
PARTS INCLUDED:
F1 Console Assembly
F2 Handlebars
F2 Console Masts
F1 Hardware Kit
F1 Safety Key
F1 USB Cover
F1 Audio Adapter Cable
F1 Power Cord
F1 Bottle of Silicone Lubricant
F4 Console Mast Covers
If you have questions or if
there are any missing parts,
contact your local dealer.
Contact information is located
on the back panel of this
manual.
NEED HELP?
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Once the banding straps have been removed, do not transport this unit unless it is
fully assembled. Unpack and assemble the unit where it will be used. Never grab hold of
any portion of the incline frame and attempt to lift or move the treadmill. Lift the treadmill
from the roller end caps area while a second person removes the parts packed under
the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY

10
BOLTS (A)
SPRING
WASHERS (B)
LEFT CONSOLE MAST
ARC WASHERS (C)
MAIN FRAME BRACKET
RIGHT CONSOLE MAST
LEAD WIRE
CONSOLE CABLE
T-PRO ASSEMBLY STEP 1
A Open haRdwaRe fOR sTeP 1.
B Pull lead wiRe through RighT cOnsOle masT.
After pulling the lead wiRe through the mast, the
top of the cOnsOle cable should be located at
the top of the mast. Detach and discard lead wiRe.
C Place RighT cOnsOle masT over main fRame
bRackeT.
D Attach cOnsOle masT to main fRame
bRackeT using 4 bOlTs (a), 4 sPRing
washeRs (b) and 4 aRc washeRs (c).
E Repeat steps C–D on other side.
NOTE: Do not pinch console cable when placing
the mast onto the main frame bracket.
BOLT (A)
20 mm
Qty: 8
SPRING WASHER (B)
8.2 mm
Qty: 8
ARC WASHER (C)
8.4 mm
Qty: 8
HARDWARE FOR STEP 1 :
NOTE: Do not tighten bolts until step 3 is complete.

11

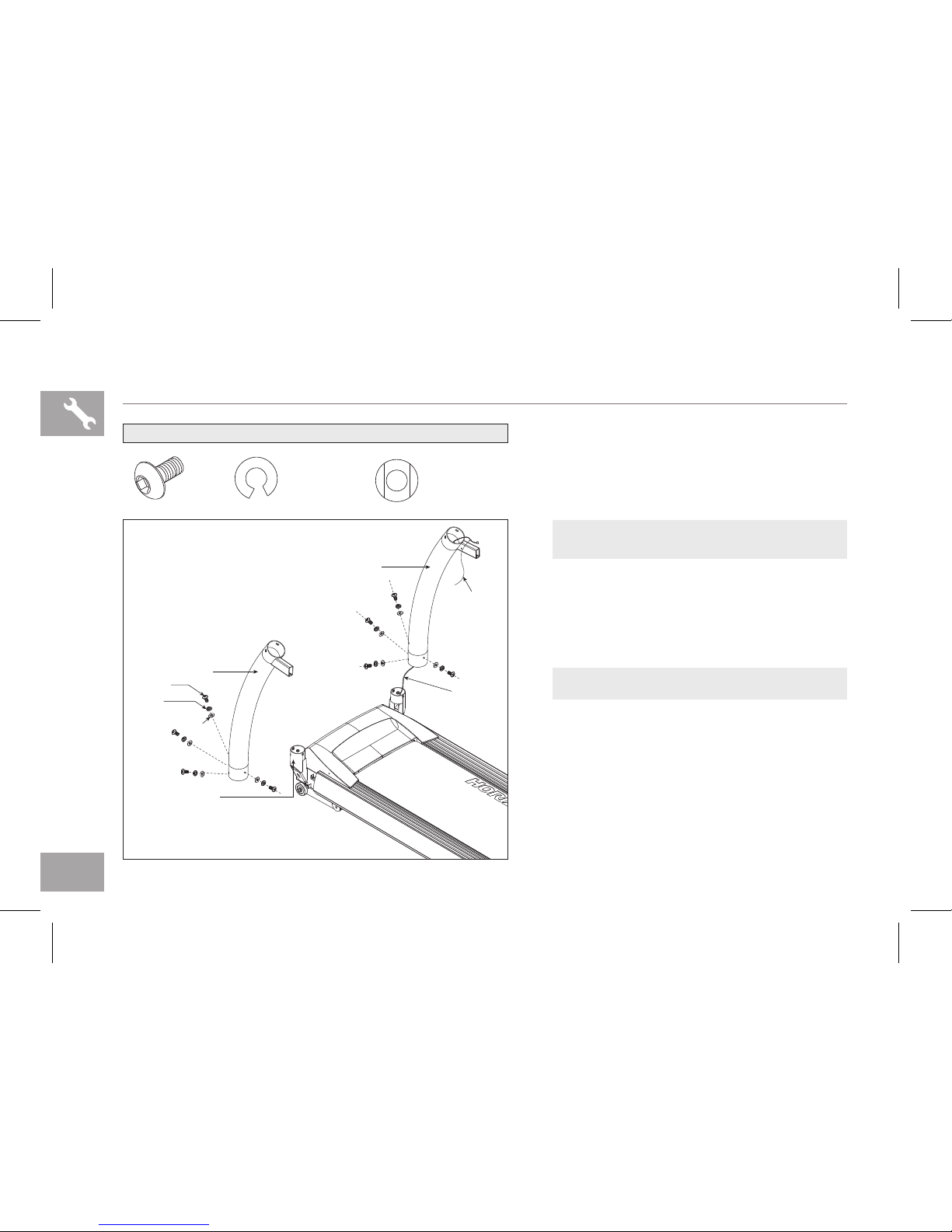

T-PRO ASSEMBLY STEP 2
A Open haRdwaRe fOR sTeP 2.
B Feed handlebaR cable through
cOnsOle masT bRackeT and out through
the top of cOnsOle masT.
C Slide handlebaR onto cOnsOle masT
bRackeT and attach using 3 bOlTs (a),
3 sPRing washeRs (b) and 3 flaT
washeRs (d).
D Repeat on other side.
BOLT (A)
20 mm
Qty: 6
SPRING WASHER (B)
8.2 mm
Qty: 6
FLAT WASHER (D)
8.2 mm
Qty: 6
HARDWARE FOR STEP 2 :
BOLTS (A)
SPRING WASHERS (B)
HANDLEBAR CABLE
CONSOLE MAST
FLAT WASHERS (D)
HANDLEBARS
CONSOLE MAST BRACKET
NOTE: Be careful not to pinch any wires
while attaching the handlebars.

12
BOLTS (A)
SPRING WASHERS (B)
CONSOLE
CONSOLE MAST
ARC WASHERS (C)
CONSOLE &
HANDLEBAR
CABLES
T-PRO ASSEMBLY STEP 3
A Open haRdwaRe fOR sTeP 3.
B Gently hold the cOnsOle above of the
cOnsOle masTs.
C Connect the cOnsOle & handlebaR
cables, carefully tucking wires in masts to
avoid damage.
D Attach each side of the cOnsOle using 3
bOlTs (a), 3 sPRing washeRs (b) and 3
aRc washeRs (c).
E Rotate the CONSOLE MASTS until the
spacing between the handlebars and the deck
are the same. Tighten BOLTS from step 1 and
then step 3.
HARDWARE FOR STEP 3 :
BOLT (A)
20 mm
Qty: 6
SPRING WASHER (B)
8.2 mm
Qty: 6
ARC WASHER (C)
8.4 mm
Qty: 6

13
T-PRO ASSEMBLY STEP 4
A Open haRdwaRe fOR sTeP 4.
B Gently attach the inneR and OUTTeR
cOnsOle masT cOVeR to its position.
C Make sure there the cOnsOle masT
cOVeR is well assembled and fix it tight with 6
scRews (d).
HARDWARE FOR STEP 4 :
ASSEMBLY COMPLETE!
SCREW (D)
CONSOLE MAST
SCREW (D)
4 mm
Qty: 6

15
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

16
SET
INCLINE
STEIGUNGEINSTELLEN
SET
SPEED
GESCHWINDIGKEIT
EINSTELLEN
STOP
HOLDTO RESET
ENTER
EINGABE
CHANGE
DISPLAY
ANZEIGENWECHSEL
FÜRNULLSTELLUNG
GEDRÜCKTHALTEN
STA RT
QUICKSTART
13
2
0
46
5
79
8
TIME
ZEIT
DISTANCE
ENTFERNUNG
PACE
TEMPO
INCLINE
STEIGUNG
MANUAL
MANUELL
CALORIES
KALORIEN
SPEED
GESCHWINDIGKEIT
HEART RATE
HERZFREQUENZ
P1
SPEED INTERVALS
GESCHWINDIGKEITSINTERVALLE
P2
PEAK INTERVALS
SPITZENINTERVALLE
P3
WEIGHT LOSS
GEWICHTSREDUZIERUNG
P4
P5
GOLF COURSE
GOLFPARCOURS
FOOT HILL S
HÜGELLAUF
P6
P7
P8
THR ZONE
THRZONE
P9
HR INTERVALS
HRINTERVALL
P10
THR STEPS
ZIELHERZFREQUENZSTUFEN
P11
5K
5KM
P12
10K
10K
P13
CUSTOM 1
BENUTZER1
P14
CUSTOM 2
BENUTZER2
P15
CUSTOM 3
BENUTZER3
P16
STAMINA BUILDER
AUSDAUER
MOUNTAINCLIMB
BERGSTEIGEN
BefestigenSie den Sicherheitsc lip an Ihrer Kleidung, bevor Sie das Gerät starten.
Herzfrequenzüberwachungssysteme können ungenau sein. Übermäßiges Training kann zu
ernsthaftenVerletzungen oder zum Tod führen. Um das Risiko von Verletzungen einzudämmen,
stellenSie sich auf die seitlichen Trittfläche n, bevorSie das Ge rät starten. Lesen und befolgen Sie die
Bedienungsanleitungvor der Erstbenutzung. Hal ten Sie Kinder von dem Gerät fern.
WARNUNG! Nurfür den Heimgebrauch.
Attach safety key c lip to clothin g before star ting and remo ve safety key wh en not in use.
Heartrate monitoring systems may be inaccurate. Over exercise may result in serious injury o r death.
Toavoid injury, stand on the side rails before starting treadmill. Read and follow all instructions
beforeoperating. Keep children away from this equipment.
WARNING! Modelis only for homeuse.
EnergySaver
ENERGIESPARMODUS
A
R
Q
E F
LK
O
C DJ
GM
P P
N
H I
B

17
CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should
be removed before use.
A) LARGE LED DISPLAY WINDOW: displays workout time.
B) ALPHANUMERIC DISPLAY WINDOW: displays incline, distance, speed, calories,
pace, workout profile and heart rate.
C) START: press to begin exercising, start your workout, or resume exercising after pause.
D) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
E) INCLINE KEYS: used to adjust incline in small increments (0.5% Increments).
F) SPEED + – KEYS: used to adjust speed in small increments (0.1 MPH or 0.1KM/H
increments).
G) QUICK ADJUST KEYPAD: used to reach desired speed or incline more quickly.
H) SET INCLINE KEY: used to change incline to level entered into keypad.
I) SET SPEED KEY: used to change speed to level entered into keypad.
J) ENTER / CHANGE DISPLAY KEY: Press to confirm programming selections during
workout setup. Press to change display feedback during workout.
K) AUDIO IN JACK: plug your media player into the console using the included audio
adaptor cable.
L) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to
your music through the headphones.
M) USB PORT: insert USB stick here to update software.
N) READING RACK: holds reading material.
O) MEDIA PLAYER HOLDER: holds your media player.
P) WATER BOTTLE POCKETS: holds personal workout equipment.
Q) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
R) ENERGY SAVER: To minimize energy consumption, your machine will enter energy
saver mode automatically(after entering stand-by mode for 15 mins) and could be
quickly waken up with a touch of a button.
13
2
0
46
5
79
8
SET
INCLINE
STEIGUNG EINSTELLEN
SET
SPEED
GESCHWINDIGKEIT
EINSTELLEN
QUick adJUsT keYPad (g)
Quickly access any speed or
incline level by typing the number
and pressing SET SPEED (I)
or SET INCLINE (H) keys.
Examples:
• To change the speed to 6.5
MPH or KM/H, press 6–5–SET
SPEED.
• To change the incline to 10%,
press 1–0–0–SET INCLINE.
(NOTE: If there is no decimal
point, you still must enter 0).

18
DISPLAY WINDOWS
• TIME: Shown as minutes : seconds. View
the time remaining or the time elapsed in your
workout.
• INCLINE: Shown as percent. Indicates the
incline of your walking or running surface.
• DISTANCE: Shown as miles or kilometres.
Indicates distance traveled or distance
remaining during your workout.
• SPEED: Shown as MPH or KM/H. Indicates
how fast your walking or running surface is
moving.
• CALORIES: Total calories burned or calories
remaining to burn during your workout.
• PACE: Indicates how many minutes it takes
to complete a mile or kilometre while running
or walking at your current speed. For example:
If at your current speed it will take you 10
minutes to complete a mile or kilometre, the
treadmill will display 10‘0“ as your pace.
• HEART RATE: Shown as BPM (beats per
minute). Used to monitor your heart rate
(displayed when contact is made with both
pulse grips).
TIME
SPEED
DISTANCE
INCLINE
PACECALORIES H E A R T R AT E
WORKOUT PROFILE: Shows the incline level of selected workout.
The dot matrix will show the incline profile as
you progress through a program.
SPEED
DISTANCE
INCLINE
PACECALORIES H E A R T R AT E

19
GETTING STARTED
1) Check to make sure no objects are placed on the belt that will
hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making
sure that it is secure and will not become detached during
operation.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:
A) QUICK START
Simply press the START key to begin working out.
Time, distance, and calories will all count up from zero. OR...
B) SELECT A PROGRAM
1) Select USER 1, USER 2 or GUEST using or +/– and
press ENTER to confirm.
2) Select a program using or +/– and press ENTER to
confirm.
3) Complete the program setup using or +/– and press
ENTER to confirm.
4) When setup is complete, press START to begin your workout.
DATE AND CLOCK SETUP
1) Enter Setup mode: Press and hold the 1 and 2
buttons for 3 seconds.
2) Use the KEYS to change settings and
press ENTER to confirm.
3) Settings include: Month, day, year, hour,
minute, and am/pm.
4) Review settings: You can review your settings
at any time while in setup mode. Press ENTER
to scroll through settings.
5) Exit setup mode: To confirm the date and time,
press and hold ENTER for 3 seconds.
6) To reset: simply re-enter setup mode and
adjust date and time to the correct setting.
TO CLEAR SELECTION/RESET THE
CONSOLE
Hold STOP key for 3 seconds.
FINISHING YOUR WORKOUT
When your workout is complete, the display will flash
“WORKOUT COMPLETE” and beep. Your workout
information will stay displayed on the console for 30
seconds and then reset.

20
PROGRAM INFORMATION
P1) MANUAL: Adjust your speed and incline manually during your workout.
P2) SPEED INTERVALS: Improves your strength, speed and endurance by increasing and decreasing the speed throughout your
workout to involve your heart and other muscles. Speed changes and segments repeat 90 seconds and 30 seconds.
British
Segment Warm Up 1 2 Cool Down
Time 4:00
min
90
sec
30
sec
4:00
min
Level 1 1.0 1.5 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7. 0 2.6 1.8
Level 8 1.8 2.6 3.5 7. 5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 3.0 2.0
Metric
Segment Warm Up 1 2 Cool Down
Time 4:00 min 90 sec 30 sec 4:00 min
Level 1 1.6 2.4 3.2 6.4 2.4 1.6
Level 2 1.6 2.4 3.2 7. 2 2.4 1.6
Level 3 2.0 3.0 4.0 8.0 3.0 2.0
Level 4 2.0 3.0 4.0 8.8 3.0 2.0
Level 5 2.4 3.6 4.8 9.6 3.6 2.4
Level 6 2.4 3.6 4.8 10.4 3.6 2.4
Level 7 2.8 4.1 5.6 11.2 4.1 2.8
Level 8 2.8 4.1 5.6 12.0 4.1 2.8
Level 9 3.2 4.8 6.4 12.8 4.8 3.2
Level 10 3.2 4.8 6.4 13.6 4.8 3.2
