Horizon Fitness Adventure 2 Plus User manual

TREADMILL OWNER’S MANUAL
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Adventure 2 Plus
Adventure 3 Plus

23
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage
to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER:
MODEL NAME: HoRIzoN TREADMILL

4 5
SPEAKERS
(A DVENT URE 3 PLUS ONLY)
WATE R BOTTLE H OLDER
GR IP PULS E HANDR AILS
ON /OFF SWITCH
CIRCUIT BRE A KER
TR ANS POR T WH EEL
POWER COR D
CONSOLE
IPOD/ MP3 PLAYER PO CKE T
TOUCH PAD PANEL AND DIS PLAY WIN DOW S
SAFE T Y KE Y PLACEM ENT
MOTOR COVER
RUNNING BELT / RUNN ING DEC K
SI DE R AIL
ROLLER E ND C AP
RE AR ROLLER
ADJU STM ENT BOLTS
CONS OLE MAS T
FOOT LOCK L ATC H (UN DERNEATH DECK)
SUPPORT BAR
ALL
MoDELS
TooLS INCLUDED:
F6 mm T-Wrench
F5 mm L-Wrench
F4 mm T-Wrench
F4 mm L-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F2 Socket
F1 Support Bar
F5 Hardware Bags
F1 Safety Key
F1 Bottle of Silicone Lubricant
(for 2 applications)
F1 Power Cord
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled.
Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY
ALL
MoDELS

6 7

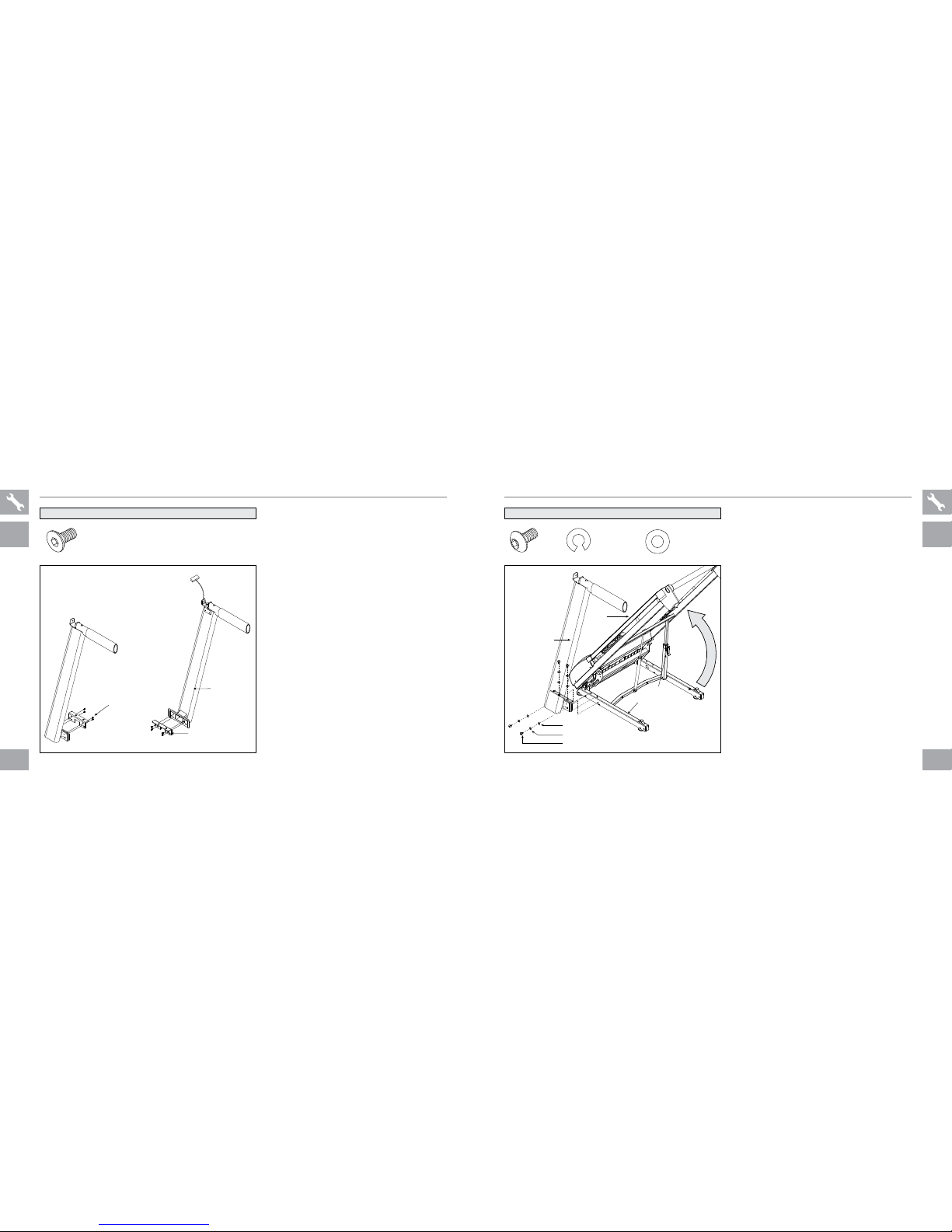

ASSEMBLY STEP 1
A Open HARDWARE BAG 1.
B Cut the yellow banding and get console mast
out
C Attach the LEFT SOCKET to the LEFT
CONSOLE MAST using 4 SOCKET BOLTS.
D Attach the RIGHT SOCKET to the RIGHT
CONSOLE MAST using 4 SOCKET BOLTS.
SOCKET BOLT
10 mm
Qty: 8
HARDWARE BAG 1 CONTENTS :
SOCKET BOLT
CONSOLE MAST
SOCKET
ALL
MoDELS
ALL
MoDELS
ASSEMBLY STEP 2
A Lift the RUNNING DECK upward until the
FOOT LATCH locks. Remove all contents from
underneath the running deck.
B Open HARDWARE BAG 2.
C With the RUNNING DECK in the raised
position, attach the LEFT CONSOLE MAST
to the BASE FRAME using 4 BOLTS (A),
4 SPRING WASHERS (B) and 4 FLAT
WASHERS (C).
BOLT (A)
20 mm
Qty: 4
SPRI NG WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
LEFT
CONSOLE
MAST
RUN NING DECK
BASE FRAME
FOOT LATCH
BOLTS (A)
SPRI NG WASHE RS (B)
FLAT WASHERS (C)

8 9
ASSEMBLY STEP 3
A Open HARDWARE BAG 3.
B Pull LEAD WIRE through RIGHT CONSOLE
MAST. After pulling the lead wire through the
mast, the top of the CONSOLE CABLE should
be located at the top of the mast. Detach and
discard the lead wire.
C With the RUNNING DECK in the raised
position, attach the RIGHT CONSOLE
MAST to the BASE FRAME using 4 BOLTS
(A), 4 SPRING WASHERS (B) and 4 FLAT
WASHERS (C).
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
BOLT (A)
20 mm
Qty: 4
SPRI NG WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 3 CONTENTS :
BOLTS (A)
SPRI NG WASHER S (B)
FLAT WASHE RS (C)
RIGHT CON SOLE MAST
CONSOLE CABLE
LEAD WIRE
CONSOLE CABLE
BASE FRAME
RUN NING D ECK
ALL
MoDELS
ALL
MoDELS
ASSEMBLY STEP 4
SPRI NG WASHE R (B)
15 mm
Qty: 6
FLAT WASHER (C)
15 mm
Qty: 6
BOLT (D)
15 mm
Qty: 6
HARDWARE BAG 4 CONTENTS :
FLAT WASHERS (C)
CONSOLE MAST
CONSOLE CABLES
SPRING WASHERS (B)
BOLTS (D)
CONSOLE
ASSEMBLE
LEFT SIDE
FIRST
A Disengage the DECK LOCK LATCH with your
foot to lower the RUNNING DECK.
B Open HARDWARE BAG 4.
C Gently place the CONSOLE on top of the
CONSOLE MASTS. Attach the LEFT SIDE first
using 3 BOLTS (D), 3 SPRING WASHERS (B)
and 3 FLAT WASHERS (C).
D Connect the CONSOLE CABLES, carefully
tucking wires in masts to avoid damage.
E Attach the RIGHT SIDE of the CONSOLE
using 3 BOLTS (D), 3 SPRING WASHERS
(B) and 3 FLAT WASHERS (C).
NOTE: Be careful not to pinch any wires
while assembling the masts.

10 11
ASSEMBLY STEP 5
A Open HARDWARE BAG 5.
B Align SUPPORT BAR with holes in CONSOLE
MASTS.
C Insert BOLTS (H) into all 4 holes of the
SUPPORT BAR.
F Tighten all console bolts (Step 4) and support
bar bolts (Step C above) completely
HARDWARE BAG 3 CONTENTS :
BOLTS (H)
SUPPORT BAR
CONSOLE MAST
ALL
MoDELS
ALL
MoDELS
ASSEMBLY STEP 6
YOU ARE FINISHED!
BOLT (H)
15 mm
Qty: 4
NOTE: Look into holes in the right mast
before inserting bolts to avoid pinching
cables.
Adventure 2 Plus
Max. User Weight: 125 kg / 275 lbs.
Product Weight: 85 kg / 187 lbs
Overall Dimension: 181 x 86 x 137 cm / 71” x 34” x 54”
Adventure 3 Plus
Max. User Weight: 135 kg / 300 lbs.
Product Weight: 86.5 kg / 190 lbs
Overall Dimension: 181 x 86 x 137 cm / 71” x 34” x 54”

13
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LoCATIoN oF THE TREADMILL
• USING THE SAFETY KEY
• FoLDING THE TREADMILL
• MoVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIoNING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTIoN

14 15
DISTANCE
ENTFERNUNG
CALORIES
KALORIEN
TIME
ZEIT
TARGETS ZIELE
SPEED
GESCHWINDIGKEIT
DISTANCE
ENTFERNUNG
INCLINE
STEIGUNG
TIME
ZEIT
CALORIES KALORIEN
SELECT
WORKOUT
PROGRAMM AUSWÄHLEN
S T A R T
SCHNELLSTART
QUICK START
S T O P
FÜR NULLSTELLUNG GEDRÜCKT HALTEN
HOLD TO RESET
EINGABE
ENTER
ANZEIGENWECHSEL
CHANGE DISPLAY
ZIEL AUSWÄHLENABKÜHLEN
COOL
DOWN SELECT TARGET
STEIGUNG
INCLINE
GESCHWINDIGKEIT
SPEED
INCLINE STEIGUNG
1% 2% 4% 6% 8% 10%
GESCHWINDIGKEIT SPEED
km/h
10
mph
6
km/h
18
mph
11
km/h
14
mph
8
km/h
12
mph
7
km/h
8
mph
5
km/h
4
mph
2
ENERGY SAVER
ENERGIESPARMODUS
WARNING!
Model is only for homeuse.
Attach safety key clip to clothing before starting. To avoid injury, stand on the side rails before starting treadmill.
Read and follow all instructions before operating. Keep children away from this equipment.
Remove safety key when not in use and store out of reach of children.
WARNUNG!
Nur für den Heimgebrauch.
Befestigen Sie den Sicherheitsclip an Ihrer Kleidung, bevor Sie das Gerät starten. Um das Risiko von Verletzungen
einzudämmen, stellen Sie sich auf die seitlichen Trittflächen, bevor Sie das Gerät starten. Lesen Sie vor der
Erstbenutzung die Bedienungsanleitung. Halten Sie Kinder von dem Gerät fern. Entfernen Sie den Sicherheitsschlüssel
nach dem Training, um ein ungewolltes Einschalten durch Kinder vorzubeugen.
HEART RATE
HERZFREQUENZ
A RBJ KH IS
C QGE
NOFD L
M
PP
M
ADVENTURE 2 PLUS AND ADVENTURE 3 PLUS CoNSoLE oPERATIoN
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) * LED DISPLAY WINDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TARGET LED INDICAToRS: indicate what target (if any) is set for the current program.
C) SELECT TARGET: press to select your desired target.
D) SELECT WoRKoUT: press to select your desired workout.
E) START: press to begin exercising, start your workout, or resume exercising after pause.
F) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.
G) CooL DoWN: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your
heart to readjust to decreased demand.
H) INCLINE / KEYS: used to adjust incline in small increments (0.5% Increments).
I) SPEED + / - KEYS: used to adjust speed in small increments (0.1 Mph or 0.1 KMph increments).
J) INCLINE qUICK KEYS: used to reach desired incline more quickly.
K) SPEED qUICK KEYS: used to reach desired speed more quickly.
L) ENTER / CHANGE DISPLAY KEYS: used to adjust target and workout settings. Press ENTER to change display feedback
during workout.
M) SPEAKERS (ADVENTURE 3 PLUS oNLY): music plays through speakers when your CD / MP3 player is connected to the
console.
N) AUDIo IN JACK (ADVENTURE 3 PLUS oNLY): plug your CD / MP3 player into the console using the included audio
adaptor cable.
o) AUDIo oUT / HEADPHoNE JACK (ADVENTURE 3 PLUS oNLY): plug your headphones into this jack to listen to your
music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come
out through the speakers.
P) WATER BoTTLE PoCKETS: holds personal workout equipment.
q) SAFETY KEY PoSITIoN: enables treadmill when safety key is inserted.
R) MP3 PLAYER PoCKET: used to store your MP3 player.
S) ENERGY SAVER : after entering stand-by mode for 10 mins energy saver will run automatically to minimize energy consumption.
* Note: LED windows show the upper message when in use, will change display to the lower message with lower LED lighting up.
Calories and Heart Rate are shown in the middle low LED window.
ALL
MoDELS
ALL
MoDELS

16 17
• TARGETS: LED lights up next to currently selected target. If
no LED is lit, no target is activated.
• WoRKoUTS:
LED lights up next to currently selected workout.
GETTING STARTED
1) Check to make sure no objects are placed on the
belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing
making sure that it is secure and will not become
detached during operation.
5) Insert the safety key into the safety keyhole in the
console.
6) You have two options to start your workout:
A) qUICK START UP
Simply press the GO/START key to begin working out.
Time, distance, and calories will all count up from zero.
OR...
B) SELECT A TARGET AND WoRKoUT
1) Select a TARGET using the SELECT TARGET key.
2) Adjust the TARGET settings using the ARROW keys.
3) Press ENTER to advance.
4) Select a WORKOUT using the SELECT
WORKOUT key.
5) Press GO/START to begin workout.
NOTE: If no TARGET or WORKOUT is selected, the program
will function as a MANUAL program. All changes in speed
and incline will need to be from the user in this setting.
CHANGING YoUR TARGET MID-WoRKoUT
You can change your Target “on-the-fly” without losing your
current workout stats.
Anytime during your workout, press the SELECT TARGET key
until you have selected the new TARGET you would like.
Use the / or + / – keys to enter in the value of your new
TARGET and press ENTER. All previous workout statistics will
be rolled into the new TARGET, so you’ll never miss a beat.
CHANGING YoUR WoRKoUT MID-WoRKoUT
You can change your Workout “on-the-fly”.
Anytime during your workout, press the SELECT WORKOUT
key until you have selected the new WORKOUT you would like.
Press ENTER.
New WORKOUT will begin at the first segment after warm up
and all workout statistics will roll over.
NOTE: If you accidentally press the SELECT TARGET key
during a workout, if no buttons are pressed after 5 seconds,
the current target will resume.
NOTE: HRC is not available for workout changing. If you
accidentally press the SELECT WORKOUT button during
a workout, if no buttons are pressed after 5 seconds the
current program will resume.
DISPLAY WINDoWS
• TIME: Shown as minutes : seconds. View the time
remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled
or distance remaining during your workout.
• SPEED: Shown as MPH or KMPH. Indicates how fast
your walking or running surface is moving.
• INCLINE: Shown as percent. Indicates the incline of your
walking or running surface.
• CALoRIES: Total calories burned or calories remaining
left to burn during your workout.
• HEART RATE: Shown as BPM (beats per minute). Used
to monitor your heart rate (displayed when contact is
made with both pulse grips).
• PRoGRAM PRoFILES: Represents the profile of
the program being used (speed during speed based
programs and incline during incline based programs).
DISTANCE
ENTFERNUNG
CALORIES
KALORIEN
TIME
ZEIT
TARGETS ZIELE
SPEED
GESCHWINDIGKEIT
DISTANCE
ENTFERNUNG
INCLINE
STEIGUNG
TIME
ZEIT
CALORIES KALORIEN
ENERGY SAVER
ENERGIESPARMODUS
HEART RATE
HERZFREQUENZ
Adventure 2 Plus and Adventure 3 Plus DISPLAYS

18 19
TARGET PRoFILES
TARGET 1 – TIME: Allows user to set a target based on how long they would like to workout. Time targets can range
from 15:00 – 99:00. TIME will count down. DISTANCE and CALORIES will count up from zero.
TARGET 2 – DISTANCE: Allows user to set a target based on distance they would like to complete. Distance target
can range from 0.25 – 26.25 MILE or 0.4-42 KM. DISTANCE will count down. TIME and CALORIES will count up
from zero.
TARGET 3 – CALoRIES: Allows user to set a target based on the number of calories they would like to burn. Calories
target can range from 20 – 980 calories. CALORIES will count down. TIME and DISTANCE will count up from zero.
No TARGET: Allows user to select a workout profile that has no specified time, distance, or calorie target.
TIME, DISTANCE, and CALORIES will all count up from zero.
WoRKoUT PRoFILES
1) MANUAL – ALL MoDELS: Allows ‘on the fly’ manual speed and incline changes.
2) INTERVALS – ALL MoDELS: Improves your strength, speed and endurance by increasing and decreasing the speed
throughout your workout to involve your heart and other muscles.
Segment Warm Up 1 2
Segments 1 & 2 repeat
until target is complete
Time 2:00 Mins 2:00 Mins 90 sec 30 sec
Incline 1 1.5 0.5 1.5
Speed (British) 1 1.5 2 4
Speed (Metric) 1.6 2.4 3.2 6.4
3) WEIGHT LoSS – ALL MoDELS: Promotes weight loss by increasing and decreasing the speed, while keeping you in your fat
burning zone.
Segment Warm Up 1 2 3 4 5 6 7 8
Segments 1–8 repeat
until target is complete
Time 4:00 Mins 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec
Level 1 Incline 0 0.5 1.5 1.5 1 0.5 0.5 0.5 1 1.5
Speed(British) 1 1.5 2 2.5 3 3.5 4 3.5 3 2.5
Speed (Metric) 1.6 2.4 3.2 4.0 4.8 5.6 6.4 5.6 4.8 4.0
HRC – ALL MoDELS: Once the HRC program is selected, press ‘enter’. To adjust your target heart rate, press the plus (+) or
minus (-) incline buttons.
Your target heart rate should be set at a number that you will be able to exercise at throughout the majority of your workout.
Once you have chosen your target heart rate, press the ‘Start’ button and begin your workout.
After the 4 minute warm up period, the elevation level will increase gradually to get the user to the entered target heart rate
zone. Once the user is at the target heart rate zone, plus or minus 5 beats, the elevation level will remain at the current
level.
If the user is more than 25 beats per minute above the target heart rate zone, the console will shut down for safety reasons.
NOTE: HRC program is designed with Time target, you can choose this under Target 1. The chest strap is required to use the
HRC program, with HRC program you can only choose time as your workout target.

20
To RESET THE CoNSoLE
Hold STOP key for 3 seconds.
CooL DoWN
Puts treadmill into cool down mode. Cool down lasts for four minutes and reduces speed and incline to allow your heart to readjust
to decreased demand.
FINISHING YoUR WoRKoUT
When your workout is complete, the monitor display will flash “FINISHED” and beep. Your workout information will stay displayed on
the console for 30-45 seconds and then reset.
CLEAR CURRENT SELECTIoN
To clear the current program selection or screen, hold the STOP button for 3-5 seconds.
USING YoUR CD / MP3 PLAYER (ADVENTURE 3 PLUS oNLY)
1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the top right of the console and the headphone
jack on your CD / MP3 player.
2) Use your CD / MP3 player buttons to adjust song settings.
3) Remove the AUDIO ADAPTOR CABLE when not in use.
4) If you don’t want to use the SPEAKERS, you can plug your headphones into the AUDIO OUT JACK at the bottom of the
console.

TREADMILL OWNER’S MANUAL
Adventure 2 Plus & Adventure 3 Plus Treadmill Owner’s Manual 111912’ Rev1.2 © 2012 Horizon Fitness
