Horizon Fitness Omega III HRC Entertaiment User manual

2
TABLE OF CONTENTS
SAFETY INSTRUCTIONS
FOLDING & MOVING
LEVELING, POWER & EMERGENCY STOP
KNOW YOUR TREADMILL
GETTING STARTED
PROGRAMMING/DISPLAY
PROGRAM PROFILES
COLOR MONITOR OPERATING INSTRUCTIONS
USING YOUR HRC PROGRAM
USING YOUR ADVENTURE PROGRAM
TROUBLESHOOTING
COMMON QUESTIONS
MAINTENANCE PROCEDURES
EXERCISE GUIDELINES
DEVELOPING A FITNESS PROGRAM
& IMPORTANCE OF WARM UP/ COOL DOWN
FITNESS GOALS
WEEKLY LOG SHEETS
MONTHLY LOG SHEETS
LIMITED HOME USE WARRANTY
3
6
7
8
9
11
13
17
26
28
29
31
33
34
35
36
37
38
39
!CAUTION
Read all precautions and instructions in this manual before using this equipment.
Save this manual for future reference.

3
SAVE THESE INSTRUCTIONS
Read all instructions before using this Treadmill. When using an electrical product, basic
precautions should always be followed, including the following: Read all instructions
before using this HORIZON FITNESS Treadmill
WARNING ! Connect this exercise product to a properly grounded outlet only. See
grounding instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown,
grounding provides a path of least resistance for electrical current to reduce the risk of
electrical shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with local codes and ordinances.
DANGER ! Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or serviceman if you are in
doubt as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
This product is for use on a nominal 220-volt circuit, and has a grounding plug that looks
like the plug illustrated below. A temporary adapter such as the one illustrated below may
be used to connect this plug to a 2-pole receptacle as shown, if a properly grounded out-
let is not available. The temporary adapter should be used only until a properly grounded
outlet can be installed by a qualified electrician. The green colored rigid ear, lug, or the like
extending from the adapter must be connected to a permanent ground such as a proper-
ly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a
metal screw.
3-POLE
GROUNDED
OUTLET
GROUNDED TREADMILL
POWER CORD
METAL
GROUNDING
SCREW
2-POLE
OUTLET IN
GROUNDED BOX
ADAPTER
IMPORTANT SAFETY INSTRUCTIONS

4
WARNING ! To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Keep power cord away from heated surfaces.
• Keep children off of treadmill at all times.
• Do not use treadmill outdoors.
• Unplug treadmill before moving it.
• Do not remove the treadmill motor covers or roller covers. Service should be
performed only by an authorized Horizon Fitness service provider.
• Treadmill should be plugged into a dedicated 20amp circuit.
• At no time should more than one person be on treadmill while in operation.
CHILDREN
• Keep children off your Treadmill at all times.
• When the Treadmill is in use, young children and pets should be kept at least
10 feet away.
CLEANING
• Clean with soap and slightly damp cloth only; never use solvents.
OTHER SAFETY TIPS FOR YOUR HORIZON FITNESS TREADMILL
CAUTION ! If you experience chest pains, nausea, dizziness or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• Do not wear clothing that might catch on any part of the Treadmill.
• Read this Owner’s Guide before operating this Treadmill.
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly rec-
ommended that your treadmill is plugged into a dedicated 20amp outlet, without the
use of an additional extension cord.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your
treadmill has been exposed to colder temperatures or high moisture climates, it is strongly
recommended that the treadmil is warmed up to room temperature before first time use.
Failure to do so may cause premature electronic failure.

5
CONGRATULATIONS ! on choosing a Horizon Fitness Treadmill.
You’ve taken an important step in developing and sustaining an exercise program! Your
Horizon Fitness Treadmill is a tremendously effective tool for achieving your personal fit-
ness goals. Regular use of your Horizon Fitness Treadmill can improve the quality of your
life in so many ways.
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help In Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your new Horizon Fitness
Treadmill will help you eliminate the obstacles that prevent you from getting in your exer-
cise time. Inclement weather and darkness won't interfere with your workout when you use
your Horizon Fitness Treadmill in the comfort of your home. This manual provides you with
basic information for using and enjoying your new machine. A more complete knowledge
of your new Horizon Fitness Treadmill will assist you in realizing your goal of a healthy
lifestyle.
IMPORTANT: PLEASE READ BEFORE USE !
CAUTION ! There are several areas during the assembly process of a Horizon
Fitness treadmill that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assem-
bly instructions are not followed correctly, the treadmill could have frame parts that are not
tightened and will seem loose and may cause irritating noises. There should be no side-to-
side play in the console masts or any forward and back play in the console assembly or han-
dlebars. If there is any play in these areas, the treadmill has not been properly assembled.
To prevent damage to the treadmill, the assembly instructions must be reviewed and cor-
rective actions should be taken.
ASSEMBLY
CAUTION: BEFORE BEGINNING ANY EXERCISE PROGRAM, ALWAYS CONSULT
YOUR PHYSICIAN. IF YOU EXPERIENCE CHEST PAINS, NAUSEA, DIZZINESS OR
SHORTNESS OF BREATH, STOP EXERCISING AND CONSULT YOUR PHYSICIAN
BEFORE CONTINUING.

6
MOVING
Your Horizon Fitness treadmill has a pair of transport wheels built into the base frame. To
move, make sure the treadmill is folded and securely latched. Then firmly grasp the han-
dlebars, tilt the treadmill back and roll. CAUTION ! Our Treadmills are heavy, use care and
additional help if necessary when moving. Do not attempt to move or transport treadmill
unless it is in upright, folded position with the lock latch secured. Failure to follow these
instructions could result in injury.
FOOT LOCK-LATCH
FOLDING
Firmly grasp the back end of the treadmill. Carefully lift the end of the treadmill deck to the
upright position until the foot lock latch engages and securely locks the deck into position.
Make sure the deck is securely latched before letting go. To unfold, firmly grasp the back
end of the treadmill. Gently press down on the foot lock latch with your foot until the lock
latch disengages. Carefully lower the deck to the ground. NOTE: on some models the foot
lock latch might be on the right hand side. NOTE: when folding the Horizon Fitness
Treadmill the console assembly will tilt away from you, but will return when fully folded
in the upright position. Please allow two additional feet from wall when folding.

7
LEVELING
The treadmill should be level for optimum use. Once you have placed the treadmill where
you intend to use it, raise or lower the adjustable levelers located on the treadmill base
frame. Once you have leveled the treadmill, lock the levelers in place by tightening the nuts
against the frame. To assure the treadmill is level, a carpenter's level is recommended.
TURN POWER ON
Make sure that your treadmill is properly connected to a power outlet. The on/off switch is
located next to the power cord. Flip this switch to the 'on' position, so that the switch is lit.
You will hear a beep and the console will light up.
SAFETY KEY
Your treadmill will not start unless the safety key is placed on the safety key holder. Attach
the clip end securely to your clothing. This safety key is designed to cut the power to the
treadmill if you should fall. NEVER USE THE TREADMILL WITHOUT SECURING THE
SAFETY KEY CLIP TO YOUR CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO
MAKE SURE IT WILL NOT COME OFF YOUR CLOTHING.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt. Place your feet on
the side rails before starting the treadmill. Start walking on the belt only after the belt has
begun to move. Never start the treadmill at a fast running speed and attempt to jump on!

8
KNOW YOUR TREADMILL
CONSOLE
WATER BOTTLE
HOLDER
MOTOR COVER
SIDE RALL ROLLER
END CAP
RUNNING BELT
TRANSPORT WHEELL
LEVELER
QUICK SPEED KEY
QUICK INCLINE
KEY
TV

9
QUICK START UP
Simply press the Start button to begin exercising.
10.00 5.8
10.00 5.8
Metric
British

10
PAUSE
Press the Stop button to pause your workout.
RESET
Press and hold the Stop button to reset the treadmill.
10.00 5.8
10.00 5.8
Metric
British

11
CHOOSING THE TIME
Press SELECT and use the +or - buttons to set Time. Once the desired Time is selected,
press the START button. Select your desired speed using the + or - (speed) buttons.
FINISHING A WORKOUT
When your workout is finished, the treadmill
console will beep twice and ‘END’ will be
displayed in the Time window. Your workout
information will stay displayed on the con-
sole for 15 seconds before it will reset.
PROGRAMMING
DISPLAY
SELECT
Used to view alternate information such
as Speed, Pulse, Laps, Elevation, and
Calories during your workout. NOTE: The
console will automatically default back to
show Time/Distance.
TIME
Shown as Minutes:Seconds. View the time
remaining or the time elapsed in your work-
out.

SPEED
Indicates how fast your walking or running sur-
face is moving.
ELEVATION
Indicates the incline of your walking or running
surface.
DISTANCE
Indicates the miles traveled during your work-
out.
PULSE/LAPS
Indicates the number of times you have traveled
around the lap profile window. One lap equals 1⁄4
of a mile. NOTE: Pulse will be displayed if the
heart rate handlebars are being used. The pulse
reading is measured in beats per minute.
CALORIES
Indicates the total number of calories burned during
your workout.
DISPLAY
12

13
MANUAL
Customized workout, with no default time
PROGRAM PROFILES
CROSS COUNTRY
Speed changes; time defaults to 30 minutes
HILL RUN
Speed changes; time defaults to 30 minutes
AFTER BURNER
Elevation changes; time defaults to 30 minutes
HILL CLIMB
Elevation and speed changes; time defaults to 30 min-
utes
HRC
Elevation changes to keep you in your target
heart rate; time defaults to 30 minutes

14

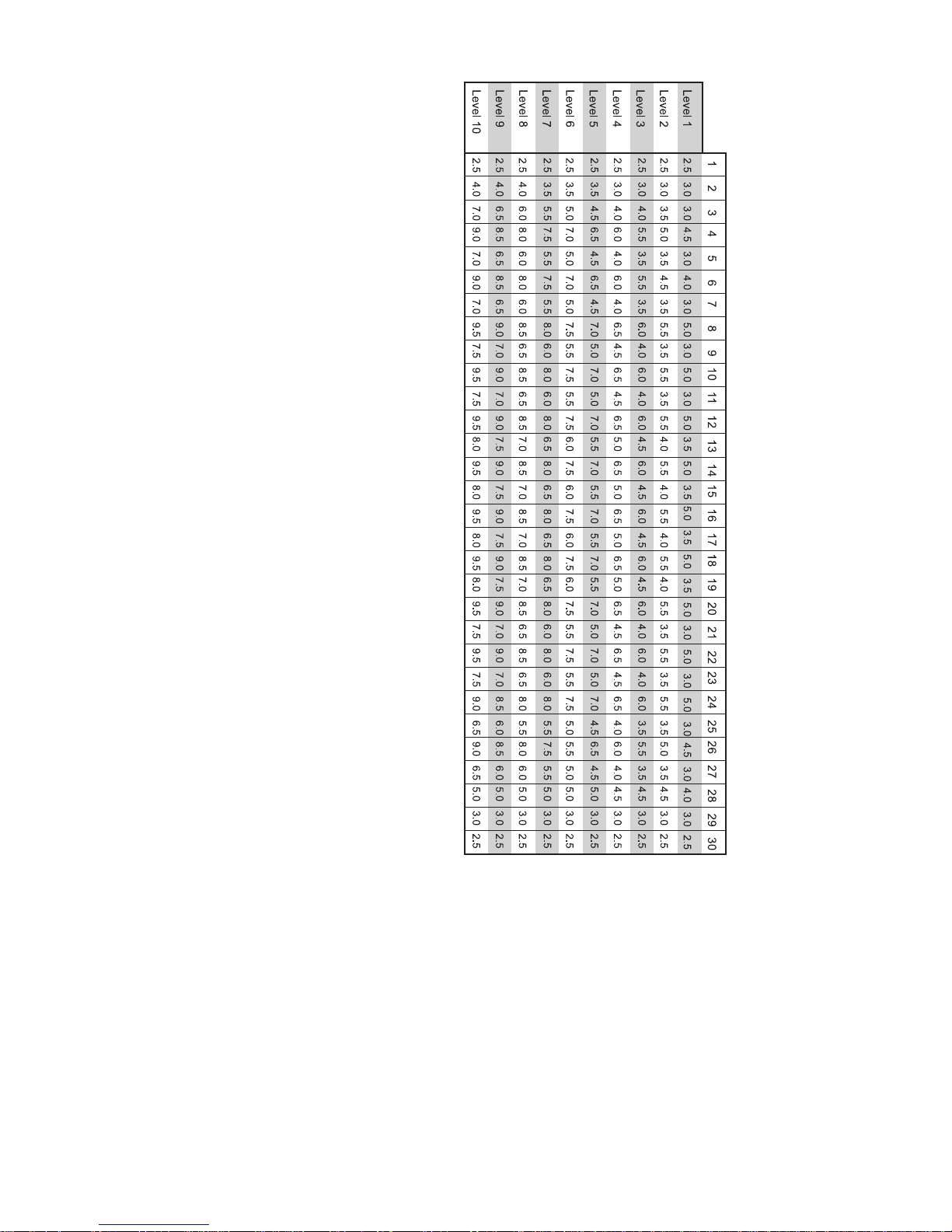

CROSS COUNTRY: Speed changes ; time defaults to 30 minutes

15
AFTER BURNER: Elevation changes ; time defaults to 30 minutes
HILL RUN: Speed changes ; time defaults to 30 minutes
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9 Level 10
2.5 3.0 3.0 4.5 3.0 4.0 3.0 5.0 3.0 5.0 3.0 5.0 3.5 5.0 3.5 5.0 3.5 5.0 3.5 5.0 3.0 5.0 3.0 5.0 3.0 4.5 3.0 4.0 3.0 2.5  2.5 3.0 3.5 5.0 3.5 4.5 3.5 5.5 3.5 5.5 3.5 5.5 4.0 5.5 4.0 5.5 4.0 5.5 4.0 5.5 3.5 5.5 3.5 5.5 3.5 5.0 3.5 4.5 3.0 2.5  2.5 3.0 4.0 5.5 3.5 5.5 3.5 6.0 4.0 6.0 4.0 6.0 4.5 6.0 4.5 6.0 4.5 6.0 4.5 6.0 4.0 6.0 4.0 6.0 3.5 5.5 3.5 4.5 3.0 2.5 2.5 3.0 4.0 6.0 4.0 6.0 4.0 6.5 4.5 6.5 4.5 6.5 5.0 6.5 5.0 6.5 5.0 6.5 5.0 6.5 4.5 6.5 4.5 6.5 4.0 6.0 4.0 4.5 3.0 2.5 2.5 3.5 4.5 6.5 4.5 6.5 4.5 7.0 5.0 7.0 5.0 7.0 5.5 7.0 5.5 7.0 5.5 7.0 5.5 7.0 5.0 7.0 5.0 7.0 4.5 6.5 4.5 5.0 3.0 2.5 2.5 3.5 5.0 7.0 5.0 7.0 5.0 7.5 5.5 7.5 5.5 7.5 6.0 7.5 6.0 7.5 6.0 7.5 6.0 7.5 5.5 7.5 5.5 7.5 5.0 5.5 5.0 5.0 3.0 2.5 2.5 3.5 5.5 7.5 5.5 7.5 5.5 8.0 6.0 8.0 6.0 8.0 6.5 8.0 6.5 8.0 6.5 8.0 6.5 8.0 6.0 8.0 6.0 8.0 5.5 7.5 5.5 5.0 3.0 2.5 2.5 4.0 6.0 8.0 6.0 8.0 6.0 8.5 6.5 8.5 6.5 8.5 7.0 8.5 7.0 8.5 7.0 8.5 7.0 8.5 6.5 8.5 6.5 8.0 5.5 8.0 6.0 5.0 3.0 2.5 2.5 4.0 6.5 8.5 6.5 8.5 6.5 9.0 7.0 9.0 7.0 9.0 7.5 9.0 7.5 9.0 7.5 9.0 7.5 9.0 7.0 9.0 7.0 8.5 6.0 8.5 6.0 5.0 3.0 2.5 2.5 4.0 7.0 9.0 7.0 9.0 7.0 9.5 7.5 9.5 7.5 9.5 8.0 9.5 8.0 9.5 8.0 9.5 8.0 9.5 7.5 9.5 7.5 9.0 6.5 9.0 6.5 5.0 3.0 2.5

16
HILL CLIMB: Elevation and speed changes ; time defaults to 30 minutes
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
elevation
speed
elevation
speed
elevation
speed
elevation
speed
elevation
speed
elevation
speed
elevation
speed
elevation
speed
elevation
speed
elevation
speed
Level 1 Level 3 Level 2 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9 Level 10
0.0 2.5 0.0 2.5 0.0 2.5 0.5 2.5 0.5 2.5 0.5 2.5 1.0 2.5 1.0 2.5 1.0 2.5 1.0 2.5
0.0 3.0 0.0 3.0 0.0 3.0 0.5 3.0 0.5 3.5 0.5 3.5 1.0 3.5 1.0 4.0 1.0 4.0 1.0 4.0
0.0 3.0 0.0 3.0 0.0 3.5 0.5 4.0 0.5 4.5 0.5 5.0 1.0 5.5 1.0 6.0 1.0 6.5 1.0 6.5
0.0 3.5 0.0 3.5 0.0 4.0 0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.5 7.5
0.0 3.0 0.0 3.0 0.0 3.5 0.5 4.0 0.5 4.5 0.5 5.0 1.0 5.5 1.0 6.0 1.0 6.5 1.5 7.0
0.5 3.5 0.5 3.5 0.5 4.0 1.0 4.5 1.0 5.0 1.0 5.5 1.5 6.0 1.5 6.5 1.5 7.0 1.5 7.5
0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.5 7.5 1.5 8.0 1.5 8.5 2.0 9.0
0.5 5.0 0.5 5.5 0.5 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.0 8.0 1.5 8.5 1.5 9.0 2.0 9.5
0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.5 8.0 1.5 8.5 2.0 9.0
0.5 5.0 0.5 5.5 0.5 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.0 8.0 1.5 8.5 2.0 9.0 2.0 9.5
0.0 4.5 0.5 5.0 1.0 5.5 0.5 6.0 1.0 6.5 1.5 7.0 1.5 7.5 1.5 8.0 2.0 8.5 2.5 9.0
0.0 5.0 0.5 5.5 1.0 6.0 0.5 6.5 1.0 7.0 1.5 7.5 1.5 8.0 2.0 8.5 2.0 9.0 2.5 9.5
0.0 4.5 0.5 5.0 1.0 5.5 0.5 6.5 1.5 6.5 1.5 7.0 1.5 7.5 2.0 8.0 2.0 8.5 2.5 9.0
0.5 5.0 0.5 5.5 0.5 6.0 1.0 6.5 1.5 7.0 1.0 7.5 1.0 8.0 2.0 8.5 2.5 9.0 2.5 9.5
0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.5 8.0 2.5 8.5 3.0 9.0
0.5 5.0 0.5 5.5 0.5 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.0 8.0 1.5 8.5 2.5 9.0 3.0 9.5
0.5 4.5 0.5 5.0 0.5 5.5 0.5 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.5 8.0 2.5 8.5 2.5 9.0
0.0 5.0 0.5 5.5 1.0 6.0 0.5 6.5 1.5 7.0 1.5 7.5 1.5 8.0 2.0 8.5 2.0 9.0 2.5 9.5
0.0 4.5 0.5 5.0 1.0 5.5 0.5 6.0 1.5 6.5 1.5 7.0 1.5 7.5 2.0 8.0 2.0 8.5 2.5 9.0
0.0 5.0 0.5 5.5 1.0 6.0 0.5 6.5 1.0 7.0 1.5 7.5 1.5 8.0 2.0 8.5 2.0 9.0 2.5 9.5
0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.5 8.0 2.0 8.5 2.0 9.0
0.5 5.0 0.5 5.5 0.5 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.0 8.0 1.5 8.5 1.5 9.0 2.0 9.5
0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.0 7.5 1.5 8.0 1.5 8.5 2.0 9.0
0.5 3.5 0.5 3.5 0.5 4.0 1.0 4.5 1.0 5.0 1.0 5.5 1.5 6.0 1.5 6.5 1.5 7.0 2.0 7.5
0.5 3.0 0.5 3.0 0.5 3.5 1.0 4.0 1.0 4.5 1.0 5.0 1.5 5.5 1.5 6.0 1.5 6.5 1.0 7.0
0.0 3.5 0.0 3.5 0.0 4.0 0.5 4.5 0.5 5.0 0.5 5.5 1.0 6.0 1.0 6.5 1.0 7.0 1.5 7.5
0.0 3.0 0.0 3.0 0.0 3.5 0.5 4.0 0.5 4.5 0.5 5.0 1.0 5.5 1.0 6.0 1.0 6.5 1.5 6.5
0.0 3.5 0.0 3.5 0.0 4.0 0.5 4.5 0.5 4.5 0.5 4.5 1.0 5.0 1.0 5.0 1.0 5.0 1.0 5.5
0.0 3.0 0.0 3.0 0.0 3.0 0.5 3.0 0.5 3.0 0.5 3.0 1.0 3.0 1.0 3.0 1.0 3.0 1.0 3.5
0.0 2.5 0.0 2.5 0.0 2.5 0.5 2.5 0.5 2.5 0.5 2.5 1.0 2.5 1.0 2.5 1.0 2.5 1.0 2.5

17
Caution
• Do not try to repair the device by yourself. Please switch off the television immediate-
ly and then inform our dealers if there is any problem. This television is comprised of
many precision electronic components. Disassembling or self-renovation may damage it
or make it broken.
• Do not expose the television to moisture, dust and oil smog, direct sunshine or envi-
ronment affections.
• Do not use diluents or other chemical detergents. Use soft cloth to remove dust or dirt
on the television.
• Keep the television away from over hot or over cold locations. The television's storage
temperature range is -400C~600C. The television's operation temperature range is
00C~400C.
• Use the AC adapter and automobile adapter that come with the television only.
• For safety purpose, please remove the AC adapter or automobile adapter when you do
not use the television.
• Avoid dropping or impact to the television.
Caution:
1>. For your safety, do not watch TV or turn on the television while driving.
2>. It is against the law to watch and operate TV while driving.
There may be a few bright or spots on the LCD display. It is a very common phenome-
non in active matrix display technology. It does not indicate a fault or a problem has
occurred.
COLOR MONITOR OPERATING INSTRUCTIONS

18
1.DISPLAY
2.BUILT-IN SPEAKER
3.INDICATOR
4.POWER
5.REMOTE SENSOR
6.AV/TV
7.MENU
8.VOLUME-
9.VOLUME+
10.PROGRAM-
11.PROGRAM+
12.VEDIO IN
13.EARPHONE. JACK
14. TV CONNECTION
12 13
14

19
MUTE MUTE on/off
ON/OFF Power switch
TIME Off-time
SYS Audio mode
0~9 Digit key (0~9) and -/--
MIRROR Mirror image setting
VIDEO AV/TV selection
MENU Main menu
-/-- Tens digit channel select
VIEWMODE Setting picture display dimension.
V+ Volume increase (submenu adjust)
V- Volume decrease (submenu adjust)
P To the next higher program (the cursor is moved upwards)
P To the next lower program (the cursor is moved downwards)
Recall
Remote Controller Operation

20
1). Please align the remote controller with the infrared-receiving window on TV in oper
ation.
2). Never oppress, drop, wet or disassembly the remote controller.
3). Never press any button continuously and swiftly. Operation interval is at least 2 sec
onds.
4). Press power to turn on the machine before pressing P / P for program channel
selec tion.
1. Channel (digit key 0~9 and -/--)
There are 0~254 in total of 255 channels available on the remote controller for your
option by the 1 buttons of 0~9 and -/-- on the remote controller. When the channel
is a one-digit figure, just puss the corresponding digit button, If the channel is a two-
digit figure, you should press-/-- first to show-/ “--”on the display screen before fur
ther press ing the corresponding digit buttons.
2. P / P (Channel selection)
1). Press CH+, The number of TV channels increases.
2). Press CH-, The number of TV channels decrease.
3. V+/ V- (Volume adjust)
1). Press VOL+, the volume of TV in reduces.
2). Press VOL-, the volume of TV in reduces.
4. Power (power switch)
Press this button is to turn off the TV. Press it again to turn on the machine. Press
this but ton in game status is to exit game
5. MUTE (mute)
Press this button, sound disappears, press it again or VOL+/VOL- to resume normal
sound.
6. TIME
Time setup of sleep off, it is used to set the tine off within 120 minutes.
7. SYS
Press “SYS” BUTTON, It can change between D/K, I, B/G, M.
8. VIEW MODE
Press “view mode” button, the following, Items are appeared:
ZOOM JUST NORMAL FULL
9.VIDEO (AV/TV Selection)
Pressing this button is to realize switch between TV/AV pictures.
Notice
