TREADMILL USER’S GUIDE
FOR MODEL :
EVOLVE
HORIZON SERIES

3
INTRODUCTION
IMPORTANT
PRECAUTIONS
ABOUT YOUR
TREADMILL
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CONGRATULATIONS on choosing your treadmill! You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Fitness treadmill
can help you attain it – adding quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only quality components.
You want exercise equipment that offers the most comfort, the best reliability and quality in its class.
Horizon Fitness delivers.
INTRODUCTION
Important Precautions
About Your Treadmill
Before You Begin
Treadmill Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
6
10
13
16
20
23
Back Panel
TABLE OF CONTENTS

4
INTRODUCTION IMPORTANT
PRECAUTIONS ABOUT YOUR
TREADMILL BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 110-volt circuit and
has a grounding plug that looks like the illustration.
This product must be used on a dedicated circuit. To
determine if you are on a dedicated circuit, shut off the
power to that circuit and observe if any other devices
lose power. If so, move devices to a different circuit.
NOTE: There are usually multiple outlets on one circuit.
It is recommended that the treadmill be used with a 15
amp circuit for optimal performance.
IMPORTANT PRECAUTIONS
WARNING
WARNING
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.

5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ABOUT YOUR
TREADMILL
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmill should not be used by persons weighing more than 114 kg (250 lbs). Failure to comply will
void the warranty.
• The treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 15 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate-controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING
CAUTION
Do not apply ANY lubricant to the folding mechanism.
This could damage it. Failure to comply may void the warranty.
Do not use ANY lubricant

6
INTRODUCTION IMPORTANT
PRECAUTIONS ABOUT YOUR
TREADMILL BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ABOUT YOUR TREADMILL
THERE IS NO ASSEMBLY REQUIRED FOR THIS TREADMILL!
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective
covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when
it is on its side. Unpack the unit where it will be used. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN INJURY!

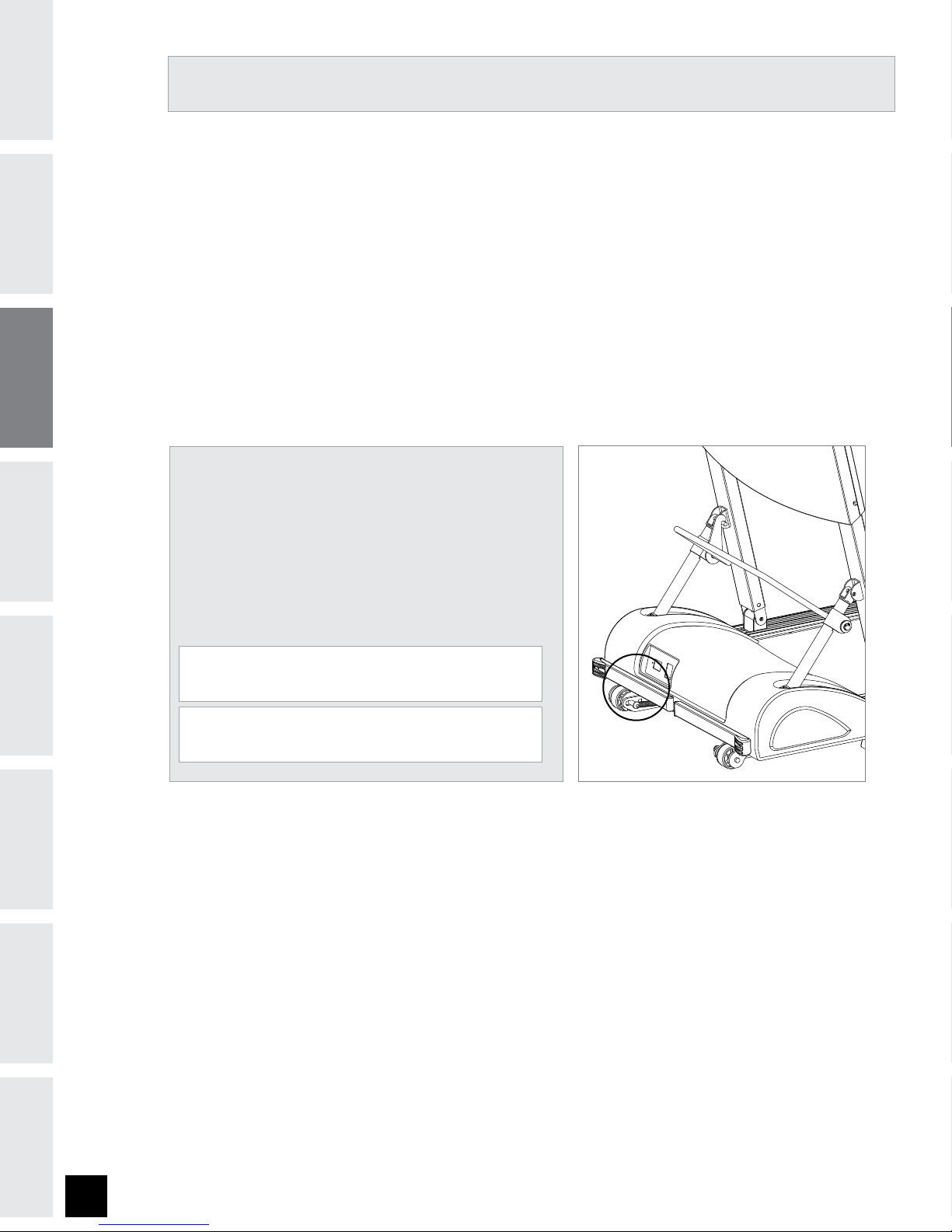

Before proceeding, find your treadmill’s serial number
and model name located on the stabilizer leg and enter
it in the space provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER :
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.

7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ABOUT YOUR
TREADMILL
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
STORAGE POCKET
READING RACK
SAFETY KEY PLACEMENT
TOUCH PAD PANEL WITH LCD DISPLAY
FRONT HANDLEBAR
CONSOLE
LOCKING HANDLEBAR
RUNNING BELT / RUNNING DECK
CONSOLE MAST
LOCKING LATCH
REAR ROLLER
ADJUSTMENT BOLTS
TRANSPORT HANDLE
MOTOR COVER
SIDE RAIL
ROLLER END CAP
ON/OFF SWITCH
CIRCUIT BREAKER
POWER CORD
FOLDING HANDLEBAR
LOCK BUTTONS
STABILIZER LEGS
TRANSPORT WHEEL
STABILIZER BRACKET
(LOCATED ON UNDERSIDE OF TREADMILL)

8
INTRODUCTION IMPORTANT
PRECAUTIONS ABOUT YOUR
TREADMILL BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES

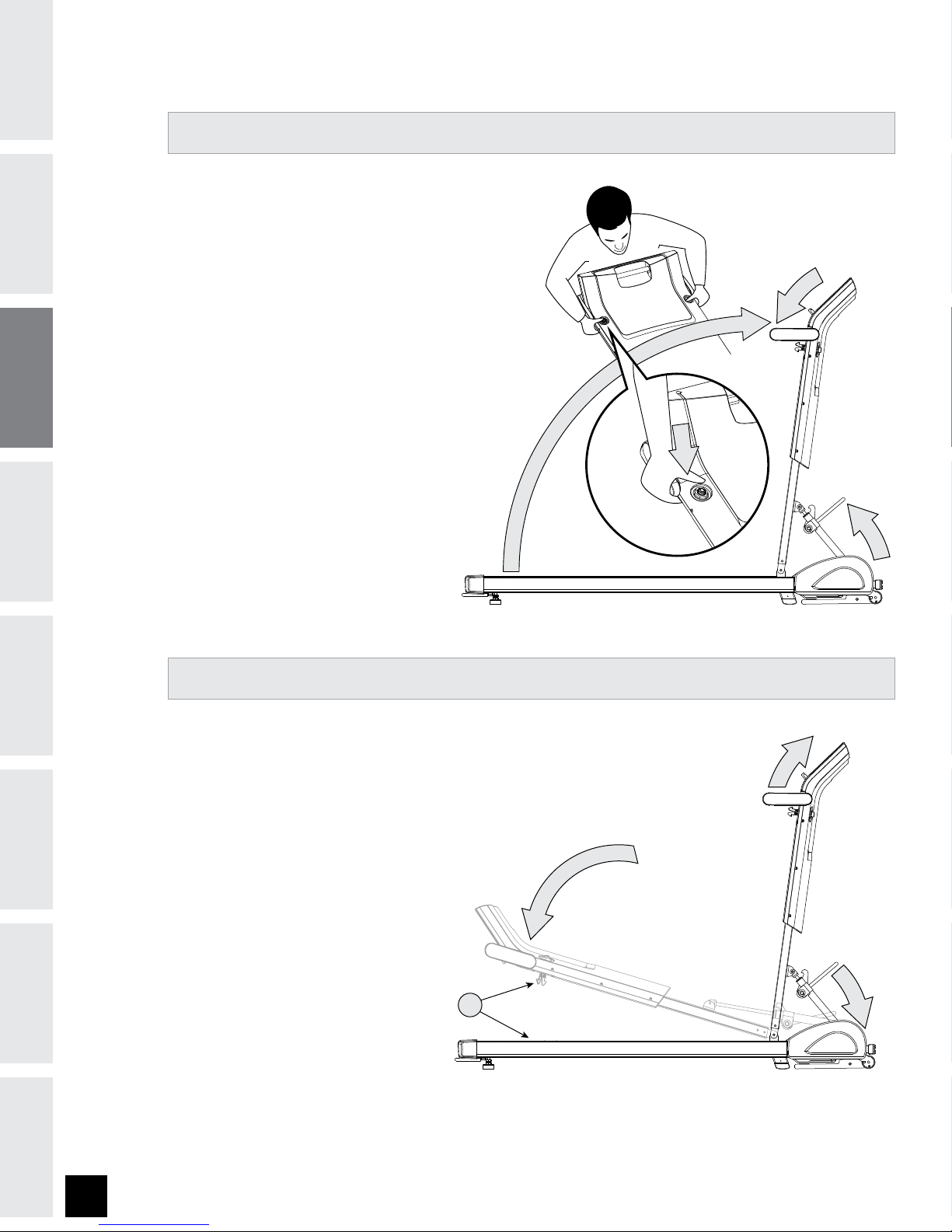

The treadmill was folded in the carton
when purchased. Follow these steps to
unfold the treadmill.
1. Press and hold both LOCK BUTTONS
with your thumbs.
2. Carefully lift the CONSOLE MODULE
upward until it is in the upright
position.
3. Pull the LOCKING BAR upward until
it is tight.
4. Gently pull the FRONT HANDLEBAR
downward.
CAUTION:
Do not use the treadmill if the
LOCKING BAR is not tight.
UNFOLDING
2
1
3
4
FOLDING
3
42
1
Follow these steps to fold the treadmill.
1. Gently pull the FRONT HANDLEBAR
upward.
2. Pull the LOCKING BAR downward to
release the lock.
3. Carefully pull the CONSOLE MODULE
downward until it rests flat on the
treadmill deck.
4. Press down on the CONSOLE
MODULE until both locks engage.

9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ABOUT YOUR
TREADMILL
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
MOVING / STORAGE
This treadmill has a pair of transport
wheels built under the base frame. To
move, make sure the treadmill is folded
down and securely latched. Then, firmly
grasp the lifting handlebar, lift the
treadmill up and roll. This treadmill can
be stored horizontally (under a bed) or
vertically (against a wall).
To store underneath a bed, firmly grasp the lifting bar and
move the treadmill. Gently lower and push the treadmill
under the bed. (See illustration above)
CAUTION:
To prevent damage to the treadmill, make sure the area has
enough space to store the treadmill.
This treadmill is equipped with two STABILIZER LEGS on the front
side. To store the treadmill vertically, follow these steps:
1. To stand the treadmill up, pull the STABILIZER LEGS outward.
2. Turn the STABILIZER LEGS so they face upward.
3. Push the STABILIZER LEGS back in to lock them in place.
4. Place the treadmill close to wall with the STABILIZER LEGS
facing the wall. Carefully lift the treadmill up using the
LIFTING BAR.
5. Pull the STABILIZER BRACKET upward.
6. Rotate the STABILIZER BRACKET down all the way to the floor.
The STABILIZER BRACKET will automatically lock in place.
7. To put the treadmill back down, pull the STABILIZER BRACKET
towards you and rotate it upward until it locks.
8. Follow the steps above in reverse order to completely put the
treadmill back down.
MOVING AND STORAGE
Our treadmills can be heavy. Use care and additional help if necessary when
moving. Do not attempt to move or transport treadmill unless both the lock
latches are secured. Failure to follow these instructions could result in injury.
WARNING
1
3
STABILZER LEG
2
5
6
4
STABILZER
BRACKET
LIFTING BAR

10
INTRODUCTION IMPORTANT
PRECAUTIONS ABOUT YOUR
TREADMILL BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt. Place
your feet on the side rails before starting the treadmill. Start walking on the
belt only after the belt has begun to move. Never start the treadmill at a fast
running speed and attempt to jump on!
BEFORE YOU BEGIN
Your treadmill can be a tremendously effective tool for achieving your personal fitness goals. Regular use
of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.

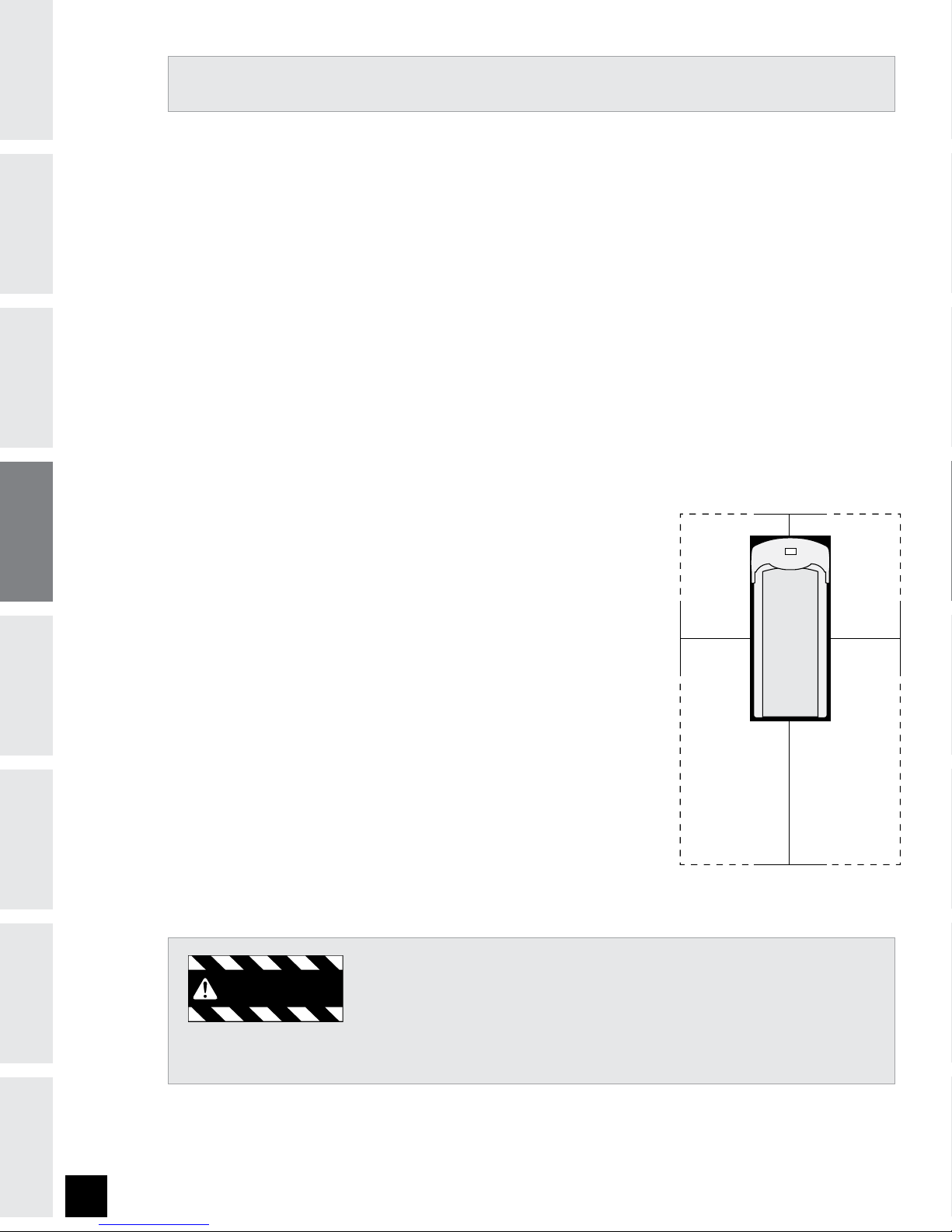

LOCATION OF THE TREADMILL
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
3 ft
7 ft
3 ft
92 cm 92 cm
1 ft
214 cm
31 cm
WARNING
