IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before
using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all
warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed
on the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
ENGLISH

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•The equipment shall be installed on a stable and levelled base.
•Never use the treadmill without securing the safety key clip to your clothing. Pull on the safety key clip first to make sure it will not
come off your clothing.
•Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death. If you feel faint stop
exercising immediately.
•When exercising, always maintain a comfortable pace.
•Do not wear clothes that might catch on any part of the treadmill.
•Always wear athletic shoes while using this equipment.
•Do not jump on the treadmill.
•At no time should more than one person be on treadmill while in operation.
•This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION. Failure
to comply will void the warranty.
•When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
•Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
•The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting
on or taking off parts.
DANGER
ENGLISH

5
•Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
•Connect this exercise product to a properly grounded outlet only.
•If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing. Incorrect or excessive exercise may damage your health.
•Do not remove the protected covers unless instructed by Professional and your local dealer. Service should only be done by and
authorized service technician.
•Disconnect the safety key to prevent uncontrolled usage of third parties.
•While exercicing, run within the logo printed on belt to prevent possible injury.
•The sound of treadmill is less than 70dB while no user on the machine, it is higher than 70dB while using. When you feel
uncomfortable about the noise from treadmill, please stop exercise and take rest. Noise emission under load is higher than without
load.
•Make sure the treadmill comes to complete stop before folding. Do not operate the treadmill when it is folded.
•Please note that the plastic parts, such as end caps, are susceptible to wear. The treadmill’s safety level can only be maintained, if it
is checked regularly for damage and wear.
•Make sure the edge of belt parallel with the lateral position of the side rail, and do not move under the side rail. If you find the belt
is not centered, please always adjust it.
ENGLISH

6
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
•At NO time should children under the age of 13 use the treadmill.
•Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
•Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
•Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
•Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Return the treadmill to a service center for examination and repair.
•Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
•Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
•To prevent electrical shock, never drop or insert any object into any opening.
•Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
•To disconnect, turn all controls to the off position, then remove plug from outlet.
•Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
•This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
•Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized
service a technician.
It is essential that your treadmill is EN CLASS HB certified and use only indoors, in a climate controlled room. If your treadmill has
been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to
room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
ENGLISH

7

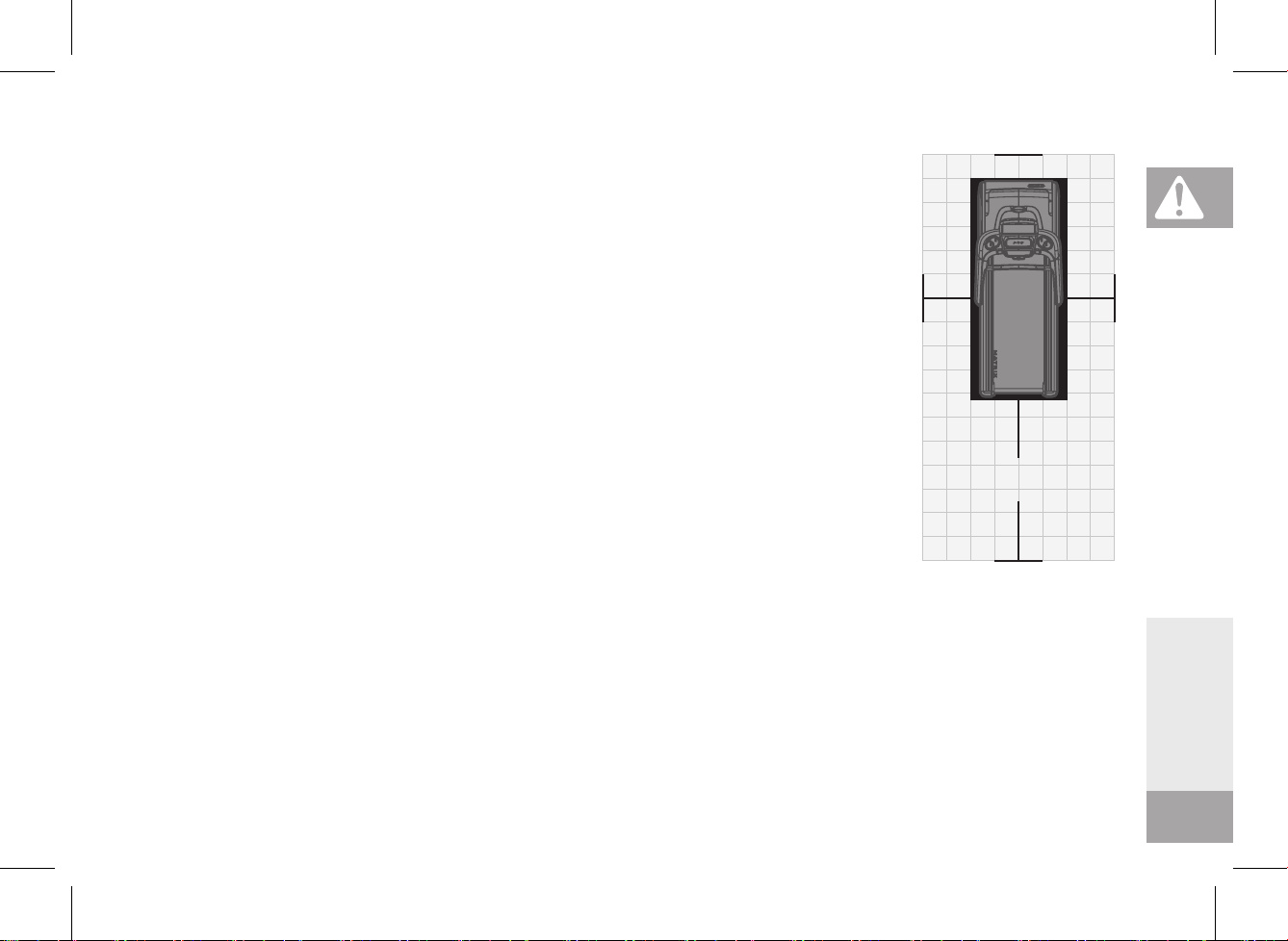

•Place the treadmill on a level and stable surface. There should be one foot of clearance in front of
the treadmill for the power cord. Please leave a clear zone behind the treadmill that is at least the
width of the treadmill and at least 79” (2 meters) long. This zone must be clear of any obstruction and
provide the user a clear exit path from the machine. In case of an emergency, place both hands on
the side arm rests to hold yourself up and place your feet onto the side rails.
For ease of access, there should be an accessible space preferentially on both sides of the treadmill
equal to 2 ft (0.6 meters) to allow a user access to the treadmill from either side.
Do not place the treadmill in any area that will block any vent or air openings. The treadmill should
not be located in a garage, covered patio, near water or outdoors.
0,6 m
(2 ft)
0,6 m
(2 ft)
2 m(79")
0,3 m(1 ft)
TRAINING
AREA
FREE
AREA
ENGLISH

8
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for
electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement or repair.
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician
or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the
product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal local voltage circuit and has a grounding plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit.
ENGLISH

9
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode sticker
near the on/off power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING
SERIAL NUMBER LOCATION
MODEL NAME: HORIZON TREADMILL
ENGLISH

10
ENGLISH
SPEAKERS
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
CONSOLE FAN
ON/OFF SWITCH
TRANSPORT WHEEL
POWER CORD
TABLET/READING RACK
CONSOLE

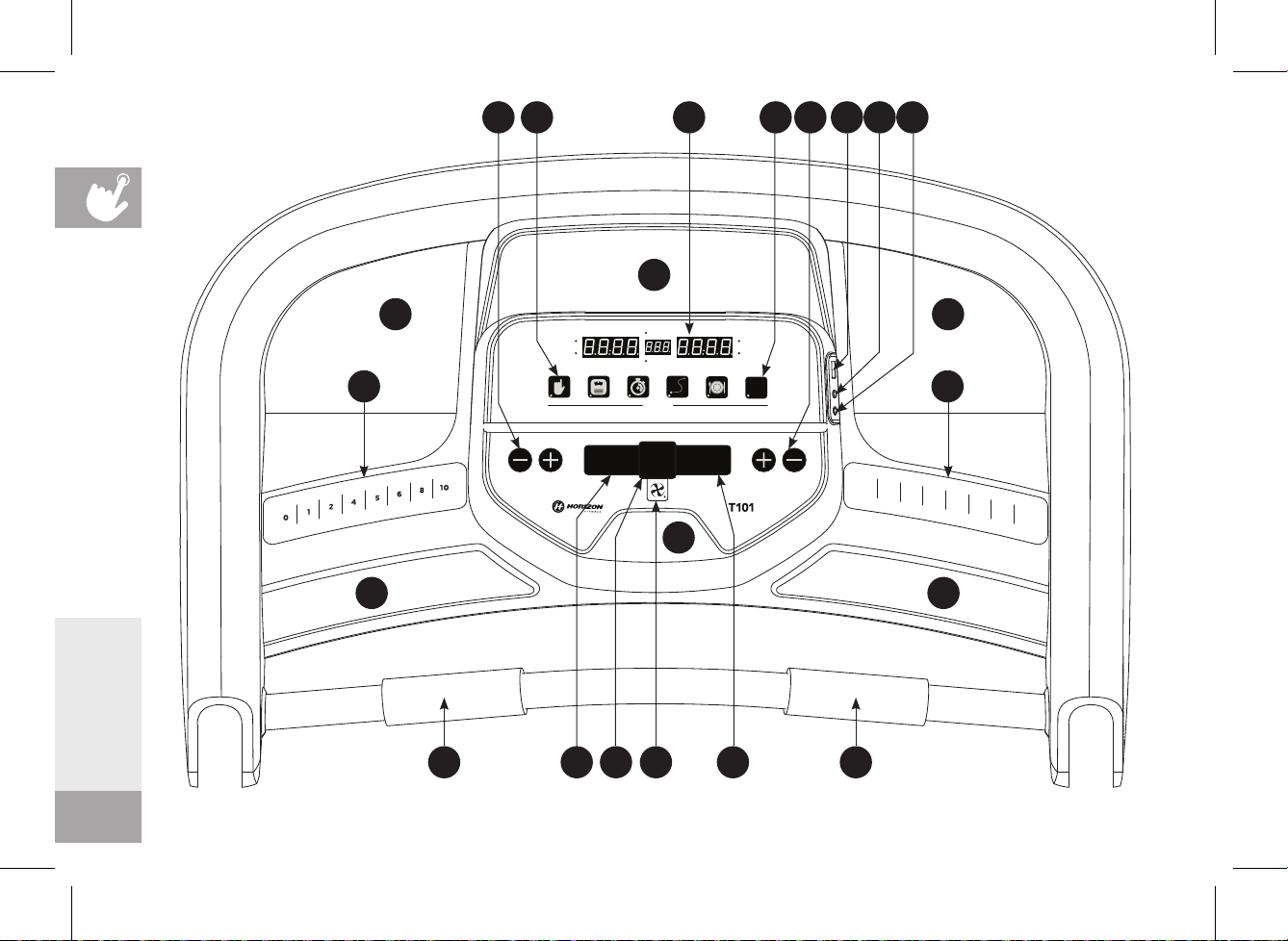

CONTROL PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT/RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
WATER BOTTLE HOLDER
FOR CENTERING THE BELT
KEEP HANDS AND FEET
AWAY FROM THIS AREA.
HIGH-PRESSURE
SHOCKS COULD
CAUSE BODILY INJURY.
CAUTION
GARDEZ VOS MAINS ET VOS
PIEDS À L’ÉCART DE CET
ENDROIT. DES COUPS
À HAUTE PRESSION
PEUVENT CAUSER DES
BLESSURES COR PORE LLES.
ATTENTION
MANTENGA LAS MANOS
Y LOS PIES ALEJADOS DE
ESTA ÁREA. DESCARGAS
DE ALTA PRESIÓN
PODRÍAN OCASIONAR
LESIONES FÍSICAS.
PRECAUCIÓN

11
TOOLS INCLUDED:
F6 mm T-Wrench
F5 mm L-Wrench
F4 mm T-Wrench
FPhillips Screwdriver
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F2 Console Mast Covers
F1 Power Cord
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from
packaging until specified to do so in the assembly instructions. You may remove
the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack and assemble the unit where it will be used.
The enclosed treadmill is equipped with high-pressure shocks and may spring open if
mishandled. Never grab hold of any portion of the incline frame and attempt to lift or
move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially
threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY
ENGLISH
NEED HELP?
If you have questions or if
there are any missing parts,
contact Customer Tech
Support.

12
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the running
deck upward from the rear to remove all contents
from underneath the running deck.
B Open HARDWARE FOR STEP 1.

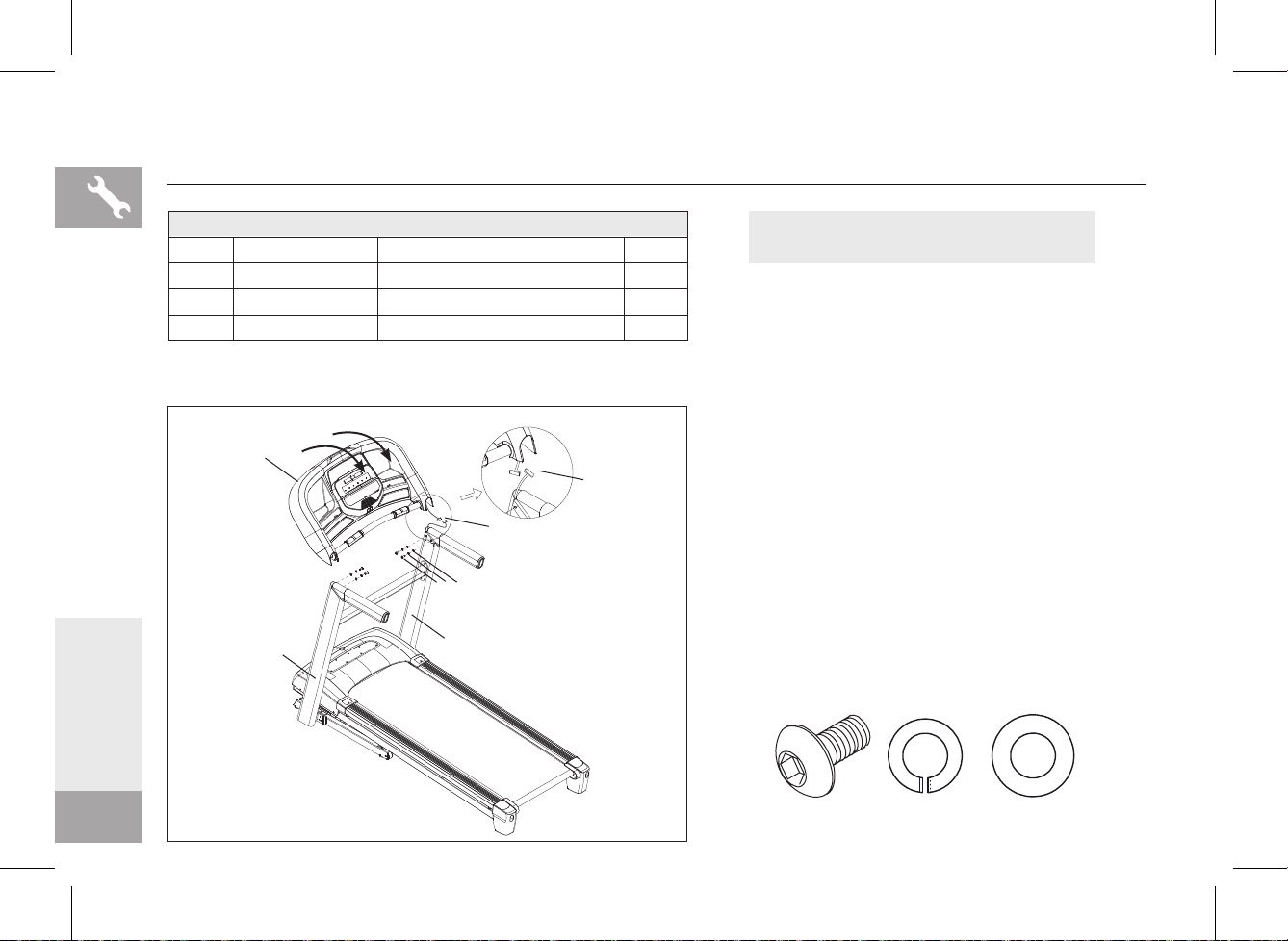

C Attach CONSOLE MAST BRACKETS (B) to the
CONSOLE MASTS (1 & 2) using 8 BOLTS (A).
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M6X1.0PX10L 8A BOLT
NOTE: Do not fully tighten bolts until STEP 5.
A
ENGLISH
1
A
B
1
2
2

13
ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.

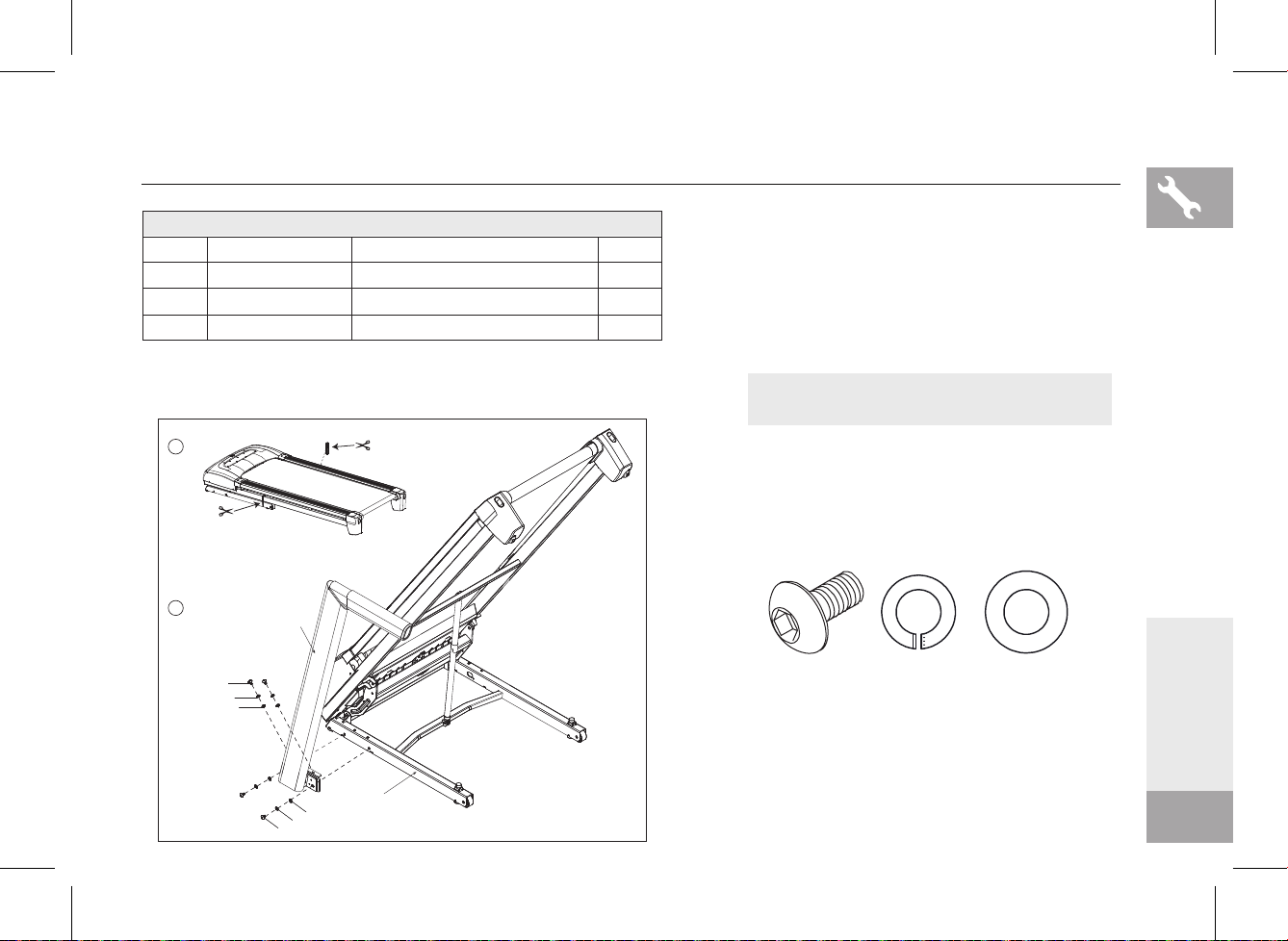

B With the RUNNING DECK in the raised
position, attach the LEFT CONSOLE MAST (1)
to the BASE FRAME (2) using 4 BOLTS (A), 4
SPRING WASHERS (B) and 4 FLAT WASHERS
(C).
NOTE: Do not fully tighten bolts until STEP 5.
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 4A BOLT
8.4X15.5X6T
4B SPRING WASHER 8.2X15.4X2T
4C FLAT WASHER
ABC
ENGLISH
1
A
1
2
B
C
AB
C
2

14
ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.

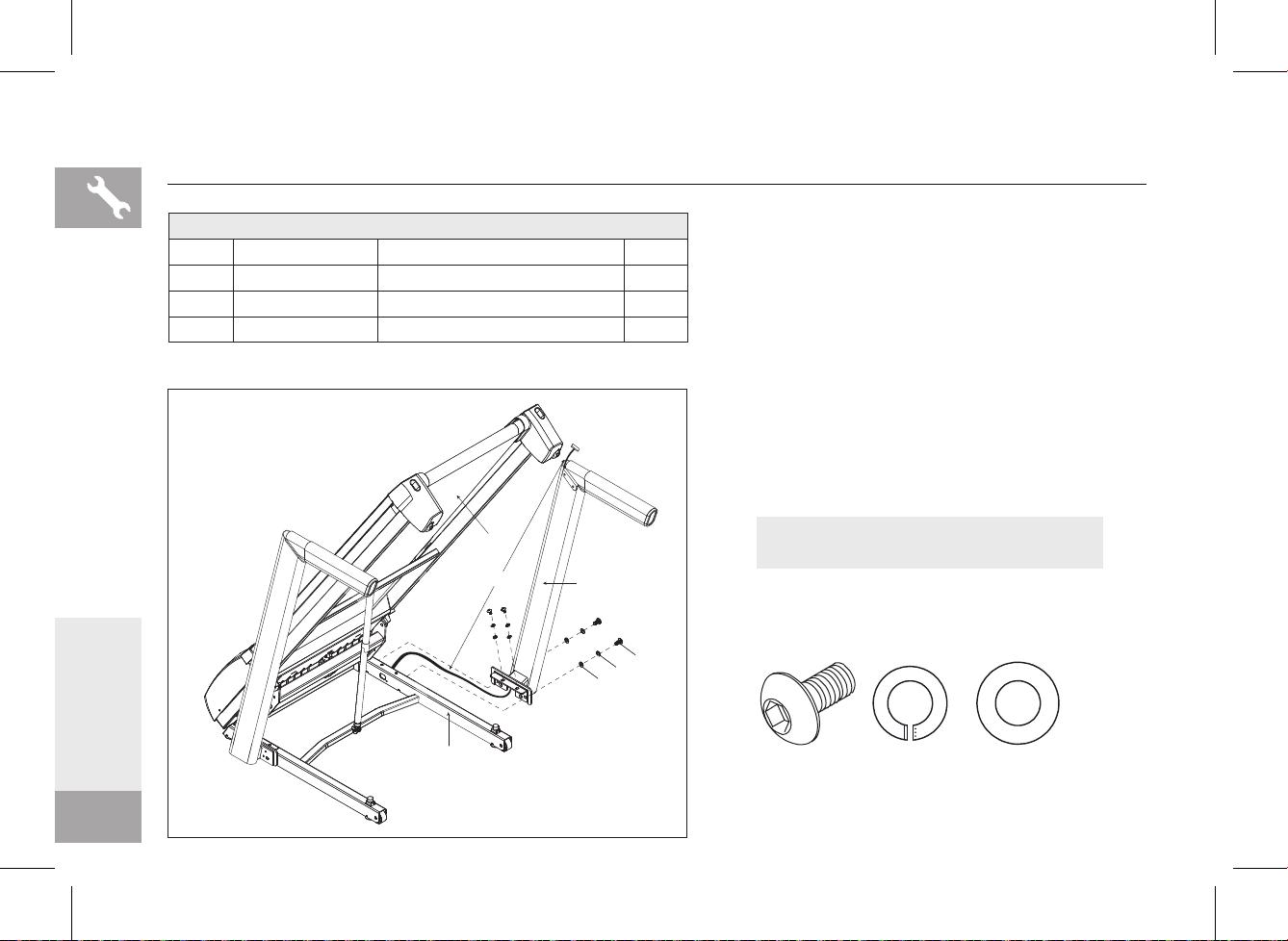

B Attach LEAD WIRE to bottom end of CONSOLE
CABLE. Pull LEAD WIRE through RIGHT CONSOLE
MAST (1). After pulling the lead wire through the
mast, the top of the CONSOLE CABLE should be
located at the top of the mast.
C With the RUNNING DECK in the raised position,
attach the RIGHT CONSOLE MAST (1) to the BASE
FRAME (2) using 4 BOLTS (A), 4 SPRING WASHERS
(B) and 4 FLAT WASHERS (C).
NOTE: Do not tighten bolts completely
until after the console is assembled.
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 4A BOLT
8.4X15.5X6T
4B SPRING WASHER 8.2X15.4X2T
4C FLAT WASHER
ABC
ENGLISH
RUNNING
DECK
CONSOLE CABLE
A
1
2
B
C

15
PART TYPE DESCRIPTION QTY
M6X1.0PX15L 4A HEX SOCKET BOLT
ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Attach LEFT SIDE of the CROSSBAR (1)
to the UPRIGHT MAST (2) loosely using
2 BOLTS. (A)
C Attach RIGHT SIDE of the CROSSBAR (1)
to the UPRIGHT MAST (3) loosely using
2 BOLTS. (A)
NOTE: Do not tighten bolts completely
until after the console is assembled.
A
1
2
3
A
A
HARDWARE FOR STEP 4

16
ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Gently place the CONSOLE (5) on top of the CONSOLE
MASTS (1&4). Attach the LEFT SIDE first using 2
BOLTS (A), 2 SPRING WASHERS (B) and 2 FLAT
WASHERS (C).
C The CONSOLE CABLES (6) are tucked into the
CONSOLE MAST (4). Using the lead wire carefully pull
the CONSOLE CABLE (6) out of the CONSOLE MAST
(4). Detach and and discard the LEAD WIRE. Connect
the CONSOLE CABLES (6) and carefully tuck wires in
masts to avoid damage.
D Attach the RIGHT SIDE of the CONSOLE (5) using
2 BOLTS (A), 2 SPRING WASHERS (B) and 2 FLAT
WASHERS (C).
E Pull the top of the CONSOLE (5) towards the back of
the treadmill and HOLD while TIGHTENING THE LEFT
AND RIGHT SIDE BOLTS (A).
NOTE: Be careful not to pinch any wires
while assembling the console.
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
M8X1.25PX15L 4A BOLT
8.4X15.5X1.6T
4B SPRING WASHER 8.2X15.4X2.0T
4C FLAT WASHER
5
A B C
4
1
4
6
A B C
(STEP E)
ENGLISH

17
ASSEMBLY STEP 6
A Open HARDWARE FOR STEP 6.
B Attach the RIGHT AND LEFT SIDE CONSOLE
JOINT COVERS (1) using 8 SCREWS (A & B).
C REMEMBER to tighten ALL BOLTS & SCREWS
completely now that assembly is finished.
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
4X10L 4A SCREW
1
A
B
B
4X15L 4B SCREW
A

18
ENGLISH
ASSEMBLY STEP 7
T101
Running Area: 140 x 51 cm / 55” x 20”
Product Weight: 83 kg / 183 lbs.
User Weight Capacity: 124 kg / 275 lbs.
Dimensions (L×W×H) : 180 x 85 x 148 cm / 71” x 33” x 58”

19
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION
ENGLISH

20
4
6
8
10
12
14
18
QUICK SPEED KM/H
DIREKTWAHL GESCHWINDIGKEIT KM/H
2
QUICK INCLINE %
DIREKTWAHL STEIGUNG %
CHANGE
DISPLAY
ANZEIGENWECHSEL
ENTER
EINGABE
STAR T STOP
INCLINE
STEIGUNG
SPEED
GESCHWINDIGKEIT
TIME
ZEIT
CALORIES
KALORIEN
PROGRAMS
PROGRAMME
INCLINE
STEIGUNG
SPEED
GESCHWINDIGKEIT
DISTANCE
ENTFERNUNG
HEART RATE
HERZFREQUENZ
J DR R
G
JC
L L
P P
H
K
Q
BE FI
A O M N
ENGLISH
