TREADMILL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE D’UTILISATION DU TAPIS ROULANT avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.
T303

3 ENGLISH
36 FRANÇAIS
70 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following:
Read all instructions before assembly or use of this treadmill. It is the responsibility of the owner to
ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you
have any questions after reading this guide, contact Customer Tech Support at the number listed on
the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failureto comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath,
stop exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY
SECTION. Failure to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• When moving the treadmill, DO NOT lift treadmill or turn it upside down or place treadmill on its side. Treadmill has
high pressure gas-shocks which can spring open, potentially causing injury. Transport unit ONLY on the ground, and
ONLY after it is fully assembled and in the upright folded position with the lock latch secured.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly
damp clothonly; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting
on ortaking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting
on ortaking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 14 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 14 use the treadmill.
• Children over the age of 14 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, orimmersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not pull on this power cord or apply any mechanical loads to this cord.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool
rooms, bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an
authorized service technician.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement or
repair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration.
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used
with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that
circuit and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple
outlets on one circuit. This treadmill should be used with a minimum 15-amp circuit.

7
ASSEMBLY
There are several steps during the assembly process where special attention must be paid. It is very important to follow
the assembly instructions and to ensure the product is assembled correctly to reduce the risk of injury. Make sure all parts
are firmly tightened before using the treadmill to ensure that the treadmill is stable and structurally sound.
Before proceeding, find your treadmill’s serial number located on a white barcode
sticker near the on/off power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING
SERIAL NUMBER LOCATION
MODEL NAME: HORIZON TREADMILL

8
SPEAKERS
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
CONSOLE FAN
ON/OFF SWITCH
TRANSPORT WHEEL
POWER CORD
TABLET/READING RACKS
CONTROL PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT/RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
WATER BOTTLE HOLDER
ACCESSORY TRAY
CONSOLE
LOWER CONSOLE
MAST COVERS
KEEP HANDS AND FEET
AWAY FROM THIS AREA.
HIGH-PRESSURE SHOCKS
COULD
CAUSE BODILY INJURY.
CAUTION
MANTENGA LAS MANOS
Y LOS PIES ALEJADOS DE
ESTA ÁREA. DESCARGAS
DE ALTA PRESIÓN PODRÍAN
OCASIONAR LESIONES
FÍSICAS.
PRECAUCIÓN
GARDEZ VOS MAINS ET
VOS PIEDS À L’ÉCART DE
CET ENDROIT. DES COUPS
À HAUTE PRESSION
PEUVENT CAUSER DES
BLESSURES CORPORELLES.
ATTENTION

9
TOOLS INCLUDED:
F6 mm T-Wrench
F5 mm L-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F2 Lower Console Mast Covers
F1 Accessory Tray
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F1 Crossbar
F1 Power Cord
F2 Console Connection Covers
If you have questions or
if there are any missing
parts, contact Customer
Tech Support. Contact
information is located on the
back panel of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift
treadmill from packaging until specified to do so in the assembly
instructions. You may remove the plastic wrap from console masts.
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any
grease, such as lithium bike grease is recommended.
PRE ASSEMBLY
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place
a protective covering on your floor. Take CAUTION when handling and transporting
this unit. Never open box when it is upside down or on its side. Once the red
banding straps have been removed, do not lift or transport this unit unless it is fully
assembled and in the upright folded position, with the lock latch secure. Unpack
and assemble the unit where it will be used. The enclosed treadmill is equipped
with high-pressure shocks that may spring open if mishandled. Never grab hold of
any portion of the incline frame and attempt to lift or move the treadmill. Transport
unit ONLY on the ground, and ONLY after it is fully assembled and in the upright
folded position with the lock latch secured.

10
UNBOXING
A
A
B
A Cut the yellow banding straps and remove
console masts and other components from the
box.
B After the treadmill is placed on a level floor, cut
off the ZIP TIES (A) on the left and right sides.
C Cut the RED STRAP (B) to release the deck from
being strapped to the folding frame.
D Carefully lift the running deck upward from the
rear to remove all contents from underneath the
running deck. Do not turn the treadmill on its
side, and do not lift treadmill from the front.
NOTE: Once the red strap(s) are cut, DO NOT lift
treadmill or turn it upside down or place treadmill
on its side. Treadmill has high pressure gas-shocks
which can spring open, potentially causing injury.
Transport unit ONLY on the ground, and ONLY
after it is fully assembled and in the upright folded
position with the lock latch secured.

11

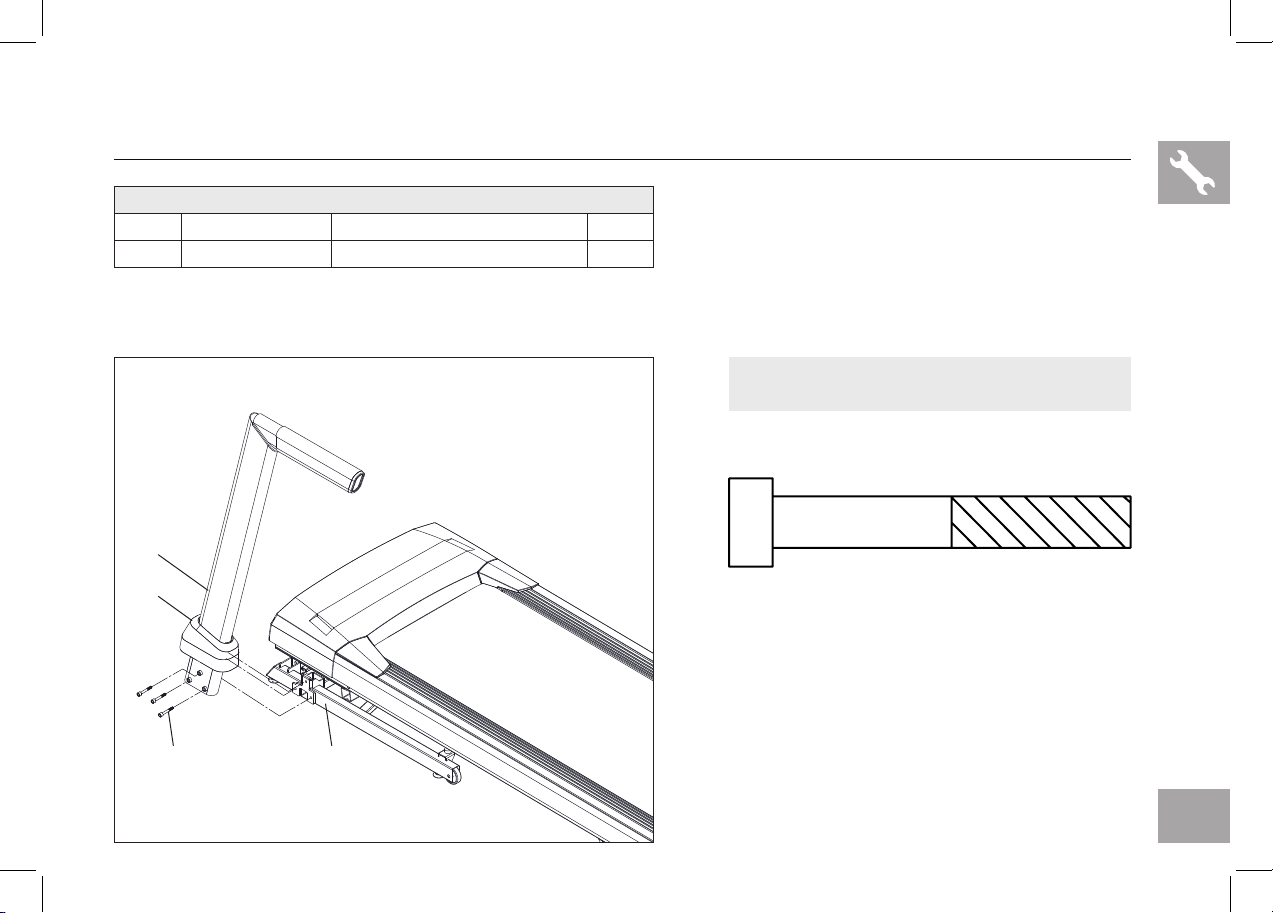

ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Slide LEFT CONSOLE MAST BOOT (3) on to
LEFT CONSOLE MAST (1).
C AttachLEFT CONSOLE MAST (1) toMAIN FRAME
(2) using 3 BOLTS (A).
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX60L 3A HEX SOCKET BOLT
A A
1
3A
NOTE: Do not fully tighten bolts until STEP 5.

12
ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Slide RIGHT CONSOLE MAST BOOT (5) on to
RIGHT CONSOLE MAST (4).
C Pull CONSOLE CABLE (3) away from the
treadmill base frame. Connect the CONSOLE
CABLE (3) from the MAIN FRAME (2) to the
CONSOLE CABLE (3) in the bottom of the
RIGHT CONSOLE MAST (4). The other end of
the CONSOLE CABLE (3) should be located at
the top of the mast.
D Attach RIGHT CONSOLE MAST (4) to MAIN
FRAME (2) using 3 BOLTS (A).
NOTE: Be careful not to pinch the console
cable while attaching the right console mast.
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
M8X1.25PX60L 3A HEX SOCKET BOLT
A
A
NOTE: Do not fully tighten bolts until STEP
5.
4
5
3
2

13

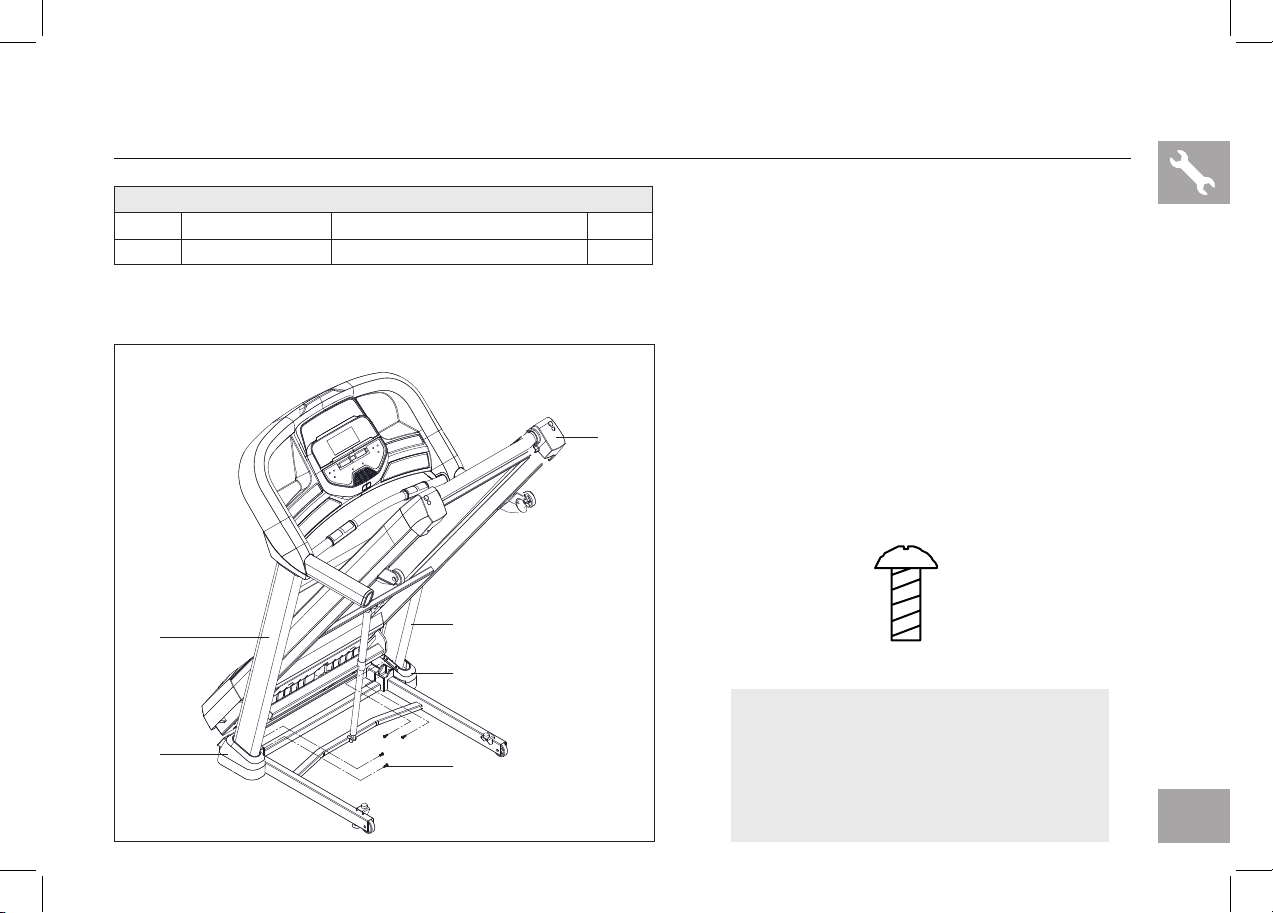

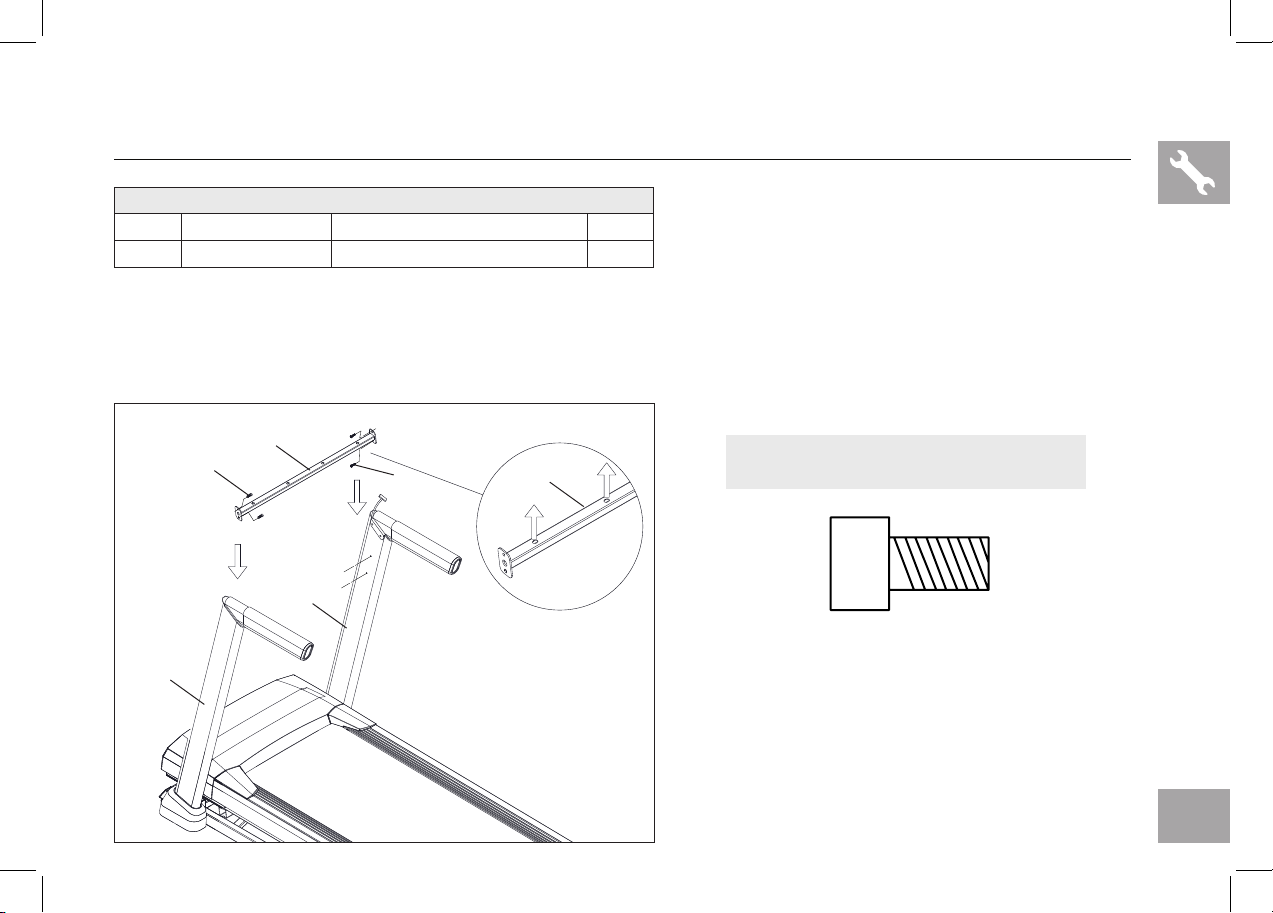

ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B With the larger holes of the CROSSBAR (1)
facing upward, attach the LEFT SIDE of the
CROSSBAR (1) to the UPRIGHT MAST (2)
loosely using 2 BOLTS (A).
C Attach RIGHT SIDE of the CROSSBAR (1)
to the UPRIGHT MAST (3) loosely using
2 BOLTS (A).
NOTE: Do not tighten bolts completely
until after the console is assembled.
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M6X1.0PX15L 4A HEX SOCKET BOLT
A
1
1
2
3
AA

14

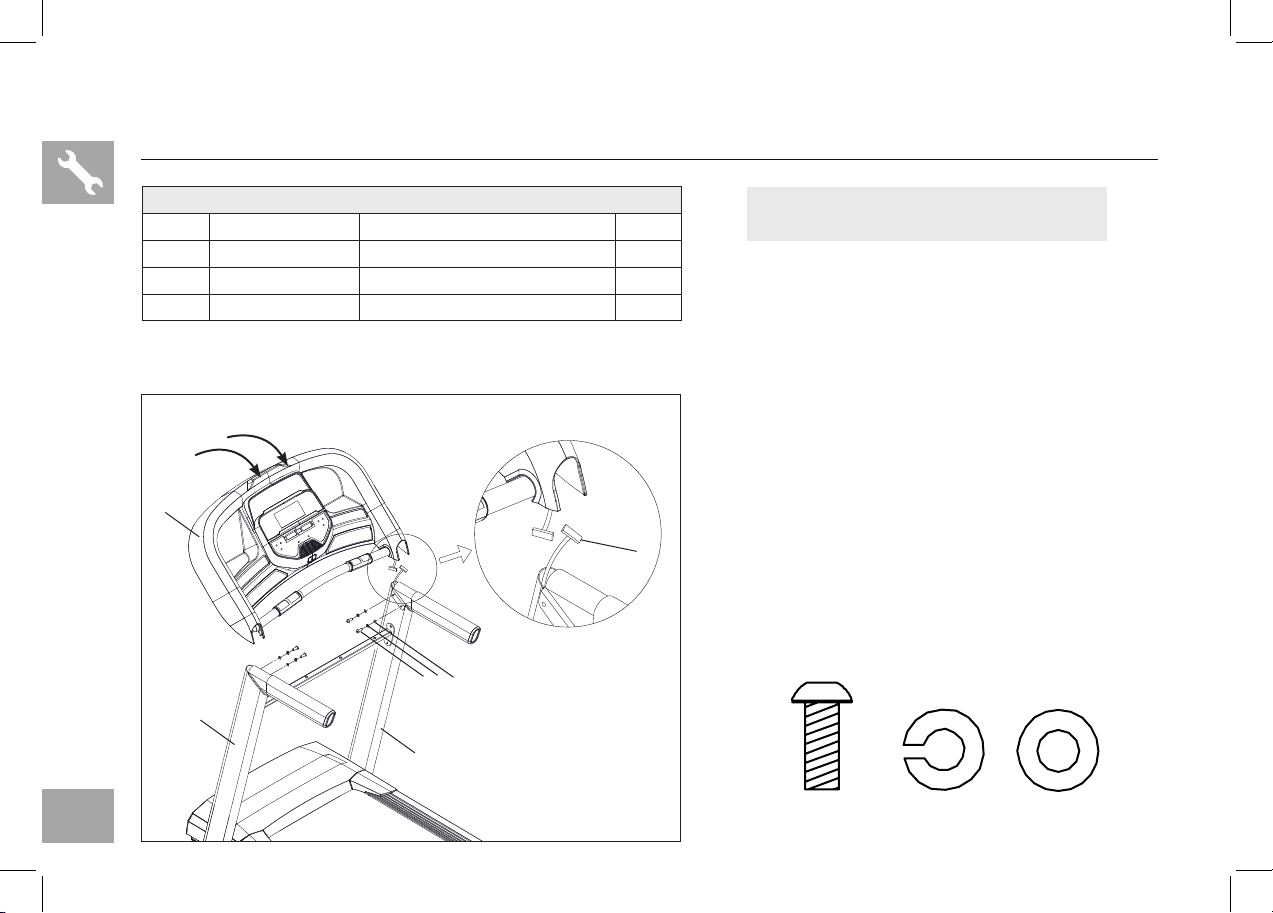

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Gently place the CONSOLE (5) on top of the
CONSOLE MASTS (1&4). Attach the LEFT SIDE
first using 2 BOLTS (A), 2 SPRING WASHERS (B)
and 2 FLAT WASHERS (C).
C The CONSOLE CABLES (6) are tucked into the
CONSOLE MAST (4). Using the lead wire
carefully pull the CONSOLE CABLE (6) out of
the CONSOLE MAST (4). Detach and discard the
LEAD WIRE. Connect the CONSOLE CABLES (6)
and carefully tuck wires in masts to avoid damage.
D Attach the RIGHT SIDE of the CONSOLE (5) using 2
BOLTS (A), 2 SPRING WASHERS (B) and 2 FLAT
WASHERS (C).
E Pull the top of the CONSOLE (5) towards the back of
the treadmill and HOLD while TIGHTENING THE
LEFT AND RIGHT SIDE BOLTS (A).
NOTE: Be careful not to pinch any
wires while assembling the console.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
M8X1.25PX15L 4A BOLT
8.2X15.0X1.2T
4B SPRING WASHER 8.2X13.5X2.0T
4C FLAT WASHER
A B C
5
A B C
4
1
6
(STEP E)

15

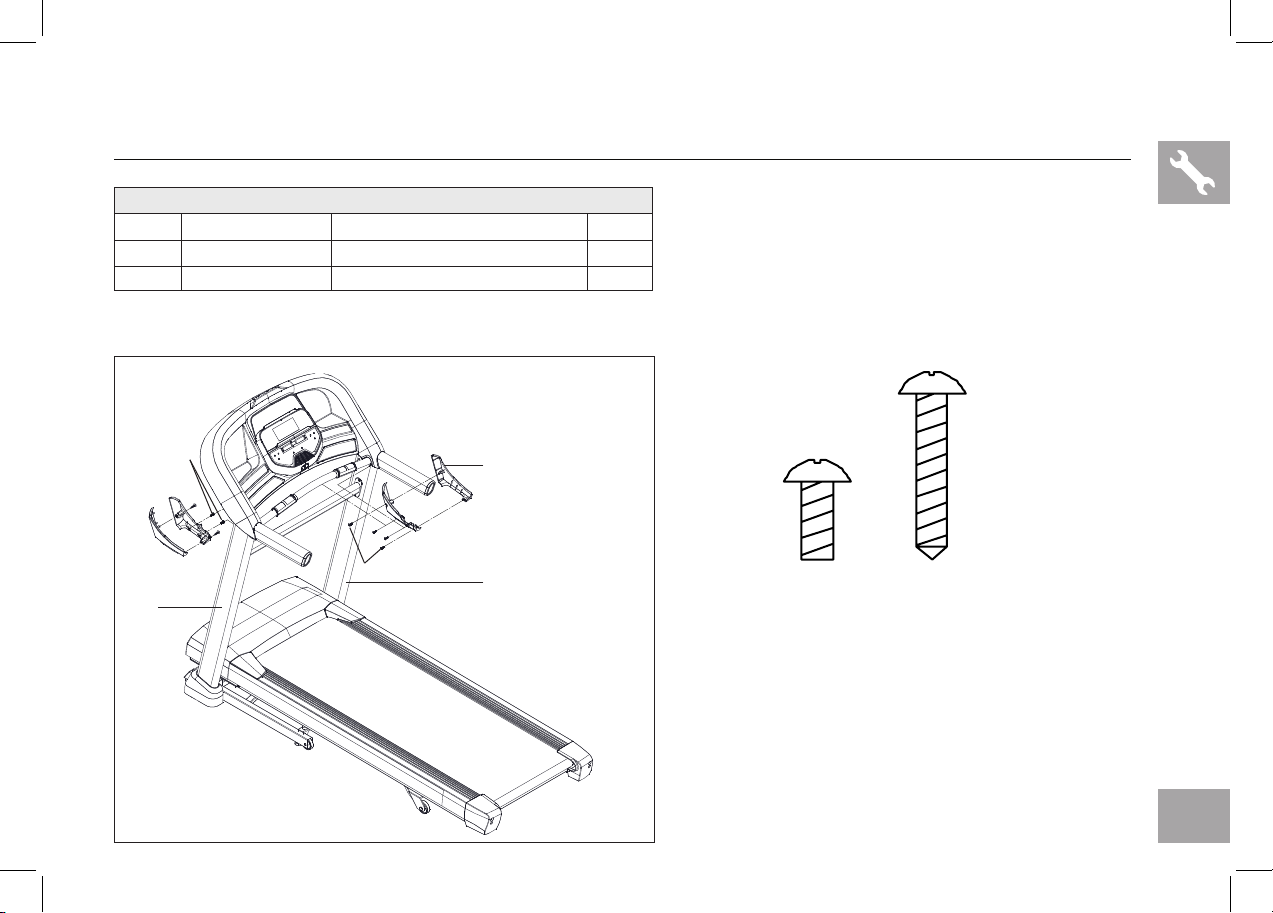

ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Attach the RIGHT AND LEFT SIDE CONSOLE
JOINT COVERS (1) using 8 SCREWS (A & B).
C REMEMBER to tighten CROSSBAR BOLTS into
the CONSOLE MASTS (2&3) completely now
that console assembly is finished.
2
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
4X10L 4A SCREW
1
3
B
A
B
4X15L 4B SCREW
A

16
A Open HARDWARE FOR STEP 5.
B Attach the ACCESSORY TRAY (1) to the
CROSSBAR (2) using 4 SCREWS (A).
A
ASSEMBLY STEP 6
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
4X15L 4A SCREW
1
2
A

17
ASSEMBLY STEP 7
A Open HARDWARE FOR STEP 6.
B REMEMBER to tighten CROSSBAR BOLTS
into the CONSOLE MASTS(3&4) completely
now that assembly is finished. Lift DECK (1) to
upright and locked position.
C Slide LEFT CONSOLE BOOT (2) to the bottom
of the LEFT CONSOLE MAST (3). Attach with 2
BOLTS (A) through the holes in LEFT CONSOLE
BOOT (2) into LEFT UPRIGHT MAST (3).
D Slide RIGHT CONSOLE BOOT (5) to the
bottom of the RIGHT CONSOLE MAST (4).
Attach with 2 BOLTS (A) through the holes
in RIGHT CONSOLE BOOT (5) into RIGHT
UPRIGHT MAST (4).
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill
deck by following the instructions in
the MAINTENANCE section in the
TREADMILL GUIDE.
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
4X10L 4A SCREW
A
A
4
5
2
3
1

18

19

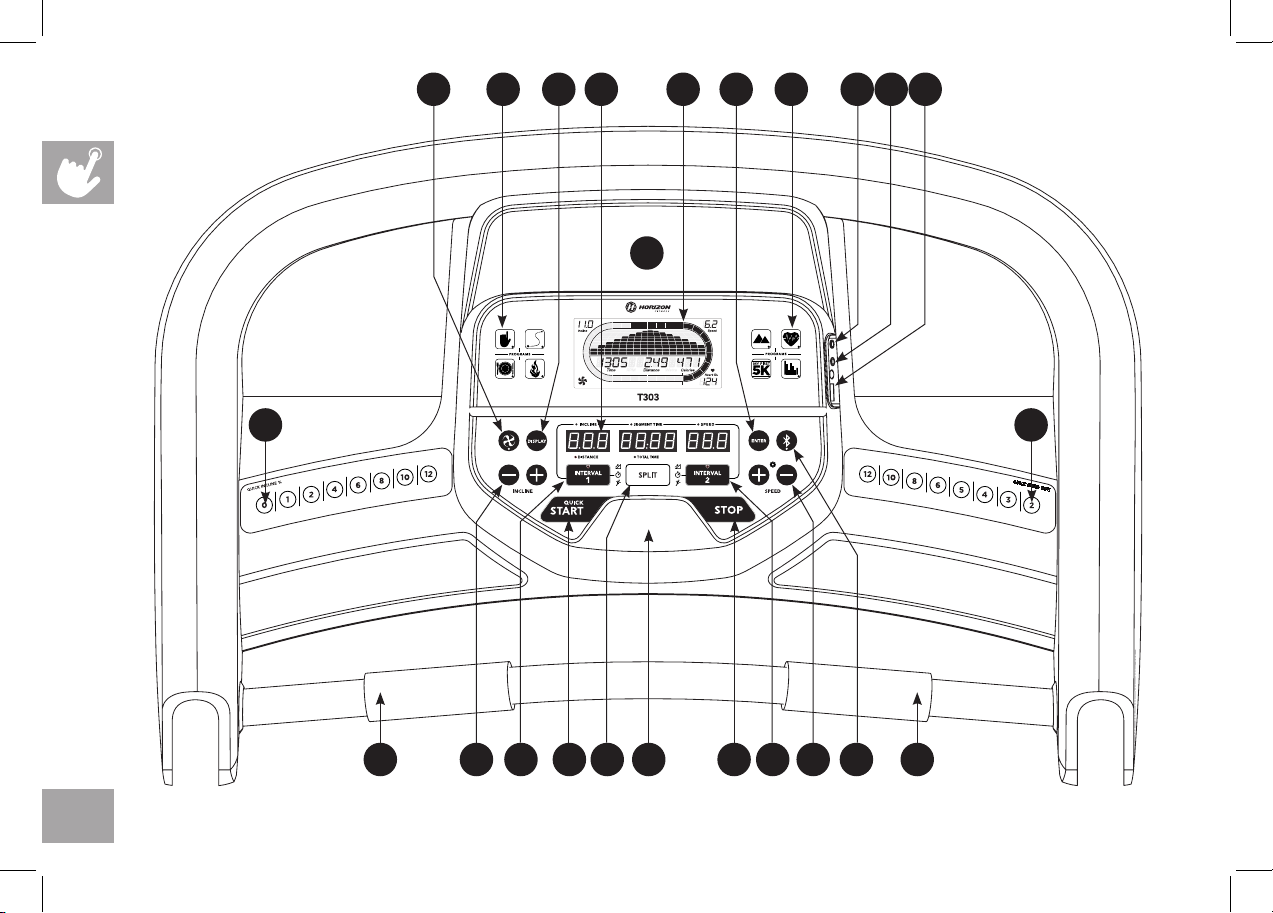

TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

20
L M
NAFG BC C
DH IJ OK K
QP R
S
T UU E
