TREADMILL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lisez le GUIDE DU TAPIS ROULANT avant de vous référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.
T303
CT9.3

2
2 ENGLISH
30 FRANÇAIS
58 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions
before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately
informed of all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support
at the number listed on the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting.Failure to comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY
SECTION. Failure to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should children under the age of 13 or pets be within 10 feet of the machine.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Contact tech support at the number on the back panel to schedule service.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool
rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an
authorized service technician
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement or repair.
3-POLE
GROUNDED
OUTLET
GROUNDED
POWER
CORD
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration.
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with
this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit
and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets
on one circuit. This treadmill should be used with a minimum 15-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode
sticker near the on/off power switch and power cord and enter it in the space provided
below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
MODEL NAME: HORIZON TREADMILL
WARNING
SERIAL NUMBER LOCATION

8

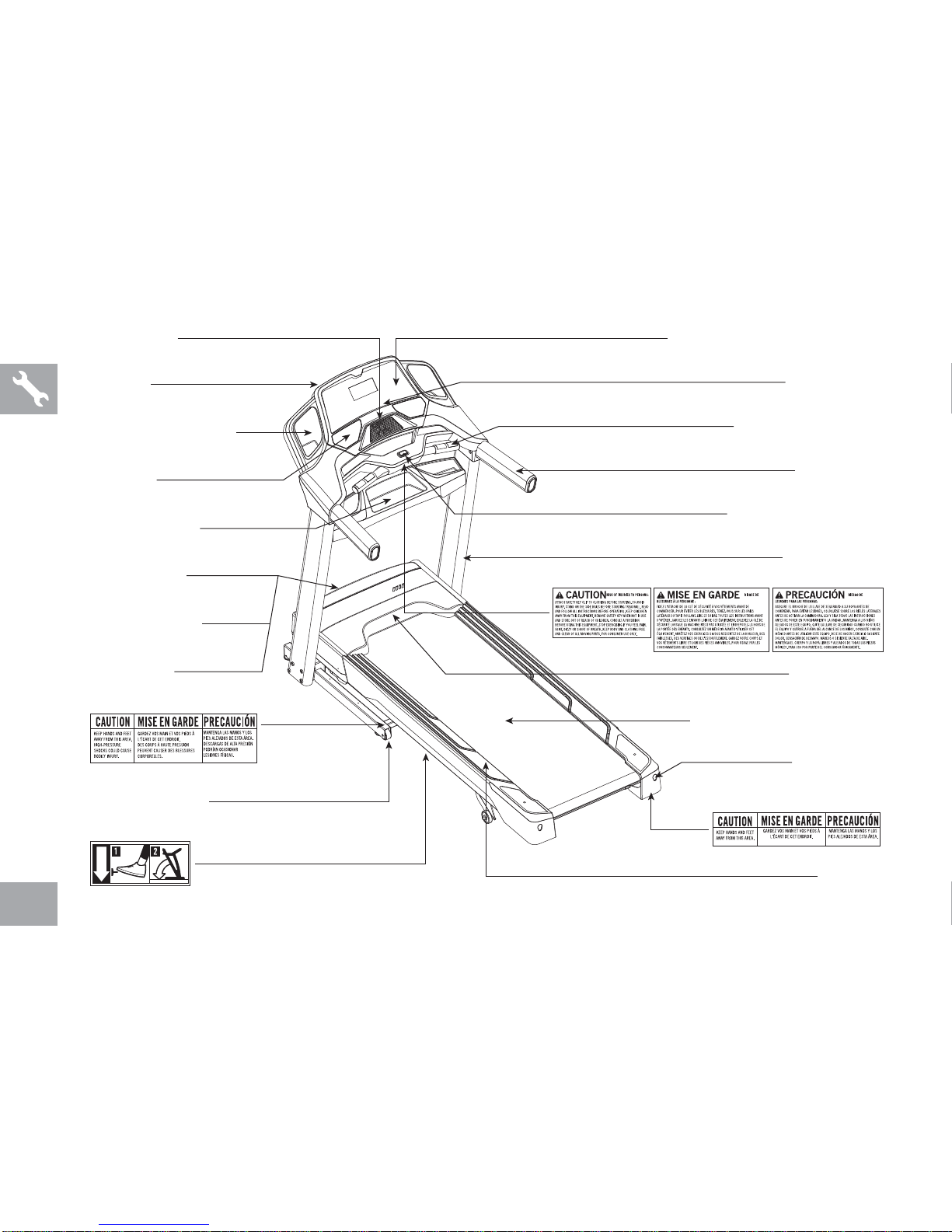

SPEAKERS
WATER BOTTLE POCKET HEART RATE GRIP BARS
HANDLEBARS
ACCESSORY TRAY
CONSOLE
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
POWER CORD
READING RACK
CONSOLE FAN
CONSOLE DISPLAY AND CONTROLS
SAFETY KEY PLACEMENT
MOTOR COVER
SIDE RAIL
REAR ROLLER
TENSION/ADJUSTMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH
RUNNING BELT / RUNNING DECK
(UNDERNEATH DECK)

9
TOOLS REQUIRED:
6 mm T-Wrench
5 mm L-Wrench
Screwdriver (not included)
PARTS INCLUDED:
2 Console Masts
1 Console Assembly
2 Sets Console Mast Covers
1 Accessory Tray
2 Water Bottle Pockets
1 Hardware Kit
1 Safety Key
1 Power Cord
1 Audio Adapter Cable
1 Bottle of Silicone Lubricant
(for 2 applications)
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
NEED HELP?
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You
may remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place
a protective covering on your floor. Take CAUTION when handling and transporting
this unit. Never open box when it is on its side. Once the banding straps have been
removed, do not lift or transport this unit unless it is fully assembled and in the upright
folded position, with the lock latch secure. Unpack and assemble the unit where it
will be used. The enclosed treadmill is equipped with high-pressure shocks and may
spring open if mishandled. Never grab hold of any portion of the incline frame and
attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NOTE:
• During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
• A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
• It is recommended that two people work together for ease and efficiency while
assembling an treadmill.
PRE ASSEMBLY

10
BOLT (A)
9 mm
Qty: 2
HARDWARE FOR STEP 1:
BOLTS (A)
MAIN FRAME BRACKET
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward to remove all contents from
underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Insert 2 BOLTS (A) into MAIN FRAME
BRACKETS.

11

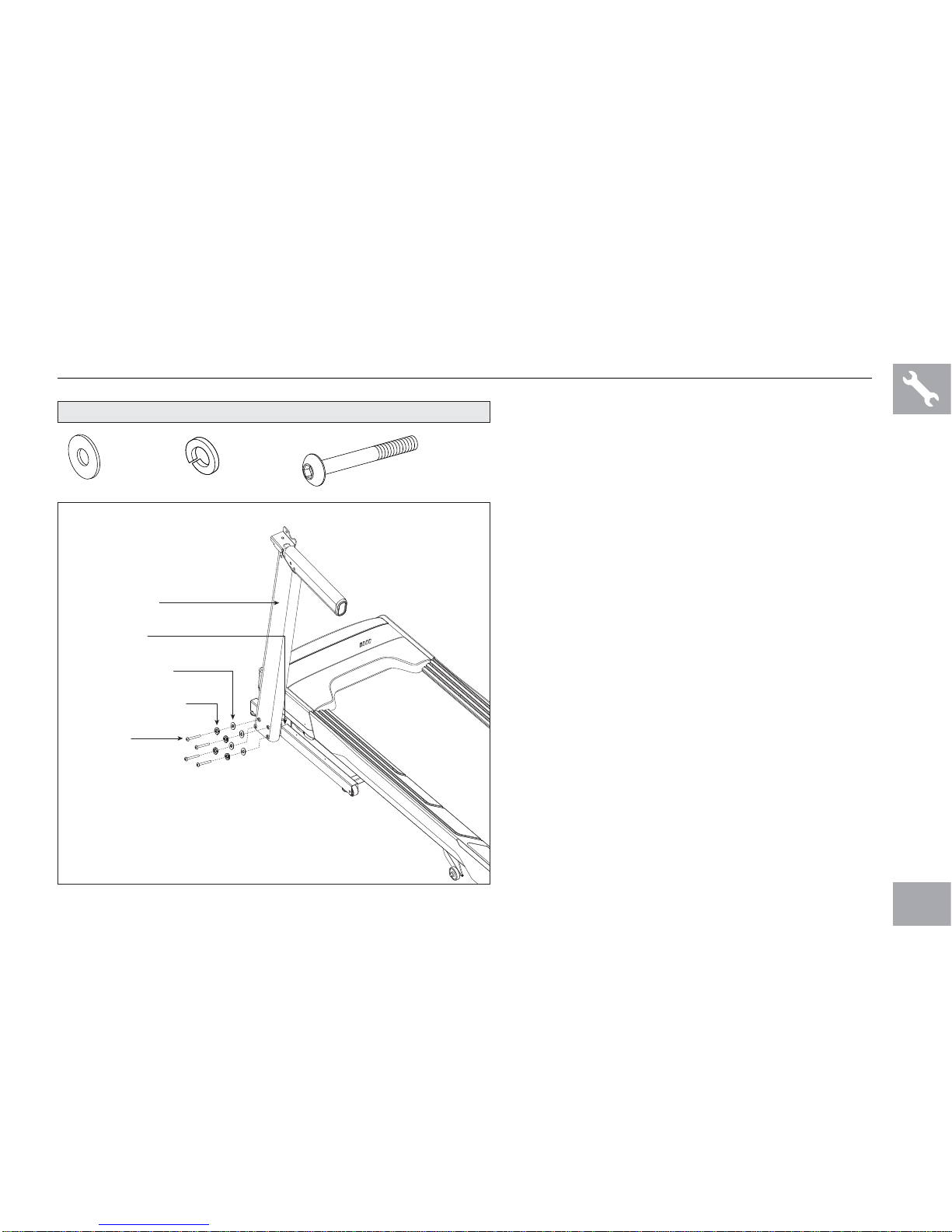

ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Attach LEFT CONSOLE MAST so that BOLT (A)
sits on the NOTCHED HOLE in the bottom of the
CONSOLE MAST.
C Attach LEFT CONSOLE MAST to MAIN FRAME
BRACKET using 4 FLAT WASHERS (B), 4
SPRING WASHERS (C) and 4 BOLTS (D).
SPRING
WASHER (C)
8 mm
Qty: 8
FLAT
WASHER (B)
8 mm
Qty: 8
BOLT (D)
70 mm
Qty: 8
HARDWARE FOR STEP 2:
CONSOLE MAST
MAIN FRAME
FLAT WASHERS (B)
SPRING WASHERS (C)
BOLTS (D)

12

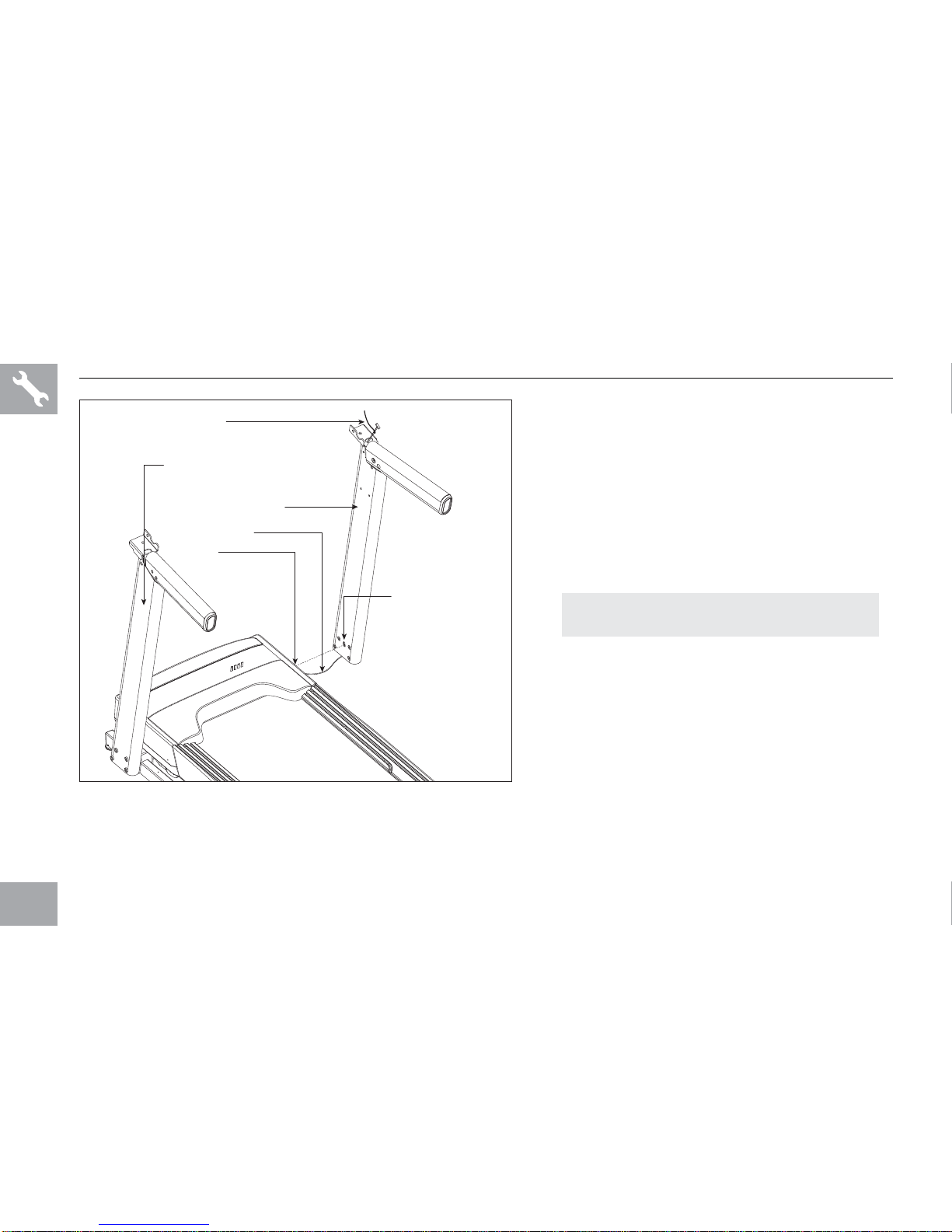

ASSEMBLY STEP 2 (continued)
LEFT CONSOLE MAST
RIGHT CONSOLE MAST
BOLTS (A)
CONSOLE CABLE
LEAD WIRE
NOTCHED HOLE
D Pull the CONSOLE CABLE out of the treadmill
base frame using the LEAD WIRE. Attach
CONSOLE CABLE to the CONSOLE CABLE
in the bottom of the mast. The other end of the
CONSOLE CABLE should be located at the top of
the mast. Detach and discard LEAD WIRES.
E Align the RIGHT CONSOLE MAST so that BOLT
(A) sits in the NOTCHED HOLE in the bottom of
the CONSOLE MAST.
F Attach CONSOLE MAST to MAIN FRAME
BRACKET using 4 FLAT WASHERS (B), 4
SPRING WASHERS (C) and 4 BOLTS (D).
NOTE: Be careful not to pinch the console
cable while attaching the right console mast.

13

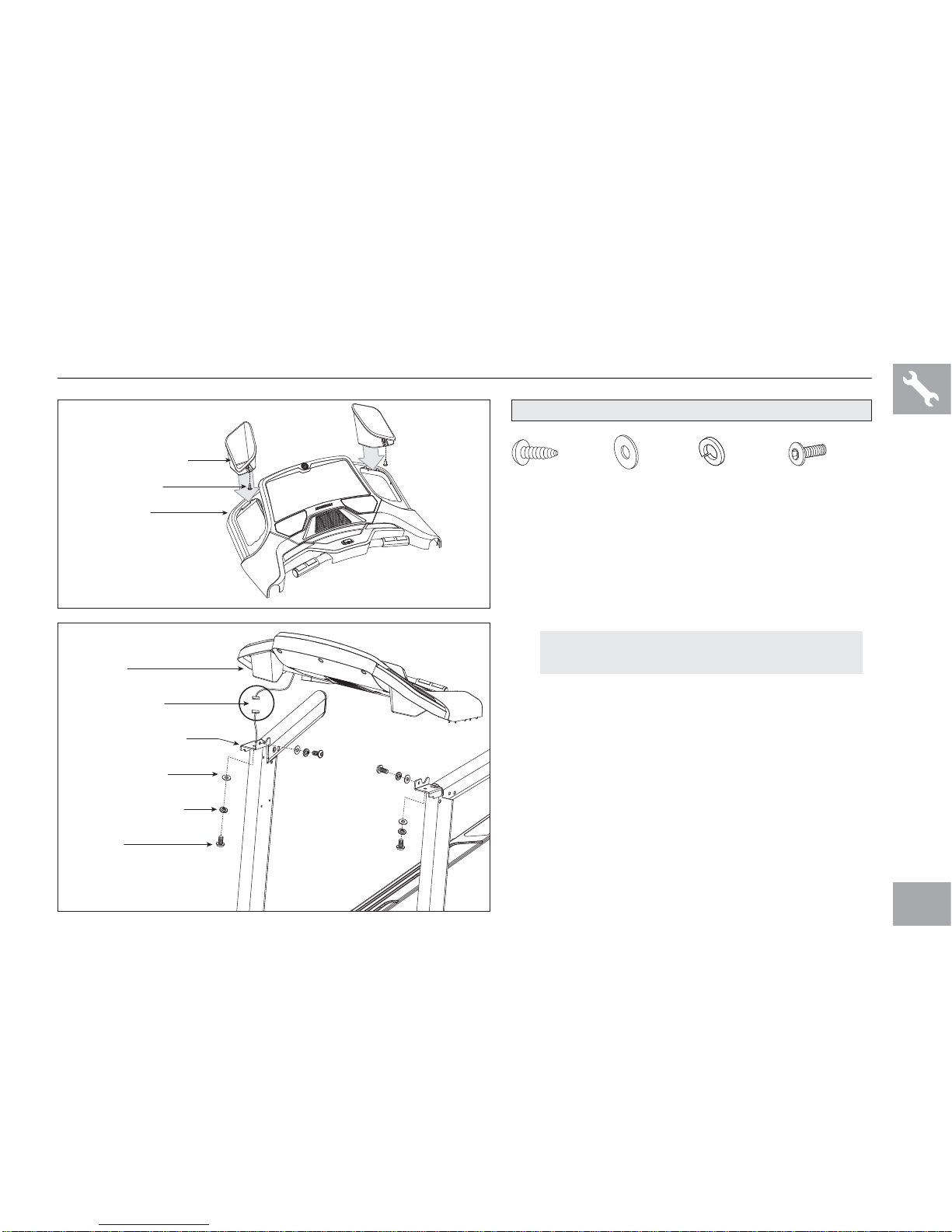

ASSEMBLY STEP 3
SCREW (E)
8 mm
Qty: 2
SPRING
WASHER (C)
8 mm
Qty: 4
FLAT
WASHER (B)
8 mm
Qty: 4
BOLT (F)
15 mm
Qty: 4
HARDWARE FOR STEP 3:
CONSOLE POCKET
SCREWS (E)
CONSOLE A Open HARDWARE FOR STEP 3.
B Attach CONSOLE POCKETS to CONSOLE using
2 SCREWS (E).
C Gently place CONSOLE on top of CONSOLE
MASTS.
D Connect the CONSOLE CABLES and tuck them
inside the right CONSOLE MAST.
E Connect the CONSOLE to the right CONSOLE
MAST using 2 BOLTS (F), 2 SPRING WASHERS
(C) and 2 FLAT WASHERS (B).
F Repeat STEP E on other side.
NOTE: Be careful not to pinch the console
cables while attaching the console.
CONSOLE CABLES
FLAT WASHERS (B)
CONSOLE
SPRING WASHERS (C)
BOLTS (F)
RIGHT CONSOLE MAST

14

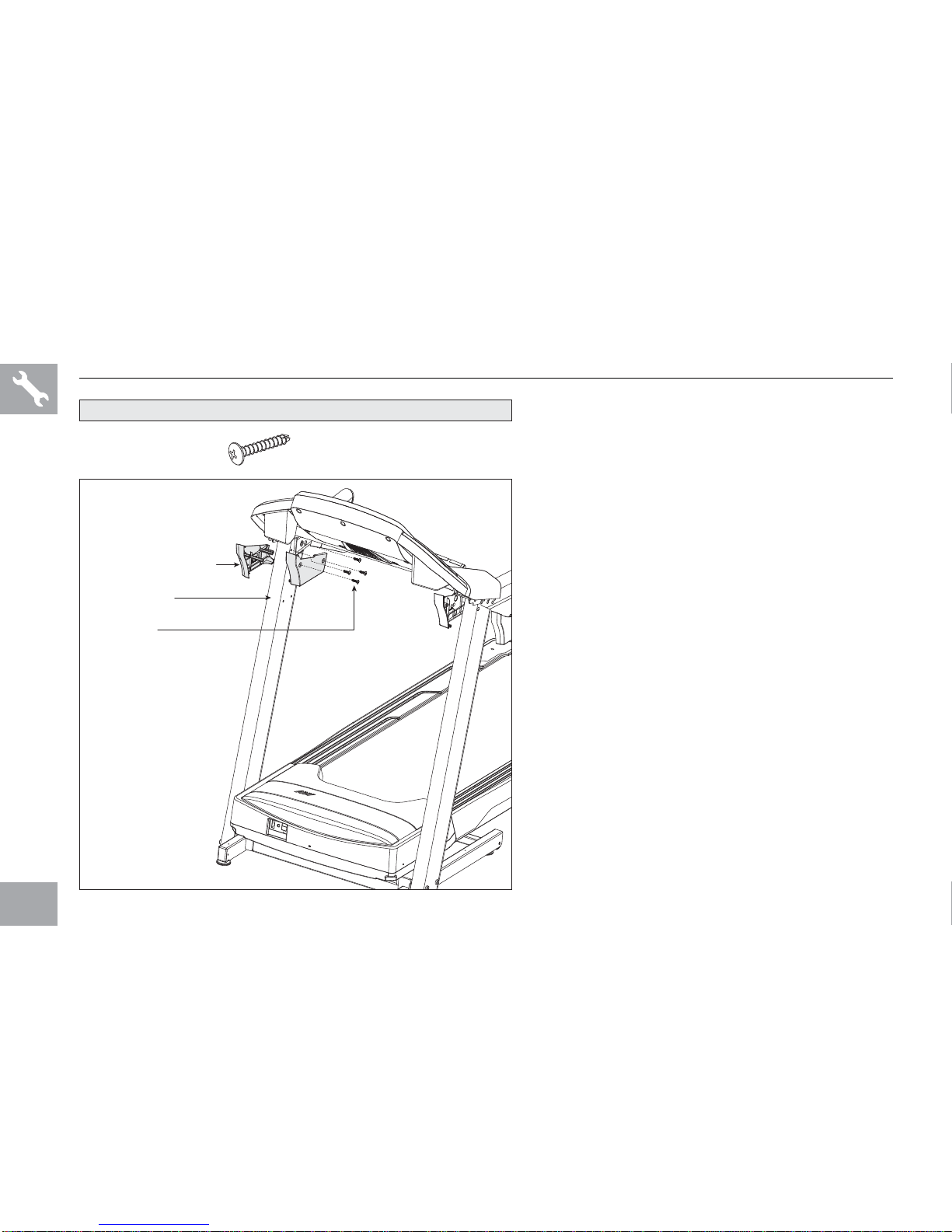

A Open HARDWARE FOR STEP 4.
B Attach the the LEFT OUTER CONSOLE MAST
COVER with 2 SCREWS (G).
C Attach the LEFT INNER CONSOLE MAST
COVER with 2 SCREWS (G).
D Repeat steps 2 and 3 to attach the RIGHT-SIDE
CONSOLE MAST COVERS.
ASSEMBLY STEP 4
SCREW (G)
15 mm
Qty: 8
HARDWARE FOR STEP 4:
CONSOLE MAST COVERS
SCREWS (G)
CONSOLE MAST

15

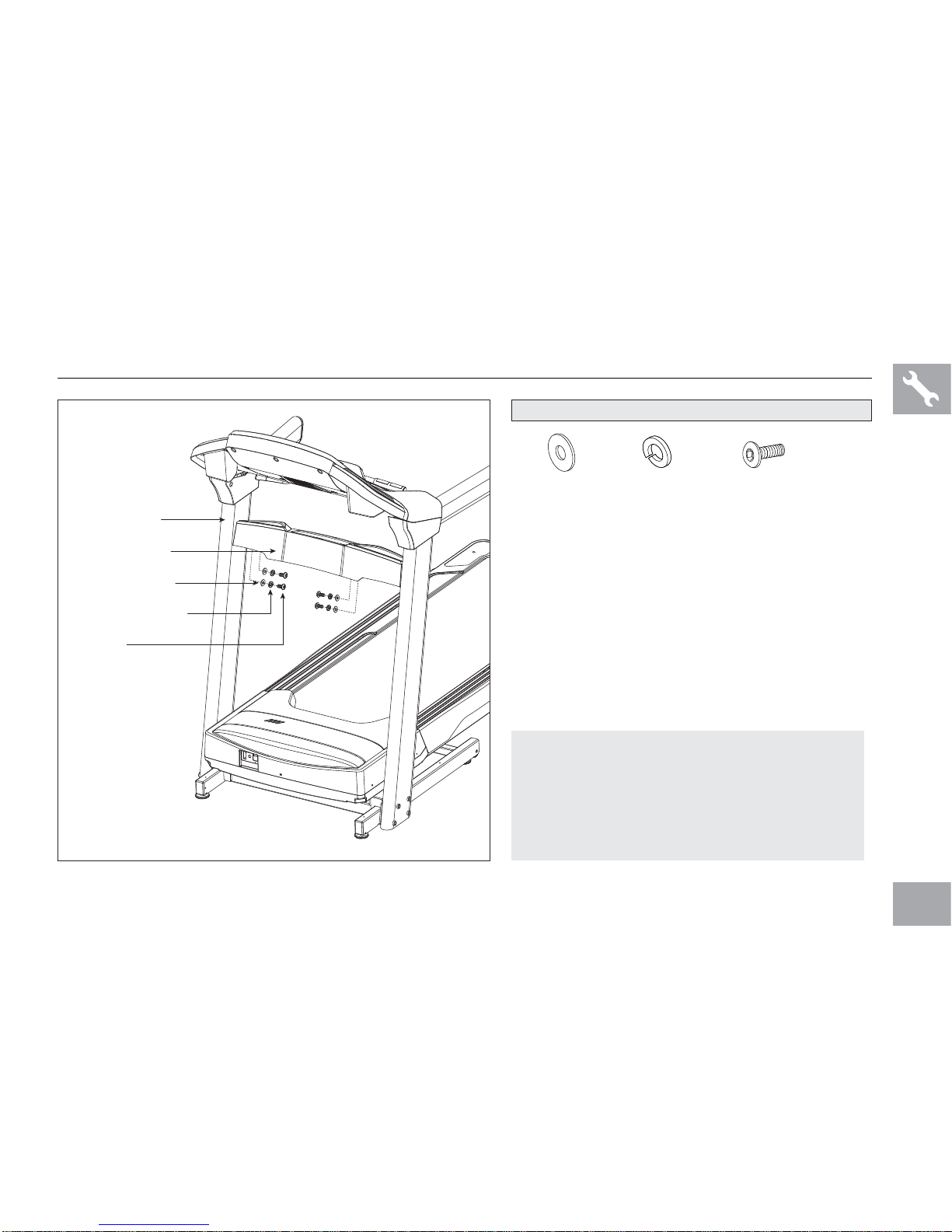

ASSEMBLY STEP 5
SPRING
WASHER (I)
6 mm
Qty: 4
FLAT
WASHER (H)
6.2 mm
Qty: 4
BOLT (J)
15 mm
Qty: 4
HARDWARE FOR STEP 5:
CONSOLE MAST
FLAT WASHERS (H)
SPRING WASHERS (I)
BOLTS (J)
ACCESSORY TRAY
A Open HARDWARE FOR STEP 5.
B Align the ACCESSORY TRAY between the
CONSOLE MASTS.
C Attach the ACCESSORY TRAY to the CONSOLE
MASTS using 4 FLAT WASHERS (H), 4 SPRING
WASHERS (I) and 4 BOLTS (J).
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE
section in the TREADMILL GUIDE.

16

17
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

18
ABG O FC H R
D E
T
S S
Q
UI J K L M N
P P

19

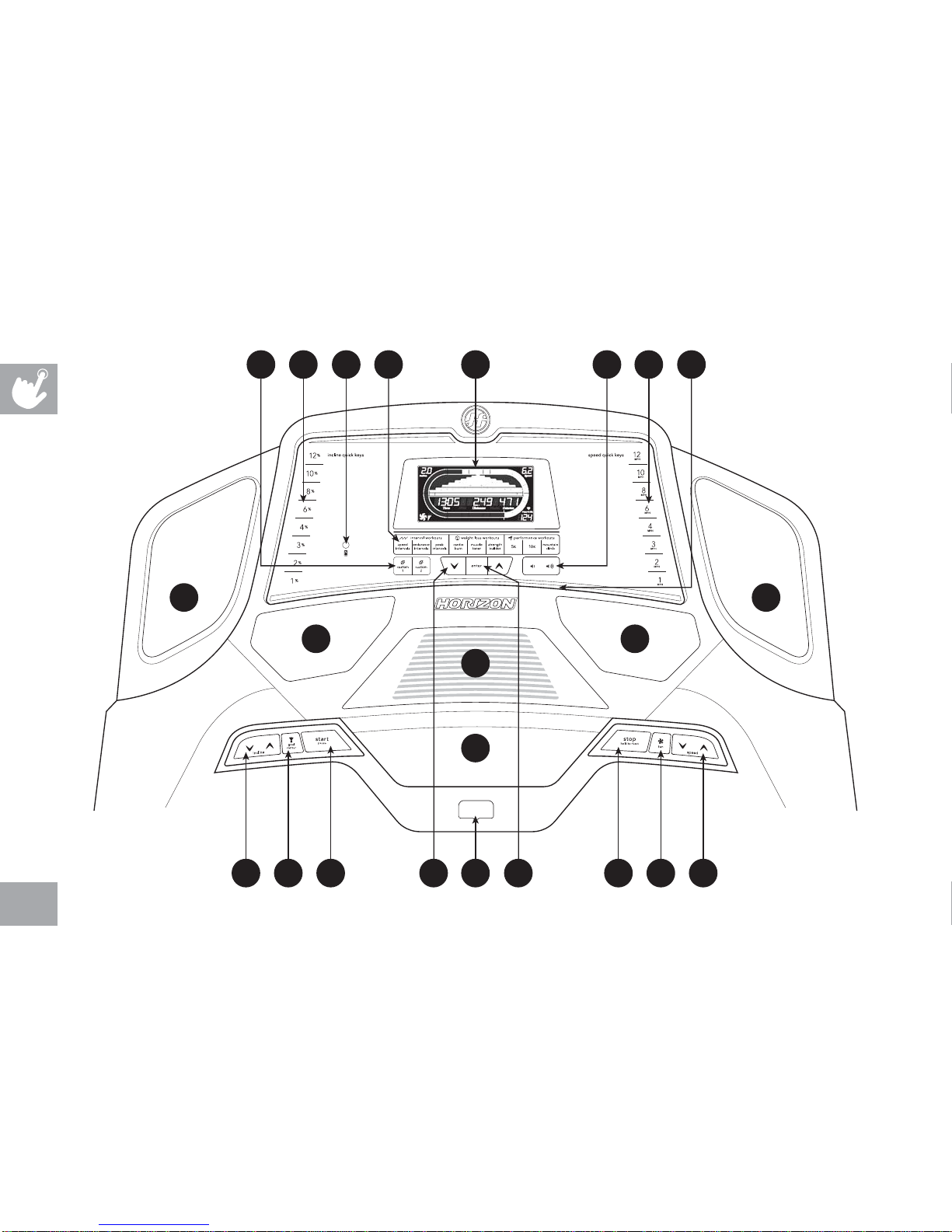

CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LCD DISPLAY WINDOW: time, distance, speed, calories, incline, and heart rate.
B) PROGRAM KEYS: press to select workout.
C) CUSTOM 1 & 2 KEYS: press to select custom 1 or custom 2 program.
D) KEYS: Used to cycle through programs and Goal Center workout statistics.
E) ENTER: used to confirm selection.
F) VOLUME: used to adjust volume up or down.
G) INCLINE QUICK KEYS: used to reach desired incline quickly.
H) SPEED QUICK KEYS: used to reach desired speed quickly.
I) INCLINE KEYS: used to adjust incline level.
J) GOAL CENTER: press to set or view your goal. See page 26 for more information.
K) START / PAUSE: used to start workout, pause workout, and restart after pause.
L) STOP / HOLD TO RESET: used to stop machine and also will reset machine when held down.
M) FAN KEY: press to turn fan on and off.
N) SPEED KEYS: used to adjust speed level.
O) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
P) SPEAKERS: play music through speakers when connected to your CD / MP3 device.
Q) STORAGE AREA: holds personal items, i.e. remote control, music player.
R) READING RACK: holds reading material.
S) WATER BOTTLE POCKETS: store your water bottle.
T) FAN: personal workout fan
U) SAFETY KEY: enables treadmill when safety key is inserted.

20

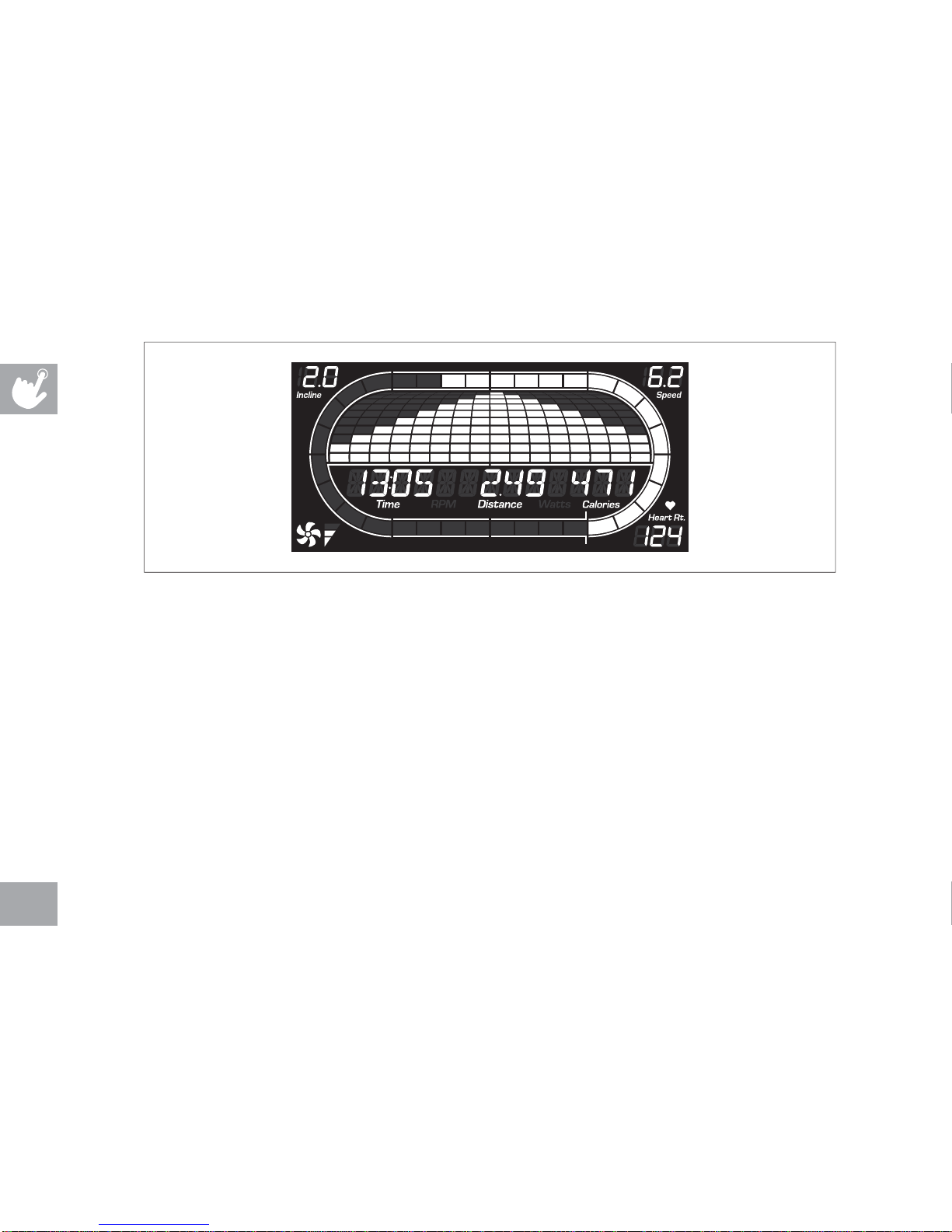

DISPLAY WINDOWS
• TIME: Shown as minutes : seconds. View the
time remaining or the time elapsed in your
workout.
• DISTANCE: Shown as miles. Indicates
distance traveled or distance remaining during
your workout.
• CALORIES: Total calories burned or calories
remaining left to burn during your workout.
• INCLINE: Shown as percent. Indicates the
incline of your walking or running surface.
• SPEED: Shown as MPH. Indicates how fast
your walking or running surface is moving.
• HEART RATE (HR): Shown as BPM (beats
per minute). Used to monitor your heart rate
(displayed when contact is made with both pulse
grips).
• TRACK: Follows progress around a simulated
track. Segments light up with every 12.5 meters
completed. One lap around the track is
400 meters (1/4 mile).
• FAN: Indicates when the fan is on and what
level of strength it is on.
