HTC Touch Diamond2 User manual

Quick Start Guide

Please Read Before Proceeding
THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT
TO DISASSEMBLE THE DEVICE.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and
stipulate that you must inform the person with whom you are speaking that the
conversation is being recorded. Always obey the relevant laws and regulations of your
country when using the recording feature of your PDA Phone.
LIMITATION OF DAMAGES
To the maximum extent permitted by applicable law, in no event shall HTC or its
providers be liable to user or any third party for any indirect, special, consequential,
incidental or punitive damages of any kind in contract or tort, including, but not
limited to, injury, loss of revenue, loss of goodwill, loss of business opportunity, loss of
date, and/or loss of profits arising out of, or related to, in any manner, or the delivery,
performance or nonperformance of obligations, or use of the weather information,
stock data, data or documentation hereunder regardless of the foreseeability thereof.
FOR MORE INFORMATION
For health, safety, and regulatory information, see “Safety and Other Notices”.

Table of Contents
1. Welcome to the HTC Touch Diamond2 Quick Start Guide....5
2. Inside the Box ........................................................................................5
3. Getting to Know the HTC Touch Diamond2 ...............................6
4. Installing the SIM Card, Battery, and Storage Card ..................7
5. Charging the Battery...........................................................................9
6. Starting Up..............................................................................................9
7. The TouchFLO™3D Home Screen................................................. 10
8. Using the Start Screen..................................................................... 11
9. Making Your First Call....................................................................... 12
10. Making a Video Call .......................................................................... 13
11. Entering Information........................................................................ 14
12. Basic Settings...................................................................................... 15
13. Adding Favorite Contacts............................................................... 18
14. Viewing Conversations.................................................................... 20
15. Sending a Text Message.................................................................. 21
16. Sending an MMS Message............................................................. 21
17. Setting Up an Internet E-mail Account...................................... 22
Contents

Table of Contents
18. Using Wi-Fi ........................................................................................... 23
19. Mobile Internet .................................................................................. 23
20. Bluetooth.............................................................................................. 24
21. Keeping Track of Appointments .................................................. 26
22. Capturing Photos and Recording Videos.................................. 27
23. Viewing Photos and Videos ........................................................... 28
24. Connecting Your Device to a Computer ................................... 29
25. Synchronizing Your Device with Your Computer................... 30
26. Copying Files to the Storage Card............................................... 31
27. Synchronizing Music Files .............................................................. 31
28. Listening to Music on Your Device.............................................. 32
29. Resetting Your Device...................................................................... 33
30. Safety and Other Notices................................................................ 34

Quick Start Guide 5
1. Welcome to the HTC Touch Diamond2 Quick Start Guide
Congratulations on your purchase of the HTC Touch Diamond2.
This Quick Start Guide will help you get started with your Windows Mobile® 6.1
Professional powered Touch Phone. We’ve arranged this Quick Start Guide in a way that it
starts from when you open the box and then it walks you through the features we feel that
you want to know or use right away when you turn on your device for the first time.
For a more complete guide in using your device, please refer to the User Manual PDF in
the User Manual CD that came with the device.
2. Inside the Box
You should find the following items inside the box.
HTC Touch Diamond2 device
Battery
AC adapter
Wired stereo headset
USB sync cable
Screen protector
Quick Start Guide
Getting Started and User Manual Discs
Extra stylus
•
•
•
•
•
•
•
•
•

6 Quick Start Guide
3. Getting to Know the HTC Touch Diamond2

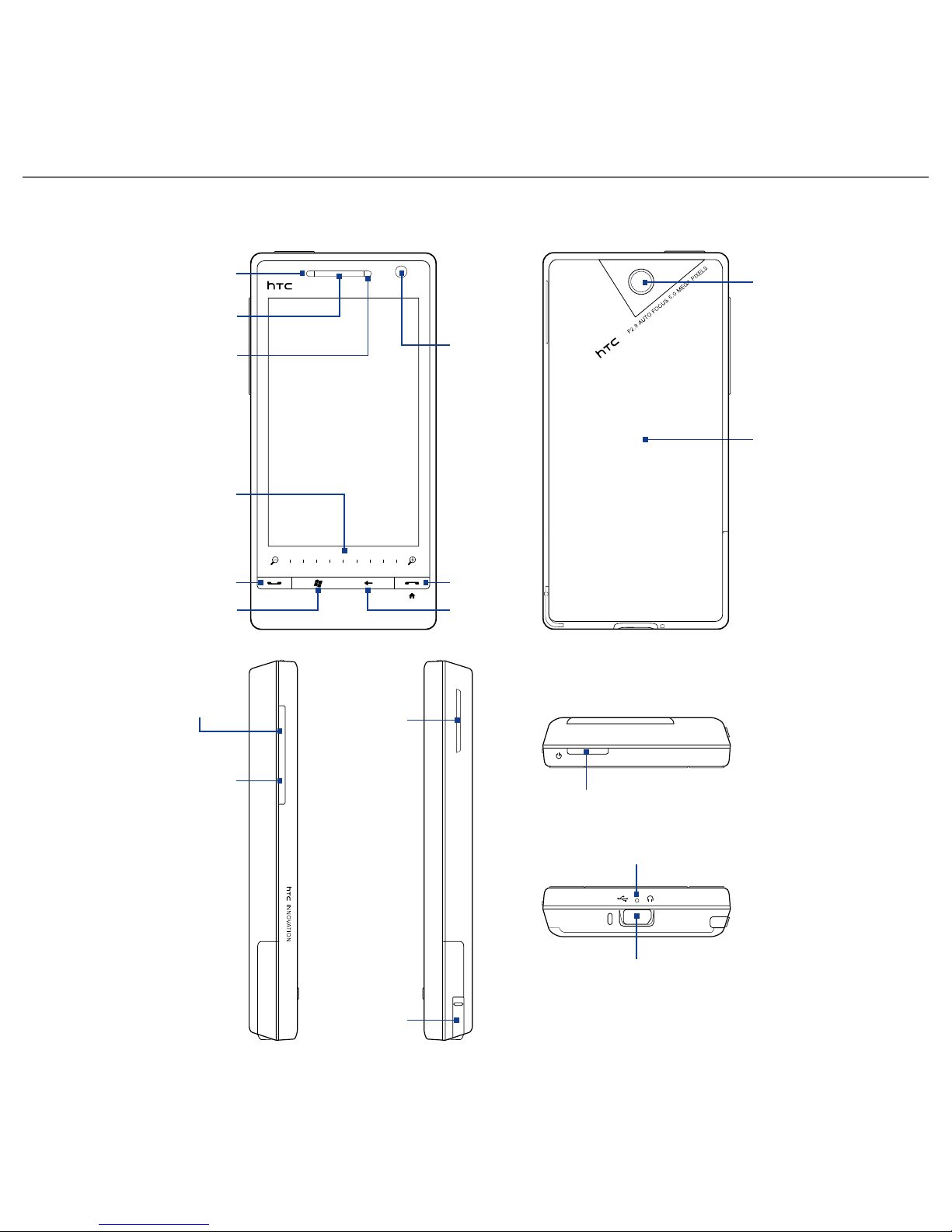

Speaker
POWER
Stylus
VOLUME UP
VOLUME
DOWN
Earpiece
Touch Screen
START
END
Second
Camera
TALK/SEND
Back Cover
5.0
Megapixel
Camera
Sync Connector/
Earphone Jack
Microphone
Light Sensor
BACK
Notification LED
Zoom Bar

Quick Start Guide 7
4. Installing the SIM Card, Battery, and Storage Card
Make sure your device is turned off before installing the SIM card and battery. You also
need to remove the back cover before you can install these components.
To remove the back cover
Make sure your device is turned off.
Firmly hold the device with both hands and
the front panel facing down.
Push the back cover up with your thumbs
until it disengages from the device and then
slide it up to remove.
1.
2.
3.
To install the SIM card
Remove the battery if it is installed.
Locate the SIM card slot, then insert the SIM
card with its gold contacts facing down and
its cut-off corner facing out the card slot.
Slide the SIM card completely into the slot.
1.
2.
3.
Cut-off
corner

8 Quick Start Guide
To install the battery
Align the battery’s exposed copper contacts
with the battery connectors at the bottom
part of the battery compartment.
Insert the contacts side of the battery first and
then gently push the battery into place.
Replace the back cover.
1.
2.
3.
Notch
To install a microSD™card
Locate the storage card slot, then insert the
microSD card into the slot with its gold contacts
facing down until it clicks into place.
Note To remove the microSD card, press it to eject it
from the slot.
Storage
card slot
For information on how to remove or replace these components on your device, refer to
the “Getting Started”chapter in the User Manual PDF.

Quick Start Guide 9
5. Charging the Battery
New batteries are shipped partially charged. Before you start using your device, it is
recommended that you install and charge the battery.
To charge the battery
Connect the USB connector of the AC adapter to the sync connector at the bottom
of your device.
Plug in the AC adapter to an electrical outlet to start charging the battery.
The battery is fully charged after about 3 hours of charging.
6. Starting Up
After installing the battery and charging the battery, you can now power on and start
using your device.
To turn on the power
Press the POWER button. On first time use, the device installs customized settings, and
then displays the SIM Card Changed screen.
Configuring initial device settings
The SIM Card Changed screen gives you the option to automatically configure your
device’s data connections, such as 3G/EDGE/GPRS, MMS, and WAP and/or import SIM card
contacts to your device (if available).
Follow the onscreen instructions to proceed. After you have configured your data
connections and copied SIM contacts to your device, the device restarts and then displays
the TouchFLO 3D Home screen.
1.
2.

10 Quick Start Guide
7. The TouchFLO™3D Home Screen
Your device’s main screen is the TouchFLO™ 3D Home screen which allows finger-touch
access to the most important functions such as favorite contacts, text messages, e-mail,
Internet, and more.
The following are the tabs that you will find on the TouchFLO 3D Home screen:
Home Music Settings
Weather
Internet Stock
Photos and Videos
People Calendar
Messages
Mail
To switch between the tabs of the Home screen
Do any of the following:
Touch or tap the desired tab.
Press and hold your finger on the active tab, and then slide your finger right or left
over the tabs. Release when you have selected the desired tab.
Swipe left across the screen to move to the next tab, and swipe right across the
screen to move to the previous tab.
The subsequent sections in this Quick Start Guide will show you how to use some of the
Home screen tabs. For complete information about using TouchFLO 3D, refer to the User
Manual PDF on the User Manual disc.
•
•
•
