Huawei EDGE-U06 User manual

EDGE-U06 Simplified
Maintenance Manual 2.0
Issue
2.0
Date
2013-10-12
HUAWEI TECHNOLOGIES CO., LTD.

Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://www.huawei.com
Email:
[email protected]

EDGE U0-6 Simplified Maintenance Manual
About This Document
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
About This Document
Author
Prepared by
R&D
Date
2013-01-12
Reviewed by
Maintenance support team
Date
2013-01-14
Approved by
Service representative
Date
2013-01-14
Change History
Date
Version
Revision Reason
Changed
Chapter
Description
Author
2013-01-12
V1.0
Released the first
version.
R&D
2013-10-12
V2.0
Optimized the
description of how
to disassemble the
phone.
Revised chapters
7 and 8, and
added chapter 12.
1. Highlighted the revised
sections of chapters 7 and
8 in yellow.
2. Added chapter 12 to
provide guidance on how
to replace the PCBA
without removing the
battery.
R&D

EDGE U0-6 Simplified Maintenance Manual
Contents
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Contents
About This Document.................................................................................................................... ii
1 Overview.........................................................................................................................................1
1.1 Applicable Scope..............................................................................................................................................1
1.2 Brief Introduction.............................................................................................................................................1
1.3 How to Obtain Product and Maintenance Information ....................................................................................1
2 Product Overview .........................................................................................................................2
2.1 Appearance.......................................................................................................................................................2
2.2 Specifications...................................................................................................................................................3

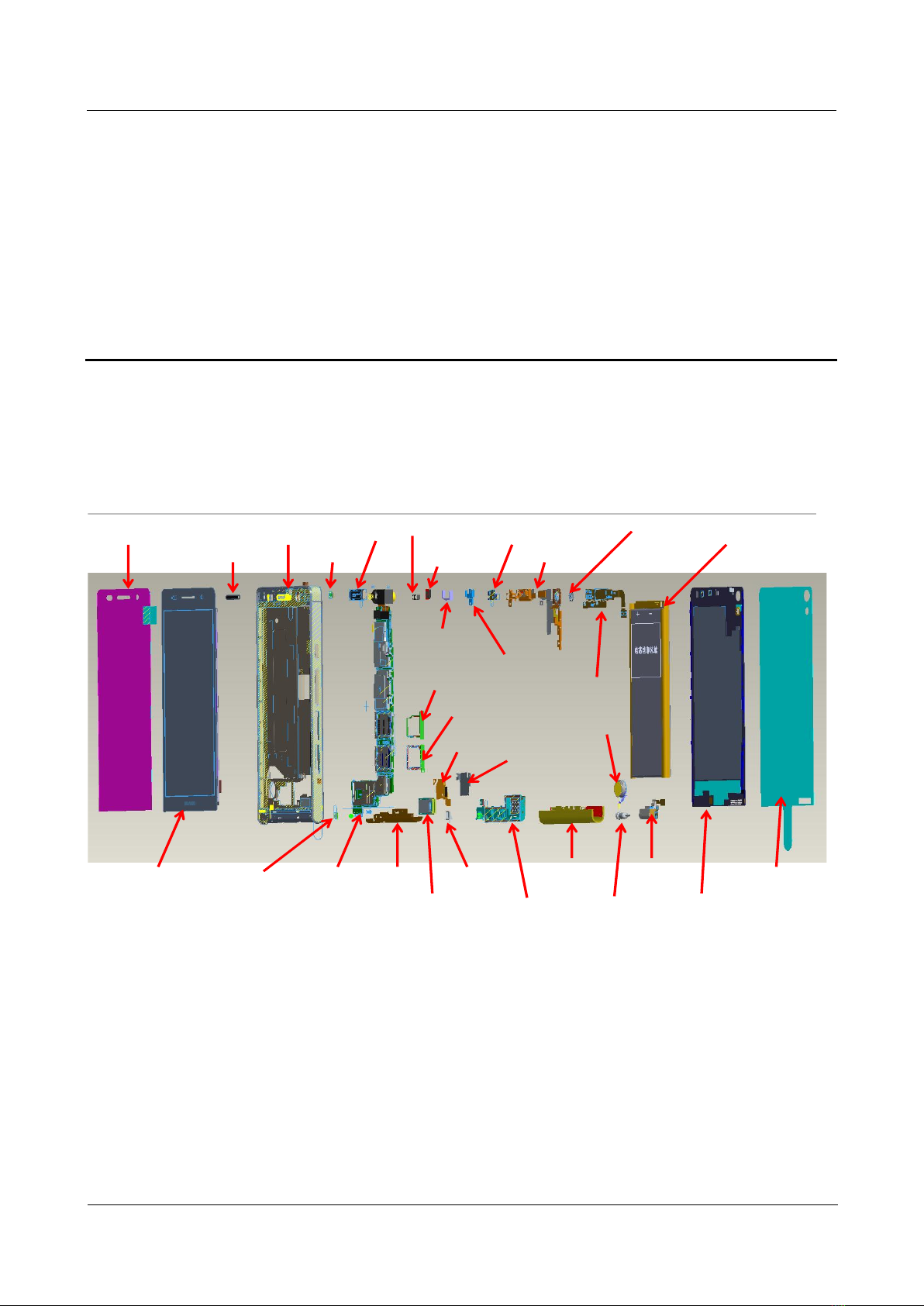

3 Exploded View...............................................................................................................................6
4 Spare Parts ......................................................................................................................................7

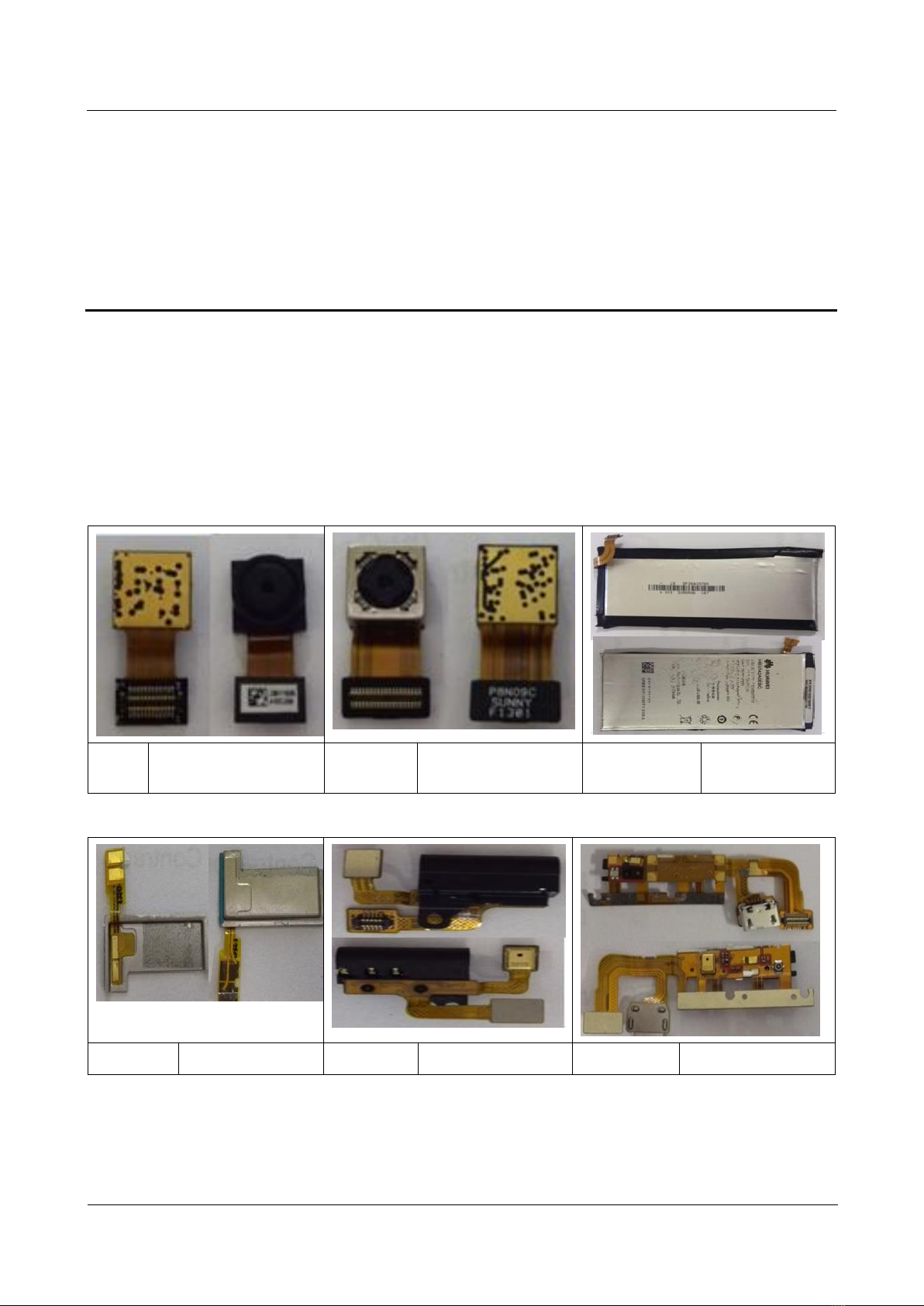

4.1 Commonly Used Parts......................................................................................................................................7

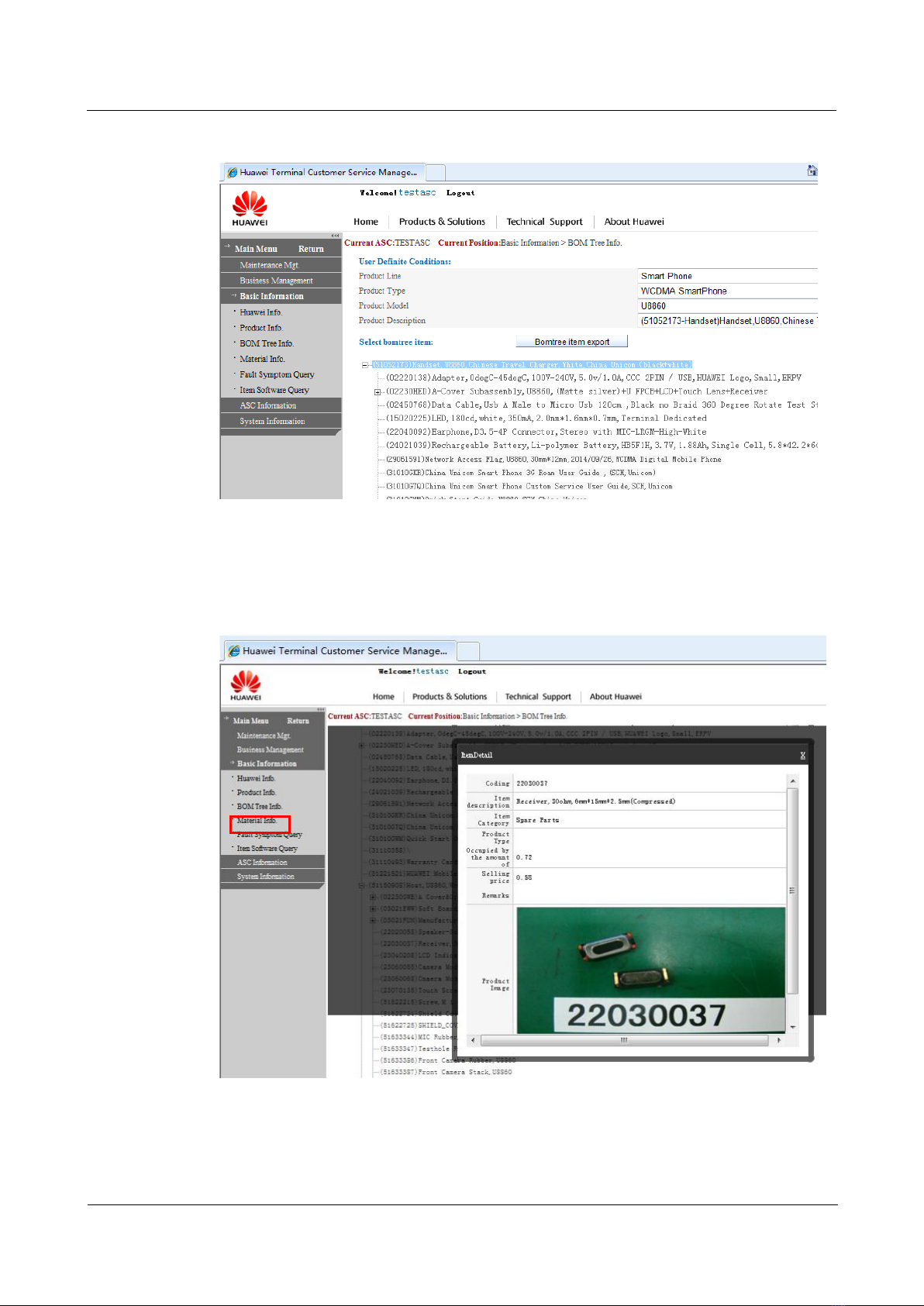

4.2 How to Obtain Part Numbers.........................................................................................................................10
5 Software Upgrade .......................................................................................................................13
5.1 Upgrade Preparation.......................................................................................................................................13

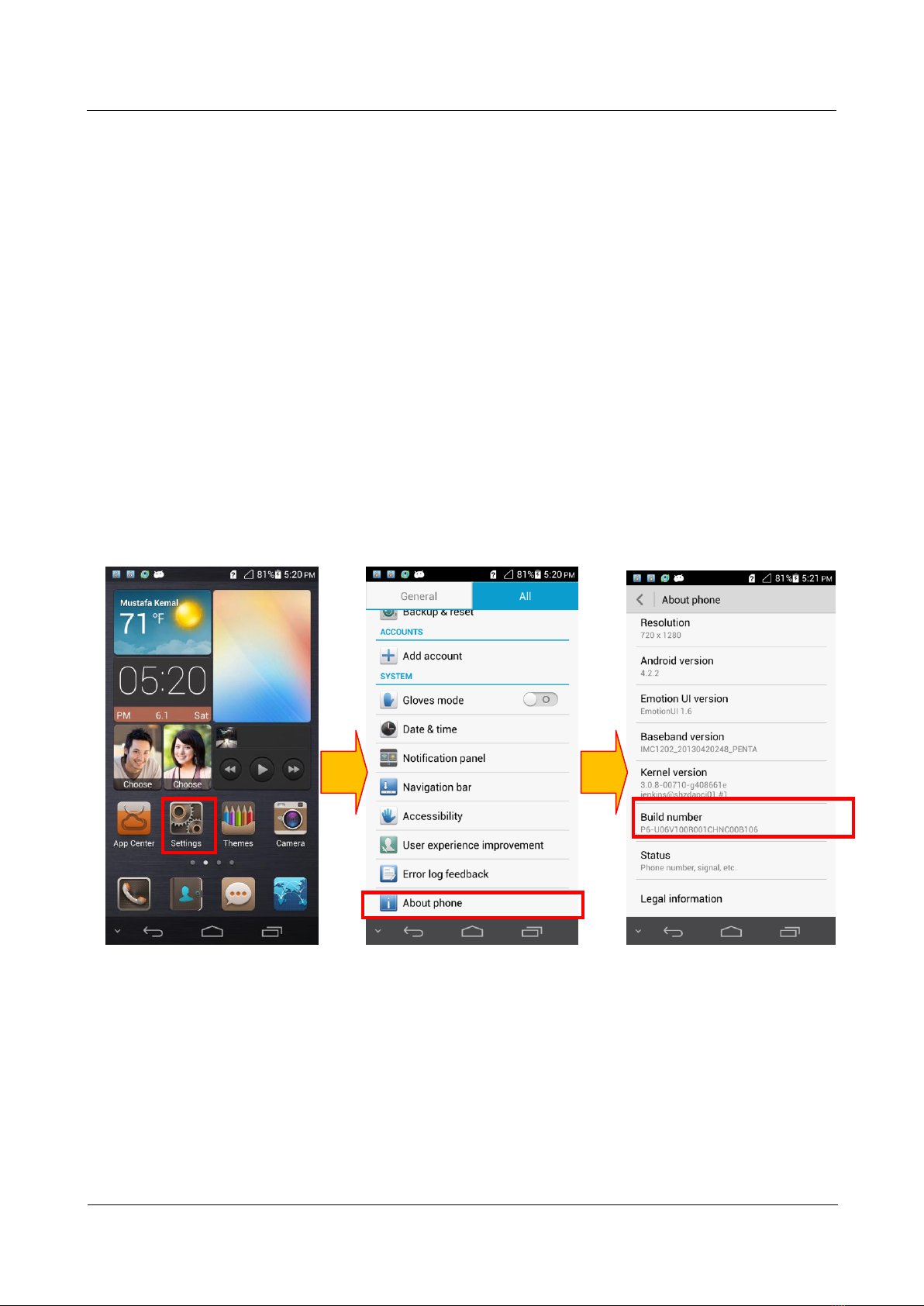

5.2 Checking the Software Version ......................................................................................................................14
5.3 How to Distinguish Between Software Versions............................................................................................14
5.3.1 Software Types......................................................................................................................................14
5.3.2 Software Naming Convention...............................................................................................................15
5.4 How to Obtain the Version Software..............................................................................................................16
5.4.1 Method 1...............................................................................................................................................16
5.4.2 Method 2...............................................................................................................................................16
5.5 Using the microSD Card for Upgrade............................................................................................................17
5.5.1 Normal Upgrade....................................................................................................................................17
5.5.2 Forcible Upgrade ..................................................................................................................................19
5.6 Using the USB Cable for Upgrade.................................................................................................................19
5.6.1 Installing the USB Driver .....................................................................................................................20
5.6.2 Performing a Normal Upgrade..............................................................................................................21
5.6.3 Forcible Upgrade Guidance ..................................................................................................................23
5.7 Troubleshooting Upgrade Failures .................................................................................................................23
6 Maintenance Tools......................................................................................................................25

EDGE U0-6 Simplified Maintenance Manual
Contents
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
7 Disassembly Procedure..............................................................................................................28
8 Assembly Procedure...................................................................................................................38
9 FAQs ..............................................................................................................................................48
9.1 My phone sometimes stops responding or restarts after running for a period of time. What can I do? .........48
9.2 I forgot the screen lock password. What can I do?.........................................................................................48
9.3 My phone responds slowly after it runs for a period of time. What can I do? ...............................................50
9.4 How do I check my phone's Wi-Fi/Bluetooth/SN information?.....................................................................50
10 Troubleshooting........................................................................................................................52
10.1 Power-on Failure..........................................................................................................................................52
10.2 Restarts and Screen Freezing .......................................................................................................................56
10.3 Overheat and Short Standby Time................................................................................................................57
10.4 Charging Failure...........................................................................................................................................58
10.5 No Ringtone .................................................................................................................................................59
10.6 Receiver Failure ...........................................................................................................................................60
10.7 Microphone Failure......................................................................................................................................61
10.8 Weak or No Reception..................................................................................................................................62
10.9 SIM Card Detection Failure .........................................................................................................................63
10.10 Camera Failure...........................................................................................................................................63
10.11 Touchscreen Failure....................................................................................................................................64
11 Quality Inspection Procedure and Methods........................................................................65
11.1 Inspection Flowchart ....................................................................................................................................65
11.2 Inspection Tools............................................................................................................................................66
11.3 Instruction Instructions.................................................................................................................................68
11.3.1 Battery Test .........................................................................................................................................68
11.3.2 Current Test.........................................................................................................................................68
11.3.3 Charging Test ......................................................................................................................................69
11.3.4 MMI Test.............................................................................................................................................69
11.3.5 MT.......................................................................................................................................................82
12 Replacing the P6's PCBA Without Removing the Battery ................................................84
12.1 Disassembly Procedure ................................................................................................................................84
12.2 Assembly Procedure.....................................................................................................................................88

EDGE U0-6 Simplified Maintenance Manual
1 Overview
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Overview
1.1 Applicable Scope
The EDGE U0-6 Maintenance Manual is available in the simplified and advanced versions.
The two versions are respectively applicable to common service centers and advanced service
centers authorized by Huawei. The simplified version (hereinafter referred to as the document)
provides maintenance and repair instructions for technicians at common service centers to
conduct services of level 1 and level 2. Being Huawei proprietary, this document is accessible
only for authorized service centers. Although every effort was made to ensure the accuracy of
the document, errors may still exist. If you find any errors or have any suggestions, please
report them through Huawei service platform ComPartner.
1.2 Brief Introduction
This document introduces the product features, mechanical parts, assembly and disassembly
procedures, and common troubleshooting methods. You will be able to clear common faults of
the product with this document.
1.3 How to Obtain Product and Maintenance Information
To obtain product and maintenance information, visit
http://support.huaweidevice.com/service/.
You are recommended to install the ComPartner platform to download maintenance required
software tools and the phone version software. To obtain the ComPartner installation package,
log in to http://support.huaweidevice.com/service/, and search for ComPartner. You will find
the installation package.

EDGE U0-6 Simplified Maintenance Manual
2 Product Overview
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
2 Product Overview
2.1 Appearance
Figure 2-1 shows the appearance of the HUAWEI EDGE U0-6 mobile phone (U0-6).
Figure 2-1 U0-6

EDGE U0-6 Simplified Maintenance Manual
2 Product Overview
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

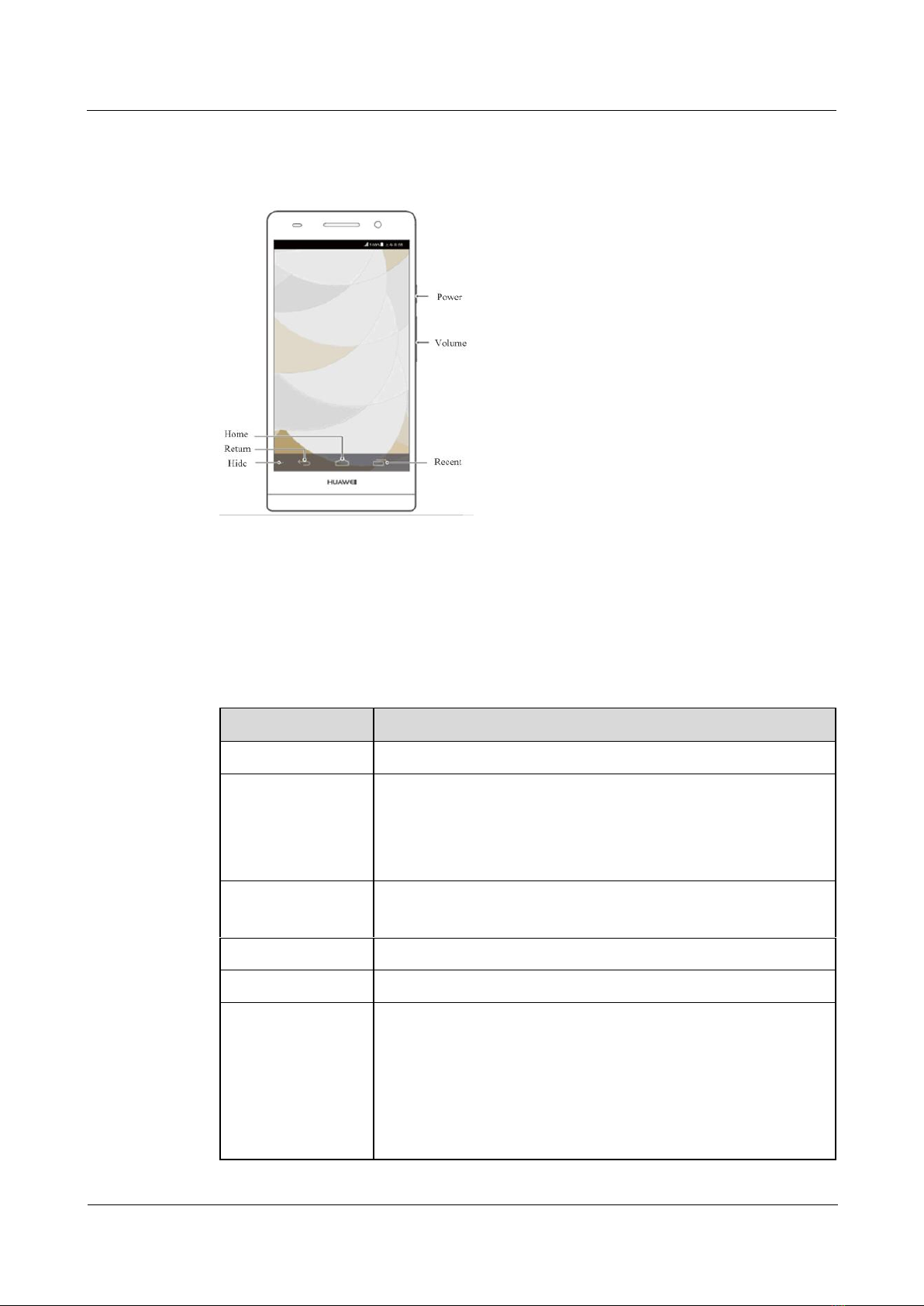

Figure 2-2 shows the U0-6 keys.
Figure 2-2 U0-6 keys
2.2 Specifications
Table 2-1 lists the U0-6 specifications.
Table 2-1 U0-6 specifications
Item
Description
Type
Bar type
Display
Size: 4.7 inches
Type: In-Cell
Color: 16 M
Resolution: 1280 x 720 pixels
Dimensions
Claimed dimensions:
132.6 mm x 65.5 mm x 6.18 mm (5.22 in. x 2.58 in. x 0.24 in.)
Weight
120 g (including the battery)
Technical standards
GSM/WCDMA/HSPA+/HSDPA/HSUPA: 3GPP TS 34.114
Frequency bands
WCDMA Band I [2100 MHz]: 1920–1980 MHz (UL),
2110–2170 MHz (DL)
WCDMA Band II [1900 MHz]: 1850–1910 MHz (UL),
1930-1990 MHz (DL)
WCDMA Band IV [1700 MHz]: 1710–1755 MHz (UL),
2110-2155 MHz (DL)
WCDMA Band V [850 MHz]: 824–849 MHz (UL), 869–894

EDGE U0-6 Simplified Maintenance Manual
2 Product Overview
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
Item
Description
MHz (DL)
WCDMA Band VIII [900 MHz]: 880–915 MHz (UL), 925-960
MHz (DL)
GSM 850 MHz: 824–849 MHz (UL), 869–894 MHz (DL)
GSM 900 MHz: 880–915 MHz (UL), 925–960 MHz (DL)
GSM 1800 MHz: 1710–1785 MHz (UL), 1805–1880 MHz (DL)
GSM 1900 MHz: 1850–1910 MHz (UL), 1930–1990 MHz (DL)
Data service
3G-WCDMA: Radio Bearer; UL/DL: 384Kbit/s
HSPA: DL category 10, 21 Mbit/s; UL category 6, 5.76 Mbit/s
GPRS: Multi-slot classes; Class 10
EDGE: Multi-slot classes; Class 10
SIM card interface
Standard 6-pin micro SIM card interface; hot-swapping not
supported
Expansion interfaces
Standard micro-USB port, microSD card slot, and 3.5 mm headset
jack
Expansion storage
microSD card of up to 32 GB
Processor
Quad-core 1.5 GHz CPU K3V2+Intel XMM6260
Phone storage
ROM: 8 GB
RAM: 2 GB
Device control
Power key, volume keys, and charging indicator
GPS
GPS/Glonass/AGPS/PGPS
Temperature
Operating temperature: –10°C to +35°C
Storage temperature: –30°C to +70°C
Battery
2000 mAh Li-polymer
2G networks:
Standby times: TBD
Talk time: TBD
3G networks:
Standby times: TBD
Talk time: TBD
Charging duration: 4 h
Operating humidity
5%–95% RH
Camera
Rear camera: 8 MP
Front camera: 5 MP
FM radio
Built-in FM radio
Bluetooth
Bluetooth 3.0

EDGE U0-6 Simplified Maintenance Manual
2 Product Overview
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Item
Description
Antenna
Built-in antenna
Wi-Fi
802.11 b/g/n, Wi-Fi hot-spot supported
USB
USB 2.0, 480 Mbit/s
Maximum
transmission power
WCDMA Band I [2100 MHz]/Band V [850 MHz]/Band VIII
[900 MHz]: +23 dBm (Power Class 3)
Band II [1900 MHz]/Band IV [1700 MHz]: +22.5 dBm (Power
Class 3)
GSM 850 MHz/900 MHz: +32.5 dBm (Power Class 4)
GSM 1800 MHz: +29.5 dBm (Power Class 1)
GSM 1900 MHz: +29 dBm (Power Class 1)
Static sensitivity
WCDMA Band I [2100 MHz]/Band II [1900 MHz]/Band IV
[1700 MHz]/Band V [850 MHz]/Band VIII [900 MHz]: > –110
dBm/3.84 MHz
GSM 850 MHz: > –109 dBm
GSM 900 MHz: > –109 dBm
DCS 1800 MHz: > –109 dBm
PCS 1900 MHz: > –108 dBm

EDGE U0-6 Simplified Maintenance Manual
3 Exploded View
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
3 Exploded View
Figure 3-1 shows the exploded view of the U0-6.
Figure 3-1 U0-6 exploded view
1. TP lens protective film
31. LCM
3. Front cover
assembly
2. Receiver
decoration 4. Secondary microphone
5. Receiver
30. Primary
microphone
29. PCBA 28. Main
antenna
6. Proximity
sensor rubber
7. Secondary
microphone rubber
27. Speaker
26. Primary
microphone rubber
12. USB porot
plastic support
13. USB port metal support
8. Receiver
stiffening board
14. microSD card holder
15. SIM card holder
17. Motor support
19. BTB connector support
25. Main
antenna support
24. Front cover
decoration
23. Headset jack
cover (with the
eject tool)
22. Headset jack
21. Battery cover
20. Battery cover
protective film
18. Motor
16. USB port FPC
9. GPS antenna
support
10. Rear camera lens 11. Battery

EDGE U0-6 Simplified Maintenance Manual
4 Spare Parts
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
4 Spare Parts
4.1 Commonly Used Parts
Figure 4-1 is for your reference only. It is subject to changes without notice. Obtain the latest
component information from the Huawei TCS. If you have any questions, contact the local
technical support.
Table 4-1 Commonly used parts
Part
name
CMOS FSI sensor-5
MP
Part name
CMOS BI sensor-8
MP
Part name
Battery
Part name
Speaker FPC
Part name
Headset jack FPC
Part name
Receiver FPC

EDGE U0-6 Simplified Maintenance Manual
4 Spare Parts
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
Part name
Proximity sensor
rubber
Part name
Receiver
Part name
RF coaxial cable-50.5
mm
Part name
Motor support
Part
name
USB port plastic
support
Part
name
USB port metal
support
Part name
microSD card holder-white
Part name
SIM card holder-white

EDGE U0-6 Simplified Maintenance Manual
4 Spare Parts
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Part name
Terminal antenna
Part name
Rear camera lens
Part
name
TP front+LCD+Receiver+Speaker+Antenna
housing assembly (used for repair)
Part name
Battery cover assembly

EDGE U0-6 Simplified Maintenance Manual
4 Spare Parts
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
Part name
51660EKM GPS antenna support
Part name
51660EKK main antenna support
4.2 How to Obtain Part Numbers
Part numbers (PNs) may change with time. To ensure the correctness of a PN, query the latest
BOM information from https://tcs.huawei.com before you apply for a part.
To check a PN, use the authorized ASC account to visit the BOM system.
To query the BOM information and part pictures in the BOM system:
Step 1 Log in to the BOM system.
Figure 4-1 Login dialog box
Step 2 Choose Basic Information > BOM Tree Info. Define the values for Product Line, Product
Type, Product Model, and Product Description.
The PNs are displayed in detail in the tree shape, as shown in Figure 4-2.

EDGE U0-6 Simplified Maintenance Manual
4 Spare Parts
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
Figure 4-2 PN tree
Step 3 Click the PN of the part to query. The system displays the picture of the part. Use the picture
to confirm whether the part is what you want.
Figure 4-3 Part picture
----End

EDGE U0-6 Simplified Maintenance Manual
4 Spare Parts
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
To query the maintenance level for a part:
Step 4 Choose Basic Information > Material Info, enter the PN or description to query the
maintenance level, maintenance price, and product on which the part is used.
Figure 4-4 Entering the part code
Step 5 Click the PN.
The system displays the part picture.
Figure 4-5 Part picture
----End

EDGE U0-6 Simplified Maintenance Manual
5 Software Upgrade
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
5 Software Upgrade
5.1 Upgrade Preparation
Table 5-1 lists the items to be prepared for a software upgrade.
Table 5-1 Items to be prepared
Item
Description
Remarks
Upgrade
environment
Computer
Operating system (OS): Windows 7/Windows XP
microSD card
Available storage larger than 2 GB
Battery
With at least 35% power remaining
USB cable
Standard USB cable (PN: 02450768)
USB driver
01_K3 product line USB driver
Upgrade tool
WH62406270ML01_Ver1008_05010BXJ (supports
multiple upgrades simultaneously)
Upgrade file
UPDATE.APP
Use the latest version for the upgrade.
Upgrade
method
Using the
microSD card
Normal upgrade
Forcible upgrade
Using the USB
cable
Normal upgrade
Forcible upgrade
Online upgrade
When a Wi-Fi network is available, the phone
downloads the upgrade package and automatically
carries out the upgrade.
Before the upgrade, ensure that:
You have backed up important data on the phone because software upgrades will erase
all user data.
The power remaining of the battery is more than 50%. It is recommended that you
connect the phone to its power adapter for power supply and do not remove its battery
during the upgrade.

EDGE U0-6 Simplified Maintenance Manual
5 Software Upgrade
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
You have checked the phone software version because the software upgrade aims to
upgrade lower versions to higher versions only. For details about how to distinguish
between versions, see section 5.3 "How to Distinguish Between Software Versions."
If a normal upgrade fails, use the forcible upgrade method to upgrade the phone again.
Prioritize the normal upgrade on phones that can be normally powered on. Forcible upgrades
may be risky because information loss might happen and thus is not recommended.
About backing up important user data:
To back up contact information, text messages, and third-party applications, insert a
microSD card, and use the backup software on the phone (All Backup, for example) to
back up all the information to the microSD card.
To back up photos, videos, music, and personal files, manually back them up to the
microSD card.
5.2 Checking the Software Version
To check a phone's software version, touch Settings > About phone > Build number.
Figure 5-1 Checking the software version
5.3 How to Distinguish Between Software Versions
5.3.1 Software Types
There are two types of software: factory-level software and version software.

EDGE U0-6 Simplified Maintenance Manual
5 Software Upgrade
Issue 1.0 (2013-01-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
Factory-level software: The software PN is 05021XXX. This type of software is used in
normal production and on the phone whose flash memory is replaced or erased. You can
perform the CT or other functional tests on a phone after you load this software on the
phone. This software should not be delivered to customers. Please use the newest edition
software to repair. You can download the software from ComPartner or the Huawei
service website.
Version software: The software PN is 05010XXX. This software is used to upgrade the
firmware of the phone. The software updates from time to time. You can download the
latest version from ComPartner or the Huawei service website.
5.3.2 Software Naming Convention
HUAWEI_EDGE-U00_Factory Software_05021CFV
This software applies to the EDGE-U00. The software PN is 05020CFV. The software
package includes the following folders:
−Bootloaderimage: contains the file that is used in factory software download USB
COM ports match.
−HDEDGEU00M004: the file is used in factory software download and earse
operation.004 stands for the edition NO please download the newest edition from
ComPartner
−Other files: contains the config file for factory software
Figure 5-2 Factory-level software package
Figure 5-3 Bootloaderimage
HUAWEI_U8860_Android_4.0_V100R001C00B972SP02_中国渠道_05010WLF
This version software is a universal version for markets inside China. The code
V100R001C00 indicates that the software is a universal version, and its version number
is B972SP02. The software PN is 05010WLF. It applies to the U8860, which runs
Android 4.0.
HUAWEI U8860_Android_2.3_V100R001C17B866b_中国联通_05010UGJ
This version software is a customized version for China Unicom. The code
V100R001C17 indicates that the software is a customized version, and its version
number is B66b. The software PN is 05010UGJ. It applies to the U8860, which runs
Android 2.3.
