Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
REQUIRED TOOLS AND MATERIALS:
• Two People
• Tape Measure
• Wood Board (Scrap)
• Wrenches: (One) 3/8”, 5/16”, (Two) 7/16”, 1/2”, 9/16”,
3/4”, or Large and Small Adjustable Wrenches
• Sawhorse or Support Table
• Step Ladder 8 ft. (2.4 m)
• Garden Hose or Sand (225 lb.) (102 kg)
• Hammer
• Tape
• Phillips Screwdriver
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO PROPERTY.
WARNING!

2
P/N 211948C 01/04
BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit
between the elevator components and hardware is required. Test-fit large
bolts into large holes of elevator tubes, backboard brackets, and triangle
plates. Carefully rock them in a circular motion to ream out any excess paint
from holes if necessary.

01/04 P/N 211948C
3
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT
IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow
these rules for safe operation of the system.
• DO NOT HANG on the rim or any part of the system
including backboard, support braces or net.
• During play, especially when performing dunk type
activities, keep player's face away from the backboard, rim
and net. Serious injury could occur if teeth/face come in
contact with backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• After assembly is complete, fill system completely with
water or sand and stake to the ground. Never leave system
in an upright position without filling base with weight, as
system may tip over causing injuries.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Surface beneath the base must be smooth and free of
gravel or other sharp objects. Punctures cause leakage and
could cause system to tip over.
• Keep organic material away from pole base. Grass, litter,
etc. could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through the steel anywhere, replace pole
immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear and signs corrosion and repair
before use.
• Check system before each use for instability.
• Do not use system during windy and/or severe weather
conditions; system may tip over. Place system in the
storage position and/or in an area protected from the wind
and free from personal property and/or overhead wires.
• Never play on damaged equipment.
• See instruction manual for proper installation and
maintenance.
• When moving system, use caution to keep mechanism from
shifting.
• Keep pole top covered with cap at all times.
• Do not allow water in tank to freeze. During sub-freezing
weather add non-toxic antifreeze, sand or empty tank
completely and store. (Do not use salt.)
•While moving system, Do not allow anyone to stand or sit
on base or have added ballasting on base.
• Do not leave system unsupervised or play on system when
wheels are engaged for moving.
• Use Caution when moving system across uneven surfaces.
System may tip over.
• Use extreme caution if placing system on sloped surface.
System may tip over more easily.
201246 2/99
In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

4
P/N 211948C 01/04

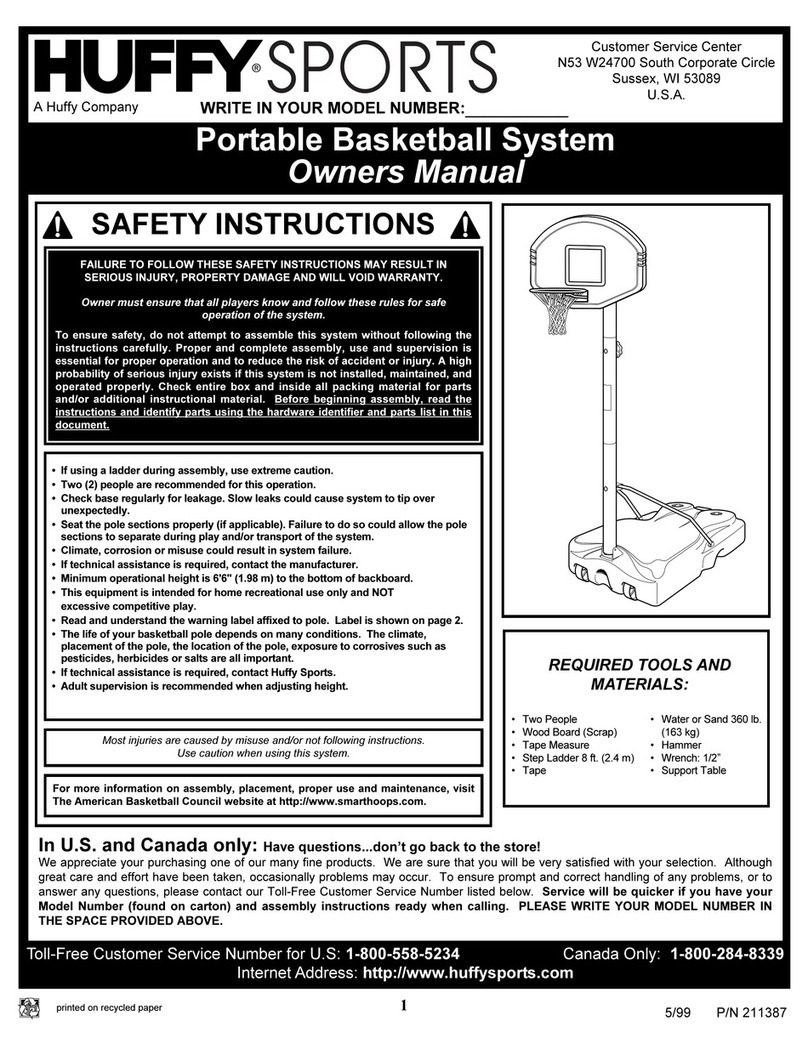

SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check
entire box and inside all packing material for parts and/or additional instruction material. Before beginning
assembly, read the instructions and identify parts using the hardware identifier and parts list in this
document. Proper and complete assembly, use, and supervision are essential for proper operation and to
reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed,
maintained, and operated properly.
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
• If using a ladder during assembly, use extreme caution.
• Two (2) people are recommended for this operation.
• Check base regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to
separate during play and/or transport of the system.
• Climate, corrosion, or misuse could result in system failure.
• Minimum operational height is 7'6" (2.3 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NOT excessive competitive play.
• Read and understand the warning label affixed to pole. Label is shown on page 3.
• The life of your basketball pole depends on many conditions. The climate, placement of the pole, the
location of the pole, exposure to corrosives such as pesticides, herbicides or salts are all important
factors.
• If technical assistance is required contact Huffy Sports.
• Adult supervision is recommended when adjusting height.
2
2
1
3
201253 2/99
TO ADJUST BACKBOARD:
1. While holding handle, remove pin.
2. Move elevator up or down to
desired height.
3. Replace pin full length to lock
system at desired height.
MOVING SYSTEM
1
32
4
1. Adjust basketball backboard
height to lowest position.
2. Rotate handles forward until
wheels engage ground.
3. Move basketball system to
desired location.
4. Rotate handle back to original
position.
5. Reattach ground restraint and
check system for stability.
HEIGHT ADJUSTMENT
47

01/04 P/N 211948C
5
For more information on assembly, placement, proper
use, and maintenance, visit The American Basketball
Council website at http://www.smarthoops.com.
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to the instructions. Failure to follow instructions
could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
WARRANTY CARD:
Please remember to complete your product
registration form either on-line at:
www.huffysports.com or mail-in the
enclosed postcard.

6
P/N 211948C 01/04

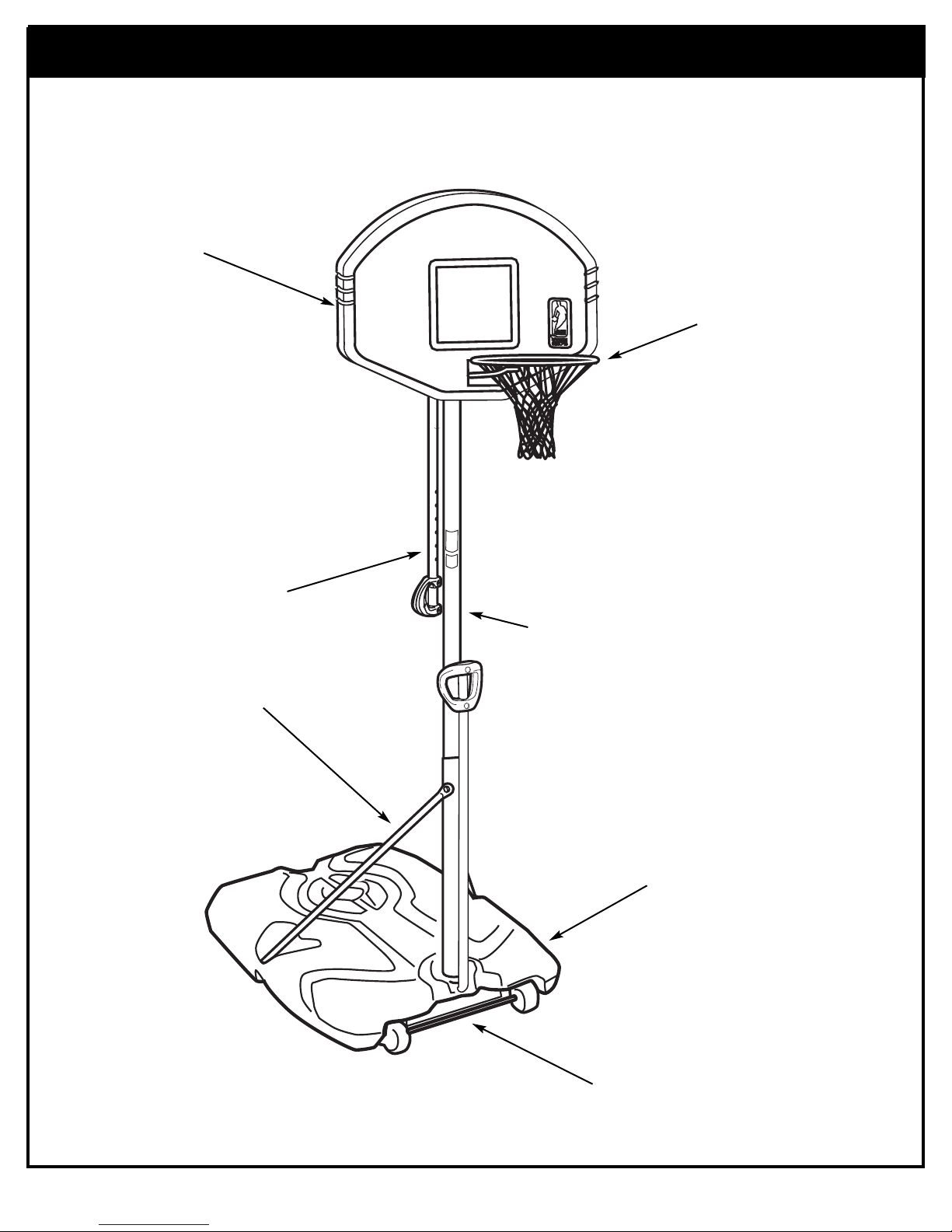

Get to know the basic parts of your basketball system.....
STRUT
BACKBOARD
FRONT
RIM
BASE
POLE
ELEVATOR
SYSTEM
WHEEL
CARRIAGE
ASSEMBLY

01/04 P/N 211948C
7
PARTS LIST - (See Hardware Identifier)
Item Qty. Part No. Description
1 1 904847 Top Pole Section
2 1 908482 Middle Pole Section
3 1 900284 Bottom Pole Section
4 1 206615 Base
5 4 226401 Wheel
6 2 201651 Spacer, Plastic, Wheel Axle
7 1 202820 Rod, 3/8 x 4-3/4 Long
8 1 206934 Eyebolt
9 1 206949 Pivot Bracket, Upper
10 3 203063 Lock Nut, 3/8-16 Nylon Insert
11 2 906410 Base Strut
12 1 201625 Bolt,Yellow Dichromate, 5/16-18 X 3.60" Long
13 11 203218 Washer, Flat, 3/8 I.D.
14 13 203100 Nut, Hex Flange 5/16-18
15 1 203220 Lock nut, 5/16-18 , Nylon Insert
16 2 203798 Bolt, Hex Flange, 5/16-18 x 1-1/2 Long
17 1 206948 Pivot Bracket, Lower
18 2 206252 Bolt, Hex Head, 3/8-16 x 1 Long
19 1 203330 Bolt, Hex Head, 3/8-16 x 4-1/2 Long
20 1 906606 Handle Bar
21 1 900223 Wheel Bracket
22 4 203103 Carriage Bolt, 5/16-18 x 2 Long
23 1 206604 Handle, Back Plastic
24 1 206940 Axle
25 2 206938 Push Cap
26 1 206605 Handle, Front Plastic
27 4 204804 Screw, Phillips Head, 3/4” Long
28 1 206956 Disc, 5” O.D. x 13/32 I.D., plastic
29 2 900846 Board Bracket
30 2 201129 Spacer, .500 O.D. x 1.8 Long
31 1 240017 Bolt, Hex Head, 1/4-20 x 2-1/4 Long
32 1 203493 Nut, 1/4-20, Center Lock
33 3* 206360 Bolt, Hex Head, 3/8-16 x 2-5/8 Long
34 4* 201124 Lock Nut, Hex Head, 3/8-16
Item Qty. Part No. Description
35 2 904820 Elevator Tube, Lower -Long
36 6 206304 Bolt, Hex Head, 1/2-13 x 6-5/16 Long
37 8 206311 Spacer, Plastic, .530 I.D. x .50 Long
38 6 206340 Lock Nut, Hex Head, 1/2-13
39 3 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long
40 2 904808 Elevator Tube, Upper -Short
41 1 202814 Cap, Pole Top
42 1 204837 Spring, Counterweight, Black
43 12 201219 Smart Clip, Net Holder
44 2 203617 Cap, Base Tank (plastic)
45 1 201568 Anchor, T-Strap
46 1 203124 Stake, Tie Down
47 1 201253 Label, Height Adjustment and Moving
48 1 204855 Handle, Left
49 1 204856 Handle, Right
50 1 204803 Screw, Phillips Head
51 1 904833 Height Adjustment Rod
52 1 204872 Label, Height Indicator
53 1 204832 Bracket, Pole Mount
54 2 203231 Carriage Bolt, 5/16-18 x 3-1/2 Long
55 2 204857 Spacer, metal 1/2” O.D.x1.44 Long
56 2 204858 Spacer, Biscuit, plastic
57 4 203232 Washer, metal, 3/4” O.D.
58 2 204859 Cover, Pin Slide
59 1 204853 Lanyard, Black Coil
60 1 204850 Pin, Locking
61 1 Rim
62 1 204290 Net
63 1 206990 Reinforcement Bracket
64 1 200628 Wheel Axle, 11 3/4 Long
65 1 200627 Wheel Carriage
66 2 203217 Carriage Bolt, 5/16-18 x 1 1/2 Long
Items not used with this model
67 2 200874 Spacer, Steel .402 I.D.x.50 O.D.x1.5 Long
68 2 201642 Spacer .530 I.D. x.63 O.D. x .63 Long
* You may have extra parts with this model.

8
P/N 211948C 01/04
Item #10 (3)
Item #14 (11)*
Item #15 (1)
Item #16 (2)
Item #8 (1)
Item #19 (1)
Item #22 (4)
HARDWARE IDENTIFIER (CONTINUED)
* You may have extra parts with this model.
HARDWARE IDENTIFIER (BOLTS & SCREWS)
HARDWARE IDENTIFIER (NUTS)
Item #18 (2)
Item #31 (1) Item #39 (3)
Item #50 (1)
Item #33 (3)
Item #27 (4)
Item #12 (1)
Item #36 (6)
Item #32 (1)
Item #38 (6)
Item #34 (4)
Item #54 (2)

01/04 P/N 211948C
9
* You may have extra parts with this model.
HARDWARE IDENTIFIER (METAL RODS, SPACERS & WASHERS)
HARDWARE IDENTIFIER (PLASTIC SPACERS & CLIPS)
Item #30 (2)
Item #37 (8)
Item #55 (2)
Item #57 (4)
Item #43 (12)
Item #13 (11)
Item #7 (1)
Item #6 (2)
ITEMS NOT USED WITH THIS MODEL
Item #68 (2)
Item #67 (2)

10
P/N 211948C 01/04
TOOLS REQUIRED FOR THIS SECTION HARDWARE USED IN THIS SECTION
(not actual size)

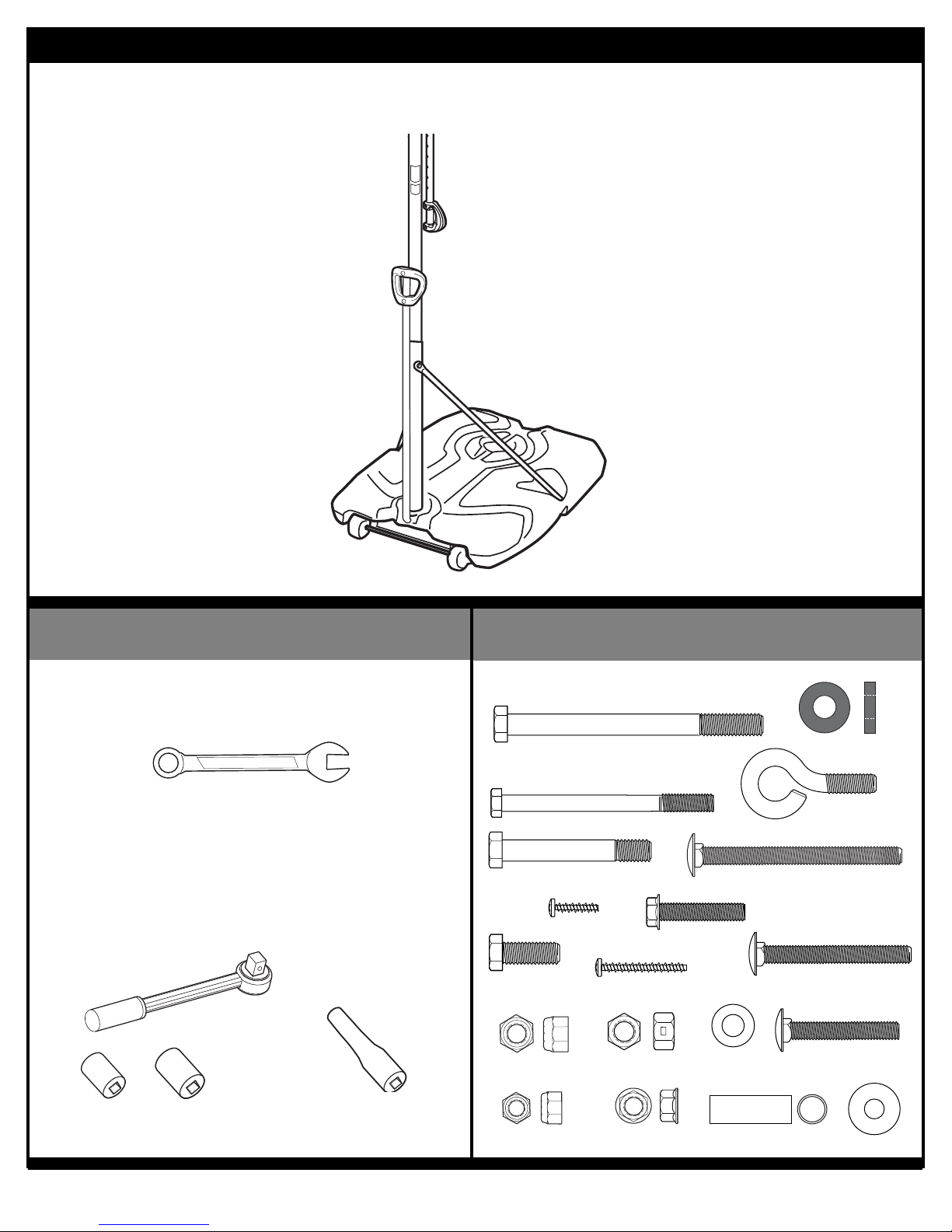

SECTION A: ASSEMBLE THE BASE
This is what your system will look like
when you’ve finished this section:
Item #10
Item #14
Item #15
Item #16
Item #19
Item #22
Item #18 Item #39
Item #50
Item #33
Item #27
Item #12
Item #34
Item #54
Item #55
Item #57
Item #13
Item #6
AND/OR
9/16”
1/2”
Socket Extension
(2) Socket Wrenches and Sockets
(2) 1/2” AND (2) 9/16"
Wrenches

01/04 P/N 211948C
11

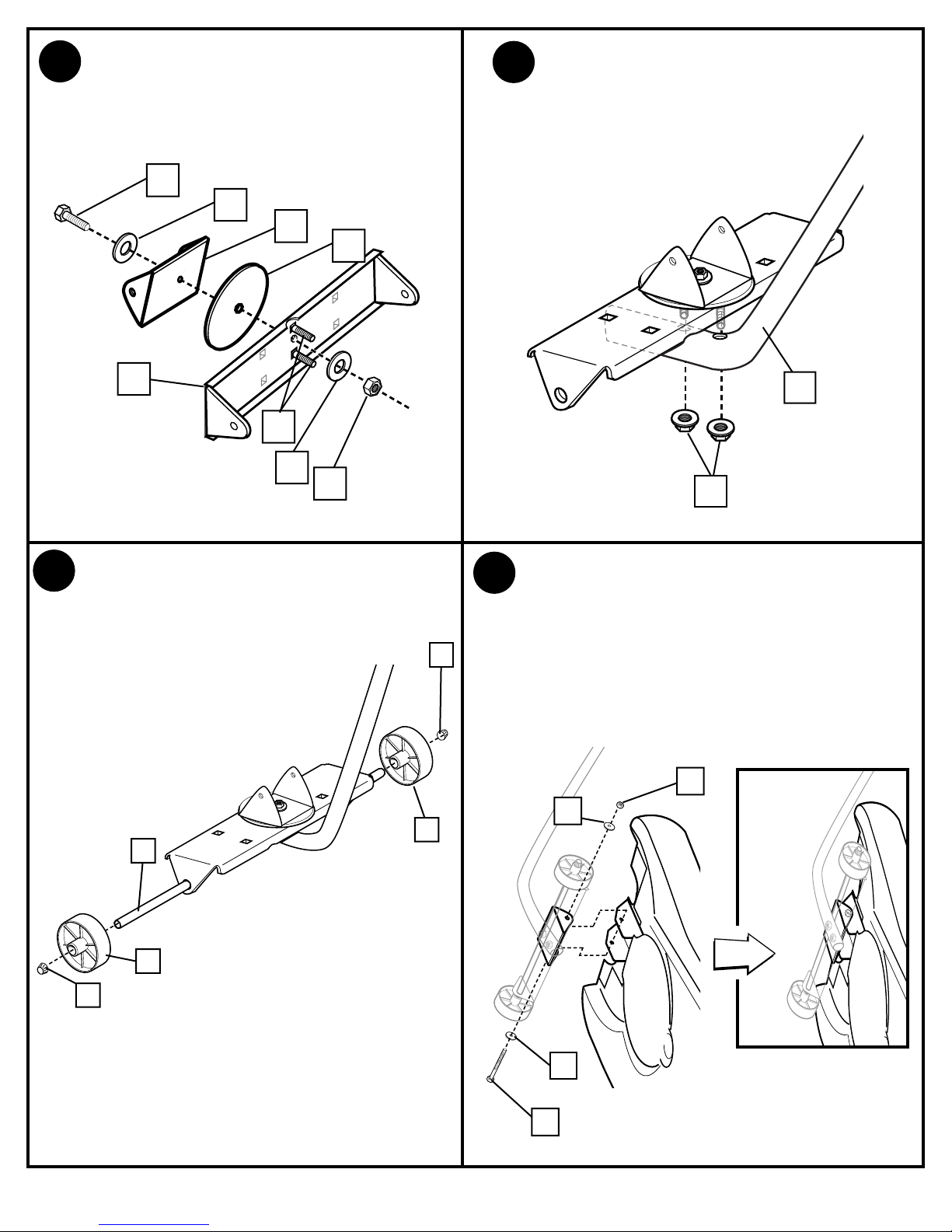

1. Install wheel axle (64) through wheel carriage (65) and install wheels (5) onto wheel axle (64) with spacers (6)
as shown. Secure wheel bracket as shown, a deep socket is recommended.
2.
18
13
34
5"
(13 cm)
MIDDLE
TOP
5"
(13 cm)
BOTTOM
1
2
3
IMPORTANT!:
DO NOT OVER
TIGHTEN
64
6
6
5
565
Mark pole sections with tape as shown.

12
P/N 211948C 01/04
4. IMPORTANT! Center alignment
slot of lower pole section (3) in
a lower hole of middle pole
section (2) as in step 3. While
maintaining alignment, bounce
assembly and lower pole section
(3) together as shown until they
no longer moved toward taped
reference mark.
2
1
1
2
3
WOOD SCRAP
(NOT SUPPLIED)
IMPORTANT! Center alignment
slot of middle pole section (2)
in a lower hole of top pole
section (1) as shown. While
maintaining alignment, bounce
pole top (1) and middle section
(2) together as shown until they
no longer move toward taped
reference mark. Upright
assembly.
3.
WOOD SCRAP
(NOT SUPPLIED)
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM)
MINIMUM OVERLAP.
NOTE:
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM)
MINIMUM OVERLAP.
NOTE:

01/04 P/N 211948C
13
Install rod (7) through holes in bottom pole section (3) and eyebolt (8).
Insert pole assembly into tank assembly as shown.
Secure pole assembly with upper pivot bracket (9)
and lock nut (10).
5.
8
7
1
3
2
6.
9
10
4
3
TWO PEOPLE REQUIRED
FOR THIS PROCEDURE.
FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN
SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
WARNING!

14
P/N 211948C 01/04

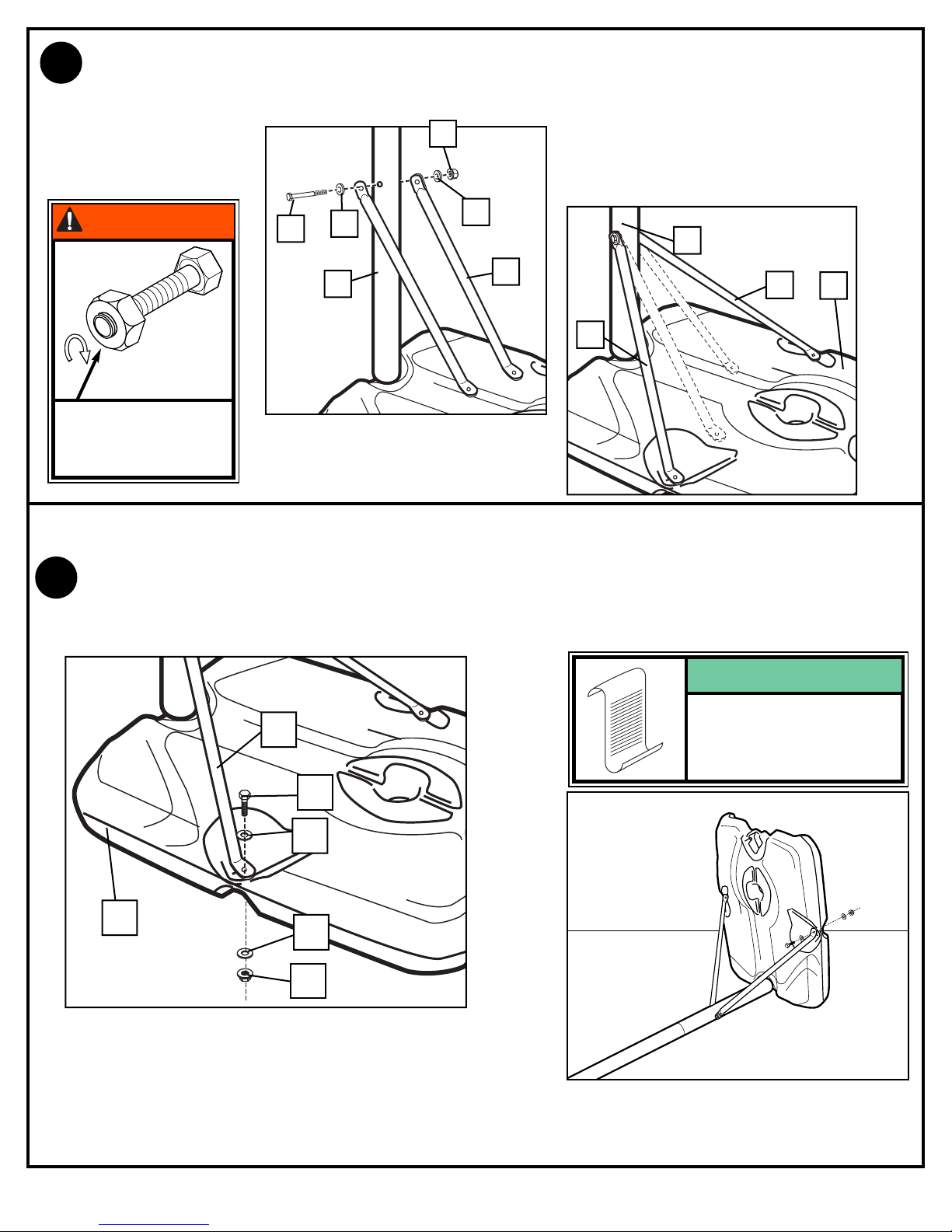

CAREFULLY TIPPING THE
SYSTEM FORWARD WILL
ALLOW EASIER ACCESS
TO UNDERSIDE OF BASE
NOTE:
7.
12 13 13
11
3
3
11 4
11
15
8.
16
11
13
413
14
Secure base struts (11) to base using bolt (16), washers (13), and nut (14).
Secure base struts (11) to pole using bolt (12),
washers (13), and nut (15) as shown.
TIGHTEN BOLT (9) IN
LOCK NUT (12) UNTIL
FLUSH (EVEN) WITH LOCK
NUT’S OUTER EDGE.
WARNING!
Rotate the non-secured ends of base struts
(11) as shown.

01/04 P/N 211948C
15
9.
18
13 17 28
21
13 10
22
10.
20
14
11.
25
5
24
5
25
Insert carriage bolts (22) into middle set of
holes on wheel bracket (21) as shown. Attach
lower pivot bracket (17) to wheel bracket using
bolt (18), washers (13), disc (28), and nut (10)
as shown. Tighten completely.
Attach handle bar (20) to wheel bracket
assembly using nuts (14) as shown.
12.
10
13
19
13
Install wheels (5) onto axle (24) and wheel bracket
assembly with
push caps (25) as shown.
Attach wheel bracket assembly to base assembly
using bolt (19), washers (13), and nut (10) as shown.

16
P/N 211948C 01/04

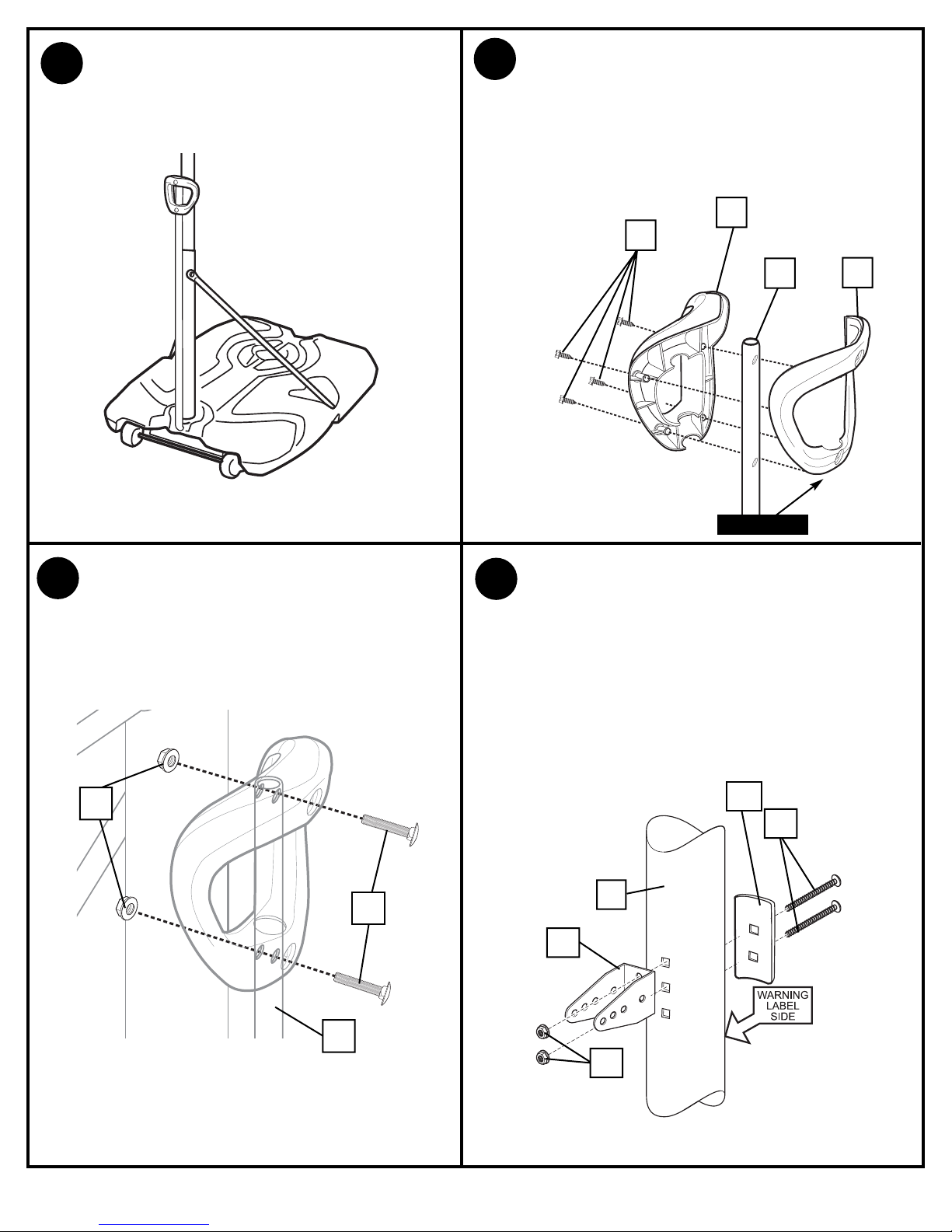

13. Carefully reposition entire assembly as shown.
Attach front of plastic handle (26) to back of plastic
handle (23) around handle bar (20) using self-
tapping screws (27) as shown.
IMPORTANT! Front of plastic handle (26) should
face outward, away from pole assembly.
Insert bolts (66) through plastic handle assembly,
handle bar (20), and attach nuts (14) as shown.
Tighten completely.
Install pole mount bracket (53) and reinforcement
bracket (63) with carriage bolts (54) as shown.
Tighten flange nuts (14) completely.
14.
FRONT SIDE
27
23
20 26
14
1
53
16.
54
63
20
14
66
15.

01/04 P/N 211948C
17
17.
34
57
56
55
53
57
Attach spacers (55, 56) to pole mount bracket (53) with bolts
(33), washers (57), and nuts (34) as shown.
IMPORTANT! Tighten until washers (57) no longer move.
18.
33
53
14
60
58
59
Attach covers (58) onto pole mount
bracket (53) with carriage bolt (39) and
nut (14) as shown. NOTE: Assemble
lanyard (27) to locking pin (28) as
shown.
39
Loop end of pin
lanyard (59) over
carriage bolt (39)
as it passes
through the pole
mount bracket
(53) during this
assembly.
IMPORTANT!:
19
26
60

18
P/N 211948C 01/04
19.
52
14
49
48
50
51
60
20.
22
Apply logo and height indicator labels (52) to
adjustment rod (51) as shown. Attach handle parts
(48, 49) to adjustment rod (51) with screw (50),
carriage bolts (22), and flange nuts (14) as shown.
IMPORTANT! Indicator labels should be applied
as close to holes as possible to prevent labels
from being damaged during height adjustment.
NOTE: Holes in adjustment rod allow for either rear
access or side access.
Insert handle assembly through pole mount assembly as
shown. Lock pole assembly in place at the 10’ (3.05m) mark
with pin (60).

01/04 P/N 211948C
19
TOOLS REQUIRED FOR THIS SECTION HARDWARE USED IN THIS SECTION
(not actual size)
SECTION B: ATTACH THE BACKBOARD
This is what your system will look like
when you’ve finished this section:
AND/OR
9/16”
1/2”
Socket Extension
(2) Socket Wrenches and Sockets
(2) 1/2”, (2) 9/16" AND 3/4"
Wrenches
Item #14
Item #31
Item #33
Item #36
Item #32
Item #38
Item #34
Item #30
Item #37 Item #43
3/4"

20
P/N 211948C 01/04
21.
ELEVATOR INSTALLATION
22.
31
30
34
33
29 32
35
38
37
36
35
29
42
37

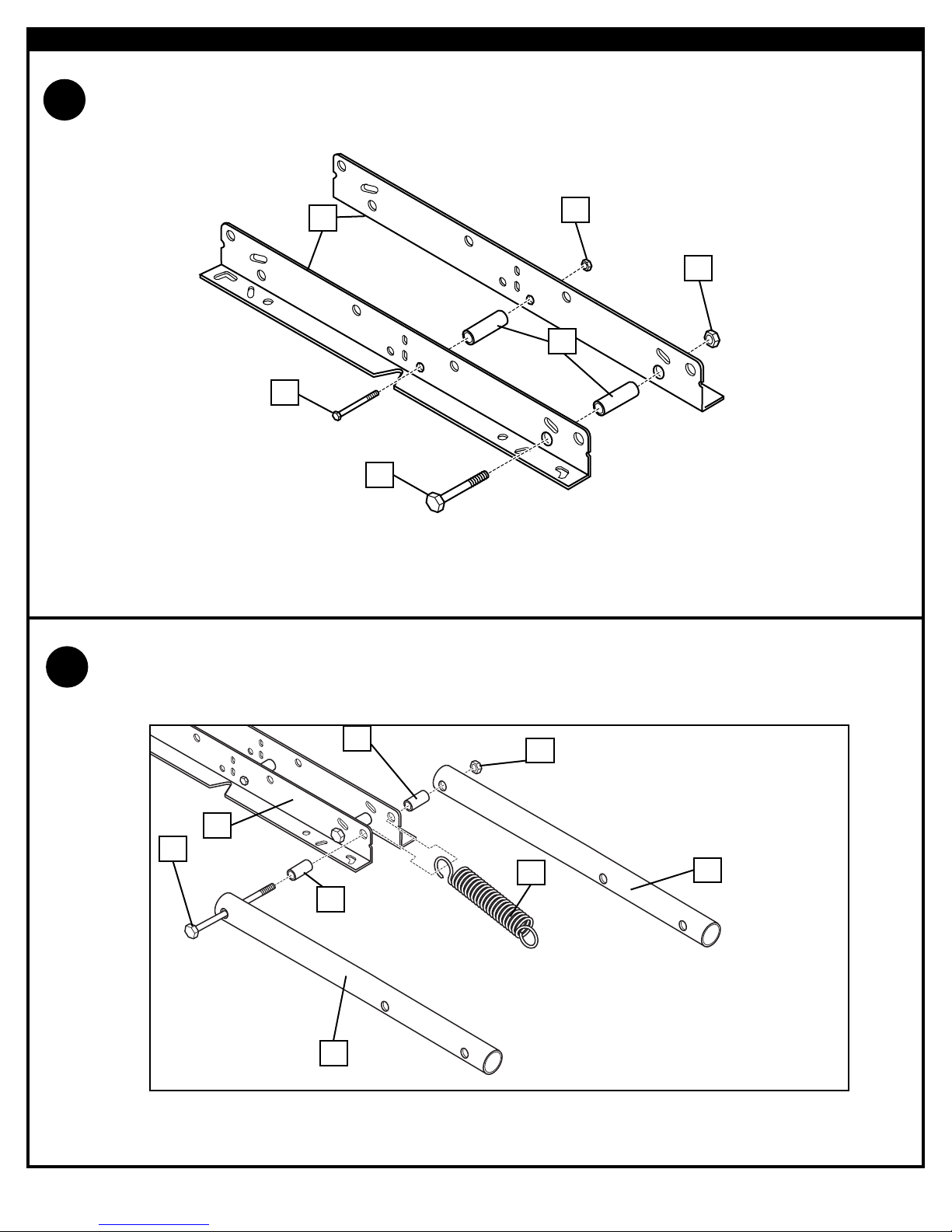

Install spacers (30) onto backboard brackets (29) with bolts (31, 33) and lock nuts (32, 34) as shown.
Assemble lower elevator tubes (35) as shown. Tighten completely.
IMPORTANT! It is necessary for all parts to be installed for this mechanism to work safely and
properly.
