Huffy 600 User manual

102/05 P/N 21163610
© COPYRIGHT 2005 by HUFFY SPORTS
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-333 061
Internet Address: http://www.huffysports.com
Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
REQUIRED TOOLS AND MATERIALS:
• 2 People
• Tape Measure
• Wood Board (scrap)
• Sawhorse or Support Table
• Hammer
• Step Ladder 8 ft. (2.4m)
• Safety Glasses
• (2 each) Wrenches
(2) Socket Wrenches and Sockets
• Extension
• Tape
• Phillips-Head Screwdriver
7/16" 1/2" 9/16" 3/4"
AND/OR
• Garden Hose or Sand
• Optional: Large & Small
Adjustable Wrenches
SAND
SAND
(225 lb.)
(225 lb.)
(102 kg)
(102 kg)
7/16" 1/2" 9/16" 3/4"
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
WARNING!
Write Model Number
From Box Here:

2
P/N 21163610 02/05
BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between
the elevator components and hardware is required. Test-fit large bolts into large
holes of elevator tubes, backboard brackets, and triangle plates. Carefully rock
them in a circular motion to ream out any excess paint from holes if necessary.
NOTE: Not all items pictured are included with every model.

02/05 P/N 21163610
3
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT
IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow
these rules for safe operation of the system.
• DO NOT HANG on the rim or any part of the system
including backboard, support braces or net.
• During play, especially when performing dunk type
activities, keep player's face away from the backboard, rim
and net. Serious injury could occur if teeth/face come in
contact with backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• After assembly is complete, fill system completely with
water or sand and stake to the ground. Never leave system
in an upright position without filling base with weight, as
system may tip over causing injuries.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Surface beneath the base must be smooth and free of
gravel or other sharp objects. Punctures cause leakage and
could cause system to tip over.
• Keep organic material away from pole base. Grass, litter,
etc. could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through the steel anywhere, replace pole
immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear and signs corrosion and repair
before use.
• Check system before each use for instability.
• Do not use system during windy and/or severe weather
conditions; system may tip over. Place system in the
storage position and/or in an area protected from the wind
and free from personal property and/or overhead wires.
•Never play on damaged equipment.
• See instruction manual for proper installation and
maintenance.
• When moving system, use caution to keep mechanism from
shifting.
• Keep pole top covered with cap at all times.
• Do not allow water in tank to freeze. During sub-freezing
weather add non-toxic antifreeze, sand or empty tank
completely and store. (Do not use salt.)
•While moving system, Do not allow anyone to stand or sit
on base or have added ballasting on base.
• Do not leave system unsupervised or play on system when
wheels are engaged for moving.
• Use Caution when moving system across uneven surfaces.
System may tip over.
• Use extreme caution if placing system on sloped surface.
System may tip over more easily.
201246 2/99
In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

4
P/N 21163610 02/05
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check
entire box and inside all packing material for parts and/or additional instruction material. Before beginning
assembly, read the instructions and identify parts using the hardware identifier and parts list in this
document. Proper and complete assembly, use, and supervision are essential for proper operation and to
reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed,
maintained, and operated properly.
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
• If using a ladder during assembly, use extreme caution.
• Two (2) people are recommended for this operation.
• Check base regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to
separate during play and/or transport of the system.
• Climate, corrosion or misuse could result in system failure.
• Minimum operational height is 6' 6" (1.98 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NOT excessive competitive play.
• Read and understand the warning label affixed to pole. Label is shown to the right.
• The life of your basketball pole depends on many conditions. The climate, placement of the pole, the
location of the pole, exposure to corrosives such as pesticides, herbicides or salts are all important.
• If technical assistance is required, contact Huffy Sports.
• Adult supervision is recommended when adjusting height.
2
2
1
3
TO ADJUST BACKBOARD:
1. While holding handle, remove pin.
2. Move elevator up or down to
desired height.
3. Replace pin full length to lock
system at desired height.
201252 2/99
1
2
4
3
MOVING SYSTEM
1. Adjust basketball backboard
height to lowest position.
2. While holding pole, rotate
basketball system forward
until wheels engage with
ground.
3. Move basketball system to
desired location.
4. Carefully rotate basketball
system upright.
5. Reattach ground restraint and
check system for stability.
HEIGHT ADJUSTMENT
46

02/05 P/N 21163610
5
For more information on assembly, placement, proper
use, and maintenance, visit The American Basketball
Council website at http://www.smarthoops.com.
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to the instructions. Failure to follow instructions
could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
WARRANTY CARD:
Please remember to complete your product
registration form either on-line at:
www.huffysports.com or mail-in the
enclosed postcard.

6
P/N 21163610 02/05

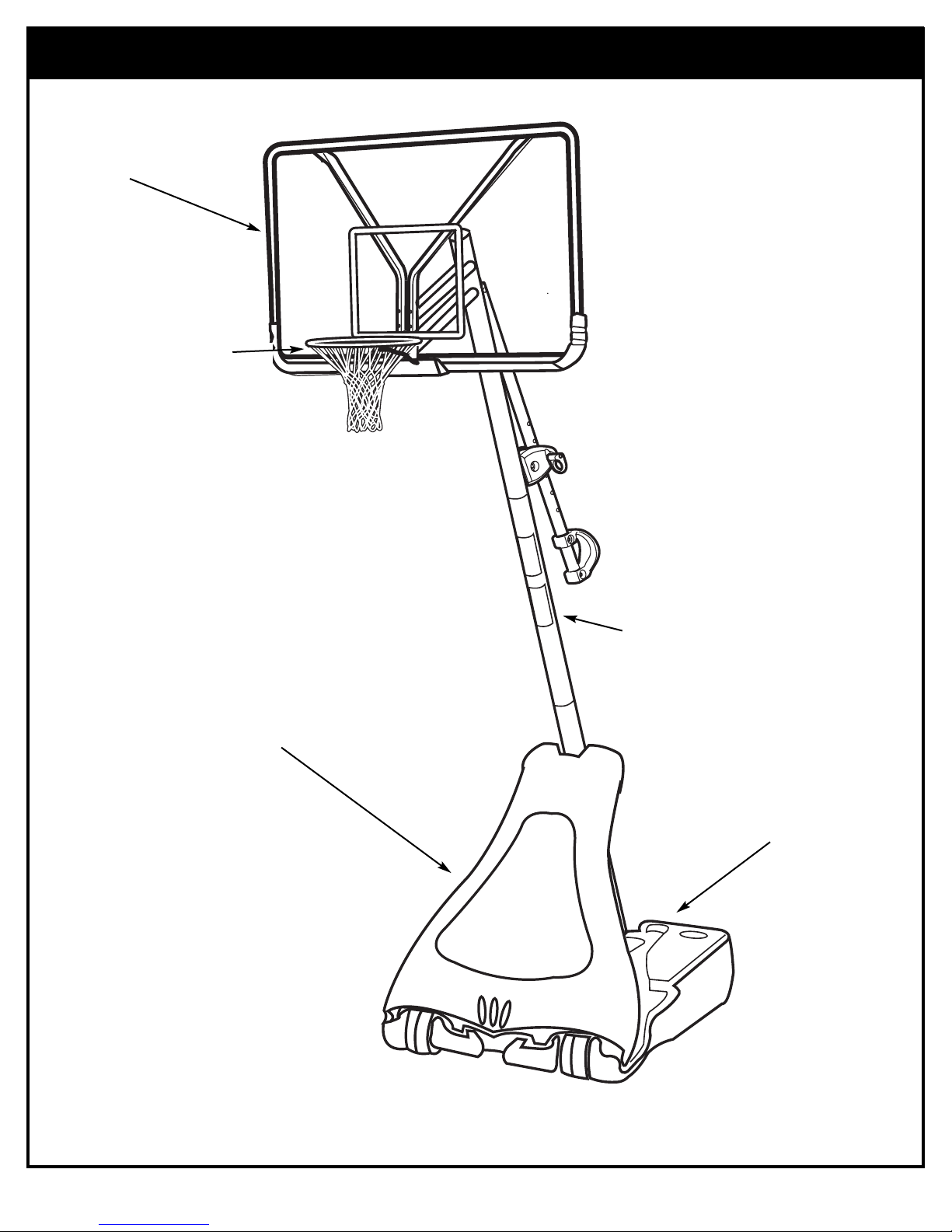

Get to know the basic parts of your basketball system.....
FRONT
PANEL
BACKBOARD
FRONT
RIM
BASE
POLE

02/05 P/N 21163610
7
PARTS LIST - (See Hardware Identifier)
Item Qty. Part No. Description
1 1 200503 Cover, Black OR
1 200504 Cover, Red
2 1 806620 Base Assembly
3 1 804833 Exacta Height Assembly
4 1 908006 Top Pole Section
5 1 908107 Middle Pole Section
6 1 908142 Bottom Pole Section
7 2 206934 Large Eyebolt, 3/8”
8 2 203063 Nylon Insert Lock Nut, 3/8-16
9 1 206634 Rod, 1/2 x 9-1/2 Long
10 1 203099 Nut, Ny-lock, 5/16-18
11 4 201681 Spacer, Plastic .530 I.D. x .88 Long
12 1 202662 Bolt, Hex Head, 5/16-18 x 4-1/2 Long
13 2 200341 Nut Cover
14 11* 203100 Hex Flange Nut 5/16-18
15 1 204832 Bracket, Pole Mount
16 2 203053 Carriage Bolt, 5/16-18 x 4 Long
17 4 203232 Washer, Metal, 3/4” O.D.
18 4 201124 Lock Nut, 3/8-16
19 4 206360 Bolt, Hex Head, 3/8-16 x 2-5/8 Long
20 2 204858 Spacer, Plastic Biscuit
21 2 204857 Spacer, Metal 1/2” O.D. x 1.44 Long
22 2 204859 Cover, Pin Slide
23 1 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long
24 1 204850 Pin, Locking
25 1 204853 Lanyard, Black Coil
26 4 201683 Spacer, .530 I.D. x 1.5 Long
27 2 900964 Bracket, Backboard Support
28 2 200874 Spacer, Steel .402 I.D. x .5 O.D. x 1.5 Long
29 6 206244 Bolt, Hex Head, 1/2-13 x 8 Long
30 4 201642 Spacer, Plastic, .530 I.D. x .625 Long
31 7 206340 Lock Nut, Hex Head, 1/2-13
32 2 904820 Elevator Tube, Lower - Long
33 2 204838 Spring, Counter Balance
34 1 Rim
35 2 904808 Elevator Tube, Upper - Short
36 2 201682 Spacer, .530 I.D. x 1.875
37 2 900867 Plate, Triangle, (Black)
38 1 207103 Cap, Pole Top
39 2 200520 Screw, #8 x 1/2
40 1 202605 Bolt, Hex, 1/2-13 x 4.25 Long
41 1 206219 Plug, Tank Cap
42 12* 201219 Net Clip, (White)
43 1 204290 Net
44 1 204444 Black Nylon Rope
45 1 203124 Stake, Tie Down
46 1 201252 Label, Height Adjustment and Moving
47 6 203309 Washer, .406 I.D. x 1 O.D. Flat
48 4* 205528 Bolt, Hex Flange, 5/16-18 x 1 Long
49 1 206990 Reinforcement Bracket
NOTE: Hardware kit is designed for more than one style of basketball
system. Not all hardware will be used.
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC
BACKBOARD, EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY
HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD
COULD RESULT IN SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED
IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL TOLL-FREE
NUMBER:
U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com

8
P/N 21163610 02/05
HARDWARE IDENTIFIER (BOLTS & SCREWS)
* You may have extra parts with this model.
Item #7 (2)
Item #40 (1)
Item #39 (2)
Item #23 (1)
Item #29 (6)
Item #16 (2)
Item #12 (1)
Item #48 (4)

02/05 P/N 21163610
9
HARDWARE IDENTIFIER (STEEL SPACERS)
HARDWARE IDENTIFIER (NUTS & WASHERS)
HARDWARE IDENTIFIER (PLASTIC SPACERS CAPS & CLIPS)
Item #28 (2)
Item #21 (2)
Item #13 (2)
Item #20 (2)
Item #26 (4)
Item #30 (4)
Item #36 (2)
Item #11(4)
Item #42 (12)*
Item #18 (4)
Item #14 (11)*
Item #10 (1)
Item #8 (2)
Item #31 (7) Item #17 (4)
Item #47 (6)

10
P/N 21163610 02/05
TOOLS REQUIRED FOR THIS SECTION HARDWARE USED IN THIS SECTION
(not actual size)
SECTION A: ASSEMBLE THE BASE
And/Or:
This is what your system will look like
when you’ve finished this section:
Item #39
Item #23
Item #16
Item #12 (1)
Item #19
Item #21
Item #13
Item #20
Item #18
Item #14 Item #10 Item #8
Item #19
Item #47
1/2” 9/16”
Wrenches
(2) 1/2”
(2) 3/4”
(2) Socket Wrenches
and Sockets
Extension
Phillips-
Head
Screwdriver

02/05 P/N 21163610
11
1A. Check the following pre-assembled base areas for tightness: Eye bolts P/N
203452, Washer P/N 203218, Nut P/N 203100, Carriage Bolts P/N 203223 .
Eye bolts
P/N 203452
Washer
P/N 203218 Nut
P/N 203100
Front Cover
P/N 206002
Pole Bracket
P/N 201581
Carriage Bolts
P/N 203223
Hex Flange Nut
P/N 203100
Washer
P/N 203218
Base
P/N 206620

12
P/N 21163610 02/05
Check the following pre-assembled handle areas for tightness: Screw P/N 204803,
Nut P/N 203100, Carriage Bolts P/N 203103 .
Carriage Bolt P/N 203103
Nut P/N 203100
Nut P/N 203100
Handle, Right
P/N 204856
Handle, Left
P/N 204855
Screw P/N 204803
Carriage Bolt P/N 203103
Height Adjustment Rod
P/N 904833
Label,Height
Indicator
P/N 204872
Label,Height
Indicator
P/N 204872
1B.

02/05 P/N 21163610
13
6
5
4
3.
WOOD SCRAP
(NOT SUPPLIED)
5
4
While maintaining alignment, bounce middle pole section (5) into top section (4)
using a wood scrap as shown until the top pole no longer moves toward the pole
identification sticker on the middle pole.
Identification Sticker
TROUGH
Align dimple of top pole section (4)
into trough of middle pole section (5)
as shown.
IMPORTANT!:
HOLE
DIMPLE
middle pole
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE POLE
SECTIONS SHOULD HAVE A 3-1/2"
MINIMUM OVERLAP, LEAVING 1-
1/2" BETWEEN THE OVERLAPPING
POLE AND THE IDENTIFICATION
STICKER.
CAUTION!
5"
middle pole
1-1/2"
2. Identify pole sections.
ID
STICKER

14
P/N 21163610 02/05
4.
4
5
6
WOOD SCRAP
(NOT SUPPLIED)
RODS SHOWN ARE
FOR VISUAL
REPRESENTATION
OF ALIGNMENT
AND ARE NOT
SUPPLIED WITH
THE HARDWARE
TROUGH
Align dimple of middle pole section (5)
into trough of bottom pole section (6)
as shown.
IMPORTANT!: POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM)
MINIMUM OVERLAP.
NOTE:
HOLE
DIMPLE
Bottom pole
5"
1-1/2"
ID
STICKER
Bottom pole
Bounce top and middle pole assembly (4 & 5) onto bottom pole section (6) using a
wood scrap as shown. Bounce until the top and middle pole assembly no longer
moves toward the pole identification mark on the bottom pole.
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE POLE
SECTIONS SHOULD HAVE A 3-1/2"
MINIMUM OVERLAP, LEAVING 1-
1/2" BETWEEN THE OVERLAPPING
POLE AND THE IDENTIFICATION
STICKER.
CAUTION!

02/05 P/N 21163610
15
9
7
6
9
7
13
8
47
5.
Install bolt (12) through bracket and bottom pole
section (6) and secure with nut (10) as shown. Nut
should be tightened until flush (even) with locknuts
outer edge.
12 10
6
7.
Secure cover to rod (9) using washers (47)
nuts (8) and nut covers (13) as shown.
Install rod (9)
through bottom pole
section (6) as
shown. Install large
eye bolts (7) onto
rod (9) as shown.
6.

16
P/N 21163610 02/05
8.Install pole mount bracket (15) and reinforcement bracket (49) with carriage bolts
(16) as shown. Tighten flange nuts (14) completely.
4
49
14
14
15
16
16
9. Attach spacers (20, 21) to pole mount bracket (15) with bolts (19), washers (17),
and nuts (18) as shown.
15
17
17
18
19
17
17
21
20
20
21
IMPORTANT!:
Tighten just until
washers (17) stop
moving.

02/05 P/N 21163610
17
Assemble lanyard (25) to locking pin (24) as shown (FIG A). Attach covers (22) onto
pole mount bracket (15) with carriage bolt (23) and nut (14) as shown.
10.
15
14
24
22
22
25
23
FIG. A
25
24 Loop end of pin
lanyard (25) over
carriage bolt (23)
as it passes
through the pole
mount bracket
(15) during this
assembly.
IMPORTANT!:
23
25
24
Insert handle assembly through pole
mount assembly as shown. Lock pole
assembly in place at the 10’ (3.05 m)
mark with pin (24). 24
11.

18
P/N 21163610 02/05
TOOLS REQUIRED FOR THIS
SECTION HARDWARE USED IN THIS SECTION
(not actual size)
SECTION B: ATTACH THE BACKBOARD
Phillips-
Head
Screwdriver
This is what your system will look like
when you’ve finished this section:
Item #40
Item #39
Item #29
Item #19
Item #28
Item #26
Item #30
Item #36
Item #61
Item #42
Item #18
Item #31
Item #55
Item #48
Wrenches
(2) 1/2"
(2) 9/16”
(2) 3/4”
(2) Socket
Wrenches
and Sockets
And/Or
1/2” 9/16”
Extension
3/4” Sawhorse
35
32
Upper Elevator tube
Lower Elevator tube
Identify
elevator tubes.

02/05 P/N 21163610
19
Assemble backboard brackets (27) using spacers (28), bolts (19), and nuts (18) as
shown.
1.
28
28
19
19
18
18
27

20
P/N 21163610 02/05

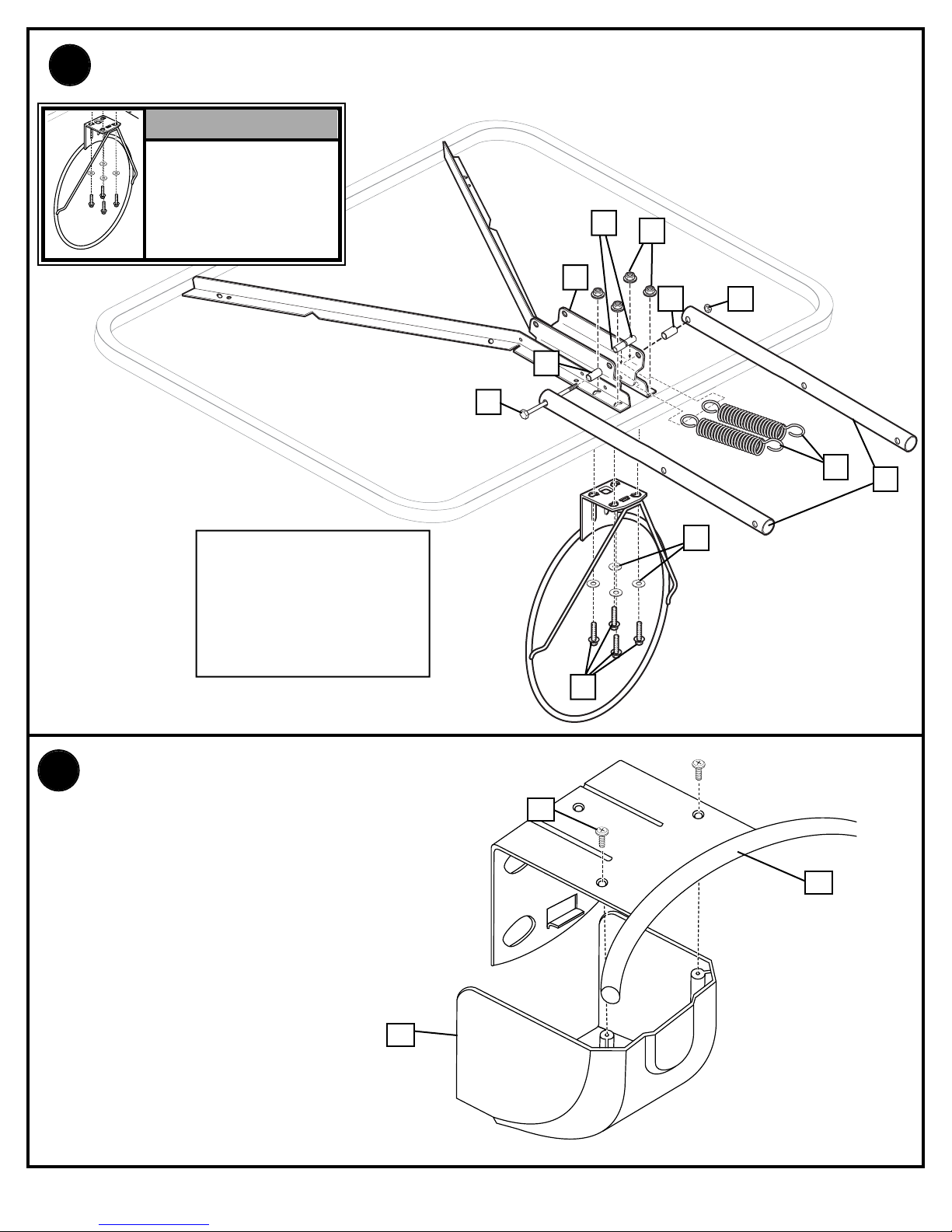

2.
3. Install cover (1) over spring
return mechanism as shown.
29
26
26
27 31
Refer To
Instructions
Included With Rim
Hardware For Rim
Assembly. 48
11
47
32
34
1
39
Attach lower elevator tubes (32) and counter balance springs (33) to backboard
support brackets (27) using spacers (26), bolt (29), and nut (31) as shown.
Rim mounting nuts and
bolts (48) supplied with rim
hardware.
DO NOT use washers (47)
here on spring return style
rims.
NOTE:
33
14
