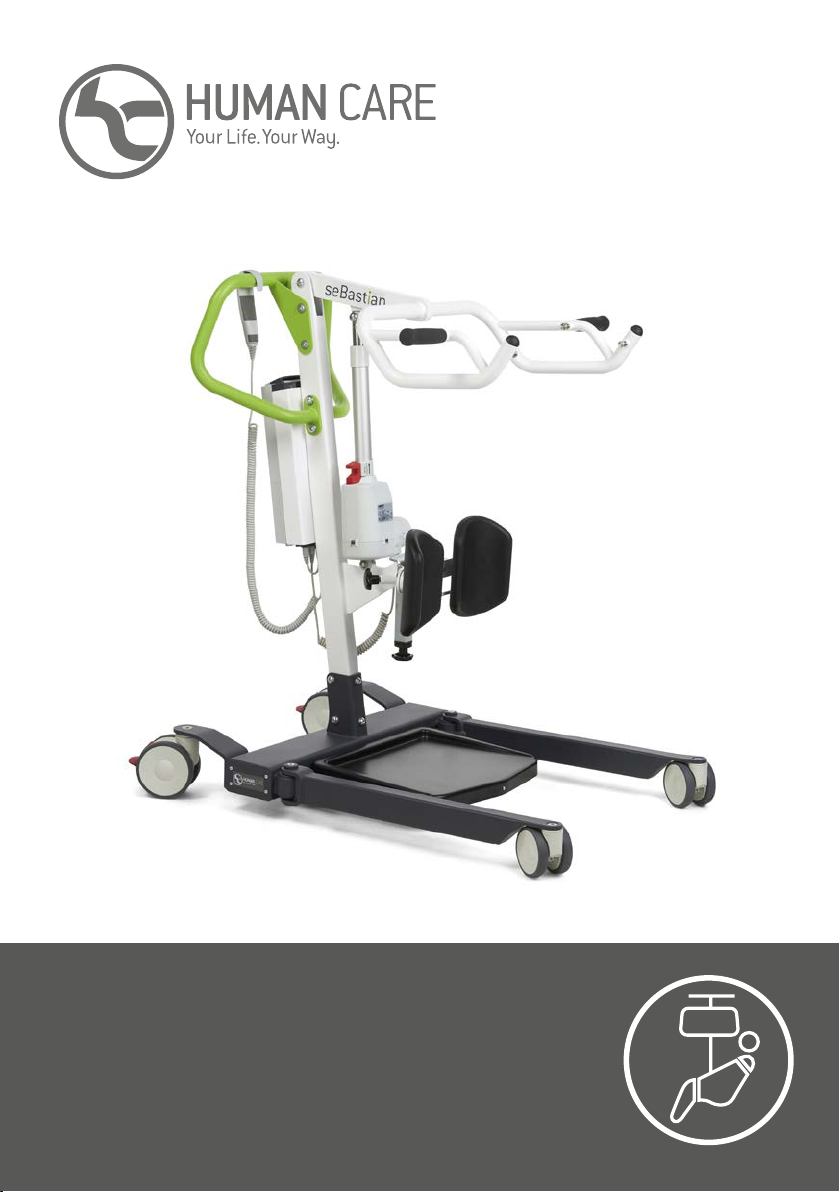

human care seBastian II User manual

User manual / Användarmanual / Gebrauchsanweisung /
Gebruikershandleiding
seBasan II Sit-to-stand Li 90554

2www.humancaregroup.com
Inhoud NEDERLANDS
Innehåll SVENSKA
Inhalt DEUTSCH
User manual 3
Intended use 4
Safety warnings 5
General maintenance and use 6
Safety instrucons 7
Parts 10
Accessories 11
Technical specicaons 12
Product label 14
Product symbols 14
Descripon of parts 15
Use 21
Maintenance instrucons 23
Troubleshoong 26
Recycling 27
Content ENGLISH
Bruksanvisning 28
Användningsområde 29
Varningar 30
Allmänt underhåll, samt användning 31
Säkerhetsanvisningar 32
Reservdelar 35
Tillbehör 36
Tekniska specikaoner 37
Produkteke 39
Produktsymboler 39
Personlyens olika delar 40
Användning 46
Underhållsanvisningar 48
Felsökning 51
Återvinning 52
Gebrauchsanweisung 53
Verwendungszweck 54
Warnhinweise 55
Allgemeines zu Wartung und Gebrauch 56
Sicherheitshinweise 57
Komponenten 60
Zubehör 61
Technische Daten 62
Produktschild 64
Produktsymbole 64
Erläuterung der Komponenten 65
Verwendung 71
Wartungsanleitung 73
Fehlerbehebung 76
Recycling 77
Gebruikershandleiding 78
Beoogd gebruik 79
Waarschuwingen 80
Algemeen onderhoud en gebruik 81
Veiligheidsinstruces 82
Onderdelen 85
Accessoires 86
Technische specicaes 87
Productlabel 89
Productsymbolen 89
Uitleg van onderdelen 90
Gebruik 96
Onderhoudsinstruces 98
Probleem oplossing 101
Recycling 102

www.humancaregroup.com 3
User manual
Product modicaon is not permied.
Always check before use that the product
is not damaged and shows no signs of
wear and tear.
At Human Care, we connue to develop and
improve our products in order to oer our cus-
tomers the highest quality. We reserve the right
to make design changes without prior noce.
Always make sure that you have the latest
version of the user manual. It is available on our
website, www.humancaregroup.com.
Please contact your local dealer if you have any
quesons about the product and its use.
Symbols
WARNING symbol indicates a poten-
ally hazardous situaon which, if not
avoided, could result in serious injury
to the user or damage to property
and/or the product itself.
INFORMATION symbol provides
recommendaons and informaon for
the correct and easy use.
SAFE WORKING LOAD symbol indi-
cates the maximum client weight for
the product. Do not exceed this weight
under any circumstances.
Important!
Always read the user manual before using your product and keep this manual
for future use.
CE MARKING symbol indicates that the
product is a medical device according
to the denion of a medical device in
EU Direcve 93/42/EEC (MDD) and/or
Regulaon (EU) 2017/745 (MDR).
RECYCLE according to local regulaons.
INSTRUCTIONS do not use this prod-
uct unl you have read and under-
stood the instrucons.
MEDICAL DEVICE symbol indicates
that the product complies with the
requirements of EU Direcve 93/42/
EEC (MDD) and/or Regulaon (EU)
2017/745 (MDR).

4www.humancaregroup.com
seBasan II
Intended use
The seBasan II is an electric sit-to-stand li,
that allows for a natural movement when stand-
ing up whilst providing sucient support.
The seBasan II is designed for acve standing,
sing, dressing, toileng and balance training
for clients with impaired trunk stability.
The seBasan II can be used to carry out the
following liing acvies:
• from/to a chair or wheelchair
• from/to the toilet
• from/to a bed or stretcher
• Please read the instrucon manual for both
the li and the liing accessories before
use. Liing and transporng a person always
involves a certain risk.
• It is important to fully understand the
content of the manuals and to follow the
instrucons in the manuals.
• The product may only be used by trained
personnel.
• In case of doubt or if you have any ques-
ons, please contact Human Care or your
distributor.
The safe working load is exceeded.
The product is damaged.
The clips of the sling are not se-
curely and properly aached.
You have not read and under-
stood all the safety warnings and
instrucons.
Do not use the product if:

www.humancaregroup.com 5
ENGLISH
Safety warnings
Only trained professionals can make the deci-
sion whether or not this product is appropriate
to use. This product can only be used under
the supervision of a caregiver. Never leave the
client unaended during the transfer process.
If you do not understand any of the warnings,
safety precauons or instrucons, please
contact a care provider, distributor or technical
sta member (if applicable) before aempng
to use this product. Using this product without
having the proper knowledge may result in
injury or damage.
Disconnect the product and re-
move the baery during mainte-
nance work.
Only use the parts that are sup-
plied with the product. Only use
spare parts supplied by Human
Care.
Do not touch parts of the products
that may have an electrical current
(leakage) at the same me as the
paent.
Product modicaons are not
permied. Maintenance and
servicing may only be carried out
by qualied personnel.
Maximum safe working load 230
kg/507 lbs

6www.humancaregroup.com
seBasan II
General maintenance and use
This product may only be used by
qualied personnel.
In certain circumstances, more than
one caregiver may be necessary to
assist a parcular client.
This product is for indoor use only. It
is not suitable for use in areas with
high humidity (e.g. shower rooms,
hydrotherapy), extreme temperature
or high pressure environments.
Before using the product with a client,
it is strongly recommended to pracce
using the product with colleague-care-
givers, unl the caregiver feels com-
fortable using the product.
The seBasan II may only be used
on an even, clean and hard-oored
surfaces that are free of obstacles. The
product should never be used on a
sloping oor or ramp.
The client’s abilies should be as-
sessed before using this product. Only
use this product for its intended use.
The seBasan II is designed to support
only one client at a me. Never use
the product to li a client and an item
of furniture at the same me.
A specialist must approve use of the
product for a specic client and this
must be recorded in wring.
The correct type, size, material and
design of accessories must be carefully
selected by an expert, taking into
account the safety and needs of the
client.
Always charge baeries in a well-ven-
lated room. Check the charger
regularly.
Only use other Human Care products
with the seBasan II.
Check the seBasan II before each use to make sure it is not damaged in any
way. Do not use the seBasan II if there are signs of wear and tear or dam-
age on any part of the li.

www.humancaregroup.com 7
ENGLISH
Safety instrucons
• Please read the instrucon manual for both the li and the liing ac-
cessories before use. Liing and transporng a person always involves a
certain risk.
• It is important to fully understand the content of the manuals and to
follow the instrucons in the manuals.
• The product may only be used by trained personnel.
• In case of doubt or if you have any quesons, please contact Human Care
or your distributor.
Warning!
Certain condions and surroundings may limit
the use of the li, e.g. thresholds, uneven
surfaces, obstacles and deep-pile carpet. These
condions and surroundings may prevent the
castors of the li from working properly, may
cause the li to become unstable and/or may
make it harder for the caregiver to use the li.
If you are not sure whether your care environ-
ment meets the requirements for proper use of
the li, please contact Human Care for help and
advice.
CAUTION!
This user manual contains important informa-
on for the user of this product. All users of the
product must read and understand the content
of the user manual and work accordingly. Al-
ways keep the user manual in a place where it is
available to those persons using the product.
CAUTION!
The assembled li arm may only be raised by the li actuator. Manual liing the li arm
could damage the li actuator.
Do not use the product in an environment where other radio frequency eming
devices are used. Like any other electronic device, the product can use and emit radio
frequency energy. If the product is not used in accordance with the instrucons in the
user manual, it may cause interference with nearby devices. The manufacturer cannot
guarantee that interference will not occur in a parcular locaon. In order to check
if the product is the source of any interference, change its locaon or disconnect the
baery. If you sll noce or suspect a fault, please try the following:
• Move the li to another locaon;
• Increase the distance between devices;
• Contact the service-desk.

8www.humancaregroup.com
seBasan II
Always aach the sling according to
the instrucons for the sling that has
been supplied.
Never leave a loaded li on a sloping
surface.
Never use an electric li in the shower.
Never take the li down a ight of
stairs, either with or without a client.
Before moving the li, always check
that it is disconnected from the char-
ger, as this could damage the electrical
connecon.
Always check that the safe working
load of the li is suitable for the
client's weight.
Always carry out liing acvies ac-
cording to the instrucons in the user
manual.
Never disconnect a control or safety
device and never try to by-pass such
a funcon because you think it might
make it easier to operate the li.
Never aempt to move the li by
pushing against the mast, li arm or
client. Always use the appropriate
push handle to move the li.
When transporng a client, never
move faster than a slow walking pace
(3 kilometers per hour - 0.8 meters
per second).
Do not push the li over an uneven or
rough surface, especially when trans-
porng a client.
Do not try to push/pull a loaded li
over an obstacle on the oor, which
the castors cannot clear.
Never force a control/safety device.
All controls are easy to use and do not
require the use of physical force.
General safety precauons

www.humancaregroup.com 9
ENGLISH
The liing accessories are correctly
aached to the li;
Make sure the li accessories are not
damaged;
Ensure that the correct liing acces-
sories are being used in terms of type,
size, material and design to meet the
client's needs;
Ensure that the brakes are intact;
any missing or damaged brakes must
always be replaced;
Ensure that the clips of the sling are
correctly clipped to the hanger bar
aer the sling has been fully extended,
but before the client has actually been
lied;
Ensure the baeries are fully charged.
Always read the instrucon manuals
for the li and the liing accessories.
You know what you need to do before
starng;
Always carry out a daily check before
using the li;
The caregiver should always familiar-
ize himself/herself with the controls
and safety devices before aempng
to li a client;
Only use slings that are recommended
for use with this li.
Always make sure you follow these instrucons before using the li:

10 www.humancaregroup.com
seBasan II
Parts
1. Hand control
Controls the funcons of the li.
2. Push handle
Handle for the caregiver to move the li.
3. Li arm
Raises/lowers the client in a sing posion,
always in combinaon with a sling.
4. Control box with emergency stop and
baery
Power pack.
5. Li actuator
Electric li actuator for raising and lowering
the li arm.
6. Height-adjustable lower leg supports
So, comfortable lower leg supports for the
client’s shins.
7. Castors, rear
Double castors, with brake
8. Electric leg spreading
Provides the opon to posion the legs
around a chair or wheelchair, so that the
li can be posioned closer to the client in
order to achieve a more comfortable liing
process.
9. Castors, front
Double castors, without brake.
10. Chassis
Chassis with four castors.
11. Foot plate
Plate for the client’s feet to stand up safely.
3
56
8
9
11
10
7
4
21

www.humancaregroup.com 11
ENGLISH
Accessories
2-point hanger bar for E-clip slings:
Product name Arcle number
Back Belt E-clips Small 25130C-S
Back Belt E-clips Medium 25130C-M
Back Belt E-clips Large 25130C-L
Back Belt E-clips Extra Large 25130C-XL
Product name Arcle number
So padding for the bar 50866
All slings are available in dierent sizes to achieve a best possi-
ble t with the client.

12 www.humancaregroup.com
seBasan II
Descripon
Arcle number 90554
Length of the frame 1080 mm
Width of the frame 750 mm
Height 1130 mm
Posion of the push handle (min/max) 950/1130 mm
Height of he lower leg supports, mounted downwards (min - max) 390-520 mm
Height of he lower leg supports, mounted upwards (min - max) 530-660 mm
Liing height (min.) 780 mm
Liing height (max.) 1740 mm
Minimum width of legs (internal/external) 520 mm / 660 mm
Maximum width of legs (internal/external) 1010 mm / 1150 mm
Height of legs (from the oor) 115 mm
Footplate, height 90 mm
Footplate, dimensions (wxd) 360 x 330 mm
Turning radius (min.) 1240 mm
Turning radius (max.) 1400 mm
Liing speed (up) 18 sec.
Liing speed (down) 18 sec.
Diameter of castors with brake 125 mm
Diameter of castors without brake 100 mm
Operaon connuous, short-term load (10%) max. 2 min. in
operaon (on) min. 18 minute break (o)
Control box input voltage 100-240V ˜, frequency 50/60 Hz,
output voltage 24V, power consumpon max. 400 mA
Baery capacity 2.9 Ah
Electric shock protecon class II, adapted part type B
IP rang control box IPX4
IP rang class baery IPX5
IP rang main li actuator IPX4
IP rang hand control IPX6
Maximum user weight 230 kg
Product weight 60 kg
Noise level 52 dB
Frame material Powder-coated steel
Technical specicaons

www.humancaregroup.com 13
ENGLISH
490
240
230
150
210
600
700
1010 1150
470
780
1120
1740
560
750
1130
1080
40
115
390
90
780
1740
530
90
950
1135
530
780
1740
660
Ø1400
Ø1240

14 www.humancaregroup.com
seBasan II
Product label
Product symbols
The product label contains informaon about
the product and is located on the right-hand
side, close to the mast.
Human Care is an ISO 13485:2016 Swedish
cered medical device company . The Quality
Management System is in compliance with US
21 CFR part 820.
The product has been tested in accordance with
ISO 10535.
The product has a CE marking in accordance
with the Medical Device Direcve 93/42/
EEC and/or Medical Device Regulaon (EU)
2017/745). The CE mark label is at the product.
This product has been tested by an accred-
ited test instuon and meets the following
necessary medical requirements: EN 10535, EN
60601-1 (electrical safety) and EN 60601-1-2
(EMC). This product carries the CE marking.
Symbols on the product and the product label:
Product operang cycle
CE marking
MD Medical Device
Product manufacturer
Maximum user weight
For indoor use
User manual: Please read the manual
to familiarize yourself with its contents
before using the product
This product contains electrical and elec-
tronic components and must be recycled
according to local guidelines.
Electric shock protecon class II
Product type B: approved for physical
contact with clients (IEC 60601-1)

www.humancaregroup.com 15
ENGLISH
Descripon of parts
Hand control
The seBasan II sit-to-stand li has a hand con-
trol with the following funcons:
1. Baery charge
The baery charge indicator has three status
indicaons. The baery charge indicator is
yellow or green unl switched o (2 minutes
aer use).
Baery status
For a complete descripon we refer to page
18.
2. Service indicator
The service indicator (yellow indicator)
ashes when it is me to carry out a service.
The default seng is every 12 months /
8000 liing cycles (as recommended by the
EN10535 standard), whichever comes rst.
When it is me for a service, the service
indicator stays on for 2 minutes aer use. It
is then switched o to save baery life. The
system is sll funconal when the service
indicator is on.
3. Overload indicator
When there is an overload, according to the
predened power interrupon, the two LED
lights will ash for 10 seconds.
4. Up
This buon raises the li arm, to help a
client into a standing-up posion.
5. Down
This buon lowers the li arm, to help a
client into a seated posion.
12
3
4
5
67
6. Leg adjustment, open
The legs can be spread so that the li can be
brought closer to a client sing in a chair for
a more natural liing movement.
7. Leg adjustment, close
The legs can be closed to make it easier to
maneuver and negoate narrow passage-
ways (e.g. doorways).

16 www.humancaregroup.com
seBasan II
Emergency stop
In the event of an emergency, immediately
press the emergency stop buon.
Turn the buon clockwise to unlock the emer-
gency stop.
Electric emergency lowering funcon
If the buon on the hand control for lowering
the li arm does not work, you can use the
electric emergency lowering funcon. This can
be acvated by using a pointed object (e.g. a
pen) to press the small buon on the control
box. You will hear an audible click. Keep press-
ing unl the required height has been reached.
Mechanical emergency lowering funcon
If the emergency lowering funcon via the
control box does not work, use the mechanical
lowering funcon. This will safely lower the
client in the event of a fault in the electrical sys-
tem. Lowering can be done manually by using
the lever located on the lower part of the main
cylinder. To operate, grasp the red part and pull
it up. Allow the li arm to lower unl the user
can be safely removed from the li.
Cauon!
Aer using the mechanical or electrical
emergency lowering funcon, you must
immediately contact your distributor
to schedule a visit by a service technician. The
product may only be used again aer an autho-
rized employee has carried out an inspecon of
the product.
Emergency stop
ON CHARGE
Mechanical lower-
ing lever
Electrical emergency lowering

www.humancaregroup.com 17
ENGLISH
Baery
Installing and removing the baery
Cauon!
Do not use the li for at least one hour before
replacing the baery.
Never expose the baery to extreme tempera-
tures. Never leave the baery charger in damp/
humid areas.
Installing the baery:
• Align the boom of the baery with the top
of the controller.
• Push the top of the baery forward unl you
hear a click. The baery is now in place.
• Gently push the top of the baery forward
to make sure it is securely aached to the
holder.
Removing the baery
• Press the emergency stop buon.
• Hold the baery by the handle and press the
release lever
• Remove the baery by liing it o the
holder
Release lever

18 www.humancaregroup.com
seBasan II
Baery charge display and charging
Cauon!
• The product cannot be used while charging.
• During charging, the liing funcon is
locked.
• Do not use the li for 1 hour aer charging.
This will prolong the life of the baery.
• The baery needs to be charged connuous-
ly for at least 24 hour,
in the following situaons:
a) Before using the li for the rst me.
b) Before being placed in storage (up to 3
months) without a power supply connec-
on.
c) Immediately aer a storage period.
Baery charge indicator
The baery charge indicator has three status
indicaons. The baery indicators are either
yellow or green unl switched o (2 minutes
aer use).
Baery status 1:
The baery is full – no recharging required
(100-50%): the third indicator is green.
Baery status 2:
The baery is okay (50-25%) – recharging re-
quired: the second indicator is yellow.
Baery status 3:
The baery is low (less than 25%) – recharging
required: the rst indicator is yellow and a buzz-
er sounds whenever a buon is pressed.
Baery status 4:
The baery requires recharging. Some funcons
of the li are lost and it is only possible to lower
the li arm. When in connued use, the indica-
tor ashes and an audio signal is emied.
The baery charge is indicated on the
hand control.
Baery level indicators on the hand
control

www.humancaregroup.com 19
ENGLISH
Charging the baery
If you need to charge the baery, you need to:
• Press the emergency stop buon
• Connect the black charging cable that is sup-
plied to the control box
• Then insert the plug into a wall socket that is
located in a dry room.
When the rechargeable baery is connected,
the LED display on the control box will come on.
The green LED indicates that the baery char-
ger is connected to the mains. The yellow LED
indicates the charging process. It takes approxi-
mately 5 hours to fully charge the baery.
Charging the baery with an external charger
(oponal).
You can always purchase an external charger,
for example to have a spare baery to hand.
To charge the baery, it needs to be inserted in
the external charging staon. Ensure that the
baery is properly inserted into the charging
staon. A light will come on if it is aached
correctly.
If the baery emits a short beep, it needs to
be charged. If a green light comes on when
the baery is inserted, the baery is full. If the
orange light comes on, the baery needs to
be charged. Charging will stop automacally
when the baery is full. This means you cannot
overcharge the baery. It is best to charge the
baery every night.
The external charger can be easily mounted
by means of the wall mounng plate. It can be
mounted on the wall near a 230 V socket.
We always recommend you purchase a spare
baery, so that you always have access to a full
baery. If one baery is empty, you can conn-
ue to work using the second baery.
Connecon for
charging cable
ON CHARGE
Locaon of LED on control box
Green LED
Yellow LED
Charging the baery must not take
place in a wet/humid environment
(shower area).
Slide the baery
into the baery
charger so that
the baery can be
charged
Wall mounng plate
Green LED
Yellow LED

20 www.humancaregroup.com
seBasan II
Leg adjustment
This funcon is useful when you need to move
the li to a client on a chair or other piece of
furniture. The width of the chassis can be ad-
justed, so that the legs of the li can t around
furniture. This means that the li arm and the
footplate are closer to the client, which encour-
ages a natural movement when standing up.
Press and hold the corresponding buon on the
hand control unl the legs are in the correct
posion.
Brakes on the castors
The brakes are important components of the
li. The brakes are mounted on the rear two
castors and prevent unwanted movement
during use of the li to ensure a stable starng
posion.
The brake is applied by using your foot to push
down the red lever.
The brake is released by using your foot to push
up the red lever.
Lower leg supports
Adjusng the height of the lower leg supports
• Turn the clamping knob an-clockwise to
release the lower leg supports.
• Pull the lower leg supports up or down unl
they are in the correct posion.
• Turn the locking buon clockwise to lock the
lower leg supports.
Making further adjustments to the leg supports
.
• Pull and hold the locking buon.
• Adjust the level and release the locking
buon.
Applying the brake Releasing the brake
Brake lever
Lower leg supports
Locking buon
520
410
660
1010
1175
