HumanTechnik Swing User manual

DBedienungsanleitung Seite 4
EInstrucciones de servicio Página 84
IIstruzioni per l‘uso Pagina 104
GB Operating instruction Page 24
FManuel de service Page 44
NL Gebruiksaanwijzing Pagina 64

1
2
3
4
5
6
12
9
11
10
81514
13
7
16

19
20
21 21
2324 25 26 27
17
18
22

Table of content Page
English 24
Safety information 25
Scope of delivery 26
Quick overview 27
Overview headphone: 27
Overview LR earpiece: 27
Overview sender: 27
Overview accessories: 27
Connect sender to a sound source 28
Connect sender to a Cinch female connector 29
Connect sender to a SCART female connector 29
Connect sender headphone connector 30
Connect the sender to the microphone (optional) 30
Connect sender to the USB connector 31
Connect sender to the mains supply 31
Install sender 32
Use Swing IR 33
Use SWING IR standard version 33
Use SWING IR LR 33
Safety lock in the tele-loop 34
Listening with the 3.5 mm stereo output 34
Set balance 35
Adjust audio 35
Set volume 36
Transparent cover 36
Charge battery 37
Cleaning and care 38
Clean transmitter and receiver 38
Cleaning of silicone ear adapters 38
Exchange of the silicone ear adapters 38
Important information 39
Warranty 39
Environmental information/disposal 40
Battery 40
Failure cause and resolution 41
Technical Data 43

• Before you start operating this device, read these instructions carefully
and completely.
• Please retain these operating instructions carefully to ensure that they are
accessible at any time also for other users.
• The device and especially the power supply are designed exclusively
for operation in dry interior spaces. A flawless function is guaranteed for
a room temperature of 10 °C to 35 °C.
• Please handle the device and the accessories always carefully and install
them only in low-dust and clean locations.
• Clean the sender and the receiver regularly. For hygienic reasons, the
soft silicone ear adapters should be cleaned regularly. For the exchange,
please use the soft silicone ear adapters offered as special accessories.
• Paints and furniture polishes can chemically attack the rubber feet of the
sender and therefore they may cause surface damage to your furniture.
• To supply the sender, please use only the provided power supply.
• We recommend to unplug the power supply from the electrical outlet in
case your are absent for several days.
Caution:
High volume can be set on your receiver. Please adhere to the following
information to protect your ears or the ears of persons with normal hearing,
especially children, from hearing impairments due to a high volume.
1. Please set a low volume level before you put the receiver on.
2. During use, adjust the volume to a level agreeable to you. Before using
this product together with a heart pacemaker, please contact your physi-
cian or the manufacturer of the pacemaker to ensure that the pacemaker
is not subjected to interference.
3. If you use other medical devices, please use the SWING only by adhering
to the safety information/safety directives of your physician or the manu-
facturer.
Safety information
English 25

Safety information for the lithium polymer battery
The battery used in SWING is a lithium polymer battery, which was produced
in accordance with the most current provisions and safety regulations. The
battery can be damaged when misused or if not used according to the speci-
fications, in this case Humantechnik accepts no liability.
Warning!
The following risks exist in extreme cases:
– Heat development
– Fire development
– Explosion
– Smoke and gas development
• Do not heat the battery above 70°C, e.g., through sun radiation or by
casting it into fire.
• Do not subject the battery to moisture.
• Do not short circuit the battery
• Do not disassemble or deform the battery.
• Store device/battery in cool and dry places at room temperature.
• Use only the provided charger for the battery.
• Recharge the battery in the device regularly in case the device is not
used for a longer time (every 6 months for app. 1 hour).
• Charge the battery only at ambient temperatures of 10°C to 40°C.
• Do not recharge the battery if the device is clearly damaged.
• Please return defective devices or devices with worn out batteries to
your specialty retailer.
The scope of delivery of the SWING IR / SWING IR LR includes:
1 SWING IR receiver
1 SWING IR sender
1 battery AP12A
1 screwdriver
1 power supply
1 audio connection cable with 3.5 mm stereo stereo jack
1 audio adapter 3.5 mm on 6.3 mm stereo stereo jack
1 Cinch adapter
1 SCART adapter
1 pair of additional silicone ear adapters small (not LR version)
Scope of delivery
English 26

English 27
Quick overview

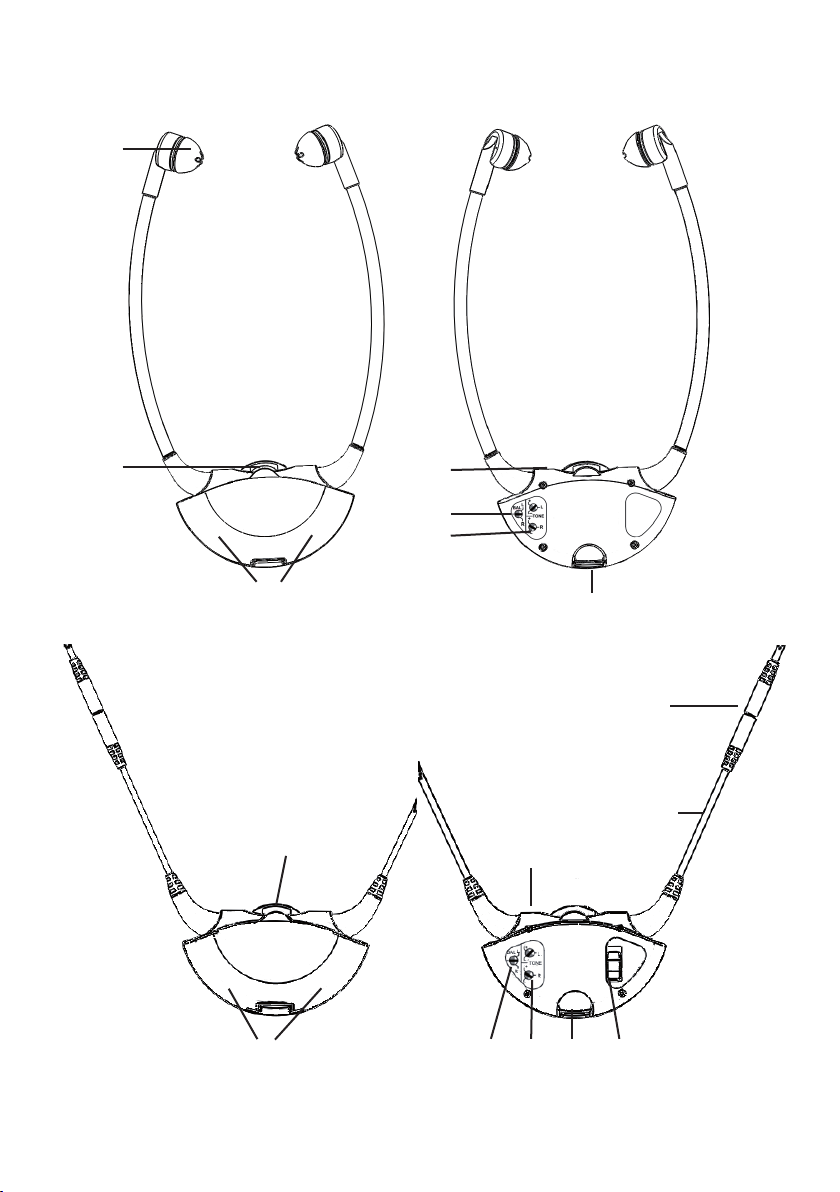

These operating instructions let you fold the first 2 pages out. These pages
show images of the SWING with identification by numbers.
Overview headphone:
1 controller for volume
2 loud speaker ear adapters
3 battery compartment
4 status LED
5 balance (Bal)
6 tone adjustment left right (tone)
7 Infrared reception diodes
Overview LR earpiece:
8 On/Off switch (On / Off)
9 controller for volume
10 induction loop
11 strangulation protection
12 battery compartment
13 status LED
14 balance (Bal)
15 tone adjustment left right (tone)
16 Infrared reception diodes
Overview sender:

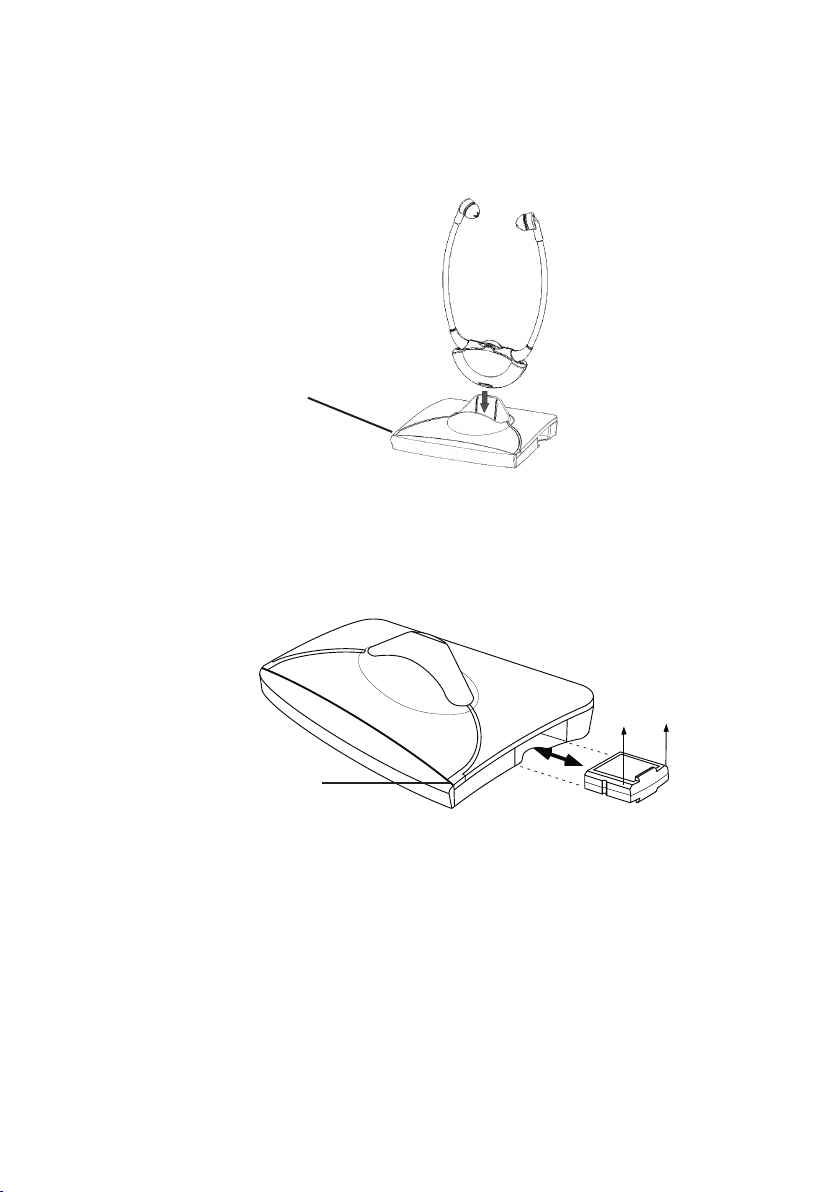

17 charging bay
18 charge LED for receiver in charging bay
19 replacement battery charging bay
20 charge LED for replacement battery charging bay
21 status LED sending
22 Infrared transmission diodes
Overview accessories:
23 power supply connection
24 USB connection
25 AUDIO, MIC / USB selector switch
26 female connector for connection to a sound source (green)
27 female connector for connection to a microphone (black)

We congratulate you for purchasing your »SWING« headphones. You have
chosen a reliable state-of-the-art and reliable device. Please review these
operating instructions carefully to ensure that you commission the device cor-
rectly and that you are familiar with all functions of the device.

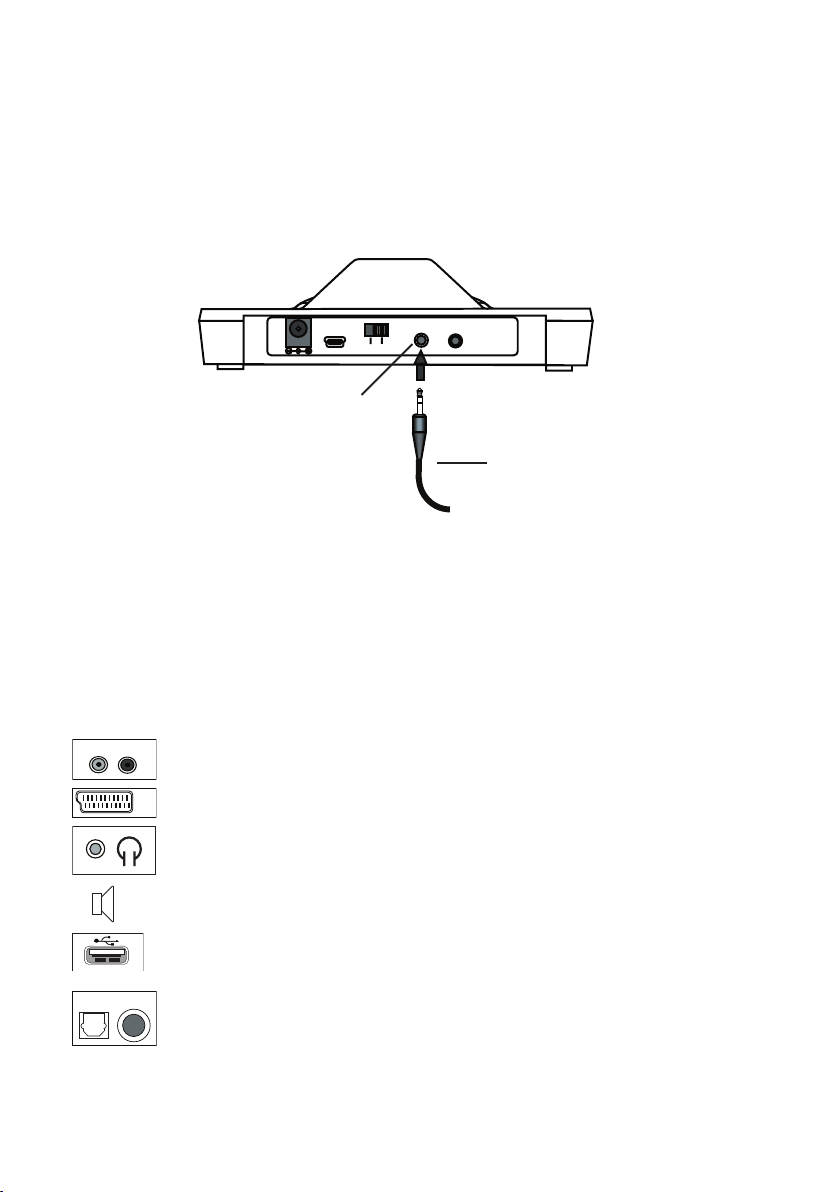

Connect sender to a sound source
Please switch the sound source off before connecting the sender.
Plug the provided audio connection cable 28 into the green “Audio” female
connector 26 of the sender.
Several options exist to connect the SWING IR to a sound source (e.g. TV,
computer, etc.).
Please check the connection options of your sound source.
– Cinch female connector
– SCART female connector
– Headphone connection
– External microphone (optional)
– USB connection (e.g. computer)
– S/PDIF IR output (optional with adapter box A-4963-0)
English 28
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
AUDIO OUT
LR
AV
)
)
)
)
26
28
OPTICAL COAXIAL
DIGITAL OUT

English 29

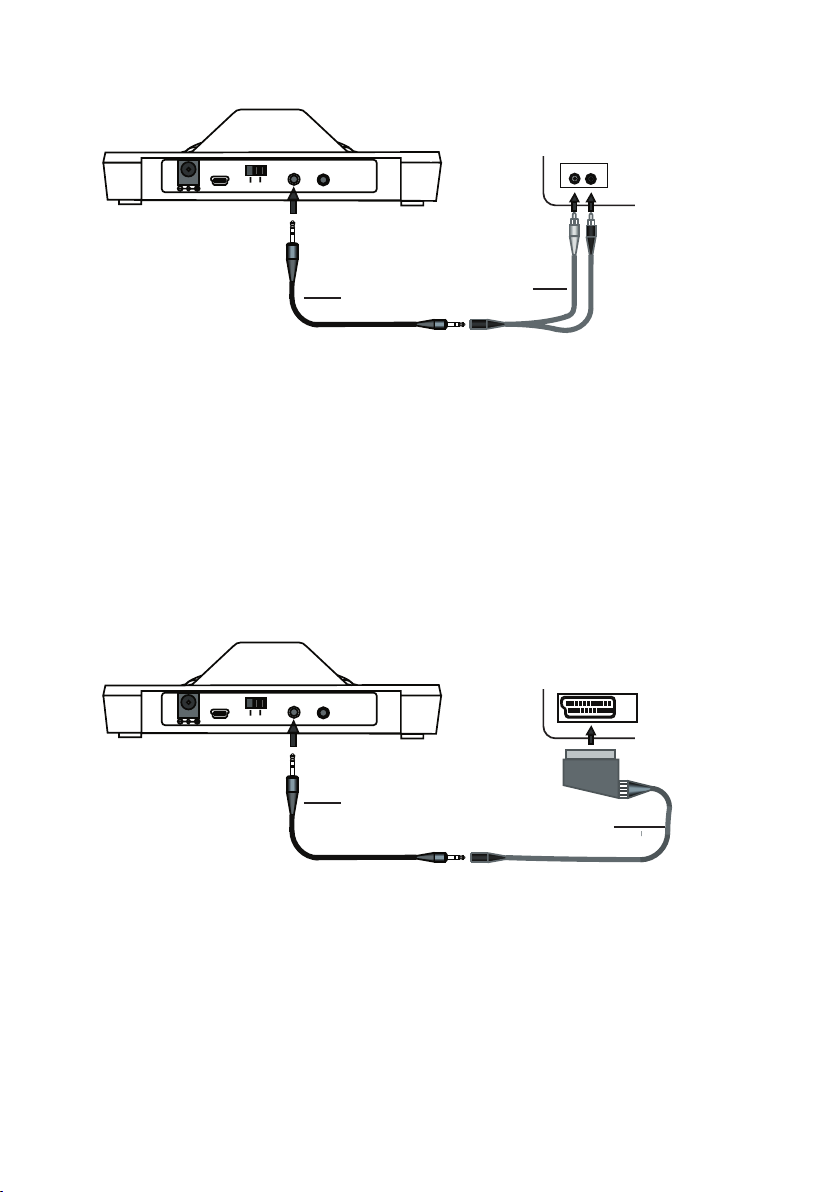

Connect sender to a Cinch female connector
Connect the adapter cable with the Cinch plugs 29 to the audio connection
cable 28.
Plug the Cinch plug into the Cinch connection of your sound source. Please
ensure that the white connection is connected to the white connection of your
sound source.
Please ensure that the red connection is connected to the red connection of
your sound source.
Optionally, a S/PDIF is available for the Chinch adapter box A-4963-0. It will
be connected between your sound source and the Cinch plug 29.
Connect sender to a SCART female connector
Connect the SCART adapter 30 into the audio connection cable 28.
Plug the SCART adapter into the SCART female connection of your sound
source.
AUDIO OUT
LR
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
AV
SCART
OUT
28 29
28 30

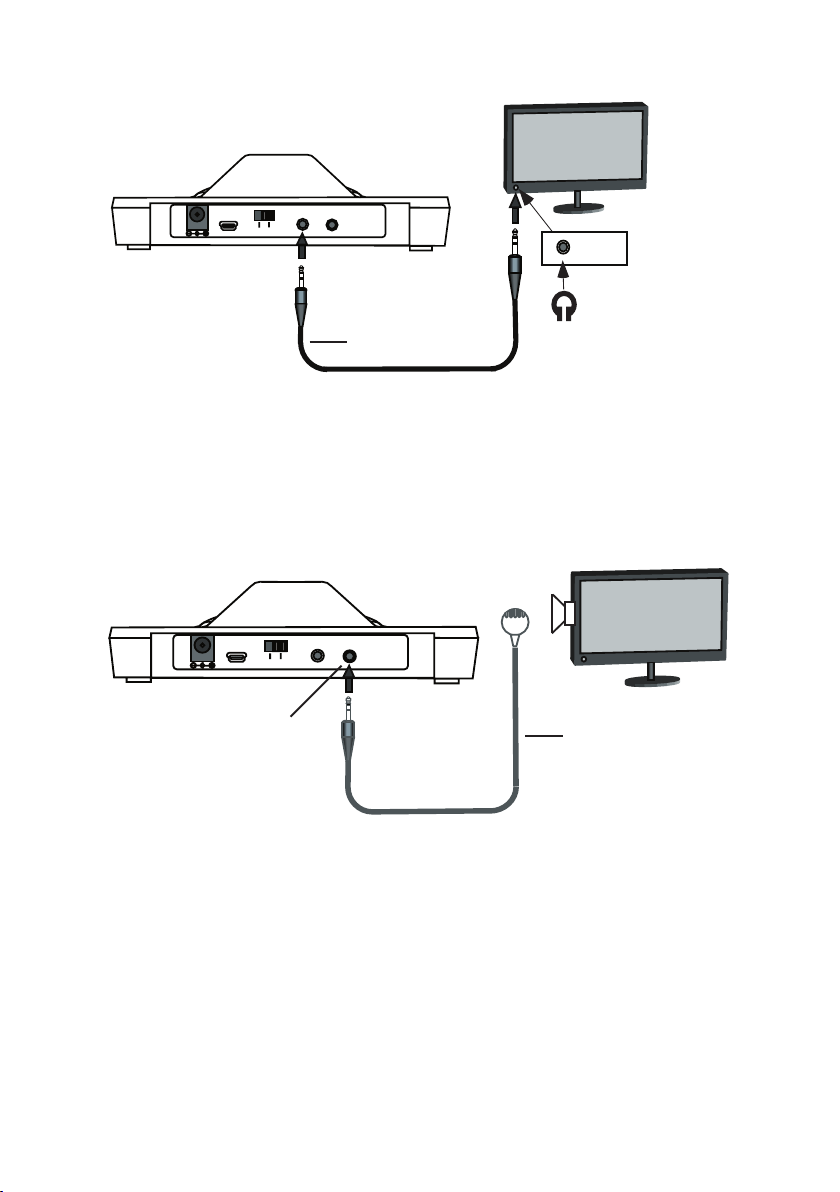

Connect sender headphone connector
Plug the audio connection cable 28 into the headphone connection of your
sound source.
You may need the 6.5 mm headphone plug adapter for the connection of the
headphone to your sound source. Set the volume of your sound source to an
average volume.
Connect the sender to the microphone (optional)
The microphone is not included in the scope of supply. It can be purchased
from your specialty retailer. Only the microphone A-4967-0 must be used.
Plug the microphone 32 into the black “MIC” connection 27 of the sender.
Fasten the microphone at the loudspeaker of your sound source.
English 30
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
TV
PHONE
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
TV
)
)
)
)
28
32
27

English 31

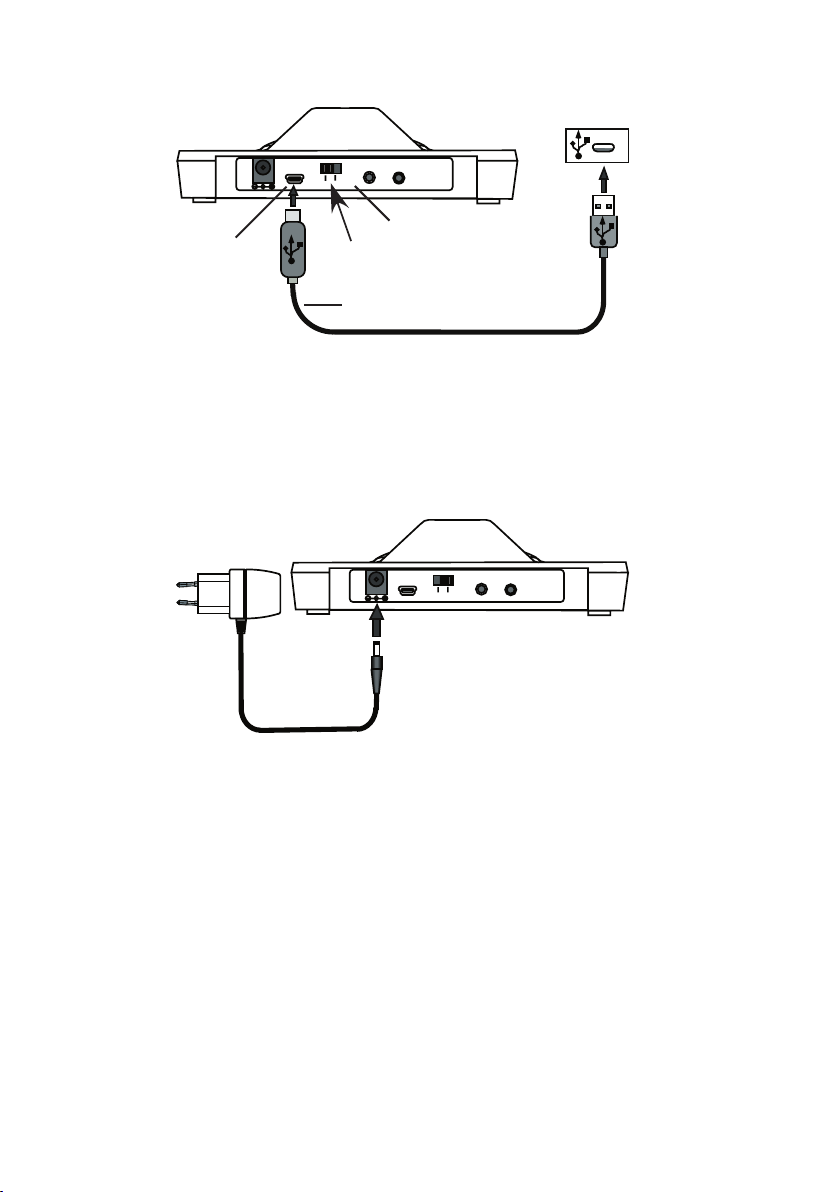

Connect sender to the USB connector
The USB cable 33 is not included in the scope of supply. It can be purchased
from your specialty retailer. The sender has a mini USB connection.
Plug the USB cable into the “USB” connection 24 of the sender and connect
it to your computer. The switch 25 must be set to “USB”.
Connect sender to the mains supply
Connect the provided power supply with the sender through the power
supply connection “DC12V”. The power supply itself will be connected to
an electrical outlet.
Please charge the receiver with the installed battery for 6 hours before
commissioning the device for the first time.
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
USB
DC 12V
USB AUDIO MIC
USB AUDIO
MIC
33
24 25

English 32
Install sender
Install the sender in a suitable position near the sound source. The view bet-
ween the sender and the receiver must not be impeded. The infrared recepti-
on diodes at the receiver must always be directed at the infrared transmission
diodes of the sender.
Please ensure that direct sun radiation is not aimed at the sender or the recei-
ver. This can cause noise in the headphone.
If you use a plasma TV set, please understand that it can interfere with the
transmission.
Please install the sender as far as possible away from your plasma TV set.
You can operate any number of receivers with one sender.
)
)
)
)
)
)

Use Swing IR
Use SWING IR standard version
Please follow the instruction to use your SWING IR:
1. Switch your sound source on (e.g. TV).
2. Adjust the volume level controller 1initially to a low volume to protect your
ears. The volume increases when you turn the dial into the direction of “5”
and it decreases when you turn the dial into the direction of “0”.

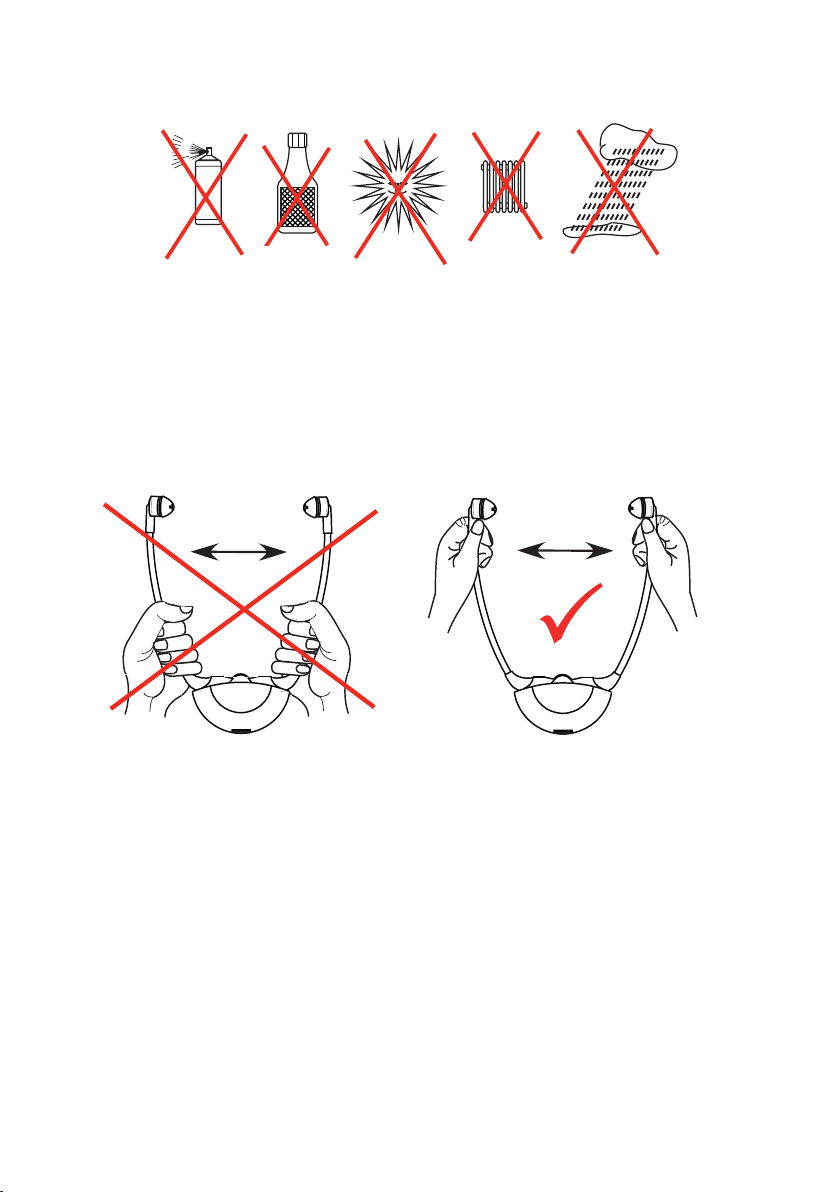

3. Please put the headphone on. By spreading the speaker arms, the head-
phone switches automatically on. The green LED 4always indicates that
the receiver is switched on.
4. The blue LED bar 21 is illuminated as soon as the sender has contact
and transmits to the receiver.
5. Set the desired volume 1.
6. If you remove the headphone then it will be switched off automatically.
We ecommend to put the headphone always back into the sender to
ensure that the battery is always charged.
Use SWING IR LR
Please follow the instruction to use your SWING IR:
1. Switch your sound source on (e.g. TV).
2. Adjust the volume level controller 9initially to a low volume to protect your
ears. The volume increases when you turn the dial into the direction of “5”
and it decreases when you turn the dial into the direction of “0”.
3. Ensure that the ring loop lock has been closed completely. The ring loop
lock is used to comfortably wear the device and to minimize accidents.
4. The receiver will be switched on and off by using the ON/OFF switch on
the back. Caution: Always switch the receiver off after use because the
battery discharges itself otherwise. The green LED 13 always indicates
that the receiver is switched on.
5. The blue LED bar 21 is illuminated as soon as the sender has contact
and transmits to the receiver.
6. Set the desired volume.
7. Switch the receiver off after use. We recommend to put the receiver al-
ways back into the sender to ensure that the battery is always charged.
English 33

English 34
Safety lock in the tele-loop
(only for LR version)
Please ensure that the safety lock is completely closed in the tele-loop to
guarantee a flawless functioning.
Please ensure the receiver is worn correctly.
Listening with the 3.5 mm stereo output
(only for LR version)
The following accessories can be connected to the 3.5 mm stereo jack plug:
• Earphones discreet design
• Chin band headphone, closed system
• Light weight headphones, traditional design
• Induction plate Monaural
• Induction plate Binaural
• Euro-cable Monaural, damped
• Euro-cable Binaural, damped
Important!
The overall transmission time of the receiver can be reduced significantly de-
pending on the accessories connected to the stereo output. We recommend
to buy an additional battery to guarantee a large operating time.

Set balance
(SWING IR and 3.5 mm stereo output SWING IR LR)
The balance controls the volume distribution between the right and the left
ear. Adjust the balance in such a way that you hear well on both ears.
Adjust audio
(SWING IR and SWING IR LR)
The audio control is used to adapt the audio to your ear independently on the
left and right.
Caution: The sound controller for right (R) can be used in the SWING
digital LR to adjust the sound in the ring loop.
English 35
BAL
TONE
L
R
+
L
R
+
BAL
TONE
L
R
+
L
R
+
20 100 200 1000 2000 5000 10000 20000 Hz
0
- 5
-10
-15
dB
5
10
15
500
L / R
20 100 200 1000 2000 5000 10000 20000 Hz
0
- 5
-10
-15
dB
5
10
15
500
L / R

Set volume
Set the volume to a level agreeable to you by adjusting the volume control.
Transparent cover
The transparent cover protects the volume control against unintended adjust-
ment of the volume control and against contamination by dust or fluids.
Remove both rubber covers and click the transparent cover into the openings.
English 36
4
3
2
4
3
2
3
2 4

Charge battery
Once the battery is fully charged, it can be used for up to 6 hours. The red
LED 4/13 starts flashing once the battery is almost empty. The battery should
now be charged or exchanged. The operating time is dependent from the set
volume and from what you hear.
After use, put the receiver onto the charging bowl of the receiver without
applying pressure.
Ensure that the receiver is placed correctly. If the receiver is charged, the red
LED 18 at the left side of the receiver is illuminated. The LED 18 is illuminated
green as soon as the battery in the receiver is charged.
An additional battery can be charged in the sender. Additional batteries are
available at your specialty retailer.
The additional battery can be plugged in into the side charging bay 19.
Please ensure that the milled side points upward and that insert it without
applying too much force. If the LED 20 is illuminated red, then this battery is
charging, if the LED 20 is green then it is ready for use.
We recommend to exchange the battery in the receiver and the spare battery
in the sender weekly. This means that the batteries are used regularly and
that they achieve a maximum service life.
All batteries loose their capacity over time. This is characterized by a shorter
usage time.
English 37
18
20

Cleaning and care
Clean transmitter and receiver
If the devices are dusty or dirty, please clean them now and then with a soft,
clean and slightly moist cloth.
Please disconnect the sender from the mains supply before you start with the
cleaning activity.
Cleaning of silicone ear adapters
You can pull the ear adapters from the fixture. Please clean the ear adapters
with mild soap water. Dry the ear adapters well and attach them afterwards.
Exchange of the silicone ear adapters
The skin-neutral silicone ear adapters must be exchanged if they are strongly
contaminated.
You can pull the ear adapters from the fixture. The new silicone ear adapters
can be plugged over the fixture.
English 38

English 39
Important information
Product damages caused by improper handling as well as interference due
to strong contamination are excluded from the warranty.
The device is not protected against splash water. Do not put objects that are
filled with fluids on the device, e.g. vases.
Open fire sources such as burning candles, must also not be put on the
device.
Warranty
The Swing has a high operating safety. Please contact your specialty retailer
or contact the manufacturer directly in case that failures occur despite proper
assembly and operation. The warranty service includes the free repair as well
as the free return shipment. If possible, please send the device in the original
packing, therefore do not throw it away. The warranty expires for damages
that are caused by improper handling or repair attempts by unauthorized per-
sons (destruction of the quality seal). Warranty repairs will only be performed
when sending the completed warranty card and a copy of the invoice/sales
slip by the specialty retailer. The device number must always be listed.
Chemie
Chemical
solvents
Other manuals for Swing
3
This manual suits for next models
1
Table of contents
Other HumanTechnik Headset manuals

HumanTechnik
HumanTechnik Introson 2.4 User manual

HumanTechnik
HumanTechnik CM-BT2 User manual

HumanTechnik
HumanTechnik Earis Set User manual

HumanTechnik
HumanTechnik Tiviton DAB User manual

HumanTechnik
HumanTechnik CM-BT2 User manual

HumanTechnik
HumanTechnik cm-BT User manual

HumanTechnik
HumanTechnik Introson 2.4 User manual

HumanTechnik
HumanTechnik cm-BT User manual

HumanTechnik
HumanTechnik SONUMAXX 2.4 User manual

HumanTechnik
HumanTechnik PL-100 User manual
