Hunter Products Rollplay W488 User manual

The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions. The Mercedes-Benz Ride-on Car must be assembled by an
adult who has read and understands the instructions in this manual. Keep the packaging
away from children and dispose of properly before use.
Keep this manual for future reference.
Operator’s Manual
Model W488 6566 43541
Mercedes-Benz GL Class
Styles and colors may vary.
Made in China.
a full 24 hours (no more than 30 hours)
®

Introduction
Thank you for purchasing this vehicle from Hunter Products. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase.
Specifications:
BATTERY 6V 7AH
MOTOR 6V
AGE 3 Years and Up
MAX WEIGHT 77 lbs. (35 kg)
PRODUCT SIZE 1125X750X605 mm
SPEED 2.5MPH
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT 7.0V
Please contact Hunter Products Customer Service with any questions.
Hours: 9.00 AM - 5.00 PM (AEST), Monday - Friday
Web: www.electricrideon.com.au
Service Phone: [phone]

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
Email or call Customer Service if you need assistance or replacement
parts.
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
email:[e-mail]

4Table of Contents
Safety..........................................................5
Parts ........................................................
10Charging Instructions .............................
11Assemble the Front Wheels....................
12Assemble the Left Rear Wheel...............
13Assemble the Right Rear Wheel ............
14Attach the Steering Wheel......................
15Attach the Mirrors ...................................
16Attach the Seat ........................................
17Battery Removal ......................................
18-19Operating Instructions ............................
.........................
22Maintenance ............................................
23General Care ............................................
Troubleshooting Guide............................24-25
Service and Repairs ...............................26
Warranty ...................................................27
Product Registration...............................28
...................................6
...............7
9
User Requirements
Charging the Battery: Warnings
19
20-21
Attach the R/C batteries
Remote Control Operation .....................

5
Safety
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
WARNING!
The following safety hazards may result in serious injury or death to the user of the
vehicle Mercedes Ride-on:
This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
poly bags before assembly. Be sure to remove all packaging materials and parts
from underneath the car body.
complies with Australian Standard AS/NZS 2063:2008.
Battery posts, terminals and related accessories contain lead and lead compounds
(acid) chemicals that are toxic and corrosive. Never open the battery.
Body parts such as hands, legs, hair and clothing can get caught in moving parts.
Never place a body part near a moving part or wear loose clothing while using the
vehicle. Always wear shoes when using the vehicle.
Using the vehicle near streets, motor vehicles, drop-offs such as: steps, water
(swimming pools) or other bodies of water, sloped surfaces, hills, wet areas,
accident.
Always use the vehicle in a safe, secure environment with continuous adult
supervision. Never leave the child unattended.
Using the vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand or
Using the vehicle in an unsafe manner. Examples include but are not limited to:
Pulling the vehicle with another vehicle or similar device
Allowing more than one rider
Pushing the user from the back
Traveling at an unsafe speed
Always use common sense and safe practices when using the vehicle. Different type
of batteries or new and old batteries are not to be mixed.
This toy is unsuitable for children under 3 years due to its maximum speed.
Battery charger, electric wire plug enclosure and other parts should be periodically.
•There are additional hazards of using the toy in areas other than prirate grounds.
check for damage, if have damage, need to repair before use.
u

6User Requirements
WARNING!
Age Range 3 and 7 years
Weight Range No more than 77 lbs (35kg)
Before using the vehicle the child should understand the vehicle controls and safety
issues. They must also demonstrate the capability to handle the vehicle and
operate its controls. It is the responsibility of the adult to educate the child and
supervise the vehicles use.
Read the following safety warnings to any child using the vehicle Ride-on:
•
•
•
•
•
•
•
•
Only use the vehicle when an adult is present to watch (supervise).
Adult assembly required.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed at a time on the vehicle Ride-on.
• Children under three years old cannot use the vehicle.
• Only drive on level ground.
• Do not go near water, drop-offs or up and down steep slopes.
•gravel.
• Do not drive the vehicle on streets or near cars.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when
child is in vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
RISK OF FIRE. Do not bypass.
NEVER allow more than one (1) rider in the vehicle Ride on.

7 Charging the Battery: Warnings
• Contact or exposure to battery leakage (lead acid) may cause serious injury.
If contact or exposure occurs immediately call your physician. If the chemical is
on the skin or in the eyes, flush with cool water for 15minutes. If the chemical
was swallowed, immediately give the person water or milk. Do notgive water or
milk if the patient is vomiting or has a decreased level of alertness. Do not induce
vomiting.
The following safety hazards may result in serious injury or death to the user of the
vehicle:
WARNING!
•
•
• Explosive gases are createdduring charging. Charge the battery in a well
ventilated area. Donot chargethe battery near heat or flammable materials.
• Contact between the positive and negative terminals may result in fire or explosion.
vehicle direct contact between the terminals.Picking upthebattery by thewiresor
charger can causedamagetothe battery and may result in a fire. Always pick up
the battery by it’s case or handles.
• Liquids on the battery may cause fire or electric shock. Always keep all liquids
away from the battery and keep the battery dry.
Use of a battery or charger other than thesupplied 6vrechargeable battery and
charger may cause a fire or explosion. Only use the supplied6v rechargeable
battery and charger withthevehicle.
Using the 6v rechargeable battery and charger forany other productmay result in
over heating, fire or explosion. Never use the6vrechargeable battery and charger
with another product.

8Charging the Battery: Warnings
WARNING!
WARNING!
•
Important! Before using the vehicle for the time the battery needs to be charged for
a full twenty-four hours (no more than thirty hours). Only an adult who has read and
understands the following safety warnings should handle, charge or recharge of the
battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for charging. However,
if the adapter cord will not safely reach a 240V wall outlet, the battery can be removed
for charging (see page 10 for instructions concerning battery replacement).
• Tampering or modifying the electric circuit system may cause
or explosion and permanently damage to the system. Exposed wiring, circuitry
in the charger may cause electric shock. Always keep the charger housing
closed.
Battery posts, terminals and related accessories contain lead and lead
compounds (acid), chemicals and are toxic and corrosive. Never open the
battery.
• Non-rechargeable batteries are not to be recharged;
• Batteries are to be inserted with the correct polarity;
• Exhausted batteries are to be removed from the toy;
• The supply terminals are not to be short-circuited.
• Rechargeable batteries are only to be charged under adult supervision;
• Rechargeable batteries are to be removed from the toy before being charged;

9
Parts
1. Manual
2. Battery
3. Battery Charger
4. Car Body
5. Windshield*
6. Mirrors (2)
7. Front Light*
8. Front Light Cover*
9. Dashboard*
10. Steering Wheel
11. Door
12. Seat
13. Back Empennage*
14. Rear Decoration*
15. Tail Light*
16. Front Wheel
17. Rear Wheel
18. Thick Washer
19. Flat Washer
20. Snap Pins (4)
21. Rim
22. Hub Cap
23. Remote controller
Phillips screwdriver
Pliers
2 AAA Batteries
Not Included:
*Parts denoted with an asterik are pre-assembled on the vehicle
1
2
3
4
5
69
6
7
7
8
10
11
11
15
16
18
19
20
20
21
21
22
22
19
17
14
12
13
23

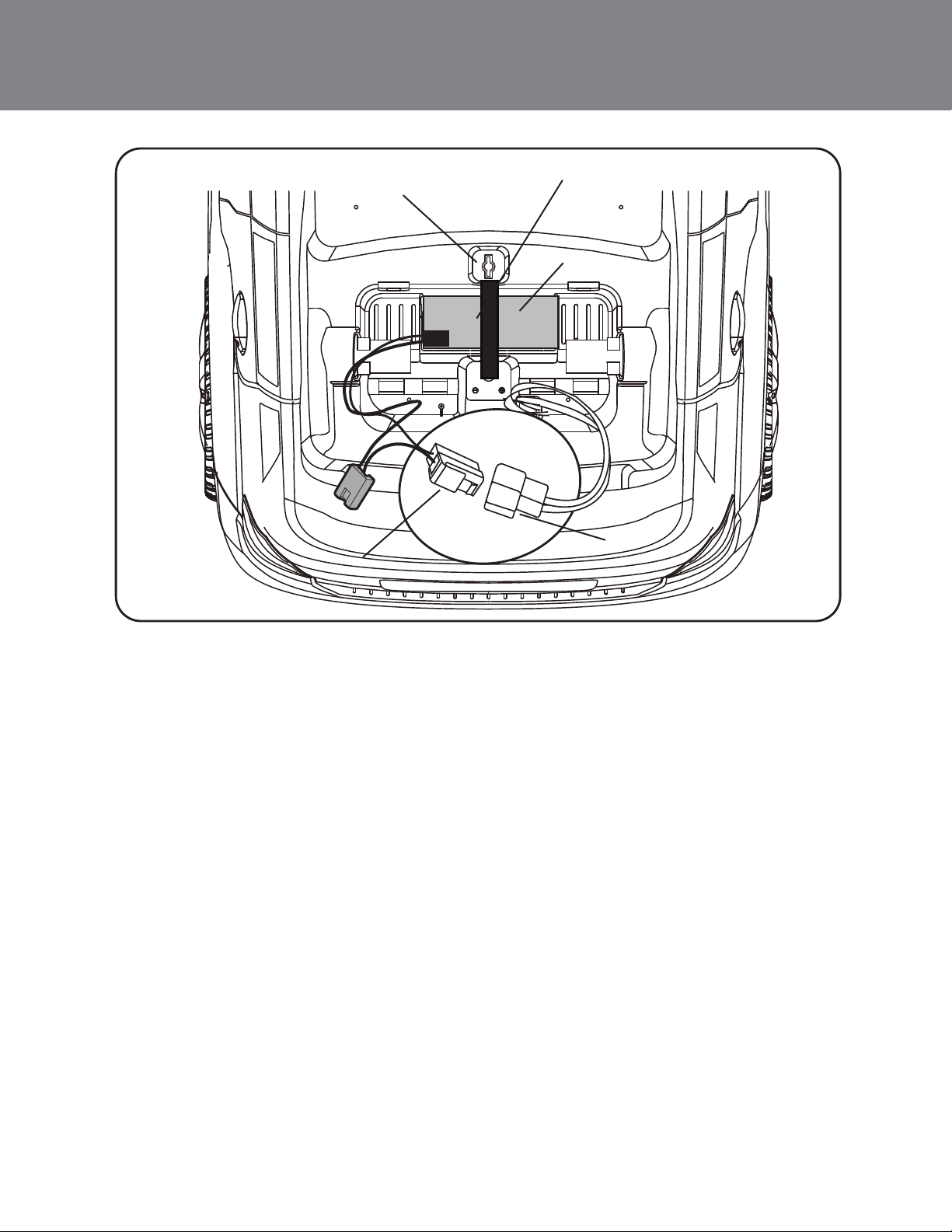

10 Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the car is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
240 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 17.
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Bracket
Car Seat Slot
B
A
C
D
A

11

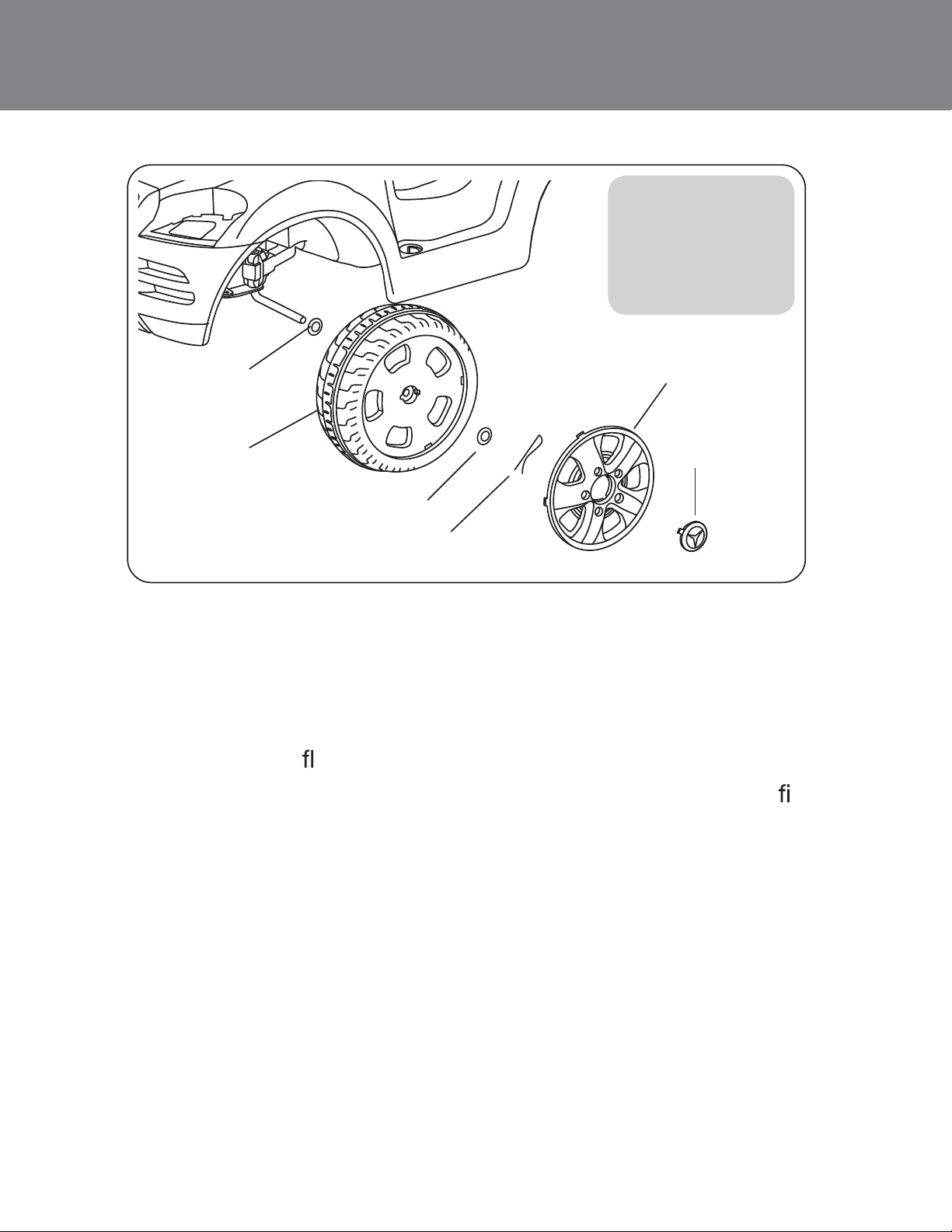

Assemble the Front Wheels
1. Slide the front thick washer (18) onto the front axle.
2. Slide the front wheel (16) onto the front axle.
3. Slide the front at washer (19) onto the front axle.
4. Slide the snap pin (20) into the hole on the front axle until rmly
attached. Tip: Pliers may be helpful when removing the snap
pin.
5. Snap the rim (21) onto the wheel.
6. Snap the hub cap (22) onto the completed wheel assembly.
7. Repeat steps 1-6 for the remaining front wheel.
21
22
20
19
16
18
Helpful Tip:
1. Using pliers will
make it easier to
remove the snap pin
from the wheel axle

12 Assemble the Left Rear Wheel
Left Rear Wheel:
1. Slide the rear thick washer (18) onto the left rear axle.
2. Slide the orientation sleeve onto the left rear wheel axle.
3. Slide the left rear wheel (17) onto the left rear axle. The side with
the gear teeth faces inward.
4. Slide the rear at washer (19) onto the left rear axle.
5. Slide the snap pin (20) into the hole on the left rear axle until
rmly attached.
6. Snap the rim (21) onto the left wheel assembly.
7. Snap the hub cap (22) onto the completed left wheel assembly.
21
20
22
19
17
18

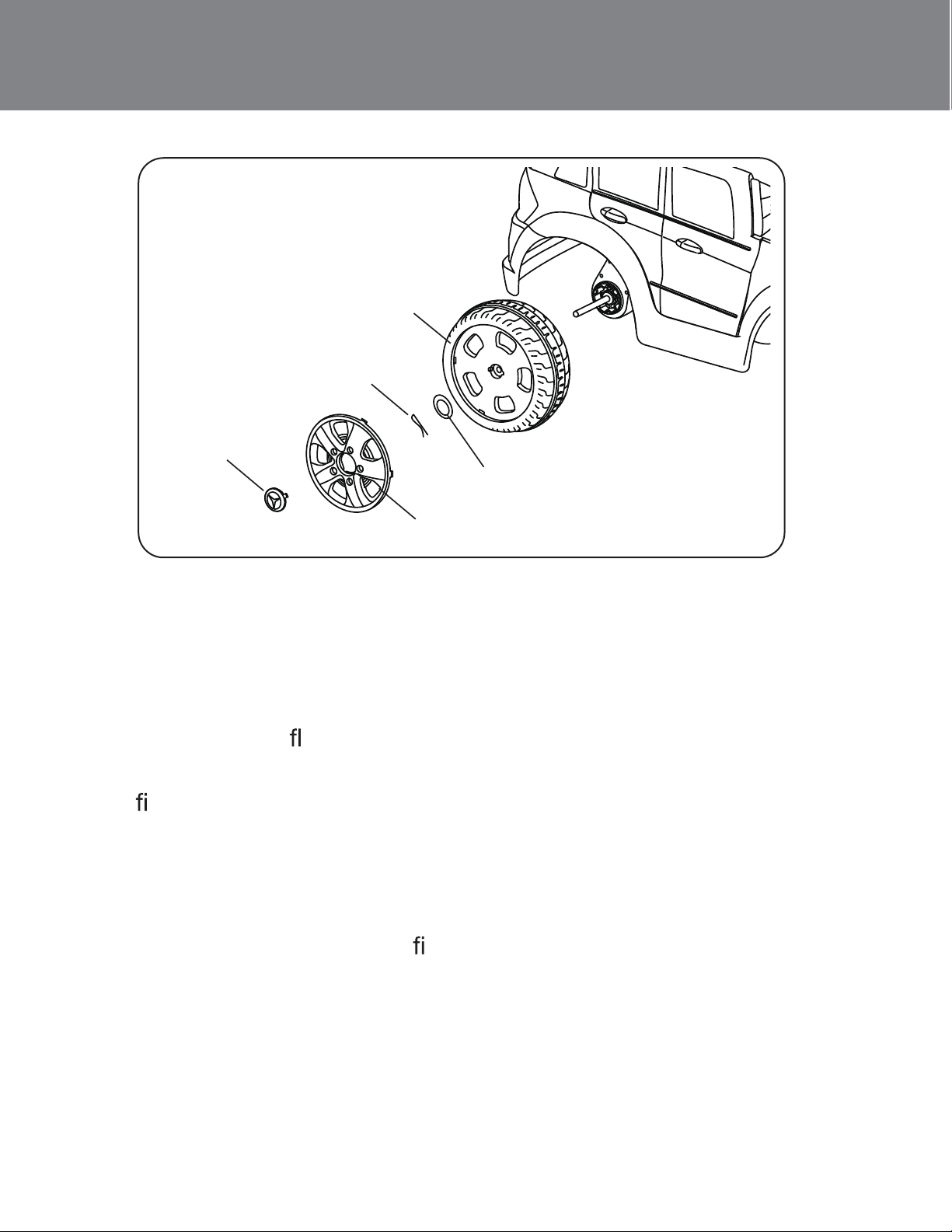

13
Right Rear Wheel:
1. Slide the right rear wheel (17) onto right rear wheel axle. The
side with gear teeth faces inward. (Note: the gear teeth must
engage with the gear box.)
2. Slide the rear at washer (19) onto the right rear axle.
3. Slide the snap pin (20) into the hole on the right rear axle until
rmly attached.
4. Snap the rim (21) onto the right wheel.
5. Snap the hub cap (22) onto the completed wheel assembly.
Assemble the Right Rear Wheel
Helpful Tip:
1. If you encounter trouble tting both wheels onto the rear axle,
then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two
hands, push down on the rear wheel axle and slide it gently
toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above
steps to assemble the wheels.
21
19
17
20
22

14 Attach the Steering Wheel
1. Remove the screw and nut from the steering wheel assembly before
attaching
2. Insert the steering wheel (10) into the steering rod, and match
the screw holes of the steering wheel with the screw holes on the
steering rod
3. Insert the screw into the hole and fasten the nut to secure
Steering wheel requires 2 x 1.5V AAA batteries
1. Open the battery compartment cover with the screwdriver
2. Insert the two batteries into the battery compartment
3. Replace the battery compartment cover and securely close with the
screw
Note:
If steering wheel sounds become distorted or slow, please change the
batteries based on the above procedure.
• DO NOT mix old and new batteries.
•
DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickelcadmium)
batteries.
WARNING!

15
Attach the Mirrors
1. Align the holes of the left side mirror (6) with the hole on the mirror
hinge.
2. Insert the screw through the mirror and mirror hinge holes. Screws
come installed on the mirrors.
3. Screw a small nut to the bottom of the screw, don’t over tighten.
4. Repeat steps 1-3 for the right side mirror.

16 Attach the Seat
1. Locate the bracket behind the back of the car seat (12)
2. Align the car seat bracket with the car seat slot and the T-Lock with
the car seat lock hole. Lower the seat into place.
3. Lock the car seat in place by using a coin to tighten the T-Lock
located in the center of the car seat bottom.
4. To remove the seat, turn the T-Lock to unlock position and pull the
seat upward.
Bracket
Car Seat Slot

17
Battery Removal
1. Disconnect the red battery connector (A) from the red engine
connector (B)
2. Loosen and remove the screw
3. Unfasten the battery from the strap
4. Remove the battery.
Note: It is not necessary to remove the battery for charging. However, if
the battery does not reach the outlet, it can be removed for charging.
Screw Battery Strap
Battery
BA

18 Operating Instructions
To turn on the vehicle, turn the power switch to “On”
Push the shifter upward to move forward. Pull the shifter downward to
go in reverse
Press Manral/Remote control switch to adjust the function controlled
by manual/RC.
Press the foot pedal down to go. Release the foot pedal to stop
shift handle
dashboard light
power switch pedal
manual/rc
battery power
battery power button
MP3 jack
reset
turning
on/off
• Battery Life Button: When the car is on, press the battery life indicator
button to check the battery life.
• Battery Life Indicator: Green, Yellow, Red Lights: Battery is fully charged.
Yellow, Red Lights: Battery power is low. Red Light: Battery is extremely
low and needs recharging.
• MP3 Connector: Insert the MP3 cable into the MP3 jack and connect to
an MP3 device. Turn the MP3 on by rotating the on/off dial. To adjust
the volume, rotate the dial.
• FM Radio: Touch the adjustment key to adjust program when turn on the
power and radio power; auto reset key can sure the program to original.

19
Operating Instructions

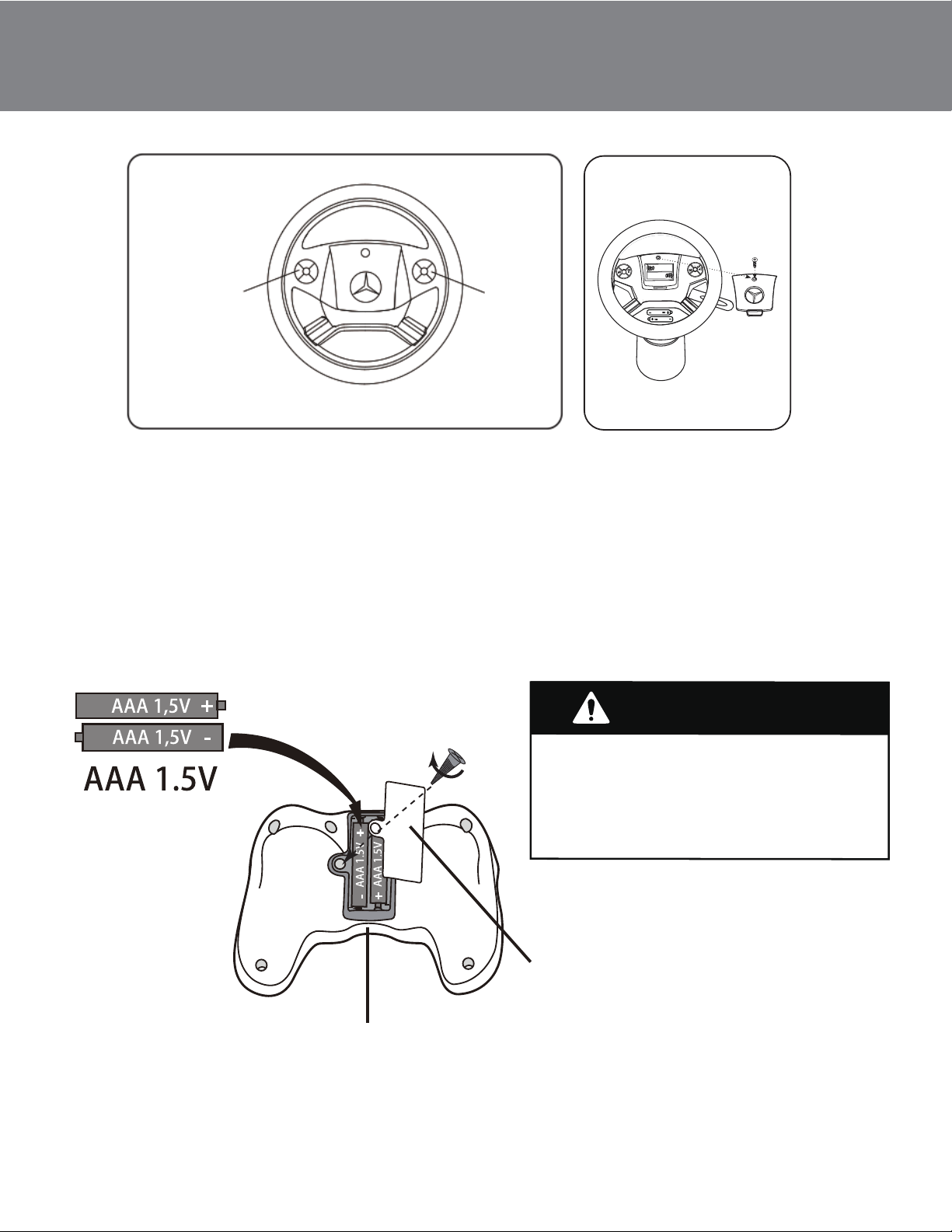

Attach the R/C batteries
• DO NOT mix old and new batteries.
•
DO NOT mix alkaline, standard
(carbon-zinc), or rechargeable
(nickelcadmium) batteries.
WARNING!
Open the battery cover. Take out the old batteries and replace with new
one. Then close the battery cover. Please change the battery following
step above when the red light off on R/C found.
Battery cover
R/C
• Press the left and right buttons on the steering wheel to make sounds.
• Note: The steering wheel requires 2 x 1.5V AAA batteries to make
sounds.
Sounds
Sounds

20 Remote Control Operation

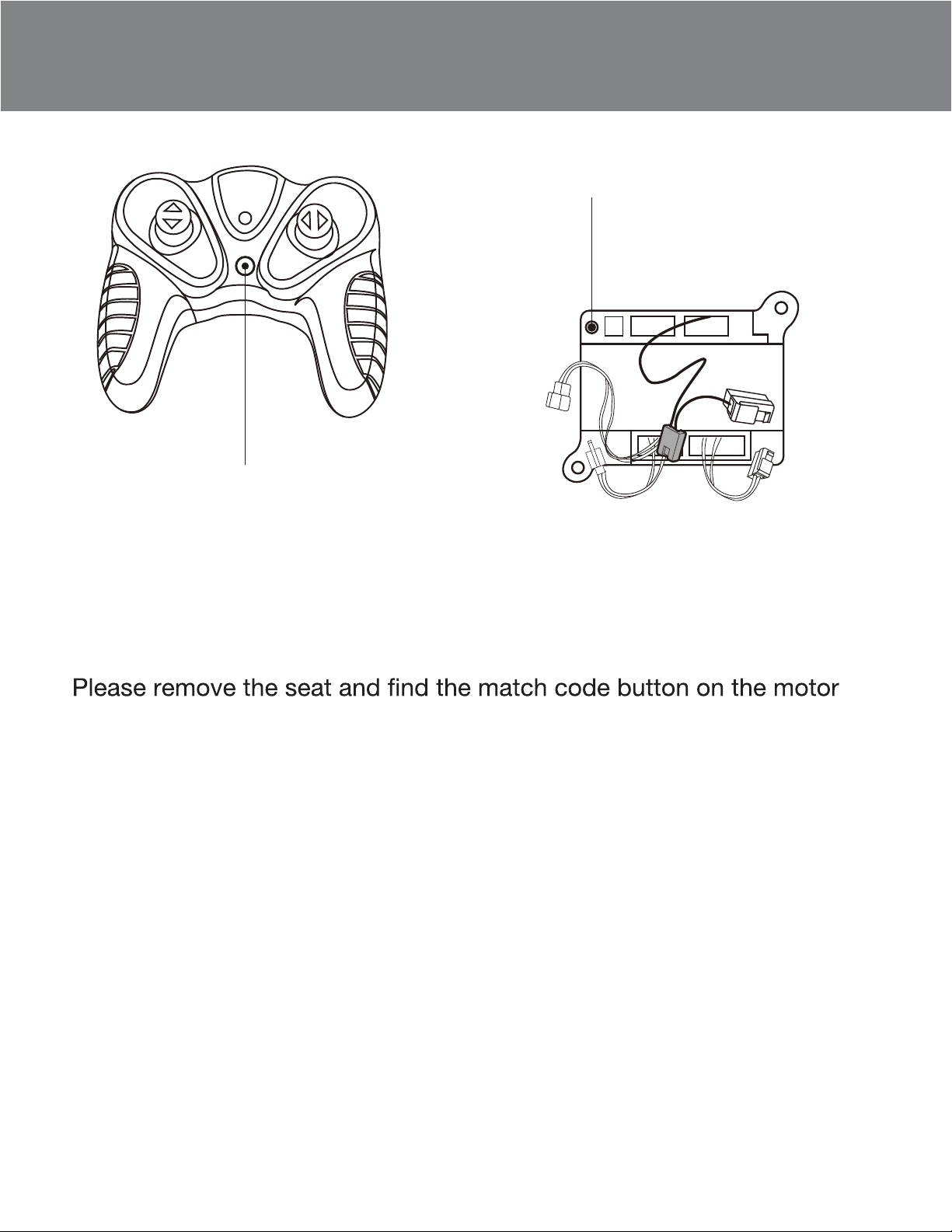

Matching the code
control board, then use a clip or toothpick to press the code buttons at
the motor control board and on the remote-control at least 5 seconds at
the same time, you will see the LED indicator on the remote control blink-
ing, when it stops blinking and turns to light on status, it matches suc-
cessfully, you can release the button now.
If it keeps blinking over 10 seconds, the match fails and the LED indicator
will be off. The reason may be that the time you press the button is less
than 5 seconds, or you didn’t press the two buttons at the same time.
To match the code again, please release the code buttons and repeat
above steps.
Sleep mode
If you don’t operate the car in 8 hours after you turn on the power switch,
the car will shift to sleep mode automatically. If you want to use the unit,
please turn the power switch off and restart it to activate.
Coding switch
Coding switch
Don't match the code when using R/C for the rst time; if R/C isn't
workable, then please follow the below guide to match the code.
