Husky HOAA52JX1 User manual

THANK YOU
USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday,
1-888-HD-HUSKY
HUSKYTOOLS.COM
We appreciate the trust and confidence you have placed in Husky through the purchase of this pegboard. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
Model # HOAA52JX1
HUSKY 52-72 IN. ADJUSTABLE PEGBOARD
THD.com # 1006 250 269
9 a.m. - 6 p.m., EST, Saturday

Table of Contents
Table of Contents ...................................................... 2
Safety Information
........................................................ 2
Warranty ........................................................................ 3
Pre-Assembly
.......................................................
4
Assembly ................................................................
Operation .....................................................................
Safety Information
Do not alter this product in any manner.
DANGER: Do not stand on this product. You
may fall or cause the product to tip.
WARNING: When assembled to a workbench, keep
the unit on a level surface. The unit may become unstable
and tip if stored or moved on an uneven surface.
CAUTION: Do not exceed the maximum
weight loading capacity. See Specifications on page 4.
CAUTION: Only transport this product when
empty. Properly secure when transporting.
Do not let children approach the product.
Care and Cleaning
.......................................................
Service Parts
.......................................................................
Tools Required .............................................................. 4
Hardware Included .......................................................
Specifications ................................................................ 4
Package Contents
................................................
5
6-7
8
9
1.
2.
2
4
8

Warranty
The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date of
purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is
found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the
manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration
neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in
any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product
as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or
workmanship. This warranty shall not apply to the finish on any portion of the products such as surface and/or weathering, as this is
considered normal wear and tear.
The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied, of fitness for a particular purpose,
other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential
or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
3

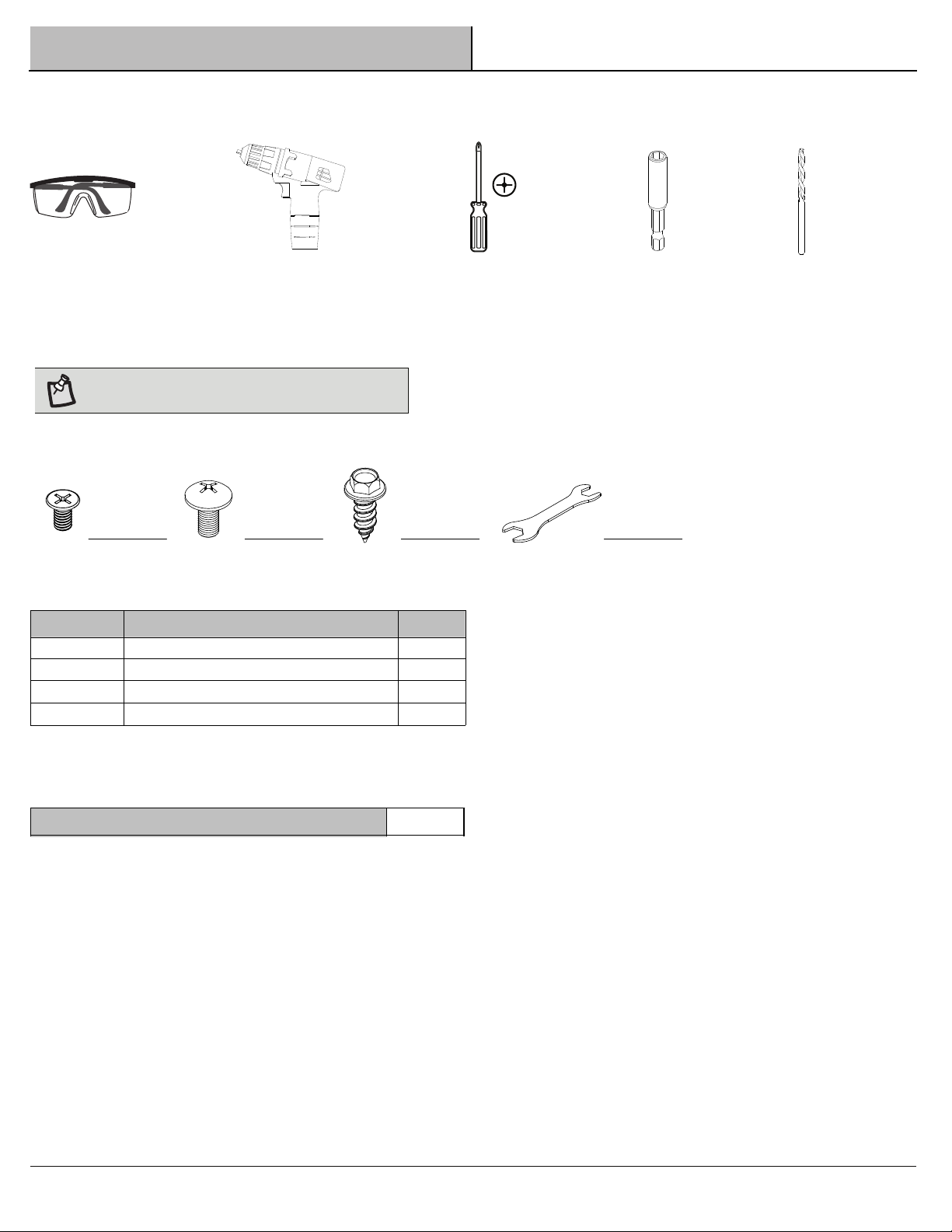

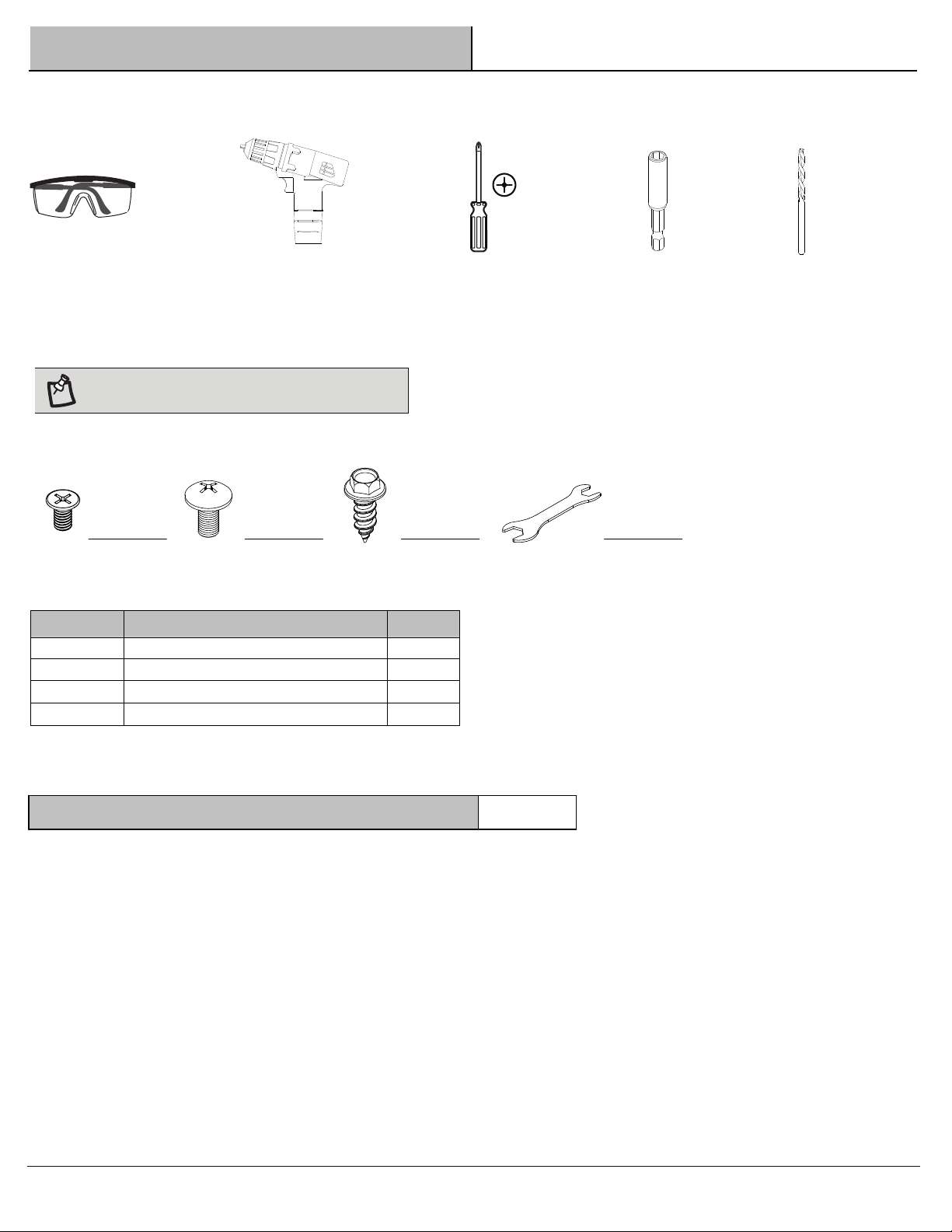

Pre-assembly
TOOLS REQUIRED
Safety
goggles
HARDWARE INCLUDED
SPECIFICATIONS
AA
BB
Screw M4 x 10L 8
20
AA BB
Maximum capacity 150 lbs
4
NOTE: Hardware not shown to actual size.
Part Description Quantity
Phillips
screwdriver
Power
drill
CC DD
CC
DD
10
1
Screw M6 x 12L
Bolt 1/4" x 3/4"
10 mm/13 mm wrench
10 mm.
socket
1/8 in.
drill bit

Pre-assembly (continued)
HUSKYTOOLS.COM

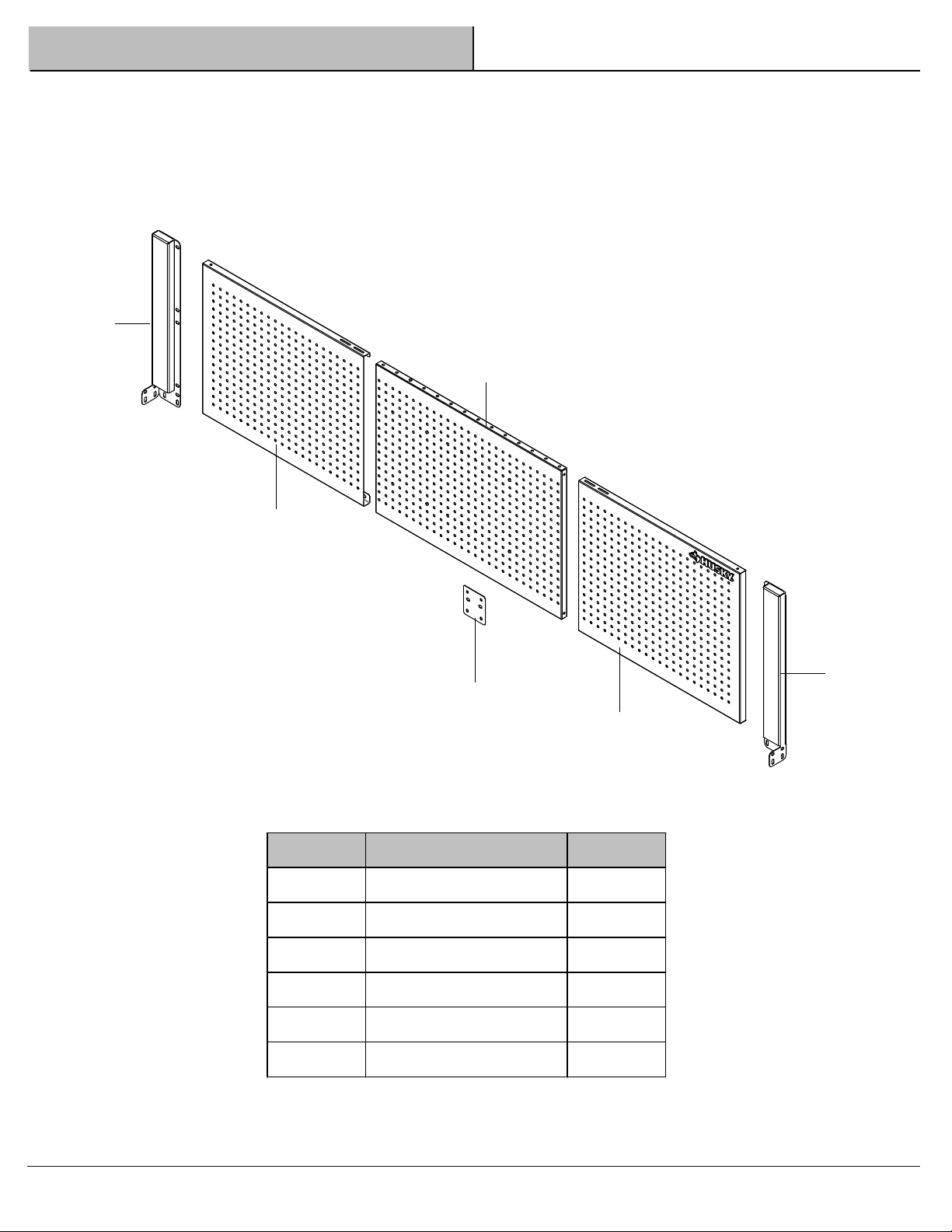

PACKAGE CONTENTS
5
C
A
E
F
Please contact 1-888-HD-HUSKY for further assistance.
Part Description Quantity
A Left pegboard panel 1
B Right pegboard panel 1
C Middle Pegboard panel 1
D Reinforcement panel 1
E Left Support post 1
F Right Support post 1
B
D

Assembly
Mounting the Pegboard to
1.
Place the right support post (F) on the back of the mobile
Attach the right support post (F) to the back of the mobile
Attach the left pegboard panel (A) to the left support post (E)
6
A.
6
WARNING: Use special care to not over-tighten any of the
but do not tighten at this time.
Insert the middle pegboard panel (C) to the left pegboard (A)
Husky Mobile Workbench
screws to avoid damage to the pegboard or mobile workbench.
workbench. Ensure the support post is flush and level.
workbench using four screws (BB).
3.
using four screws (BB). Secure the pegboard to the post,
4.
and push it to the deepest position.
F
E
Repeat step 1 for left support post (E) .
2.
Attach the right pegboard panel (B) to the right support post (F)
but do not tighten at this time.
5.
using four screws (BB). Secure the pegboard to the post,
E
BB
A
BB
F
B
C
A
Pull the middle pegboard panel (C) back to middle position.
6.

Assembly ( )continued
7
Secure the three panels to each other by using four screws (AA)
Attach the reinforcement panel (D) to the middle pegboard panel
Repeat step 9 to drill four holes for the other support post (E).
7.
to the front side of panels first and four on the top of panels.
8.
(C) and workbench by using four screws (BB) .
9.
10.
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
AA
Using a power drill and 1/8 in. drill bit, drill four holes into the
3/4 in. depth into the wood top to avoid damage to the mobile
sides and back of the wood top of the workbench on right
D
BB
C
support post (F). Ensure you drill on a level plane and only
F
D
E
workbench.
and two holes for panel (D) .
11. Secure the right support post (F) to the back of the mobile
Secure the post but do not tighten the screws at this
Repeat step 11 to attach the left support post (E) and using two
workbench using four bolts (CC) and a 10 mm socket.
time so that the support post has some movement.
F
D
E
CC
12.
bolts (CC) to attach the reinforcement panel (D) .
Tighten all screws at this step.
13.

8
□
Care and Cleaning
®
(Windex or equivalent product) to clean and maintain
To help protect this finish, do not allow harsh chemicals such as
oil or grease to remain on the surface. Use a glass cleaner
all stainless surfaces.
Operation
The peg holes will accommodate all standard size 1/8 in. and 1/4 in.
peg hooks.

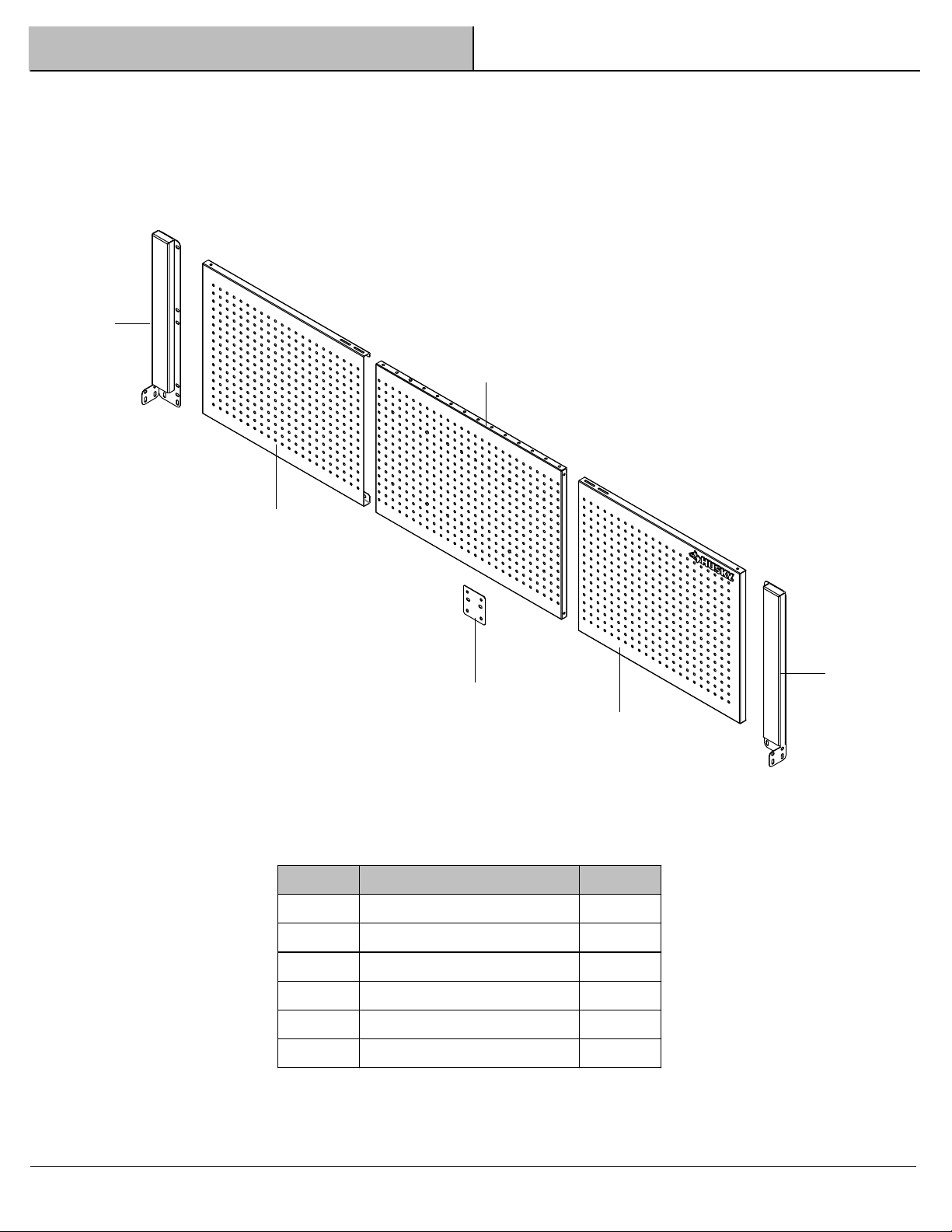

Service Parts
9
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
C
A
E
F
Part Description Quantity
A Left pegboard panel 1
B Right pegboard panel 1
C Middle Pegboard panel 1
D Panel Reinforcement 1
E Left Support post 1
F Right Support post 1
B
D

Questions, problems, missing parts? Before returning to the store, call
Husky Customer Service
8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. EST Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
