Hydor HV800 User manual

Installation and Maintenance Instructions.
THESE INSTRUCTIONS MUST BE READ FULLY BEFORE COMMENCING INSTALLATION.
Owner / installer: The life of this apparatus and its eciency will be increased if
its use and maintenance is carried out in accordance with these instructions and
current statutory requirements. The installation and initial adjustments should be
carried out by a qualified and competent technician. Hydor Limited should be
consulted before substituting or fitting parts from another manufacturer. It is the
responsibility of the installer to verify that the installation is in accordance with
the following standards and the owner is given the current User’s Manual.
Any modifications to the fan or its installation, even the smallest
modification, change or elimination of security components or pieces that
influence the eciency or loss of ventilation, will result in the CE Certification
and Hydor’s warranty being cancelled.
HV Mobile Belt Drive Fan
incorrect
correct, minimum height 5mm
Please take note of the following symbols used within this document:
Warning: Hazards associated with electric current and high voltages
Important: Important information
Hydor’s policy is one of continual improvement and the right to change a specification at any time
without notice is reserved. Whilst every care has been taken to ensure that the contents of this
document are correct at time of publication, Hydor shall be under no liability whatsoever in respect
of such contents.
Hydor cannot guarantee the operation of any equipment unless all documented instructions are
complied with, without variation.
Hydor is a registered trademark of Hydor Ltd and is a member of Elta Group. All other trademarks,
trade names or company names referenced herein are the property of their respective owners.

1. General
1.1 A range of HV Belt Drive units
HV800
HV1000
HV1250 (1.1kW)
1.2 Incorporating ecient IE2 and IE3 motors/impellers, galvanised body with
stainless steel blades.
1.3 Service items include:
Replacement belt
Replacement motor pulley
1.4 Details of the HV Belt Drive supplied are given on the nameplate attached
to the side of the unit; if assistance is required please quote the model and
serial number.
2. Health and Safety
2.1 These instructions cover only the Hydor product and do not include
the supply or installation of any safety equipment that may be required
e.g. adequate guarding or protection from rotating parts and proper
electrical isolation.
2.2 Any declarations made by Hydor about product installation and safety are
dependent on the equipment being used within installations which
themselves meet the requirements of the Standards and Directives of your
region.
2.3 This product is not intended to be operated by young children or infirm
persons unless they have been adequately supervised by a responsible
person to ensure that they can use the product safely. Young children
should be supervised to ensure that they do not play with the appliance.
2.4 Adequate site plant and lifting equipment should be made available to lift
and position the HV Belt Drive.
2.5 The HV Belt Drive is intended only for the transportation of clean air
mixtures. Use in potentially hazardous or explosive areas or for
transportation of gas, mist, vapours or their mixtures are NOT permissible.
The transportation of solid materials or similar materials in a transport
media is NOT permissible.
2.6 Misuse can lead to physical injury or damage to the fan or installation.
All electrical installations must be carried out by suitably qualified and
competent personnel in accordance with local regulations.
3. Delivery
3.1 All HV Belt Drive units are tested and inspected prior to despatch and
leave the factory in good condition. Upon receipt, it should be examined
for visible damage, ensure that the impeller is free to rotate and that all
parts listed on the delivery note are present.

3.2 Any damage or shortages should be notified to the carrier immediately.
3.3 Hydor cannot accept any responsibility for damage sustained whilst
unloading from the carrier, or subsequent damage on Site.
3.4 If there are any queries concerning the fan unit, Hydor should be
contacted prior to installation.
4. Electrical Connection
4.1 The HV Belt Drive mobile is supplied with a length of flex terminated into a
standard UK 3 pin plug. The circuit that the unit is connected too should
feature suitable protection to protect the motor in the event of an
overload.
Speed Control
4.2 Speed controlled versions of the unit feature a 3 position switch to operate
the unit.
Break In Period
4.3 The unit uses a belt to drive the fan from the motor. The belt tension
should be checked after the first 2-3 days use (48-72 hours usage) because
it will naturally stretch to its final length during this time. See maintenance
section bellow for details on how to adjust the belt tension.
IMPORTANT: Failure to adjust the belt tension after break in will lead to a
reduced life of your fan through pulley wear, motor wear and premature
failure of the belt. This is not covered under warranty.
WARNING: The fan(s) must be isolated from the power supply during
installation and maintenance.
5. Troubleshooting
5.1 If the fan is under-performing check the following:-
Belt tightness (see section 6)
5.2 If the fan is making unwanted noises check the following:-
Belt tightness (see section 6)
That the unit is square on even ground
5.3 If the belt continues to slip after tightening, it is possible the motor pulley
has become damaged. In this instance please contact your distributor for a
replacement pulley.
IMPORTANT: Most problems with the unit can be avoided by maintaining
the belt tension.

6. Maintenance
WARNING: The fan(s) must be isolated from the power supply during
installation and maintenance.
6.1 Only a suitably qualified and competent person may carry out
maintenance after the electrical supply has been isolated.
Internal Access
6.2 To access the internals of the fan, an 8mm hex head socket should be
used to remove the fixings around the wire guard. Removing the wire
guard is expected for maintenance and will not void your warranty.
6.3 Inspection of the fan at least once every 6 months is recommended
to ensure that the motor, fan blades, and supporting guards, are clean.
Any build-up of dust and deposits on the blades, motor or guards should
be removed using a non-abrasive cleaner. Failure to keep the unit clean
can lead to overheating and damage which is not covered by the
warranty.
6.4 All fastenings should be checked for tightness. In addition, all rotating
items should be checked.
6.5 Bearings are of the “sealed for life” variety and will not need a detail
inspection.
Belt Tension
6.6 Belt tension should be checked after the first 2-3 days use (48-72 hours
usage) and then periodically depending on use.
6.7 Allow 15-20mm deflection for the correct tension.
Please note over tensioning will dramatically aect the longevity of the
unit.

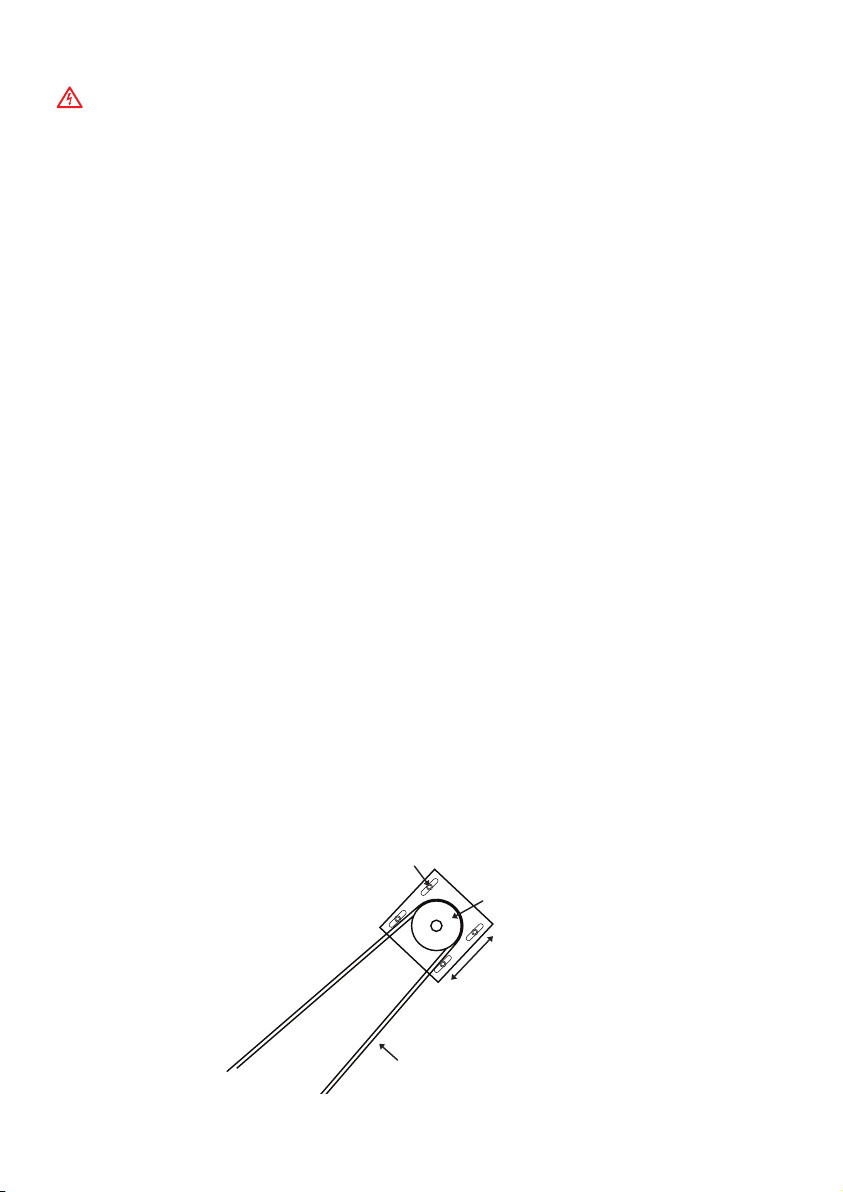

6.8 To tension the belt, loosen but not remove the four 14mm hex head nuts
holding the motor in place, slide the motor until the required tension is
found and then re tighten.
Belt
Pulley
14mm
Nuts
Slide motor in grooves
to loosen / tighten

Technical Support
Contact your distributor for technical support on this product.
Do not call the Hydor technical support department unless your distributor has
first given their advice and attempted to rectify the issue.
Technical support will not be available if the instruction manual has not been
read and understood. Please have this instruction manual available whenever
you call for technical support.

Notes

Notes

Guarantee
Hydor or its agents will, within a period of 1 year from the date of dispatch from their
works, repair or, at its option, replace any goods, which are proven to have defects as a
result of defective materials or workmanship.
The goods MUST be returned to Hydor, carriage paid, for examination. A Hydor
Engineer or appointed person should attend to carry out any work, unless otherwise
agreed. Hydor will not accept accounts for workmanship by others.
Please see the Hydor warranty booklet for full details on submitting a warranty claim.
Any modifications to the system or its installation, even the smallest modification,
change or elimination of security components or pieces that influence the eciency
or loss of ventilation, will result in the CE Certification and Hydor’s warranty being
cancelled.
