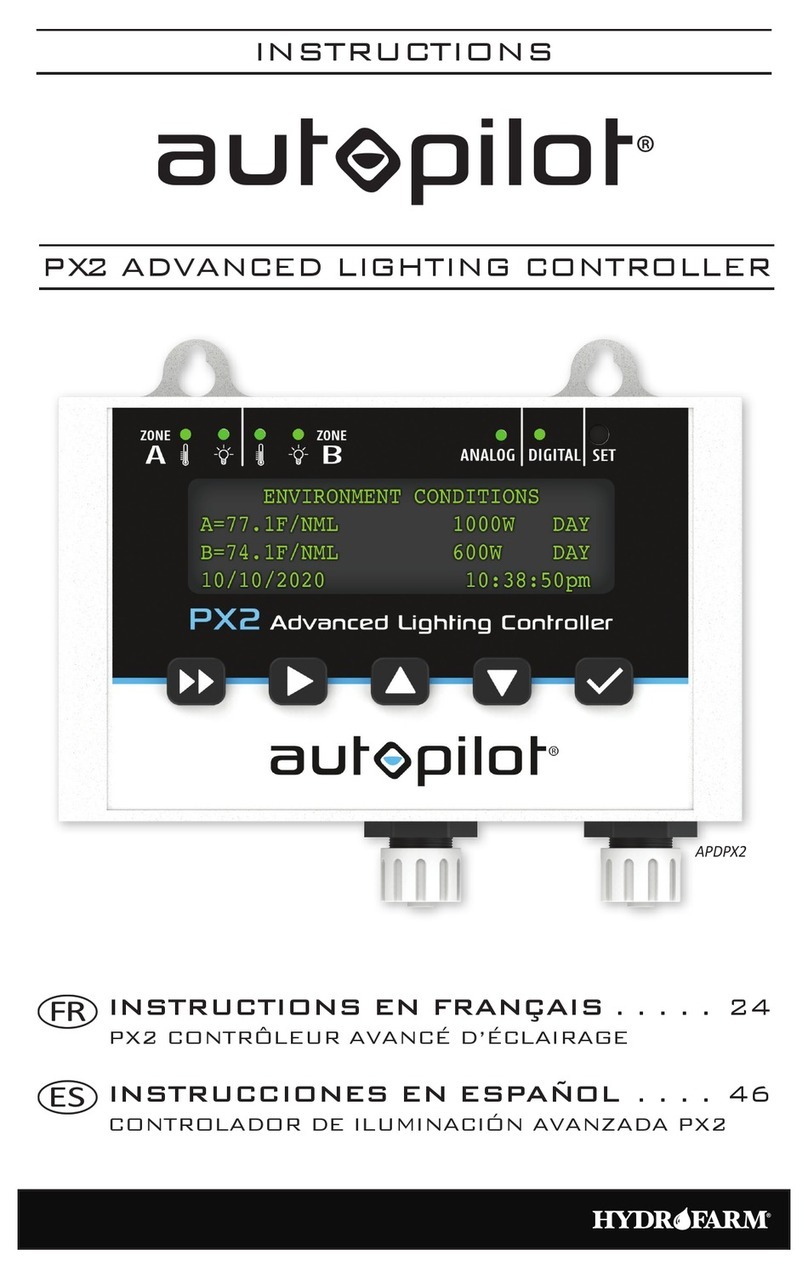

Hydrofarm Autopilot PX2 User manual

INSTRUCTIONS
APDPX2

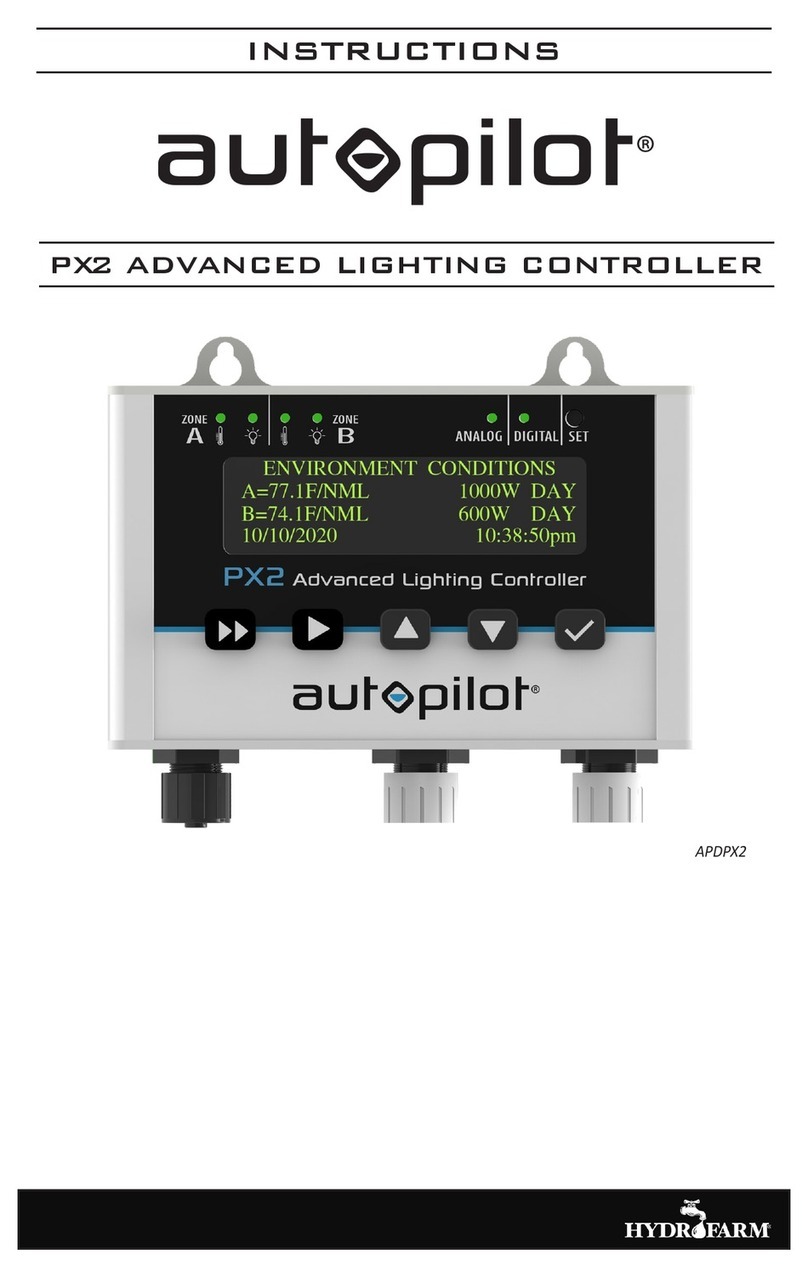

PX2 ADVANCED LIGHTING CONTROLLER
INSTRUCTIONS EN FRANÇAIS ..... 24
PX2 CONTRÔLEUR AVANCÉ D’ÉCLAIRAGE
INSTRUCCIONES EN ESPAÑOL .... 46
CONTROLADOR DE ILUMINACIÓN AVANZADA PX2

Hydrofarm.com 2
The Autopilot PX2 Advanced Lighng Controller provides precision photoperiod control of
up to 512 xtures in two independently controlled zones, all from one centralized locaon.
Designed to work with any controllable Phantom or Core HID xtures, as well as PHOTOBIO LED
xtures, the PX2 can control 512 digital HID xtures (256 per zone), or 100 analog LED xtures
(50 per zone). The PX2 oers the exibility to operate both zones analog or digital, or one zone
analog and the other digital. With this versale, dual-zone conguraon, growers can ...
• Optimize spectral treatments by checkerboarding lighting technologies within the same
environment (e.g., HPS with CMH, LED with CMH)
• Save power by checker boarding identical fixtures while reducing output to one of the zones
during the light cycle within the same environment
• Alternate rows and zones within the same environment
• Enhance uniformity by independent control over perimeter versus interior of the
environment
Powerful features, precise and independent controls
The PX2 provides independent control of the following features in each of its dual zones:
• Photoperiod timing to control light and dark cycles
• Photosynthetic photon flux control to precisely schedule the PPF being emitted from fixtures
during the light cycle (wattage or percentage)
• Auto-dimming when temperature exceeds set points
• Emergency auto-shutdown of lights upon user-defined over-temperature events
• Configurable restrike delay times to eliminate lamp-damaging hot starts
• Sunrise/sunset simulation settings to provide a gradual ramp-up and down at both ends of
your photoperiod
• Built-in battery backup
Two dedicated temperature sensors, one for each zone
These sensors provide real-me data for automated temperature-based dimming, as well as
a high temperature shutdown feature that protects your garden. The PX2 eliminates inrush
current and replaces tradional lighng contactors, reducing infrastructure investment.
Updated locking signal and data cables
All cables are shielded from electromagnec interference to ensure uncompromising signal
reliability and communicaon.
WHAT’S IN THE BOX
The Autopilot PX2 Advanced Lighting Controller (APDPX2) includes:
1 – Autopilot PX2 with locking mini 3P IP65 female lighng
connectors
1 – 5' 100V–240V, 50/60 Hz
power adapter
2 – 50' white temperature probes 2 – Mounng screws
2 – 20' locking mini 3P M-RJ 6P white RF shielded data cable
(for controllable Phantoms with a USB port)
1 – Instrucons
2 – 20' locking mini 3P M-2P white RF shielded data cable
(for PHOTOBIO xtures with an LLT connector)
SPECIFICATIONS
TECHNICAL PARAMETERS
Voltage HID 100–240V Qty of zones can be controlled Max 2
Frequency 50/60Hz Qty of HID fixtures can be controlled Max 256 x 1 zone
Power source
for controller 5V/2A Qty of LED fixtures can be controlled Max 50 x 1 zone
OVERVIEW

3
INSTALLING THE PX2
1. Securely wall mount the PX2 at eye level outside
the growing environment, using the provided
screws and mounng holes.
2. Plug the power adapter into an outlet and connect
the other end to the PX2 power supply port (A –
see image above). Ensure threaded connecon is
ght.
3. Plug the temperature probes into the
corresponding ports (B, D) and run your probe
cables their full length up to and across the ceiling,
toward the center of the grow space. Suspend the
probes above the plant canopy. Take care not to
stress or damage the probe cables when securing
them to walls and ceilings.
4. Connect the zone signal cables (C, E).
IMPORTANT: A bare probe receiving direct light from a xture can cause premature dimming
and/or inaccurate temperature readings. When seng up the temperature probes, shield them
from exposure to direct light.
INSTALLATION
4" (99.8 mm)
1
3
2
456
1 SET buon
2 Turn the page
3 Cursor Right
4 Increase
5 Decrease
6 Menu/
Conrm/Save
APower supply port
BTemperature probe
port Zone A
CSignal port Zone A
DTemperature probe
port Zone B
ESignal port Zone B
OVERVIEW
Mounng holes
C EDB
A
1" (27.1 mm)
5" (127.5 mm)

Hydrofarm.com 4
SYSTEM SETTINGS
The Systems Sengs screen is where the
controller’s overall seng are dened for
both zones.
1. Press to cycle to the
SYSTEM SETTING menu.
2. Press to highlight the value you
want to change. Press or to
select the correct seng, then press
to conrm.
Value Opons
Temperature unit F or C
Power unit % or W
Hour format 12H or 24H mode
Time Hours/Minutes (AM/PM will adjust automacally)
Date Month/Day/Year
Reset Resets to factory default sengs
3. Repeat step 2 to set all values.
4. Press to save the sengs.
ANALOG/DIGITAL SETUP
Before starng the display setup, you
must complete the Analog/Digital setup.
1. Using a pen or other small object,
press the recessed SET buon 1to
cycle through the following opons.
1
ANALOG AND DIGITAL SETUP:
Zone A = Analog
Zone B = Digital
DIGITAL SETUP:
Each zone can support a maximum of 256 HID digital
(RS-Protocol) xtures.
ANALOG SETUP:
Each zone can support a maximum of 50 LED or HID
analog (0-10V or 0-11.5V) xtures.
INSTRUCTIONS

5
ZONE A SETUP
Presssto cycle through the following
opons: Zone A Setup; Zone A Output
Schedule; Zone B Setup; Zone B Output
Schedule; and System Seng.
NOTE: All sengs must be saved by
pressing for the controller to operate.
Pressing twice will take you back to
the ENVIRONMENT CONDITIONS home
screen. 45 seconds of inacvity will
automacally revert to home screen.
1. Press and enter the ZONE A menu.
2. Press to cursor through the values and highlight the value you want to change.
Press or to select the correct seng, then press to conrm.
Ensure zone Status is set to “OFF” prior to the inial me OUTPUT SCHEDULE programming
on Zone setup.
Value Descripon
Type Type of lights installed in ZONE A (or B): 1000W MH, 1000W CMH, 1000W HPS,
945W CMH, 750W MH, 750W HPS, 630W CMH, 600W X 2 HPS, 600W X 2 MH,
600W MH, 600W HPS, 400W MH, 400W HPS, 315W x 2 CMH, 315W CMH, 250W
MH, 250W HPS, 680W LED, 640W LED, 600W LED, 480W LED, 320W LED
Status Indicates current xture waage or percentage according to photo period mer
(OUTPUT SCHEDULE). User can manually override mer to adjust output if
needed and the W or % will be followed by “OVRD”. Fixtures will revert to mer
schedule once next output me/seng is reached. Example: If manual override
is adjusted from 100% down to 60% at 7:45 PM, the display will be “Status: 60%
OVRD” and will remain unl the next “OUTPUT” signal is sent by the controller. If
“OUTPUT” at 8:00 PM is scheduled to send 100% signal, the xture will revert to
mer schedule.
Dim The temperature limit at which the lights will auto-dim.
Stop The temperature limit at which the lights will auto-shutdown.
Delay (0–30 min) Hot start prevenon to allow HID lamps adequate me to cool to
prevent lamp damage. For HID, minimum seng should be 15 min. For LED,
seng can be 0 min.
R/S (0–30 min) The me lights will take to gradually reach full power (R=sunrise) or
turn o (S=sunset). Longer is more gradual. This seng will aect the OUTPUT
SCHEDULE. See page 6 for more details.
3. Repeat step 2 to set all values.
4. Press to save the sengs.
5. Repeat steps for ZONE B.
INSTRUCTIONS

AC EDB F G
Hydrofarm.com 6
ZONE A OUTPUT SCHEDULE
The PX2 lets you precisely schedule up to six
med output sengs from the xtures during
the light cycle (by waage or percentage).
Checkmarks in front of the six med output
sengs provide the ability to disable or enable.
CHECK = Enabled.
1. Press and enter the ZONE A OUTPUT
SCHEDULE menu.
2. Press to cursor through the me and
output sengs.
3. Press or to adjust, then press buon to conrm.
4. Repeat steps 2–3 to set all values.
5. Press buon to save the sengs.
6. Repeat steps for ZONE B.
IMPORTANT ZONE OUTPUT SCHEDULE NOTES
• Output adjustments ONLY take eect according to OUTPUT SCHEDULE and clock seng.
• Enabling more OUTPUT SCHEDULE sengs is advisable for greater exibility.
• Sunrise and sunset (R/S) me seng can impact OUTPUT SCHEDULE. Ensure these two
sengs do not conict. Example: If R/S is set to 10 minutes, the ming between OUTPUT
SCHEDULE signals should be set no less than 10 minutes.
INSTRUCTIONS
Indicator Meaning
A, C
LED on green: Normal status. Screen display: NML
LED on yellow: Over-temperature dimming protecon. Screen display: DIM
LED ashes red: Over-temperature lamp-o protecon or temperature exceeds 80°C.
Screen display: SOS
LED ashes yellow: Temperature control line is not inserted. Screen display: NO PROBE
B, D
LED LIGHT ON: Lamp on. LED LIGHT OFF: Lamp o.
E
If the ANALOG indicator is on, the controller outputs 0–10V signals for LED, 0–11.5V for HID.
F
If the DIGITAL indicator is on, the controller outputs RS485 signals.
E, F
The ANALOG and DIGITAL indicators are both on.
ZONE A is the analog signal output, and ZONE B is the digital signal output.
G
The output signal mode can be switched by clicking the SET buon with a pen.
LED INDICATORS

7
CUSTOMIZING YOUR LIGHTING LAYOUT
PROBLEM CHECK SOLUTIONS
Screen does not work aer
connecng power supply
Check if the power supply/
adapter/controller works
normally
Unplug DC connector from the
controller momentarily then
reconnect taking care to ensure
the connector is fully inserted
and ghtened
Controller does not control xtures
Check if the signal cable is
connected well and is fully
inserted/locked; check pin
condion
Reconnect the signal cable and
go xture by xture to idenfy
communicaon loss point
Controller does not show
temperature aer connecng with
temperature probe
Check if the temperature
probe is inserted fully
Disconnect and reconnect the
temperature probe
Fixture status is dierent from the
power set by controller
Check if the xture is under
sunrise and sunset mode or
if the temperature is under
temperature protecon mode
Adjust the me of sunrise and
sunset or reset the temperature
limits
When connecng several xtures,
the rst several xtures work
normally, while the following
xtures funcon abnormally
Check if the signal cable is
connected well, or if the
pins of the connectors are
damaged, or the LED status
on xtures
Reconnect the signal cable, or
replace any damaged xture
Fixtures fail to turn o
Check xture quanty per
zone. Too many xtures will
cause residual voltage in the
cable system.
Reduce number of xtures per
zone
TROUBLESHOOTING
See pages 8–23 for data link cable guides that show you how to customize your lighng setup
with the same or mulple lighng technologies within the same environment.
LED Fixtures ............................................................8
HID Fixtures
Phantom with USB .................................................10
Core 2.0 ..........................................................12
Mulple Lighng Technologies
LED + Dual CMH ...................................................14
LED + DE HPS ......................................................15
Dual Zone DE HPS ..................................................16
DE HPS + Dual CMH ................................................20
DE HPS + DE MH ...................................................22

Hydrofarm.com 8
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
LEGEND: LED Fixtures
ZONE A Controls up to 50 LED fixtures. ZONE B Controls up to 50 LED fixtures.
PHOTOBIO
LED Fixtures
Note: Zone A and Zone B can be set up in one room, or in two separate rooms.
PTB
Link Cable
PTB Link Cable PHOTO•LOC Cable
CHC882000B
Female end Male end T Connector
• For use with PHOTOBIO X, M, T, and T Duo • Includes 2 cables and 1 T Connector
1Attach BLACK female end of the first
cable to the ORANGE male end of the
PTB link cable (included with PX2).
2Attach ORANGE male end of the
first cable to the BLACK female
side of the T connector (trunk line).
3Attach BLACK female end of the
second cable to the ORANGE male
bottom of the T connector (branch line).
4Attach ORANGE male end of the
second cable (branch line) to fixture.
5Repeat steps 1–4 for each fixture.
PHOTO•LOC 0–10V Cable Kit CHC882000B (sold separately)

9
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
LEGEND: LED Fixtures
ZONE A Controls up to 50 LED fixtures. ZONE B Controls up to 50 LED fixtures.
PHOTOBIO
LED Fixtures
Note: Zone A and Zone B can be set up in one room, or in two separate rooms.
PTB
Link Cable
PTB Link Cable PHOTO•LOC Cable
CHC882000B
Female end Male end T Connector
• For use with PHOTOBIO X, M, T, and T Duo • Includes 2 cables and 1 T Connector
1Attach BLACK female end of the first
cable to the ORANGE male end of the
PTB link cable (included with PX2).
2Attach ORANGE male end of the
first cable to the BLACK female
side of the T connector (trunk line).
3Attach BLACK female end of the
second cable to the ORANGE male
bottom of the T connector (branch line).
4Attach ORANGE male end of the
second cable (branch line) to fixture.
5Repeat steps 1–4 for each fixture.
PHOTO•LOC 0–10V Cable Kit CHC882000B (sold separately)

Hydrofarm.com 10
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ Data
Link Cable
RJ12
T-Connector
RJ12 to USB
RJ Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
PHANTOM with USB
HID Fixtures
Note: Zone A and Zone B can be set up in one room, or in two separate rooms.

11
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ Data
Link Cable
RJ12
T-Connector
RJ12 to USB
RJ Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
PHANTOM with USB
HID Fixtures
Note: Zone A and Zone B can be set up in one room, or in two separate rooms.

Hydrofarm.com 12
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
CORE 2.0 DIMMABLE
Data Link Cable CHC223108W Wieland Harness* Junction Box Input Output
Fixtures are not shown to scale.
LEGEND: Core 2.0 Dimmable
* Wieland Harness: CHW363000W, CHW863000W, CHW843010W, CHW863015W, CHW873000W, CHW883020W, CHW883021W, CHW883025W, CHW883030W
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
HID Fixtures
Wieland
Harness
IMPORTANT: Do not attach data link cables to Wieland harness. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
Note: Zone A and Zone B can be set up in one room, or in two separate rooms.
RJ Data
Link Cable

13
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
CORE 2.0 DIMMABLE
Data Link Cable CHC223108W Wieland Harness* Junction Box Input Output
Fixtures are not shown to scale.
LEGEND: Core 2.0 Dimmable
* Wieland Harness: CHW363000W, CHW863000W, CHW843010W, CHW863015W, CHW873000W, CHW883020W, CHW883021W, CHW883025W, CHW883030W
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
HID Fixtures
Wieland
Harness
IMPORTANT: Do not attach data link cables to Wieland harness. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
Note: Zone A and Zone B can be set up in one room, or in two separate rooms.
RJ Data
Link Cable

Hydrofarm.com 14
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ12 to USB
Data
Link Cable
RJ12
T-Connector
ZONE A Controls up to 50 LED fixtures. ZONE B Controls up to 256 HID fixtures.
Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
LEGEND: LED Fixtures
PTB Link Cable PHOTO•LOC Cable
CHC882000B
Female end Male end T Connector
• For use with PHOTOBIO X, M, T, and T Duo • Includes 2 cables and 1 T Connector
1Attach BLACK female end of the first
cable to the ORANGE male end of the
PTB link cable (included with PX2).
2Attach ORANGE male end of the
first cable to the BLACK female
side of the T connector (trunk line).
3Attach BLACK female end of the
second cable to the ORANGE male
bottom of the T connector (branch line).
4Attach ORANGE male end of the
second cable (branch line) to fixture.
5Repeat steps 1–4 for each fixture.
PHOTO•LOC 0–10V Cable Kit CHC882000B (sold separately)
PTB
Link Cable
LED + DUAL CMH
Checkerboard

15
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ12 to USB
Data
Link Cable
RJ12
T-Connector
ZONE A Controls up to 50 LED fixtures. ZONE B Controls up to 256 HID fixtures.
Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
LEGEND: LED Fixtures
PTB Link Cable PHOTO•LOC Cable
CHC882000B
Female end Male end T Connector
• For use with PHOTOBIO X, M, T, and T Duo • Includes 2 cables and 1 T Connector
1Attach BLACK female end of the first
cable to the ORANGE male end of the
PTB link cable (included with PX2).
2Attach ORANGE male end of the
first cable to the BLACK female
side of the T connector (trunk line).
3Attach BLACK female end of the
second cable to the ORANGE male
bottom of the T connector (branch line).
4Attach ORANGE male end of the
second cable (branch line) to fixture.
5Repeat steps 1–4 for each fixture.
PHOTO•LOC 0–10V Cable Kit CHC882000B (sold separately)
PTB
Link Cable
LED + DUAL CMH
Checkerboard

Hydrofarm.com 16
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ12 to USB
Data
Link Cable
RJ12
T-Connector
ZONE A Controls up to 50 LED fixtures. ZONE B Controls up to 256 HID fixtures.
Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
LEGEND: LED Fixtures
PTB Link Cable PHOTO•LOC Cable
CHC882000B
Female end Male end T Connector
• For use with PHOTOBIO X, M, T, and T Duo • Includes 2 cables and 1 T Connector
1Attach BLACK female end of the first
cable to the ORANGE male end of the
PTB link cable (included with PX2).
2Attach ORANGE male end of the
first cable to the BLACK female
side of the T connector (trunk line).
3Attach BLACK female end of the
second cable to the ORANGE male
bottom of the T connector (branch line).
4Attach ORANGE male end of the
second cable (branch line) to fixture.
5Repeat steps 1–4 for each fixture.
PHOTO•LOC 0–10V Cable Kit CHC882000B (sold separately)
PTB
Link Cable
LED + DE HPS
Checkerboard

17
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ12 to USB
Data
Link Cable
RJ12
T-Connector
ZONE A Controls up to 50 LED fixtures. ZONE B Controls up to 256 HID fixtures.
Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
LEGEND: LED Fixtures
PTB Link Cable PHOTO•LOC Cable
CHC882000B
Female end Male end T Connector
• For use with PHOTOBIO X, M, T, and T Duo • Includes 2 cables and 1 T Connector
1Attach BLACK female end of the first
cable to the ORANGE male end of the
PTB link cable (included with PX2).
2Attach ORANGE male end of the
first cable to the BLACK female
side of the T connector (trunk line).
3Attach BLACK female end of the
second cable to the ORANGE male
bottom of the T connector (branch line).
4Attach ORANGE male end of the
second cable (branch line) to fixture.
5Repeat steps 1–4 for each fixture.
PHOTO•LOC 0–10V Cable Kit CHC882000B (sold separately)
PTB
Link Cable
LED + DE HPS
Checkerboard

Hydrofarm.com 18
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ Data
Link Cable
RJ12
T-Connector
RJ12 to USB
RJ Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
DUAL ZONE DE HPS
Checkerboard
100%
OUTPUT
60%
OUTPUT

19
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ Data
Link Cable
RJ12
T-Connector
RJ12 to USB
RJ Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
DUAL ZONE DE HPS
Checkerboard
100%
OUTPUT
60%
OUTPUT

Hydrofarm.com 20
CABLE GUIDE
Advanced Digital & Analog Lighting Controller (APDPX2)
Fixtures are not shown to scale.
IMPORTANT: Do not attach data link cables to AC power cable. Always keep low voltage data cables and high voltage AC power harness as far as possible from each other for stable signal transmission. Avoid coiling data cables as well as AC harnesses in tight coils. Excess cable should be managed by creating long loops as opposed to tight coils.
RJ Data
Link Cable
RJ12
T-Connector
RJ12 to USB
RJ Data Link Cable RJ12 T-Connector RJ12 to RJ12 RJ12 to USB
LEGEND: HPS, MH & CMH
ZONE A Controls up to 256 HID fixtures. ZONE B Controls up to 256 HID fixtures.
DE HPS + DUAL CMH
Checkerboard
