hygena Valencia 656/5800 User manual

MADE IN
BRITAIN
Dimensions
Width - 88cm
Depth - 88cm
Height - 87cm
Valencia - Corner Base Cabinet
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 05/08/14
Important - Please read these instructions fully before starting assembly
ALR2656
hygena
Monza
Ricadi
Pesaro
Imola
656/5800
633/2947
633/2789
204/5977
633/2868
205/3189
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
Cabinet
Issue 2 - 05/08/14 - Replaced Grey and Plum codes with Oak and White HN codes.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 34kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 to 5.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

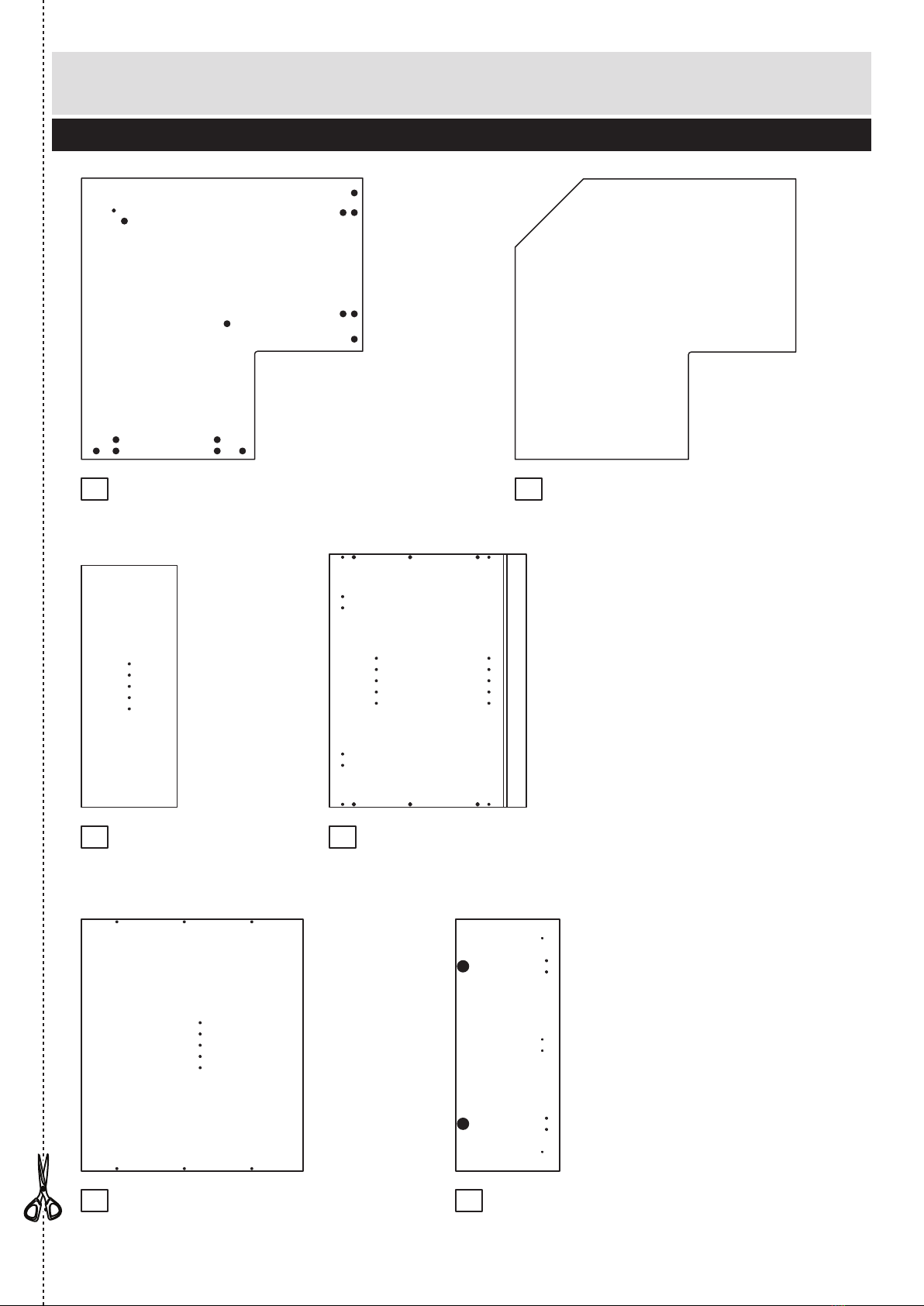

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Top/Base (DPF136A)
(800 x 800mm) x 2
4
2
Left/Right Back (DPF139A)
(630 x 717mm) x 2
Loose Shelf (DPF137A)
(798 x 798mm)
3Back (DPF138A)
(272 x 688mm)
Left/Right Side (DPF177A)
(720 x 560mm) x 2
56Door (DPF145B)
(297 x 716mm) x 2
The front
surface of this
door is
protected with
a peel-off film

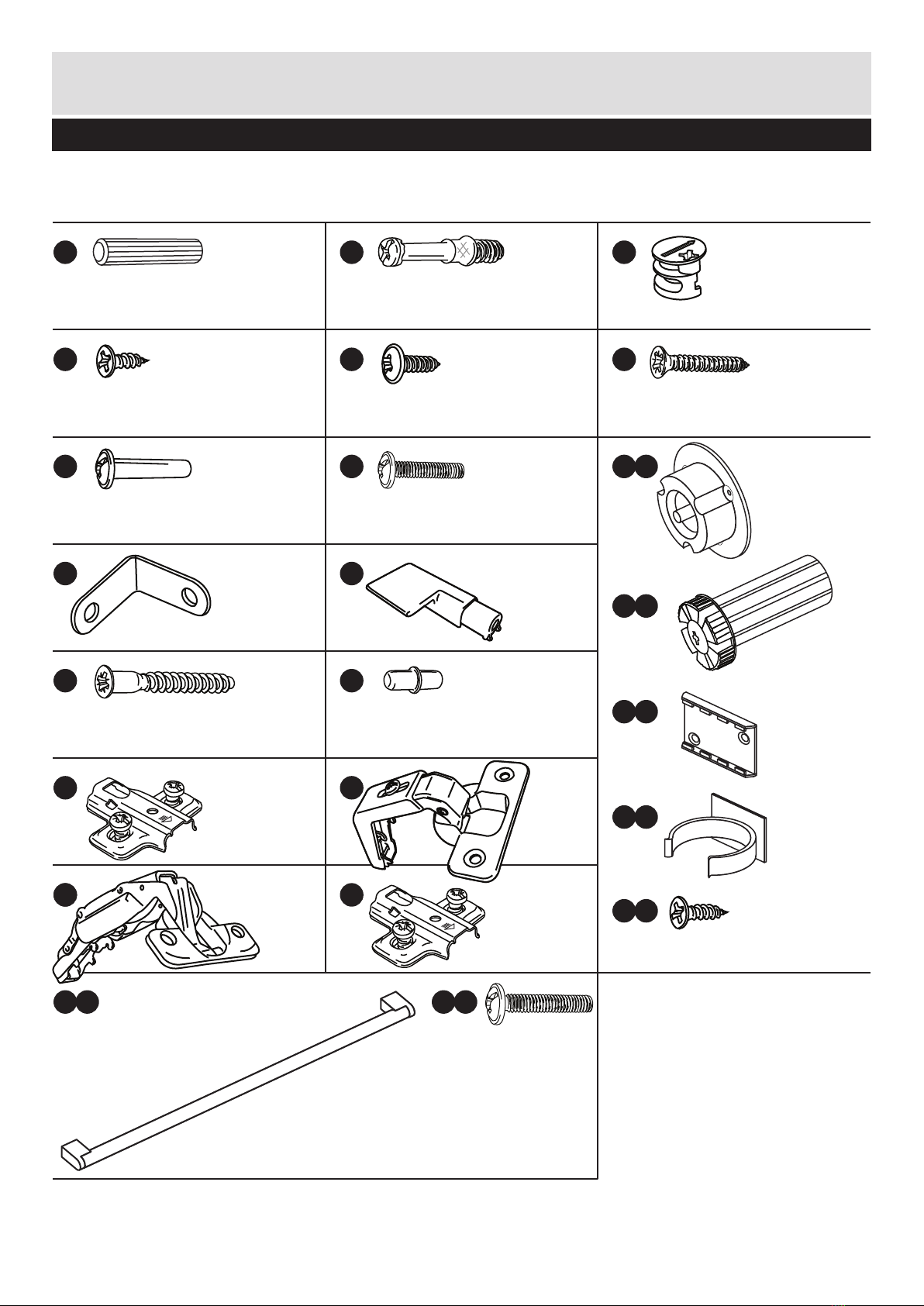

Please check you have all the fittings listed below
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
see malibu fitment mk2 for large number of panels and fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 16
B
Metal dowel (F901) x 8
C
D
Large locking
nut (F900) x 8
F
G H I a
I c
I d
I e
I b
J K
13mm Screw (F63) x 8
E
13mm Screw (F79) x 2
Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2
L M
N O
QNP
25mm Screw (F50) x 18
Bracket (F945) x 2
Leg Bracket
(F127) x 3
Leg Socket
(F120) x 6
Leg Clip
(F128) x 3
16mm Screw
(F129) x 24
Leg (F122) x 6
L
R
left right
L
R
L R
40mm Screw (F910) x 2 Shelf support (F110) x 7
2mm Hinge
Plate (F157) x 2
Bent
Hinge
Arm
(F154) x 2
Cantilevered
Hinge Arm
(F155) x 2
Soft Close
Unit (F156)
x 2
4mm Hinge
Plate (F158) x 2
Valencia Door Handle (F214) x 1
R a R b
25mm Screw (F132) x 2
8Valencia Door (DPF145A)
(297 x 716mm) x 2
3

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

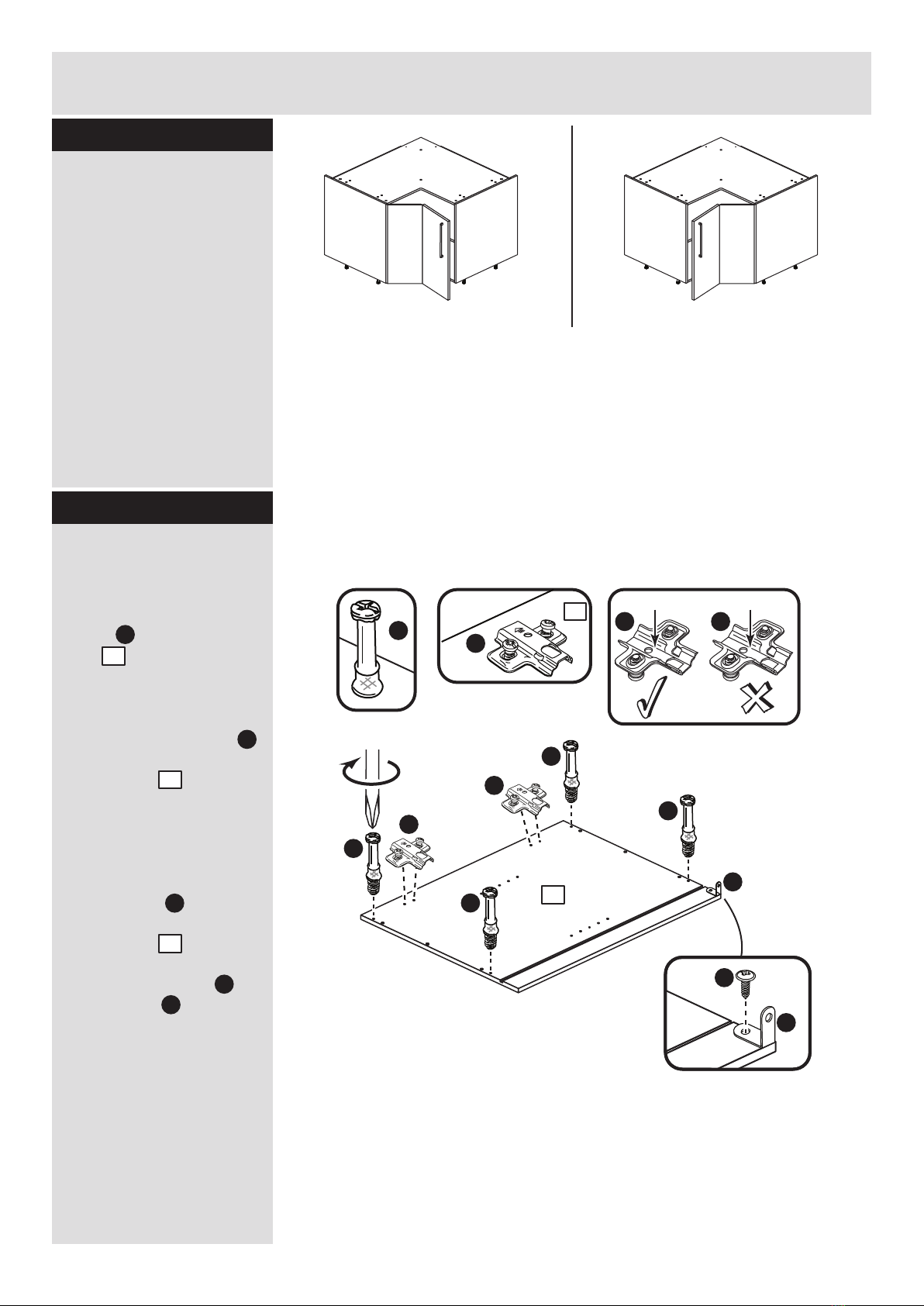

Step 1
80% x 2
Step 2
B
B
B
B
B
J
4
Q
Q
1
Q
Q N
Choose which way
you would like the
door to open
You can fit the door to
the left side or right side.
If you would like your door
to open this way, fit the
hinge plates to the left side
If you would like your door
to open this way, fit the
hinge plates to the right side
H=2
Q
Prepare the left side
Refer to step 1 and, if
required, fit 2 hinge
plates onto the left
side , making sure
that they face the same
way as the diagram.
Screw 4 metal dowels
into the holes shown on
the left side .
Note: Tighten metal
dowels up fully against
the panels.
Fit a bracket flush to
the top and back edge of
the left side .
Secure the bracket
using screw .
4
B
4
J
J
4
E
J
E
H=4
H=4
H=2

Assembly Instructions
5
Step 3
Step 4
2
J
J
E
B
B
B
B
4
Q
Q
Q
Prepare the right side
Refer to step 1 and, if
required, fit 2 hinge
plates onto the right
side , making sure
that they face the same
way as the diagram.
Screw 4 metal dowels
into the holes shown on
the right side .
Note: Tighten metal
dowels up fully against
the panels.
Fit a bracket flush to
the top and back edge of
the right side .
Secure the bracket
using screw .
4
B
4
J
J
4
E
CC
C C
A
A
A
A
A
A
Prepare the top and
base
Insert 4 large locking
nuts into the top
and base as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap 6 wooden dowels
into the top and base
. as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
C
C
1
1
1
10mm
A
A
1
1
Q N
H=2H=4
H=4
H=2
Q

Assembly Instructions
6

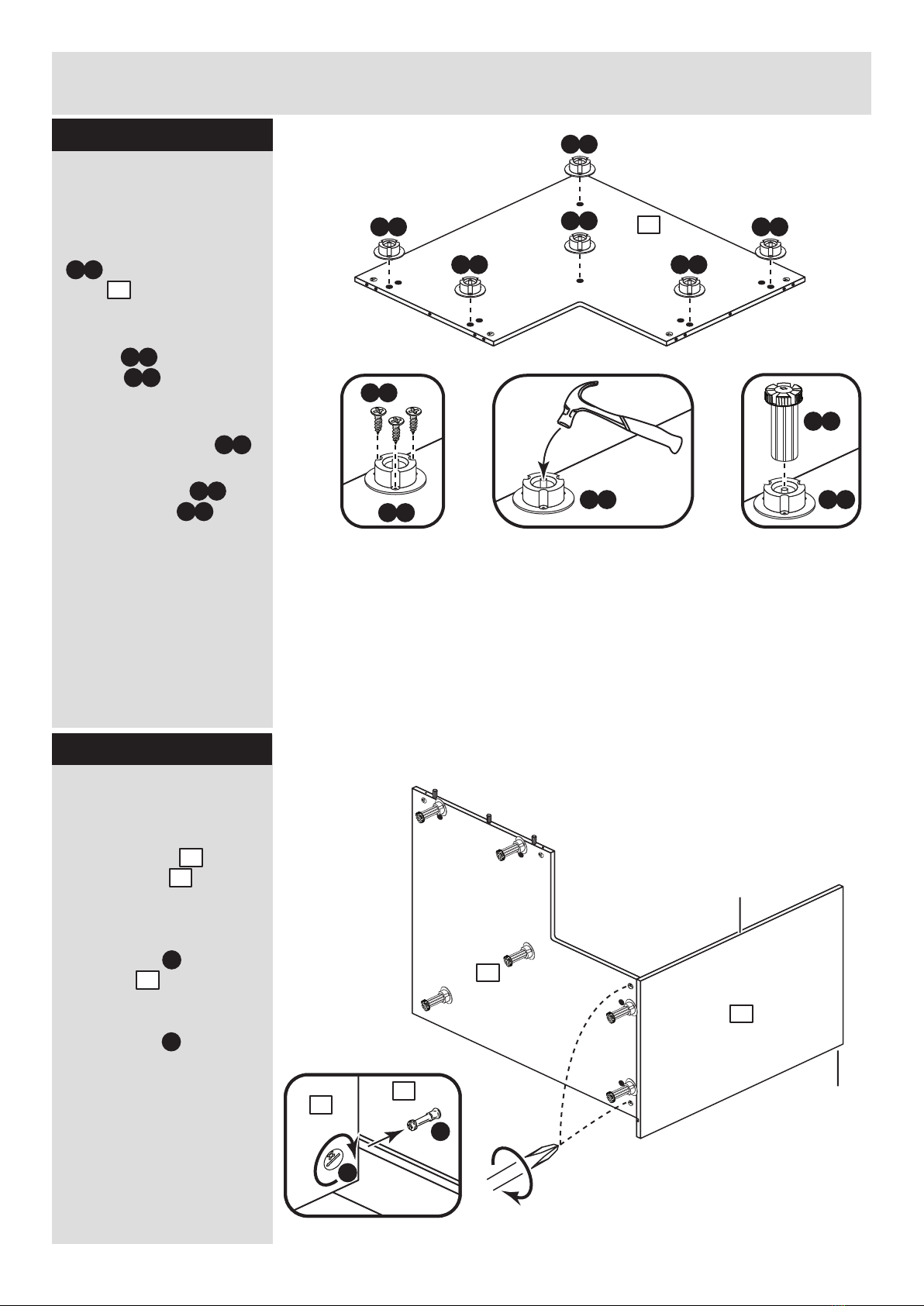

Step 5
Step 6
I a I a
I b
b:
a:
c: d:
Fit the legs to the
base
a: Push the leg sockets
. into the holes in the
base as shown.
b: Secure each leg
socket with 3
screws .
c: Tap in the centre plug
on each leg socket .
d: Push the leg into
the leg socket . I a
I a
I a
I e
I e
1
x 3
I a
I a
I b
I a
I a
I a
I a I a
I a
4
1
Join the right side and
base
Push the base onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
1
1
4
C
C
B
C
1
4
Finished
front edge
1
Bracket

Assembly Instructions
7

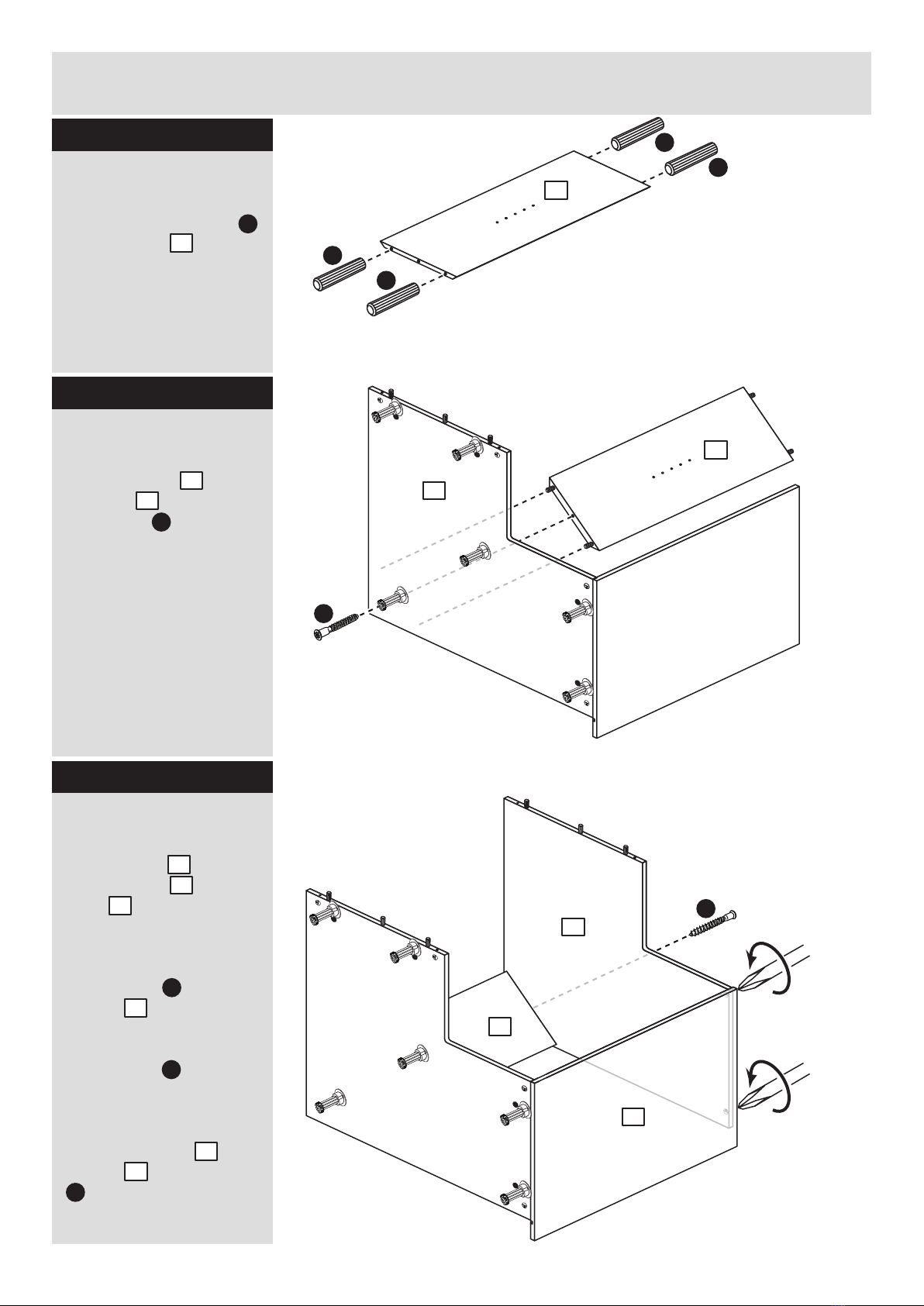

Step 7
Step 9
A
A
Prepare the back
Tap 4 wooden dowels
into the back as
shown.
A
A
L
A
3
3
3
1
3
L

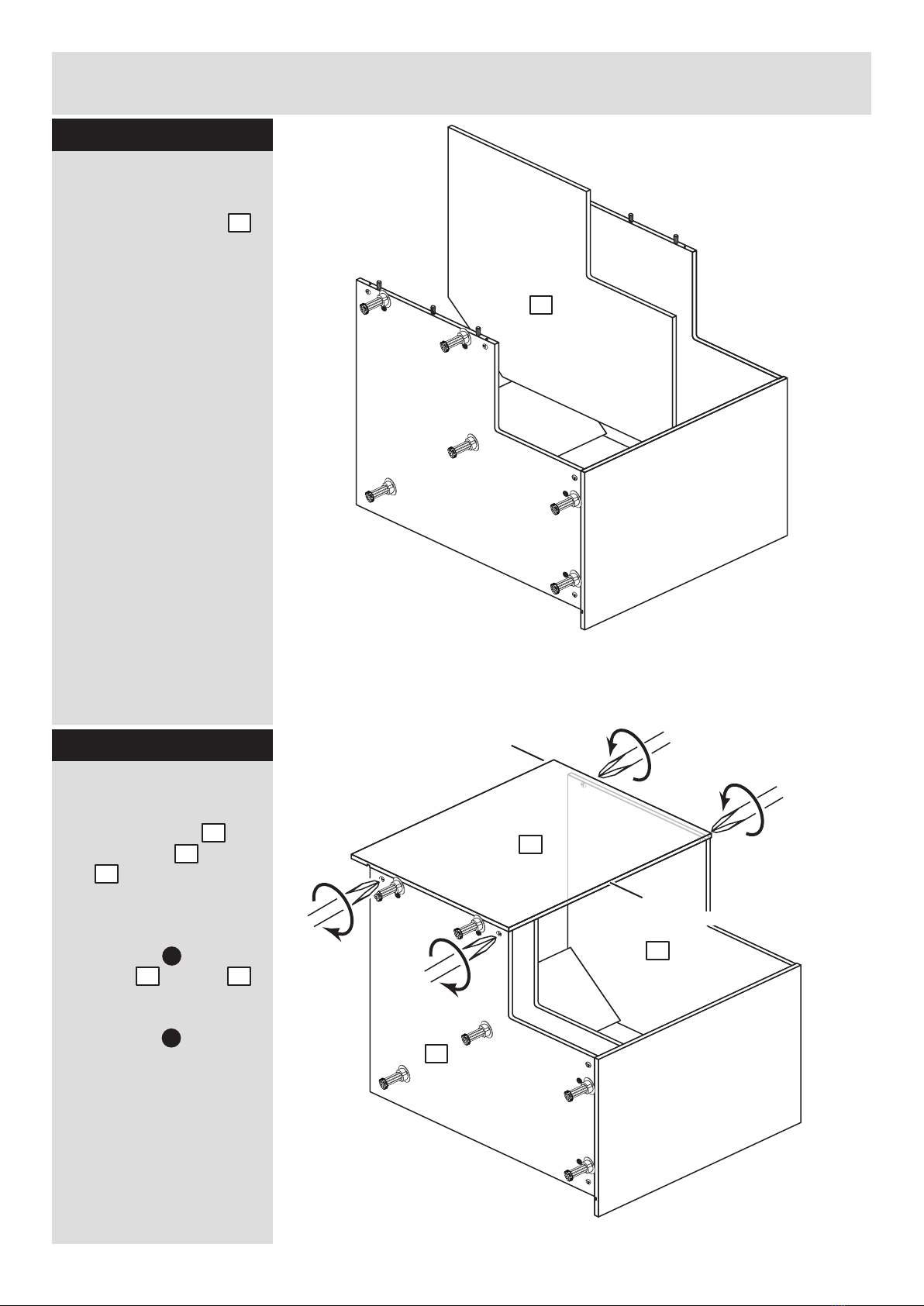

Fit the back
Push the back onto
the base and secure
with screw .
1
3
Fit the top
Push the top onto
the right side and
back .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Secure the back to
the top with screw
. .
Step 8
4
4
3
1
1
C
C
1
L
L
3
1

Assembly Instructions
8

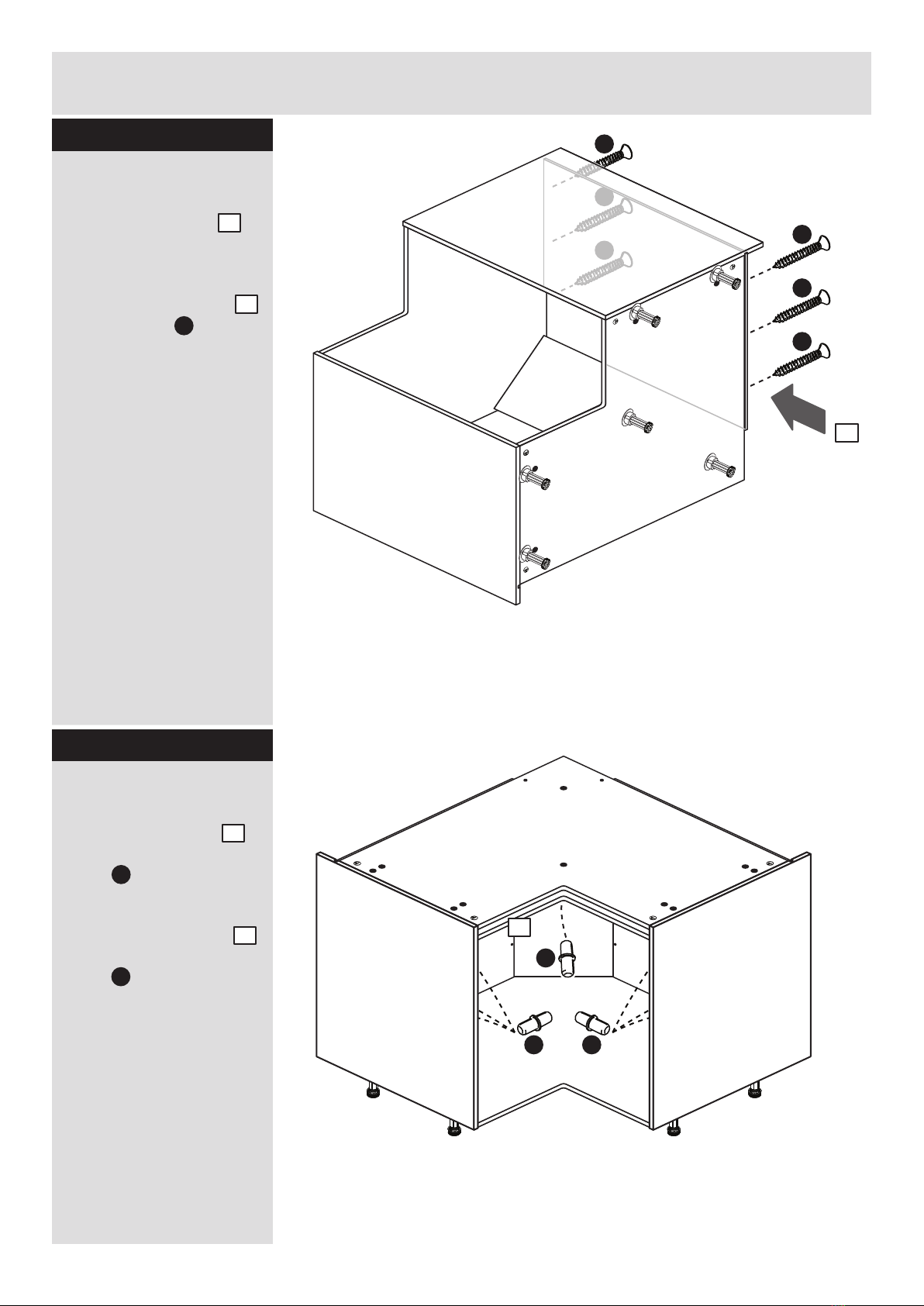

Step 10
Step 11
Fit the left side
Push the left side
onto the base and
top .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the base and top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
1
1
1
1
4
1 1
C
C
4
Insert the loose shelf
Place the loose shelf
inside the unit.
2
2
Finished
front edge
Bracket

Assembly Instructions
9
Step 12
Step 13 F
Secure the left back
Secure the left back
with 6 screws through
its pre-drilled holes into
the base and top.
F
F
F
F
F
F
Fit the left back
Slide the left back
along the groove in the
left side.
5
5
5

Assembly Instructions
10
Step 14
Step 15
Fit the loose shelf
Hold the loose shelf
up and insert 7 shelf
studs at the required
height.
Lower the loose shelf
down onto the shelf
studs .
M
M
M
M M
2
2
2
Fit the right back
Slide the right back
along the groove in the
right side.
Secure the right back
with 6 screws through
its pre-drilled holes into
the base and top.
5
5
5
F
F
F
F
F
F
F
x 3 x 3

Assembly Instructions
11

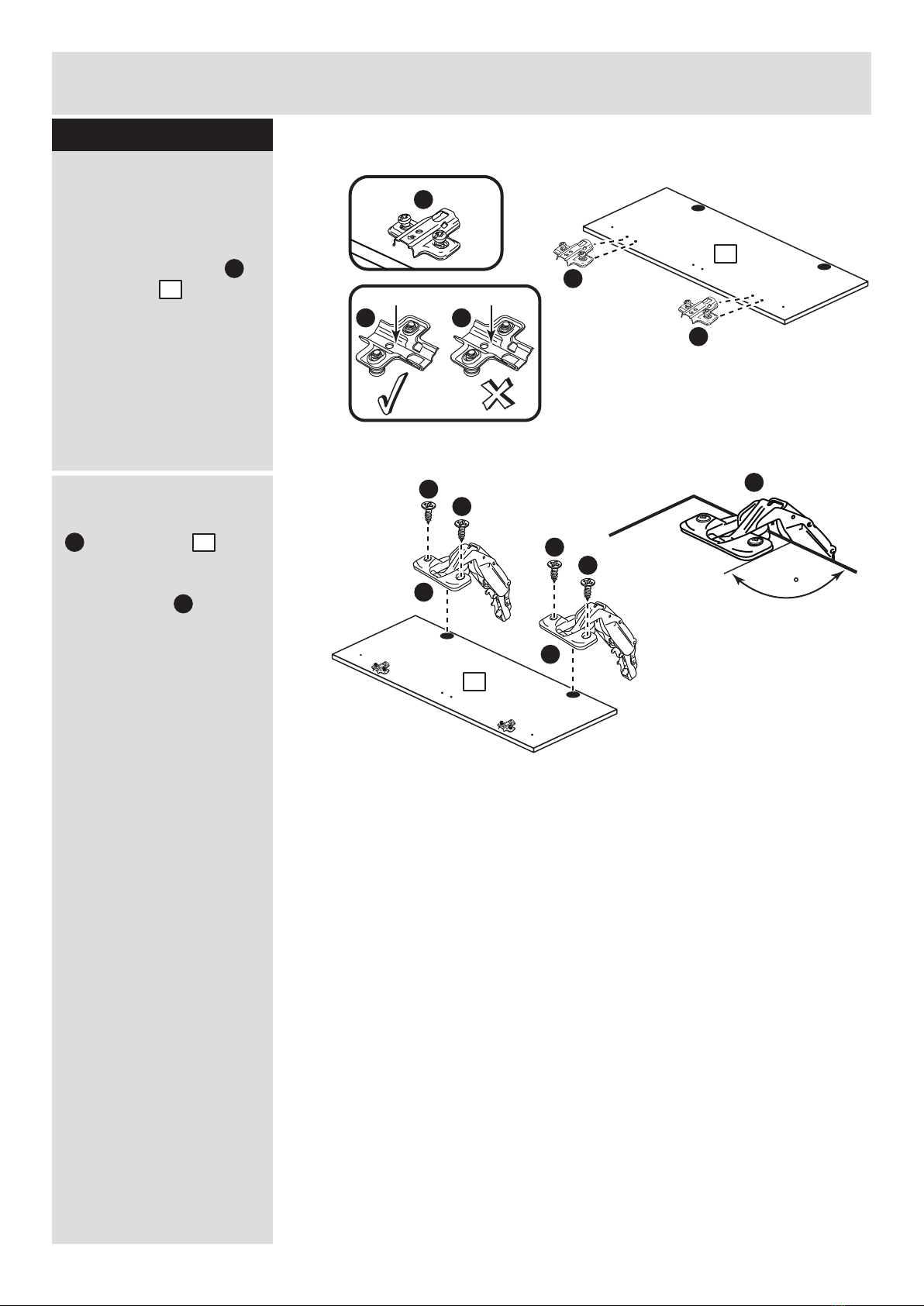

Step 16
N
N
N
D
D
D
D
Prepare 1 of the doors
to be the carcase
door
a: Fit 2 hinge plates
onto a door , making
sure that they face the
same way as the
diagram.
b: Push fit 2
cantilevered hinge arms
. into the door .
Secure each hinge arm
with 2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
N
a:
b:
6
P
D
6
90
P
P
P
6
6
H=2
H=2
H=4
H=4
N Q

Assembly Instructions
12

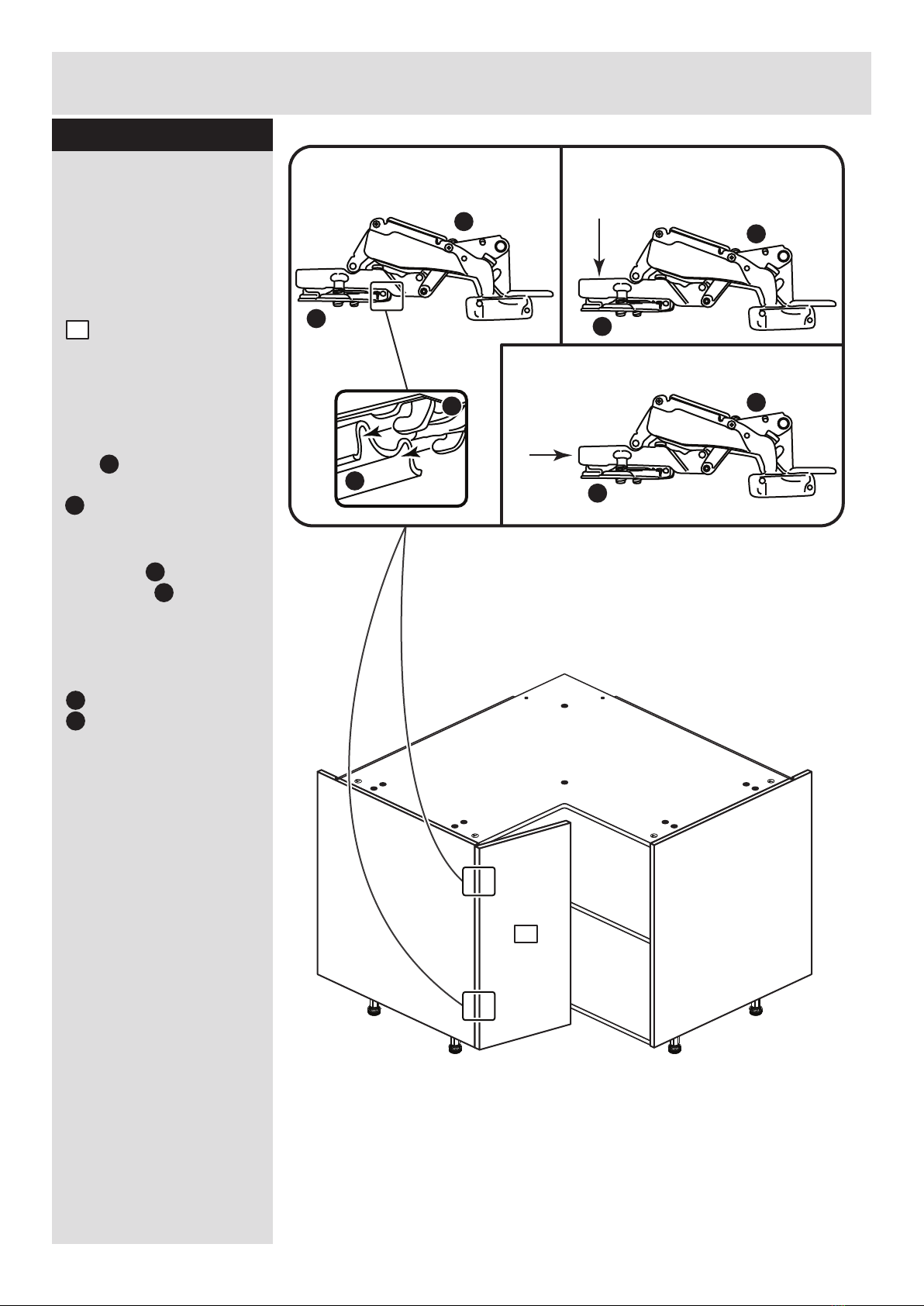

Step 17
Fit the carcase door
2 people are needed
here
Note: The easiest way to
attach the carcase door
. is to fit the top hinge
first, then align and fit the
other hinge.
a: Push the hooks on
the cantilevered hinge
arm underneath the
front of the hinge plate
. .
b: Press the front of the
hinge arm against the
hinge plate until it
clicks into place.
c: If you need to
seperate the hinge arm
. from the hinge plate,
. press the button at
the end of the hinge arm
and lift it off of the hinge
plate.
Q
P
Q
P
6
P
Q
This shows the carcase door being fitted
to hinge plates on the left side.
You may have fitted them to the right side.
6
a:
b:
c:
Push and click
Push
PP
P
QQ
Q
Q
P

Assembly Instructions
13
Step 18
90
D
D
D
D
Prepare the other
door to be the hinged
door
Push fit 2 bent hinge
arms into the other
door .
Secure each hinge arm
with 2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
O
O
O
6
O
6
D

Assembly Instructions
14

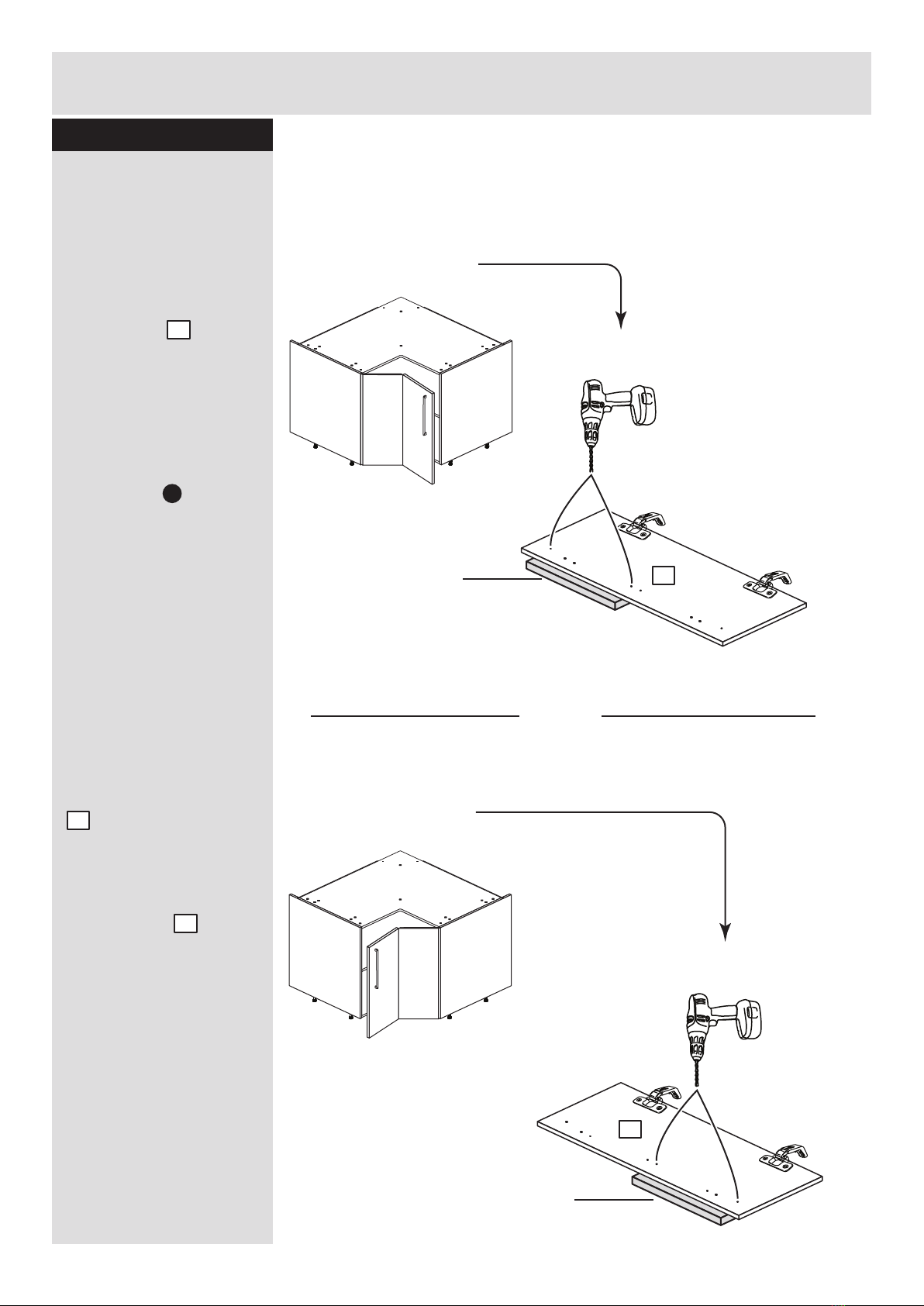

Step 19
ONLY drill
these 2 holes
Drill these 2 holes if you
have fitted the carcase
door to the left side.
Drill the handle holes
in the hinged door
Important: Please follow
these instructions
carefully.
Lay the door down
onto a smooth surface.
Important: Carefully
choose which holes you
need to drill.
This will depend on
which side you fitted the
hinge plates .
Check that the holes and
hinges are in the same
place as the diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
. drill through the
holes indicated opposite,
using a 2.5mm diameter
drill.
Turn the door over
and open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
Note: Drill bits are not
provided.
6
N
6
6
Drill these 2 holes if you
have fitted the carcase
door to the right side.
or
Small piece of
waste wood
Small piece of
waste wood
ONLY drill
these 2 holes
DO NOT drill
any other holes
DO NOT drill
any other holes
6
6
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY
TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL

Assembly Instructions
15
Step 20
Fit the hinged door
2 people are needed
here
Note: The easiest way to
attach the hinged door
. is to fit the top hinge
first, then align and fit the
other hinge.
a: Push the hooks on
the bent hinge arm
underneath the front of
the hinge plate .
b: Press the front of the
hinge arm against the
hinge plate until it
clicks into place.
c: If you need to
seperate the hinge arm
. from the hinge plate,
. press the button at
the end of the hinge arm
and lift it off of the hinge
plate.
d: Attach the handle
. supplied with the
door using the
screw(s) packed
with it.
N
O
N
O
8
O
N
R a
R b
6
R a
R b
R b
6
This shows the hinged door being fitted to
carcase door on the left side.
You may have fitted it to the right side.
a: b:
c:
Push and click
Push
N
O
N
O
N
O
N
O

Assembly Instructions
16
Step 21
Fit the soft close unit
Push a soft close unit
onto each cantileved
hinge arm until it
clicks into place.
K
P
K
P

Assembly Instructions
17

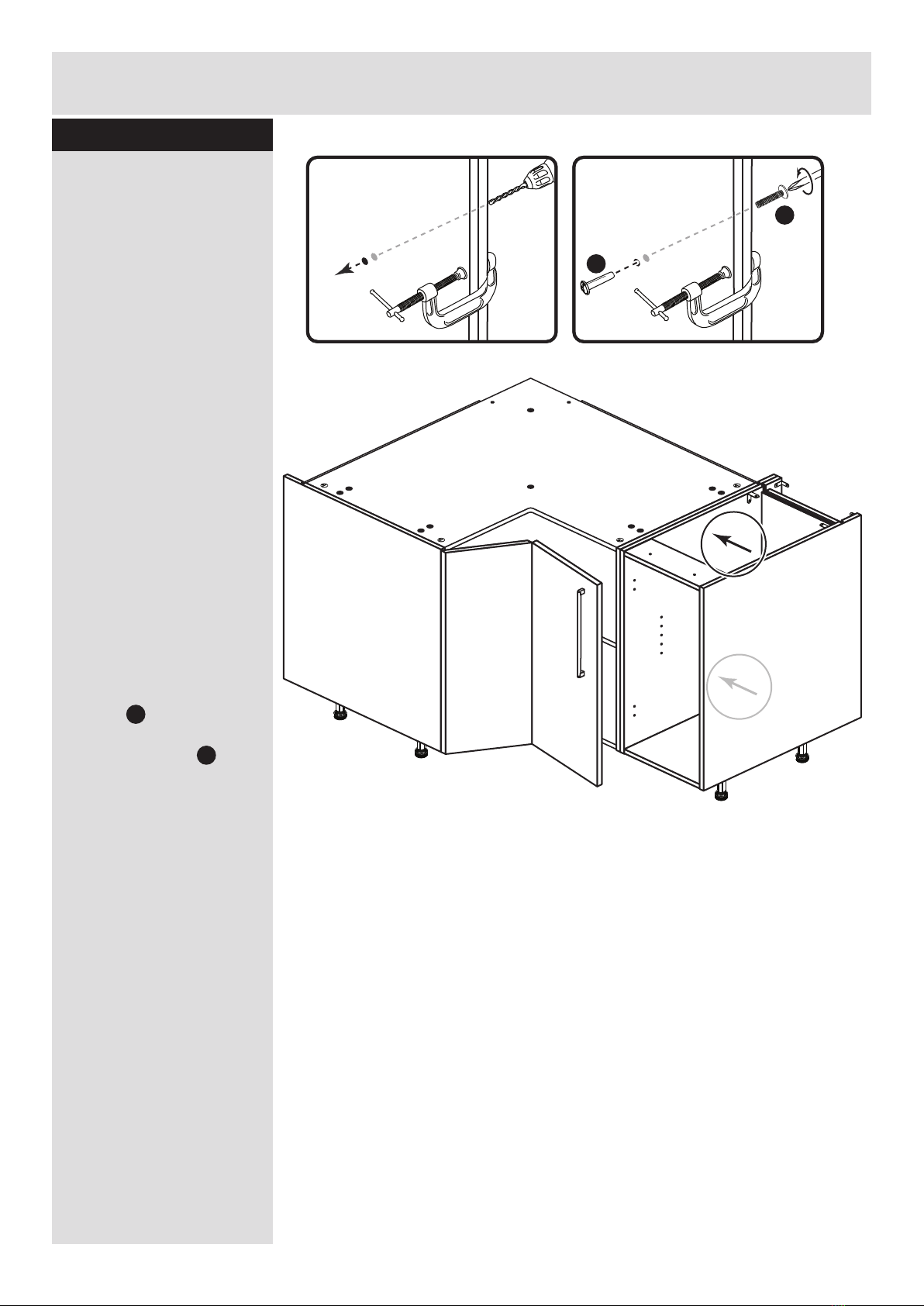

Step 22
Joining units together
Fittings have been
supplied so you are able
to join units together.
Make sure that your first
unit is level.
Push the other unit up
against first unit and
ensure both units are
level.
Check that the ends are
flush and in line, then
clamp them together.
Using a 5mm drill bit,
drill 2 holes (approximate
positions shown circled)
in the side panel into the
adjoining side panel of
the other unit.
Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.
G
H
5mm
G
H

Assembly Instructions
18
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

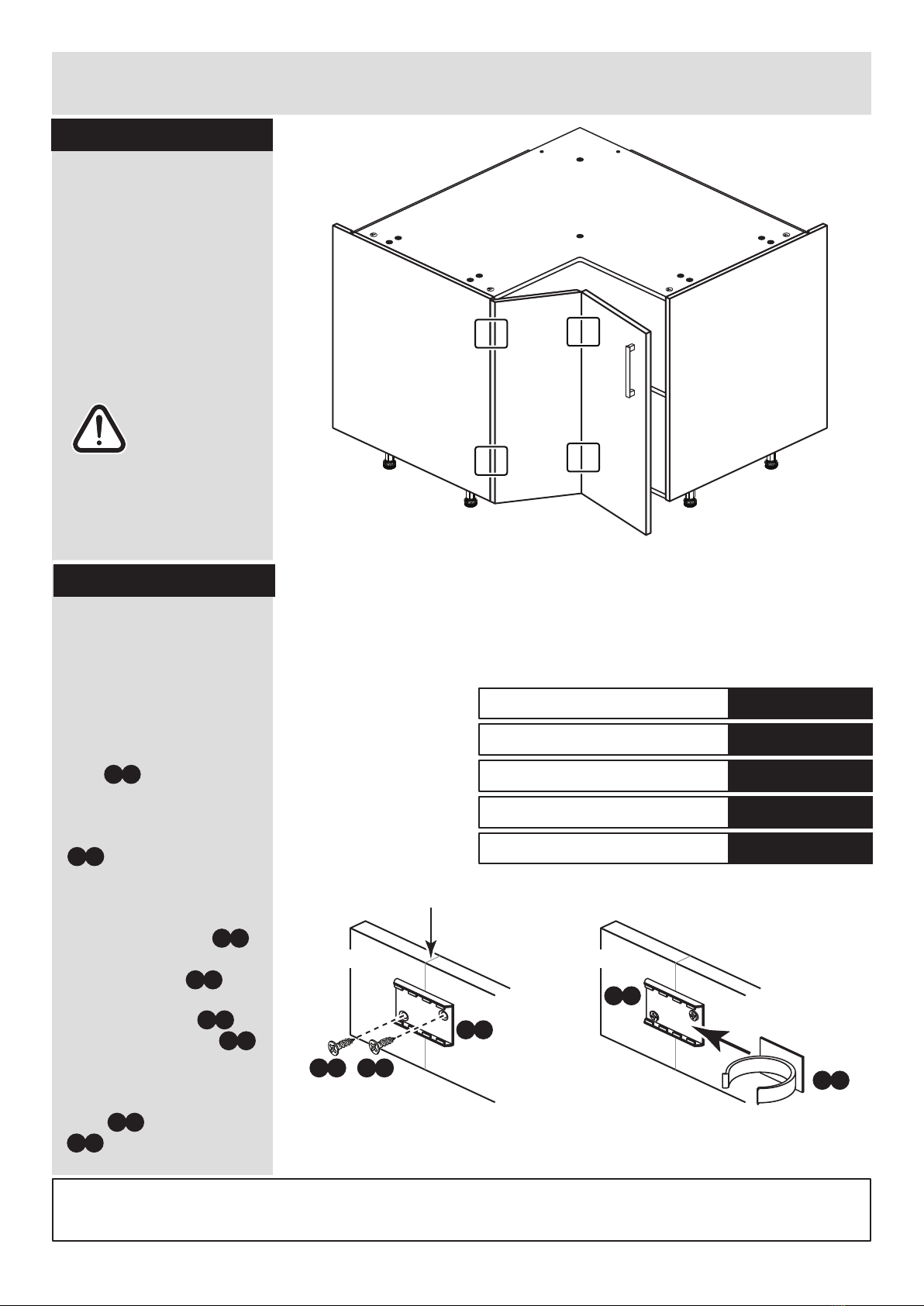

Step 23
Assembly is complete
Warning: The
unit is heavy.
Lift with care.
Adjust the doors if
needed
Adjust the hinge plates
and arms by turning the
screws on them
clockwise or anti-
clockwise.
Step 24
Pencil mark
Plinth
I c
I c
I d
Plinth
I e I e
Fit the plinth
After cutting the plinth to
the required length, offer
the plinth up to the unit
and using a pencil, mark
the position of the unit’s
legs on the back of
the plinth.
Position the leg bracket
. so it is in the centre
of the pencil mark and
half way up the plinth.
Fix the leg bracket
to the back of the plinth
using 2 screws .
Slide the leg clip
into the leg bracket
Offer the plinth up to the
unit and push the leg
clips onto the legs
. .
I b
I b
I c
I c
I c
I d
I d
.
I e
608/2345
608/2369
205/5668
198/9917
608/2352
Black Plinth Pack
Cream Plinth Pack
Oak Plinth Pack
White HN Plinth Pack
White Gloss Plinth Pack

ALR2656
