hygena Bergen 180 User manual

Cabinet
Bergen 180
Assembly Instructions- Please keep for future reference
820/1069
816/6582
808/4671
824/2619
810/2182
810/3143
836/6090
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
DR82507013
836/6090 OAK
810/3143 WAL
810/2182 WHT
816/6582 OAK doors
808/4671 WAL doors
824/2619 WHT doors
820/1069 MIRROR doors
806/5872 HG White doors
805/3877 WHT/MIRROR doors
836/5871 OAK/MIRROR doors
814/9767 WAL/MIRROR doors
826/7508 HG WHT/MIRROR doors
Doors foil/foil
Mirror doors
Dimensions
Width - 180cm
Depth - 59.5cm
Height - 199.8cm
Issue 1 - 18/12/17
HG doors
806/5872
826/7508
805/3877
Doors HG/mirror
Doors foil/mirror
836/5871
814/9767
Important–Please read these instructions fully before starting assembly
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: [email protected] (quoting your original order number)

Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
2
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
tightend properly.
Handy Hints
Safety and Care Advice
Important – Please read these instructionsfully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
• Parts of the assembly will be
easier with 2 people.
•To reduce the
likelihood of
damaging your
product please
ensure that your
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Care and maintenance
power drill is set on a low torque
setting.
• Remove all fittings from the
unit or your floor.
to its final position (in the same

Cabinet
3
Left side
(199.8 x 52.9cm)
1
P2972
Right side
(199.8 x 55.8cm)
2
P2971
Upright
(191.4 x 49cm)
3
P2973
Foldy back x2
(194 x 89cm)
4
Top/bottom x2
(177 x 51cm)
5
P1896
Shelf x2
(87.7 x 48.8cm)
6
P1898
Plinth x2
(177 x 5.2cm)
7
P7245
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: [email protected]

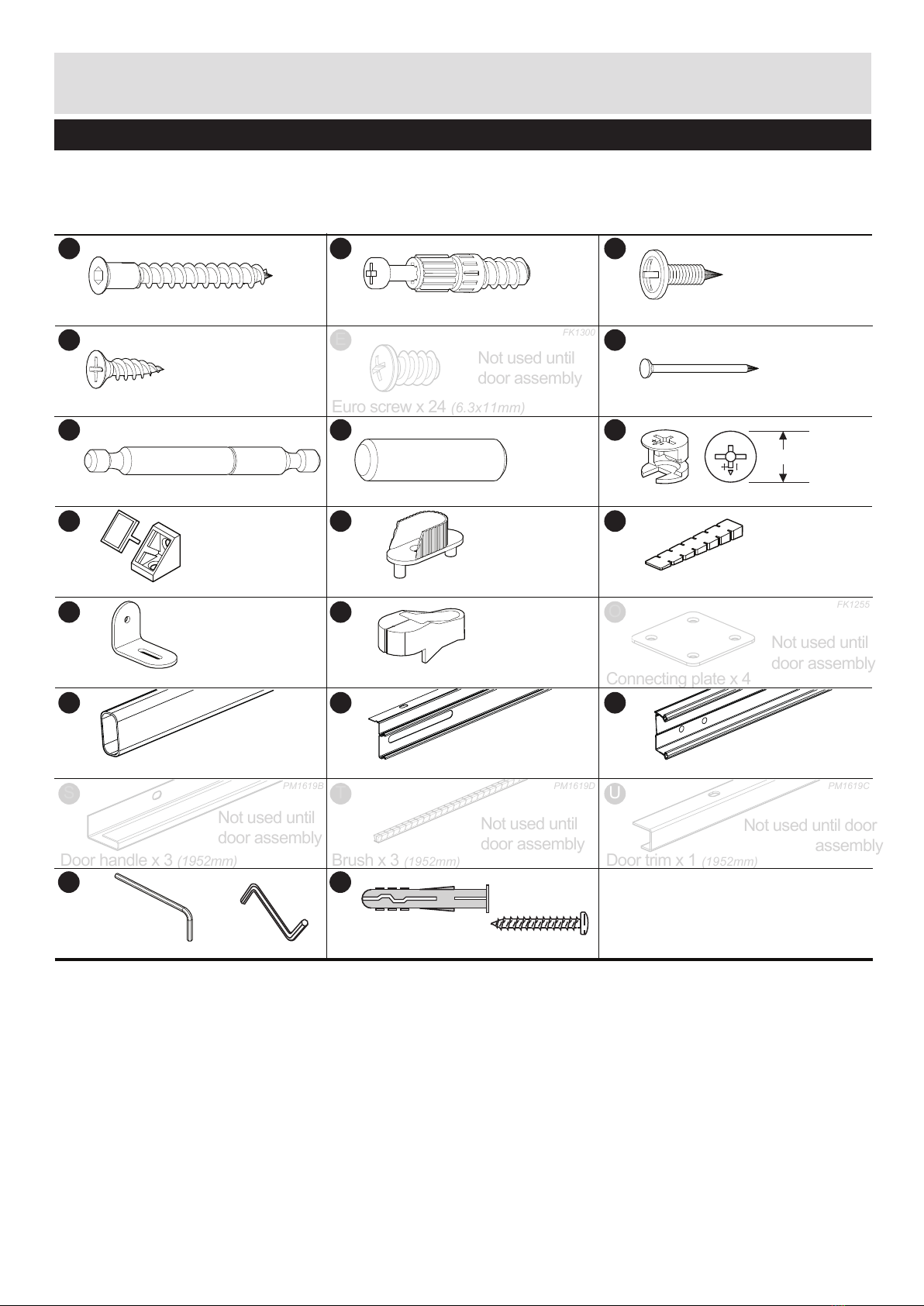

Components - Panels
Please check you have all the panels listed below
BO3452.0960

4
Locking screw x 18 (5x24mm)
BFK1011
Screw x 43 (4x15mm)
CFK1400
Confirmat screw x 4 (5x40mm)
AFK1005
Euro screw x 24 (6.3x11mm)
E
FK1300
Nail x 60
FFK1515
Screw x 4 (4x12.5mm)
DFK1309
Wood dowel x 8 (8x30mm)
HFK1411
Large locking nut x 24 (15x12mm)
IFK1012
15mm
Double locking screw x 3 (5x66.5mm)
GFK1052
Hanger rail support, gray x 4
KFK1217
Peg, brown x 2
LFK1234
Corner connector, white x 4
JFK1248
Nail holder x 1
NFK1419
Connecting plate x 4
O
FK1255
L-Bracket x 2
MFK1235
Top guide rail x 1(1768mm)
QPM1731
Bottom guide rail x 1(1768mm)
RPM1727
Hanger rail x 2
PPM182830
(869mm)
Brush x 3 (1952mm)
T
PM1619D
Door trim x 1 (1952mm)
UPM1619C
Door handle x 3 (1952mm)
S
PM1619B

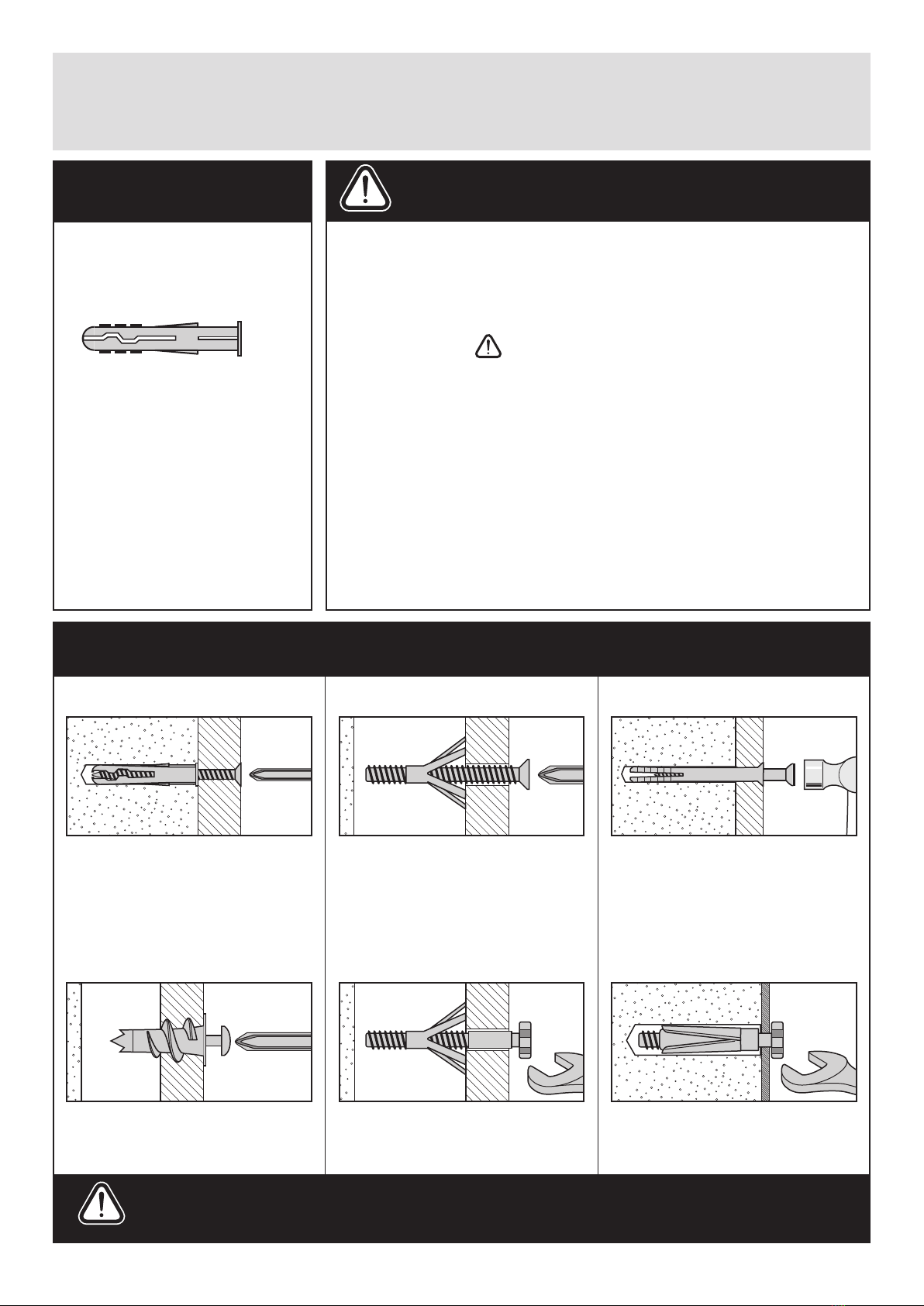

Wall plug (6mm) and parkerscrew x 2
WZF99936
Allen key x 1 (3mm)
VFK1013
OR
Not used until
door assembly
Not used until door
assembly
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly
1/2
Please check you have all the fittings listed below
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: [email protected]

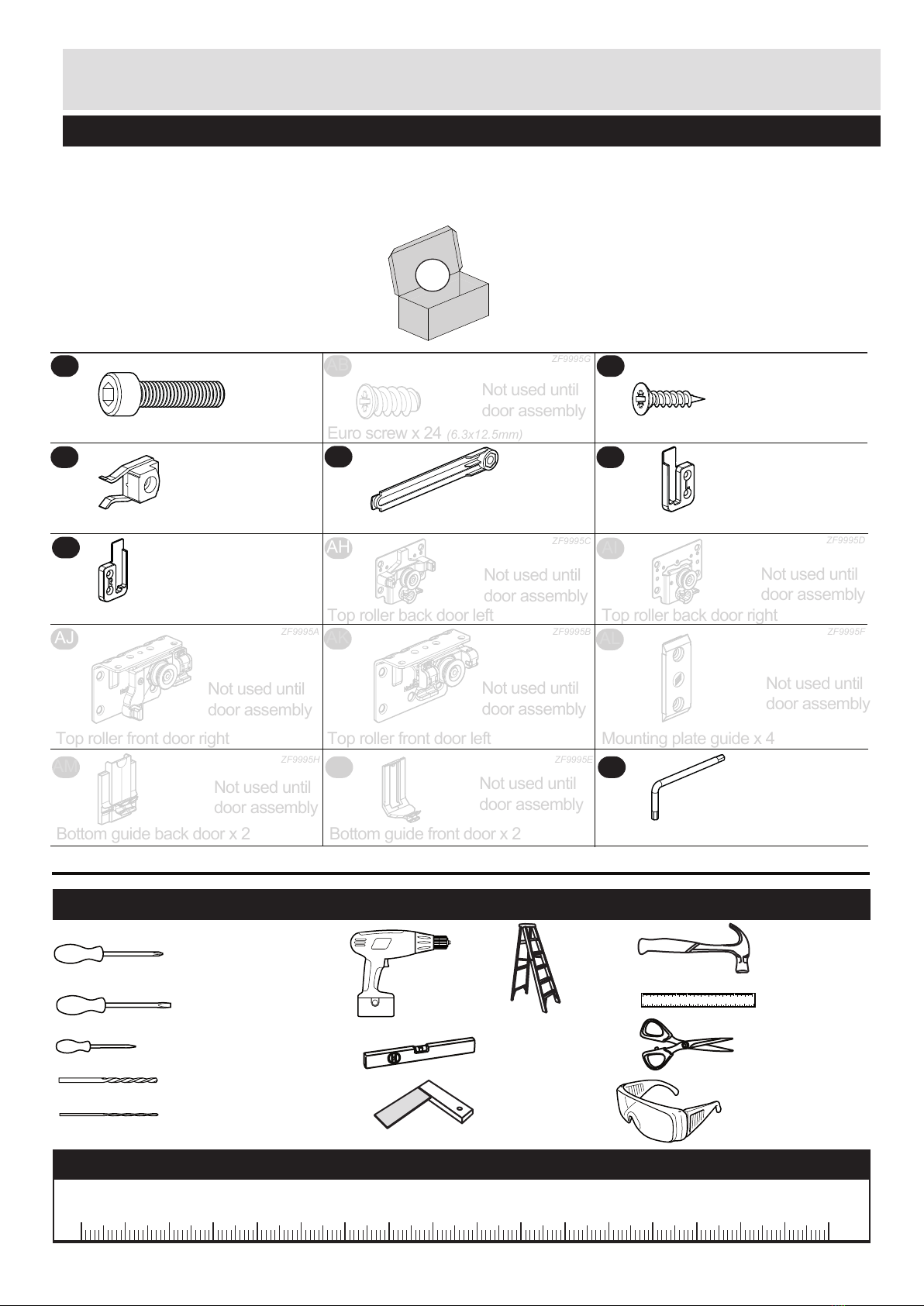

Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.

5
Screw x 11 (3.5x16mm)
AC ZF9995J
Euro screw x 24 (6.3x12.5mm)
AB
ZF9995G
Screw x 2 (M6x20mm)
AA ZF9995M
Support left
AF ZF9995P
End stop x 2
AD ZF9995K
Top roller back door left
AH ZF9995C
Top roller back door right
Covercap x 2
AE ZF9995L
Top roller front door left
AK
ZF9995B
Mounting plate guide x 4
AL
ZF9995F
AI
ZF9995D
Top roller front door right
AJ ZF9995A
A
2/2
Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
Ruler- Use this ruler to help correctly identify the screws
Tools required
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
Phillips screwdriver
(medium & large)
Flatblade screwdriver
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or drill)
5mm Suitable drill bit
5mm Suitable drill bit
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Stairs
Piercer Scissors
(medium)
(small)
Spirit level
Setsquare
Support right
AG ZF9995Q
Bottom guide back door x 2
AM
ZF9995H
Bottom guide front door x 2
AN
ZF9995E
Allen key (5mm)
AO ZF9995U
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly
Not used until
door assembly

6

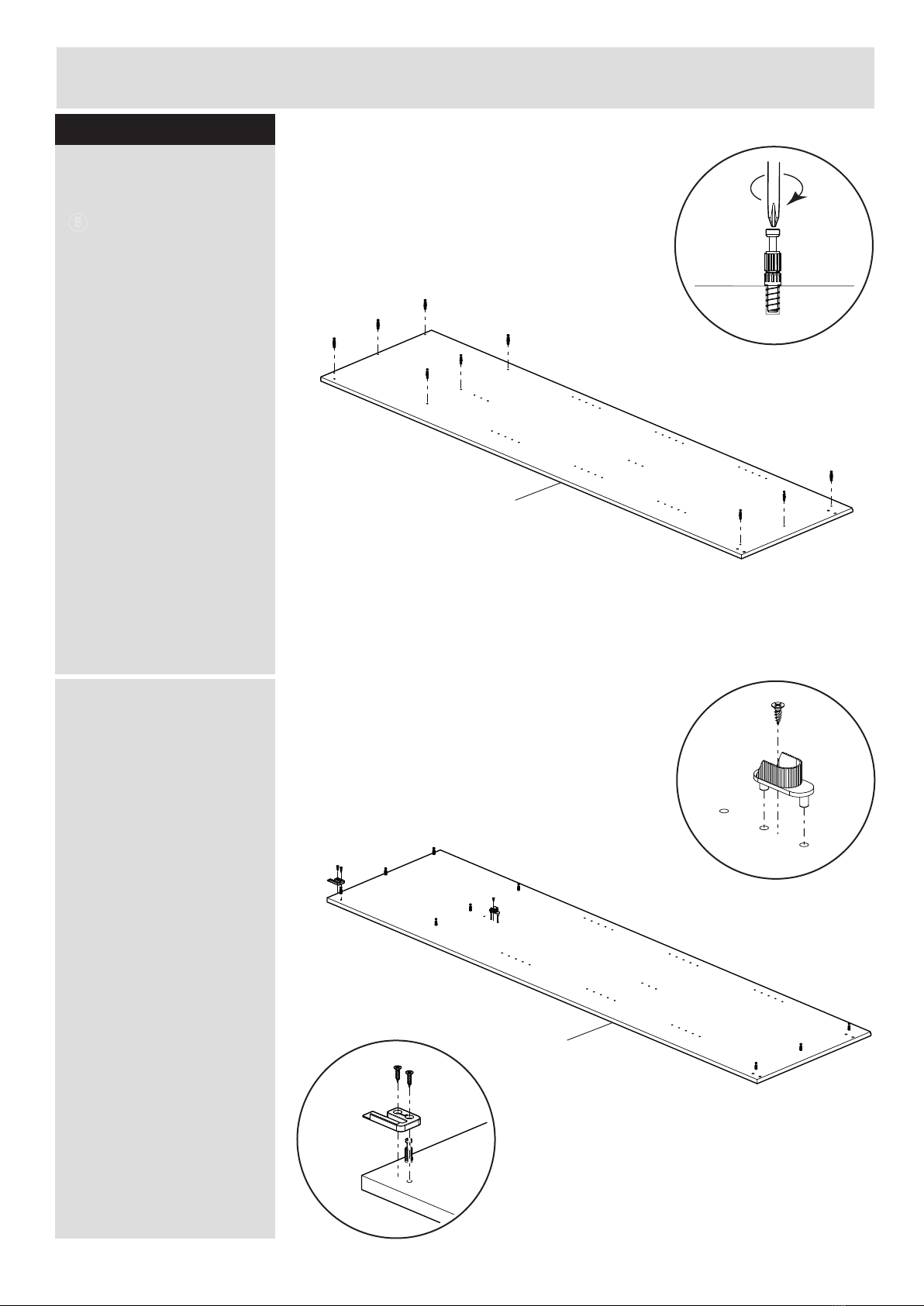

Assembly Instructions
Step 1
Cabinet assembly
a: Screw 9 locking screws
Binto the holes of the
left side 1.
Assembly Instructions
Step 1
Cabinet assembly
b: Mount hanger rail
support K, fasten with 1
screw D. Screw Dinto
the board between two
predrilled holes.
Mount Support left f
with two screws c,
aligning the bottom hole of
fwith the hole on panel.
a:
b:
f
f
c
c
c
c
Finished
front edge
Finished
front edge
B
B
B
BB
B
B
B
B
1
1
B
K
D
D
K

7
Assembly Instructions
Step 1
Cabinet assembly a:
Assembly Instructions
Step 2
Cabinet assembly
a: Screw 9 locking screws
Binto the holes of the
right side 2.
b: Mount hanger rail
support K, fasten with 1
screw D. Screw Dinto
the board between two
predrilled holes.
Mount Support right g
with two screws c,
aligning the bottom hole of
gwith the hole on panel.
b:
B
B
B
B
B
B
B
B
B
B
2
2
K
K
D
g
g
c
c c
c
D
Finished
front edge
Finished
front edge

8
Assembly Instructions
Step 1
Cabinet assembly
C: Mount hanger rail
support Kon the
upright 3, fasten with
screw D1x. Screw Dinto
the board between two
predrilled holes
Turn over.
Mount hanger rail
support Kon the
upright 3, fasten with
screw D1x. Screw Dinto
the board between two
predrilled holes.
3
a:
b:
c:
180˚
Assembly Instructions
Step 3
Cabinet assembly
a: Mount hanger rail
support Kon the
upright 3, fasten with
screw D. Screw Dinto
the board between two
predrilled holes
b: Turn over.
c: Mount hanger rail
support Kon the
upright 3, fasten with
screw D. Screw Dinto
the board between two
predrilled holes.
3
180˚
3
3
K
D
K
D
K
D
K
D
Finished
front edge
Finished
front edge

9

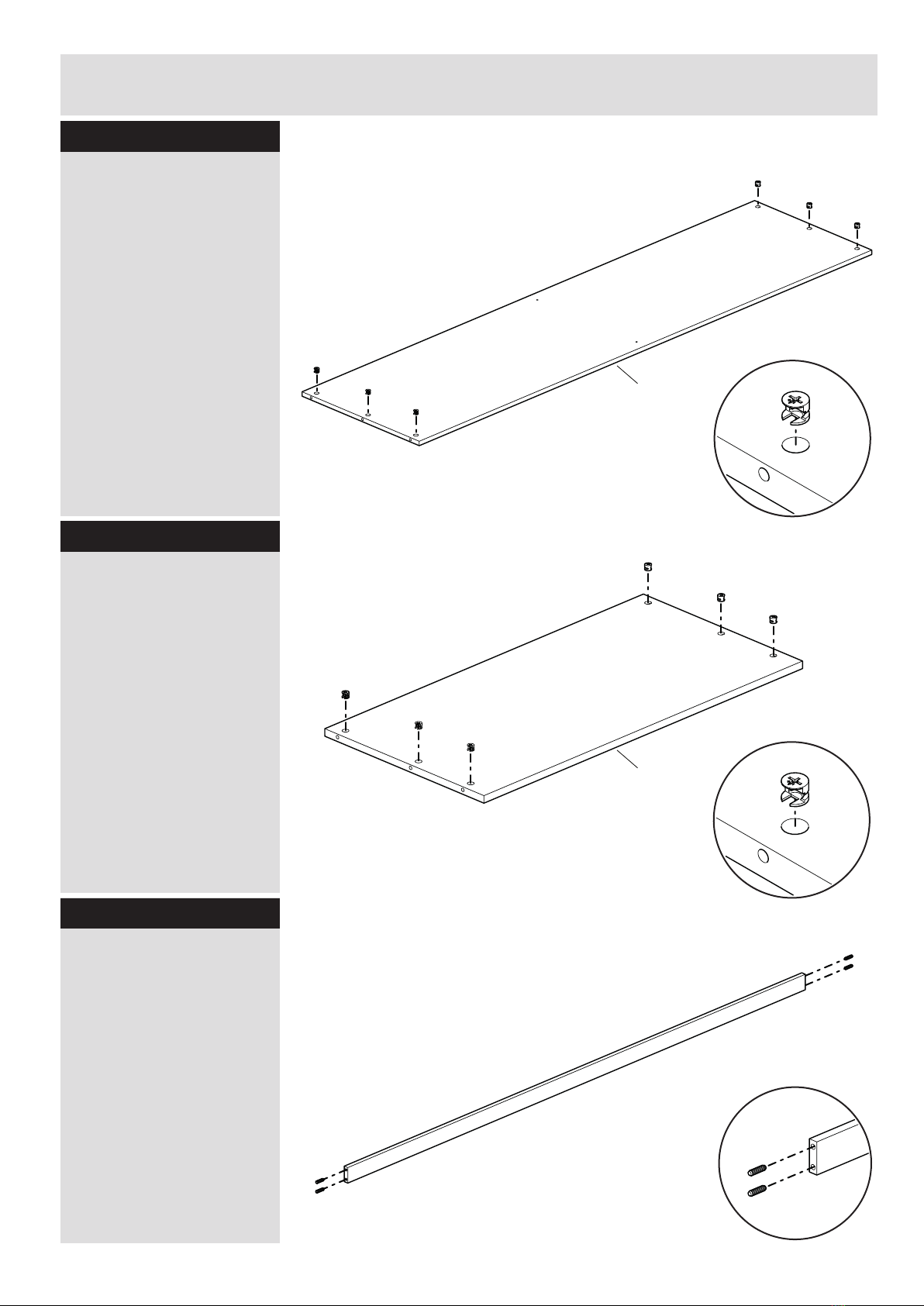

Assembly Instructions
Step 4
Step 5
Cabinet assembly
Insert 6x Large locking
nuts Iinto the top/bottom
5. 2x
Make sure the ‘arrow’ on
Iis pointing towards the
hole in the edge of the top
5.
Step 6
Insert 6x Large locking
nuts Iinto the shelf 6.
2x.
Make sure the ‘arrow’ on
Iis pointing towards the
hole in the edge of the
bottom 6.
Insert 4x wooden
dowels Jinto the plinth
7. 2x.
5
I
I
I
I
I
I
I
I
I
I
I
I
I
I
2x
2x
2x
Finished
front edge
Finished
front edge
6
7
H
H
H
H
H
H

Attach 2x top/bottom 5
with 4x confirmat screws
Ato the upright 3.
Use allenkey V.
Attach 2x the shelf 6to
the upright 3with 3x
double locking screws G.
Use a screwdriver to turn
6x locking nuts clockwise
to lock.
Assembly Instructions
Step 7
Step 8
Cabinet assembly
10
Finished
front edge
Finished
front edge
Finished
front edge
Finished
front edge
Finished
front edge
3
5
5
A
A
A
V
A
A
3
6
6
G
G
G
G

Assembly Instructions
Step x
Xxxxxx
x: x
x: xx
x: xxx
11
Assembly Instructions
Step 9
Step 10
Cabinet assembly

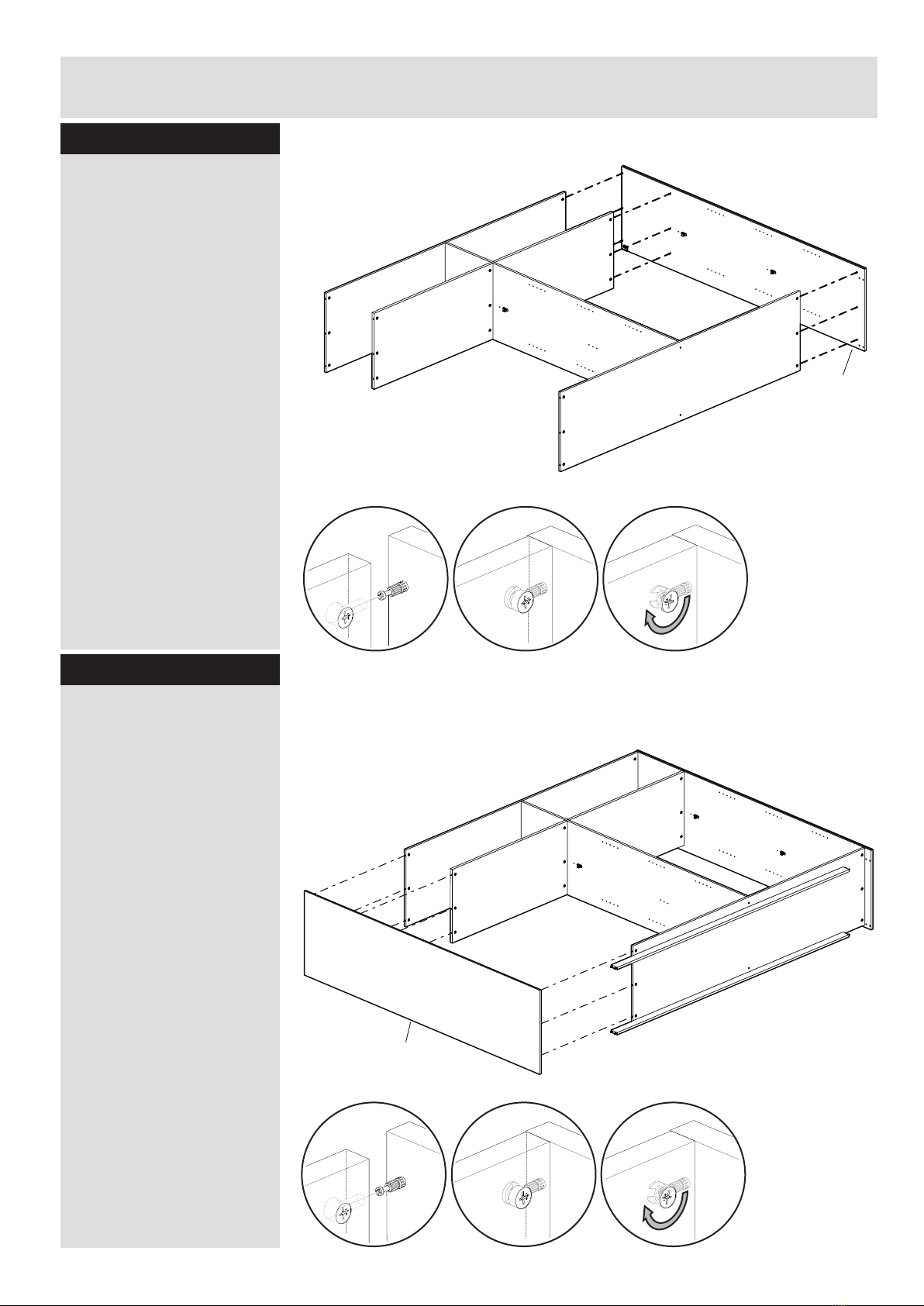

Attach the left side 1
with 9x locking screws and
locking nuts to the top 5,
shelf 8and the bottom 6.
Use a screwdriver to turn
9x locking nuts clockwise to
lock.
Attach 2x the plinth 7
between the left site 1
and the right side 2.
Attach the right side 2
with 9x locking screws and
locking nuts to the top 5,
shelf 8and the bottom 6.
Use a screwdriver to turn
9x locking nuts clockwise
to lock.
Finished
front edge
Finished
front edge
1
1
6
5
5
2
6
5
5
7
7

Assembly Instructions
Step 11
Step 12
Cabinet assembly
Attach 2x foldy back 4
to back of cabinet with
the coloured surface facing
the inside of the cabinet
using 60x nails Fand
26x screws C.
Use nail holder Nto hold
the nails Fvertical and at
correct distance as you
secure the 2x foldy back
4. Nails Fshould be
spaced about 150mm
apart.
Stand up the unit!
2 people required to
stand up unit.
Important:
Cabinet MUST be
‘square’ when
back is attached.
N
F
12
Mount corner connector J
with 2 screws Con the
plinth 7and bottom 6.
4
4
4
FFFFFFFFFFFFFFFFFFFFFFFFFFF
F
F
F
F
F
F
F
F
F
F
F
J
C
C
J
J
J
J
F
F
F
F
F
F
F
F
F
F
FCCCCC
CCCCCCC
CCCCCCCC
1.
2.
3.

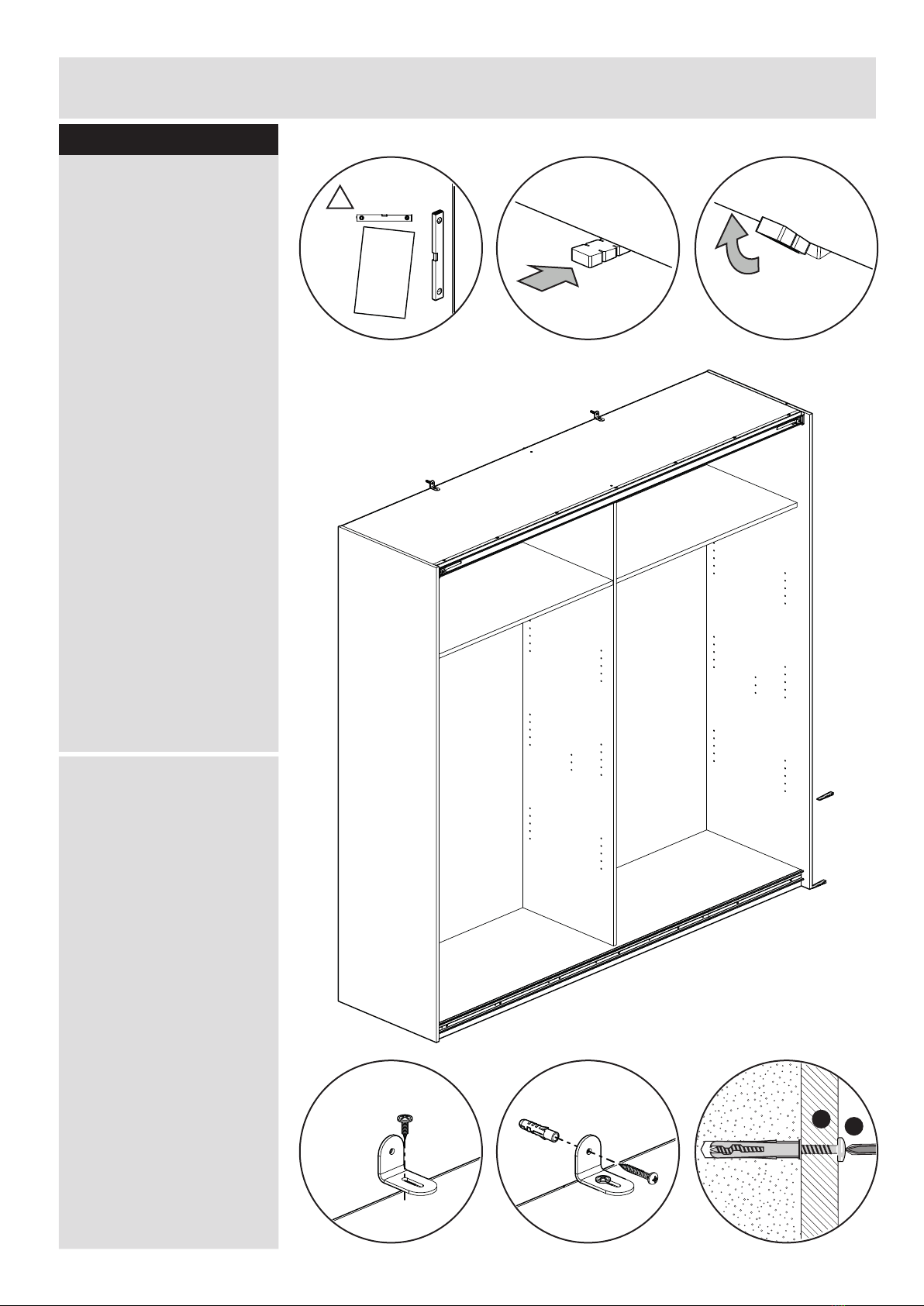

Assembly Instructions
Step 13
Step 14
Cabinet assembly
Position Top guide rail Q
onto top 5, with the ends
fitting into support left f
and support right g.
Fix top guide Qrail with
7x screws Cto the top/
bottom 5.
Insert covercap einto
slots of top guide rail Q.
Attach End stop dto
covercap ewith screw
a.
Use allen key oto
tighten screw a.
o
a
a
a
d
d
d
e
e
e
Q
C
C
C
C
C
C
C
C
Q
Q
13

Assembly Instructions
Step 15
Step 16
Place Hanger rail Ponto
hanger rail support K. 2x
14
Cabinet assembly
Position the lip of bottom
guide rail Ronto the top
of top/bottom 5, fix with
7x screws c.
c
cc
c
c
c
cc
P
P
P
K
R
R

Assembly Instructions
Step 17
Place cabinet
b: Attach 2 L-bracket
Mwith screw Cto the
top of the cabinet.
Use 2 wall plug and
screw Wto mount 2x
L-Bracket Mon the wall,
please see last page for
more information.
a: Before fixing the unit to
the wall, use a spirit level
to check if the base of this
unit is level front-to-back
and side-to-side in the
three positions shown.
Use pegs Lto square
your unit. Knock peg Lin,
as far as you require,
under the ends of the unit
and then snap off flush
with the panel.
15
M
W
W
W
W
M
M
M
C
C
C
L
L
L
SNAP!
!

A Guide to - Wall Mounting & Fixings
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hamemr fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
