Hytera TM-610 User manual

第1 页共41 页
THANK YOU!
Thank you for your purchase of HYT mobile radio TM-610. We believe this easy-to-use
radio will provide you with dependable and reliable communications at peak efficiency.
Please read this manual carefully before use. The information presented herein will help
you to derive maximum performance from your radio.
MODELS COVERED IN THIS MANUAL
TM-610 VHF Mobile Radio
TM-610 UHF Mobile Radio
Note: This manual is intended for 5-Tone models only.

第2 页共41 页
Contents
Safety and General Information
Product Safety and RF Exposure Compliance
FCC Licensing Information
Operation Guidelines
Product Inspection
Installation
Radio Overview
Basic Operations

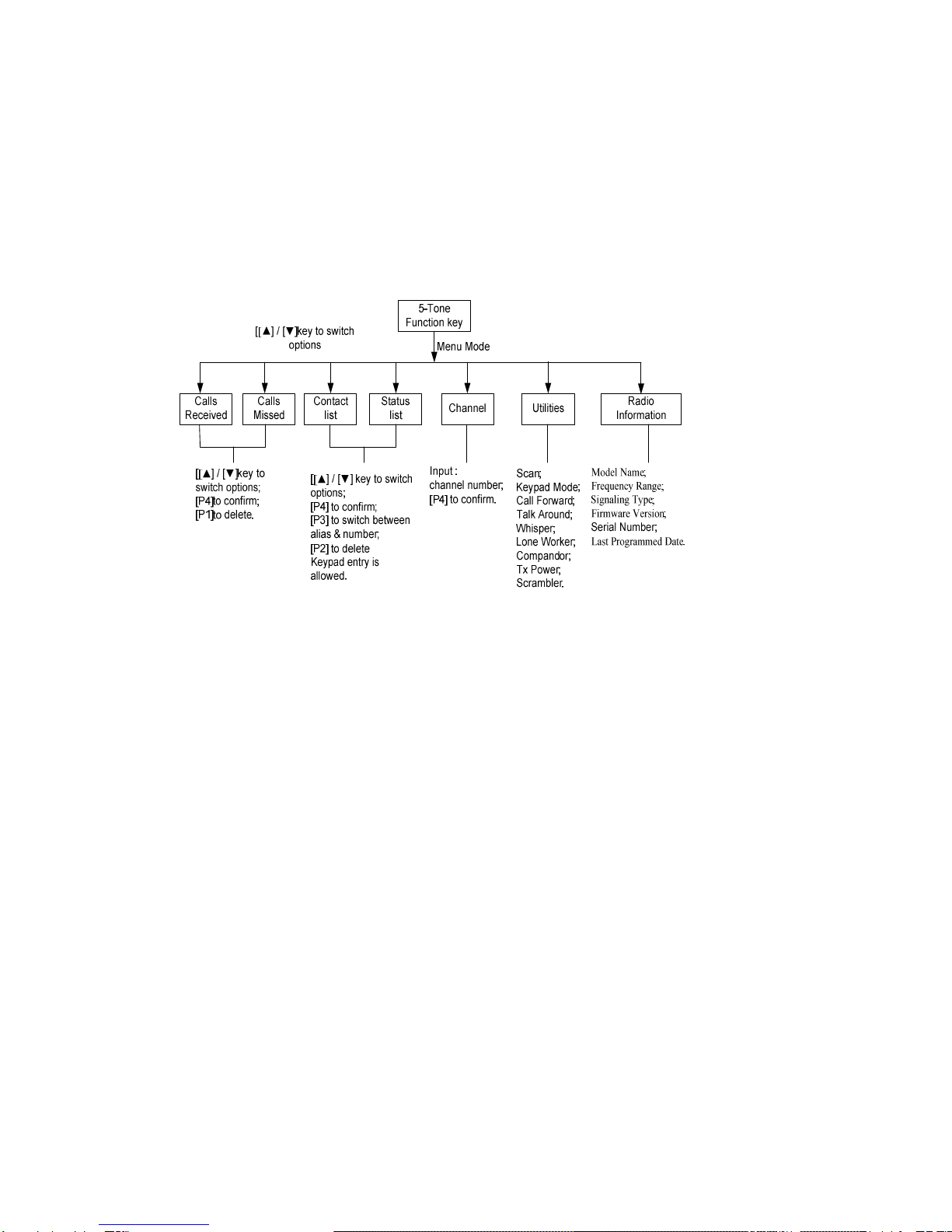

Menu
Turn On/Off the Radio
Adjust the Volume
Monitor
Select a Zone
Select a Channel
Send a Voice Call
Receive a Voice Call
5-Tone Call
Select the Target Radio ID
Send 5-Tone Signaling
Receive 5-Tone Signaling
Call Over
5-Tone Function
Call Type
Stun/Unstun
Emergency Exit
Silent Interrogate
Priority
Clear Down
Call Forward
Authorization
ANI

第3 页共41 页
Scan
Scan Type
Scan Start
Scan Exit
Scan Pause
Look Back
Priority Channel Scan
Nuisance Channel Temporary Delete
Revert Channel
Off Hook Scan
Phone Call
Buffer Dial
Live Dial
Dial Speed
Min/Max Digit Duration
Emergency Alarm
Emergency Start
Emergency Exit
Emergency Mode
Lone Worker
Off Hook Decode
Time-Out Timer (TOT)
Tx Time Out Time
TOT Pre-Alert Time
TOT Re-key Time
TOT Reset Time
Programmable Auxiliary Functions
Frequency Reverse
Talk Around
Selectable Tx Power
Selectable Squelch Level
User Selectable Tone (CTCSS/CDCSS)
Public Address (PA)
Home Channel

第4 页共41 页
Compandor
Scrambler
Whisper
Display Frequency
Display Mode Switch
Key Assignment
Troubleshooting Guide
Care and Cleaning
Optional Accessories

第5 页共41 页
HOT SURFACE
Avoid contact during prolonged use
Do not touch the metal surface of the radio while it is in use.
Do not mount the radio at a location such that the chassis can come in contact your skin.
High temperatures may burn you skin.
Safety and General Information
The following general safety precautions as would normally apply, should be observed
during all phases of operation, service and repair of this equipment.
This equipment should be serviced by qualified technicians only.
Do not modify the radio for any reason.
Use only HYT supplied or approved antenna.
Gain of antenna must not exceed 3dBi for VHF or 5.5dBi for UHF.
Mobile antenna Installation: Install the mobile antenna at least 82cm (32 inches) away
from your body, in accordance with the requirements of the antenna
manufacturer/supplier.
Transmit only when people inside and outside the vehicle are at least the minimum
distance away from a properly installed, externally mounted antenna.
Mobile antenna substitution: Don’t substitute HYT supplied or approved antenna. You
may be exposing person(s) to excessive radio frequency radiation. Please contact
your dealer or the manufacturer for further instructions.
Please make sure no stress on the antenna joint during transportation or installation.
To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio

第6 页共41 页
in any facility where posted notices instruct you to do so. Hospital or health facilities
may be using equipment that is sensitive to external RF energy.
For vehicles with an air bag, do not place a radio in the area over an air bag or in the
air bag deployment area.
Turn off your radio prior to entering any area with a potentially explosive atmosphere.
Do not expose the radio to direct sunlight over a long time, nor place it close to
heating source.
WARNING: Ensure the radio antenna is at least 82cm (32 inches) away from
your body.
DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting
more than 50% of the time can cause FCC RF exposure compliance requirements to be
exceeded.

第7 页共41 页
Product Safety and RF Exposure Compliance
Your HYT mobile radio is designed and tested to comply with a number of national and
international standards and guidelines (listed below) regarding human exposure to radio
frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP
exposure limits for occupational/controlled RF exposure environment at operating duty
factors of up to 50% transmitting and is authorized by the FCC for occupational use only.
In terms of measuring RF energy for compliance with the FCC exposure guidelines, your
radio radiates measurable RF energy only while it is transmitting (during talking), not when
it is receiving (listening) or in standby mode.
Your HYT mobile radio complies with the following of RF energy exposure
standards and guidelines
United States Federal Communications Commission, Code of Federal
Regulations; 47CFR part 2 sub-part J
American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled
environment RF energy exposure limits in the above standards and guidelines, users
should transmit no more than 50% of the time and always adhere to the following
procedures:
Transmit and Receive
To transmit (talk), push the Push-To-Talk (PTT) key; to receive, release the PTT key.
FCC Licensing Information
Part 15 Compliance
This equipment has been tested and found to comply with the limits for a Class B digital

第8 页共41 页
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Licensing Requirements
Your radio must be properly licensed Federal Communications Commission prior to use.
Your HYT Wireless dealer can assist you in meeting these requirements. Your dealer will
program each radio with your authorized frequencies, signaling codes, etc., and will be
there to meet your communications needs as your system expands.
Operation Guidelines
For vehicles equipped with electronic anti-skid braking systems, electronic ignition
systems or electronic fuel injection systems, interferences may occur during the radio
transmission. If the foregoing electronic equipments are installed on your vehicle, please
contact your dealer for further assistance to make sure that the radio transmission will not
interfere with these equipments.
For radio installation in vehicles fueled by LP gas with LP gas container within interior of
the vehicles, the following precautions are recommended for personal safety.

第9 页共41 页
1. Any space containing radio equipment shall be isolated by a seal from the space in
which the LP gas container and its fittings are located.
2. Remote (outside) fitting connections shall be used.
3. Good ventilation is required for the container space.
Safety: It is important that the operator is aware of, and understands, hazards common
to the operation of any radio.
Product Inspection
Please carefully unpack the radio. Before use, it is recommended that you inspect the
product as follows.
First check the shipping carton for any signs of damage. Confirm the supplied product
against the packing slip to assure accuracy. If any items are missing or have been
damaged during shipment, please file a claim to the carrier immediately.
Supplied Accessories
Item Qty. (pcs)
Palm Microphone 1
Microphone Hanger 1
Microphone Hanger Screws 3
Mounting Bracket Kit 1
Fuse 2
Power Cord 1
Owner’s Manual 1

第10 页共41 页

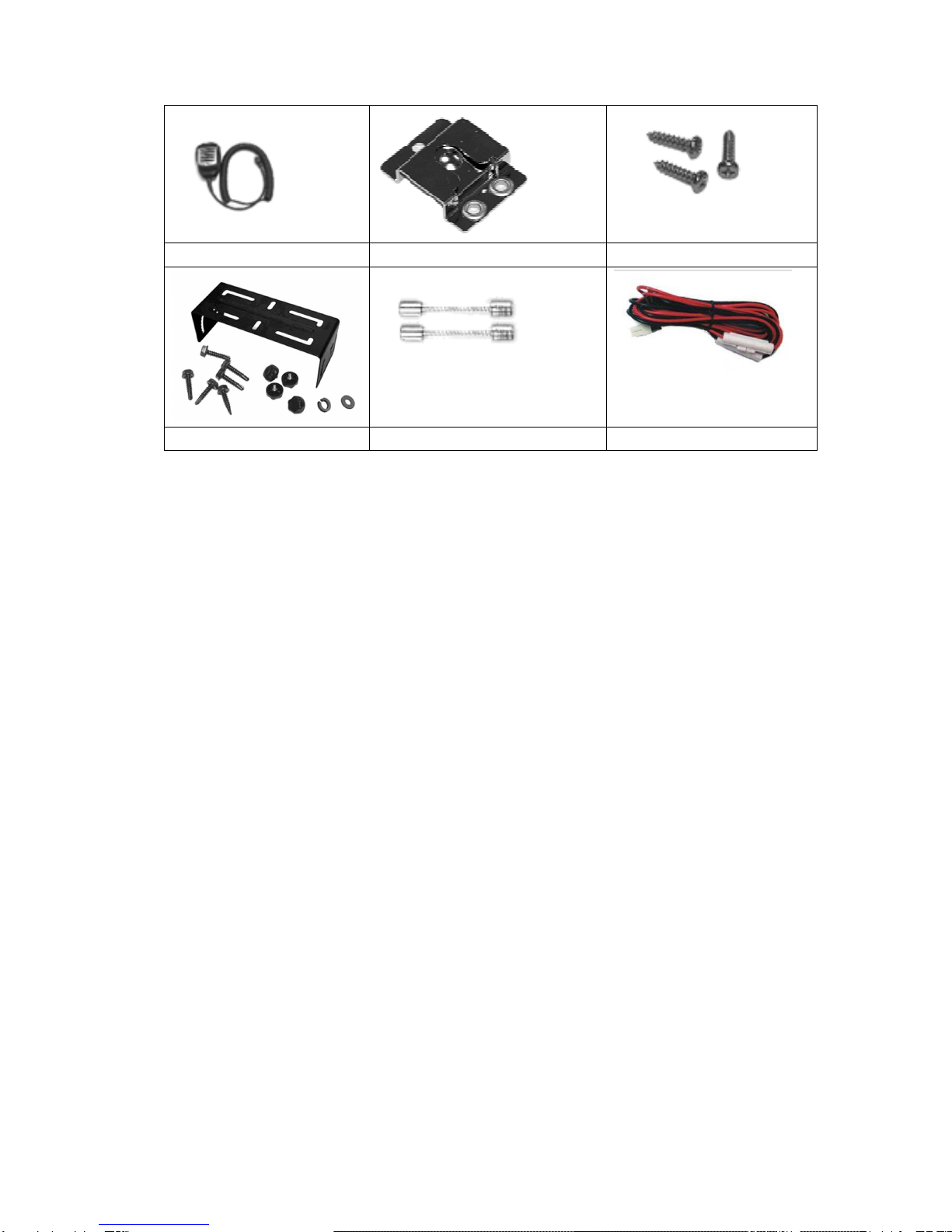

Palm Microphone Microphone Hanger Microphone Hanger Screws
Mounting Bracket Kit Fuse Power Cord
Installation
Installation Guidelines
Do not mount the mobile radio overhead or on a sidewall unless you take special
precautions.
If the mobile radio is not properly installed, road shock could bump the radio loose,
and the falling radio could, in some circumstances, cause serious injury to the driver
or a passenger. In case of vehicle accidents, even when properly installed, the radio
could break loose and become a dangerous projectile.
Mobile antenna Installation: Install the mobile antenna at least 82cm (32 inches) away
from your body, in accordance with the requirements of the antenna
manufacturer/supplier.
Install the Radio
1. Attach the mounting bracket, using the 4.8 x 20mm self-tapping screws, in a location
where convenient operation is accessible.
2. Connect the antenna and the supplied power cable to the radio.
3. Slide the radio into the mounting bracket and secure it using theAdjustment knobs.
4. Mount the microphone hanger, using the 4 x 16mm self-tapping screws, in a location

第11 页共41 页
where it will be within easy reach of the user.
5. Connect the microphone plug to the microphone jack on the front panel of the radio,
and then place the microphone on the hanger.
① Microphone
② Adjustment Knob
③ Main Unit
④ Power Inlet
⑤ Black Lead
⑥ Red Lead
⑦ Fuse
⑧ Antenna Connector
⑨ 4 × 16mm Self-tapping Screw
⑩ Microphone Hanger
⑪ Mounting Bracket
⑫ 4.8 × 20mm Self-tapping Screw
Installation Tools
Electric drill: ¢6mm or above
Cross head screwdriver
Hex socket sleeve (used to fix 4.8 × 20mm self-tapping screws)
Warnings:
1. The radio operates in 13.6 ± 15％
％％
％Vnegative ground systems only. Check the voltage
and polarity of the power supply on the vehicle before installation.

第12 页共41 页
2. Be sure to check how far the screw will extend below the radio surface to avoid
damage to the auto wiring or auto parts when drilling mounting holes.
3. Connect the radio with the supplied antenna and power cable before installing the
radio by the mounting bracket.
4. Install the radio securely using the supplied mounting bracket to make sure that the
radio will not loosen in the event of accidents. The loose radio may cause injury to the
passenger.
5. Arrange the installation location of the radio to make sure that the control unit in the
front panel is convenient for operation.
6. Be sure to determine the location of the installing holes before installation and drilling.
7. Be sure to make room at the rear side of the radio for power cable connection.
8. When replacing the fuse in the DC power cable, be sure to replace it with a fuse of
the same specifications. Never replace a fuse with one that has a higher capacity
value.
Radio Overview

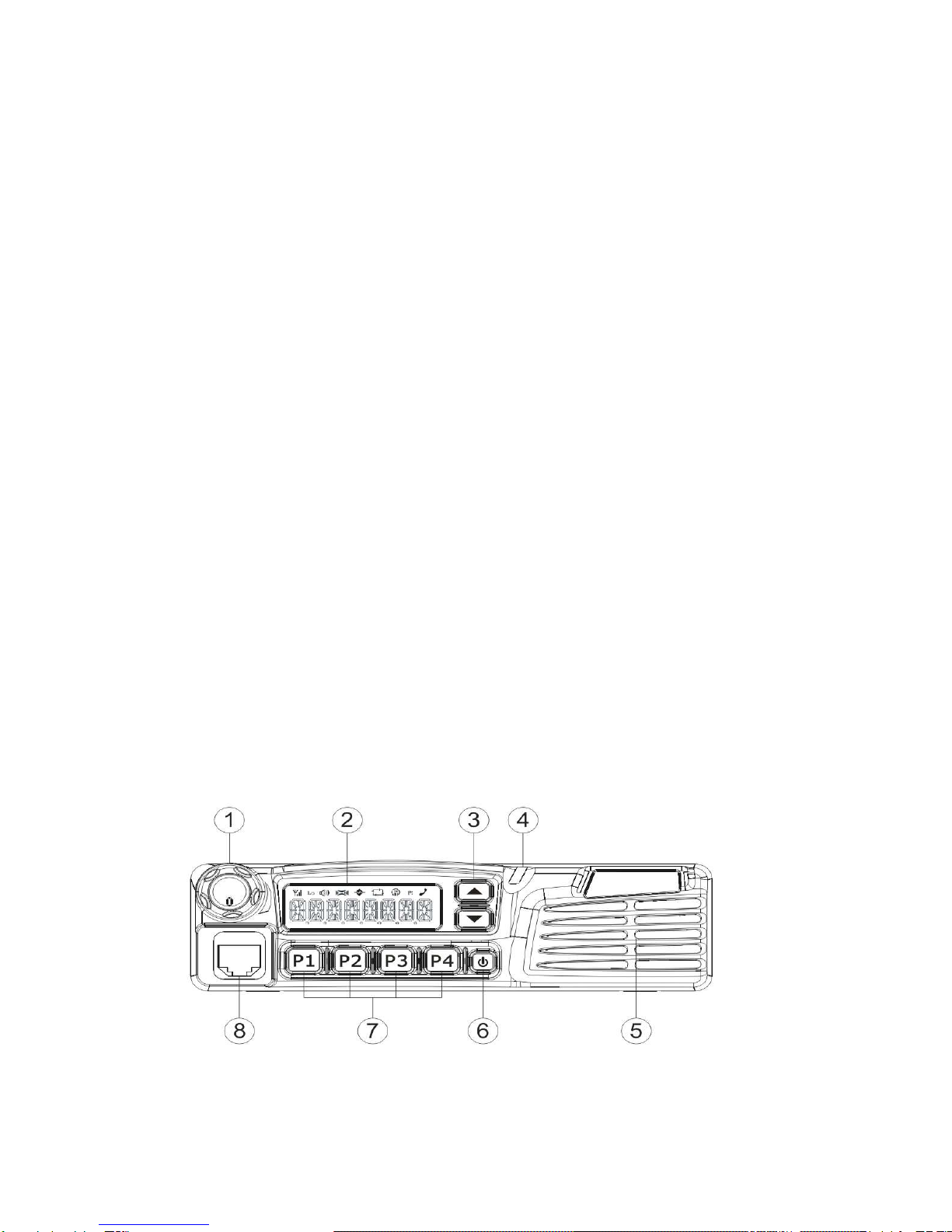

Front Panel
①Volume Control Knob
②LCD

第13 页共41 页
Please refer to the “LCD Display” section.
③Programmable Function Key ([▲] / [▼])
Please refer to the “KeyAssignment” section.
④LED Indicator
⑤Speaker
⑥Power Switch
⑦Programmable Function Key([P1]/[P2]/[P3]/[P4])
Please refer to the “KeyAssignment” section.
⑧Microphone Jack
Plug the microphone into this jack.
Rear Panel
①15 Pin Connector (external expansion)
②External Speaker Jack
Used to connect an external speaker with a 3.5mm plug
③Power Inlet
Use HYT provided DC power cable to inlet 13.6V DC power.
④Antenna Connector
Used to connect an external antenna
LED Indicator
Radio Status Indicator
Transmit Red
Receive Green
During the auto reset time after a call transmission Orange

第14 页共41 页
During the auto reset time after successful decoding
Flash orange
(less frequently)
Missed call alert after successful decoding Flash orange
(more frequently)
Scan Flash green
LCD Display
Fig. LCD
Indicator Description
Display CH number/alias, zone number, DTMF number, frequency,
menu and options, etc.
Low Tx power
The icon appears when:
1. The monitor status is entered through the Monitor key and the
channel is initialized as Monitor Squelch.
2. The monitor status (Auto Reset Mode) is entered through call
and decoding.
3. The monitor status is entered through Force Monitor.
4. Carrier mode in the Rx Squelch Mode.
5. Monitor requesting authorization.
The icon appears when the speaker is on.
Appear when scanning

第15 页共41 页
Appear within the auto reset time
Appear when the DTMF keypad is used
Appear when the Scrambler function is enabled.
Appear when the Compandor function is enabled
Appear when the current channel detects a carrier
Appear when the scan pause channel is set as the priority channel
P• indicates priority channel 1.
P . indicates priority channel 2.
P : indicates priority channels 1 and 2.
Basic Operations
Menu
Menu Architecture

第16 页共41 页
Menu Keys
Press the key programmed as Menu to enter the menu.
Front panel key operations:
[P4]: Select an item or enter the next menu.
[P1]: Exit and back to the previous menu.
[P2]: Select left, or delete 5-Tone related numeric entry.
[P3]: Select right, or toggle between alias and numbers under the 5-Tone menu.
[▲]:Select upward to scroll through items.
[▼]: Select downward to scroll through items.
Microphone keypad operations:

第17 页共41 页
[A]: Select upward to scroll through items.
[B]: Select downward to scroll through items.
[C]: Exit and back to the previous menu.
[D]: Select an item, or enter the next menu.
[#]: Select left, or delete 5-Tone related numeric entry
[*]: Enter the character G.
Menu Structure
Top Menu Second Menu Description of Second Menu
Calls Received
（RECEIVED）
Switch Address/ Status
(A．******．S)
Display “NO CALL” if no received call
history. Store up to 10 items of received
calls.
Calls Missed
（MISSED）
Switch Address/ Status
(A．******．S)
Display “NO CALL” if no missed call history.
Store up to 10 items of missed calls.
Contact list
（CONTACT）
Select or input Address
(A．******)
Set up to 128 items.
Status list
（STATUS）
Select or Input Status
(S．******)
Set up to 128 items.
Channel
（CHANNEL）
Channel
(C．***)
Select or input channel
Utilities
（UTILITY）
Scan
(SCAN)
On/Off
Keypad Mode
(KEY MODE)
Disable / DTMF /Address / Status / Channel
Call Forward
(FORWARD)
On/Off
Talk Around
(TA)
On/Off
Whisper
(WHISPER)
On/Off

第18 页共41 页
Lone Worker
(LONE WK)
On/Off
Compandor
(COMPANDE)
On/Off
TX Power
(TX POWER)
High/Low
Scrambler
(SCRAMBLE)
On/Off
Radio Information
(INFOR)
Signal Type
(SIGNAL)
5-Tone
Model Name
(NAME)
TM-610
Frequency Range
(FREQUENC)
Frequency range of the radio
Firmware Version
(VERSION)
Firmware version
Last Program Date
(PRO DATE)
Last program Date
Serial Number
(SERIAL)
Serial number of the radio
Turn On/Off the Radio
Press the Power Switch to turn on the radio.
Press and hold down the power switch for about 1 second to turn off the radio.
Adjust the Volume
Turn the Volume Control knob clockwise to increase the volume, or counter-clockwise to
decrease the volume.

第19 页共41 页
Monitor
Press the key programmed as Monitor in receive mode to monitor activities on the current
channel.
When the Auto Reset Mode is inactive, the Monitor key and the Monitor Squelch Mode
preset on the channel are combined to set the Monitor function. Operations are as follows:
1. Short press the Monitor key to enable Monitor 1 and the icon appears on LCD.
The squelch mode toggles between Receive Squelch Mode and Monitor Squelch
Mode.
2. Long press the Monitor key to enable Monitor 2. The squelch mode switches to
Squelch Off. The icon appears on LCD.
Note: In the Auto Reset Mode, a programmable Monitor key press cancels a call.
Select a Zone
Press the Zone Up/Zone Down key to select a desired zone. To select a higher
numbered zone, press the Zone Up key; to select a lower numbered zone, press the
Zone Down key.
Function keys, [▲]/[▼], or [PF1]-[PF4], can be programmed as the Zone Up/Zone Down
key.
Select a Channel
Press the CH Up/CH Down key to select a desired channel. To select a higher numbered
channel, press the Channel Up key; to select a lower numbered channel, press the
Channel Down key. Tx/Rx frequencies on each channel are set by your dealer.
Function keys, [▲]/[▼]or [P1]-[P4], can be programmed as the CH Up/CH Down key.
When Channel is selected in the menu, or the keypad is set as the Channel mode, input a
channel number through the keypad. Press and hold down [P4] or [D] on the keypad, and
the radio jumps to the selected channel.
Note: Function keys, [▲]/[▼], are the CH Up/CH Down key by default.
Send a Voice Call
1. Select a channel.

第20 页共41 页
2. Hold down the PTT key and speak into the microphone.
3. LED glows red while transmitting。
4. Release the PTT key to return to the receive mode. If the Auto Reset Mode is enabled
on the channel, the reset timer will be started. The icon appears on LCD and LED
glows orange.
5. When the transmission is over, hang the microphone on the hook.
Receive a Voice Call
If CTCSS/CDCSS or 5-Tone has been programmed on the current channel by your dealer,
you can only receive calls with matched signalings. If CTCSS/CDCSS or 5-Tone is not set
on the channel, you can hear from all the users on the same channel. Rotate the Volume
Control knob to adjust the volume level.
5-Tone Call
Select the Target Radio ID
You can enter the target radio ID from keypad or select it from the Contact List. If the
target radio ID is involved in the 5-Tone signaling system, you may skip this step.
1. Contact List
The Contact List provides variable address for encoding, and variable address for display
after successful decoding.
Operations
Press [P4] to enter the option when CONTACT appears on LCD.
Press [▲]/[▼]to select different items.
Press [P3] to toggle between alias and numbers.
Press the numeric keys to input specific numbers. [P2] can be used to delete the last digit.
Press [P4] to select the item when it is displayed.
2. Status List
The status list provides variable status for encoding, and variable status for display after
successful decoding.
Operations
