MD65X DIGITAL MOBILE RADIO

Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-
by-step procedures for use. It also includes a troubleshooting guide. To avoid bodily injury or property loss caused by incorrect operation,
please carefully read the Safety Information Booklet before use.
This manual is applicable to the following product:
MD65X Digital Mobile Radio (X may represent 2, 5, 6 or 8)

Copyright Information
Hytera is the trademark or registered trademark of
Hytera Communications Corporation Limited (the
Company) in the People's Republic of China (PRC) and/or
other countries or areas. The Company retains the
ownership of its trademarks and product names. All other
trademarks and/or product names that may be used in this
manual are properties of their respective owners.
The product described in this manual may include the
Company's computer programs stored in memory or other
media. Laws in PRC and/or other countries or areas
protect the exclusive rights of the Company with respect
to its computer programs. The purchase of this product
shall not be deemed to grant, either directly or by
implication, any rights to the purchaser regarding the
Company's computer programs. The Company's computer
programs may not be copied, modified, distributed,
decompiled, or reverse- engineered in any manner
without the prior written consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and
completeness of this manual, but no warranty of accuracy
or reliability is given. All the specifications and designs
are subject to change without notice due to continuous
technological development. No part of this manual may
be copied, modified, translated, or distributed in any
manner without the prior written consent of the Company.
We do not guarantee, for any particular purpose, the
accuracy, validity, timeliness, legitimacy or completeness
of the third-party products and contents involved in this
manual.
If you have any suggestions or would like to receive more
information, please visit our website at:
http://www.hytera.com.
FCC Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates and can
radiate radio frequency energy. If not installed and used
in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. Verification of harmful
interference by this equipment to radio or television
reception can be determined by turning it off and then on.
The user is encouraged to try to correct the interference
by one or more of the following measures:
lReorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver.
lConnect the equipment into an outlet on a different
circuit to that of the receiver's outlet.
lConsult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two conditions:
lThis device may not cause harmful interference.
lThis device must accept any interference received,
including interference that may cause undesired
operation.
Note: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Compliance with RF Exposure
Standards
The radio complies with the following RF energy
exposure standards and guidelines:
lUnited States Federal Communications Commission,
Code of Federal Regulations; 47 CFR § 1.1307,
1.1310 and 2.1093
lAmerican National Standards Institute
(ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1:2005; Canada RSS102 Issue
5 March 2015
lInstitute of Electrical and Electronic Engineers
(IEEE) C95.1:2005 Edition
RF Exposure Compliance and
Control Guidelines and Operating
Instructions
To control your exposure and ensure compliance with the
occupational/controlled environmental exposure limits,
always adhere to the following procedures.
Guidelines:
lDo not remove the RF Exposure Label from the
device.
lUser awareness instructions should accompany
device when transferred to other users.
lDo not use this device if the operational requirements
described herein are not met.
Operating Instructions:

lTransmit no more than the rated duty factor of 50%
of the time. To transmit (talk), press the Push-to-Talk
(PTT) key. To receive calls, release the PTT key.
Transmitting 50% of the time, or less, is important
because the radio generates measurable RF energy
only when transmitting (in terms of measuring for
standards compliance).
lKeep the radio unit at least 2.5 cm away from the
face. Keeping the radio at the proper distance is
important as RF exposure decreases with distance
from the antenna. The antenna should be kept away
from the face and eyes.
lWhen worn on the body, always place the radio in an
approved holder, holster, case, or body harness or by
use of the correct clip for this product. Use of non-
approved accessories may result in exposure levels
which exceed the FCC's occupational/controlled
environmental RF exposure limits.
lUse of non- approved antennas, batteries, and
accessories causes the radio to exceed the FCC RF
exposure guidelines.
lContact your local dealer for the product's optional
accessories.
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in
compliance with the essential requirements and other
relevant provisions of 2014/53/EU.
Please note that the above information is applicable to EU
countries only.
3

Contents
1
2
2
2
2
Contents
3
Instructions 3
Tools 3
Parts 3
Procedure 4
Basic Operations 4
Turning the Radio On or Off 4
Adjusting the Volume 4
Setting the Display 4
Locking or Unlocking the Key 4
Switching the Operation Mode 4
Status Indications 5

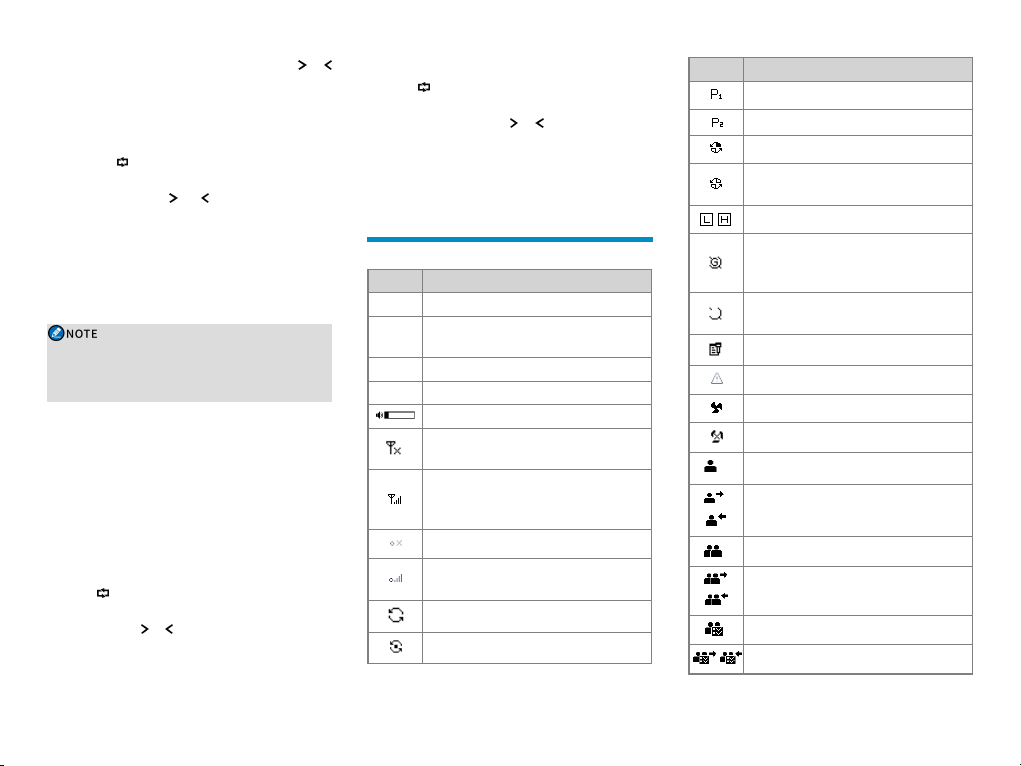

LCD Icons 5
LED Indications 6
Call Services 6
Call on Digital Channel 6
Call on Analog Channel (Conventional Only) 7
Supplementary Features 7
Radio Settings 8
Audio Settings 9
Conventional Features 10
Trunking Features 12
Troubleshooting 13
Care and Cleaning 15
Product Care 15
Product Cleaning 15
Optional Accessories 15
Abbreviations 15
1
Product Layout
Documentation Information
Product Overview
Packing List
Installation

Documentation Information
Icon Conventions
Icon Description
Indicates references that can further
describe the related topics.
Indicates situations that could cause data
loss or equipment damage.
Indicates situations that could cause
minor bodily injury.
Notation Conventions
Item Description Example
Boldface
Denotes
menus, tabs,
parameter
names, window
names,
dialogue
names, and
hardware
buttons.
To save the configuration,
click Apply.
The Log Level Settings
dialogue appears.
Press the PTT key.
" "
Denotes
messages,
directories, file
names, folder
names, and
parameter
values.
The screen displays
"Invalid Battery!".
Open "PDT_PSS.exe".
Go to "D:/opt/local".
In the Port text box, enter
"22".
>Directs you to
access a multi- Go to File >New.
Item Description Example
level menu.
Italic Denotes
document titles.
For details about using the
DWS, refer to Dispatch
Workstation User Guide.
Courier
New
Denotes
commands and
their execution
results.
To set the IP address, run
the following command:
vos-cmd - m name
IP
Packing List
Please unpack carefully and check that you have
received the following items. If any item is missing or
damaged, please contact your dealer.
Item Quantity
(PCS) Item Quantity (PCS)
Mobile Radio 1
Remote
Speaker
Microphone
1
Mounting
Bracket 1Microphone Hanger 1
Locking Knob 2 Screw (4 mm
x 16 mm) 3
Screw (4.8 mm x
20 mm) 4Power Cord (with fuse) 1
Documentation
Kit 1 / /
lCheck whether the frequency band marked on
the antenna label matches that on the radio label.
If not, contact your dealer.
lFigures in this manual are for reference only.
Product Overview
Product Layout
Mobile Radio
2

The GPS antenna connector is used only by mobile
radios with GPS feature.
Remote Speaker Microphone
You can request your dealer to program the following
keys as shortcuts to assignable radio features: TK, P1,
and P2 key.
Installation
Instructions
Before you install the radio in a vehicle, read the
following instructions carefully:
lThe radio must work with a 13.6 V ± 15% negative
ground electrical system. Ensure to check the
polarity and voltage of the vehicle power supply prior
to installation.
lCheck how long the screws will extend from the
bottom surface of the radio. Drill the mounting hole
cautiously to avoid damage to the vehicle wiring and
other parts.
lConnect the antenna and power cord to the radio
before you install it in the bracket. And make sure the
antenna and power cord are dedicated for digital
radios of the Company.
lInstall the radio with mounting bracket supplied by the
Company, to avoid radio looseness in case of
accidents. The loose radio may cause bodily injury.
lInstall the radio in a location where you can reach the
front panel conveniently.
lKeep sufficient clearance at the back of the radio for
wiring.
lBe sure to use the fuse with the same specification for
DC power cord upon replacement.
lIf any other devices are in the vicinity of this radio,
the antenna of this radio shall be no less than 10
meters away from that of such RF device.
Tools
lElectric drill
lCross head screwdriver
lT20 torx screwdriver
Parts
NO. Part Name NO. Part Name
1 Mobile Radio 6 4 mm x 16 mm
Screw
2 Locking Knob 7 Microphone
Hanger
3 Mounting Bracket 8 Power Cord
4 4.8 mm x 20 mm Screw 9 RF Antenna
5Remote Speaker
Microphone 10 GPS Antenna
3

lThe RF antenna must be purchased separately.
lThe GPS antenna is available only to MD65X
mobile radios with GPS feature.
Procedure
1. Select a location where you can operate the radio
conveniently, drill holes based on the shape of the
mounting bracket, and then use the 4.8 mm x 20 mm
screws to secure the bracket.
2. Connect the RF antenna, GPS antenna, and then
power cord to the radio.
3. Slide the radio into the properly mounted bracket and
secure it using the locking knobs.
4. Install the microphone hanger in a location where it
can be reached easily, and use the 4 mm x 16 mm
screws to secure it.
5. Align the triangle index on the remote speaker
microphone with the microphone installation index,
plug the connector into the radio, and rotate the
connector clockwise to secure it.
6. Place the remote speaker microphone on the hanger
when you do not use it.
Basic Operations
Turning the Radio On or Off
To avoid bodily injury, do not touch a rotating blade.
To turn the radio on or off, do one of the following:
lLong press the On-Off key on the mobile radio.
lLong press the On- Off key on the remote speaker
microphone.
Adjusting the Volume
To adjust the volume, do one of the following:
lPress on the remote microphone speaker until
appears, and then press or to increase or
decrease the volume.
lOn the home screen or on the calling interface,
press or on the remote microphone to increase
or decrease the volume.
Setting the Display
Switching the Day/Night Mode
The Day/Night Mode feature allows you to set the work
mode of the LCD display. The LCD display varies in
different work mode.
To switch the work mode, press on the remote speaker
microphone until the work mode (for example, Day)
appears, and then press or to select the required work
mode.
Locking the Keypad Light
The feature allows you to set the keypad light always on
in the darkness, so as to facilitate your operation on the
remote speaker microphone.
To lock the keypad light, do as follows:
1. On the home screen, long press and at the same
time.
2. Select Lock the Keypad Light.
3. Press to confirm the operation.
Locking or Unlocking the Key
When the key is not in use, you can lock it to avoid
unintended operations.
To lock or unlock the key, do as follows:
1. On the home screen, long press and at the same
time.
2. Select Lock or Unlock .
3. Press to confirm the operation.
Switching the Operation Mode
The radio can operate in conventional or trunking mode.
lTo manually switch the operation mode, press the
preprogrammed Operation Mode Switch key.
lTo allow the radio to automatically switch to
conventional mode when the signal drops below the
preset level in trunking mode, press the
preprogrammed Mode Auto Switch key.
Conventional Mode
In conventional mode, the radio receives and transmits
data and voice on the selected channel.
Selecting a Zone and Channel
A channel is used to receive and transmit data and voice.
A zone is a group of channels within the same operational
area. The radio supports up to 64 zones, each of which
contains up to 256 channels. To select a zone and then a
channel contained in it, do as follows:
1. Select a zone in one of the following ways:
lOn the home screen, press on the remote
speaker microphone until a zone alias (for
4

example, Zone 1) appears, and then press or
to select the required zone.
l
Press the preprogrammed Zone Up or Zone
Down key to select the required zone.
2. Select a channel in one of the following ways:
lPress on the remote speaker microphone until
a channel alias (for example, CHD1) appears,
and then press or to select the required
channel.
lPress the preprogrammed Channel Up or
Channel Down key to select the required
channel.
lPress the preprogrammed Preset Channel key to
switch to the preset channel.
If the Voice Notify feature is enabled by your
dealer, the radio announces the channel number
upon power-on or channel switching.
Trunking Mode
In trunking mode, the radio communicates with each
other through base stations after successful registration.
The radio can communicate with a group of radios or a
single radio.
Selecting a Subgroup
A subgroup is a group of group or private contacts. To
select a subgroup, do one of the following:
lPress on the remote speaker microphone until a
subgroup alias (for example, Subgroup 1) appears,
and then press or to select the required subgroup.
lPress the preprogrammed Subgroup Up or Subgroup
Down key to select the required subgroup.
Selecting a Group or Private Contact
lPress on the remote speaker microphone until a
group or private alias (for example, Group Call 1)
appears, and then press or to select the required
group or private contact.
lPress the preprogrammed Group/Private Up or
Group/Private Down key to select the required
group or private contact.
Status Indications
LCD Icons
Icon Radio Status
CThe radio operates in conventional mode.
XThe radio operates in eXtended Pseudo
Trunking (XPT) mode.
DThe radio operates in digital trunking mode.
AThe radio operates in analog trunking mode.
The number of bars indicates the volume.
There is no signal in conventional, XPT, or
TMDW mode.
The number of bars indicates the signal
strength in conventional, XPT, or TMDW
mode.
There is no signal in TM-DL mode.
The number of bars indicates the signal
strength in TM-DL mode.
The radio is scanning.
The radio stays on a non-priority channel.
Icon Radio Status
The radio stays on priority channel 1.
The radio stays on priority channel 2.
The radio is roaming.
The radio is detecting available channels for
roaming.
/The radio operates in low/high power mode.
The Global Positioning System (GPS) feature
is enabled, and the radio is receiving GPS
data.
The GPS feature is enabled, but the radio
receives no GPS data.
The Scrambler or Encrypt feature is enabled.
The radio is in emergency mode.
The fan is operating properly.
The fan fails to operate.
A private call is in progress.
/The radio is initiating/receiving a private call.
A group call is in progress.
/The radio is initiating/receiving a group call.
An all call is in progress.
/The radio is initiating/receiving an all call.
5

Icon Radio Status
An emergency group call is in progress in
conventional or XPT mode.
/
The radio is initiating/receiving an
emergency group call in conventional or XPT
mode.
An emergency call is in progress in trunking
mode.
/The radio is initiating/receiving an
emergency call in trunking mode.
An abnormality occurs, or the radio fails to
initiate a call.
LED Indications
LED Indicator Radio Status
Flashes green The radio is being turned on.
Flashes green
slowly The radio is standby in trunking mode.
Glows green The radio is receiving.
Glows red The radio is transmitting.
Flashes red The calling radio is establishing a call in
trunking mode.
Flashes orange
slowly
The radio is scanning, roaming or
hunting.
Flashes orange
rapidly
lConventional mode: The radio is
operating in emergency mode.
lTrunking mode: The called radio is
establishing a Full Off Air Call Set-
Up (FOACSU) call.
LED Indicator Radio Status
Glows orange
Call hang time: No voice is being
transmitted or received on the channel
during a call. Within such a period, you
can press and hold the PTT key and
speak.
Call Services
When you are speaking during a call, keep the
microphone about 2.5 to 5 cm away from your mouth.
This ensures optimal voice quality on the receiving radio.
The PTT key in the manual refers to the PTT key on
the remote speaker microphone
Call on Digital Channel
You can initiate or receive the following types of calls on
a digital channel:
lGroup call: a call from an individual user in a group to
all the other members in the group.
lPrivate call: a call from an individual user to another
individual user.
lBroadcast call (enabled by your dealer): a special
group call in the trunking mode. During the call, only
the calling party can speak.
lAll call (enabled by your dealer): In conventional
mode, it is a call from an individual user to all other
users on the current channel. In trunking mode, it is a
call from an individual user to all other users in the
network. According to whether the called party can
respond after listening to the call, an all call is
classified into the following two types:
» Broadcast all call: The called party cannot respond
to the call.
» General all call: The called party can respond to
the call.
In trunking mode, with the Auto Select Available Site
feature enabled by your dealer, the radio can
register with an available BS where the current
group is not limited after being turned on or during
the current group/BS changing.
Initiating a Call
Conventional Mode
lOn the home screen, select the required channel, and
then press and hold the PTT key to initiate a call to
the contact preset on the channel.
lIf the One Touch Call feature is configured by your
dealer, press the preprogrammed One Touch Call
key, and then press and hold the PTT key to initiate a
call.
Trunking Mode
If the radio is not registered or attached, or an empty
group is selected, you cannot initiate a call.
lOn the home screen, select the required group or
private contact, and then press the PTT key to initiate
a call.
lIf the One Touch Call feature is configured by your
dealer, press the preprogrammed One Touch Call
key to initiate a call.
6

Receiving a Call
Conventional Mode
You can listen to an incoming private/group/broadcast/all
call without any operations.
Trunking Mode
You can listen to an incoming group/broadcast/all call
without any operations.
For an incoming private call, you can listen to it in
different ways varying with the setup mode of the call:
lWhen receiving an Off Air Call Set-Up (OACSU)
private call, you can listen to it without any operation.
lWhen receiving a FOACSU private call, press the
PTT key to establish the call.
Ending a Call
Conventional Mode
lA private/group call ends when the call hang time
expires.
lAn all call ends when the calling party releases the
PTT key.
Trunking Mode
lA call ends when the calling party hangs up or
presses the preprogrammed Clear Down key.
lA private call also ends when the called party hangs
up or presses the preprogrammed Clear Down key.
Call on Analog Channel
(Conventional Only)
Call Without Signaling
On an analog channel without signaling, you can initiate a
call to all the other users on the channel. Do as follows:
1. On the home screen, select the required analog
channel.
2. Press and hold the PTT key, and speak into the
microphone.
Call With Signaling
On an analog channel with signaling, you can initiate a
call to a specific contact on the channel. Do as follows:
1. On the home screen, select the required channel.
2. On the home screen, select the target contact.
3. Press and hold the PTT key, and then speak into the
microphone.
Supplementary Features
The features supported by the radio vary with the
operation mode. For details, see the following table.
Feature
Conventional
Trunking
Digital Analog
Alert Tone √ √ √
Power Level √ √ √
VOX √ √ √
Rent √ √ √
Send Alias √ × √
ESN Check in Idle × × √
Talk Around √ √ ×
SPK Selection √ √ √
MIC Selection √ √ √
MIC AGC √ √ √
Feature
Conventional
Trunking
Digital Analog
Always Treble Boost √ √ √
3-Band Equalizer √ √ √
Group Call √ × √
Private Call √ × √
Broadcast Call × × √
All Call √ × √
Call With Signaling × √ ×
Call Without
Signaling × √ ×
Status Message × × √
Quick Text √ × √
One Touch Call √ √ √
Scan √ √ ×
Hunt × × √
Background Hunt,
Homestation Hunt,
Multi-site Handover,
Vote Now
× × √
Time-out Timer
(TOT) √ √ √
Busy Channel
Lockout √ √ ×
Customized Single
Tone √ √ ×
Priority Interrupt √ × ×
7

Feature
Conventional
Trunking
Digital Analog
Pseudo Trunk √ × ×
XPT System √ × ×
Dual-slot Data
Transmission √ × ×
Roam √ × √
Clarity Transmission √ × √
Call Priority × × √
Dynamic Group
Number Assignment
(DGNA)
× × √
Positioning √ √ √
Voice W/Location √ × √
GPS Report √ × √
Quick GPS √ × ×
Ignition Sense √ √ √
Public Address √ √ √
Horn & Lights √ √ √
Emergency √ √ √
Lone Worker √ √ √
Encrypt √ × √
Scrambler × √ ×
Stun × √ √
Revive × √ √
Kill × × √
Feature
Conventional
Trunking
Digital Analog
Emergency Erase
Data √ √ √
Supplementary
Features (Alert Call,
Radio Check, Remote
Monitor, Radio
Enable, Radio
Disable)
√ × ×
Compandor × √ ×
Monitor × √ ×
Adjust Squelch Level × √ ×
CTCSS/CDCSS × √ ×
Radio Settings
You can configure the frequently used features on radio.
For details, see the following table.
Feature Description Operation
Power
Level
The feature allows you to
set the TX power level of
the radio to High or Low.
High level strengthens the
TX signal. Low level saves
the battery power.
Press the
preprogrammed
Power Level
Adjust key to
change the
power level.
VOX
The feature allows you to
transmit voice without
pressing or holding the
PTT key. The radio
Press the
preprogrammed
VOX key to
enable or
Feature Description Operation
automatically transmits
voice when the volume
reaches the preset level.
Consult your dealer to
configure the VOX Gain
Level, and then you can
adjust the sensitivity of the
microphone transmission.
disable the
feature.
Customized
Single
Tone
The feature allows you to
customize the TX audio for
emergency alarm or to
target radio.
Press and hold
the
preprogrammed
Customized
Single Tone key
to send the TX
audio to the
current contact
and release the
key to stop
sending.
Roam
lConventional mode:
The feature allows
you to enjoy
seamless
communication
across sites or
networks, when the
radio automatically
registers with the
available BS
according to the
signal strength.
lConventional
8
mode: Press the
preprogrammed
Roam key to
enable or disable
the feature.

Feature Description Operation
lTrunking mode: The
feature allows the
radio to register with a
non-home BS or
network when it is on
the move. When the
radio detects signal, it
initiates to register.
Talk
Around
The feature allows you to
continue communication in
DMO mode, when the
repeater malfunctions or
your radio is out of the
repeater's coverage.
Press the
preprogrammed
Talk Around
key to change
between DMO
and repeater
mode.
Send Alias
The feature allows you to
send the radio alias during
a call. The called party can
view the alias on the
display and identify the
calling party.
The feature is
enabled by your
dealer.
Rent
The feature allows you to
rent a radio from a dealer.
When the rental time
expires, the radio will be
disabled.
The feature is
enabled by your
dealer.
TOT
The feature allows the
radio to automatically stop
keep beeping when the
preset period (60s by
The feature is
enabled by
default.
Feature Description Operation
default) expires. To stop
beeping, release the PTT
key. You need to wait for a
certain preset period to
initiate a call again.
Busy
Channel
Lockout
The feature prevents you
from talking on a channel
that is already in use. The
radio keeps beeping if you
press and hold the PTT key
when the current channel
is occupied by other radios.
The feature is
enabled by
default.
Audio Settings
MIC & SPK
The MIC & SPK feature allows you to select the
microphone and speaker used by the radio for
transmitting and receiving voice. With the audio
accessory connected, you can switch the audio selections.
For details, see the following table.
Option Description Operation
Follow
PTT
When you transmit
voice through the
radio's PTT key, the
radio uses the internal
microphone; when
you transmit voice
through the audio
accessory, the radio
uses the external
lPress the
preprogrammed
Mic Set Switch
key to change the
audio selection of
the microphone.
voice transmission and
Option Description Operation
microphone.
key to change the
audio selection of
the speaker.
Only
Internal
The radio uses only
the internal
microphone.
Only
External
The radio uses only
the audio accessory's
microphone and
speaker, such as
earpiece and remote
speaker microphone.
External
First
When audio
accessories are
connected, the radio
uses the external
microphone and
speaker; otherwise, it
uses the internal
microphone and
speaker.
Setting the Microphone
Enabling the Mic AGC Feature
The Mic AGC feature allows the calling radio to control
the voice output gain within a proper range during
transmission, so as to provide improved voice with proper
volume for the called party. The feature ensures a stable
voice even in noisy environment.
The feature is enabled by your dealer.
9
lTrunking
mode:
The
feature is
enabled
by your
dealer. lPress the
preprogrammed
SPK Set Switch

Audio Optimization
Enabling the Always Treble Boost
Feature
The Always Treble Boost feature allows the radio to
automatically output louder voice for audio clarity
irrespective of the surrounding environment conditions.
The feature is enabled by your dealer.
Configuring the 3-Band Equalizer
Feature
The 3-Band Equalizer feature allows the radio to adjust
the balance between frequency components of the audio
signal when receiving voice. In this way, the feature
optimizes the quality of the received voice, and satisfies
your demands in different working environments.
The feature is enabled by your dealer. To achieve the
optimal equalization, you might process the gain of
Intermediate Frequency signal in different situations.
Consult your dealer to configure it according to your
actual requirements.
The feature cannot work at the same time with the
Always Treble Boost feature.
Conventional Features
On Digital Channel
Feature Description Operation
Priority
Interrupt
The feature allows
you to interrupt the
ongoing activities
lManual Priority
Interrupt: Press
the
preprogrammed
Feature Description Operation
(such as a call, a
call hang status or
remote monitor) on
the current channel
to free the channel,
so as to initiate a
new call or a new
service.
Priority
Interrupt key.
lAuto Priority
Interrupt: After
your dealer's
configuration,
you can
interrupt an
ongoing call by
initiating an
emergency call,
all call, or
sending the
Radio Disable
command or a
short message.
Pseudo
Trunk
The feature allows
the radio in direct
mode and repeater
mode to select an
idle time slot for
communication.
When one slot is
busy, the radio
automatically
selects the other
time slot for
communication. In
this way, the feature
improves channel
utilization and
decreases the
The feature is
enabled by your
dealer.
Feature Description Operation
interference to
other ongoing calls
on the channel.
XPT System
XPT System is
based on the digital
conventional
system. It connects
multiple repeaters to
create an extended
pseudo trunking
system. The system
allows the radio to
communicate
through any of the
repeaters in the site
by sharing the logic
channels of these
repeaters, so as to
increase the
channel utilization
and extend the
communication
capacity. In such
case, a dedicated
control channel is
no longer required.
The feature is
enabled by your
dealer.
Dual-slot
Data
Transmission
The feature allows
the radio to use two
time slots on digital
channels to transmit
a large amount of
data.
The feature is
enabled by your
dealer.
10

Feature Description Operation
Alert Call
The feature allows
you to send an alert
call to a private
contact. The called
party can call you
back after seeing
the alert.
Press the
preprogrammed
One Touch Call key.
Radio Check
The feature allows
you to send a Radio
Check command to
a private contact, so
as to check whether
its radio is powered
on or operating on
the current channel
without disturbing
the contact.
Press the
preprogrammed
One Touch Call key.
Remote
Monitor
The feature allows
you to remotely
activate the
microphone of a
private contact, and
monitor the radio's
activities or
background voice.
Press the
preprogrammed
One Touch Call key.
Radio Enable
The feature allows
you to send the
Radio Enable
command to a
private contact to
restore its radio to
normal use.
Press the
preprogrammed
One Touch Call key.
Feature Description Operation
Radio
Disable
The feature allows
you to send the
Radio Disable
command to a
private contact to
disable its radio.
Except remote
monitor, all other
functions of the
disabled radio are
locked out. The
radio must be
reprogrammed by
the dealer for reuse
or enabled by the
Radio Enable
command.
Press the
preprogrammed
One Touch Call key.
On Analog Channel
Feature Description Operation
Compandor
The feature allows
the radio to compress
the voice signal when
transmitting and
decompress the voice
signal when
receiving during
voice
communication, so as
to improve the voice
quality.
The feature is
enabled by your
dealer.
Feature Description Operation
Monitor
The feature allows
the radio to receive
more signals or weak
signals, and helps
you to recognize the
weak voice in the
speaker.
lPress the
preprogrammed
Monitor key to
enable or disable
the feature.
lPress and hold the
preprogrammed
Monitor
Momentary key to
enable the feature,
and release the key
to disable the
feature.
11
Adjust
Squelch
Level
The feature allows
you to adjust the
squelch threshold
to be unmuted.
squelch level
requires stronger
be unmuted. The
squelch level
includes Low,
Normal and Tight.
required for the radio
Generally, the higher
signal for the radio to
Press the
preprogrammed
Adjust Squelch
Level key to adjust
the level.
CTCSS/
CDCSS
The feature allows
the radio to play the
voice only when the
received
CTCSS/CDCSS
matches the
transmitted one
The feature is
enabled by your
dealer.

Trunking Features
Feature Description Operation
ESN
Check in
Idle
When the radio is requesting
registration or after the radio
registers successfully, it will
respond to the trunking
The feature is
enabled by
your dealer.
system's ESN check.
Call
Priority
The feature allows you to set
the priority of voice services
except emergency call.
When all channels are
occupied, the call requests
are put in a queue according
to their priorities.
The feature is
enabled by
your dealer.
DGNA
The feature allows you to
initiate a call to or receive a
call from a dynamic group
temporarily created by the
dispatcher.
See the
operations in
"Call on
Digital
Channel".
12

Troubleshooting
Phenomena Analysis Solution
You cannot turn on the radio. The power cord may be disconnected or not securely connected to the
outlet. Properly connect the power cord and ensure secure connection.
The radio cannot register
successfully.
The radio fails to detect signals from the base station. Make sure your radio is within the coverage of the base station.
The validity of the radio has not been authenticated by the base station. Contact the base station manager to check whether the radio is authorized in the
network management system.
The radio registers repeatedly. The signal is discontinuous. Make sure your radio is within the coverage of the base station.
You cannot establish a call. The signal is poor. Make sure your radio is within the coverage of the base station.
You cannot hear voice after
establishing a call. Your radio ID may be repeated. Contact the base station manager to check whether your radio ID is repeated in the network management system.
The called party disconnects
repeatedly during
communication.
The signal is discontinuous. Make sure your radio is within the coverage of the base station.
You hear unclear voice. The signal is poor. Make sure you and other members are within the communication range.
You hear unknown voice or
noise.
You may be interrupted by radios using the same frequency. Change the frequency, or adjust the squelch level.
The radio may be set with no signaling. Request your dealer to set signaling for all member radios to avoid interference
at the same frequency, and make sure that all members share the same signaling.
You cannot use the keys. The keys may not work temporarily. Restart the radio.
The GPS cannot locate your
position.
The radio may be at an unfavorable position, so that no GPS signal is
received. Move to an open and flat area, and restart the GPS.
During receiving, the voice is
weak or intermittent.
The volume level may be low. Increase the volume.
The antenna may be loose or may be installed incorrectly. Turn off the radio, and then remove and reattach the antenna.
The speaker may be blocked or damaged. Clean the surface of the speaker.
You cannot communicate with
other group members.
The frequency or signaling type may be inconsistent with that of other
members. Verify that your TX/RX frequency and signaling type are correct.
13

Phenomena Analysis Solution
The channel type (digital or analog) may be set incorrectly. Verify that you are on the correct digital or analog channel.
You may be too far away from other members. Move towards other members.
The signal is poor. Make sure you and other members are within the communication range.
During receiving, you hear too
much noise and hiss.
The signal is poor. Make sure you and other members are within the communication range.
You may be in unfavourable position. For example, your
communication may be blocked by high buildings or blocked in an
underground area.
Move to an open an flat area, restart the radio, and try again.
It may be the result of external disturbance (such as electromagnetic
interference). Stay away from equipment that may cause interference.
If the above solutions cannot fix your problems, or you may have some other queries, please contact your local dealer or the Company for more technical support.
14

Care and Cleaning
To guarantee optimal performance as well as a long
service life of the product, please follow the tips below.
Product Care
lDo not pierce or scrape the product.
lKeep the product far away from substances that can
corrode the circuitry.
lDo not hold the product by the antenna or earpiece
cable.
lClose the accessory connector cover when no
accessory is in use.
Product Cleaning
Turn the product off and remove the battery before
cleaning.
lClean up the dust and fine particles on the product
surface and charging piece with a clean and dry lint-
free cloth or a brush regularly.
lUse neutral cleanser and a non-woven fabric to clean
the keys, knobs, and front case after long-time use.
Do not use chemical preparations such as stain
removers, alcohol, sprays or oil preparations, so as to
avoid surface case damage.
lIf the radio is used in a harsh environment (such as
sea and salt frog), periodically clean and dry the
radio.
lMake sure the product is completely dry before use.
Optional Accessories
Contact your dealer for the optional accessories used with
the product.
Use the accessories specified by Hytera only;
otherwise, we will not be liable for any loss or
damage arising out of the use of any unauthorised
accessories.
Abbreviations
Abbreviation Full Name
FOACSU Full Off Air Call Set-up
GPS Global Positioning System
LED Light-emitting Diode
OACSU Off Air Call Set-up
PTT Push-to-Talk
XPT eXtended Pseudo Trunking
15
Existing devices should be upgraded to Hytera’s iM
or iS before being used as part of a system. Speak to
your Hytera dealer about how to upgrade your
existing devices and for more information on
Hytera’s iM or iS firmware.

USER MANUAL
2019 Hytera Communications Corporation Limited.
Address: Hytera Tower,Hi-Tech Industrial Park North,9108#Beihuan Road,
Nanshan District,shenzhen,People’s Republic of China
Hytera Communications Corporation Limited.
MD65X DIGITAL MOBILE RADIO
