Hytera PD79X Ex User manual

Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read this
manual and the supplied Safety Information Booklet carefully before use.
This manual is applicable to the following model:
PD79X Ex (X may indicate 2, 5, 6 or 8)

1
Instructional Icons
The following icons are available through this manual:
Alert Icons
Caution: indicates situations that could cause damage to your product.
Note: indicates tips that can help you make better use of your product.
Function Icons
: indicates functions that are available on digital channel only.
: indicates functions that are available on analog channel only.
Functions marked with no function icons are available on both analog and digital channels.
Term Explanation
Key Operation
zShort press: to press a key and release it quickly.
zLong press: to press a key and remain holding it down for a predefined period (2 seconds by
default).
zHold down: to press a key and remain holding it down.
Private Call
Private Call is a call initiated by a single user to another user.
Group Call
Group Call is a call initiated by a single user to a group.
All Call
All Call is a call initiated by a single user to all the other users on a channel.
Squelch
This technology can remove excessive background noises, improving your communication quality.
PTT ID
PTT ID, namely radio identity, allows a radio with display or the control center to identify the calling
party.

2
Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in
PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product
names. All other trademarks and/or product names that may be used in this manual are properties of their
respective owners.
The product described in this manual may include the Company’s computer programs stored in memory
or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company
with respect to its computer programs. The purchase of this product shall not be deemed to grant, either
directly or by implication, any rights to the purchaser regarding the Company’s computer programs. Any
of the Company’s computer programs may not be copied, modified, distributed, decompiled, or
reverse-engineered in any manner without the prior written consent of the Company.
The AMBE+2TM voice coding technology embodied in this product is protected by intellectual property
rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding
technology is licensed solely for use within this product. The user of this technology is explicitly prohibited
from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way
convert the Object Code into a human readable form.
U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390,
#5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and
#5,195,166.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications and designs are subject to change without notice due
to continuous technology development. No part of this manual may be copied, modified, translated, or
distributed in any manner without the express written permission of us.
If you have any suggestions or would like to learn more details, please visit our website at:
http://www.hytera.com.

3
RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION,
AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE
REQUIREMENTS
BEFORE USING YOUR PORTABLE 2-WAY RADIO, READ THIS IMPORTANT RF
ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL
INSTRUCTIONS TO ENSURE COMPLIANCE WITH THE FCC’S RF EXPOSURE
GUIDELINES
NOTICE: This radio is intended for use in occupational/controlled conditions, where users
have full knowledge of their exposure and can exercise control over their exposure to meet
FCC limits. This radio device is NOT authorized for general population, consumer, or any
other use.
This 2-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide
communications between two or more users over a distance. It uses radio frequency (RF) energy
or radio waves to send and receive calls. RF energy is one form of electromagnetic energy.
Other forms include, but are not limited to, electric power, sunlight and x-rays. RF energy,
however, should not be confused with these other forms of electromagnetic energy, which when
used improperly can cause biological damage. Very high levels of x-rays, for example, can
damage tissues and genetic material.
Experts in science, engineering, medicine, health and industry work with organizations to develop
standards for exposure to RF energy. These standards provide recommended levels of RF
exposure for both workers and the general public. These recommended RF exposure levels include
substantial margins of protection. All 2-way radios marketed in North America are designed,
manufactured and tested to ensure they meet government established RF exposure levels. In
addition, manufacturers also recommend specific operating instructions to users of 2-way radios.
These instructions are important because they inform users about RF energy exposure and provide
simple procedures on how to control it. Please refer to the following websites for more
information on what RF energy exposure is and how to control your exposure to assure
compliance with established RF exposure limits.
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
Federal Communications Commission Regulations
The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for
portable 2-way radios before they can be marketed in the U.S. When 2-way radios are used as a
consequence of employment, the FCC requires users to be fully aware of and able to control their
exposure to meet occupational requirements. Exposure awareness can be facilitated by the use of

4
a product label directing users to specific user awareness information. Hytera’s 2-way radio has a
RF exposure product label. Also, Hytera’s user manual, or product manual, or separate safety
booklet includes information and operating instructions required to control your RF exposure and
to satisfy compliance requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Compliance with RF Exposure Standards
Hytera’s 2-way radio is designed and tested to comply with a number of national and international
standards and guidelines (listed below) for human exposure to radio frequency electromagnetic
energy. This radio complies with the IEEE and ICNIRP exposure limits for
occupational/controlled RF exposure environment at operating duty factors of up to 50%
transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF
energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF
energy only while it is transmitting (during talking), not when it is receiving (listening) or in
standby mode. Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty
factor (5% talk-5% listen - 90% standby), even though this radio complies with the FCC
occupational RF exposure limits and may operate at duty factors of up to 50 % talk.
Hytera’s 2-way radio complies with the following RF energy exposure standards and guidelines:
•United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§
1.1307, 1.1310, 2.1091 and 2.1093
• American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled environment
exposure limits always adhere to the following procedures.
Guidelines:
•Do not remove the RF Exposure Label from the device.
• User awareness instructions should accompany device when transferred to other users.
• Do not use this device if the operational requirements described herein are not met.

5
Operating Instructions:
•Transmit no more than the rated duty factor of 50 % of the time. To transmit (talk), push the
Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50 % of the
time, or less, is important because this radio generates measurable RF energy exposure only when
transmitting (in terms of measuring for standards compliance).
• Hold the radio in a vertical position in front of face with the microphone (and the other parts of
the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keeping the
radio at the proper distance is important because RF exposures decrease with distance from the
antenna. Antenna should be kept away from eyes.
• When worn on the body, always place the radio in a Hytera’s approved clip, holder, holster, case,
or body harness for this product. Using approved body-worn accessories is important because the
use of Hytera’s or other manufacturer’s non-approved accessories may result in exposure levels,
which exceed the FCC’s occupational/controlled environment RF exposure limits.
•If you are not using a body-worn accessory and are not using the radio in the intended use
position in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm (one
inch) from the body when transmitting. Keeping the radio at the proper distance is important
because RF exposures decrease with increasing distance from the antenna.
• Use only manufacturer’s name approved supplied or replacement antennas, batteries, and
accessories. Use of non-manufacturer-name approved antennas, batteries, and accessories may
exceed the FCC RF exposure guidelines.
• For a list of Hytera’s approved accessories (see the user manual), or (visit the following website
which lists approved accessories: www.hytera.cn
ICsatatement
Operationissubjecttothefollowingtwoconditions:1.Thisdevicemaynotcauseharmful
interference,and2.Thisdevicemustacceptanyinterferencereceived,includinginterference
thatmaycauseundesiredoperation.
Note:Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment

6
RF Radiation Information
RF Radiation Profile
Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are
transmitted. RF technology is widely used in communication, medicine, food processing and other fields.
It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering, medicine
and health work with international organizations to develop standards for safe exposure to RF radiation.
These standards consist of:
¾United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2
sub-part J;
¾American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE)
C95. 1-1992;
¾Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999;
¾International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires that all radio communication products should meet
the requirements set forth in the above standards before they can be marketed in the U.S, and the
manufacturer shall post a RF label on the product to inform users of operational instructions, so as to
enhance their occupational health against exposure to RF energy.
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled environment RF energy
exposure limits in the above standards and guidelines, users should transmit no more than 50% of the
time and always adhere to the following procedures:
(1) Your radio radiates measurable RF energy only while it is transmitting (during talking), not when it
is receiving (listening) or in standby mode.
(2) Keep the radio at least 2.5 centimeters away from your body during transmission.

7
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC. Please note that the above information is applicable
to EU countries only.
Safety Instructions
To protect you against any property loss, bodily injury or even death,
be sure to observe the following safety instructions:
zUse only the Ex-battery BL1807-Ex specified by the Company. The use of other batteries may result
in Ex-protection failure.
zCharge the battery in a non-hazardous area only with the designated charger.
zUse the accessories specified by the Company only.
zDo not carry any standby battery into a hazardous area.
zDo not use a damaged antenna. If a damaged antenna comes into contact with your skin, a minor
burn may result.
zDo not expose the radio to direct sunlight for a long time, nor place it close to a heating source.
zHold the radio upright and keep its microphone 2.5 to 5 centimeters away from your mouth during
use.
zIf you wear a radio on your body, ensure its antenna is at least 2.5 centimeters away from your body
during transmission.
zDo not carry the radio into Division 0.
zDo not disassemble the radio or replace the accessories in a hazardous area.
zDo not modify the intrinsically safe radio in any way . Unauthorized modification of the radio may
result in termination of Ex-protection.

8
Contents
Safety Instructions.............................................................................................................................. 7
Checking Items in the Package....................................................................................................... 10
Product Overview............................................................................................................................... 11
Product Controls...................................................................................................................................................8
Programmable Keys .............................................................................................................................................12
Before Use......................................................................................................................................... 13
Charging the Battery...........................................................................................................................................13
Assembling Accessories .....................................................................................................................................14
Status Indication............................................................................................................................... 14
LCD Icon............................................................................................................................................................17
LED Indicator.....................................................................................................................................................18
Basic Operations .............................................................................................................................. 19
Turning the Radio On/Off...................................................................................................................................19
Adjusting the Volume .........................................................................................................................................19
Selecting a Zone .................................................................................................................................................19
Selecting a Channel ............................................................................................................................................19
Switching the Channel Mode..............................................................................................................................19
Locking/Unlocking the Keypad..........................................................................................................................20
Call...................................................................................................................................................... 21
Private Call .............................................................................................................................................21
Group Call ..............................................................................................................................................22
All Call ...................................................................................................................................................23
Calls on Analog Channels ......................................................................................................................23
Phone..................................................................................................................................................................23
Menu Navigation .............................................................................................................................. 28
Contact................................................................................................................................................................25
Message ..................................................................................................................................................27
Call Logs ................................................................................................................................................28
Phone..................................................................................................................................................................28
Roaming .................................................................................................................................................28
Scan ....................................................................................................................................................................29
Zone....................................................................................................................................................................29
Settings...............................................................................................................................................................30

9
Accessories.........................................................................................................................................................33
Functions and Operations............................................................................................................... 34
Home Screen.......................................................................................................................................................34
Scan ....................................................................................................................................................................34
Talk Around........................................................................................................................................................35
Monitor ....................................................................................................................................................35
Squelch Off ............................................................................................................................................35
Roam .......................................................................................................................................................36
One Touch Call...................................................................................................................................................36
Telemetry ................................................................................................................................................37
Emergency..........................................................................................................................................................37
Lone Worker.......................................................................................................................................................41
Man Down (optional) .........................................................................................................................................42
Battery Strength Indicator...................................................................................................................................42
Scrambler /Encrypt ..........................................................................................................................43
Busy Channel Lockout .......................................................................................................................................43
Time-out Timer (TOT)........................................................................................................................................44
Pseudo Trunking .....................................................................................................................................44
MIC AGC ...........................................................................................................................................................44
Radio Registration Service .....................................................................................................................44
GPS Revert .............................................................................................................................................44
HDC1200............................................................................................................................................................45
5-Tone.................................................................................................................................................................46
2-Tone.................................................................................................................................................................46
Troubleshooting ................................................................................................................................47
Care and Cleaning ........................................................................................................................... 48
Optional Accessories ....................................................................................................................... 49
Specifications .................................................................................................................................... 50
Appendix............................................................................................................................................ 51
Input Method ......................................................................................................................................................51

10

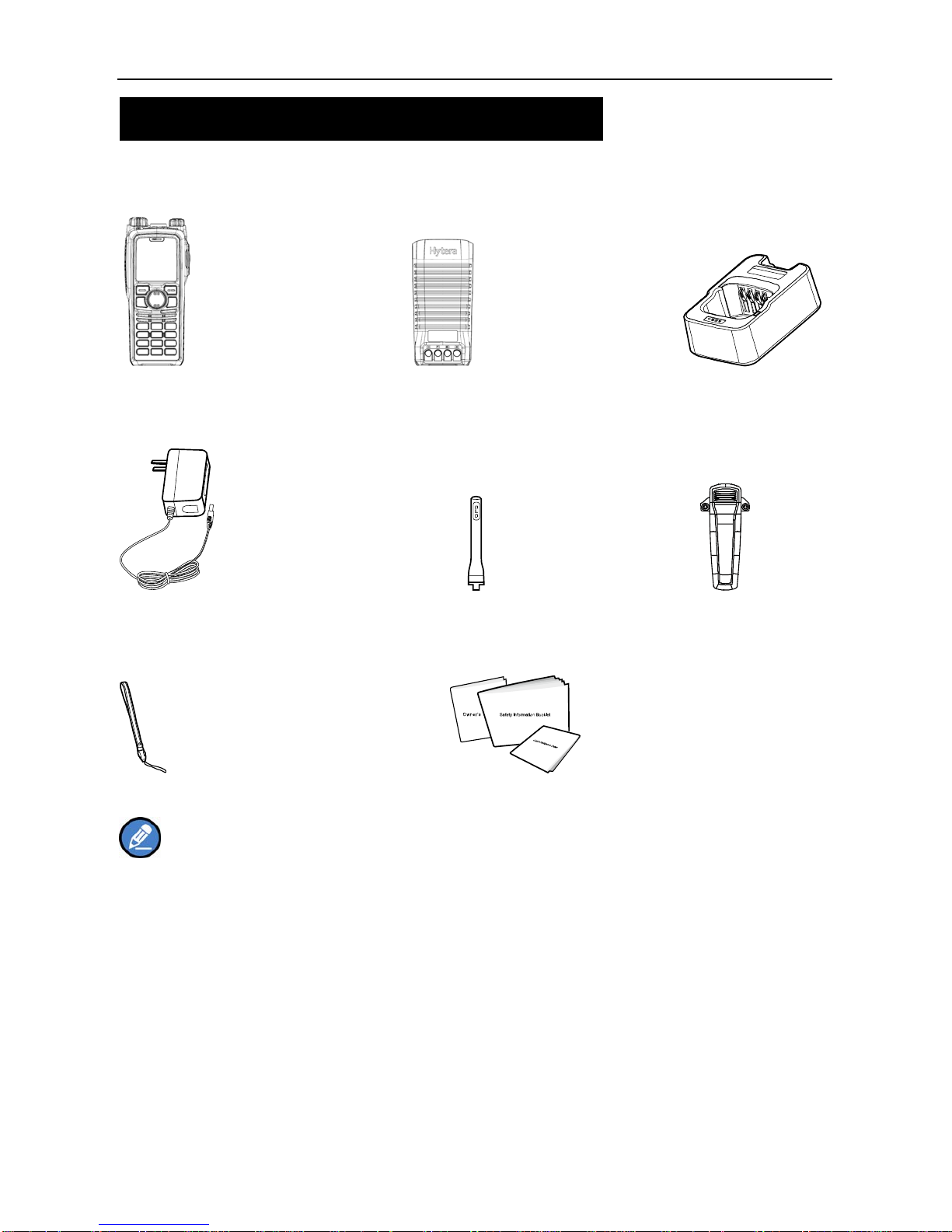

Checking Items in the Package
Please unpack carefully and check that all items listed below are received. If any item is missing or
damaged, please contact your dealer.
RadioUnit Battery Charger
Power Adapter Antenna Belt Clip
Strap Manuals
Note: The antenna may vary with different frequency bands. And the frequency band is marked on the label of
antenna; if not, please refer to the label on the terminal for frequency band information.

11

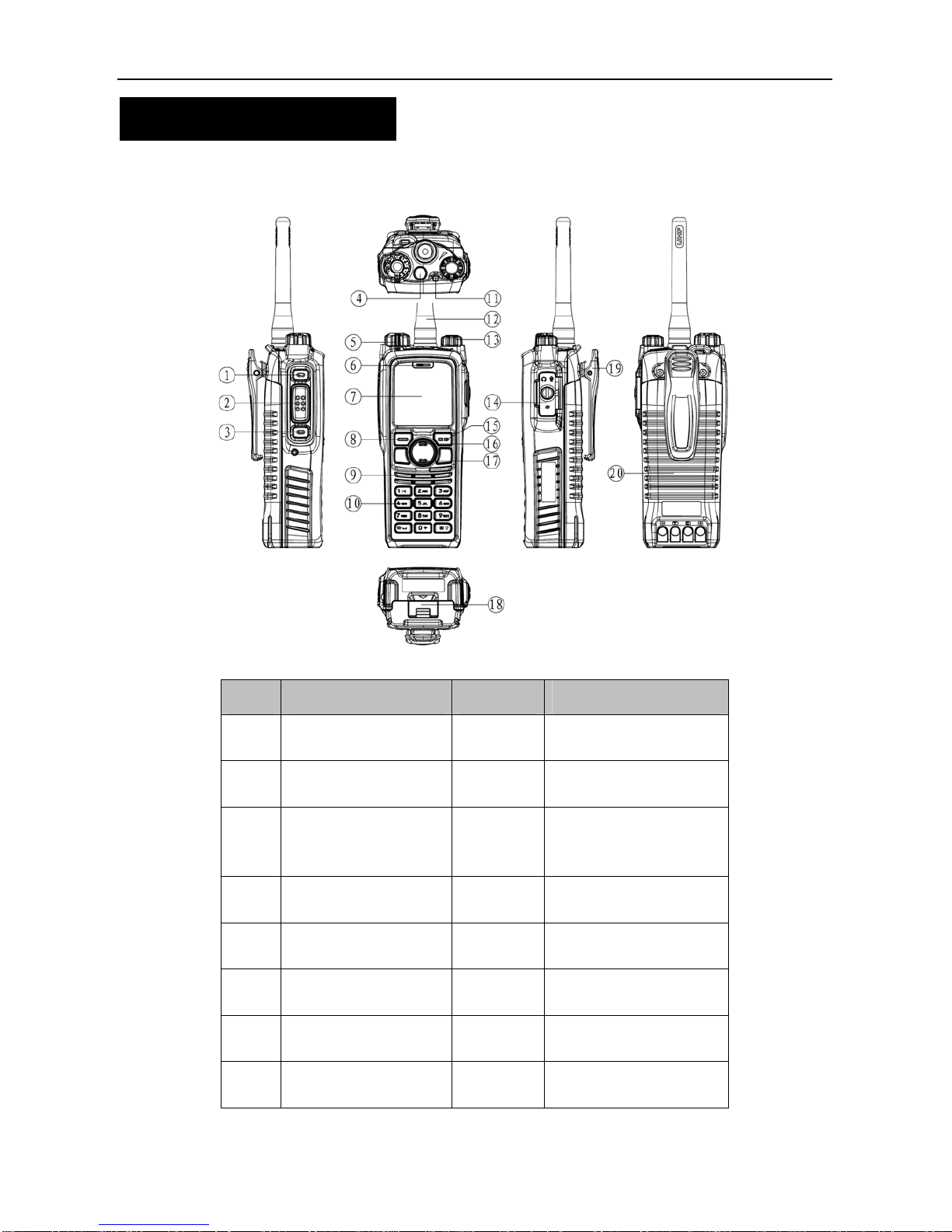

Product Overview
Product Controls
No. Part Name No. Part Name
○
1SK1 (Side Key 1) ○
11 LED Indicator
○
2 PTT Key ○
12 Antenna
○
3SK2 (Side Key 2) ○
13 Radio On-Off/Volume
Control Knob
○
4TK (Top Key) ○
14 Accessory Jack
○
5Channel Selector Knob ○
15 Back Key
○
6Microphone ○
16 Up Key
○
7LCD Display ○
17 Down Key
○
8OK/Menu Key ○
18 Battery Latch

12
○
9Speaker ○
19 Belt Clip
○
10 Numeric Keypad ○ 20 Battery
Programmable Keys
For enhanced convenience, you may request your dealer to program the keys SK1, SK2, TK, and
as shortcuts to the functions listed below:
No. Shortcut Key Function
1 Zone Up
2 Zone Down To select a desired zone quickly
3 Keypad Lock To lock or unlock the keypad quickly
4 Contact List To access the menu “Contact List” quickly
5 Message To access the menu “Message” quickly
6 Call Log To access the menu “Call Logs” quickly
7 Adjust Power Level To adjust power level quickly
8 Talk Around To directly communicate with other radios
9 Monitor
10
Monitor Momentary
To adjust the condition for incoming signal
match
11 Squelch Off
12
Squelch Off Momentary
To always unmute speaker no matter whether
carrier is present or not
13 Home Screen To quickly return to the previous menu or
home screen
14 Scan To receive signals on other channels
15 Nuisance Temporary
Delete
To temporarily ignore unwanted channel
activity
16 Emergency To summon help in emergent situations
17 Adjust Squelch Level To temporarily adjust the squelch threshold
required for the radio to unmute
18 Battery Strength Indicator To indicate the battery strength
19 Man Down To activate Emergency in the case that the
radio is positioned aslant for a preset time
period due to an unexpected situation

13
20
Scrambler /Encrypt
Scrambler: To encrypt your voice so as to
guarantee privacy of your communication
Encrypt: To encrypt your voice and message
so as to guarantee privacy of your
communication
21 Lone Worker To protect the operators from accidents
22 One Touch Call 1-5 To make appropriate services quickly
23
Status
To access the menu “Status List” quickly (for
5-Tone)
24
Tele m etry
To supervise remote devices
25 DTMF Keypad To enter or exit the DTMF keypad mode (In the
DTMF Keypad mode, you can enter a number
via the keypad to make a phone call.)
26 Phone List To access the menu “Phone List” quickly
27
Roam
To communicate between sites in the IP
Multi-site Connect system.
Note:
zLong and short press of a key can be assigned with different functions by your dealer.
zThe TK is programmed as the Emergency key by default, and is programmable by your dealer.
Before Use
Charging the Battery
Use only the charger and battery specified by us. Charger LED can indicate the charging process.
Charging Diagram

14
Procedures
1. Connect the power adapter to AC socket. See arrow ①.
2. Plug the power adapter into the rear jack of the charger. See arrow ②.
3. Place the radio with the battery attached, or the battery alone, into the charger.
4. The charging process begins when the charger LED glows red. When charging is complete, the
charger LED glows green.
Note: To achieve optimal battery performance, please charge the battery for 5 hours before initial
use.
LED Indicator
LED Indicator Charger Status
Red LED flashes slowly. Standby (no load)
Red LED glows. Charging
Orange LED glows. 90% charged
Green LED glows. Fully charged
Red LED flashes rapidly. Failure
Caution: Be sure to read the Safety Information Booklet, to get necessary safety information.
Assembling Accessories
Assembling the Antenna
Turn the antenna clockwise to fasten it.
To remove the antenna, rotate it counter-clockwise.
Assembling the Battery
1. Align the battery with the guide rails on the radio, and slide it in the direction as indicated by ○
2.

15
2. Open the battery latch and hold it down until the metal lock goes into the battery housing completely.
3. Push the battery until it is fully fitted into the slot, and then release the battery latch.
To remove the battery, please power off the radio first. Then open the battery latch, and slide the battery
out while holding down the battery latch.
Assembling the Belt Clip
1. Remove the screws.
2. Align the screw holes on the belt clip with those on the radio’s body, and then tighten the screws.
To remove the belt clip, loosen the screws.

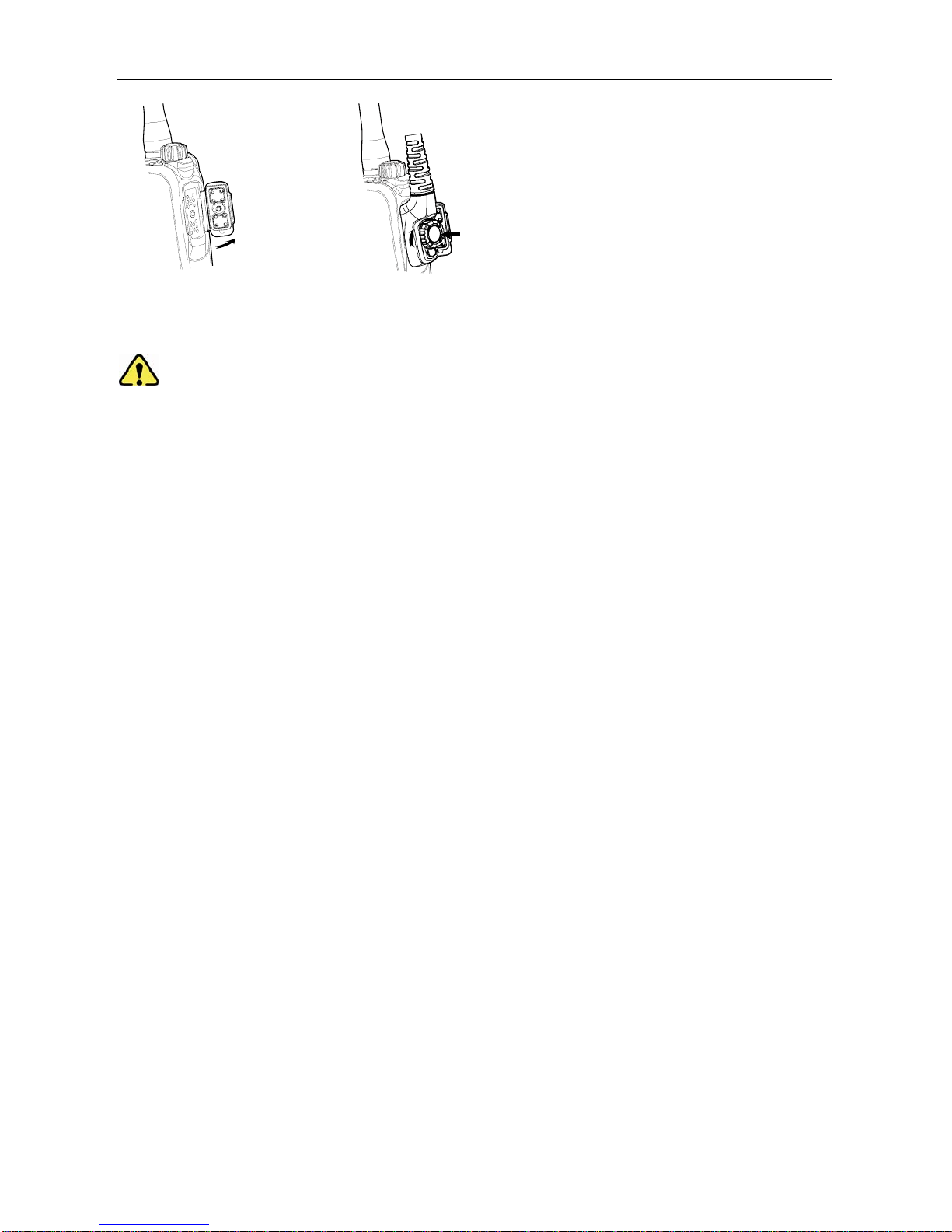

Assembling the Audio Accessory/Programming Cable
1. Open the accessory jack cover as the arrow shown.
2. Align the plug with the accessory jack.
3. Tighten the screw on the plug.

16
To remove accessories, loosen the screw.
Caution: Please attach the accessory properly; otherwise, waterproof performance of the radio
may get affected.

17
Status Indication
LCD Icon
Status Icon
Icon Name Icon Radio Status
No signal
RSSI
More bars indicate better signal strength
New message/unread message
Message Icon
InBox is full
Scanning is in progress
Scanning pauses on a non-priority channel
Scanning pauses on Priority Channel 1
Scan Icon
Scanning pauses on Priority Channel 2
Low TX power for the current channel
TX Power Icon
High TX power for the current channel
Battery Strength
Icons More bars indicate more battery power
Monitor Icon The Monitor feature is active
Speaker Icon The speaker is unmuted
Emergency Icon
The Emergency mode (other than secret
emergency) is active or an emergency
message is received
Accessory Icon An accessory is connected
The GPS feature is active, and valid GPS
data is received
GPS Icon
The GPS feature is active, but no valid
GPS data is received
Scrambler/Encrypt
Icon The Scrambler/Encrypt feature is active

18
Missed Call Icon A call is missed
DTMF Keypad Icon The DTMF keypad is enabled
Roam Icon Roaming is in progress
Operation Mode Icons
Icon Name Icon Operation Mode
Direct Mode: Under this mode, radios
communicate with each other directlyOperation Mode
Icons Repeater Mode: Under this mode, radios
communicate with each other via a repeater
LED Indicator
The top LED indicator will help you easily identify the current radio status.
LED Indication Radio Status
LED flashes green. Powering on
LED glows red. Transmitting
LED glows green. Receiving
LED flashes orange
slowly. Scanning
LED flashes orange
rapidly. Emergency
LED glows orange. Call ended

19
Basic Operations
Turning the Radio On/Off
Rotate the Radio On-Off/Volume Control knob clockwise/counter-clockwise until a click is heard to turn
the radio on/off .
Adjusting the Volume
After turning the radio on, rotate the Radio On-Off/Volume Control knob clockwise to increase the call
volume, or counter-clockwise to decrease it.
Selecting a Zone
A zone is a group of channels exhibiting the same property, and is programmed by your dealer. The radio
supports up to 64 zones, each with a maximum of 16 channels. You may select a zone through any of the
following methods:
1. Through menu selection
Go to the menu “Zone”, and use the Up/Down key to select your desired zone.
2. Through the function keys
You may quickly toggle to your desired zone by pressing the programmed Zone Up or Zone Down key.
Selecting a Channel
After turning the radio on, rotate the Channel Selector knob to select a desired channel. If you enable the
Channel Notify feature via “Menu -> Settings -> Radio Set -> Tone ->Channel Notify”, your radio will
broadcast the channel number. The channel notifying language (only Chinese and English are available
currently) is preset by your dealer.
Switching the Channel Mode
Each channel can be programmed as either analog channel or digital channel. If the current zone
includes both analog and digital channels, you may quickly switch between digital and analog through the
Channel Selector knob.
