i-team i-gum User manual

i-gum
Portable battery chewing gum removal system
User manual
i-team Professional b.v.
Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands
T [phone]
E [e-mail]
I www.i-teamglobal.com

2
Original user manual, written in the English Language
Future Cleaning Technologies B.V.
Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands
T [phone]
E [e-mail]
I www.i-teamglobal.com
Model: I-GUM BATTERY VERSION
Date: 11/12/2019
Product code: IGM.I-V.0000B/2
Version: v.1.0

3
Preface
Thank you for purchasing the i-gum®chewing gum remover: the powerful easy to use tool that can
eliminate your sticky problems in a matter of seconds. Removing patches of chewing gum has never
been easier. The i-gum®requires no dangerous chemicals, instead it uses a specialized water-based
gum remover solution in the form of steam to break down the chewing gum. The gum remover
solution is environmentally friendly, and it leaves no stains or residue. The cleaning does not require
scrubbing, just a light agitation in a circular motion is all it needs. The chewing gum breaks down and
dissolves away after 6 to 10 seconds. This makes the i-gum®chewing gum remover fast, safe, green
and clean.
The i-gum®is easy to use when you follow the instructions. Please read the user manual carefully.
Become familiar with the correct operation and maintenance procedures. Store the manual in a safe
place. The manual is an essential part of the i-gum®and must be handed over to the new owner upon
resale or exchange. Each i-gum®has a unique identification number that can be found on top of the
main body. Your i-team partner needs this number when you order parts.
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V., an
affiliate company of i-team in Eindhoven, the Netherlands. When this manual mentions “the partner”
your local i-team resell and support service partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information during the life of the i-gum®
in such a way that the i-gum®is used correctly, efficiently and safely, even in the event of reasonably
foreseeable misuse.
The user manual contains instructions regarding:
•Personal operator safety
•Intended and non-intended use of the i-gum®
•Instructions for daily use
•Maintenance instructions
•Storage conditions
•Disposal of the i-gum®
These instructions must be considered to avoid risks that could lead to physical and/or material
damage.
Target audience
This user manual is intended for operators of the i-gum®and their supervisors, as well as partners
and importers.
Operators of the i-gum
The i-gum®may only be operated by a person who:
•has correctly read and understood the instructions in this manual.
•is trained by an experienced operator who has read and understood the instructions in this
manual.

4
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to injuries of the
operator or bystanders, light and/or moderate damage
to the product or the environment.
CAUTION
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to light and / or
moderate damage to the product or the environment.
STRONG MAGNET
Indicates the machine contains strong magnets. These
can cause pacemakers to stop or cause electronic data
to be damaged, for instance on information stored on
access passes.
PACEMAKER
Indicates operators and maintenance crew wearing
pacemakers should keep a minimal distance of
6 inch/15 cm. In this specific case operators may not
use the machine as a backpack.
BATTERIES
Indicates a battery-operated machine, batteries must
be charged according to the instructions in the separate
Class I Battery Charger user manual. Batteries must be
disposed of according to your local laws and
regulations.
PROTECTIVE
EYEWEARE
Indicates protective eyewear is advised, for instance
when filling the machine with cleaning solution.
WASH HANDS
Indicates the operator is advised to wash their hands,
for instance after filling and/or draining the cleaning
solution.
HOT SURFACE
Indicates hot surfaces of parts of the machine. Hot
surfaces can cause burns in contact with skin over
longer time.
SLIPPERY SURFACE
Indicates the machine can cause floors to become
slippery. Marking the workplace with slippery surface
signs is advised.

5
Content
Preface .................................................................................................................................................................... 3
Purpose of the user manual.................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the i-gum......................................................................................................................................... 3
Reading guide.......................................................................................................................................................... 4
1Introduction.................................................................................................................................................... 7
1.1 Intended use of the product.................................................................................................................. 7
1.2 Non-intended use of the product.......................................................................................................... 8
1.3 Lifespan.................................................................................................................................................. 8
1.4 Modifications......................................................................................................................................... 8
1.5 Specifications......................................................................................................................................... 9
1.6 Warranty.............................................................................................................................................. 10
1.7 Identification ....................................................................................................................................... 10
2Description ................................................................................................................................................... 11
3Safety............................................................................................................................................................ 13
3.1 General Safety Instructions ................................................................................................................. 13
3.1.1 Trolley operation............................................................................................................................. 13
3.1.2 Backpack operation......................................................................................................................... 14
3.1.3 Brush condition ............................................................................................................................... 14
3.1.4 Machine orientation........................................................................................................................ 14
3.1.5 Strong magnets ............................................................................................................................... 14
3.1.6 Batteries .......................................................................................................................................... 14
3.2 Risks during operation......................................................................................................................... 15
3.2.1 Careful hot surface.......................................................................................................................... 15
3.2.2 The gum remover solution .............................................................................................................. 15
3.2.3 Personal protection......................................................................................................................... 15
3.2.4 Mark the job site ............................................................................................................................. 15
4Transport and storage.................................................................................................................................. 16
5Assembly and installation............................................................................................................................. 17
5.1 Unboxing.............................................................................................................................................. 17
5.2 Assembly.............................................................................................................................................. 18
5.3 Trolley or backpack operation............................................................................................................. 19
5.3.1 Trolley operation............................................................................................................................. 19
5.3.2 Backpack operation......................................................................................................................... 21
6Operation ..................................................................................................................................................... 22
6.1 Before you start................................................................................................................................... 22
6.1.1 Insert the batteries.......................................................................................................................... 22
6.1.2 Fill the gum remover solution tank ................................................................................................. 23

6
6.1.3 Cleaning fluid low level indication................................................................................................... 23
6.2 Dry start............................................................................................................................................... 23
6.3 Trolley operation ................................................................................................................................. 24
6.3.1 Adjust pump speed ......................................................................................................................... 26
6.3.2 After operation................................................................................................................................ 26
6.4 Backpack operation ............................................................................................................................. 27
6.4.1 Adjust pump speed ......................................................................................................................... 29
6.4.2 After operation................................................................................................................................ 29
6.5 Cleaning and storage ........................................................................................................................... 30
6.5.1 Drain the machine........................................................................................................................... 30
6.5.2 Rinse the machine........................................................................................................................... 31
6.5.3 Remove the batteries...................................................................................................................... 32
6.5.4 Storage ............................................................................................................................................ 32
7Maintenance ................................................................................................................................................ 33
7.1 Brush replacement .............................................................................................................................. 33
7.2 Recommended additional cleaning ..................................................................................................... 33
7.2.1 Clean with water ............................................................................................................................. 34
7.2.2 Drain the machine........................................................................................................................... 35
7.2.3 Rinse the machine ........................................................................................................................... 36
7.3 Recommended service time ................................................................................................................ 36
8Trouble shooting .......................................................................................................................................... 37
9Decommissioning and disposal .................................................................................................................... 38
10 Attachments................................................................................................................................................. 39
10.1 CE Certificate ....................................................................................................................................... 39
10.2 Safety data sheet gum remover solution ............................................................................................ 40

7
1Introduction
The i-gum®is an easy and safe machine to use, this manual helps you get started and explains the
operation and maintenance procedure. You will be surprised how fast and effective the i-gum®is,
only a few seconds per gum patch are needed. The actual time depends on the age of the chewing
gum patch, the surface as well as the ambient temperature.
The i-gum®B is the battery-operated version. The batteries used in the i-gum®are the same as a
variety of battery powered i-team products, like the i-mop®. The batteries must be fully charged
before use. Please refer to the user manual of the Class I Battery Charger for correct procedure.
This manual is intended for those who work with the i-gum®and perform daily maintenance. The
manual must be read in full before the first actions. This manual describes the correct method of use,
safety measures, maintenance and transport. And finally, the manual contains information about the
consumables:
•the gum remover solution,
•the brushes.
i-team continuously improves all their products based on user experience and feedback. Any
deviations between the texts and/ or images from the manual and your i-gum®can therefore arise
from the difference in model or from possible changes due to continuous development and
innovation.
1.1 Intended use of the product
The i-gum®is a specialized machine for chewing gum removal on floor surfaces only. You can use the
i- gum®as a trolley or carry the lightweight main body as a backpack, using the harness (see Figure 1
below).
Figure 1
The solution can cause floors to become slippery; it is advised to mark the floor of the job site to
warn people. (Please note: the wet floor sign is not part of the i-gum®system delivery).

8
In order to use the i-gum®on hard (outdoor) as well as soft (indoor) surfaces, both steel and nylon
brushes are provided. These brushes are easy to replace. Select the right brush for each job, see
Table 1 below.
Steel brush
Nylon brush
Concrete, tarmac, asphalt, hard brick paving,
natural stone.
Sandstone, soft brick paving, wood, carpets.
Table 1
The gum remover solution will not leave marks; however, it is known in some isolated cases the
heated steam will affect the varnish of wooden floors and can create a dull spot. When not sure
about the surface: always use the nylon brush and try-out the i-gum®in a discrete place.
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders
and will void the warranty on the product.
The i-gum®is not intended to remove anything else than chewing gum patches on floors. It is only
effective using the specialized water based i-gum® gum remover solution. Filling the tank with clear
water will not remove gum patches and therefore is pointless.
The steam lance may not be raised higher than horizontal during operation as the hot cleaning fluid
can cause burns (see Figure 1).
DO NOT fill the i-gum®with any other detergent. Alternative products will void the manufacturer’s
warranty, more importantly they may also cause serious harm to the operator. For instance, as the
fluid is heated to steam any alcohol-based detergent can catch fire, other products might cause toxic
fumes. ONLY use the specialized water based i-gum® gum remover solution or other solutions
provided by the manufacturer.
1.3 Lifespan
CAUTION
To ensure proper and safe operation throughout the life of the i-gum®, the i-gum®must
be checked every 60,000 minutes by an authorized i-team partner.
The main control panel on the side contains a counter that indicates the number of minutes the
machine is used.
1.4 Modifications
It is not permitted to make modifications to the design of the i-gum®without consultation and
permission from the manufacturer. This affects the warranty, see section 1.6.

9
1.5 Specifications
Figure 2
Product Size (body unit):
347*330*500 mm
Lance Size:
60*1100 mm
Weight (including 1 battery):
10.5 kg
Lance Weight:
1.6 kg
Broom Extended Length:
1.3 M
Li-on Battery:
DC24V (25.2V, 14Ah, 353Wh)
Battery Drawer Capacity:
2 Batteries
Operation Time of Batteries:
About 50 min/ 1 battery
Fluid Flow Speed Class
Low, High
Tank Capacity:
2.5 L
Fluid Heater:
DC 24V, 250 W
Vibration:
≤ 0,25 m/s²
Noise level:
< 55.4 dB(A)
Control Panel in Handle:
YES
Trolley Handle:
YES
Transport Wheel:
YES
Backpack for Body Unit:
YES
Fluid Shortage Warning:
YES

10
1.6 Warranty
The i-gum®should only be operated with the materials supplied. Using alternative supplies may
cause damage to the i-gum®and may cause a risk to the operator. The use of alternative supplies
voids manufacturer's warranty.
1.7 Identification
Each i-gum®has a unique identification number that can be found on top of the main body. Your
i-team partner needs this number when you order parts.
Explanation type plate:
Product type: i-gum®B
Serial number: B0000492
Power supply and capacity: DC24V 250W
Manufacturer: Future Cleaning Technology B.V.
Country of assembly: PRC
Figure 3

11
2Description
The compact lightweight i-gum®consists of two main parts:
1. The body that contains the cleaning solution and can be carried as a backpack.
2. The steam lance to deliver the heated gum cleaner solution exactly on the gum patch.
The brush attached to the steam lance is not intended for scrubbing, only a light agitation is needed.
The heated solution will break down the chewing gum in a matter of seconds. A broom is provided to
sweep away the gum residue.

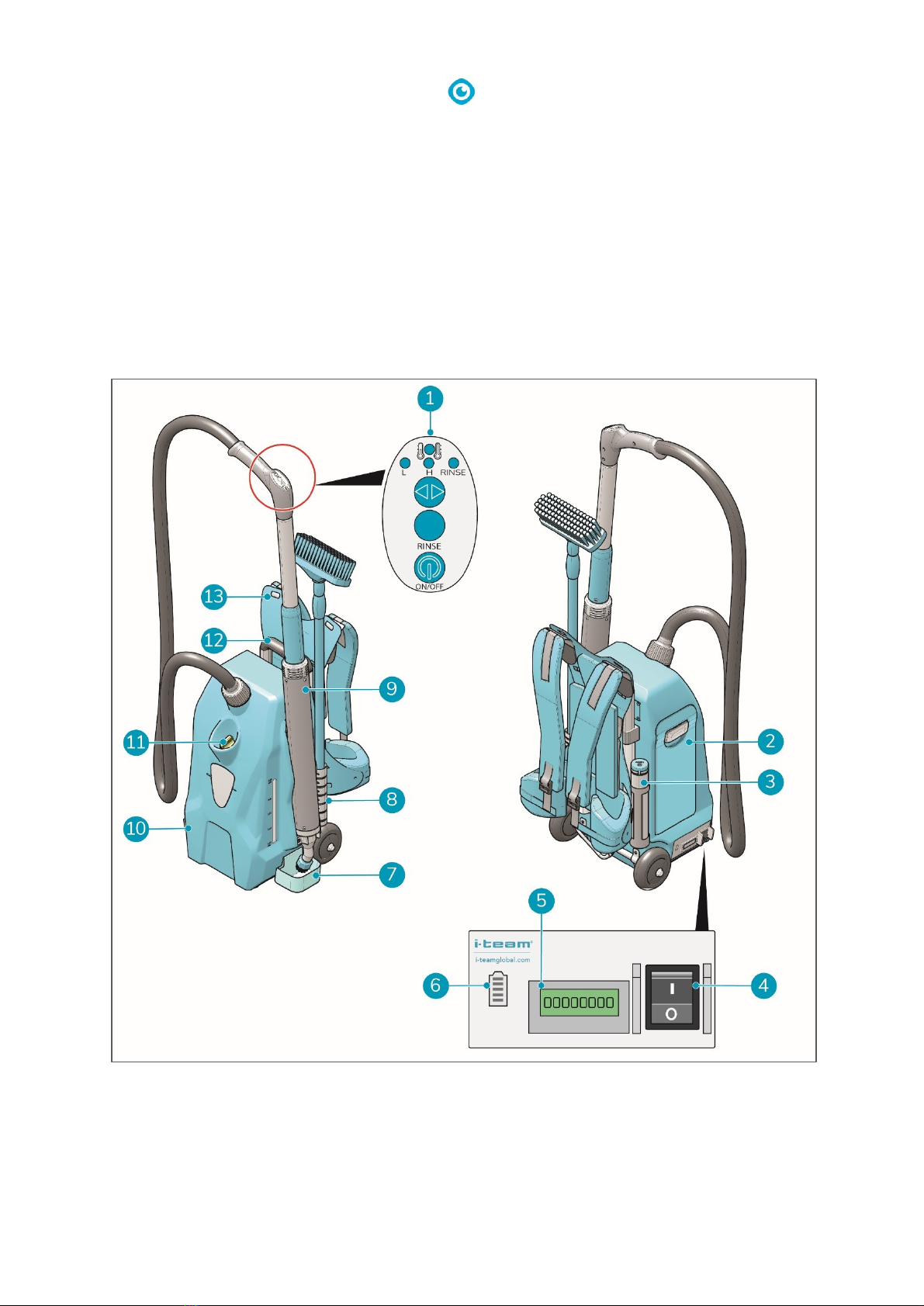

The i-gum®consists of:
Figure 4

12
1. The control panel to use during operation.
2. The battery holder containing one or two batteries.
3. A brush storage tube to store spare brushes.
4. The main power switch.
5. A counter showing the number of minutes the machine is used.
6. A battery power indicator.
7. A drip tray to avoid spillage.
8. A broom and broom holder to sweep the gum residue.
9. The steam lance with separate brush, connected to the body.
10. The main body.
11. The gum remover solution tank sealed by a yellow stopper.
12. Wheels and a handle to use the i-gum®as a trolley.
13. The back plate and harness to use the i-gum®as a backpack.

13
3Safety
Safety comes first, therefore please take time to read and understand these safety instructions.
Improper use can case cause harm or void the manufacturer’s warranty.
3.1 General Safety Instructions
WARNING
The functional part of the i-gum®consists of a steam lance and brush. The steam lance is
insulated, however the grey part (fig 5, pos 1) should not be touched. The temperature
stays well below 60°C.
CAUTION
Always keep the body of the i-gum®in an upright position when gum remover solution
or batteries are inserted.
3.1.1 Trolley operation
CAUTION
When using as a trolley remove the harness as the machine can trip over loose straps.
It is recommended to keep the steam lance (fig
5, pos 1) stored in its holder when moving to the
job site. To avoid heated solution to spill the drip
tray (fig 5, pos 2) must be attached.
Figure 5

14
3.1.2 Backpack operation
CAUTION
It is impossible to reach and store the steam lance in its holder when wearing the i-
gum®as a backpack. Always keep the lance in your hand when the machine is
operational.
When using as a backpack fit the machine to the operator and adjust straps before inserting the
batteries or filling the tank with the gum remover solution. Proceed only when the operator is
comfortable using the backpack, else use the i-gum®as a trolley.
3.1.3 Brush condition
Make sure to check the condition of the brush before use, change the brush only when the machine
is turned off and the steam lance is cooled.
3.1.4 Machine orientation
Always keep the body of the i-gum®in an upright position when gum remover solution or batteries
are inserted.
3.1.5 Strong magnets
CAUTION
Please be aware of the integrated magnets that hold the steam lance in its holder.
WARNING
Operators and maintenance crew wearing pacemakers should keep a minimal distance
of 6 inch/15 cm. Operators wearing pacemakers should never use the backpack
operation mode.
3.1.6 Batteries
CAUTION
During normal operation the 24V batteries cause no safety hazard on their own. Please
keep in mind the following safety instructions:
oDo not crush, pierce or damage in any way.
oDo not heat or incinerate.
oDo not short-circuit.
oDo not dismantle.
oKeep the batteries dry.
oOnly charge between 5°C~40°C / 41°F~104°F.
oOnly use between 5°C~45°C / 41°F~113°F.

15
3.2 Risks during operation
3.2.1 Careful hot surface
WARNING
Even when the general safety instructions are followed, some small residual risks
remain when operating a machine that creates steam.
•DO NOT touch the steam lance below the blue handle. The risk of burns is minimal,
comparable with a running hot tap.
•DO NOT operate barefoot, wear closed shoes while operating the machine.
3.2.2 The gum remover solution
WARNING
The water based i-gum®gum remover solution does not provide significant hazards,
however, please be aware of these general safety rules:
•Keep locked up and out of reach of children.
•Keep away from food, drink and animal feedstuffs.
•When swallowed, seek medical advice immediately and show the bottle. DO NOT
induce vomiting.
3.2.3 Personal protection
CAUTION
Can be irritating to the eyes, wear eye protection and use caution when filling.
CAUTION
Clean your hands immediately after filling or draining the machine.
CAUTION
The water-based cleaning solution is non-corrosive, no special footwear is required.
However, the solution is heated to steam and it is recommended to wear closed shoes.
3.2.4 Mark the job site
WARNING
During operation the gum remover solution can cause slippery patches on the floor, it is
advised to mark the job site to warn passersby.

16
4Transport and storage
CAUTION
Always keep the body of the i-gum®in an upright position when gum remover solution or
batteries are inserted.
•Drain the machine and remove the batteries after each use before storage or during transport.
•Store the steam lance in its holder during transport and storage.

17
5Assembly and installation
The i-gum®does not require much assembly, most importantly you will have to decide how to use
the machine: as a trolley or as a backpack using the harness.

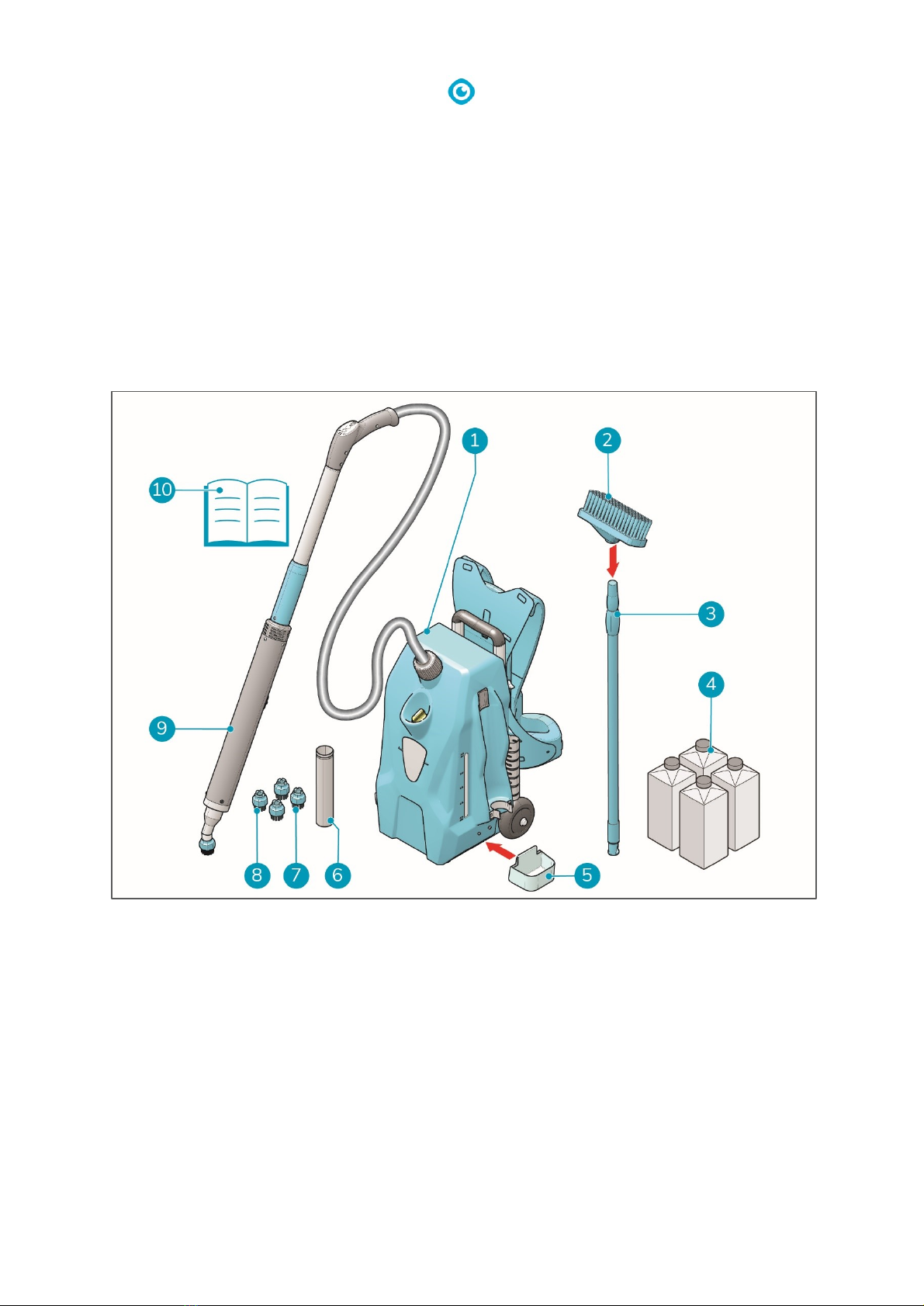

5.1 Unboxing
The i-gum®is packed in 3 boxes, depending on whether the batteries and charger are ordered
together with the main body:
1. The i-gum®itself including a starter package of brushes and cleaning fluid.
2. The batteries (when ordered).
3. The battery charger (when ordered).
Figure 6
Legend
1.
1x i-gum®main body, harness attached
6.
1x brush storage tube
2.
1x broom
7.
2x nylon brushes
3.
1x broom handle
8.
3x steel brushes, one attached to the
steam lance
4.
4x bottles of gum remover solution
9.
1x steam lance
5.
1x drip tray
10.
This user manual

18

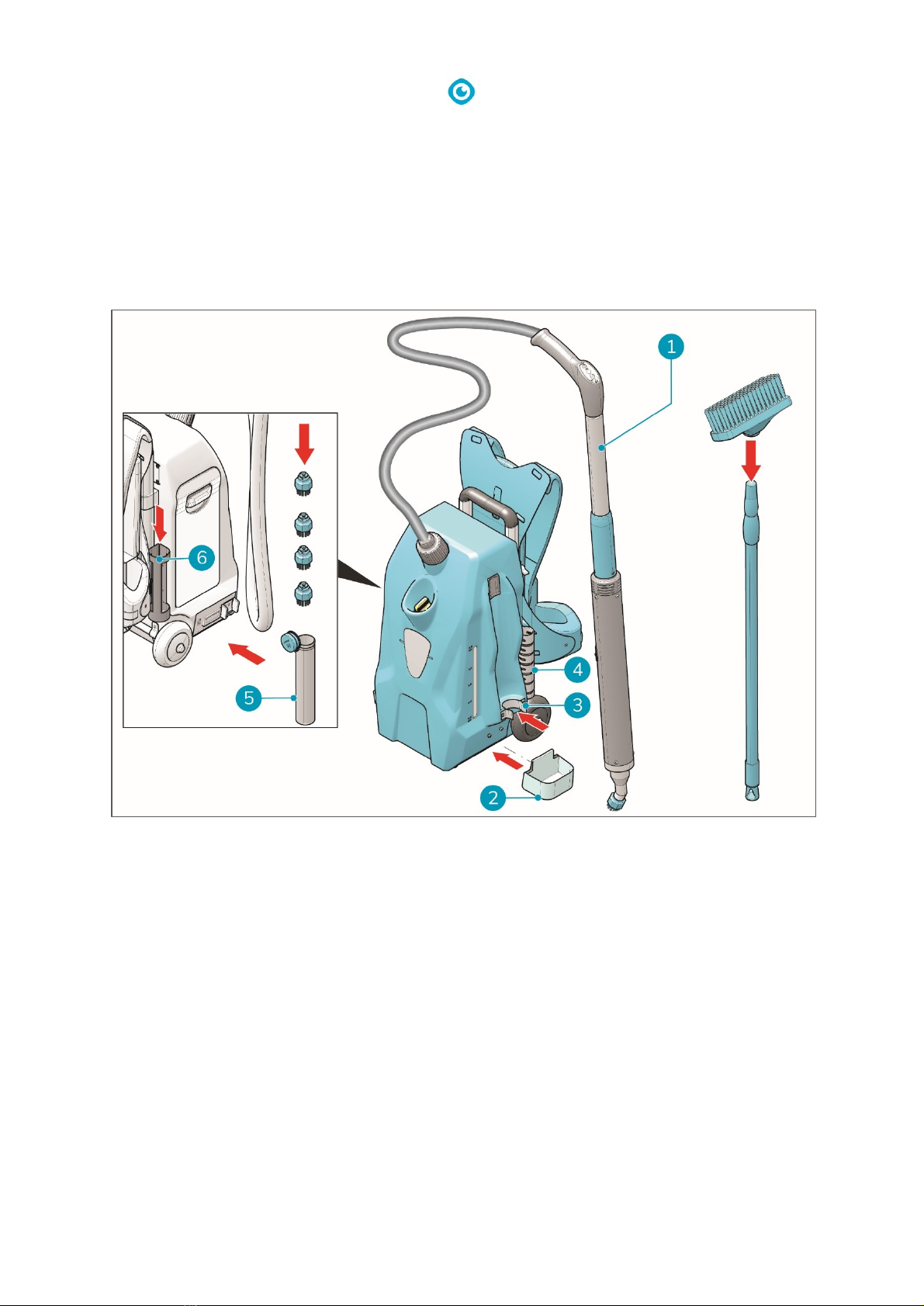

5.2 Assembly
1. Attach the drip tray (fig 7, pos 2) to the body.
2. Click the lance (fig 7, pos 1) into the holder (fig 7, pos 3), with the metal plate facing the main
body.
3. Screw the broom on the broom handle.
4. Place the broom in the broom holder (fig 7, pos 4).
5. Place the spare brushes in the storage tube (fig 7, pos 5).
6. Place the storage tube into the holder (fig 7, pos 6) on the left side of the main body.
Figure 7

19
5.3 Trolley or backpack operation
5.3.1 Trolley operation
When you use the i-gum®as a trolley it is advised to remove the harness so loose straps cannot be
caught between the wheels. To remove the harness:
1. Remove padding (fig 8, pos 1) that is attached to the back plate with Velcro.
Figure 8

20
2. Unscrew the four screws (fig 9, pos 1) using a Philips screwdriver.
3. Remove the back plate (fig 9, pos 2).
Figure 9
