i-team i-suit User manual

i-suit
Ergonomic harness for water fed poles
User manual
i-team Professional b.v.
Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands
Telephone: [phone]
E-mail: [email protected]
Internet: www.i-teamglobal.com

2
Original user manual, written in the English Language
Future Cleaning Technologies B.V.
Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands
Telephone: [phone]
E-mail: [email protected]
Internet: www.i-teamglobal.com
Model: i-suit
Date: 15/01/2021
Product code: xxxx
Version: v2.0

3
Preface
Thank you for purchasing the i-suit® ergonomic harness for water feds poles. The i-suit is an
ergonomic solution for window and facade cleaning that reduces the work load by more than 50%.
With the i-suit you may work for longer periods and make your work healthier and more efficient!
The i-suit is easy to use when you follow the instructions. Please read the user manual carefully.
Become familiar with the correct operation and maintenance procedures. Store the manual in a safe
place. The manual is an essential part of the i-suit and must be handed over to the new owner upon
resale or exchange. Your i-team partner needs the product code when you order parts.
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V., an
affiliate company of i-team in Eindhoven, the Netherlands. When this manual mentions “the partner”
your local i-team resell and support service partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information during the life of the i-suit in
such a way that the i-suit is used correctly, efficiently and safely, even in the event of reasonably
foreseeable misuse, as described in section 1.2 of this manual.
The user manual contains instructions regarding:
•personal operator safety;
•intended and non-intended use of the i-suit;
•instructions for daily use;
•maintenance instructions;
•storage conditions;
•disposal of the i-suit.
These instructions must be considered to avoid risks that could lead to physical and/or material
damage.
Target audience
This user manual is intended for operators of the i-suit and their supervisors, as well as partners and
importers.
Operators of the i-suit
The i-suit may only be operated by a person who:
•has correctly read and understood the instructions in this manual;
•is trained by an experienced operator who has read and understood the instructions in this
manual.

4
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation
which, if the safety instructions are
not followed, can lead to injuries of
the operator or bystanders, light
and/or moderate damage to the
product or the environment.
CAUTION
Indicates a hazardous situation
which, if the safety instructions are
not followed, can lead to light and/or
moderate damage to the product or
the environment.
ATTENTION
Indicates a liability situation, where
the manufacturer or its partners and
affiliates cannot be held accountable
for damages caused by non-
compliance.
SAFETY
FOOTWEAR
Indicates safety footwear is advised,
for instance during cleaning work
when using the i-suit and a telescopic
pole.

5
Content
Preface .................................................................................................................................................................... 3
Purpose of the user manual.................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the i-suit............................................................................................................................................. 3
Reading guide.......................................................................................................................................................... 4
1Introduction.................................................................................................................................................... 7
1.1 Intended use of the product.................................................................................................................. 7
1.2 Non-intended use of the product.......................................................................................................... 7
1.3 Lifespan.................................................................................................................................................. 7
1.4 Modifications......................................................................................................................................... 8
1.5 Specifications......................................................................................................................................... 8
1.6 Warranty................................................................................................................................................ 8
1.7 Identification ......................................................................................................................................... 8
2Description ..................................................................................................................................................... 9
3Safety............................................................................................................................................................ 10
3.1 General Safety Instructions ................................................................................................................. 10
3.2 Risks during operation......................................................................................................................... 10
4Transport and storage.................................................................................................................................. 11
5Assembly and installation............................................................................................................................. 12
5.1 Unboxing.............................................................................................................................................. 12
5.2 Assembly support tube........................................................................................................................ 13
5.2.1 Install lower part of support tube ................................................................................................... 13
5.2.2 Install pulley to upper part of support tube.................................................................................... 14
5.2.3 Join upper and lower part of support tube..................................................................................... 14
6Operation ..................................................................................................................................................... 15
6.1 Before you start................................................................................................................................... 15
6.1.1 Operating the i-suit® ....................................................................................................................... 16
6.1.2 After operation................................................................................................................................ 18
6.2 Using the i-glasses ............................................................................................................................... 19
Working with the i-glasses ........................................................................................................................... 19
7Working with the optional power wash support tube ................................................................................. 20
7.1 Assembly power wash support tube ................................................................................................... 20
7.1.1 Install power wash support tube..................................................................................................... 20
7.1.2 Install power wash carrier............................................................................................................... 21
7.2 Operating the i-suit with power wash support tube ........................................................................... 23
7.2.1 After operation................................................................................................................................ 24

6
8Maintenance ................................................................................................................................................ 25
9Trouble shooting .......................................................................................................................................... 26
10 Decommissioning and disposal .................................................................................................................... 27
11 Attachments................................................................................................................................................. 28
11.1 CE Certificate ....................................................................................................................................... 28

7
1Introduction
The i-suit® is designed to reduce the load of back, shoulders, neck, arms and wrists when using
telescopic poles for window washing, indoor vacuum cleaning or high pressure cleaning. This results
in less injuries while doing your cleaning job day-in, day-out.
The i-suit feels like a mobile backpack, with a steel tube with pulley mechanism attached. It increases
your productivity and allows you to work ergonomically and responsibly, and decreases physical
strain.
i-team continuously improves all their products based on user experience and feedback. Any
deviations between the texts and/or images from the manual and your i-suit can therefore arise from
the difference in model or from possible changes due to continuous development and innovation.
1.1 Intended use of the product
The i-suit may only be used for the following telescopic poles with a weight of 2 to 8 kilograms:
•telescopic water fed poles with brush for window cleaning;
•telescopic water fed poles with brush for cleaning facades and sidings;
•telescopic poles for indoor vacuum cleaning;
•telescopic power wash high pressure poles (requires optional power wash support tube).
The i-suit comes with two pulleys. Which pulley to use depends on the length of the poles you are
working with. Select the right pulley for the job, see Table 1 below.
White pulley
Blue pulley
Applies a force of 1-2 kg.
To be used for indoor vacuum cleaning with
telescopic poles and window washing poles
from 5 meters till +/- 10 meters.
Applies a force of 3-4 kg.
To be used for window washing poles from
+/- 10 meters and up.
Table 1
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders
and will void the warranty on the product.
The i-suit is not intended to be used in combination with other devices than mentioned in section
1.1. The i-suit should only be worn with both arms through the shoulder straps. The waist and chest
straps should be strapped tight to your body. Wearing and using the i-suit in any other way can be
dangerous for you and your environment.
1.3 Lifespan
ATTENTION
To ensure proper and safe operation always check the i-suit visually before you are
going to use it.

8
1.4 Modifications
It is not permitted to make modifications to the design of the i-suit® without consultation and
permission from the manufacturer. This affects the warranty, see section 1.6.
1.5 Specifications
Figure 1
Product size:
125 x 80 x 45 cm
Weight:
3.9 kg
1.6 Warranty
The i-suit should be used as intended and described in this manual. It should only be used with the
materials supplied. Using alternative supplies may cause damage to the i-suit and may cause a risk to
the user. The use of alternative supplies voids manufacturer's warranty.
1.7 Identification
Each i-suit has a unique identification number that can be found on top of the main body. Your
i-team partner needs this number when you order parts.
Product type: i-suit
Serial number: xxxx
Manufacturer: Future Cleaning Technology B.V.
Country of assembly: PRC

9
2Description
The i-suit® consists of four main parts:
•An ergonomic harness that is worn like a backpack.
•A support tube attached to the harness.
•A pulley for carrying a telescopic pole.
•A pair of i-glasses®.
The pulley attached to the support tube allows you to work ergonomically and faster. With the pair
of i-glasses® you have great overall vision on your work area without having to look up constantly.

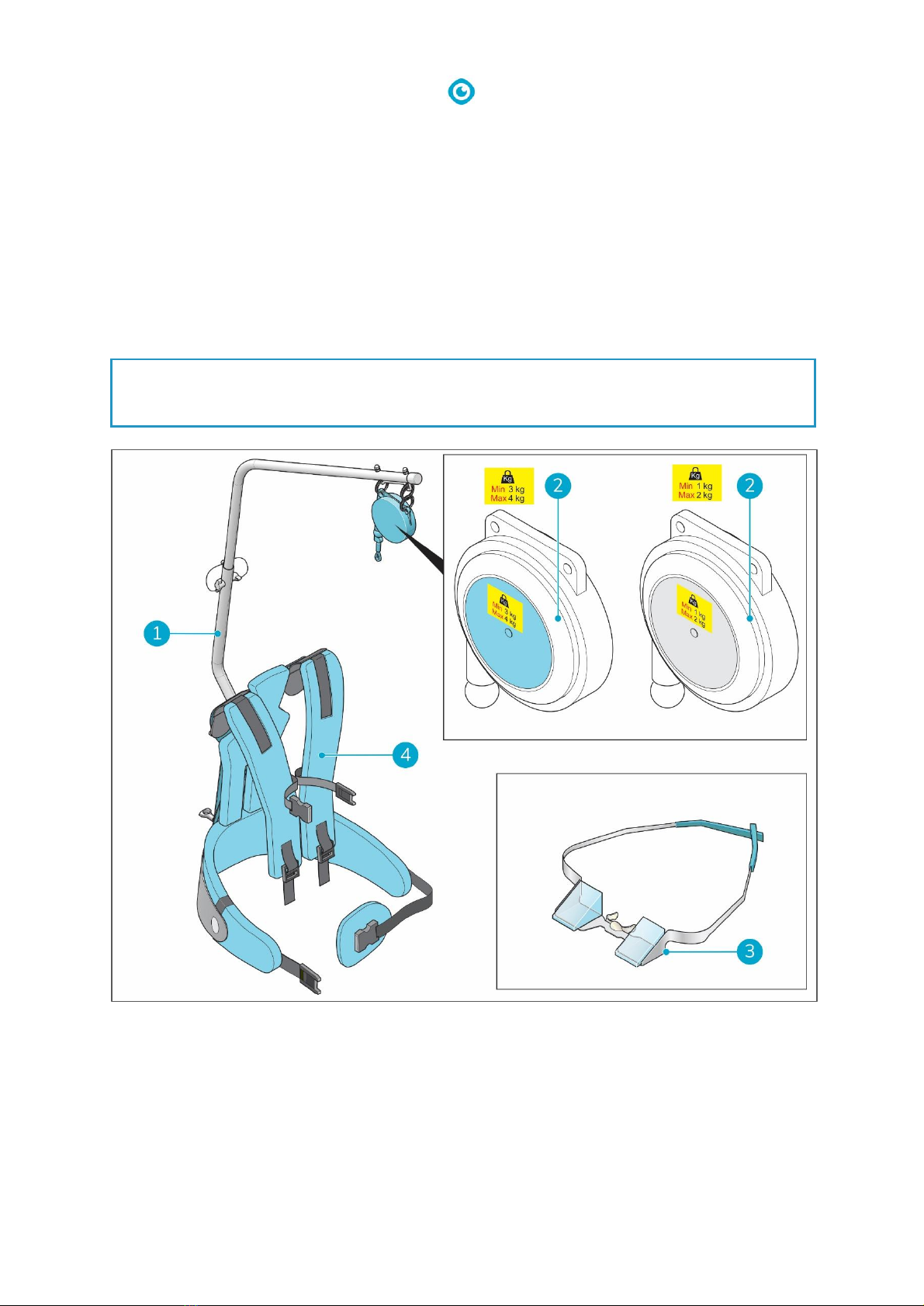

Figure 2
Legend
1.
Support tube
3.
i-glasses
2.
2x Pulley
4.
Ergonomic harness.
TIP:
With the optional power wash support tube you can clean stained walls and windows with a
telescopic power wash high pressure pole. See section 7 for the use of this accessory.

10
3Safety
Safety comes first, therefore please take time to read and understand these safety instructions.
Improper use can cause harm or void the manufacturer’s warranty.
3.1 General Safety Instructions
The pulling force of the pulley is preset. The white pulley applies a force between 1 and 2 kilograms,
The blue pulley applies a force between 3 and 4 kilograms.
WARNING
Do not open the pulley!
If you suspect the pulley to malfunction, return it to your i-team service partner.
CAUTION
During normal operation the i-suit® causes no safety hazard. Please keep the following
safety instructions in mind:
•work with two hands at the engaging and disengaging of the water fed pole;
•make sure that the caps are fixed secure on both ends of the tubes;
•keep enough distance from other people (minimum 2 meters). Be aware that you
could injure someone with the end of the tube, while turning around. Be extra careful
when putting on the harness;
•do not wear loose clothing while using the i-suit;
•always use the i-suit with both feet on solid ground, never on a ladder, platform,
scaffold, roof, deck, etc.;
•before using i-suit, check if all parts are in good condition and properly attached.
3.2 Risks during operation
WARNING
Even when the general safety instructions are followed, some risks remain when using
the i-suit.
•DO NOT use the i-suit in proximity to electricity and/or telephone cables. The
tubular construction is conductive, se near electricity through conductive cables,
you cold be in danger of electrocution;
•DO NOT use the i-suit during stormy weather and forecast/presence of lightning;
•DO NOT use the i-suit at windspeed 6 or higher (25-31 mph);
•DO NOT use the i-suit in places where grounds and/or facades are unstable.

11
4Transport and storage
CAUTION
Always keep the i-suit® stored in a dry place to keep the pulley in perfect working order.

12
5Assembly and installation
The i-suit® is easy to assemble and comes with a pair of i-suit prism glasses that offer overall vision
without constantly looking up during your work.
5.1 Unboxing
The i-suit is packed in a single box.
Figure 3

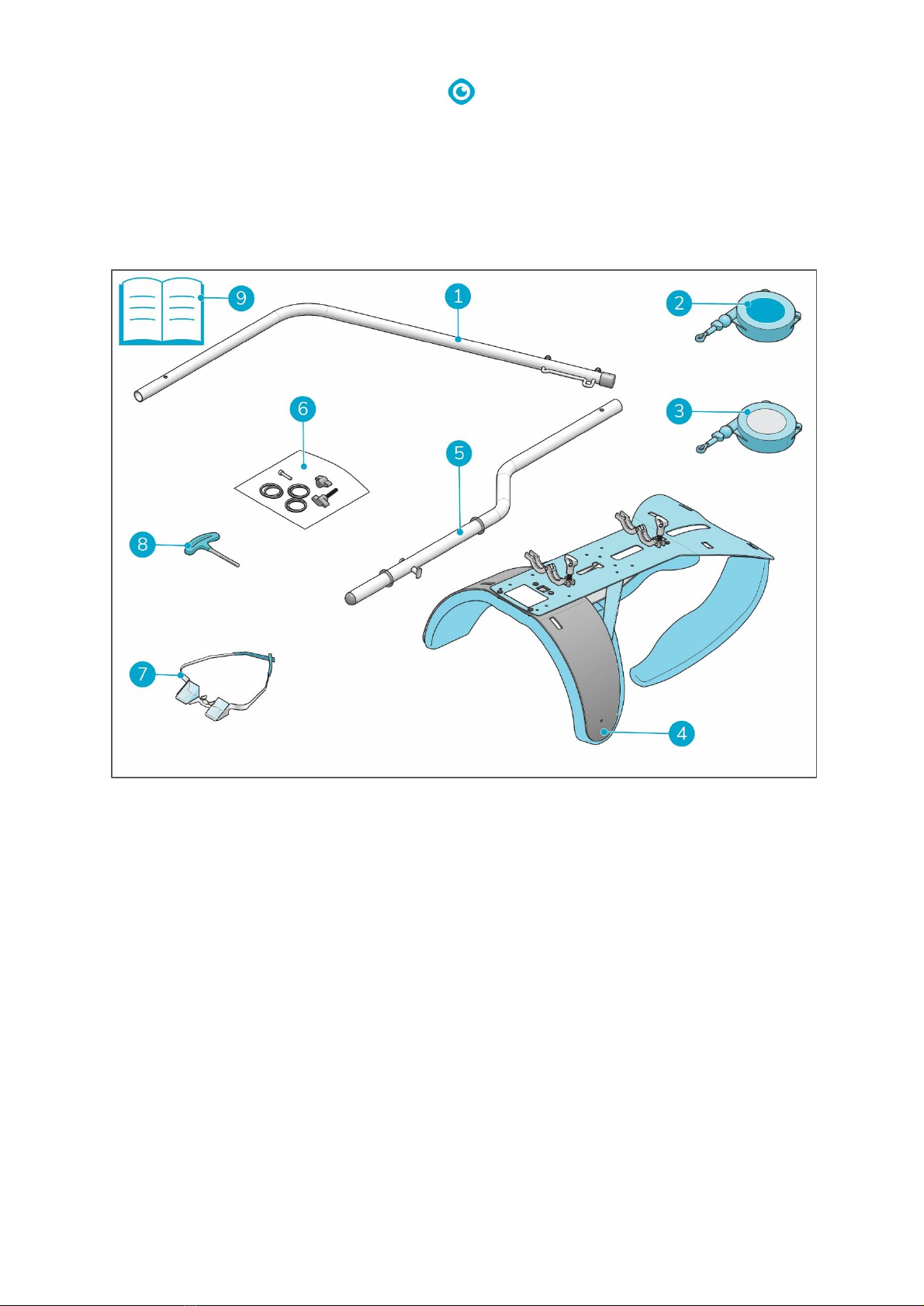

Legend
1.
1x upper part of support tube
7.
1x pair of i-glasses
2.
1x 3-4 kg pulley
8.
1x Allen wrench
3.
1x 1-2 kg pulley
9.
1x this user manual
4.
1x i-suit harness
5.
1x lower part of support tube
6.
1x bag containing:
1x safety hook
1x hexagon bolt M6x30
1x M6 washer
1x wing nut M6
1x wing bolt M6x35
1x socket head cap bolt M6x25
1x rubber cord
3x metal key ring
1x support strap

13
5.2 Assembly support tube
5.2.1 Install lower part of support tube
1. Place the harness with its back upwards
and the mounting clamps opened in front
of you.
2. Place the lower part of the support tube
(Figure 4, pos. 1) in the opened mounting
clamps (Figure 4, pos. 5), with the safety
hook (Figure 4, pos. 3) in the opening in
the harness.
3. Push the tube to the desired working
height: Large, Medium or Small (Figure 4,
pos. 6).

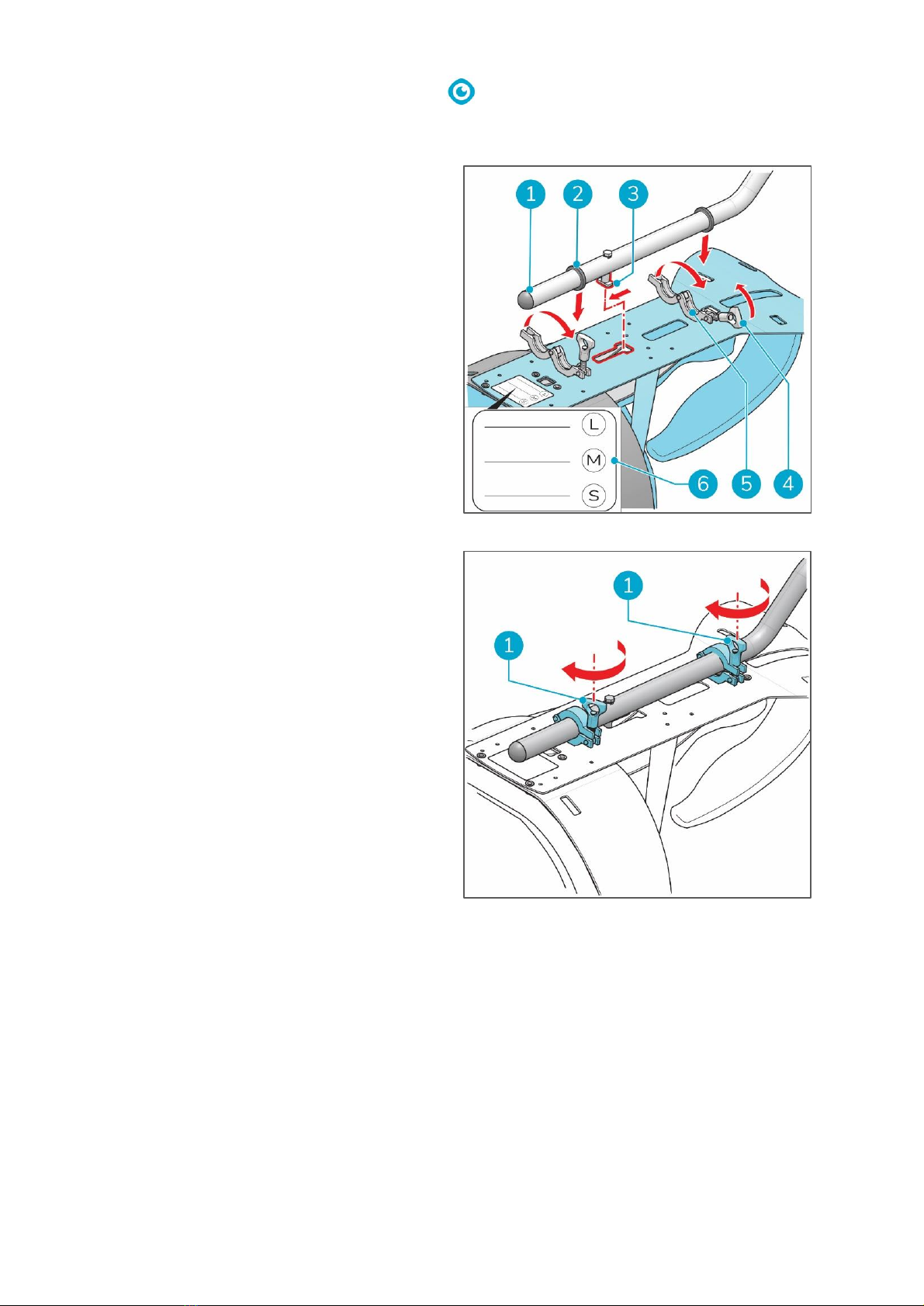

4. Make sure to put the rubber rings (Figure
4, pos. 2) into the mounting clamps.
Figure 4
5. Close the mounting clamps (Figure 4, pos.
4) and tighten the fasteners
(Figure 5, pos. 1).
Figure 5

14
5.2.2 Install pulley to upper part of support tube
1. Select the pulley best suited for your
cleaning job.
2. The white pulley with 1-2 kg pulling force;
for indoor vacuum cleaning with telescopic
poles and window washing poles from 5
meters till +/- 10 meters.
3. The blue pulley with 3-4 kg pulling force;
for window washing poles from +/- 10
meters and up.
4. Attach two connection rings (Figure 6, pos.
1, 3) to the bracket (Figure 6, pos. 2).
5. Attach the third connection ring (Figure 6,
pos. 4) to the connection ring on the right
(Figure 6, pos. 3).
6. Attach the pulley (Figure 6, pos. 5) to the
rings (Figure 6, pos. 1, 4).
NOTE: The pulley can only function correctly
when installed with the line outlet directed
towards the support tube.
Figure 6
5.2.3 Join upper and lower part of support tube
1. Insert the upper part of the support tube
in the lower part of the support tube
(Figure 7, pos. 1, 2).
2. Install the rubber cord (Figure 7, pos. 5)
with the socket head cap bolt (Figure 7,
pos. 6) on the support tube.
3. The socket head cap bolt locks the tube
parts into position.
4. Install the wing nut and wing bolt (Figure
7, pos. 3, 4).
5. Insert the rubber cord in the opening in
wing bolt and wing nut.
NOTE: The rubber cord prevents the loss of
wing bolt and wing nut in case you
disassemble the i-suit.
Figure 7

15
6Operation
6.1 Before you start
1. Make sure that all parts of the i-suit are in
good condition and properly attached.
2. Make sure that you have installed the
correct pulley for the job. See section 5.2.2
on page 14.
3. If required you can adjust the pulling force
of the pulley.
•Insert the Allen key in the opening of the
pulley (Figure 8, pos. 1) and press it
firmly.
•Turn clockwise to increase the pulling
force.
•Turn counterclockwise to decrease the
pulling force.
4. Place your extended telescopic pole
carefully in upright position against the
surface that has to be cleaned.
Figure 8
5. If required you can adjust the preset cable
length of the pulley.
•Loosen the screw (Figure 9, pos. 1) on
the cable blocker (Figure 9, pos. 2).
•Hold the cable blocker and pull the cable
to the required length.
•Fasten the screw.
Figure 9

16
CAUTION
Be careful while operating telescopic poles. It is advised to wear safety footwear during
cleaning work to avoid slips and falls, which can lead to serious injuries.
6.1.1 Operating the i-suit®

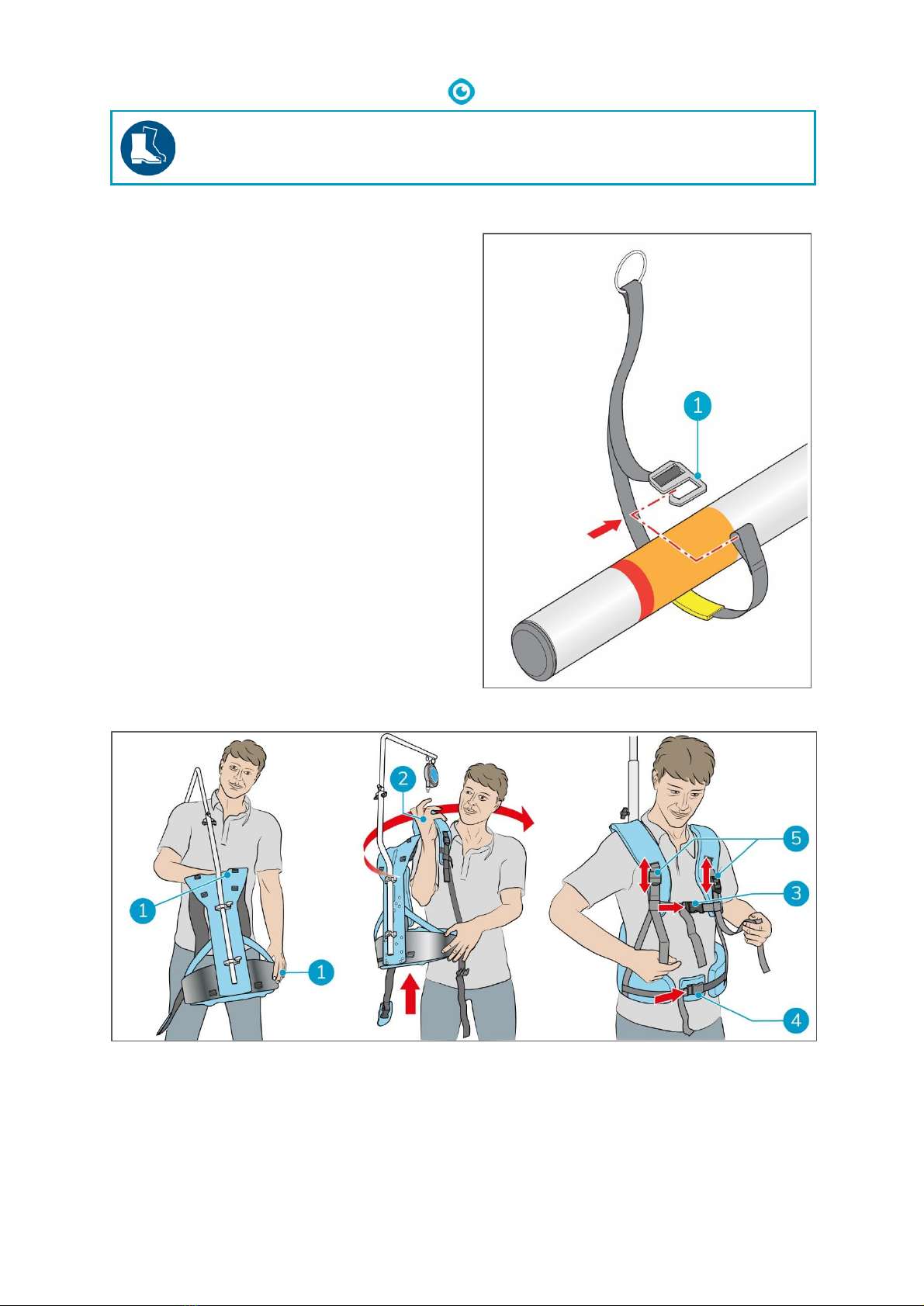

1. Attach the support strap to the lower end of
your telescopic pole ( Figure 10, pos. 1).
Figure 10
Figure 11
2. Take up the i-suit with both hands (Figure 11 pos. 1), with the top of the support tube over your
shoulder.
3. Put on the i-suit like a backpack (Figure 11 pos. 2).
4. Close the chest straps (Figure 11 pos. 3) and the waist straps (Figure 11 pos. 4).
5. Adjust the length of the straps for comfort (Figure 11 pos. 5).

17
Figure 12

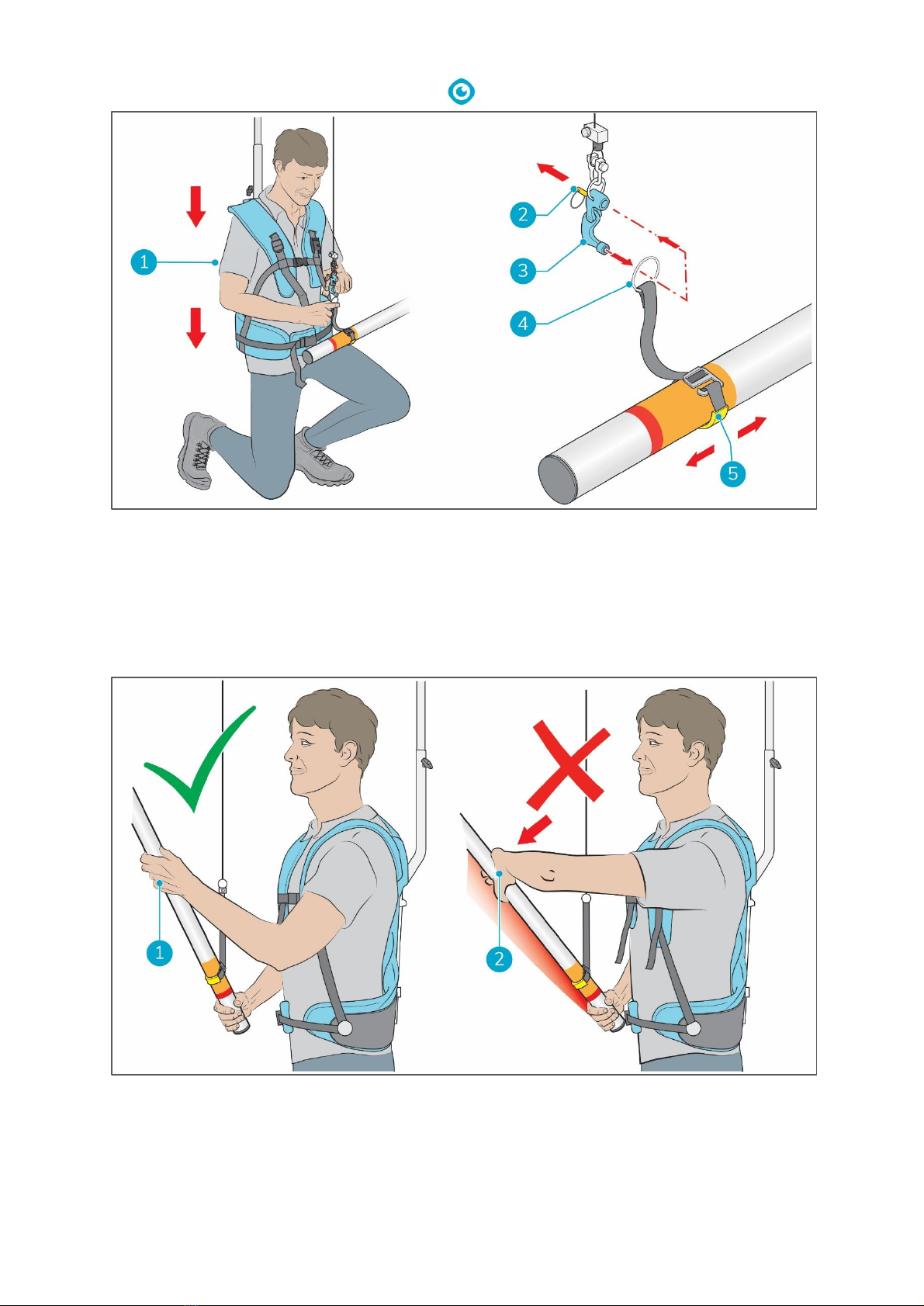

6. Kneel down in front of your telescopic pole while keeping your back straight (Figure 12, pos. 1).
7. Pull down the line and attach it to the support strap:
•pull the pin (Figure 12, pos. 2) to open the hook (Figure 12, pos. 3),
•put the hook through the support strap ring (Figure 12, pos. 4),
•close the hook.
8. Slide the strap to the desired position (Figure 12, pos. 5).
Figure 13
9. Take the telescopic pole with one hand above and one hand below the support strap (Figure 13,
pos. 1).
10. Gently stand up straight and start your cleaning job.

18
WARNING
Do not work with your hand on top of the telescopic pole (Figure 13, pos. 2). This puts
too much strain on your arm and shoulder and can cause injuries.
CAUTION
Always use the i-suit with both feet on solid ground. Never use the i-suit on a ladder,
platform, scaffold, roof, deck, etc.
6.1.2 After operation
1. Kneel down and let your telescopic pole rest against the surface you just cleaned.
2. Gently place your telescopic pole on the ground.
3. Hold the line with one hand and remove the line from the support strap.
4. Gently let the line slide back into the pulley.
WARNING
Hold the cable with one hand and let it gently rewind into the pulley. When the cable
snaps back uncontrolled it can hit your face and injure your eyes.
Figure 14

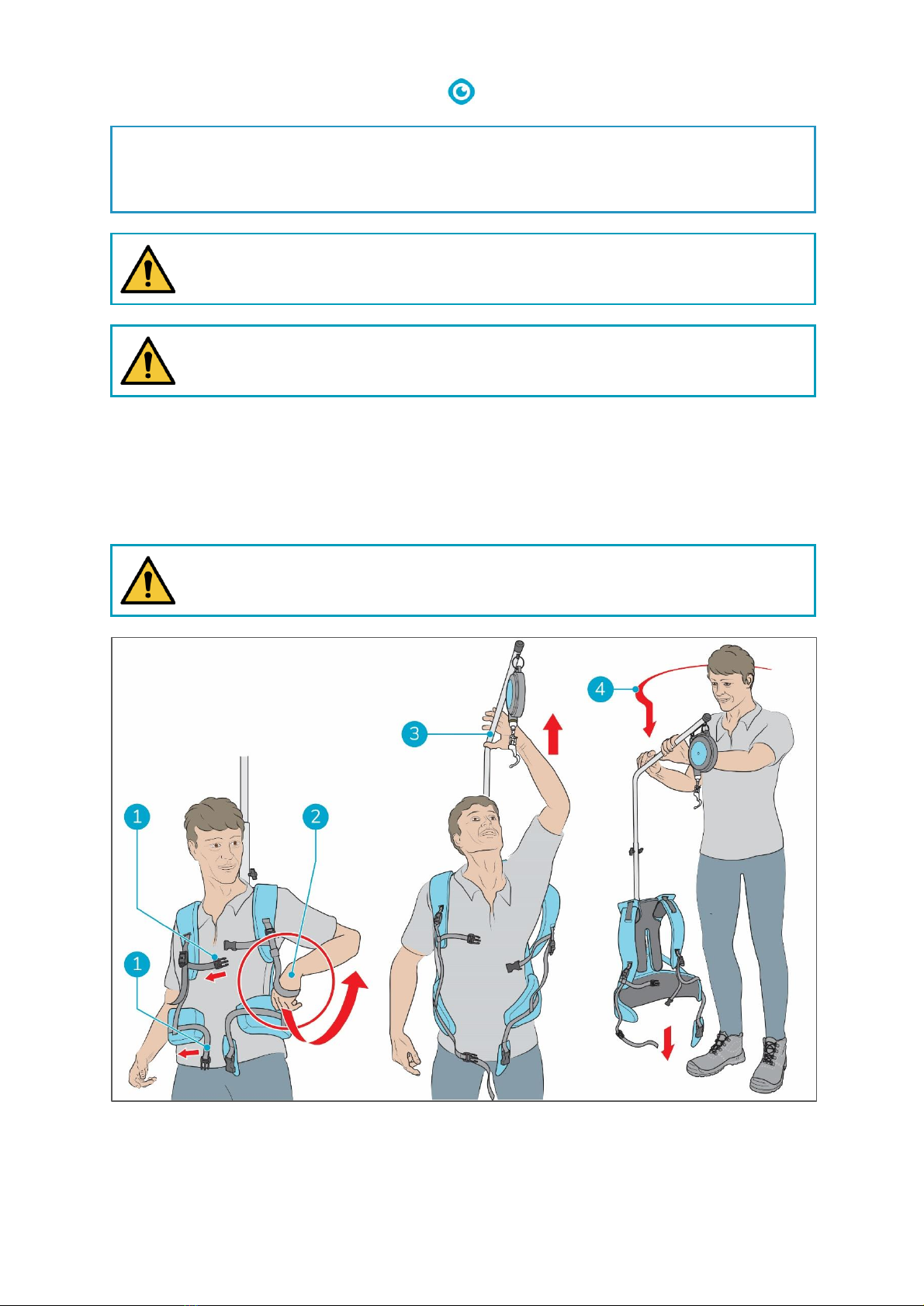

5. Stand up straight to take off the i-suit®.
6. Detach the chest strap and waste strap (Figure 14, pos. 1).
TIP:
When you follow the steps as described above, a minimum of power is required to steer and
move your telescopic pole. When you let go of the telescopic pole you will notice it is supported
in perfect balance.

19
7. Take one arm through the shoulder strap (Figure 14, pos. 2) and take hold of the support tube
(Figure 14, pos. 3).
8. Take off the i-suit (Figure 14, pos. 4) and close the straps.
6.2 Using the i-glasses
Looking up at your work is a common issue in cleaning jobs with telescopic poles. The supplied
i-glasses help you to keep good vision on your work area without constantly looking up.
The i-glasses are fitted with two mirrors and two prisms. This provides an excellent view while
looking straight ahead.
You have to get accustomed to the i-glasses. We advise you therefore to walk up and down your
workspot a few times. Move body and eyes, but not your head. In this way your brain adapts easier
to this new viewing experience.
Working with the i-glasses
ATTENTION
It is recommended to work a maximum of 4 to six hours with the i-suit in combination
with the i-glasses. This to prevent fatigue and overload.
Figure 15
1. Stand still and look straight ahead to obtain the best upward vision (Figure 15, pos. 3, 1).
2. Do not position the i-glasses too high on the bridge of your nose. With the correct position
(Figure 15, pos. 2) you are able to look fully into or out of the prisms. This enables you to switch
trouble free between upward and normal panoramic vision.
3. Move your head as little as possible.
4. Adjust your image by taking a step backwards or forwards. In optimal position you should
experience a clear, sharp image and a wide field of vision.
CAUTION
Do not move your head.
Small movements, especially from side to side, may cause dizziness or ‘motion sickness'.
Your brain has to adapt to a new way of viewing.
Look fully into or fully outside the prisms.
A confusing double image may result from looking part in and out of prisms at the same
time.

20
7Working with the optional power wash support tube
7.1 Assembly power wash support tube
7.1.1 Install power wash support tube
1. Place the harness with its back upwards and
the mounting clamps opened in front of you.
2. Place the power wash support tube (Figure
16, pos.1) in the opened mounting clamps
(Figure 16, pos. 5), with the safety hook
(Figure 16, pos. 3) in the opening in the
harness.
3. Push the tube to the desired working height
Large, Medium or Small (Figure 16, pos. 6).
4. Make sure to put the rubber rings (Figure 16,
pos. 2) into the mounting clamps.
5. Close the mounting clamps and tighten the
fasteners (Figure 17, pos. 1).
Figure 17
Figure 16
