i-team i-gum User manual
3
Preface
Thank you for purchasing the i-gum®chewing gum remover: the powerful easy to use tool that can
eliminate your sticky problems in a matter of seconds. Removing patches of chewing gum has never
been easier. The i-gum®requires no dangerous chemicals, instead it uses a specialized water-based
gum remover solution in the form of steam to break down the chewing gum. The gum remover
solution is environmentally friendly, and it leaves no stains or residue. The cleaning does not require
scrubbing, just a light agitation in a circular motion is all it needs. The chewing gum breaks down and
dissolves away after 6 to 10 seconds. This makes the i-gum®chewing gum remover fast, safe, green
and clean.
The i-gum®is easy to use when you follow the instructions. Please read the user manual carefully.
Become familiar with the correct operation and maintenance procedures. Store the manual in a safe
place. The manual is an essential part of the i-gum®and must be handed over to the new owner upon

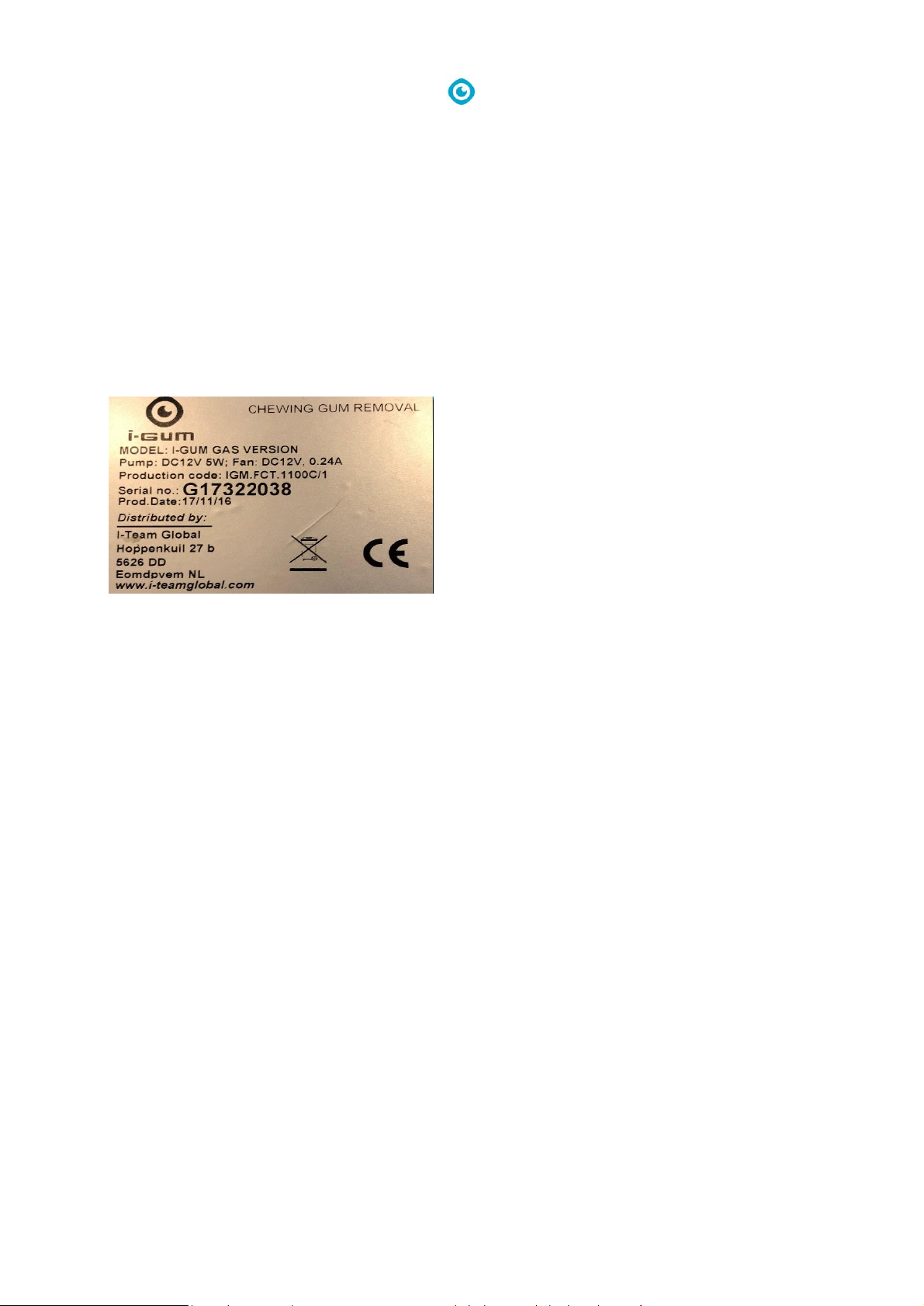

resale or exchange. Each i-gum®has a unique identification number that can be found on top of the
main body. Your i-team dealer needs this number when you order parts.
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V, an
affiliate company of i-team in Eindhoven, the Netherlands. When this manual mentions “the partner”
your local i-team resell and support service partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information during the life of the i-gum®
in such a way that the i-gum®is used correctly, efficiently and safely, even in the event of reasonably
foreseeable misuse.
The user manual contains instructions regarding:
•Personal operator safety
•Intended and non-intended use of the i-gum®
•Instructions for daily use
•Maintenance instructions
•Storage conditions
•Disposal of the i-gum®
These instructions must be considered to avoid risks that could lead to physical and/or material
damage.
Target audience
This user manual is intended for operators of the i-gum®and their supervisors, as well as dealers and
importers.
Operators of the i-gum
The i-gum®may only be operated by a person who:
•has correctly read and understood the instructions in this manual.
•is trained by an experienced operator who has read and understood the instructions in this
manual.
4
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to injuries of the
operator or bystanders, light and/or moderate damage
to the product or the environment.
CAUTION
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to light and / or
moderate damage to the product or the environment.
STRONG MAGNET
Indicates the machine contains strong magnets. These
can cause pacemakers to stop or cause electronic data
to be damaged, for instance on information stored on
access passes.
PACEMAKER
Indicates operators and maintenance crew wearing
pacemakers should keep a minimal distance of 6
inch/15 cm. In this specific case operators may not use
the machine as a backpack.
PRESSURIZED
CYLINDER
Indicates a gas-operated machine, gas cartridges must
be installed according tot the instructions in this user
manual. Gas cartridges must be disposed of according
to your local laws and regulations.
BATTERIES
Indicates a battery-operated machine, batteries must
be charged according to the instructions in this manual
and the instructions at the charger.
PROTECTIVE EYEWEAR
Indicates protective eyewear is advised, for instance
when filling the machine with cleaning solution.
WASH HANDS
Indicates the operator is advised to wash their hands,
for instance after filling and/or draining the cleaning
solution.
HOT SURFACE
Indicates hot surfaces of parts of the machine. Hot
surfaces can cause burns in contact with skin over
longer time.
SLIPPERY SURFACE
Indicates the machine can cause floors to become
slippery. Marking the workplace with slippery surface
signs is advised.
5
Content
............................................................................................................................................................................ 1
Preface .................................................................................................................................................................... 3
Purpose of the user manual.................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the i-gum......................................................................................................................................... 3
Reading guide.......................................................................................................................................................... 4
1Introduction.................................................................................................................................................... 7
1.1 Intended use of the product.................................................................................................................. 7
1.2 Non-intended use of the product.......................................................................................................... 8
1.3 Lifespan.................................................................................................................................................. 8
1.4 Modifications......................................................................................................................................... 8
1.5 Specifications......................................................................................................................................... 9
1.6 Warranty.............................................................................................................................................. 10
1.7 Identification ....................................................................................................................................... 10
2Description ................................................................................................................................................... 11
3Safety............................................................................................................................................................ 13
3.1 General Safety Instructions ................................................................................................................. 13
3.1.1 Trolley operation............................................................................................................................. 13
3.1.2 Backpack operation......................................................................................................................... 14
3.1.3 Brush condition ............................................................................................................................... 14
3.1.4 Machine orientation........................................................................................................................ 14
3.1.5 Strong magnets ............................................................................................................................... 14
3.1.6 Gas cartridges.................................................................................................................................. 14
3.1.7 Batteries .......................................................................................................................................... 14
3.2 Risks during operation......................................................................................................................... 15
3.2.1 Careful hot surface.......................................................................................................................... 15
3.2.2 The gum remover solution.............................................................................................................. 15
3.2.3 Personal protection......................................................................................................................... 15
3.2.4 Mark the job site ............................................................................................................................. 15
4Transport and storage.................................................................................................................................. 16
5Assembly and installation............................................................................................................................. 17
5.1 Unboxing.............................................................................................................................................. 17
5.2 Assembly.............................................................................................................................................. 18
5.3 Trolley or backpack operation ............................................................................................................. 19
5.3.1 Trolley operation............................................................................................................................. 19
5.3.2 Backpack operation......................................................................................................................... 21
6Operation ..................................................................................................................................................... 22
6
6.1 Before you start................................................................................................................................... 22
6.1.1 Charge the battery .......................................................................................................................... 22
6.1.2 Insert the gas cartridges.................................................................................................................. 23
6.1.3 Fill the gum remover solution tank ................................................................................................. 24
6.1.4 Cleaning fluid low level indication................................................................................................... 24
6.2 Dry start............................................................................................................................................... 24
6.3 Trolley operation ................................................................................................................................. 25
6.3.1 Adjust pump speed ......................................................................................................................... 28
6.3.2 After operation................................................................................................................................ 28
6.4 Backpack operation ............................................................................................................................. 30
6.4.1 Adjust pump speed ......................................................................................................................... 33
6.4.2 After operation................................................................................................................................ 33
6.5 Cleaning and storage ........................................................................................................................... 35
6.5.1 Drain the machine........................................................................................................................... 35
6.5.2 Rinse the machine ........................................................................................................................... 36
6.5.3 Remove the gas cartridges .............................................................................................................. 36
6.5.4 Storage ............................................................................................................................................ 37
7Maintenance ................................................................................................................................................ 38
7.1 Brush replacement .............................................................................................................................. 38
7.2 Recommended additional cleaning ..................................................................................................... 39
7.2.1 Clean with water ............................................................................................................................. 39
7.2.2 Drain the machine........................................................................................................................... 40
7.2.3 Rinse the machine........................................................................................................................... 41
7.2.4 Replace the fuse.............................................................................................................................. 42
7.3 Recommended service time ................................................................................................................ 43
8Trouble shooting .......................................................................................................................................... 44
9Decommissioning and disposal .................................................................................................................... 45
10 Attachments................................................................................................................................................. 46
10.1 CE Certificate ....................................................................................................................................... 46
10.2 Safety data sheet gum remover solution ............................................................................................ 47
7
1Introduction
The i-gum®is an easy and safe machine to use, this manual helps you get started and explains the
operation and maintenance procedure. You will be surprised how fast and effective the i-gum®is,
only a few seconds per gum patch are needed. The actual time depends on the age of the chewing
gum patch, the surface as well as the ambient temperature.
The i-gum®G is the gas-operated version. The butane propane mix gas cartridges used in the i-gum®
G are fitted with a standard type EN 417 threaded, self-sealing safety valve. Please refer to the
instructions on the bottle for correct procedure. The built-in battery operates amongst other things
the gas ignition and the operation display. An included battery charger charges the battery. Please
refer to the instructions at the charger and this manual for correct procedure.
This manual is intended for those who work with the i-gum®and perform daily maintenance. The
manual must be read in full before the first actions. This manual describes the correct method of use,
safety measures, maintenance and transport. And finally, the manual contains information about the
consumables:
•the gum remover solution,
•the brushes.
i-team Global continuously improves all their products based on user experience and feedback. Any
deviations between the texts and/ or images from the manual and your i-gum®can therefore arise
from the difference in model or from possible changes due to continuous development and
innovation.
1.1 Intended use of the product
The i-gum®is a specialized machine for chewing gum removal on floor surfaces only. You can use the
i- gum®as a trolley or carry the lightweight main body as a backpack, using the harness (see Figure 1).
Figure 1
8
The solution can cause floors to become slippery; it is advised to mark the floor of the job site to
warn people. (Please note: the wet floor sign is not part of the i-gum®system delivery).
In order to use the i-gum®on hard (outdoor) as well as soft (indoor) surfaces, both steel and nylon
brushes are provided. These brushes are easy to replace. Select the right brush for each job, see
Table 1 below.
Steel brush
Nylon brush
Concrete, tarmac, asphalt, hard brick paving,
natural stone.
Sandstone, soft brick paving, wood, carpets.
Table 1
The gum remover solution will not leave marks; however, it is known in some isolated cases the
heated steam will affect the varnish of wooden floors and can create a dull spot. When not sure
about the surface: always use the nylon brush and try-out the i-gum®in a discrete place.
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders
and will void the warranty on the product.
The i-gum®is not intended to remove anything else than chewing gum patches on floors. It is only
effective using the specialized water based i-gum® gum remover solution. Filling the tank with clear
water will not remove gum patches and therefore is pointless.
The steam lance may not be raised higher than horizontal during operation as the hot gum remover
solution cleaning fluid can cause burns (see Figure 1).
DO NOT fill the i-gum®with any other detergent. Alternative products will void the manufacturer’s
warranty, more importantly they may also cause serious harm to the operator. For instance, as the
fluid is heated to steam any alcohol-based detergent can catch fire, other products might cause toxic
fumes. ONLY use the specialized water based i-gum® gum remover solution or other solutions
provided by the manufacturer.
1.3 Lifespan
CAUTION
To ensure proper and safe operation throughout the life of the i-gum®, the i-gum®must
be checked every 1,000 hours minutes by an authorized i-team partner.
The main control panel on the side contains a counter that indicates the number of minutes the
machine is used.
1.4 Modifications
It is not permitted to make modifications to the design of the i-gum®without consultation and
permission from the manufacturer. This affects the warranty, see 1.6.
9
1.5 Specifications
Product Size (body unit):
347*330*500 mm
Lance Size:
60*1100 mm
Weight (including 2 gas cartridges):
10.5 kg
Lance Weight:
1.6 kg
Broom Extended Length:
1.3 M
Li-on Battery:
14.8V 6.6Ah
Gas Cartridge Drawer Capacity:
2 Gas Cartridges
Operation Time of Gas Cartridges:
About 4 hours/ Cartridge;
About 8 hours/ 2 Cartridges
Fluid Flow Speed Class
Low, Middle, High
Tank Capacity:
2.5 L
Control Panel in Handle:
YES
Trolley Handle:
YES
Transport Wheel:
YES
Backpack for Body Unit:
YES
Fluid Shortage Warning:
YES
Figure 2
10
1.6 Warranty
The i-gum®should only be operated with the materials supplied. Using alternative supplies may
cause damage to the i-gum®and may cause a risk to the operator. The use of alternative supplies
voids manufacturer's warranty.
1.7 Identification
Each i-gum®has a unique identification number that can be found on top of the main body. Your i-
team dealer needs this number when you order parts.
Explanation type plate:
Product type: i-gum®G
Serial number: G17322038
Power supply and capacity: DC 12V 5W
Manufacturer: Future Cleaning Technology B.V.
Country of assembly: PRC
Figure 3
11
2Description
The compact lightweight i-gum®consists of two main parts:
1. The body that contains the cleaning solution and the gas cartridges and that can be carried
as a backpack.
2. The steam lance with the integrated gas heating installation to deliver the heated gum
cleaner solution exactly on the gum patch.
The brush attached to the steam lance is not intended for scrubbing, only a light agitation is needed.
The heated solution will break down the chewing gum in a matter of seconds. A broom is provided to
sweep away the gum residue.
The i-gum®consists of:
Figure 4
12
1. The control panel to use during operation.
2. The safety pin for opening the gas cartridge holder.
3. The gas cartridge holder containing two gas cartridges and the gas valve.
4. The main power switch.
5. A counter showing the number of minutes the machine is used.
6. A charger plug for the built-in battery charger.
7. A battery power indicator.
8. A fuse holder.
9. A drip tray to avoid spillage.
10. A broom and broom holder to sweep the gum residue.
11. The steam lance with an integrated gas heating Installation and a separate brush, connected to
the body.
12. The SELF-LOCK button.
13. The main body.
14. The gum remover solution tank sealed by a yellow stopper.
15. Wheels and a handle to use the i-gum®as a trolley.
16. The back plate and harness to use the i-gum®as a backpack.
17. A battery charger and a storage bag for the battery charger.
18. A brush storage tube to store spare brushes.
13
3Safety
Safety comes first, therefore please take time to read and understand these safety instructions.
Improper use can case cause harm or void the manufacturer’s warranty.
3.1 General Safety Instructions
WARNING
The functional part of the i-gum®consists of a steam lance and brush. The steam lance is
insulated, however the grey part (fig 5, pos 1) should not be touched. The temperature
stays well below 60°C.
CAUTION
Always keep the body of the i-gum®in an upright position when gum remover solution
or batteries are inserted.
3.1.1 Trolley operation
CAUTION
When using as a trolley remove the harness as the machine can trip over loose straps.
It is recommended to keep the steam lance
(Figure 5, pos 1) stored in its holder when moving
to the job site. The drip tray (Figure 5, pos 2) is
only used for rinsing the machine, see 6.5.2).
Figure 5
14
3.1.2 Backpack operation
CAUTION
It is impossible to reach and store the steam lance in its holder when wearing the i-
gum®as a backpack. Always keep the lance in your hand when the machine is
operational.
When using as a backpack fit the machine to the operator and adjust straps before inserting the
batteries or filling the tank with the gum remover solution. Proceed only when the operator is
comfortable using the backpack, else use the i-gum®as a trolley.
3.1.3 Brush condition
Make sure to check the condition of the brush before use, change the brush only when the machine
is turned off and the steam lance is cooled.
3.1.4 Machine orientation
Always keep the body of the i-gum®in an upright position when gum remover solution or gas
cartridges are inserted.
3.1.5 Strong magnets
CAUTION
Please be aware of the integrated magnets that hold the steam lance in its holder.
WARNING
Operators and maintenance crew wearing pacemakers should keep a minimal distance
of 6 inch/15 cm. Operators wearing pacemakers should never use the backpack
operation mode.
3.1.6 Gas cartridges
WARNING
During normal operation the butane propane mix gas cartridges cause no safety hazard
on their own. Please read the safety instruction at the gas cartridges carefully before use.
3.1.7 Batteries
CAUTION
During normal operation the built-in battery causes no safety hazard. Please refer to
the instructions at the charger for correct procedure.
15
3.2 Risks during operation
3.2.1 Careful hot surface
WARNING
Even when the general safety instructions are followed, some small residual risks
remain when operating a machine that creates steam.
•DO NOT touch the steam lance below the blue handle. The risk of burns is minimal,
comparable with a running hot tap.
•DO NOT operate barefoot, wear closed shoes while operating the machine.
3.2.2 The gum remover solution
WARNING
The water based i-gum®gum remover solution does not provide significant hazards,
however, please be aware of these general safety rules:
•Keep locked up and out of reach of children.
•Keep away from food, drink and animal feedstuffs.
•When swallowed, seek medical advice immediately and show the bottle. DO NOT
induce vomiting.
3.2.3 Personal protection
CAUTION
Can be irritating to the eyes, wear eye protection and use caution when filling.
CAUTION
Clean your hands immediately after filling or draining the machine.
CAUTION
The water-based cleaning solution is non-corrosive, no special footwear is required.
However, the solution is heated to steam, and it is recommended to wear closed shoes.
3.2.4 Mark the job site
WARNING
During operation the gum remover solution can cause slippery patches on the floor, it is
advised to mark the job site to warn passersby.
16
4Transport and storage
CAUTION
Always keep the body of the i-gum®in an upright position when gum remover solution or
gas cartridges are inserted. Don't expose the i-gum® to open fire.
•Drain the machine after each use before storage or during transport (see 6.5.1).
•Store the steam lance in its holder during transport and storage.
•The gas cartridges can remain in the machine during storage and transport.
•Store the i-gum®in an upright position, under normal storage conditions. Don't expose the i-gum®
to open fire.
17
5Assembly and installation
The i-gum®does not require much assembly, most importantly you will have to decide how to use
the machine: as a trolley or as a backpack using the harness.

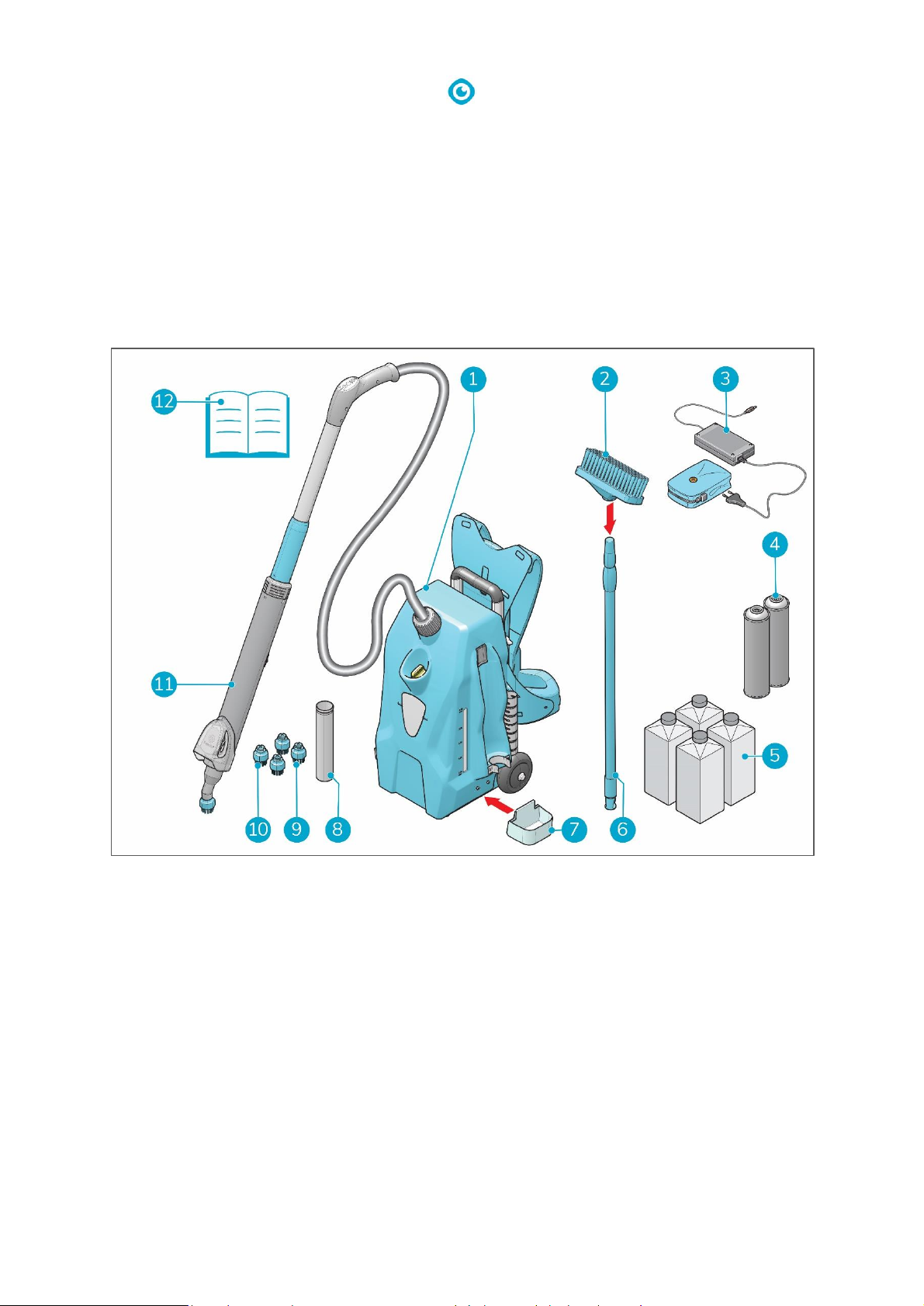

5.1 Unboxing
The i-gum®is packed in 1 box, containing:
1. The i-gum®itself including a starter package of brushes, gas cartridges and cleaning fluid.
2. The battery charger and the storage bag for the battery charger.
Legend
1.
1x i-gum®main body, harness attached
7.
1x drip tray
2.
1x broom
8.
1 x storage tube for spare brushes
3.
1x battery charger 220 V plus cable and
storage bag
9.
3x steel brushes, one attached to the
steam lance
4.
2x gas cartridges
10.
2x nylon brushes
5.
4x bottles of gum remover solution
11.
1x steam lance
6.
1x broom handle
12.
This user manual
Figure 6
18

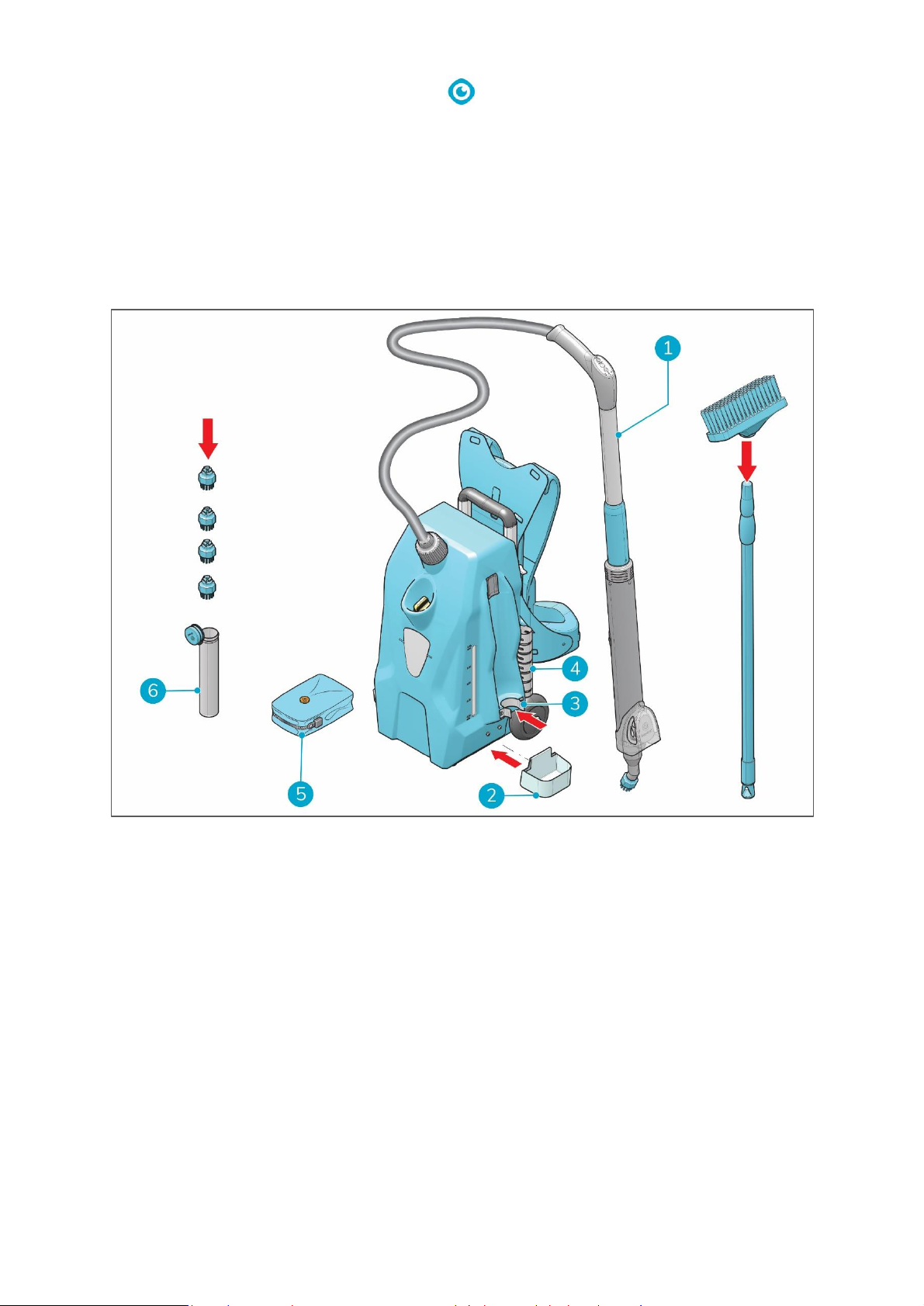

5.2 Assembly
1. Attach the drip tray (Figure 8, pos 2) to the body.
2. Click the lance (Figure 8, pos 1) into the holder (Figure 8, pos 3), with the metal plate facing the
main body.
3. Screw the broom on the broom handle.
4. Place the broom in the broom holder (Figure 8, pos 4).
5. Place the spare brushes in the storage tube (Figure 8, pos 6).
6. Attach the storage bag for the battery charger (Figure 8, pos 5) to the body if desired.
Figure 7
19

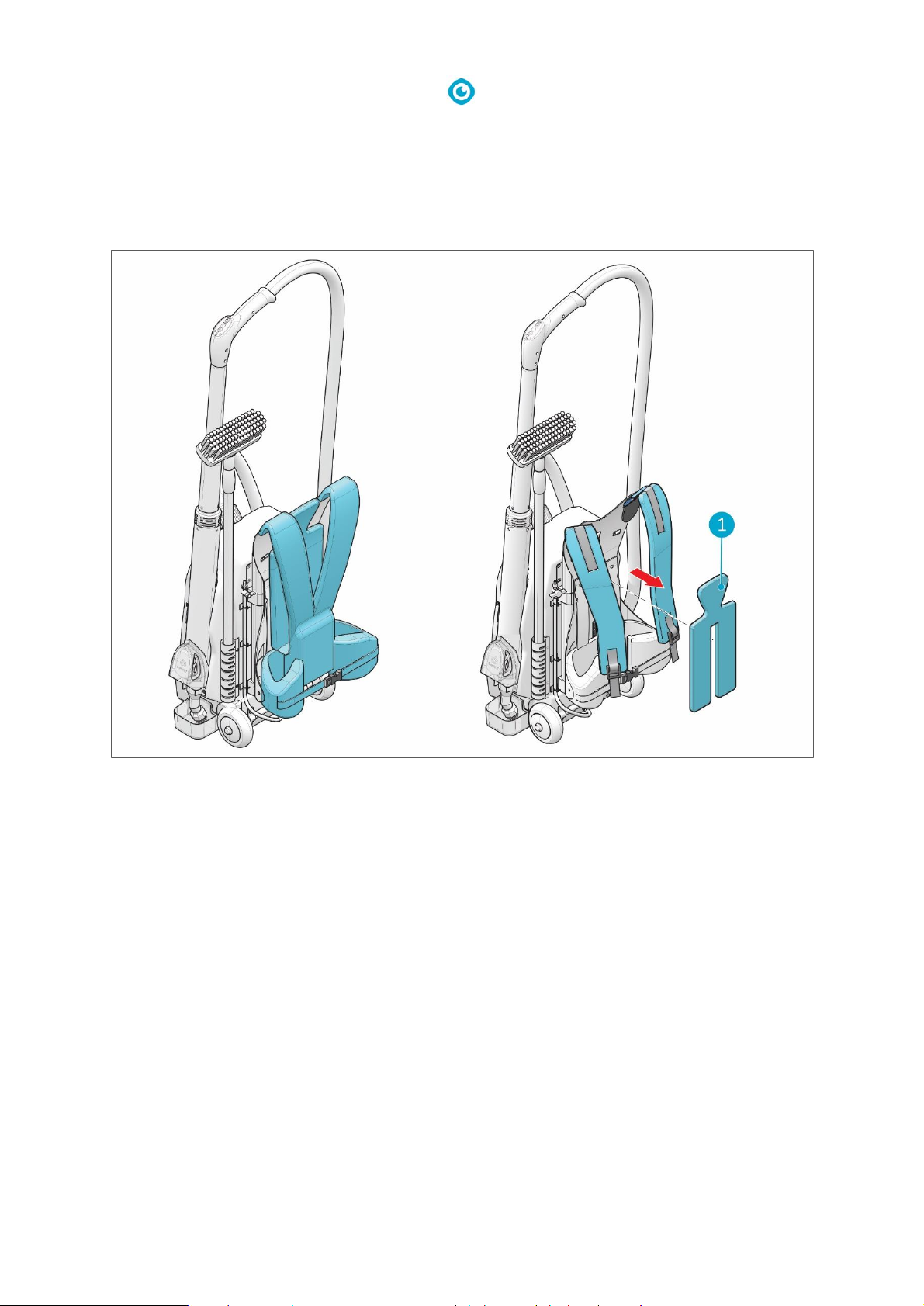

5.3 Trolley or backpack operation
5.3.1 Trolley operation
When you use the i-gum®as a trolley it is advised to remove the harness so loose straps cannot be
caught between the wheels. To remove the harness:
1. Remove padding (Figure 9, pos 1) that is attached to the back plate with Velcro.
Figure 8
Other manuals for i-gum
2
Table of contents
Other i-team Cleaning Equipment manuals
