Ibeam Te-hud User manual

TE-HUD User Manual

iBeamUSA.com

MetraDealer.com

techsupport@metra-autosound.com

� TECH SUPPORT

l ::: J 800-253-8324

1

It displays driving data on the front windshield such as speed, RPM,

water temperature, and voltage on the car's windshield; avoiding unsafe

driving by of watching the instrument cluster. Drivers can read the driving

information instantly, and can always keep their focus on the road with

TE-HUD.

Feature:

1. Universal: works with cars produce after 2003 with OBD II

connector

2. 3” high definition screen

3. Multi-color design, and projection easy read.

4. Nano-technology screen plate, eliminates reflection, make

projection clear & sharp.

5. Full information including speed, engine RPM, cooling

water temperature, battery voltage, and alarm.

6. Auto on/off along with car. (Manual on/off is also available )

7. Equipped with Auto brightness sensor. (manual adjustment is

also available )

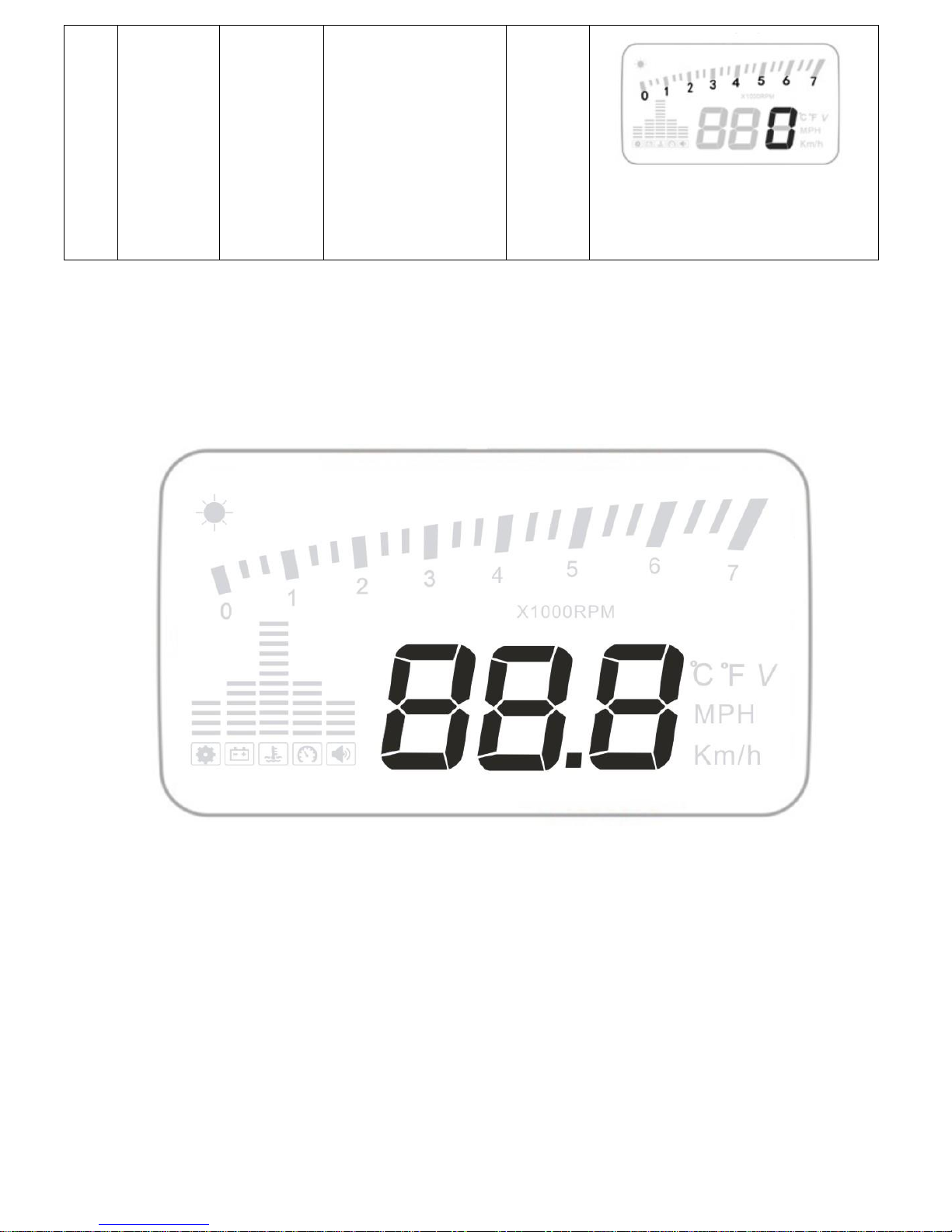

TE-HUD screen function:

1. Brightness sensor (please don’t cover by article)

2. Engine RPM

3. RPM unit (1,000 turn/min)

4. Unit display ：Cooling water temperature => ℃or ℉, battery voltage

=>V, Speed => MPH or KM/H

5. Main display => display number of speed, battery voltage, cooling

water temperature.

6. Warning Alarm: Alarm for battery voltage, cooling water temperature

alarm, over speed alarm, RPM alarm, beep sound on/off.

2

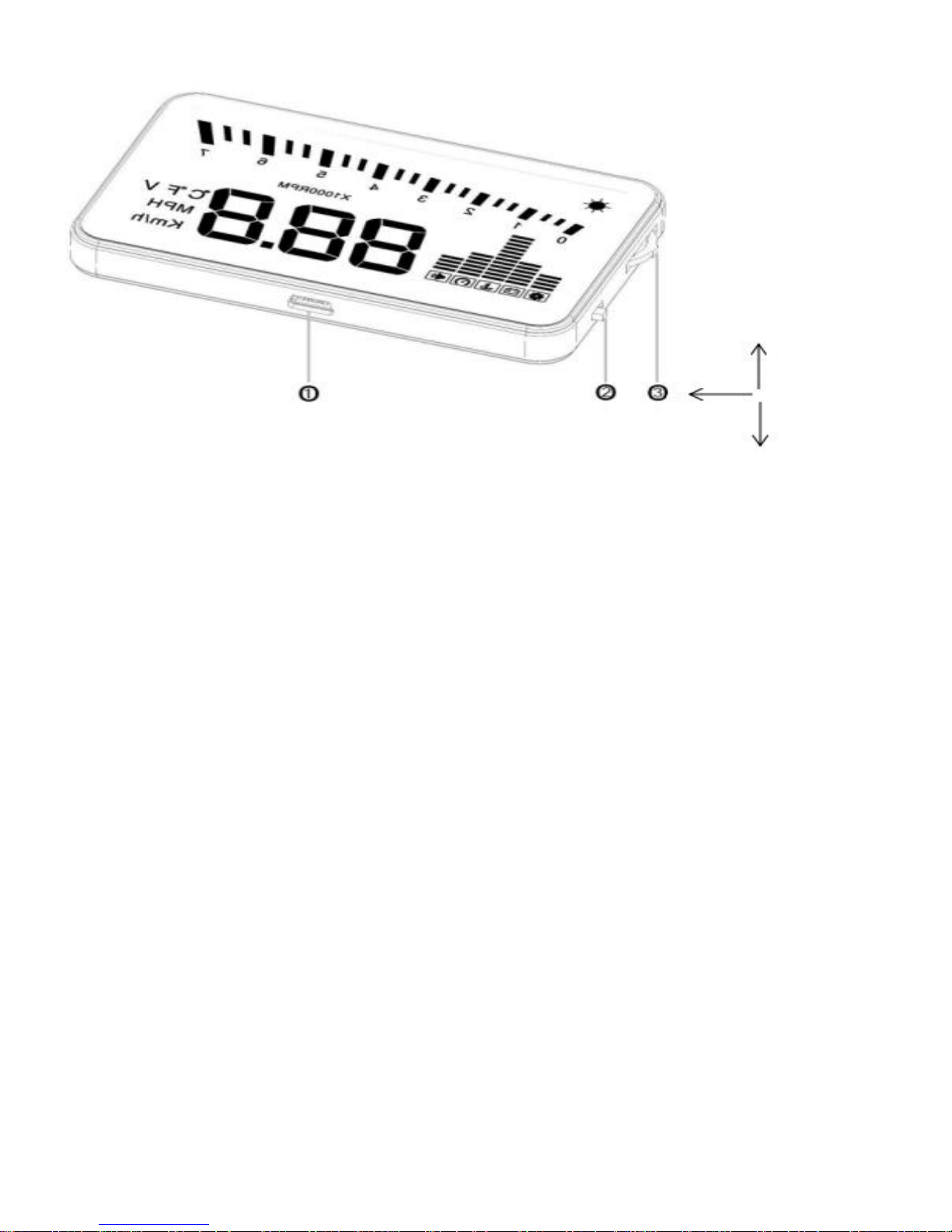

TE-HUD starting

1. OBD2 cable input (connector with vehicle OBD II)

2. Power on/off switch

3. Function setting button (can push up, down, inward)

4. Short push function setting button, showing cooling water temperature,

battery voltage, or speed.

5. Beep sound on/off: Push function setting button down for 5 sec, all the Alarm

function off, again push it 5 sec, Alarm function on.

TE-HUD installation

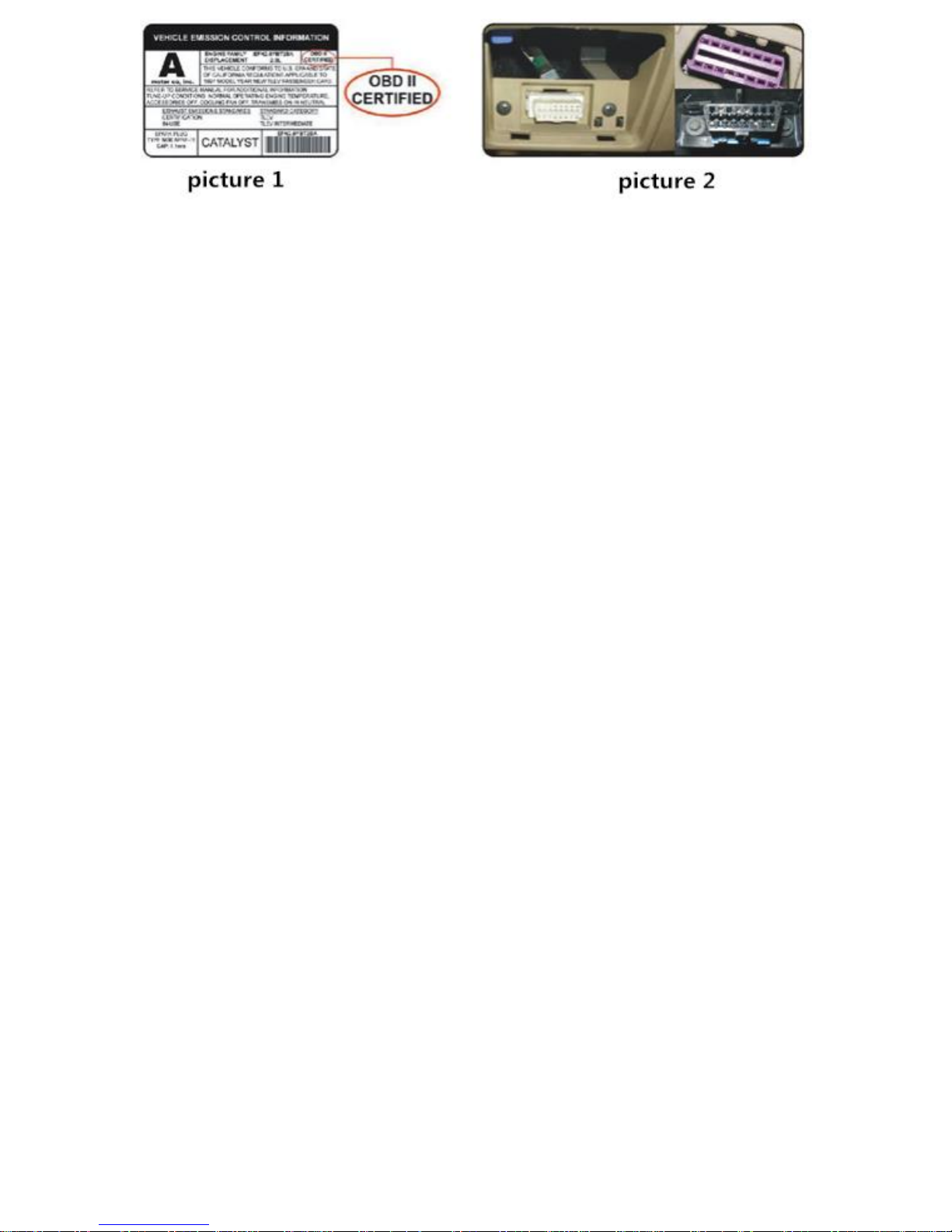

1. Make sure your car uses an OBDII connector (as picture 2), also uses the

OBD II protocol (normally you will find a stick near connector or engine bay

(as picture 1) showing OBD II certified, if not, consult the vehicle's owner's

manual).

2. Connect the OBD II cable (included in package) to your Car OBD II jack.

Connector other end of cable (mini USB connector) to TE-HUD device.

3

Reflection film installation

Please Note: TE-HUDprojectsthe display information on the

car's windshield, because the windshield is double pane, it will cause a

double image on the windshield when displayed. If you can see the

display information clearly, then there is no need to use the reflection

film. If there is a double image, then please use the reflection film.

First, please put the supplied non-slip mats in front of the dashboard,

and then put the TE-HUD on it.

Second, please stick the reflection film on the windshield.

The reflecting film should be placed right above the host machine and it

should be able to reflect the whole display screen.

Methods of placing the film:

1.

Clean the place that the film will be placed on with a lint free towel;

then mist the location with water.

2.

Tear off the back side (marked 1)of reflection film, then place it to the

location.

3.

After you have adjusted the location well, you can use a flat edge to

slick the film and squeeze the water out until there is no bubble or water

in it.

4.

Tear off the front side (marked 2) of the reflection film. If the film

cannot display the whole information, please adjust the non-slip mat.

The first use of TE-HUD

Start engine and power on TE-HUD, showing the current vehicle voltage

and then begins to search ECU state, if the TE-HUDshows speed,

rotating speed, indicating that TE-HUDhas been installed successfully.

(After 1 minute, if only display the voltage, please check whether TE-

HUD, OBD interface, and OBD data cable are correctly connected and

the cable plug is fully seated into the vehicle OBD interface.

Then restart the engine and TE-HUD will rescan.)

TE-HUD setting

TE-HUD display information is from ECU, if there is a difference

between vehicle dashboard and TE-HUD, then you can enter the setup

mode to fine-tune the TE-HUD display value, in order to achieve an

exact match.

4

We have adjusted the TE-HUDaccording to the general test values

at the factory, if you find TE-HUDdisplay information is different

from dashboard, then make the following adjustments:

1. Long press the wave button vertically for 5s

Entering into the setting mode, there are three button for wave

button: Up button (turning the button to upside), OK button

(pressing the button vertically), Down button (turning the button to

downside), after enter into the setting mode, press the OK button

vertically one time, the menu will increase one. Turning the upside

button or downside button to increase or decrease the parameter.

After finish the adjustment, long press the wave button vertically

for 5s to return to the display interface.

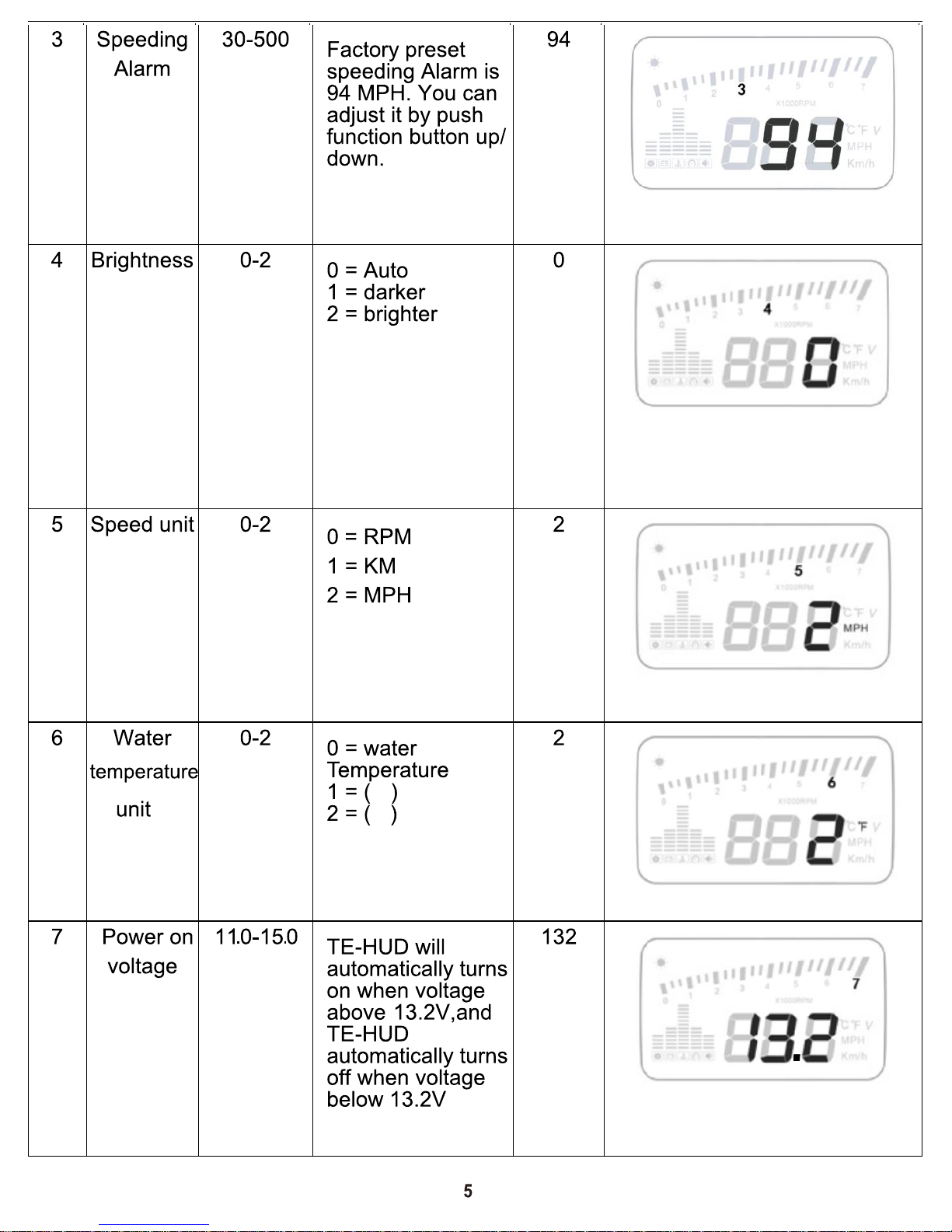

Menu Function Adjustmen

t range Description Factory

preset

number

Picture show

0 Speed 50-150 If TE-HUD speed

is higher than

dashboard

instrument, low

this number (by

push down

function setting

button),normally

low by 2 one time,

then check if it is

the same as car

instrument. For

speed lower than

instrument, push

up, do the same.

107

1 Engine

RPM 50-150 Start your car, shift

to ‘P’, and do

adjustment (push

function button

down for decrease

and up for

increase )

117

2 RPM

Alarm 0-75Factory preset

Alarm is 7000

RPM. You can

adjust it by push

function button up/

down.

70

℃

℉

6

0123

4567 Demo

state 0-2 0 is normal state,1

is demo state, 2 is

empty please note,

this is for

engineering

purpose only, and

there is no need to

adjust this for

normal consumers

0

2. Vertically short press the OK button：

Switch the display information, e.g. water temperature, battery

voltage, speed

3. Beep sound on/off: Push function setting button down for 5 sec, all the

Alarm function off, again push it 5 sec, Alarm function on.

4. Restore the factory Settings:

try to reset the TE-HUD, slide setting scroll to "L" for 5 seconds, all the

LED lights will be turned on, repeat the action for 5 seconds again, all

setting will be reset to factory default setting and the TE-HUDshould be

good.

7

Working temperature ：

Relative humidity：

Alarm beep ：

Working Voltage：

Measurement：

Weight：

-40c—+80c (atmospheric pressure 86 – 106 KPa)

10%-95% Noise

<=60dB (A) >=30dB (A)

9V~16Vdc (12Vdc/400mA)

9*5.4*1.2(cm)

40g

Trouble shooting

Problem Possible reason The way to solve

No speed alarm the function is closed open the switch of alarm

No RPM speed The setting value is too

high or the function is

closed

Resetting and opening the

switch of alarm

No display after

starting The switch is not opened,

voltage is too low, the

vehicle is not OBD2

protocol

Opening the switch and check

the plug, set the voltage value,

change another vehicle with

OBD2 protocol

No speed and

engine speed

display

Not conform to OBDII or EU-

OBD port Consult vehicles owner’s

manual

Speed is inaccurate The unit of speed is

KM/H Switching the unit of speed to

MPH

1. Nothing on screen:

Make sure the TE-HUD power button is on, make sure OBD II is securely connected,

start car again.

2. Power on, but screen only show car battery voltage, and off after 30 sec:

Car might not use OBDII or EU OBD protocol, consult vehicles owner’s manual.

3.Projection is not clear in sun light environment:

Make sure you remove the transparent film on TE-HUD screen, TE-HUD projection

position is on projection film, or you can adjust brightness as mentioned in Menu

Specification:

8

4.TE-HUD crash:

Try to reset the TE-HUD, slide setting scroll to "L" for 5 seconds, all the

LED lights will be turned on, repeat the action for 5 seconds again, all setting

will be reset to factory default setting and the TE-HUD should be good.

5.TE-HUD speed is higher/lower than dashboard instrument:

See Menu 0 adjustment.

6.TE-HUD cannot be automatically power off:

Vertical press in 5 seconds to enter into menu setting, short press 7 times to

menu 7, and the default parameter is 13.2, change it to 13.5 vertical press in 5 seconds to

save and exit.

7.TE-HU

8. TE-HUD LED Light remains on when your car is off:

Vertical press in 5 seconds to enter into menu setting, short press to all digits on, change

the mode setting to 2, vertical press in 5 seconds to save and exit.

D cannot be automatically power on:

Vertical press in 5 seconds to enter into menu setting, short press 7 times to

menu 7, and the default parameter is 13.2, change it to 12.8, vertical press in 5 seconds

to save and exit.

Notes:

_______________________________________________________________________________

IMPORTANT

If you are having difficulties with the installation

of this product, please call our Tech Support line

at 1-800-253-TECH. Before doing so, look over

the instructions a second time, and make sure

the installation was performed exactly as the

instructions are stated. Please have the vehicle

apart and ready to perform troubleshooting

steps before calling.

When connecting with power cable, please make sure not to mistake the positive and

negative pole, otherwise the fuse will blow immediately for security protection.If ithappens,

please replace the blown fuse with a new one with same specification, after connecting

properly to the right pole. Don’t randomly increase the current rating of the fuse, and NEVER

use metal wire asa substitute.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Version 1.0
