iBeam TE-PLGCRV User manual

07/23/18
TE-PLGCRV Manual
2017-2018 Honda CRV

Speed Adjustment Press and hold the Rear button until the system beeps 5 times, then release. 10 quick beeps = fast 1 long beep = slow (default)

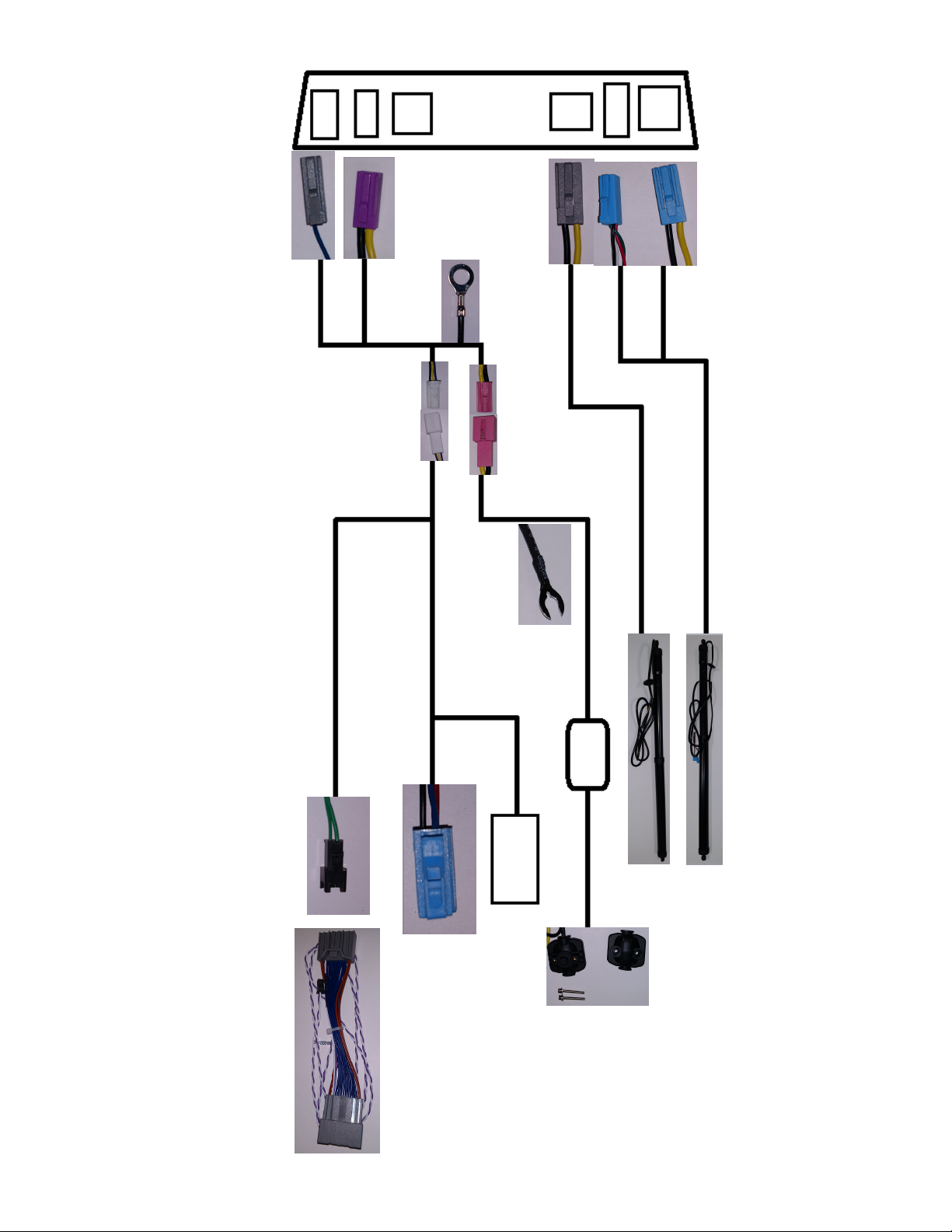

1. Cable Connections
Buzzer
4 - Not used in this application
SD card slot
Height Adjustment Adjust the tailgate by hand to the desired height. Then press and hold the Front button until the system beeps 2 times, then release. Perform a key cycle to verify adjustment.
New rear button
To outside latch button
To electronic locking mechanism
B
A
IBEAM
Connection location
A
B
1
2
3
4
Control box side A

1. Cable Connections - contin.
Control box side B
1
2
3
4
5
6
After installation is complete, close the tailgate manually, slowly, so the system can initialize.
This system can operate with the original remote as follows:
•Long press of unlock button •Depending on the remote some may
be 3 quick presse
4 - not used in this application
Ground Ground CAN box
Fuse
Power Clamp - connect at fuse box
To New Front button
Connect to Radio

2. Installation
1. Remove the AC controls from below the radio.
2. Remove the screw from the radio.
3. Unplug the main radio connector and use the provided T-harness to plug into the vehicle then
into the radio. Run the twisted extension down near the drivers kick panel.

4. Remove the knee bolster and use the pocket in the picture to mount the front button. Use the
provided hole saw to drill a hole and mount the button
5. Tap into the 12v white power cable near the light switch.
6. Assemble the clamp as shown in the picture above and clamp onto the 12v wire.

7. Remove the inner floor cover of the trunk area.
8. Remove the bottom cloth panel on the back of the rear seats. Then remove the plastic panel.
9. Remove the driver’s side rear door running board panel..

10. Remove the panel behind the handle and remove the two screws.
11. Remove the push clip from the back panel by latch base and remove the panel.
12. Remove the driver’s side rear quarter panel.

13. It is not necessary to completely remove the left top quarter panel, disengage clips to gain
access to the wiring that is needed. BE CAREFULE, some vehicles can be equipped with side
curtain airbags.
14. Above is the connectors needed, use provided t-harness to tap into the vehicle wiring harness.
Also connect the ground to the screw shown above.

15. Remove the top and side panels of the lift gate.
16. Remove the screw in the handle pocket. Remove the handle pocket. Use the provided hole saw
to make a hole in the blank space on the pocket front for the rear button.
17. Run the wiring for the button as shown in the photo.

18. Remove both the left and right factory struts and using the factory hardware, install the new
powered struts.
19. Use the grommet on the body of the rear of the vehicle to run the new wiring for the power
struts on both the left and right side of the vehicle.
20. Run the wiring from the struts to the driver’s side of the vehicle. The controller box is going to
be mounted in the driver’s rear quarter panel.

21. The wiring that was connected in the front of the vehicle can be ran to the rear of the vehicle as
shown in the photo.
22. Run all wiring to the rear quarter panel. Plug in all connectors andmount control box tothe
quarter panel with the hardware provided. Also find a good location for the buzzer. Buzzer
attaches with double side tape.
23. Re-assemble vehicle andtest power lift gate.
