USER’S MANUAL
Serial
Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEL55914.0
Serial No.
Write the serial number in the space
above for reference.
www.proform.com
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Google Maps is a trademark of Google Inc.
IFIT is a registered trademark of ICON Health & Fitness, Inc
PROFORM is a registered trademark of ICON Health & Fitness, Inc.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the ellip-
tical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary PROFORM®
ENDURANCE 520 E elliptical. The ENDURANCE 520
E elliptical provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

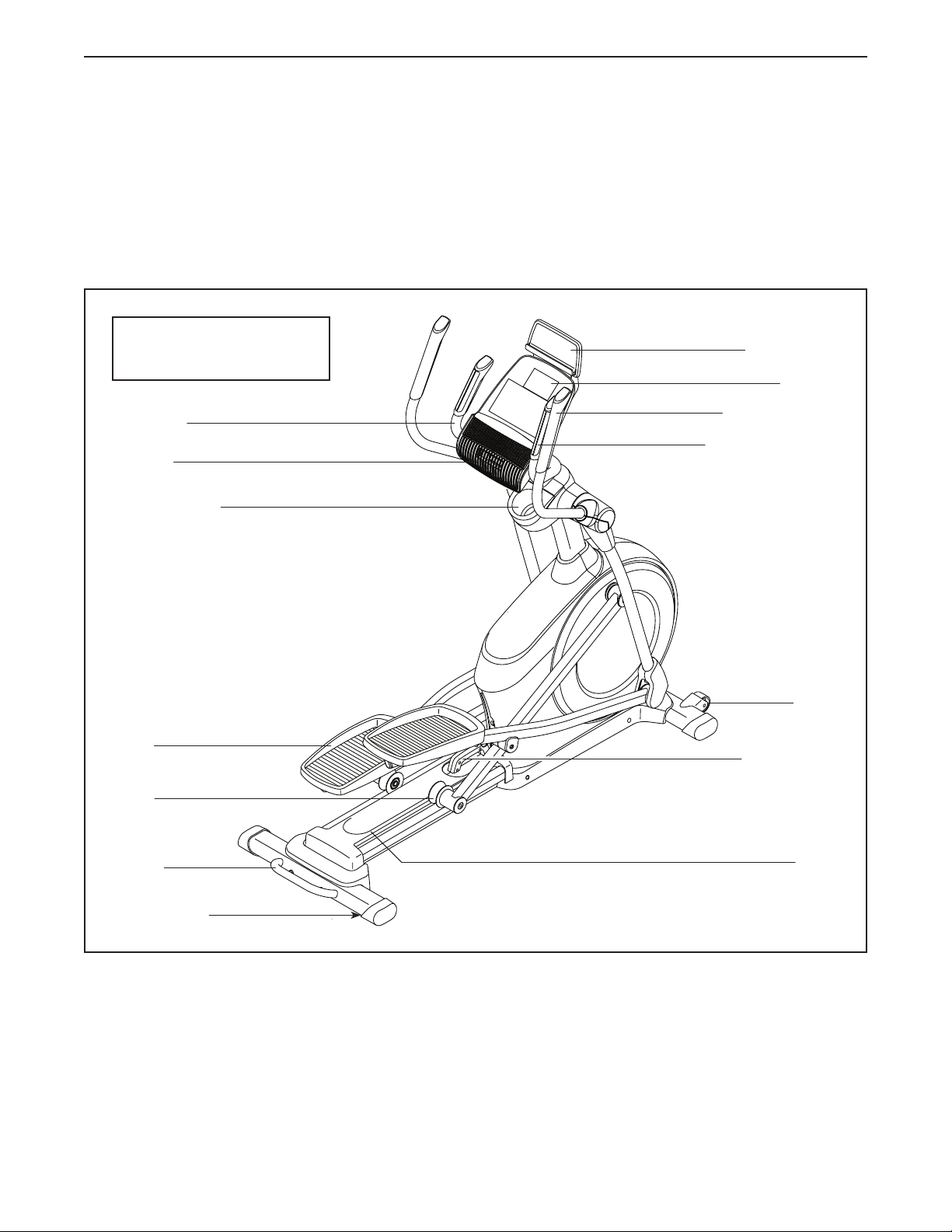

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Accessory Tray
Speaker
Handlebar Upper Body Arm
Pedal
Roller
Handle Ramp
Ramp Handle
Console
Tab l et Ho l d er
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 2 in. (66 cm)

7

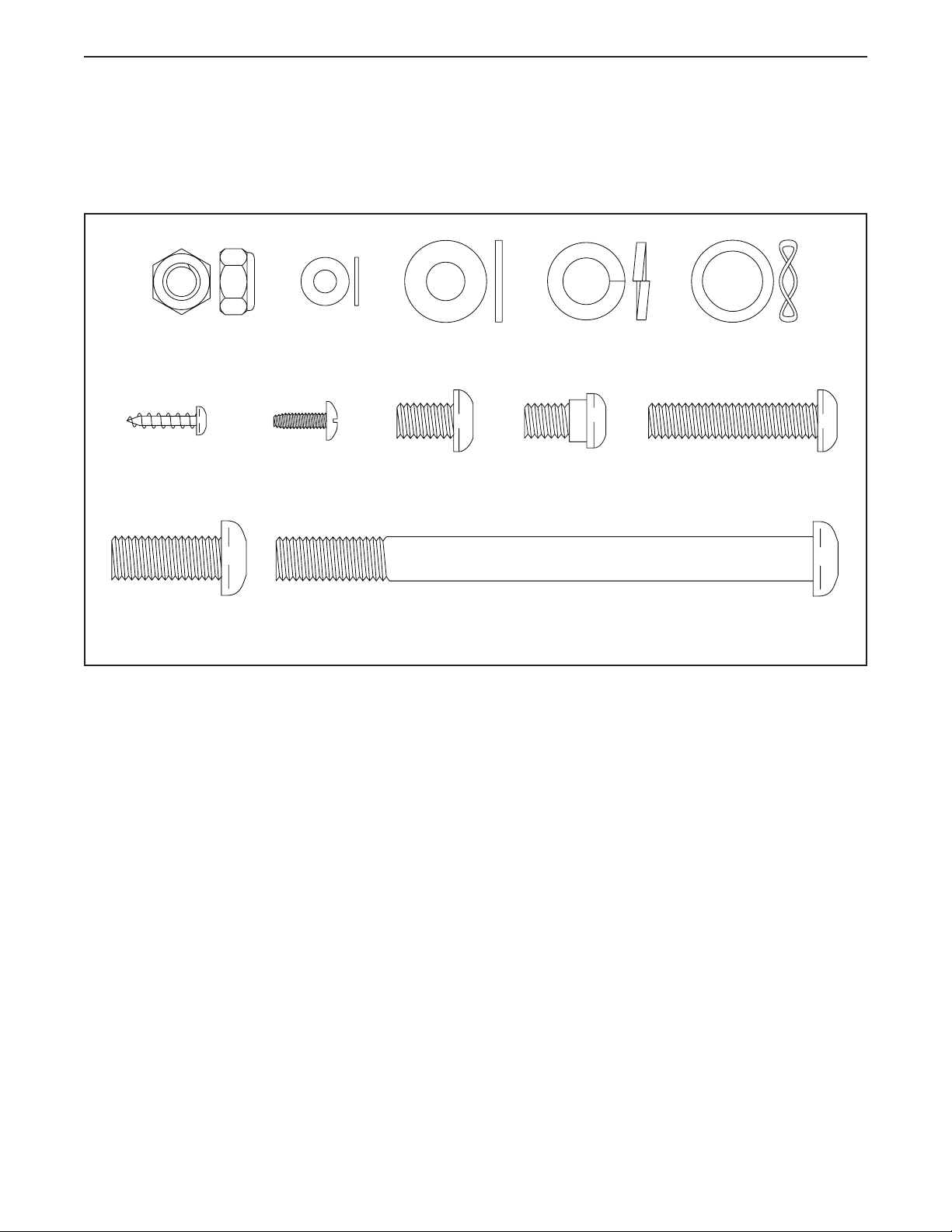

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 13mm
Screw (82)–6
M10 x 25mm
Screw (92)–4
M10 x 122mm Screw
(104)–4
M8 Locknut
(102)–4
M4 x 16mm
Screw (101)–16
16mm Wave
Washer (54)–2
M10 Split
Washer (105)–8
M8 Washer
(97)–8
M5 Washer
(32)–2
M8 x 38mm Bolt
(96)–4
M8 x 14mm
Shoulder
Screw (120)–2
#8 x 12mm
Screw (122)–4

8
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
AttachtheRearStabilizer(2)totheFrame(1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Removethepackingmaterialsfromunderthe
rear of the Frame (1).
2
1
2
104 105
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Go to www.proformservice.com/registration
on your computer and register your product.
•activates your warranty
•saves you time if you ever need to contact
Customer Care
•allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

9
3
2
106
15

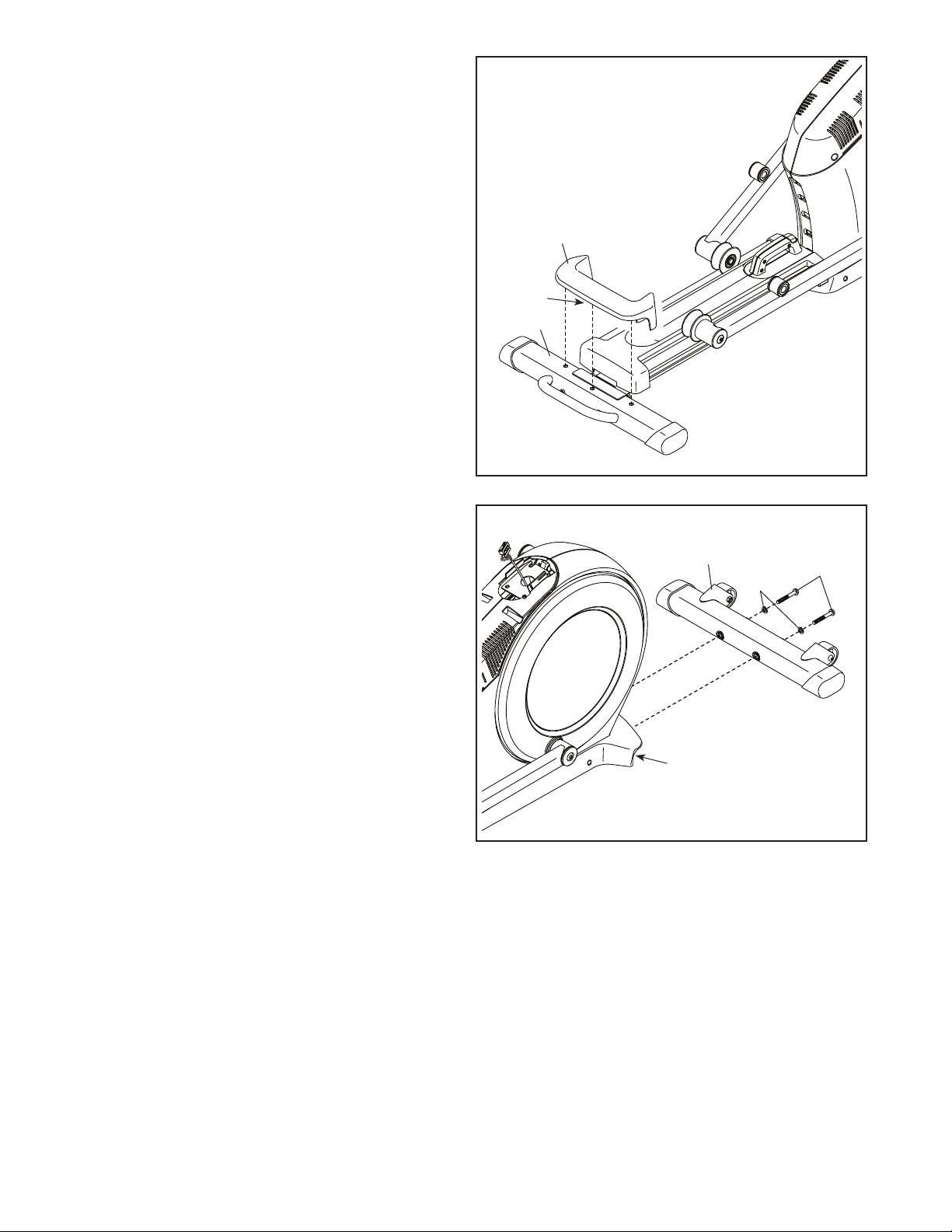

3. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
4
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Removethepackingmaterialsfromunderthe
front of the Frame (1).
1
6104
105

10
5

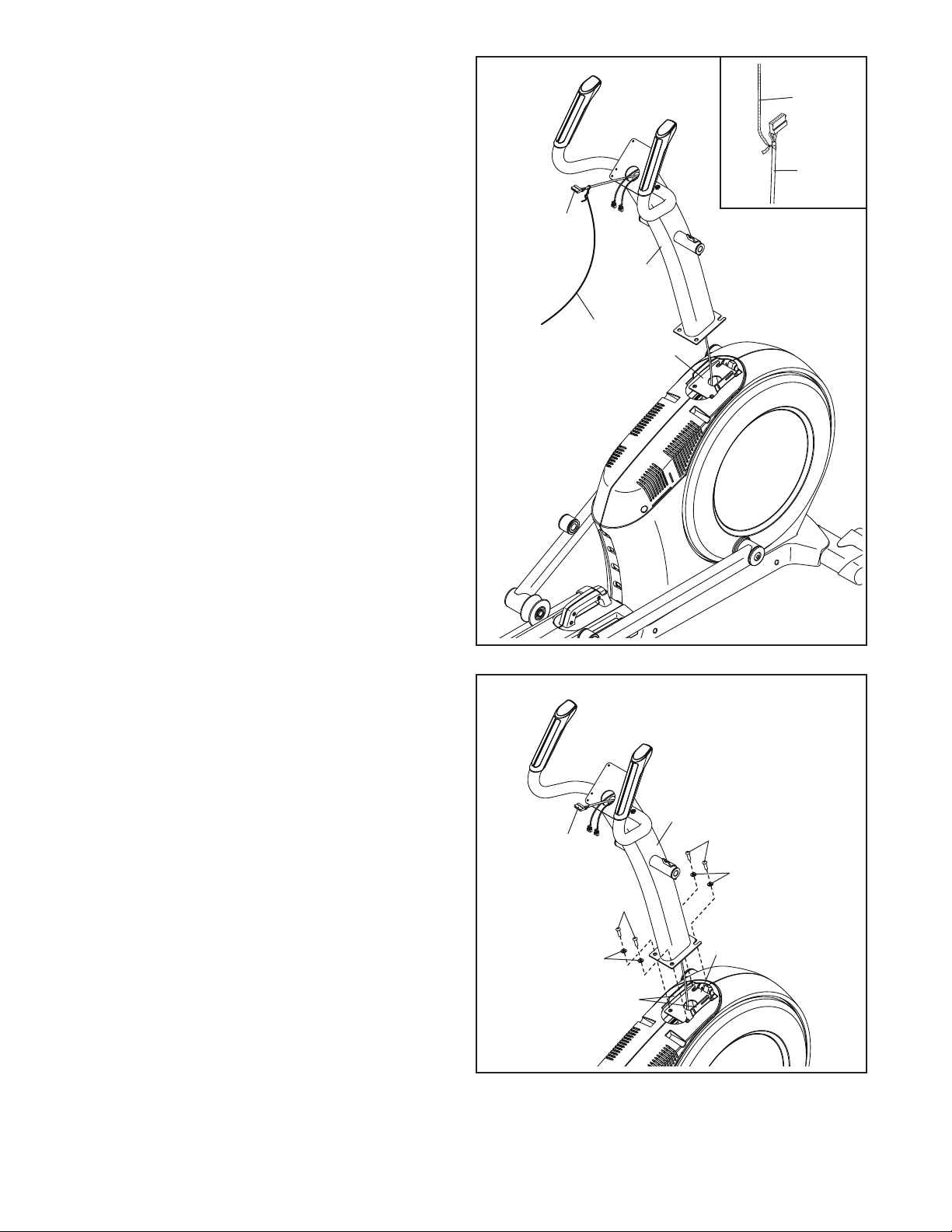

5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
See the inset drawing. Locate the wire tie in
the lower end of the Upright (4). Tie the wire tie
to the Upper Wire (110). Then, pull the upper
end of the wire tie until the Upper Wire is routed
through the Upright.
Tip: To prevent the Upper Wire (110) from
falling into the Upright (4), secure the Upper
Wire with the wire tie.
1
4
110
Wire
Tie
Wire
Tie
110
6
6. Tip: Avoid pinching the Upper Wire (110).
Avoid damaging the indicated plastic tabs.
Set the Upright (4) on the Frame (1).
AttachtheUpright(4)withfourM10x25mm
Screws (92) and four M10 Split Washers (105);
start all of the Screws, and then tighten them.
Avoid pinching the Upper
Wire (110) and avoid
damaging the tabs
Tab s
4
1
105
105
92
92
110

11
7
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
InsertthePivotAxle(35)throughtheUpright(4)
and center it. Tip: It may be helpful to use a
rubber mallet.
IdentifytheRightUpperBodyLeg(60)andori-
ent it as shown.
Slidea16mmWaveWasher(54)andtheRight
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
TightenanM8x13mmScrew(82)andanM8
Washer (97) into each end of the Pivot Axle (35)
at the same time.
60
54
46
82
97
35
4
Grease
8
8. Identify the Right Upper Body Arm (61) and ori-
ent it as shown.
SlidetheRightUpperBodyArm(61)ontothe
Right Upper Body Leg (60).
AttachtheRightUpperBodyArm(61)withtwo
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Upper Body
Arm (47).
Hexagonal
Holes
60
61
47
96
102

12
9
7
4
63
110

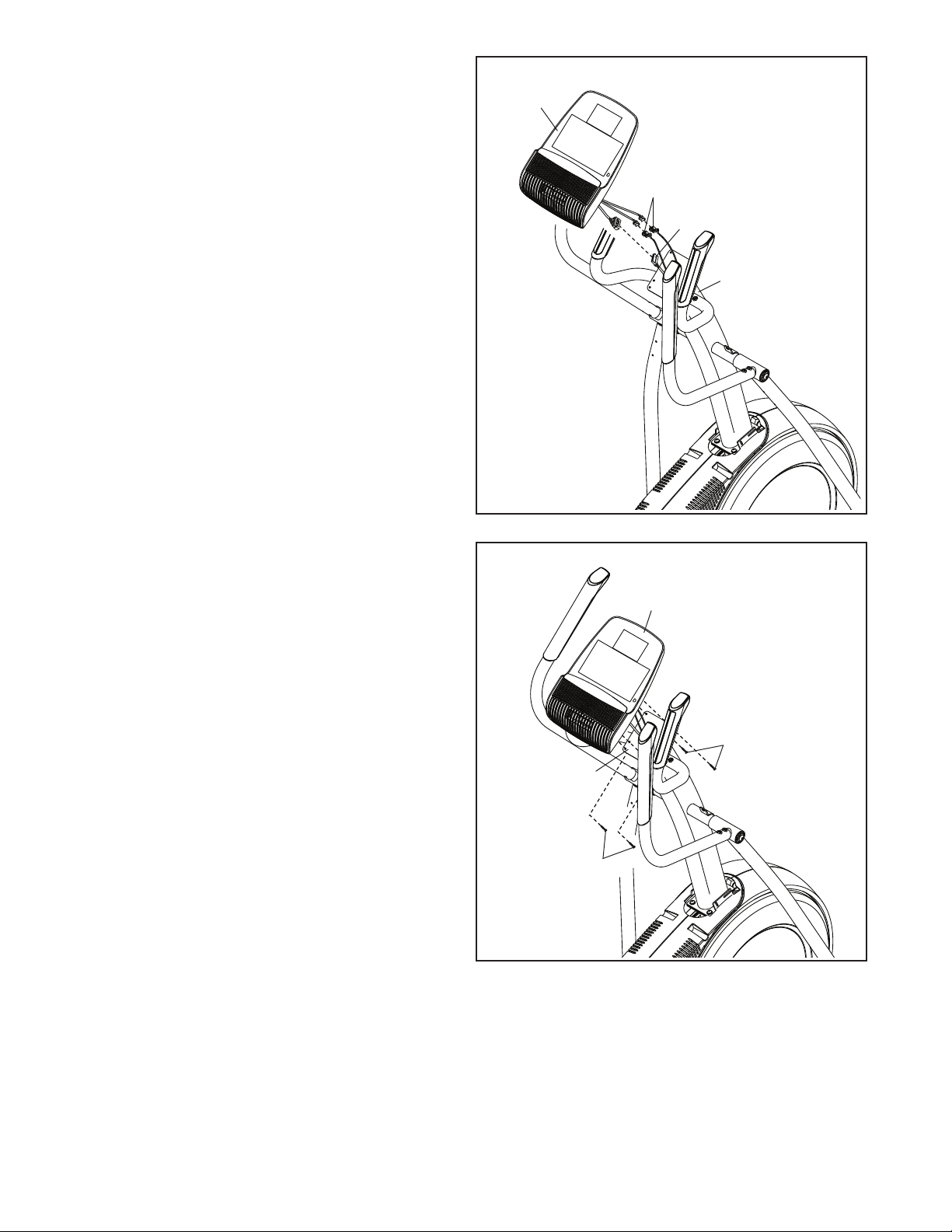

9. Untie and discard the wire tie on the Upper
Wire (110).
WhileasecondpersonholdstheConsole(7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (110) and to the
Pulse Sensor Wires (63).
InserttheexcesswireintotheUpright(4)orinto
the Console (7).
10
Avoid pinching
the wires
7
10. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (101); start all of the Screws,
and then tighten them.
101
101
4

13
11
11. Orient the Right Pedal Arm (58) as shown.
ApplygreasetotheaxleontheRightPedal
Arm (58).
AttachtheRightPedalArm(58)totheRight
Roller Arm (59) with an M8 x 14mm Shoulder
Screw (120), a Small Axle Cover (55), and an
M8 Washer (97).
Repeat this step for the Left Pedal Arm (44).
Grease
55
58
59
44
97
82
82
97
97
77
60
46
64
12. Apply a small amount of grease to one of the
Pedal Arm Axles (64).
Next,slideanM8Washer(97)andanAxle
Spacer (77) onto an M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64).
Whileasecondpersonholdsthefrontendofthe
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
SlideanM8Washer(97)andanAxleSpacer
(77) onto another M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64). Then, tighten both Screws at the
same time.
Repeat this step on the other side of the
elliptical.
Grease
12
58
120
77

14
13
13. Orient the Rear Upright Cover (81) as shown.
AttachtheRearUprightCover(81)totheUpright
(4) with four M4 x 16mm Screws (101); start all
of the Screws, and then tighten them.
OrienttheFrontUprightCover(117)asshown.
AttachtheFrontUprightCover(117)aroundthe
Upright (4) by pressing the hooks on the Rear
Upright Cover (81) onto the tabs on the Front
Upright Cover.
101
81
117
4
14
14. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
IdentifytheRightUpperBodyArmRearCover
(66) and orient it as shown.
AttachtheRightUpperBodyArmRearCover
(66) around the Right Upper Body Leg (60) by
pressing the hooks on the Right Upper Body Arm
Rear Cover onto the tabs on the Right Upper
Body Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66

15
15. Identify the Right Upper Body Leg Inner Cover
(83) and orient it as shown.
AttachtheRightUpperBodyLegInner
Cover (83) to the Right Upper Body Leg (60)
with an M4 x 16mm Screw (101) and an M5
Washer (32).
IdentifytheRightUpperBodyLegOuterCover
(69) and orient it as shown.
AttachtheRightUpperBodyLegOuterCover
(69) around the Right Upper Body Leg (60) by
pressing the hooks on the Right Upper Body
Leg Inner Cover (83) onto the tabs on the Right
Upper Leg Outer Cover.
Repeat this step on the other side of the
elliptical.
60
83 32 101 69
15
16
75
118
73, 74

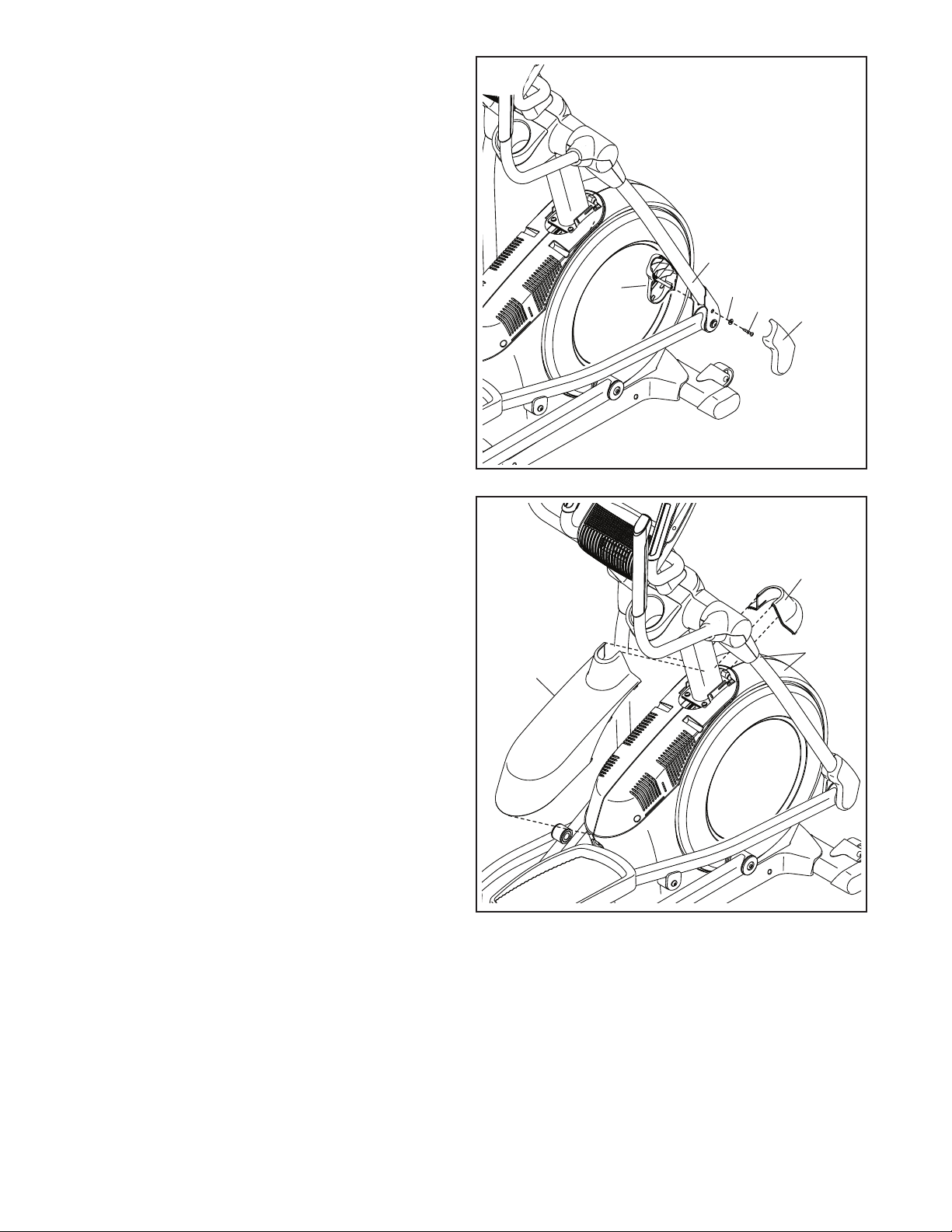

16. Orient the Shield Cover Cap (118) and the Shield
Cover (75) as shown.
First,pressthetabsontheShieldCoverCap
(118) into the Left and Right Shields (73, 74).
Then,pressthetabsontheShieldCover(75)
into the Left and Right Shields (73, 74).

16
17
17. Orient the Rear Console Cover (80) as shown.
AttachtheRearConsoleCover(80)tothe
Upright (4) with two M4 x 16mm Screws (101).
OrienttheFrontConsoleCover(79)asshown.
AttachtheFrontConsoleCover(79)aroundthe
Upright (4) by pressing the hooks on the Rear
Console Cover (80) onto the tabs on the Front
Console Cover.
79
4
80
101
121
122
18
18. IMPORTANT: If you purchased the optional
iFit module, insert the iFit module into the
iFit port on the Console (7) before you attach
the Tablet Holder (121). After the elliptical is
assembled, follow the instructions included
with the iFit module.
AttachtheTabletHolder(121)totheConsole(7)
with four #8 x 12mm Screws (122); start all of
the Screws, and then tighten them.
7iFit Port

17
119
19
19. Plug the Power Adapter (119) into the receptacle
on the frame of the elliptical.
Note: To plug the Power Adapter (119) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 18.
20. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat beneath the elliptical to protect the floor.

18
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
into the receptacle on
the front of the ellipti-
cal. Then, plug the
power adapter into an
appropriate outlet that
is properly installed
in accordance with
all local codes and
ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the handle until the elliptical will roll on the wheels.
Carefully move the elliptical to the desired location, and
then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both
of the leveling feet
beneath the rear of
the frame until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder was designed for
use with most full-size tablets. Do not place any
other electronic device or object into the tablet
holder.
To insert a tablet into
the tablet holder, set
the bottom edge of the
tablet in the tray. Make
sure that the tablet is
firmly secured in the
tablet holder. Reverse
these actions to
remove the tablet from
the tablet holder.
HOW TO USE THE ELLIPTICAL
Power Adapter
Pull on the
upright
Place
your foot
here
Lift
here
Leveling
Feet

19

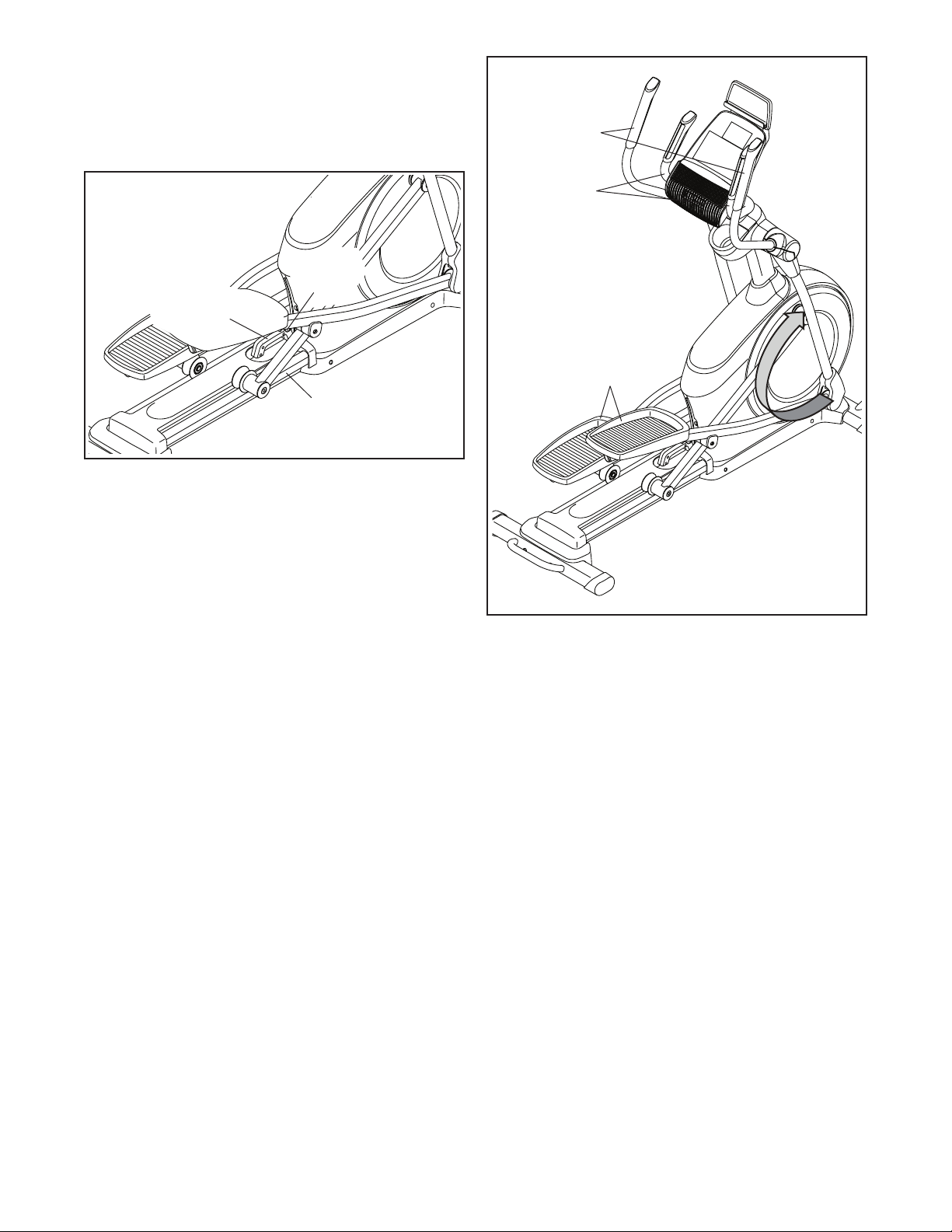

HOW TO CHANGE THE INCLINE OF THE RAMP
To va r y the m o t ion o f t he pe d als , y ou ca n c h ang e t he
incline of the ramp. To raise the ramp, simply pull the
ramp handle upward to the desired incline level.
To lo w er th e r a mp, p r ess t h e lat c h but t o n, pu l l the r a mp
handle, and lower the ramp to the desired incline level.
Then, release the latch button and engage the latch
pin into one of the adjustment holes in the frame. Make
sure that the latch pin is firmly engaged in one of
the adjustment holes in the frame.
HOW TO EXERCISE ON THE ELLIPTICAL
To mo u nt th e e l lip t ica l , hol d t he ha n d leb a rs or t h e
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
To di s mou n t t he el l ipt i cal , w ait u n t il th e p eda l s com e t o
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Handlebars
Upper
Body Arms
Pedals
Ramp
Ramp
Handle
Latch
Button

20
CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
