ICON Health & Fitness PRO-FORM 785 F User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Serial Number Decal
(on underside of frame)
Model No. PFEL57908.2
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
USERʼS MANUAL
www.proform.com

TABLE OF CONTENTS
WARNINGDECA P ACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMB Y ...............................................................................5
HOWTOUSETHEE IPTICA EXERCISER ..................................................12
MAINTENANCEANDTROUB ESHOOTING ...................................................20
EXERCISEGUIDE INES ...................................................................21
PART IST ..............................................................................23
EXP ODEDDRAWING ....................................................................25
ORDERINGREP ACEMENTPARTS ..................................................BackCover
IMITEDWARRANTY ..............................................................BackCover
2

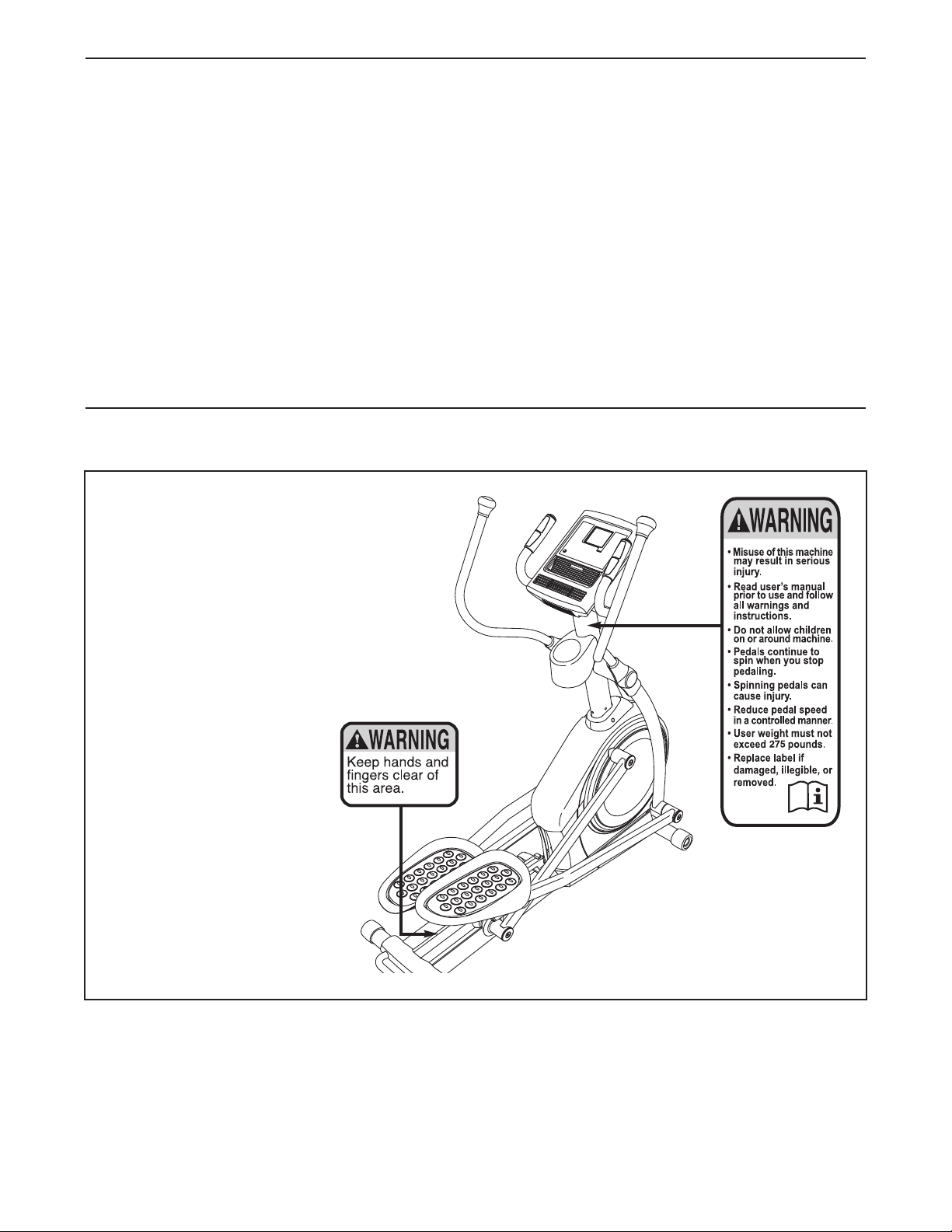

WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request a
free replacement decal. Apply the
decal in the location shown. Note:
The decal(s) may not be shown at
actual size.
PROFORM is a registered trademark of ICON IP, Inc.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. eep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (1 m) of
clearance in the front and rear of your ellipti-
cal exerciser and 2 ft. (0.6 m) on each side.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. eep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 275 lbs.
(125 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the han-
dlebars when mounting, dismounting, or
using your elliptical exerciser.
10. eep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
13. Use your elliptical exerciser only as
described in this manual.

4
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM®785 F
elliptical exerciser. The 785 F elliptical exerciser pro-
vides a wide array of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
Wheel
Pedal
Ramp Handle
Roller
Console
Water Bottle Holder*
*Water bottle is not included
Ramp
Handle

5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART IST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 x 38mm
Bolt (96)–8
M8 Locknut
(102)–8
19mm Wave
Washer (66)–4
16mm Wave
Washer (54)–2
M8 x 25mm
Washer (98)–6
M4 x 16mm
Screw (104)–10
M8 x 19mm Patch
Screw (82)–15
M8 Split
Washer (83)–9
M10 Locknut
(92)–2
M10 Washer
(95)–2
M8 x 80mm Patch
Screw (84)–2
M10 x 60mm
Bolt (100)–2
M10 x 45mm Patch
Screw (99)–4

6
1.
Attach the Front Stabilizer (6) to the Frame (1)
with two M8 x 80mm Patch Screws (84).
2. Orient the Ramp (3) as shown. Then, insert the
Ramp into the Frame (1).
Attach the Ramp (3) with five M8 x 19mm Patch
Screws (82) and five M8 Split Washers (83).
1
2
84
1
1
3
6
83
83
83
82
82
82
3. While a second person holds the Upright (4)
near the Frame (1), connect the Upper Wire
Harness (110) to the ower Wire Harness (111).
Tip: Avoid pinching the wires. Slide the
Upright (4) onto the Frame (1). Attach the
Upright with four M8 x 19mm Patch Screws (82)
and four M8 Split Washers (83). Do not tighten
the Patch Screws yet.
3
Avoid pinching
the wires
1
82
82
82
83
83
4
110
111
To make assembly easier, read the
information on page 5 before you begin.

7
4
4. Apply a small amount of the included grease to
the right Crank Arm (20) and to a 19mm Wave
Washer (66).
Orient a Crank Arm Spacer (55) so that the flat
end is facing away from the elliptical exerciser.
Slide the Crank Arm Spacer and the 19mm
Wave Washer (66) onto the right Crank Arm
(20).
Identify the Right Roller Arm (59), which is
marked with a “Right” sticker, and orient it as
shown.
Slide the Right Roller Arm (59) onto the right
Crank Arm (20). Attach the Right Roller Arm
with an M8 x 19mm Patch Screw (82), an Axle
Cover (53), and an M8 x 25mm Washer (98); to
avoid breaking the Axle Cover, do not over-
tighten the Patch Screw.
Repeat this step for the Left Roller Arm (not
shown).
Grease
20
55
66
98 53
82
59
5. Identify the Right Pedal Bracket (64), which is
marked with a “Right” sticker.
Apply a small amount of grease to the inside of
the tube on the Right Roller Arm (59) and to the
barrel of an M10 x 60mm Bolt (100).
Attach the Right Pedal Bracket (64) to the Right
Roller Arm (59) with the M10 x 60mm Bolt
(100), an M10 Washer (95), and an M10
ocknut (92). Do not overtighten the Locknut;
the Right Pedal Bracket must pivot freely.
Repeat this step for the Left Pedal Bracket
(48).
5
59
Grease
48
95
92
64
100
Flat
End

8
6
6. Identify the Right Handlebar (61) and the Right
Handlebar eg (60), which are marked with
“Right” stickers, and orient them as shown.
Make sure that the hexagonal holes are in
the indicated location.
Slide the Right Handlebar (61) onto the Right
Handlebar eg (60).
Attach the Right Handlebar (61) with two M8 x
38mm Bolts (96) and two M8 ocknuts (102).
Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Handlebar (not
shown) and the Left Handlebar Leg (not
shown).
61
60
102
96
Hexagonal
Holes
7
7. Apply a small amount of grease to the Pivot
Axle (35) and to a 16mm Wave Washer (54).
Insert the Pivot Axle (35) through the Upright (4)
and then center it.
Slide the 16mm Wave Washer (54), an Inner
Handlebar Cover (68), and the Right Handlebar
eg (60) onto the right side of the Pivot Axle
(35).
Repeat this step for the Left Handlebar Leg
(not shown).
Tighten an M8 x 19mm Patch Screw (82) and
an M8 x 25mm Washer (98) into each end of
the Pivot Axle (35).
60
54 68
35
4
Grease
98
82

9
8
8. Attach an Outer Handlebar Cover (67) and the
Inner Handlebar Cover (68) around the Right
Handlebar eg (60) with two M4 x 16mm
Screws (104).
Repeat this step for the other side of the
elliptical exerciser.
67
60
104
104
68
9. Apply a small amount of grease to the axle on
the Right Handlebar eg (60) and to a 19mm
Wave Washer (66).
Identify the Right Pedal Arm (58), which is
marked with a “Right” sticker, and orient it as
shown.
Slide the 19mm Wave Washer (66) and the
Right Pedal Arm (58) onto the Right Handlebar
eg (60).
Attach the Right Pedal Arm (58) with an M8 x
19mm Patch Screw (82), an Axle Cover (53),
and an M8 x 25mm Washer (98); to avoid
breaking the Axle Cover, do not overtighten
the Patch Screw.
Repeat this step for the Left Pedal Arm (not
shown).
9
58
60
66
98 53
82
Grease

10
10. Attach the Right Pedal Arm (58) to the Right
Pedal Bracket (64) with two M10 x 45mm Patch
Screws (99).
Repeat this step for the Left Pedal Arm (44).
10
44
64
99
58
11. Identify the Right Pulse Bar (9), which is
marked with a “Right” sticker.
See the inset drawing. ocate the wire tie in
the Upright (4). Tie the lower end of the wire tie
to the Pulse Wire (63) in the Right Pulse Bar
(9). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie.
Slide the Right Pulse Bar (9) onto the right side
of the Upright (4). Make sure that the hexago-
nal holes are in the indicated location.
Tip: Avoid pinching the wires. Attach the
Right Pulse Bar (9) with two M8 x 38mm Bolts
(96) and two M8 ocknuts (102). Make sure
that the Locknuts are in the hexagonal
holes.
Repeat this step for the Left Pulse Bar (8).
11
Wire Tie
Wire Tie
9
96
63
63
63
110
102
8
4
Hexagonal
Holes
Avoid pinching
the wires

11
12. Attach the Water Bottle Holder (37) to the
Upright (4) with two M4 x 16mm Screws (104).
37
4
104
104
12
13
13. While a second person holds the Console (7)
near the Upright (4), connect the console wire
to the Upper Wire Harness (110). Then, connect
the console pulse wires to the Pulse Wires (63).
Insert the excess wire downward into the
Upright (4).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (104).
See step 3. Tighten the M8 x 19mm Patch
Screws (82).
7
63
110
104
4
Console Wire
Pulse
Wires
Avoid pinching
the wires
14. To connect the AC adapter (not shown), see HOW TO CONNECT THE AC ADAPTER on page 12.
Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: After assem-
bly is completed, some extra parts may be left over. Place a mat beneath the elliptical exerciser to protect the
floor.

12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO CONNECT THE AC ADAPTER
IMPORTANT: If the elliptical exerciser has been
exposed to cold temperatures, allow it to warm to
room temperature before you plug in the AC
adapter. If you do not do this, you may damage
the console displays or other electronic compo-
nents.
Plug one end of the
included AC adapter
into the jack on the
back of the console.
Plug the other end of
the AC adapter into
an appropriate outlet
that is properly
installed in accor-
dance with all local
codes and ordi-
nances.
Note: The console can also be operated with four 1.5V
D batteries (not included); alkaline batteries are rec-
ommended. ocate the battery cover on the back of
the console. Remove the battery cover, insert the bat-
teries into the battery compartment, and then reattach
the battery cover. Make sure to orient the batteries
as shown by the diagrams inside the battery com-
partment.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical
exerciser, moving it requires two persons. Stand in
front of the elliptical exerciser, hold the upright, and
place one foot against one of the front wheels. Pull on
the upright and have a second person lift the handle
on the ramp until the elliptical exerciser will roll on the
front wheels. Carefully move the elliptical exerciser to
the desired location, and then lower it to the floor.
Place
your foot
here
Pull on
the upright
ift here
AC
Adapter

13
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lower position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The crank arms can turn in either direction. It is
recommended that you turn the crank arms in the
direction shown by the arrow; however, for variety,
you can turn the crank arms in the opposite direc-
tion.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of the pedals, you can change the
incline of the ramp. To change the incline, press the
latch button, pull the ramp handle, and raise or lower
the ramp to the desired incline level. Then, release the
latch button and engage the latch pin into one of the
adjustment holes in the frame. The white line on the
latch button must be visible or the latch pin is not fully
engaged. Make sure that the latch pin is firmly
engaged in one of the adjustment holes in the
frame.
Pedals
Crank
Arm
Handlebars
Ramp
Handle
Ramp
atch
Button

14
FEATURES OF THE CONSOLE
The revolutionary console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. While you exercise, the
console will display continuous exercise feedback. You
can also measure your heart rate using the handgrip
pulse sensor.
In addition, the console offers twelve trainer workouts
and six weight loss workouts. Each workout automati-
cally changes the resistance of the pedals as it guides
you through an effective workout.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 15. To use a
trainer workout, see page 17. To use a weight loss
workout, see page 18. To randomly select a work-
out, see page 18. To use the sound system, see
page 19. To change console settings, see page 19.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic.
CONSOLE DIAGRAM

15
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.
2. Select the manual mode.
Each time you turn
on the console, the
manual mode will
be selected. If you
have selected a
workout, reselect
the manual mode
by pressing any of
the workout buttons
repeatedly until
zeros appear in the display.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resis-
tance of the pedals
by pressing the
Resistance
increase and
decrease buttons. Note: After you press the but-
tons, it will take a moment for the pedals to reach
the selected resistance level.
4. Follow your progress with the display.
The lower left dis-
play—As you
exercise, the lower
left display can
show the elapsed
time and the dis-
tance (in miles or kilometers) that you have
pedaled. Note: When a workout is selected, the
display will show the time remaining in the workout
instead of the elapsed time.
The lower right
display—The lower
right display can
show the your ped-
aling speed (in
miles or kilometers
per hour) and the approximate number of calories
that you have burned. The display also shows
your heart rate when you use the handgrip pulse
sensor (see step 5 on page 16).
The upper
display—The upper
display can show
the elapsed time,
the distance that
you have pedaled,
your pedaling speed, and the approximate number
of calories you have burned. Press the Display but-
ton repeatedly until the upper display shows the
information that you are most interested in viewing.
Note: While information is shown in the upper dis-
play, the same information will not be shown in the
lower left or lower right display.
The lower
display—The lower
display will show a
track representing
1/4 mile (402
meters). As you
exercise, indicators will appear in succession
around the track until the entire track appears. The
track will then disappear and the indicators will
again begin to appear in succession
To change the volume level of the console, press
the Volume increase and decrease buttons.
Note: The console can show pedaling speed and
distance in either miles or kilometers. To view or
change the unit of measurement, see HOW TO
CHANGE CONSO E SETTINGS on page 19.

16

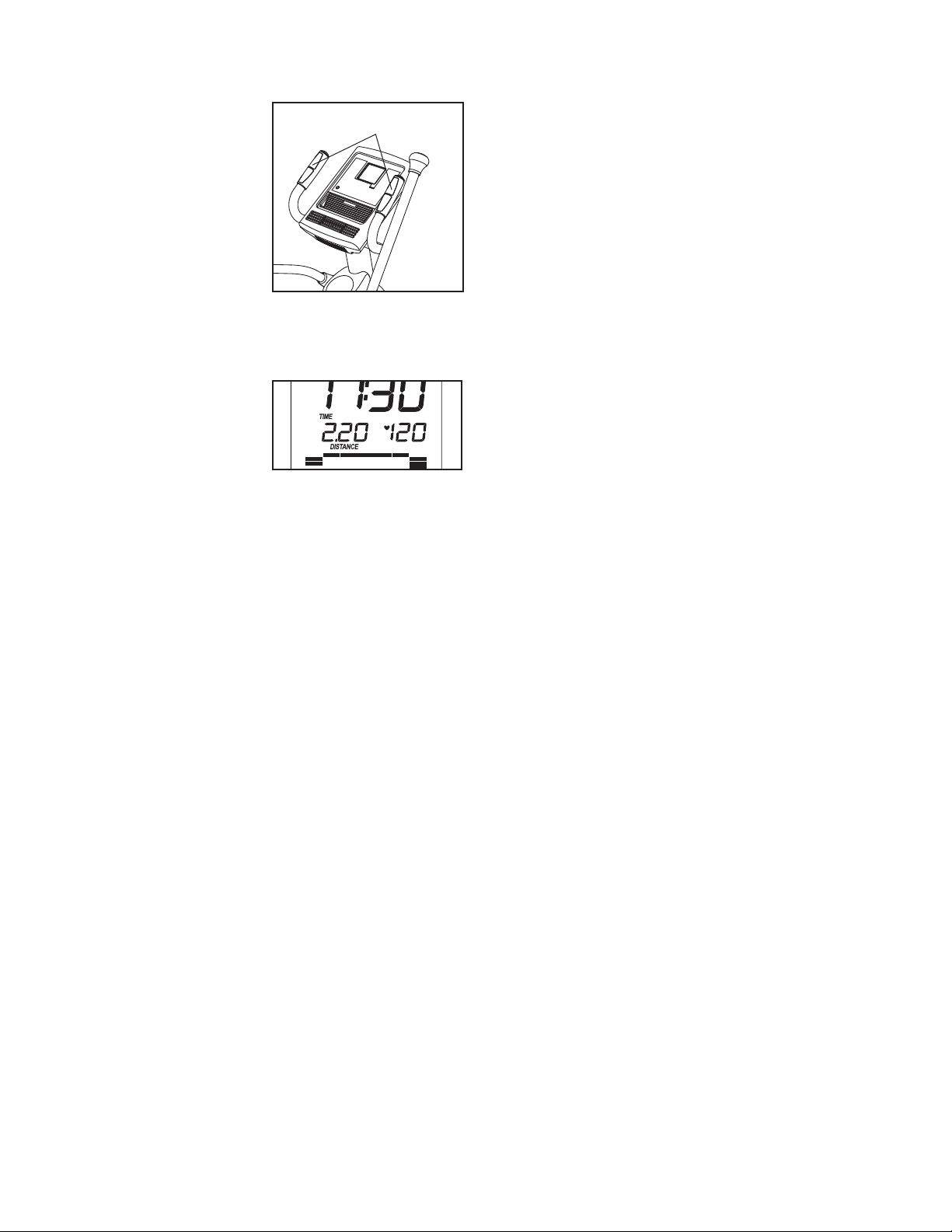

5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal con-
tacts on the
handgrip pulse
sensor, remove
the plastic. To
measure your
heart rate, hold the
handgrip pulse
sensor with your
palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is
detected, a flashing
heart symbol will
appear in the dis-
play, and then your
heart rate will
appear. For the most accurate heart rate reading,
hold the contacts for at least 15 seconds. Note: If
you continue to hold the handgrip pulse sensor,
the display will show your heart rate for up to 30
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
Press the Fan button repeatedly to turn on the fan
or to turn off the fan. Note: If the pedals do not
move for about thirty seconds, the fan will turn off
automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
Contacts

17
HOW TO USE A TRAINER WOR OUT
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.

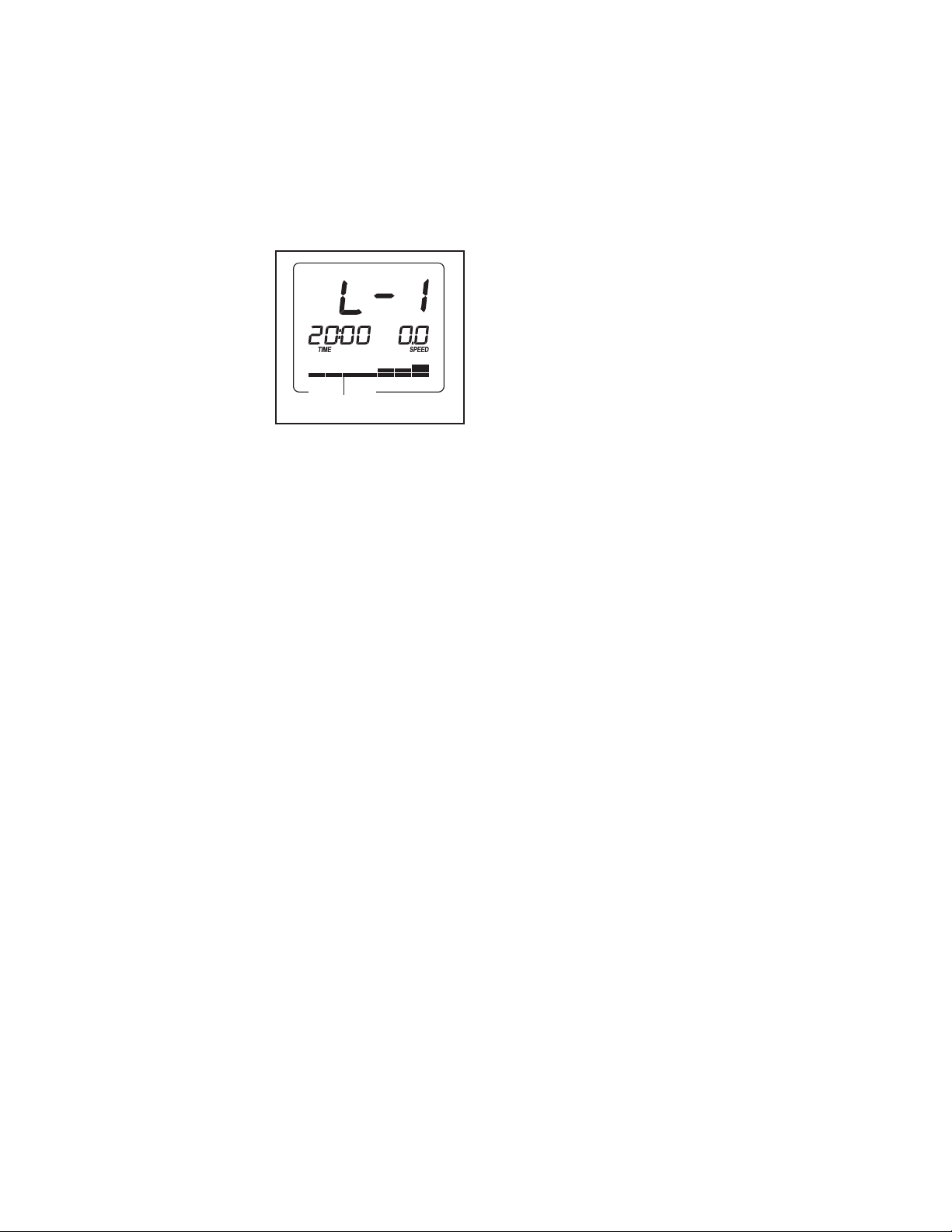

2. Select a trainer workout.
To select a trainer
workout, press the
Interval, Variable,
Plateau, Mountain,
Walk/Run, or
Terrain button
repeatedly until the
name of the
desired workout
appears in the dis-
play. The workout
time and a profile of the resistance levels for the
workout will also appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into 20, 30 or 45 one-
minute segments. One resistance level is
programmed for each segment. Note: The same
resistance level may be programmed for consecu-
tive segments.
The resistance level for the first segment will
appear in the display for a few seconds. During
the workout, the workout profile will show your
progress (see the drawing above). The flashing
segment of the profile represents the current seg-
ment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
stop counting. To restart the workout, simply
resume pedaling.
4. Follow your progress with the display.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
Profile

18
HOW TO USE A WEIGHT LOSS WOR OUT
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.
2. Select a weight loss workout.
To select a weight
loss workout, press
the Wt. oss button
until the name of
the desired workout
appears in the dis-
play. The workout
time and a profile of
the resistance lev-
els for the workout
will also appear in
the display.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute seg-
ments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
The resistance level for the first segment will
appear in the display for a few seconds. During
the workout, the workout profile will show your
progress (see the drawing above). The flashing
segment of the profile represents the current seg-
ment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
stop counting. To restart the workout, simply
resume pedaling.
4. Follow your progress with the display.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16
HOW TO RANDOMLY SELECT A WOR OUT
To randomly select one of the trainer or weight loss
workouts for your exercise session, press the Random
button once. The name of a workout, the workout
time, and a profile of the resistance levels for the
workout will appear in the display.
You can then start the workout if desired or you can
press the Random button a second time to randomly
select another trainer or weight loss workout.
You can also press the Random button a third time to
return to the manual mode.
Profile

19
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the consoleʼs
sound system while you exercise, plug an audio cable
(not included) into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
HOW TO CHANGE CONSOLE SETTINGS
The console features a user mode that allows you to
select a unit of measurement and a backlight option
for the console and to view console usage information.
1. Select the user mode.
To select the user mode, press and hold down the
Display button for a few seconds until the user
mode information appears in the display.
2 Select a backlight option if desired.
The console has
three backlight
options. The ON
option keeps the
backlight on while
the console is on.
The AUTO option
keeps the backlight
on only while you
are pedaling. The
OFF option turns the backlight off.
The upper display will show the currently selected
backlight option. Press the Resistance increase
button repeatedly to select the desired backlight
option.
3. Select a unit of measurement if desired.
The console can show pedaling speed and dis-
tance in either miles or kilometers.
The lower right display will show the selected unit
of measurement. An E for English miles or an M
for metric kilometers will appear in the lower right
display. To change the unit of measurement, press
the Resistance decrease button repeatedly.
Note: When you replace the batteries, it may be
necessary to reselect the unit of measurement.
4. View console usage information if desired.
The lower left display will show the total number of
hours that the console has been used since the
elliptical exerciser was purchased.
5. Exit the user mode.
Press the Display button to save the console set-
tings and exit the user mode.

20
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip pulse sensor, or if the displayed
heart rate appears to be too high or too low, see step
5 on page 16.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while
you are pedaling, even
while the resistance is
adjusted to the highest
level, the drive belt may
need to be adjusted. To
adjust the drive belt, first
use a flat screwdriver to
rotate the right Disc (71)
counterclockwise. Then,
remove the right Disc from the right Disc Mount (72).
ocate and loosen the M10 x 22mm Bolt (89). Next,
tighten the M8 x 38mm Hex Screw (88) until the Drive
Belt (113) is tight. Then, retighten the M10 x 22mm
Bolt.
Reattach the right disc by rotating it clockwise into the
right disc mount.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first use a flat screwdriver to rotate the left disc
counterclockwise. Then, remove the left disc from the
left disc mount.
ocate the Reed Switch (38). oosen, but do not
remove, the indicated M4 x 16mm Reed Switch Screw
(69). Slide the Reed Switch slightly closer to or away
from a Magnet (43) on the Pulley (19). Then, retighten
the M4 x 16mm Screw. Turn the Pulley for a moment.
Repeat until the console displays correct feedback.
Reattach the left disc by rotating it clockwise into the
left disc mount.
HOW TO GREASE THE ROLLERS
See the EXP ODED DRAWING near the end of this
manual. If the Rollers (51) squeak when moving on
the Ramp (3), apply a small amount of white marine
grease equally to each Roller. Spread the grease
evenly around the Rollers. Pedal the elliptical exercis-
er until a thin film of grease is distributed along the
Ramp; wipe off any excess grease.
MAINTENANCE AND TROUBLESHOOTING
89
72
71
113
43
38
69
88
19
