USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL05621.2
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
REGISTER YOUR
PRODUCT
CUSTOMER CARE

2
TABLE OF CONTENTS

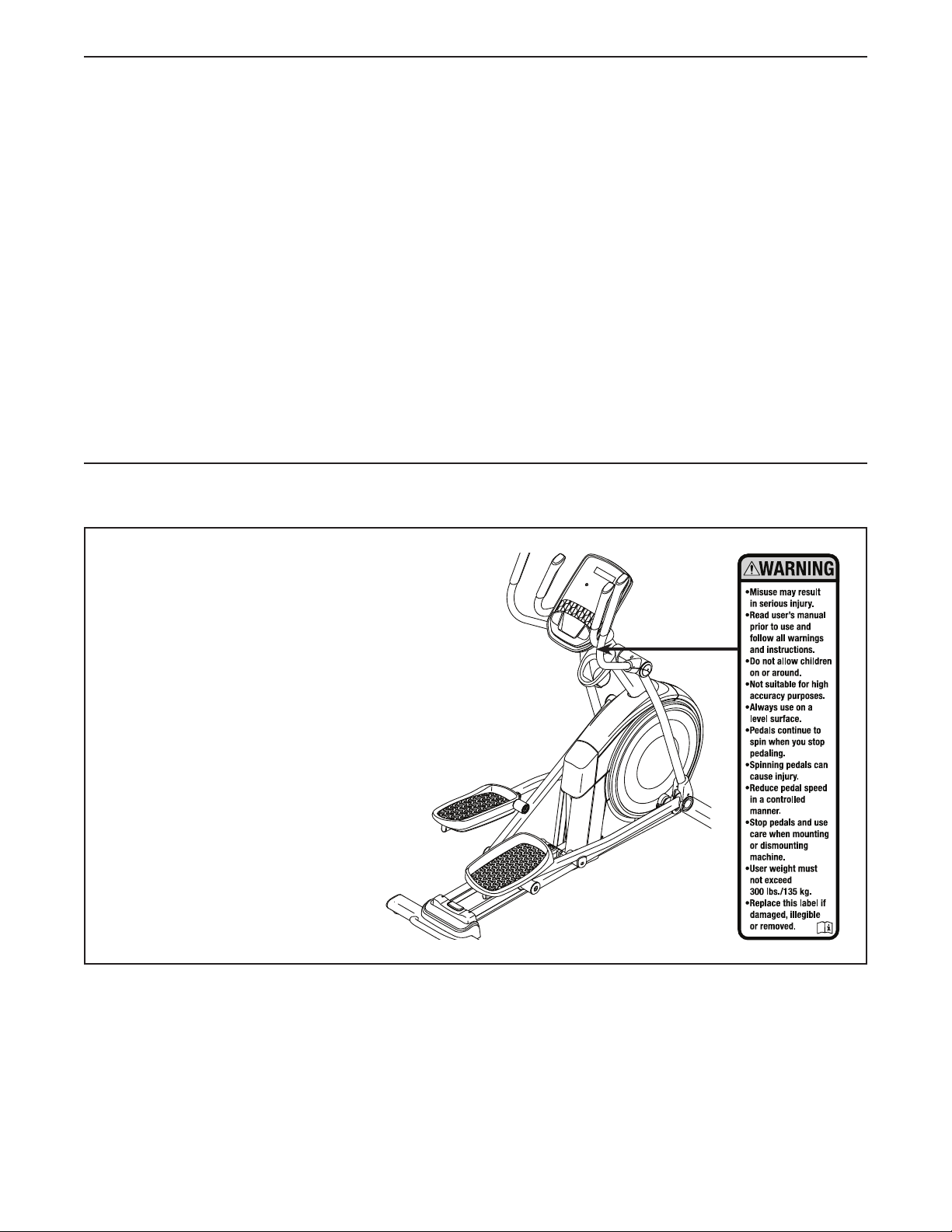

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of
Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC.
The Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
IMPORTANT PRECAUTIONS
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Keep children under age 16 and pets away
from the elliptical at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age
35 or persons with pre-existing health
problems.
4. Consult your health care provider before
beginning or continuing any exercise pro-
gram during pregnancy. Use the elliptical
only as authorized by your health care
provider.
5. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
6. Use the elliptical only as described in this
manual.
7. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
8. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
9. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
10. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
11. The elliptical should not be used by persons
weighing more than 300 lbs. (135 kg).
12. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
13. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical. Before mounting or dismounting,
bring the pedals to a stop with the pedal
on the mounting or dismounting side in its
lowest position.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the ellip-
tical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
all
STANDARD SERVICE PLANS

5
Thank you for selecting the revolutionary
NORDICTRACK®STUDIO ELLIPTICAL. The STUDIO
ELLIPTICAL provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

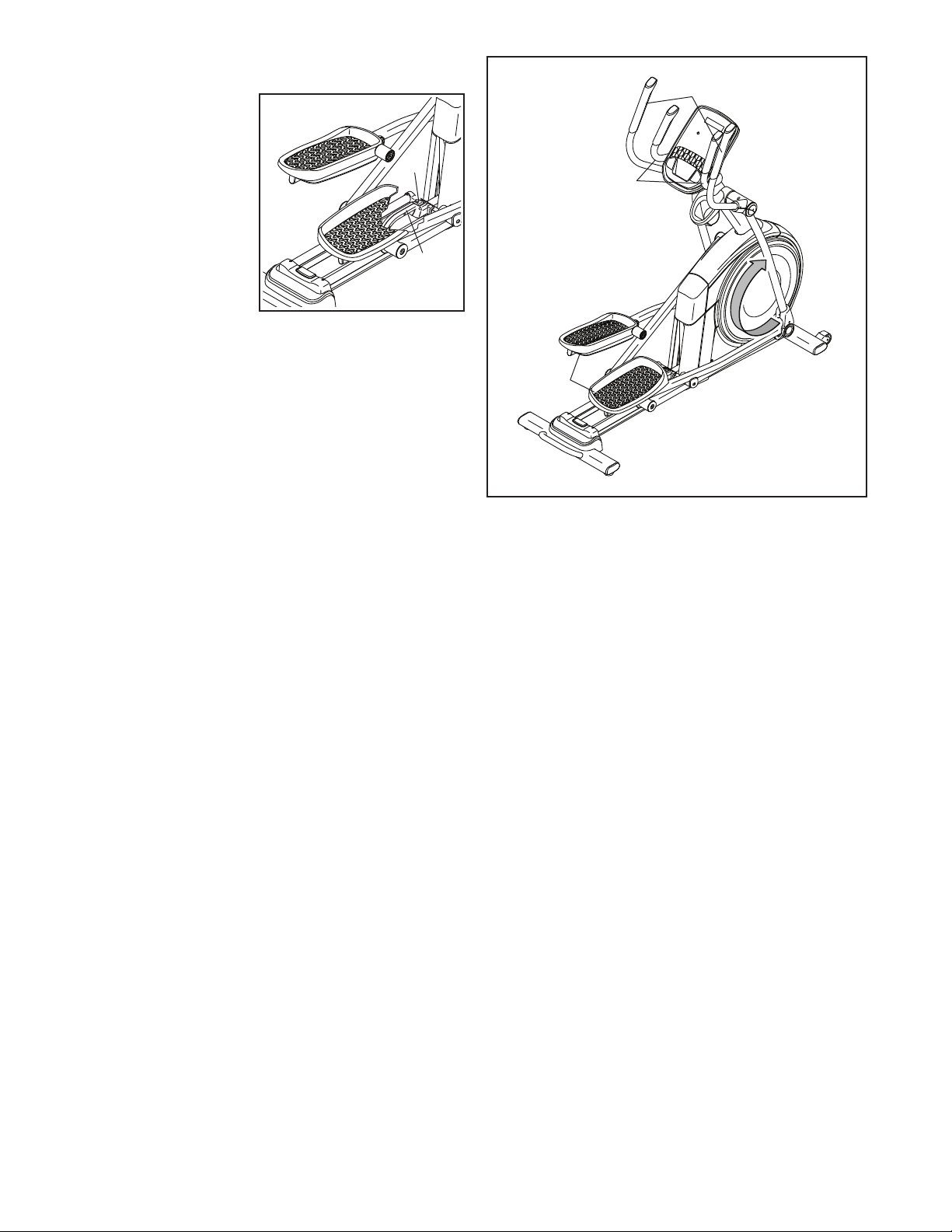

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Accessory Tray
Handlebar
Upper Body Arm
Pedal
Roller
Handle
Ramp
Ramp Handle
Console
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 1 in. (64 cm)

6

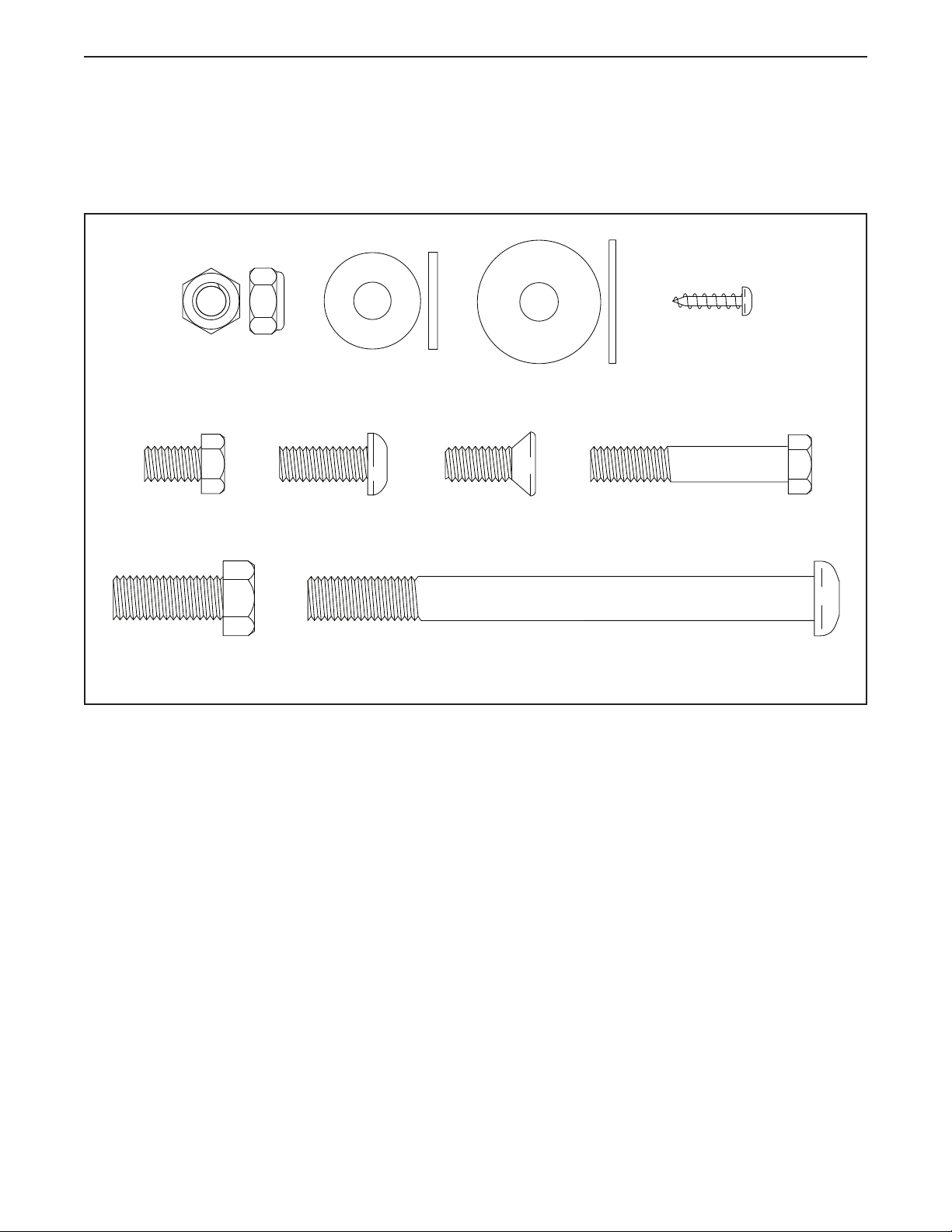

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 115mm Screw
(104)–4
M8 x 13mm
Screw (82)–4
M8 x 45mm Bolt
(96)–4
M8 x 20mm Flat
Head Screw (120)–2
M8 x 20mm
Screw (95)–2
M10 x 25mm
Screw (92)–2
M8 Locknut
(102)–4
M4 x 16mm
Screw (101)–22
M8 x 22mm
Washer (129)–2
M8 x 28mm
Washer (97)–2

7

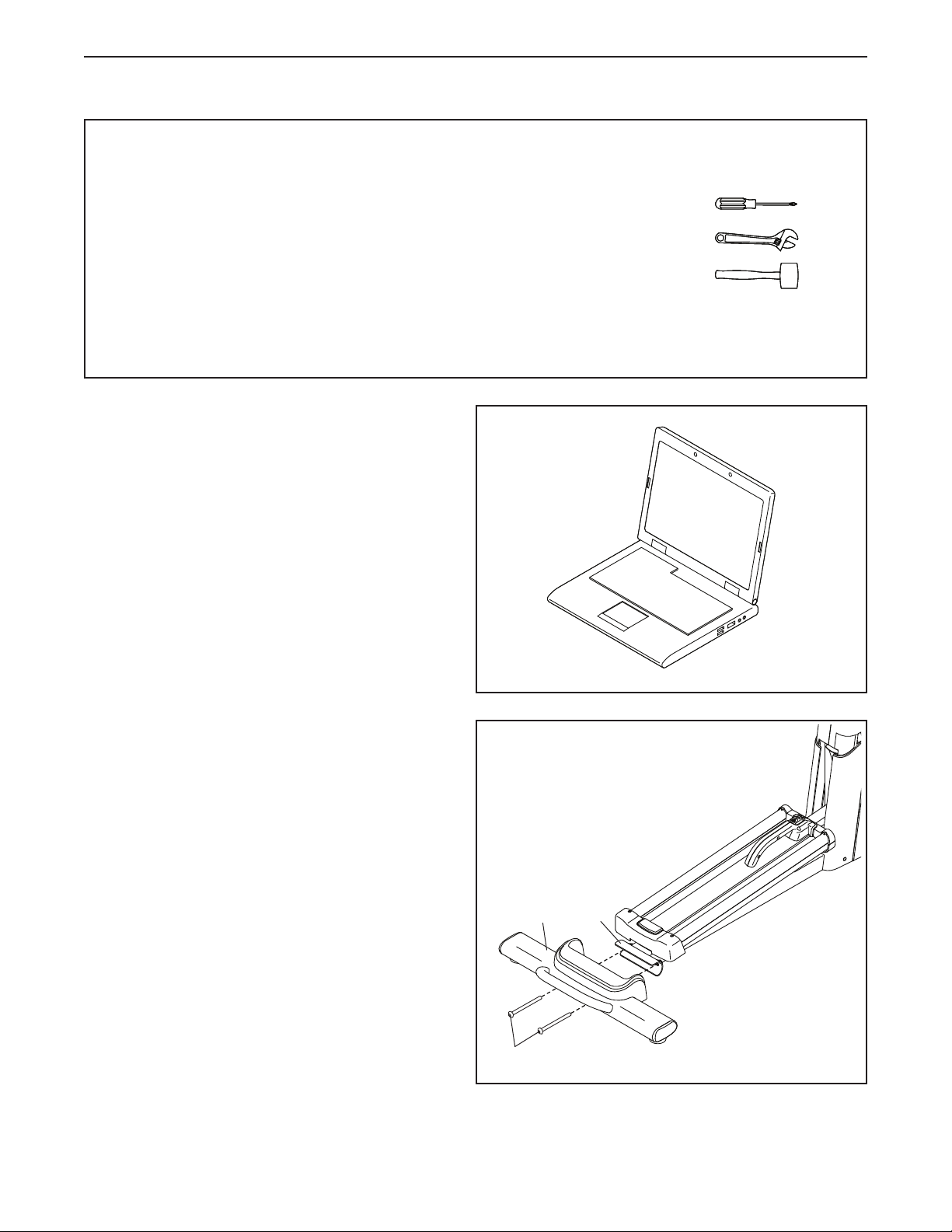

2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the rear of the Frame (1).
2
1
2
104
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
two adjustable wrenches
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

8
3
6
4

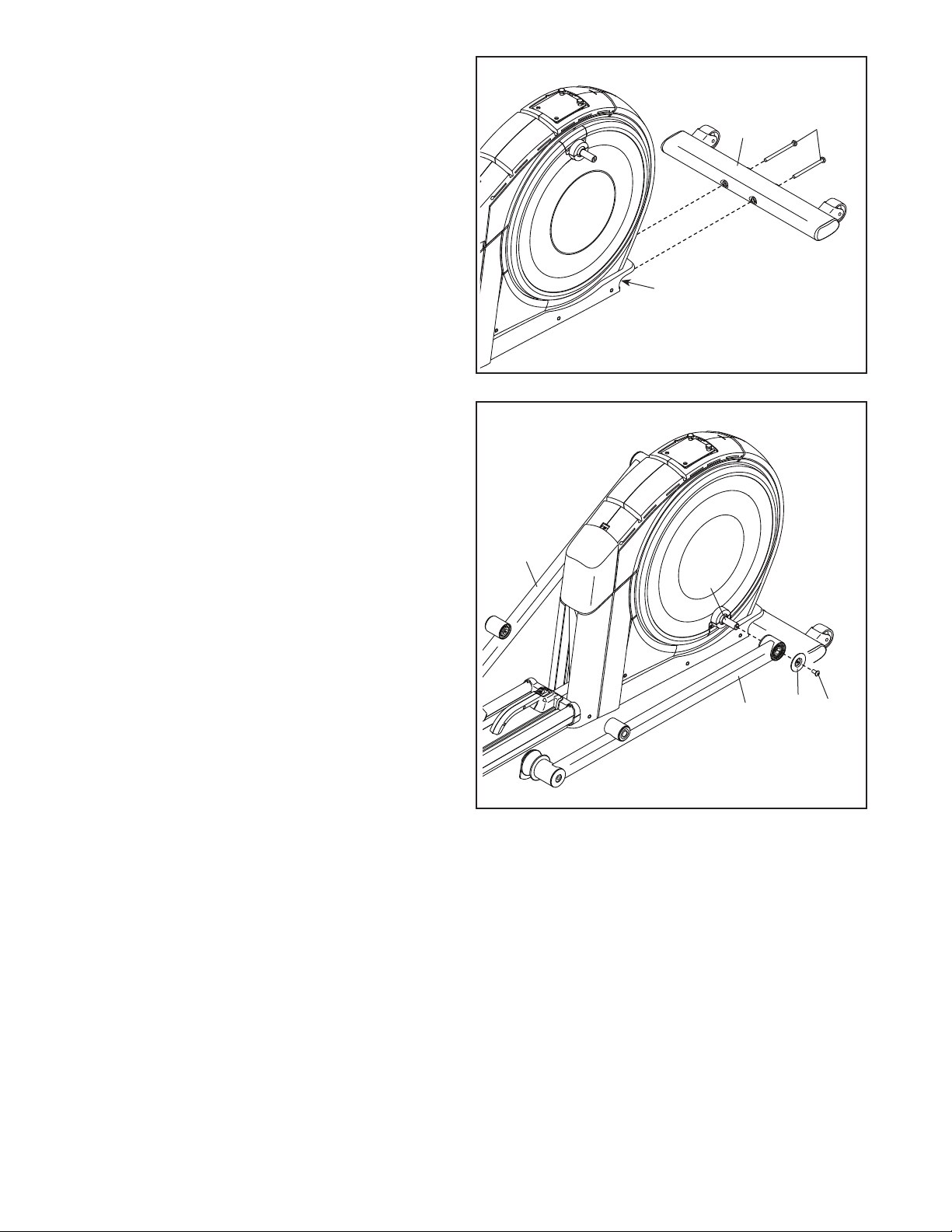

3. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the front of the Frame (1).
1
104
77
59
45
95
4. Identify the Right Roller Arm (59), orient it as
shown, and slide it onto the right Crank Arm (20).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (95) and a Crank Cover (77).
Repeat this step for the Left Roller Arm (45).
20

9
5

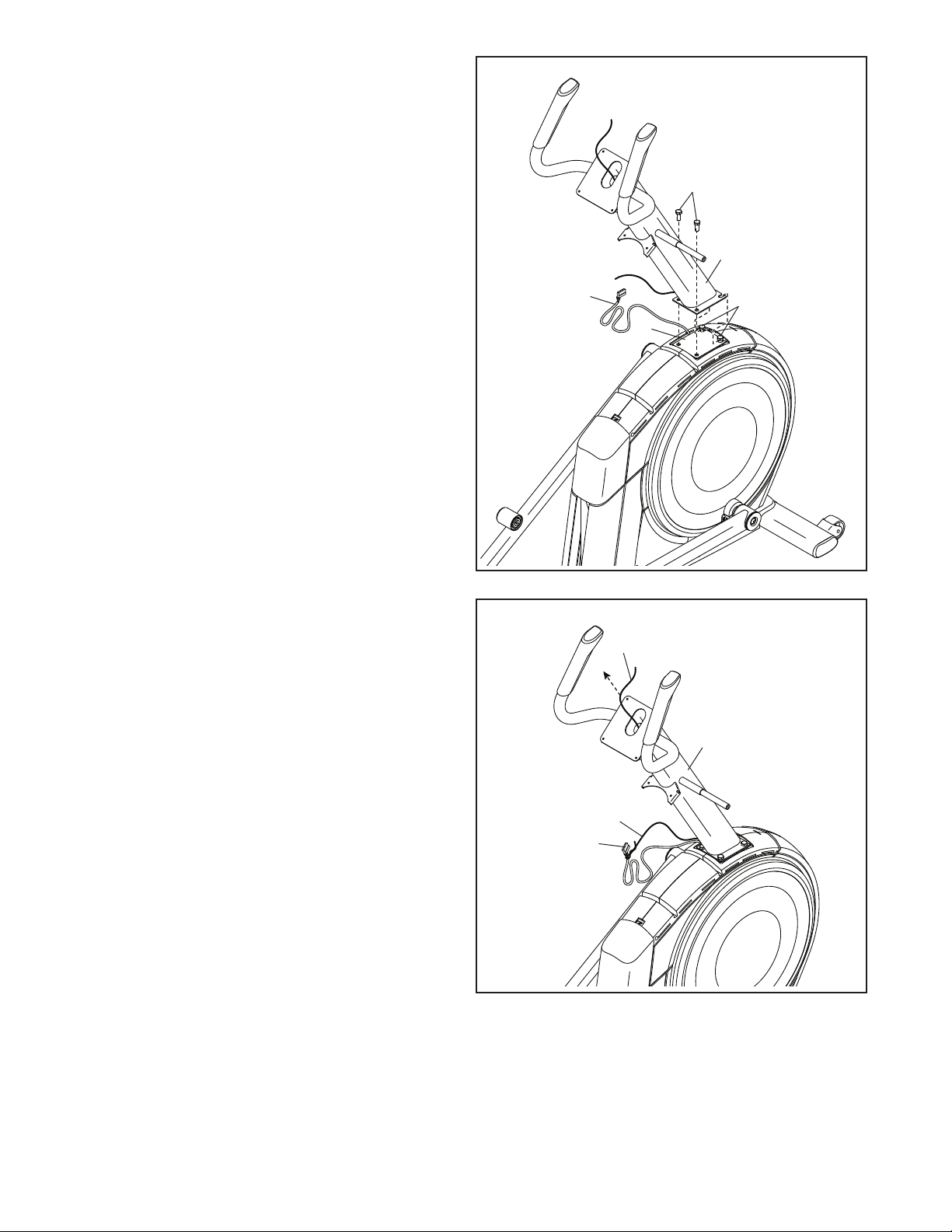

6. Locate the wire tie (A) in the lower end of the
Upright (4). Tie the wire tie to the Upper Wire
(110). Then, pull the upper end of the wire
tie until the Upper Wire is routed through the
Upright.
Tip: To prevent the Upper Wire (110) from
falling into the Upright (4), secure the Upper
Wire with the wire tie (A).4
110
A
6
5. Tip: Avoid pinching the Upper Wire (110).
Have a second person hold the Upright (4) on
the Frame (1).
Tip: Two M10 x 25mm Screws (92) are
preattached to the Frame (1).
Attach the Upright (4) to the Frame (1) with two
additional M10 x 25mm Screws (92); start both
Screws, and then tighten all four Screws.
Avoid pinching the
Upper Wire (110)
4
1
92
92
110
A

10
7
7. Apply grease to the axle on the right side of the
Upright (4).
Next, slide a Pivot Spacer (54) onto the right
side of the Upright (4).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Upright (4).
Attach the Right Upper Body Leg (60) with an
M8 x 13mm Screw (82) and an M8 x 28mm
Washer (97).
Repeat this step for the Left Upper Body
Leg (46).
46
4Grease
8
60
60
54
82
97
8. Orient the Right Pedal Arm (58) as shown, and
then apply grease to the axle.
Insert the Right Pedal Arm (58) into the Right
Upper Body Leg (60) and into the Right Roller
Arm (59).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Flat Head
Screw (120) and a Retainer (55); make sure
that the flat side (B) of the Retainer is facing
the Right Roller Arm.
Repeat this step for the Left Pedal Arm (44).
Grease
55
B
58
44
120
59

11
9
10
7

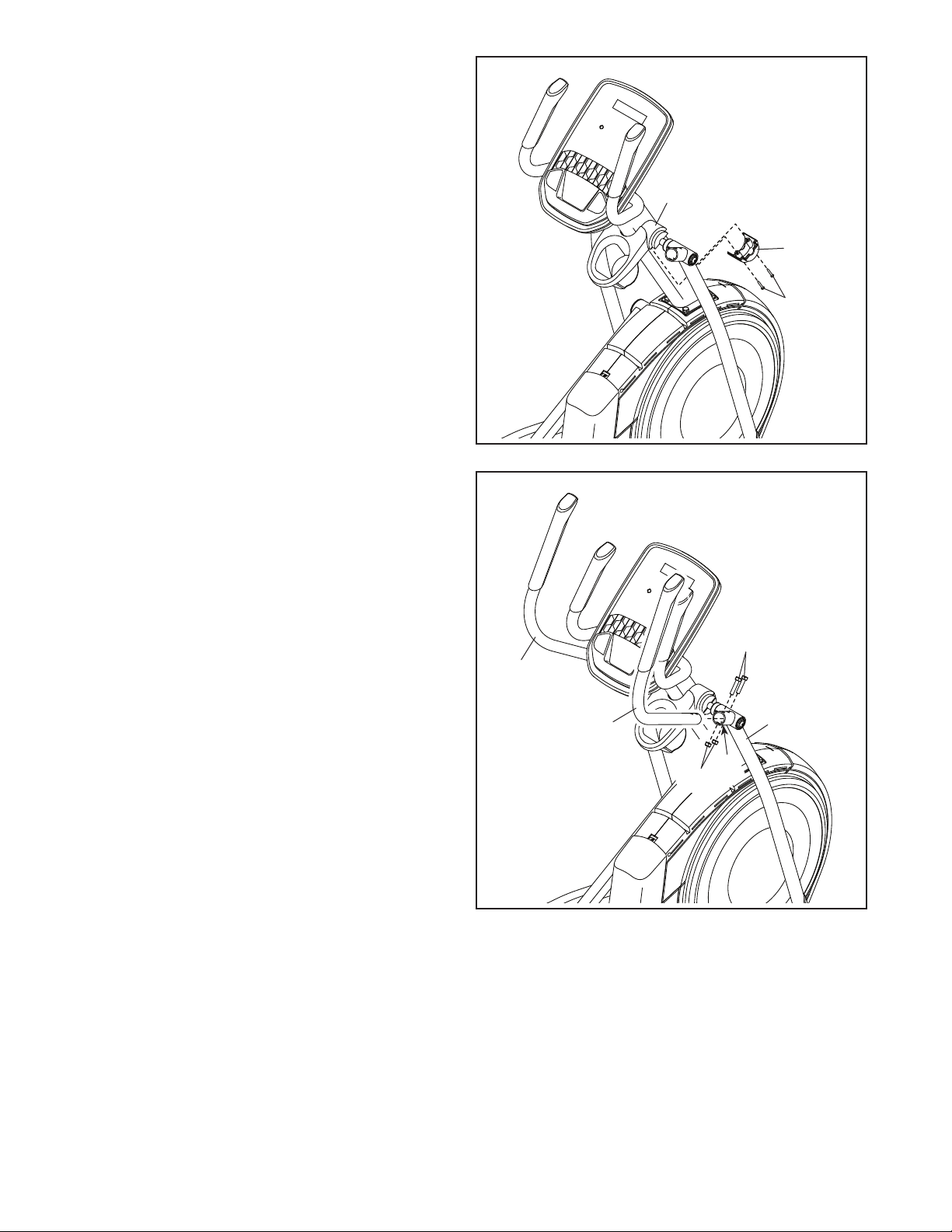

10. Untie and discard the wire tie on the Upper
Wire (110).
While a second person holds the Console (7)
near the Upright (4), plug the Upper Wire (110)
into the receptacle on the Console. Tip: The
wire connector should slide in easily and
snap into place with an audible click. If it
does not, turn the connector and try again.
Insert the excess wire into the Upright (4) or into
the Console (7).
Tip: Avoid pinching the Upper Wire (110).
Attach the Console (7) to the Upright (4) with
four M4 x 16mm Screws (101); start all of the
Screws, and then tighten them.
101
9. Apply grease to one of the Pedal Arm Axles (64).
Insert the Pedal Arm Axle (64) into the Right
Upper Body Leg (60) and the Right Pedal Arm
(58) from the direction shown.
Next, slide an M8 x 22mm Washer (129) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten both M8 x 13mm Screws (82) at
the same time.
Repeat this step on the other side of the
elliptical.
82
82
129 60
64 Grease
58
4
110
101
Avoid pinching the
Upper Wire (110)

12
11
12

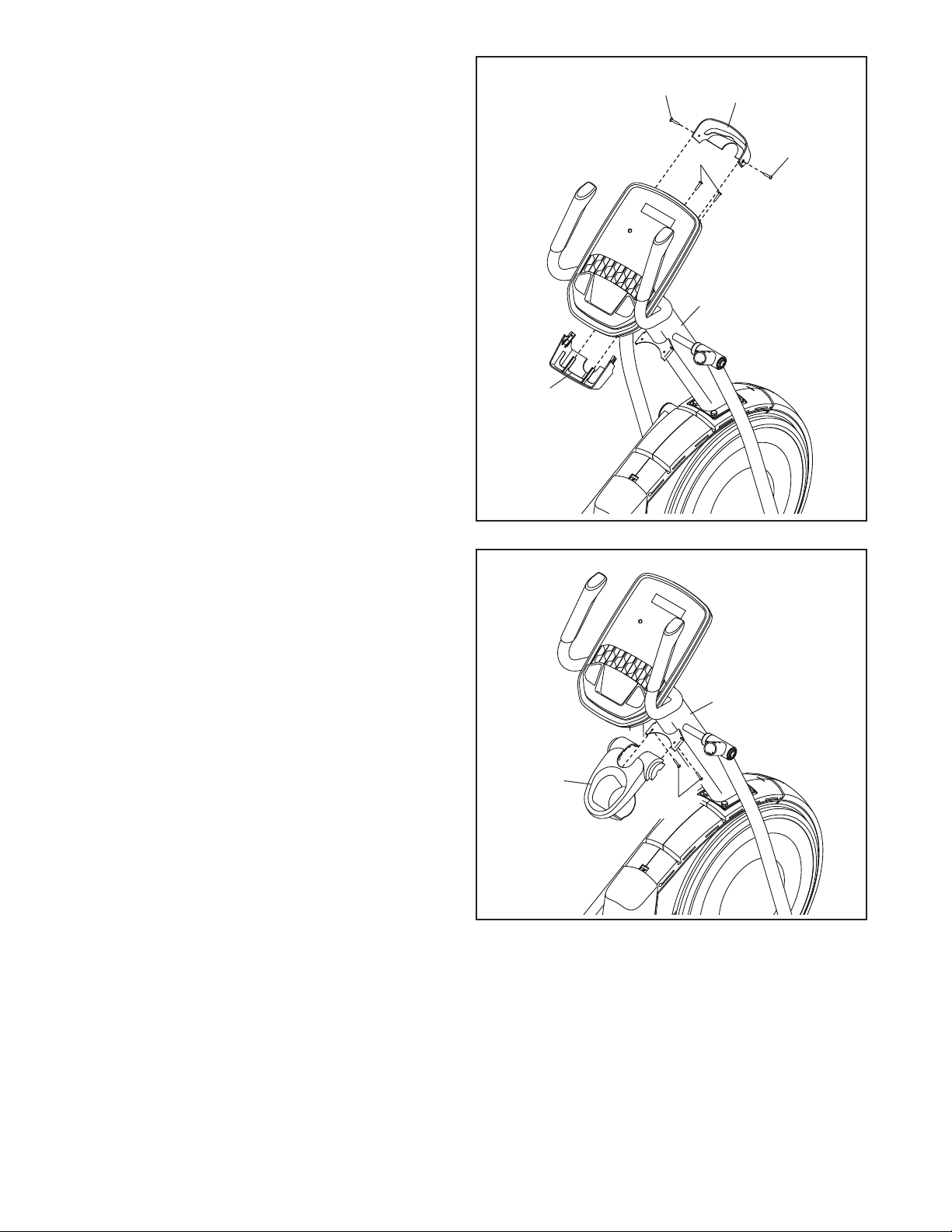

12. Orient the Accessory Tray (37) as shown, and
attach it to the Upright (4) with two M4 x 16mm
Screws (101).
11. Orient the Rear Console Cover (80) as shown,
and attach it to the Upright (4) with two
M4 x 16mm Screws (101).
Then, orient the Front Console Cover (79) as
shown, and attach it to the Rear Console Cover
(80) with two M4 x 16mm Screws (101).
79
4
4
80
101 101
101
101
37

13
13
101
81
37
13. Orient a Lower Tray Cover (81) as shown, and
attach it to the right side of the Accessory Tray
(37) with two M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
14
14. Identify the Right Upper Body Arm (61), orient it
as shown, and insert it into the Right Upper Body
Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 45mm Bolts (96) and two M8 Locknuts
(102); make sure that the Locknuts are in the
hexagonal holes (C).
Repeat this step for the Left Upper Body
Arm (47).
60
61
47
96
102 C

14
75
4
117
101
73, 74
15. Orient the Front Shield Cover (117) and the
Center Shield Cover (75) around the Upright (4)
as shown. Then, attach them to each other with
two M4 x 16mm Screws (101).
Then, press the Front Shield Cover (117) and the
Center Shield Cover (75) into the Left and Right
Shields (73, 74).
15
16. Identify the Right Leg Inner Cover (83), orient it
as shown, and insert it through the Right Upper
Body Leg (60).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Attach the Right Leg Outer and Inner Covers
(69, 83) to each other with an M4 x 16mm
Screw (101).
Repeat this step on the other side of the
elliptical.
60
101
69
16
83

15
17
65
60
101
66
17. Orient the Right Arm Front and Rear
Covers (65, 66) around the Right Upper Body
Leg (60) as shown, and then attach them with
two M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
18. Make sure that all parts are properly tight-
ened before you use the elliptical. Place a mat
beneath the elliptical to protect the floor. Note:
Extra parts may be included.
Next, plug the Power Adapter (119) into the
receptacle on the front of the elliptical.
Then, plug the Power Adapter (119) into an
outlet (see HOW TO PLUG IN THE POWER
ADAPTER on page 17).
119
18

16
19

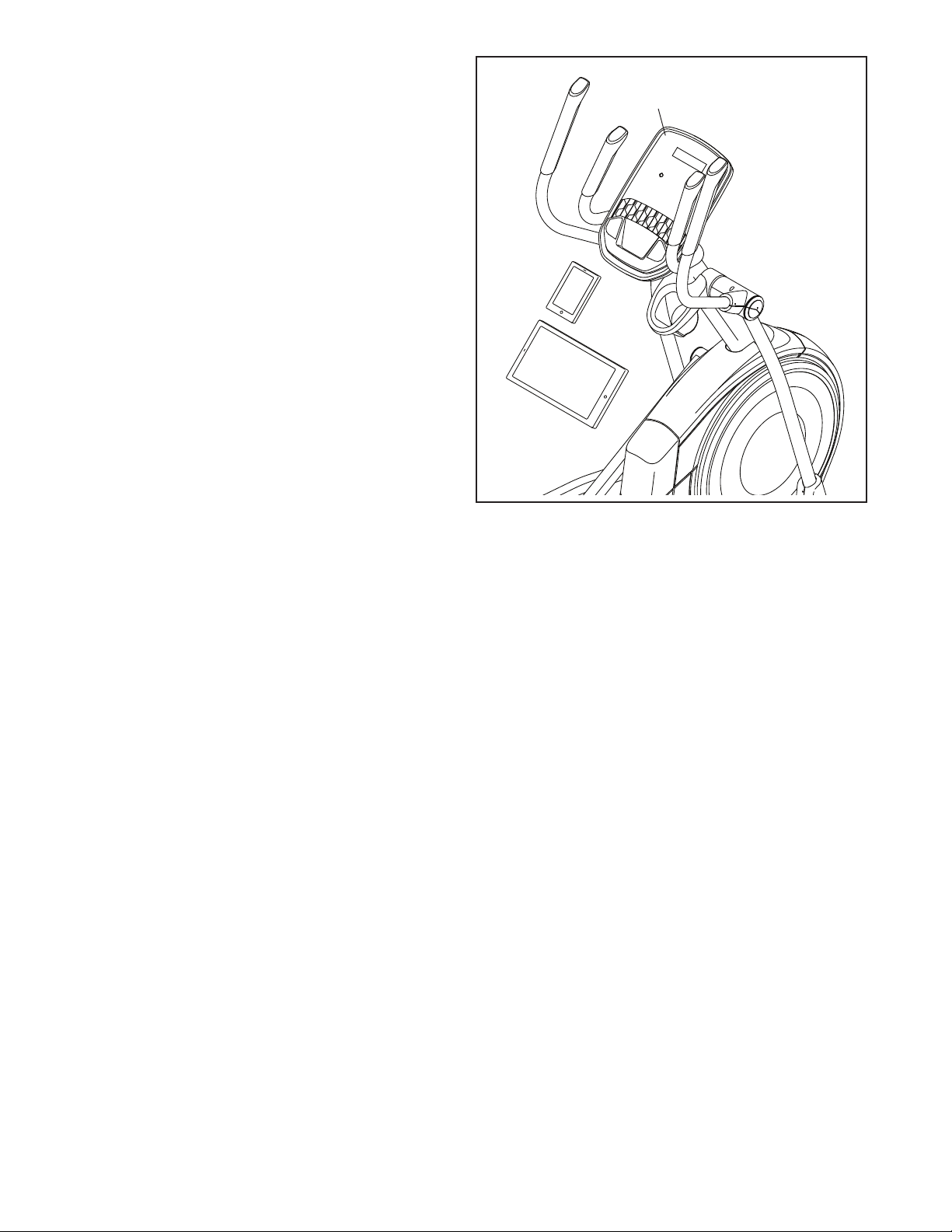

19. IMPORTANT: You must activate your Console
(7) to begin using its exclusive features.
First, press any button on the Console (7) to turn
on the power.
Then, using your smartphone or tablet, go to
iFit.com/activate and follow the instructions to
activate the Console (7).
Note: If you do not have a smartphone or tablet,
use your computer to go to iFit.com/activate for
an alternate way to activate the Console (7). If
you do not have a computer, call Customer Care
(see the front cover of this manual).
7

17
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter (A).
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
(A) into the receptacle
on the front of the
elliptical. Then, plug
the power adapter
into an appropriate
outlet that is properly
installed in accordance
with all local codes and
ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (B), and place one foot against one of
the wheels (C). Pull on the upright and have a second
person lift the handle (D) until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet (E) beneath
the rear stabilizer or turn the leveling foot (F) under
the center of the frame until the rocking motion is
eliminated.
THE OPTIONAL TABLET HOLDER
The optional tablet
holder (G) will hold
your tablet securely
in place and enable
you to use your tablet
while you exercise. The
optional tablet holder is
designed for use with
most full-size tablets.
To purchase a tablet
holder, please see
the front cover of this
manual.
A
B
D
C
E
F
G
HOW TO USE THE ELLIPTICAL

18
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of
the pedals, you can
change the incline
of the ramp. To raise
the ramp, press the
latch button (H), and
then pull the ramp
handle (I) upward to
the desired incline
level.
To lower the ramp, press the latch button (H), pull the
ramp handle (I), and lower the ramp to the desired
incline level. Then, release the latch button and
engage the latch pin into one of the adjustment holes
in the frame. Make sure that the latch pin is firmly
engaged in one of the adjustment holes in the
frame.
HOW TO EXERCISE ON THE ELLIPTICAL
See the drawing at the right. To mount the elliptical,
hold the handlebars (J) or the upper body arms (K)
and step onto the pedal (L) that is in the lower position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedals can turn in either direction. It is recom-
mended that you turn the pedals in the direction
shown by the arrow; however, for variety, you can
turn the pedals in the opposite direction.
To dismount the elliptical, wait until the pedals (L) come
to a complete stop. Note: The elliptical does not
have a free wheel; the pedals will continue to move
until the flywheel stops. When the pedals are station-
ary, step off the higher pedal first. Then, step off the
lower pedal.
I
H
J
K
L

19
FEATURES OF THE CONSOLE
IMPORTANT: To activate your console and begin
using its exclusive features, see assembly step 19
on page 16.
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using a compatible heart rate monitor.
The console also offers unlimited iFit workouts when
you download the iFit app to your smart device and
connect it to the console.
With the iFit app, you can access a large and var-
ied library of iFit video workouts, create your own
workouts, track your workout results, and access many
other features.
Each iFit workout automatically changes the resistance
of the pedals as an iFit coach guides you through an
immersive and effective video workout.
In addition, you can connect your personal audio
player to the console sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 20. To use an
iFit workout, see page 22. To connect your heart
rate monitor to the console, see page 24. To
use the sound system, see page 24. To change
console settings, see page 25.
Note: If there is a sheet of plastic on the display,
remove the plastic. The console can display speed
and distance in either standard units or metric units.
To change the unit of measurement, press the St/Met
button repeatedly.
CONSOLE DIAGRAM
HOW TO USE THE CONSOLE

20
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
3. Change the resistance of the pedals as desired.
Begin pedaling to start the manual mode.
You can change the resistance of the pedals by
pressing one of the numbered Resistance but-
tons or by pressing the Resistance increase and
decrease buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Distance (MI or KM)—The distance that you have
pedaled in miles or kilometers. To change the unit
of measurement, press the St/Met button.
Pace—Your pedaling speed in minutes per mile
or minutes per kilometer. To change the unit of
measurement, press the St/Met button.
Pulse (BPM and heart symbol)—Your heart rate
when you use or a compatible heart rate monitor
(see step 5).
Resistance (RESIST)—The resistance level of the
pedals.
RPM—Your pedaling speed in revolutions per
minute (RPM).
Speed (MPH or KPH)—Your pedaling speed in
miles per hour or kilometers per hour. To change
the unit of measurement, press the St/Met button.
Time—The elapsed time.
Press the Next Display button repeatedly to view
the desired workout information in the display.
Scan mode—The console also has a scan mode
that will display workout information in a repeat-
ing cycle. To turn on the scan mode, press the
Multi-scan button; the scan indicator (A) and the
word SCAN will turn on in the display.
A
