ICON Health & Fitness PRO-FORM 16.0 MME User manual

USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEL59915.0
Serial No.
Write the serial number in the space
above for reference.
www.proform.com
Serial
Number
Decal
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
166909 218557
218556
!
250085
• Not for therapeutic
use.
• Nicht für thera-
peutisch Gebrauch.
151249
259345
258865
258868 258869 258870 258871 258872
255569 258724 203572
The BLUETOOTH®word mark and logos are registered trademarks of
Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google Inc.
IFIT is a registered trademark of ICON Health & Fitness, Inc
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE AND TROUBLESHOOTING.....................................................27
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the handrails
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the ellip-
tical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary PROFORM®
16.0 MME elliptical. The 16.0 MME elliptical provides
an impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Handrail
Water Bottle Holder*
*Water bottle is not included
Handlebar/Grip
Stride Adjustment Knob
Pedal Handle
Handle
Pedal
Console
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 5 in. (165 cm)
Width: 2 ft. 8 in. (81 cm)

7
PART IDENTIFICATION CHART

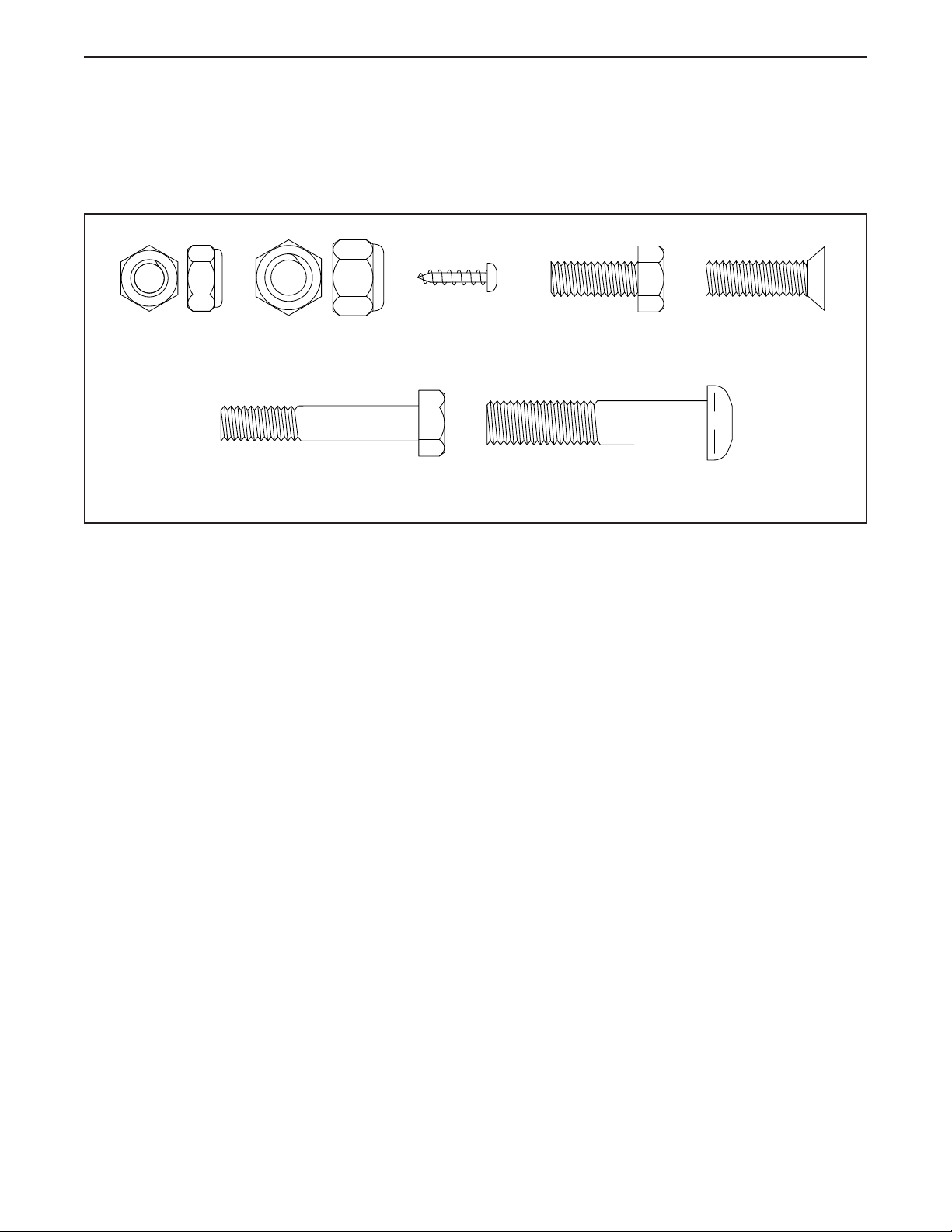

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 x 16mm
Screw (67)–18
M8 x 25mm Flat
Head Screw (68)–6
M10 Locknut
(105)–4
M10 x 50mm Bolt
(100)–4
M8 Locknut
(111)–4
M8 x 45mm Bolt
(130)–4
M8 x 20mm
Screw (61)–12

8

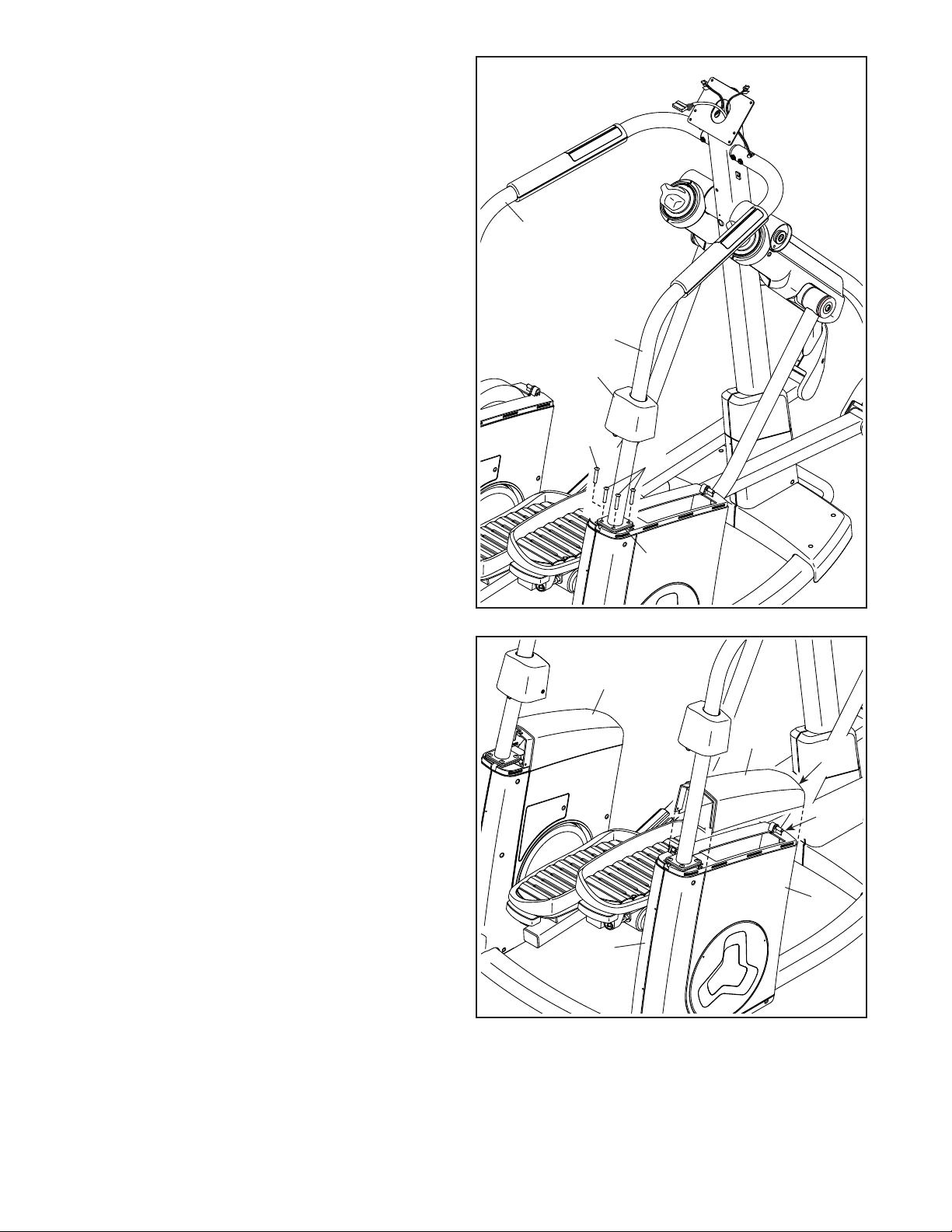

2. Have a second person raise the Upright (2) and
hold it in the position shown.
Slide the Right and Left Upright Covers (60, 96)
upward as shown.
Secure the Upright (2) to the Frame (1) with four
M8 x 20mm Screws (61); do not tighten the
Screws yet.
2
2
1
61
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1
60, 96
73, 75
61
Avoid pinching
the wires

9
3. Have a second person lift the Right Pedal (9)
and the Right Pedal Arm (15).
Using a plastic bag to keep your fingers clean,
apply some of the included grease to the right
Link Arm Bracket (43) in the location shown.
Tip: Avoid pinching your fingers. Slide the right
Link Arm (8) onto the right Link Arm Bracket (43).
Attach the right Link Arm with two M10 x 50mm
Bolts (100) and two M10 Locknuts (105).
Then, slide the right Link Arm Cover (116)
over the M10 x 50mm Bolts (100) and the M10
Locknuts (105).
Repeat this step on the left side of the
elliptical.
4. Remove the two screws (A) and the shipping
bracket (B) from the right side of the Frame (1).
Discard the screws and the shipping bracket.
Tip: Avoid pinching the wires. Slide the upper
end of the Right Handrail (5) onto the right side
of the Upright (2).
Attach the Right Handrail (5) with two M8 x
45mm Bolts (130) and two M8 Locknuts (111);
make sure that the Locknuts are inside the
hexagonal holes, but do not tighten the Bolts
yet.
Then, insert the end of the Right Pulse Wire (80)
into the hole in the right side of the Upright (2)
and route it out of the top of the Upright.
Repeat this step on the left side of the
elliptical.
3
4
105
Grease
130
Hexagonal
Holes
80
5
A
4
2
43
15
9
8
116
100
111
B
Avoid pinching
the wires
Avoid pinching
your fingers
1

10
5
5
4
7
1

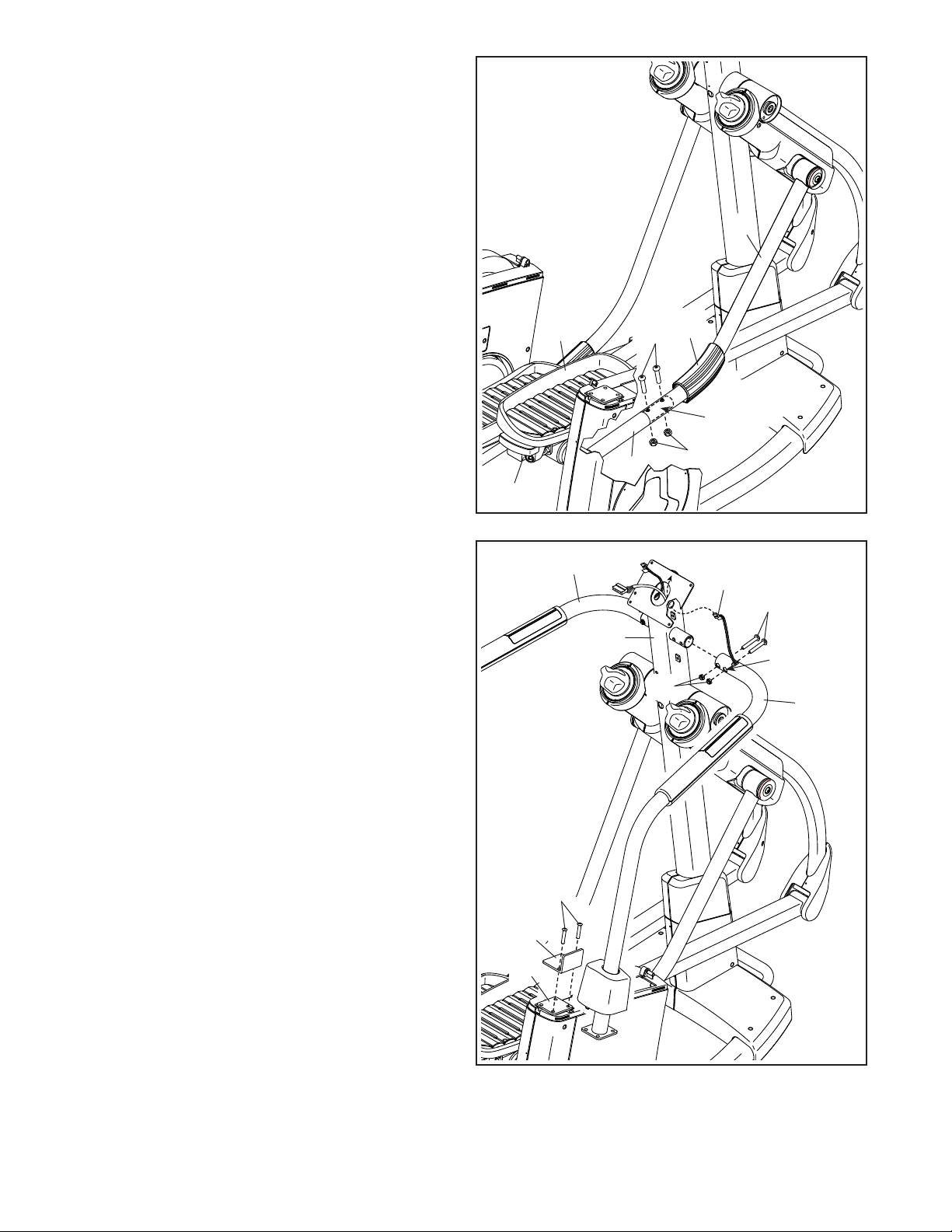

5. Attach the lower end of the Right Handrail (5) to
the Frame (1) with four M8 x 20mm Screws (61);
do not tighten the Screws yet.
Attach the lower end of the Left Handrail (4)
in the same way.
See step 2. Tighten the four M8 x 20mm Screws
(61). Then, slide the Right and Left Upright
Covers (60, 96) downward and press them onto
the Right and Left Frame Post Covers (73, 75);
avoid pinching the wires.
See step 4. Tighten the four M8 x 45mm
Bolts (130).
Then, tighten the eight M8 x 20mm
Screws (61).
Do not press the Right and Left Handrail
Covers (7, not shown) into place yet.
6
6. Align the tab on the Right Shield Cover (76) with
the indicated hole in the Right Outer and Inner
Shields (17, 19).
Press the Right Shield Cover (76) onto the Right
Outer and Inner Shields (17, 19).
Attach the Left Shield Cover (102) in the
same way.
76
102
17
19
61
61
Hole
Tab

11
7
8

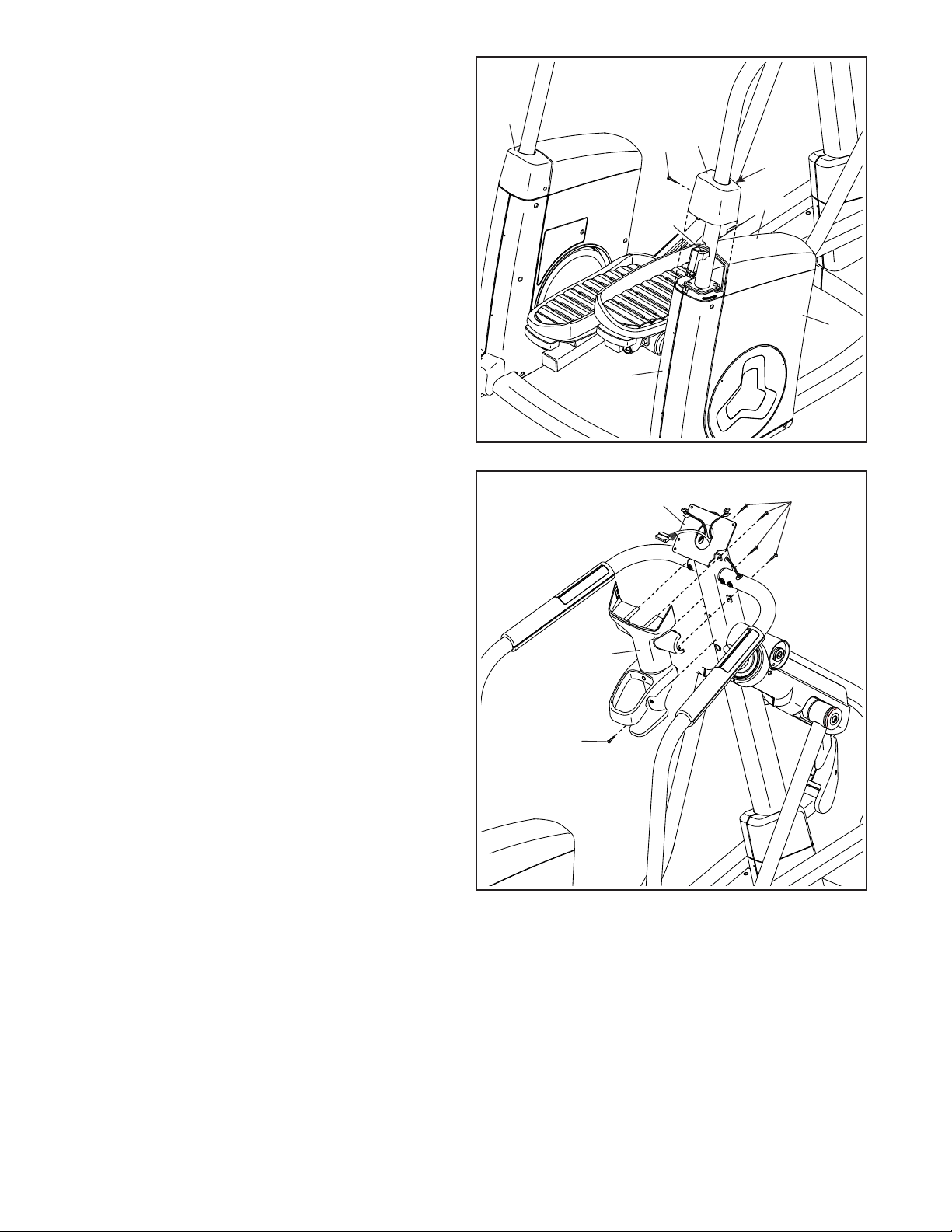

7. Align the plastic post inside the Right Handrail
Cover (7) with the indicated hole in the Right
Shield Cover (76).
Press the Right Handrail Cover (7) onto the
Right Shield Cover (76) and onto the Right Outer
and Inner Shields (17, 19).
Attach the Right Handrail Cover (7) with an
M4 x 16mm Screw (67).
Attach the Left Handrail Cover (6) in the same
way.
8. Attach the Rear Upright Cover (21) to the Upright
(2) with five M4 x 16mm Screws (67); do not
tighten the Screws yet. 2
67
67
21
67
17
7
6
19
76
Hole
Post

12
9
10
9. Have a second person hold the Console (3) near
the Upright (2).
Plug the Upper Wire (81) into the large
receptacle on the back of the Console (3). Next,
plug the Right and Left Pulse Wires (80, 85)
into the right and left receptacles. The connec-
tors on the Wires should slide easily into the
receptacles and snap into place. If a connec-
tor does not slide easily, turn it and try again. If
you do not insert the connectors properly, the
Console may become damaged.
Next, insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach
the Console (3) to the Upright (2) with four
M4 x 16mm Screws (67); start all the Screws,
and then tighten them.
10. Hold the Rear Upright Cover (21) against the
Console (3).
See step 8. Tighten the five M4 x 16mm
Screws (67).
Press the tabs on the Front Upright Cover (20)
into the Rear Upright Cover (21). Then, attach
the Front Upright Cover to the Upright (2) with an
M4 x 16mm Screw (67).
3
3
2
67
67
20
80
85
Avoid pinching
the wires
81
2
21

13
11. Identify the Right Handlebar (11).
Attach the Right Handlebar (11) to the Right
Handlebar Arm (13) with three M8 x 25mm Flat
Head Screws (68).
Attach the Left Handlebar (10) in the same
way.
11
10
68
12. Attach the right Handlebar Cover (31) to the
Right Handlebar (11) with three M4 x 16mm
Screws (67).
Attach the left Handlebar Cover (31) in the
same way.
11 31
31
11
13
12
67

14
13

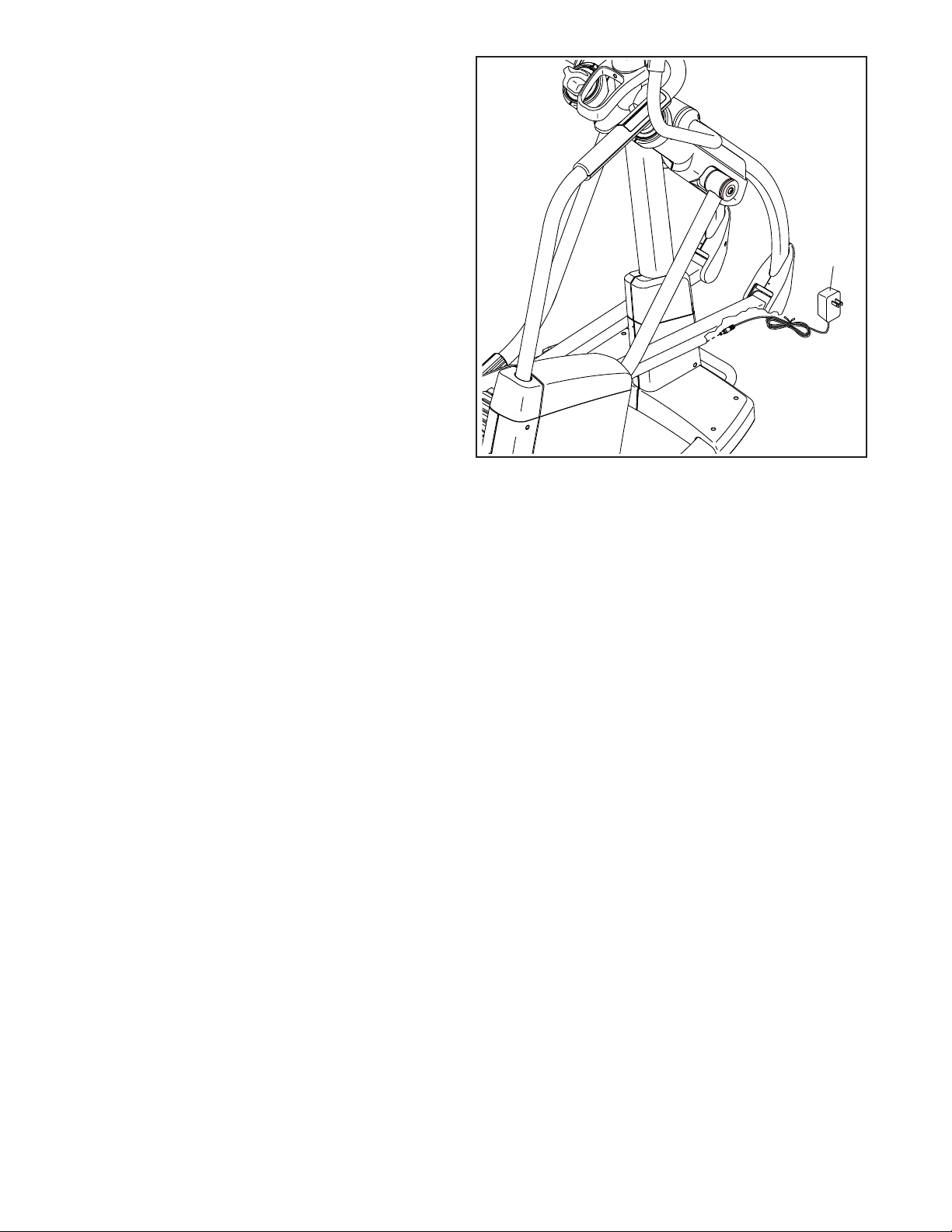

13. Plug the Power Adapter (84) into the receptacle
on the frame of the elliptical.
Note: To plug the Power Adapter (84) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 15.
14. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
84

15
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on the
frame of the ellipti-
cal. Then, plug
the power adapter
into an appropriate
outlet that is properly
installed in accor-
dance with all local codes and ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, mov-
ing it requires two persons. Have a second person
place one foot against one of the wheels. Grip the
handle and lift the frame until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both
of the leveling feet
beneath the front of
the frame until the
rocking motion is
eliminated.
HOW TO ADJUST THE STRIDE OF THE ELLIPTICAL
To adjust the stride of the elliptical, turn the adjustment
knobs clockwise or counterclockwise. Make sure that
both adjustment knobs are at the same setting.
Place your
foot here
Lift
here
Leveling
Foot
Adjustment
Knobs
HOW TO USE THE ELLIPTICAL

16
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions.
To adjust each pedal, simply pull the pedal handle
outward, move the pedal to the desired position, and
then release the pedal handle into an adjustment hole
beneath the pedal. Make sure to adjust both pedals
to the same position.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars and step
onto the pedal that is in the lower position. Then, step
onto the other pedal. Push the pedals until they begin
to move with a continuous motion. Note: The pedals
can turn in either direction. It is recommended that
you turn the pedals in the direction shown by the
arrow; however, for variety, you can turn the pedals
in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Pedal
Handle
Handlebars
Pedals

17
Ruger
ELPF59915
PFEL59915

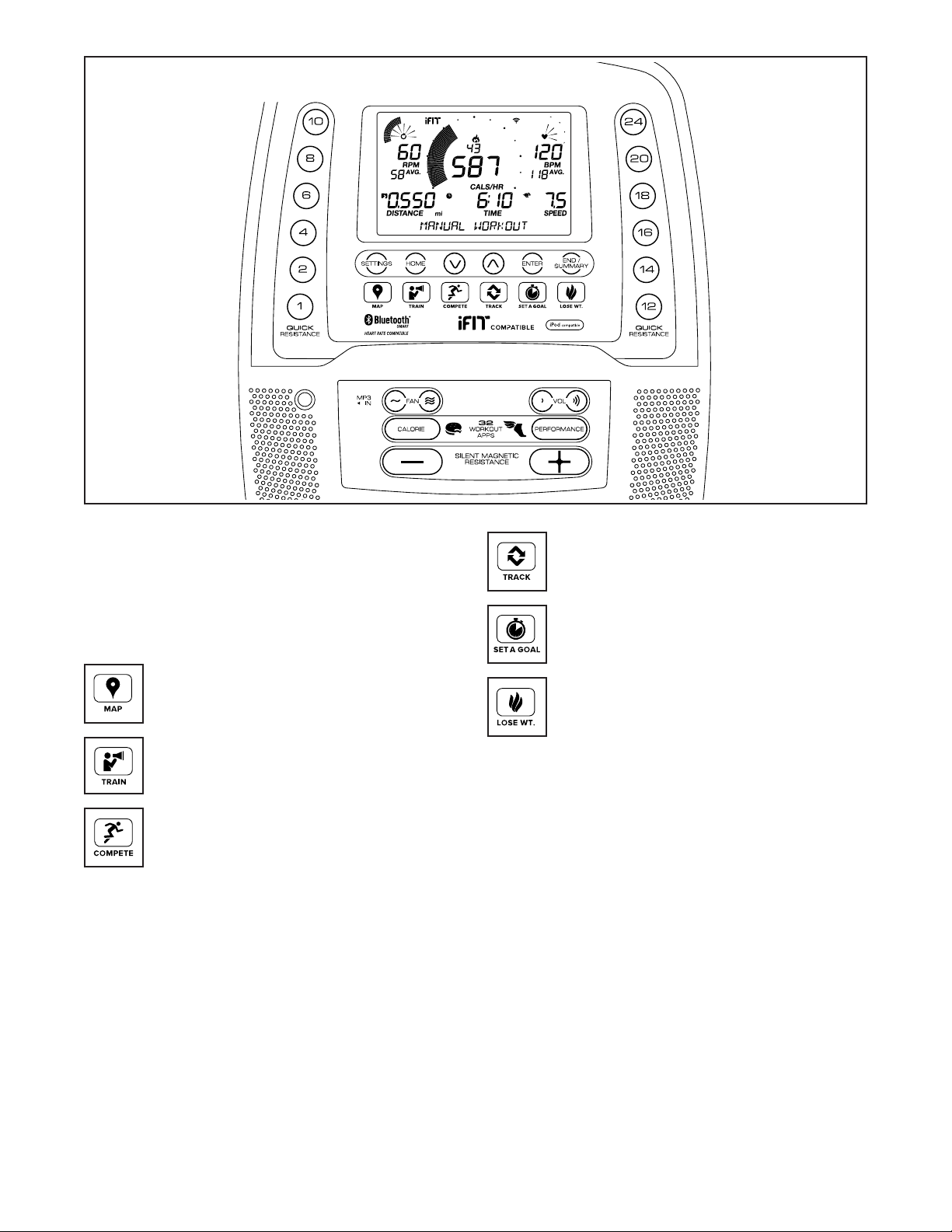

CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.

18
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or an
optional chest heart rate monitor (see page 24
for more information).
The console also offers a selection of onboard
workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an
effective workout. You can also set a calorie, distance,
or time goal.
The console also features an iFit mode that enables
the console to communicate with your wireless network
through an optional iFit module. With the iFit mode,
you can download personalized workouts, create your
own workouts, track your workout results, race against
other iFit users, and access many other features.
To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see this page. To use
an onboard workout, see page 21. To use a
set-a-goal workout, see page 22. To use an iFit
workout, see page 23. To use the sound system,
see page 24. To change console settings, see
page 25.
Note: If there is a sheet of plastic on the display,
remove the plastic.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
Press the Home button or press either the Calorie
button or the Performance button repeatedly to
select the manual mode.
If a wireless iFit module is not inserted into the
console and connected to iFit, the manual mode
will be selected automatically.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Silent Magnetic Resistance
increase and decrease buttons or by pressing one
of the numbered Quick Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The display can show the following workout
information:
Calories (flame icon)—This display will show the
approximate number of calories you have burned.
Calories per Hour (Cals/Hr)—This display will
show the approximate number of calories you are
burning per hour.

19
Distance—This display will show the distance that
you have pedaled in miles (mi) or kilometers (km).
Pulse (BPM)—This display will show your heart
rate in beats per minute (bpm) when you use the
handgrip heart rate monitor or the optional chest
heart rate monitor (see step 5).
Pulse Average (BPM AVG)—This display will
show your average heart rate in beats per minute
(bpm) when you use the handgrip heart rate moni-
tor or the optional chest heart rate monitor (see
step 5).
Resistance—This display will show the resistance
level of the pedals for a few seconds each time the
resistance level changes.

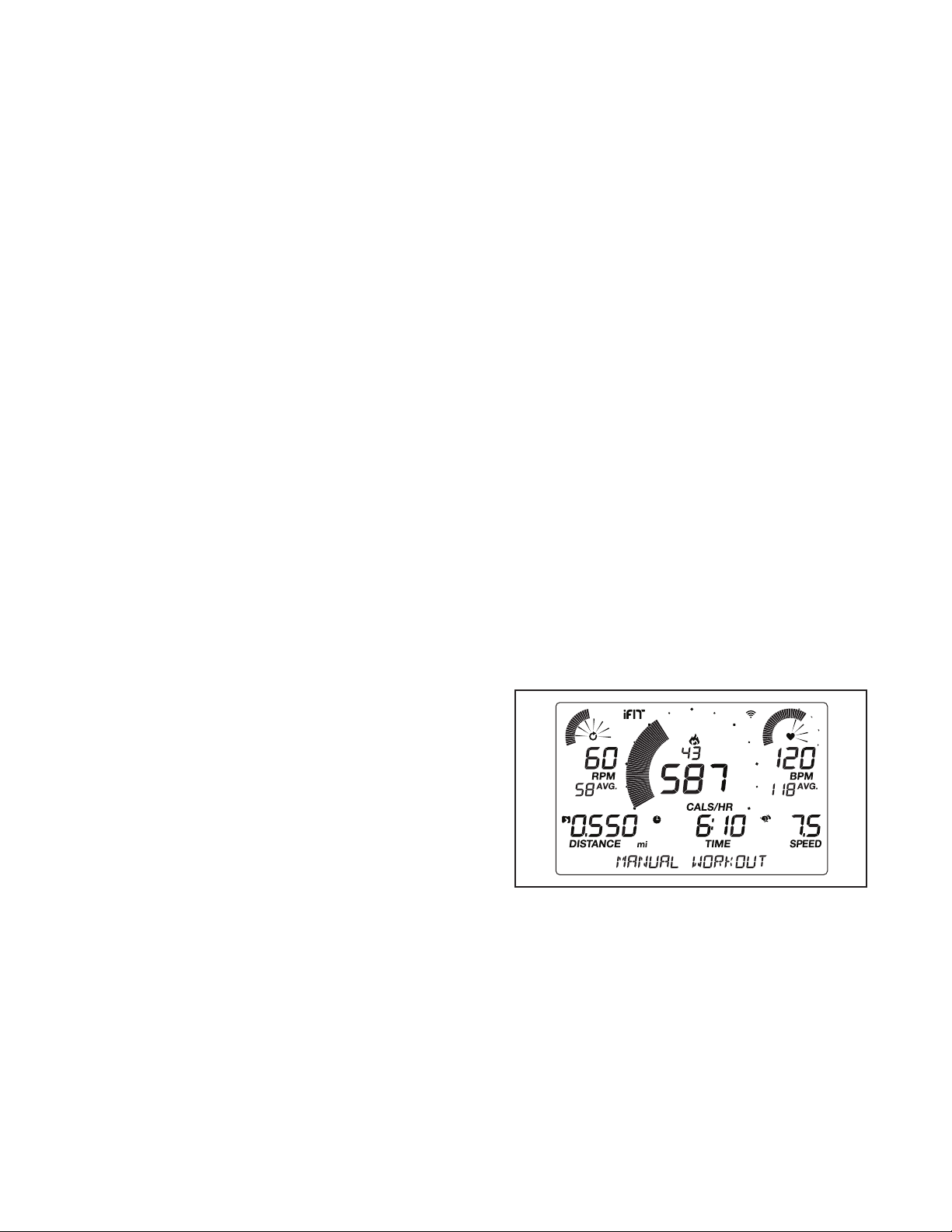

RPM—This display will show your pedaling speed
in revolutions per minute (rpm).
RPM Average (RPM AVG)—This display will show
your average pedaling speed in revolutions per
minute (rpm).
Speed—This display will show your pedaling
speed in miles per hour or kilometers per hour.
Time—When the manual mode is selected, this
display will show the elapsed time. When an
onboard workout is selected, this display will show
the time remaining in the workout.
Watts—This display will show your approximate
power output in watts.
Average Watts (AVG.)—This display will show
your approximate average power output in watts for
the workout.
Press the Home button to exit the workout and
return to the default menu (see HOW TO CHANGE
CONSOLE SETTINGS on page 25 to set the
default menu). If necessary, press the Home button
again.
Press the End/Summary but-
ton to end the workout and
view a workout summary. The
workout summary will appear
in the displays for several
seconds.
When a wireless iFit module is connected, the wire-
less symbol at the top of the display will show the
strength of your wireless signal. Four arcs indicate
full signal strength.
Change the volume level of
the console by pressing the
Vol increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 24 for infor-
mation about the optional chest heart rate
monitor).Note: The console is compatible with
BLUETOOTH®Smart heart rate monitors.
Note: If you use both heart rate monitors at the
same time, the console will not display your
heart rate accurately.
If there are
sheets of plas-
tic on the metal
contacts on the
handgrip heart
rate monitor,
remove the plas-
tic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms resting against the contacts. Avoid
moving your hands or gripping the contacts
tightly.
Contacts

20
6. Turn on the fan if desired.
The fan has low and high
speed settings. Press the Fan
increase and decrease but-
tons repeatedly to select a fan
speed or to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will flash in the display. To resume your work-
out, simply resume pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
Note: The console features a display demo mode,
designed to be used if the elliptical is displayed in a
store. When the demo mode is turned on, the con-
sole will show a preset presentation. To turn off the
demo mode, see HOW TO CHANGE CONSOLE
SETTINGS on page 25.
