ICON Health & Fitness PRO-FORM 980 CS User manual

Serial Number
Decal
Model No. PFTL99908.2
Serial No.
Write the serial number in the space
above for reference.
CAUT ON
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUEST ONS?
f you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
MPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
www.proform.com
USER'S MANUAL
With Universal Dock for iPod®

TABLE OF CONTENTS
WARNNGDECALPLACEMENT..............................................................2
MPORTANTPRECAUTONS ................................................................3
BEFOREYOUBEGN ......................................................................5
ASSEMBLY...............................................................................6
OPERATONANDADJUSTMENT ............................................................12
HOWTOFOLDANDMOVETHETREADMLL ..................................................24
TROUBLESHOOTNG .....................................................................26
EXERCSEGUDELNES ...................................................................29
PARTLST ..............................................................................30
EXPLODEDDRAWNG ....................................................................32
ORDERNGREPLACEMENTPARTS ..................................................BackCover
LMTEDWARRANTY ..............................................................BackCover
2
PROFORM is a registered trademark of CON P, nc.
iPod®is a trademark of Apple Computer, nc., registered in the U.S. and other countries.
This drawing shows the locations of the
warning decals. f a decal is missing or
illegible, call the telephone number on
the front cover of this manual and re-
quest a free replacement decal. Apply
the decal in the location shown. Note:
The decals may not be shown at actual
size.
WARN NG DECAL PLACEMENT

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over age 35 or persons with
pre-existing health problems.
2. t is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by per-
sons weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable
of carrying 15 or more amps. No other appli-
ance should be on the same circuit. Do not
use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. f the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOT NG on page 26 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARN NG: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. CON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
MPORTANT PRECAUT ONS

4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADM LL on page 24.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
24. nspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE NSTRUCT ONS

5
Thank you for selecting the revolutionary PROFORM®
980 CS treadmill with Universal Dock for iPod®. The
980 CS treadmill with Universal Dock for iPod offers an
impressive selection of features designed to make
your workouts at home more enjoyable and effective.
And when youʼre not exercising, the unique treadmill
can be folded up, requiring less than half the floor
space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. f you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEG N
Handrail
Upright
Accessory Tray
Key/Clip

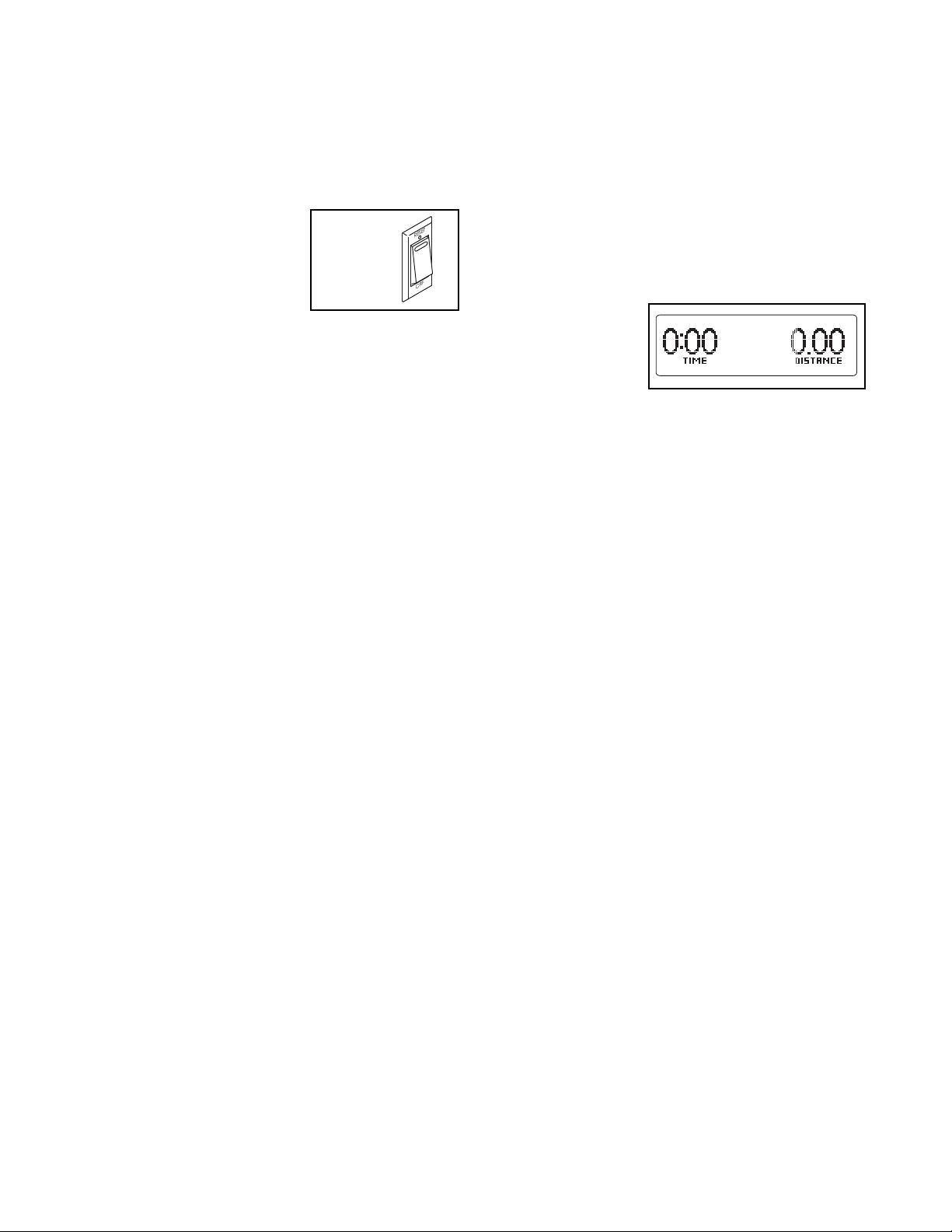

Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Console
Speakers
Pulse Sensor

6
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. f there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and rubber mallet .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART L ST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: f a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
#8 x 3/4" Screw (1)–4
3/8" Nut (8)–5
#8 x 1" Tek Screw (2)–4
Base Foot
Spacer (13)–2
3/8" Star
Washer (9)–4
5/16" Star
Washer (10)–6
1/4" Star
Washer (33)–2
5
1/4" x 1 1/4" Bolt (5)–2
5/16" x 1 1/2" Bolt (7)–6
3/8" x 2" Bolt (4)–5
3/8" x 4 1/2" Bolt (6)–4

7
3. dentify the Right Upright (78) and the Right
Upright Spacer (79).
nsert the Upright Wire (38) through the Right
Upright Spacer (79) as shown. Then, set the
Right Upright Spacer on the Base (83). Be care-
ful not to pinch the Upright Wire.
Have a second person hold the Right Upright
(78) near the Base (83). See the inset drawing.
Tie the long tie in the Right Upright securely
around the end of the Upright Wire (38). Then,
pull the other end of the long tie until the Upright
Wire is routed completely through the Right
Upright.
83
38
78
79
38
3
2. Attach a Wheel (84) to the Base (83) with a 3/8"
x 2" Bolt (4) and a 3/8" Nut (8). Do not over-
tighten the Nut; the Wheel must turn freely.
83
4
8
2
84
Long
Tie
Long Tie
78
38
1.Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the ties securing the Upright Wire (38) to the
Base (83). Locate the tie in the indicated hole in
the Base, and use the tie to pull the Upright Wire
out of the hole.
Attach a Base Foot (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Foot Spacer (13). Then, attach another
Base Foot (81) with only a #8 x 1" Tek Screw (2).
83
2
56
81
1
81 2
38
Hole
13

8
6. Set the Left Upright Spacer (76) on the Base
(83). Have a second person hold the Left
Upright (74) near the Base. Hold a Bolt Spacer
(77) inside the lower end of the Left Upright.
Next, insert a 3/8" x 4 1/2" Bolt (6) with a 3/8"
Star Washer (9) into the Left Upright and the
Bolt Spacer. Repeat this step with a second
Bolt Spacer (77), 3/8" x 4 1/2" Bolt (6), and
3/8" Star Washer (9). Then, set the Left Upright
in the Left Upright Spacer.
Partially tighten the 3/8" x 4 1/2" Bolts (6); do
not fully tighten the Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
77
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach a Base Foot (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Foot Spacer (13). Then, attach another
Base Foot (81) with only a #8 x 1" Tek Screw (2).
Attach a Wheel (84) to the Base (83) with a 3/8"
x 2" Bolt (4) and a 3/8" Nut (8). Do not over-
tighten the Nut; the Wheel must turn freely.
5
83
84
56
4
8
81
2
81
13
2
4. Hold a Bolt Spacer (77) inside the lower end of
the Right Upright (78). Next, insert a 3/8" x 4
1/2" Bolt (6) with a 3/8" Star Washer (9) into the
Right Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (77), 3/8" x 4
1/2" Bolt (6), and 3/8" Star Washer (9). Then,
set the Right Upright in the Right Upright Spacer
(79). Be careful not to pinch the Upright Wire
(38).
Partially tighten the 3/8" x 4 1/2" Bolts (6); do
not fully tighten the Bolts yet.
79
78
77
6
4
38
9
9

9
7. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly.
Hold the Right Handrail (95) near the console
assembly. Next, insert the console wire into the
large hole in the Right Handrail and out of the
top as shown. f necessary, use needlenose pli-
ers to pull the console wire out.
Attach the Right Handrail (95) and the Left
Handrail (not shown) with four #8 x 3/4" Screws
(1) (only two are shown). Make sure that no
wires are pinched. Start all four Screws be-
fore tightening any of them; do not over-
tighten the Screws.
95 1
Console
Wire
Hole 1
7
8. Tighten a 1/4" x 1 1/4" Bolt (5) with a 1/4" Star
Washer (33) into the Handrail Crossbar (94) and
the bracket on each side of the console assembly
(only one side is shown).
Remove the wire tie from the console wire.
5
33
94
Console
Assembly
Wire
Tie
8
9. Remove the tie from the Cage Nut (88).
Have a second person hold the console assem-
bly near the Right Upright (78) and the Left
Upright (not shown). Connect the Upright Wire
(38) to the console wire. See the inset drawing.
The connectors should slide together easily
and snap into place. f they do not, turn one
connector and try again. F THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER S TURNED ON. Then, remove the long
tie from the Upright Wire.
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Be care-
ful not to pinch the wires.
Console
Assembly
Console
Wire
Long
Tie
38
78
88
9
38
Console
Assembly
Console
Wire
Console
Wire

10
11. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the posi-
tions shown.
Attach the Latch Bracket (14) and the Storage
Latch (53) to the Base (83) with two 3/8" x 2"
Bolts (4) and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: t may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADM LL FOR USE on page 25).
53
8
8
Large
Barrel
83
14
4
56
11
4
54
10. Attach the console assembly with six 5/16" x 1
1/2" Bolts (7) and six 5/16" Star Washers (10)
(only three are shown).
See steps 4 and 6. Tighten the 3/8" x 4 1/2"
Bolts (6).
Console
Assembly
10
7
10
10
10
7
