IconBiT HDM33HDMI User manual

iconBIT HDM33HDMI
UserManual

IconBITHDM33HDMIUserManualEnglish 1
Tableofcontents
1.Introduction………………………………….………………………..…………………..................……2
1.1Preface…………………………………..…………………………………………….…………………………….…………………………2
1.2Packinglist……………………………………………………………………………….……………………………………………………3
1.3Cautions…………………………………………………..………………………………….…………………………….…………………3
2.Mediaplayer'soperation guide…………….………........................................…………….…4
2.1Power ON/OFF ………………………..………………….…………………………………………………………………………………4
2.2 Connection…………………………………………..……………....…………….…….……………………………….……………….4
2.3Operation…….……………..…………………………………….……………………………………………………….…………………5
2.4 RemoteControl..………………………………………………..……………………………………………………….……………….6
3.SetupMenu……………………………………………………………..…………………..................……8
3.1System Setting………………………………………….…………………………….……………………………………………………8
3.2MoviesSetting……………………………….……………………………………………………………………………………….…….9
3.3PhotoSetting……….………………………………….………………………….………………………………………………………..9
4.Browseandplayback…..……….…………….………....................………………………………..10
4.1PhotoPlayMode……………………………..…………………………………………………………………………………………..10
4.2MusicPlayMode.……………..…………………………….……………………………………………………………………………11
4.3MoviePlayMode………………..……………………………………………………….……………………………………………….12
4.4BrowserPlayMode………………..………………………….…………………………….………………………………………….12
5.System Update……………………………..…………………….………………………………….………13

IconBITHDM33HDMIUserManualEnglish 2
1.Introduction
1.1.Preface
ThankyouverymuchforpurchasingiconBITHDM33HDMI.Wehopeyouwillenjoyusingitasagreat
homeentertainmentpartner.Thisplayerhasthefollowingfunctionality.
A/VOutput
·HDMIV1.3 forhigh-definitionvideoanddigitalaudio
·Compositevideoandstereoaudioforanalogaudio-visualconnection
·S/PDIFoptical/coaxialinterfaceforhigh-fidelity digitalaudio
·Adjustablevideooutputresolution(NTSC, PAL,480p,576p,720p,1080i,1080p)
MultimediaPlayback
·Supportsmajoraudio,videoandimagefileformats(1080pHDvideodecoding)
·Movieformat:AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/
WMV/ASF/RM/RMVB/FLV
·Musicformat:MP3/OGG/WMA/WAV/AAC/FLAC
·Photoformat:HDJPEG/BMP/GIF/TIF/PNG
·Photoslideshowwithbackgroundmusic
USB2.0Support
·USB HOSTport(forUSBstoragedevices)
SD/MMC Card Support
·SD/MMCCardInterface
Note:All theinformationcontainedinthismanualwascorrectatthetimeof publication.However,
asourengineersare always updatingandimprovingtheproduct,yourdevice’ssoftwaremayhave
aslightly differentappearanceormodifiedfunctionalitythanpresentedinthismanual.
1.2.PackingList
Part Quantity
Player 1
A/Vcable 1
RemoteControl 1
RemoteControlBattery 2
AC/DC adaptor 1
UserManual 1
Note:
Theactualcontentsinthepackagemightbedifferentfromthepackinglistinthismanual.

IconBITHDM33HDMIUserManualEnglish 3
1.3.Cautions
Thisplayer’sdesignandmanufacturehasyoursafetyinmind.Inordertosafelyandeffectivelyuse
thisplayer,pleaseread thefollowingbefore usage.
UsageCautions
Usershouldnotmodifythisplayer.Ifcommercialharddiskisbeingused,theenvironmental
temperature shouldbewithin+5°C~+35°C.
Power
Theplayer’spower voltage: DC5.5V.
Whenusingthisplayer,pleaseconnectthesuppliedACadapter orACadapter cabletotheplayer’s
power jack.Whenplacingtheadaptercable,makesureit cannot getdamagedorbesubjectto
pressure.Toreducetherisk ofelectricshock,unplugtheadapter firstbefore cleaningit.Never
connecttheadaptertotheplayerinahumidordustyarea.Donot replacetheadapterorcable’swire
orconnector.
RadioInterference
-Ifnotproperlyshielded,almostallelectronicdeviceswillgetradiointerference.Undersome
conditions,yourplayer mightgetinterference.
-Thedesignof thisplayerhasfollowedtheFCC/CEstandard,andhasfollowedthefollowingrules:
(1)Thisplayermaynotcauseharmfulinterference;
(2)Thisplayer couldacceptsomeinterferencereceivedincludinginterferencethatmaycause
undesiredoperation.
Repair
Iftheplayer hasaproblem,youshouldtakeit to anappointedrepaircenterandletthespecialists
dotherepair,neverrepairtheplayeryourself,youmightdamagetheplayer orendangeryourselfor
yourdata.
Disposing ofthe Player
Whenyoudisposeof theplayer,besure todisposeitappropriately.Somecountriesmayregulate
disposalof electricaldevice,pleaseconsultwithyourlocalauthority.
Others
Whenusingthisplayer,pleasedonotlettheplayercomeintocontactwith waterorotherliquid,if
waterisaccidentallyspilledontheplayer,pleaseuseadry clothtoabsorbthespillage.
Electronicproductsare vulnerable,whenusingpleaseavoidshakingorhittingtheplayer,anddonot
press thebuttonstoo hard.
-Donot lettheplayercomeintocontactwithwater orother liquid.
-Donotdisassembletheplayer,repairtheplayer orchangethedesignoftheplayer,any damage
donewillnotbeincludedintherepairpolicy.
-Donot pressthebuttonsoftheplayer too hard.
-Avoidhittingtheplayerwith hardobject,avoidshakingtheplayer,andstayawayfrommagnetic
fields.
-Duringelectrostaticdischargeandthestrongelectromagneticfield,theproductwillmalfunction,
thenunplugthepower cableandtheproductwillreturntonormalperformancenexttimeitis
poweredon.

IconBITHDM33HDMIUserManualEnglish 4
2. Mediaplayer'soperationguide
2.1.PowerON/OFF
PowerOn
After connectingtheDC INjack andpress thepower buttonontherearpanel,theplayer isonthe
standbymode.Afterpressthe“POWER”keyonthefrontpanelorontheRC,thepowerindicatorwill
turnredtoblue,theplayerwillshowthelogosoon,andthenenter thehomescreen.
PowerOff
Pressthepowerbuttononthefrontpanel,theplayer willenterstandbymodesoon,andthepower
indicatorwill turnred,andthenswitchthe“power”keyontherearpanelontooff tocut offthepower
cord.
2.2.Connection
Connecting the PowerSupply
(1)ConnecttheACadaptortotheplayer'sDC INjack;
(2)PlugintheACadaptortothepower outlet.
Note: DC:5.5V,3A
Connecting the USBDevice
(1)Makesure thattheplayerispoweredon;
(2)PlugintheUSBstick /USBHDD etc.totheUSBHOSTport.
Connecting the Memory Card
(1)Insertthememorycardtothecardslotproperly;
(2)Insertthememorycardaccordingtothesilkscreenwhichpaintedabovethecardslot.
Connecting toaTV
A/VOUT
(1)Pluginthe3colorconnectortotheunit'sA/V OUTjack;
(2)pluginthe3 colorconnectortotheTV'sA/VINjack.
Also,youcanusetheaudiooutputfromthe Coaxial/Optical OUTjackwhileusingCVBSVideoout.
Inthisway,youcanenjoythecontentintheplayer onTV orotherdisplay devices.
HDMIOUT
(1)PluginoneconnectoronyourHDMIcabletotheplayer'sHDMIjack;
(2)PlugintheotherconnectoronyourHDMIcabletotheTV'sHDMIjack.
Inthisway,youcanhavethehighestqualityvideoandaudioviaasinglecable.
Connecting toanDigital Amplifier
(1)FollowthepictureandplugintheRCAconnectoronyourcoaxialcabletotheplayer'sS/PDIF
Coaxialjack.Or ifyouuseopticalfiber,pleaseplugintheToslinkconnectoronyouropticalfiberto
theplayer'sS/PDIFOpticaljack;
(2)Plugintheother connectoronyourcoaxialcableoropticalfibertothedigitalaudiodevice(digital
amplifier ordecoder).
Note:HDMI,Opticalfiber andcoaxialcableare notsupplied.

IconBITHDM33HDMIUserManualEnglish 5
2.3.Operation
Frontpanel
1.Power indicator 8.LEFT
2.SDCardindicator 9.RIGHT
3.USBhostindicator 10.Return
4.Standbymodeswitch 11.Enter
5.Play/Pause 12.SDCARDSLOT
6.UP 13.USBHOST
7.DOWN14.IRwindow
Rearpanel

IconBITHDM33HDMIUserManualEnglish 6
2.4.RemoteControl
Allproceduresinthismanual can be carried out using the remotecontrolbuttons.
See the following fordetailson eachbutton and itsfunction:

IconBITHDM33HDMIUserManualEnglish 7
Number Buttons Functions
1 POWER Press toenterstandbymodeorwakeup
2
NUMERIC
BUTTONS Press toenternumericinputwhenchangingsettings.
3 VOL+ Press toincreasethevolume.
4 VOL- Press todecreasethevolume.
5 GOTO
Press tojumptoaspecificpoint onatimewhenplaymusicor
moviebothonprevieworfullscreenmode.
6 MUTE Press tomuteaudiooutput,press againtoresume.
7 SETUP Press toenterthesettingmainmenu
8 AV-OUT Press toswitchbetween576P, 720P, 1080I,and1080P.
9 16:9 Switchbetween16:9 and4:3 display
10 THUMB Press toshowthe9 picturesonscreen.
11 FLITER Press toselectthefavoritemusic.
12 EXIT Press toquitsomedialoguebox
13 LIST Press tocalloutthefavoriteplaylist.
14 UP
Press tomovethehighlightupwhilenavigationmenu.Press
torotatethephotoswhenreviewphotos.
15 DOWN
Press tomovethehighlightdownwhilenavigationmenu.
Press torotatethephotoincounter-clockwisedirection
whenreviewphotos.
16 LEFT navigation
17 RIGHT navigation
18 ENTER Press toconfirm
19 YELLOW Reservedbutton.No functionhasbeenassignedtoityet.
20 RED Infobutton,press toshowtherelatedinformation
21 BLUE Press tosetsubtitleoptions
22 GREEN Reservedbutton.No functionhasbeenassignedtoityet.
23 REV7
Press tofastrewindthecurrentplayback.Press
repeatedlytoselectspeeds.
24
PLAY/PAUSE
4; Press tobeginplay orpausethecurrentplayback
25 FF 8
Presstofastforwardthecurrent playback.Pressrepeatedlyto
selectspeeds.
26 STOP<Press tofinishyourcurrentplayback
27 PG.UP9Press toplaythepreviousfile.
28 PG.DN:Press toplaythenextfile.
29 ZOOM Press tozoomin/outtheimage(photoorvideo)
30 TRACK Press toselectanaudiotrack
31 REPEAT Press tosetrepeatoption(repeaton,repeatall,shuffle)

IconBITHDM33HDMIUserManualEnglish 8
3. SetupMenu
Select“Setup”fromthemainmenuorpress “Setup”iconfromremotecontrol,access setupmenu.
UsercansettingSystem/Movie/Photohere;
Selectitems witharrowbuttonfrom remotecontrol,press“OK”forconfirm;
Press “Return”toleftmenuforotheritems selection.
Press “Setup”or“Return”toexitsettingmenu.
3.1. Systemsetting
UsethismenutoconfigureSystemsettings:

IconBITHDM33HDMIUserManualEnglish 9
Language:
ThesystemlanguagecanbesettoEnglishorother languages.Pleaseselectthelanguages
whichyoupreferenceinthesetupmenu,theselectedlanguagewilltakeeffectimmediately.
AspectRatio:
AUTO: Automaticmode.
4:3 Full: Display picture ormovieonthefullscreen.
PanScan4:3:Display awidepictureontheentirescreenandcutsofftheredundant
portions.Selectwhenastandard4:3TVisconnected.
LetterBox4:3:Displayawidepicturewith twoblackborders onthetopandbottomof4:3
screen.Selectwhenastandard4:3TVisconnected.
16:9PANORANICO:Compresstheimagetoconvertthewholeimage.Selectwhena16:9
TVisconnected.
TVFormat: SelecttoadjustTVmodel NTSC or PAL
HDMI: Selecttoadjustvideooutputresolution720P, 1080I,1080P
SPIDF: SetPCM/ROWDATA whenselecttheopticalasaudiooutput,orelsesetOFF.
PREVIEW: Selecttoturnon/off movieormusicpreviewinthebrowser menu.
Factory Default: Selecttorestore factory defaults.
Firmware version: Showthesoftware INFO.

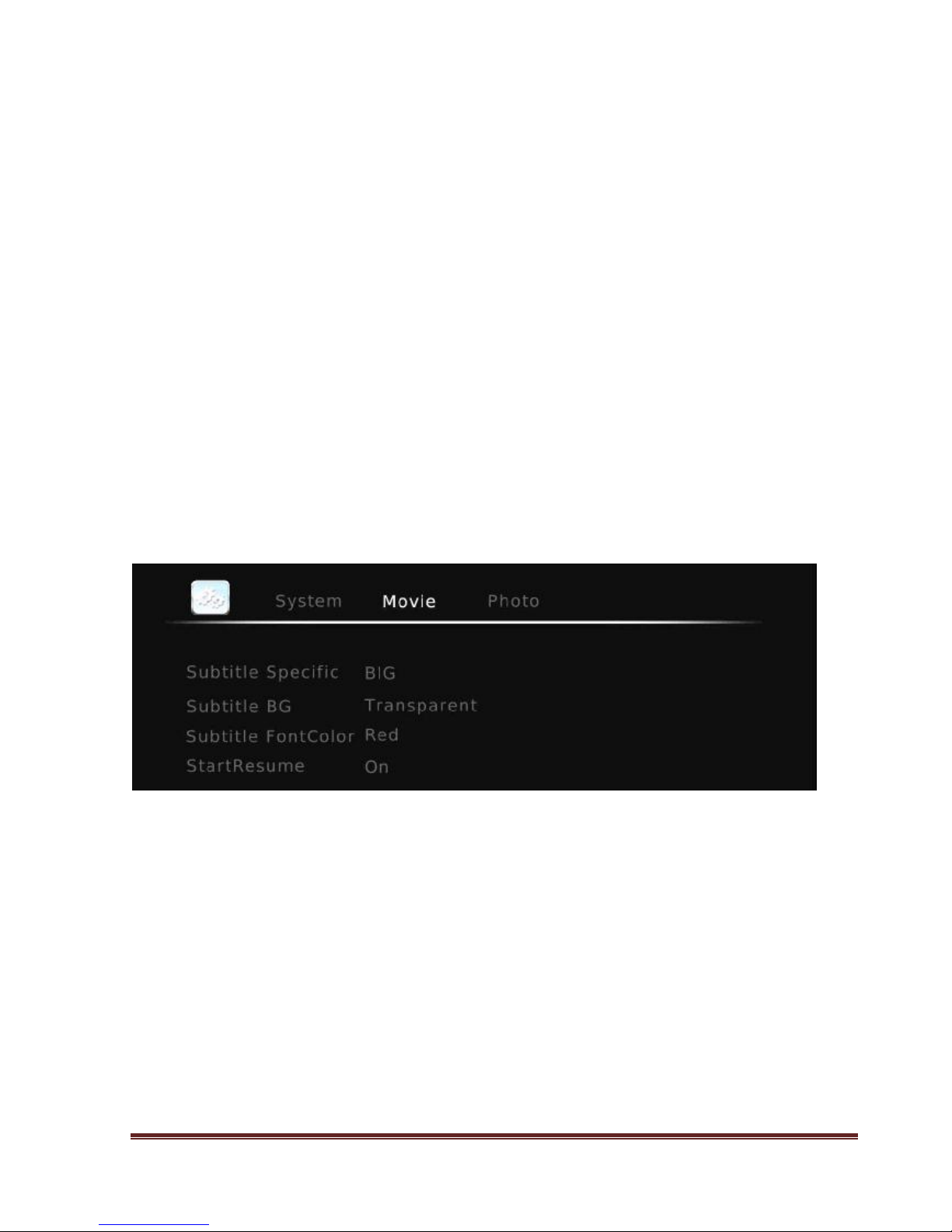

3.2. Moviesetting
Changingmoviesetting:
AspectRatio: Selecttoadjustmovieaspectratio:DISCARD/KEEP
SUBTITLE SPECIFIC: Selectthesubtitlespecification: NORMAL/SMALL/BIG
SUBTITLE BG: Selecttoadjustsubtitlebackgroundcolor:
TRANSPARENT/YELLOW/GREEN/WHITE/GRAY
SUBTITLE FONTCOLOR: Selecttoadjustsubtitlefontcolor: RED/GREEN/BLUE
STARTRESUME: Selecttoturnon/offresumeplayback (auto-bookmarking)feature formovies.
3.3. PhotoSetting
Changingphotosetting:
Slid showtime: Selecttoadjustslidshowtime:2S/3S/5S/7S
Slid mode: thereare 46slidshowmodeyoucanchoose:RANDOM,0,1…..59
ASPECTRATIO: Keep/Discard

IconBITHDM33HDMIUserManualEnglish 10
4.Browseandplayback
4.1.PhotoPlaymode
Inthismode,allfoldersandsupportedphotosincurrentdirectorywillbedisplayed.Pleasesetthe
previewitemis“On”insetup
BUTTON FUNCTION
UP/DOWN Rotateaphotoinanyangle.
REPEAT Setrepeatoptions: One,All,(and Shuffle).
ENTER Play selectedpictureonFullscreen
PLAY/PAUSE Beginslideshow
STOP Stopslideshow
THUMB Press toshow9picturesmode
ZOOM Zoom in/outtheimage.
PG.UP/PG.DOWN 1)Viewthepreviousornextphotoonplayback mode
2)Viewthepreviousornextpageonbrowsemenu.
LIST INFObutton,showtherelatedinformation
GOTO Beginplaybackgroundmusic.
Note: thesystem willplaytheaudiofilesasbackgroundmusic:
1) Playlist,ifyouhadsetaplaylist
2) Currentdirectory,iftherenoplaylist
3) Rootdirectory,ifthere noaudiofilesincurrentdirectory.Or elsecan’tplaybackgroundmusic

IconBITHDM33HDMIUserManualEnglish 11
4.2.MusicPaymode
BUTTON FUNCTION
UP/DOWN Movethecursorup/down
ENTER Previewthemusicontheright window(Pleasesetthepreview
itemis“on”insetup)
REPEAT Setrepeatoptions: One,All,(andShuffle).
PLAY/PAUSE Beginplayback
REV/F.F Fastrewindorfastforward.Pressrepeatedlytoselectthe
speed.
STOP Stopplayback
FLITER Select/cancelmusicfileswhichyoufavoriteorwhichyou
want todeleteonplaylist
LIST Begintoplaytheaudiofilesthatyouhadselected,andthe
playlistwillbesavedoncurrentmemorydevice.
EXIT 1)Exit PLAYBACKmodeandback topreviousdirectory
2)Exit PLAYLISTmode
PG.UP/PG.DOW
N
1)Browsemenu:viewthepreviousornextpage.
2)Playlist:playthepreviousornextfile.
RED Selectallfilesinplaylistthatwill bedelete
GOTO Starttoplay attheappointedtime.
LISTShowtherepeatstatusunder Play Listmode.
Managing the Playlist
Inthismode,thisplayersupportstheplaylistfunction,whichallowsyoutoaddyourfavoriteaudio
filesonlocalHDD/MemoryCardtotheplaylist,andenjoythematanytime.Theplaylistwill besaved
onthecurrentpartition.
Adding files tothe play list:
Selectthefavoritefileyouwishtoadd,pressthe FLITER button,andthefilewillbeticked.
Press the LIST buttontoconfirm,thena Play LISTMODE willbeshown.
Deletefilesfrom theplaylist:
Selectthedestinationfile,pressthe RIGHT button,andthefilewill bemarked“ ”, andthenpress
ENTER todeletethemimmediately,orwillbedeletewhenyouexittheplaylist.

IconBITHDM33HDMIUserManualEnglish 12
4.3.MoviePlaymode
BUTTON FUNCTION
UP/DOWN Movethecursorup/down
ENTER Previewthevideofileontherightwindow
(Pleasesetthepreviewitemis“on”insetupmenu)
PLAY/PAUSE Beginplayback
REV/F.F Fastrewindorfastforward.Pressrepeatedlytoselectthespeed.
STOP Stopplayback
EXIT ExitPLAYBACKmode
PG.UP/PG.DOWN
1)Viewthepreviousornextpage.
2)Play previousornextmovie.
GREEN Subtitlebutton,switchbetweenmul-subtitle.
LIST INFObutton,showtherelatedinformation
ZOOM Zoom in/outthevideofile.
GOTO Starttoplay attheappointedtime.
AV-OUTSwitchbetween576p,726p,1080i,1080p
REDENTER/EXITFullscreenmode.
16:9 Switchaspectratio.
Track Switchaudio.
4.4.BrowserPlaymode
Filemanage
Inthismode,allfoldersandsupportedcontents(music,photos,andmovies)willbedisplayed.

IconBITHDM33HDMIUserManualEnglish 13
BUTTON FUNCTION
UP/DOWN Movethecursorup/down
ENTER Previewthevideo/music/photosfileontheright
window(Pleasesetthepreviewitemis“on”insetupmenu)
PLAY/PAUSE Beginplayback
REV/F.F Fastrewindorfastforward.Pressrepeatedly toselectthe
speed.
STOP Stopplayback
EXIT 1)Exit PLAYBACKmode; 2)ExitPLAYLISTmode
PG.UP/PG.DOWN Viewthepreviousornextpage
5.SystemUpdate
Selecttoupdatethefirmware fromviaa USBstick:
Download newFWintoUSBstick rootdirectory,thenconnectsit totheUSBHOSTportoftheplayer.
Press ENTER toconfirm.
WWW.ICONBIT.COM
