IconBiT MOVIE3D PRO User manual

iconBIT Movie3D PRO
Quick Start Guide

iconBIT MOVIE3D PRO!English
2
Dear Customer!
Thank you for choosing the iconBIT device. We hope that you will be satisfied by using our
device for home entertainment. The iconBIT multimedia HD-player allows playing high-quality
digital video, audio and photo from different sources on an analogue TV, HDTV (TV supporting
high-definition video), home theater and other devices.
Key Features
This iconBIT Multimedia HD-player has the following functions:
Audio/Video outputs
•HDMI V1.4 for high-definition video and digital audio
•Composite & component video and stereo audio for analog audio-visual connection
•S/PDIF coaxial & optical interface for high-fidelity digital audio
•Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)
Multimedia Playback
•Supports major audio, video and image file formats (1080p HD video decoding)
•Movie format: ASF, AVI, BD-ISO, DAT, DVD-ISO, FLV, IFO, MPG, MP4, M2TS, MKV, MOV,
M4V, TP, TS, TRP, WMV, VOB, RM, RMVB
•Music format: AAC, LC-AAC, HE-AAC, MP2, MP3, FLAC, WAV, MS-ADPCM, WMA (DRM and
Advance Profile or lossless not supported), OGG Vorbis, PCM, LPCM, COOK, RA-Lossless
•Photo format: JPEG, HD JPEG, BMP, GIF, TIF, PNG
•Photo slide show with background music
Interfaces Support
•2 x USB 2.0 HOST port (for external USB storage devices)
•USB 3.0 DEVICE port (for computer connection)
•SD card slot
Network Feature
•A/V streaming/transmission via Ethernet (10/100/1000M) & Wi-Fi (802.11b/g/n)
•A/V streaming via UPnP Media Server
•File sharing via Samba server
•FTP Server
•Internet Radio
•BitTorrent download (controlled and managed via web server)
•Video podcast
File Operation
•File system supported: FAT, FAT32, EXT2
•Copying & moving files to SD Card, USB, HDD, and Network.
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than presented in
this manual.

iconBIT MOVIE3D PRO!English
3
Safety Instructions
Please read the safety instructions carefully prior to using the device. Keep the
instructions in an easily accessible location for further use.
Warning signs
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
the presence of uninsulated
dangerous voltage within the
product’s enclosure the may
be of sufficient magnitude to
constitute a risk of electric
shock to persons.
ALERT: To reduce the risk of
electric shock, do not remove
the back cover. No user
serviceable parts inside. Refer
servicing to qualified service
personnel.
The exclamation point
within an equilateral
triangle, is intended to
alert the user to the
presence of important and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
Precautions concerning power supply:
- Do not plug many devices into one electric socket. This may lead to an overcharge,
combustion or electrical trauma.
- Do not touch the plug with wet hands. This may lead to electrical trauma, short circuiting and
combustion.
- When connecting an electric cable, make sure that the cable is protected from damaging and
is not being subject to any tension.
- It is essential to use the recommended power unit type with characteristics that comply with
the specification.
- If you are not planning to use the media player for a long time, you should disconnect it from
the power system in terms of safety and energy saving. Keep in mind, that even being in
standby mode the device consumes electric energy.
- You should not connect the device to the power system immediately after bringing it from a
cold surrounding to a warm one. Unpack the device and leave it in the warm environment for 2
to 3 hours to let the condensate evaporate from the inner parts of the device.
Effect of radio interference and magnetic field:
- In case of absence of adequate screening virtually any electronic device becomes subject to
radio interference. In some conditions the radio interferences may affect the operation of the
media player.
- The iconBIT media player is designed in compliance with the FCC/CE standard, as well as the
following statements:
a. This player does not produce any harmful interference or emission;
b. When placed close to a source of strong radio interference the player may not be able to
function properly.
- Do not locate the device close to sources of strong magnetic fields. Such field may damage
data on your hard disk. In such case we will not be responsible for integrity of data on your
hard disk.
Installation precautions:
- The device is designed for indoor usage. Do not expose it to direct sunlight; do not locate it
next to any heat sources, heaters, radiators or refrigerating equipment. The operational

iconBIT MOVIE3D PRO!English
4
temperature should be within the range of +5°Сto +35°С.
- Protect the device from getting wet as this may lead to combustion or electrical trauma.
- Do not place any containers with liquid on top or next to the player.
- Do not use the device in high humidity, e.g. in a bathroom or a swimming pool.
- When installing the device in an enclosed space, make sure there is enough space for the
device to cool via heat emission. Do not cover vent holes of the device, so that sufficient
amounts of air could enter the device body.
- Do not place the device on an uneven or unsteady surface. Do not drop the device and
protect it from other objects getting dropped onto it.
Comments on the use of the remote control (RC):
-Point the RC directly at the infrared receiver of the device. Otherwise the RC may not function
properly.
-Handle the RC with care. In case of loss of RC, contact the service centre to order a new one.
A large portion of functions of the device is accessible only via the RC.
Operation precautions:
- Other devices and associated equipment should be connected via audio and video cables only
when the devices are switched off.
- Do not use the device during thunder to prevent breakdown.
- Do not use the player together with any devices, which it does not support – this may lead to
player breakdown.
- Do not push the player buttons to hard.
- When disconnecting the device from PC USB hub, always use the “Safely Remove Hardware”
functionality to prevent data loss.
Using hard disk drive (HDD) – precautions:
- If the device can be provided with an internal HDD for data storage, the device should not be
exposed to severe external impact. This may lead to HDD or player outage.
- Make sure the HDD has cooled down prior to extracting it. The heat emitted by the HDD may
burn the skin.
- The manufacturer is not responsible for loss of personal or any other confidential information
stored on your HDD resulting from physical impact, electric shock, voltage jumps, formatting
etc.
- We recommend periodic backup copying to prevent data loss.
- In case of HDD productivity slowdown or other problems we recommend performing a check
for bad sectors on the HDD and complete defragmentation.
Maintenance:
- When cleaning the device, always unplug the power cable. Use a soft cotton tissue or similar,
that does not produce electrostatic charge.
- Never use gasoline or any other dissolvent for cleaning the player, as they might damage the
device.
- In case of severe dirtying wet wipes for computers may be used.
Comments on equipment repairs:
- It is forbidden for users to modify the design of the device. Do not disassemble the player. In
case of device breakdown due to self-performed repairs or modification, no warranty service
will be provided.
- Should any malfunction appear, the device must be taken to an authorized service centre,
where personnel will perform diagnostics and repair.
Do not dispose the device. The product is recyclable. Utilization
requirements should be met. In some countries utilization of electronic
devices is in the scope of specialized guidelines; please refer to relevant
local organizations for additional information.

iconBIT MOVIE3D PRO!English
5
Remote Control
This media player comes with universal remote control, some buttons can not be functional.
1. Power
2. Eject
3. Mute
4. Audio
5. TV mode
6. Setup
7. Subtitle
8. Aspect Ratio
9. Numeric buttons
10. Menu
11. Title
12. Home
13. Return
14. Navigational
buttons
15. OK
16. Info
17. Time Seek
18. VOL+/-
19. Prev/Next
20. FR
21. Stop
22. FF
23. Repeat
24. Play/Pause
25. Slow
26. Zoom
27. Bookmark
28. TV buttons
29. Color buttons
No.
Button
Function
1
Power
Press to enter standby mode or wake up.
2
Eject
Press to safely remove the USB device.
3
Mute
Press to mute audio output, and press again to resume.
4
Audio
Press to select an audio track.
5
TV mode
Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I, and
1080P.
6
Setup
Press to enter the setup menu.

iconBIT MOVIE3D PRO!English
6
7
Subtitle
Press to set subtitle options. You can change the color/size/offset/
text encoding of subtitle.
8
Aspect Ratio
Press to change the screen aspect ratio.
9
Numeric
buttons
Press to enter channel numbers or numeric input when changing
settings.
10
Menu
Press to enable the option menu, where you can change the review
mode of file manager and media library;
Press to display or hide the option menu during playback.
11
Title
Press to show title.
12
Home
Press to enter the home screen.
13
Return
Press to return to the previous screen while navigating menus.
14
Navigational
buttons
Press the arrow buttons to select menu options, and the OK button to
confirm.
Press Up/Down to rotate a photo during photo playback.
15
OK
Press OK button to confirm.
16
Info
Press to display current status.
Press during playback, an onscreen display appears showing track
number and time elapsed/remaining.
17
Time Seek
Press to jump to a specific point on a title. Specify the point using
Title, Chapter and Time.
18
VOL+/-
Press to increase or decrease the volume.
19
Prev./Next
Press to view the previous/next file; page up/ page down.
20
FR
Press to fast rewind the current playback. Press repeatedly to select
speeds.
21
Stop
Press to stop playback.
22
FF
Press to fast forward the current playback. Press repeatedly to select
speeds.
23
Repeat
Press to set repeat option.
24
Play/ Pause
Press to begin/pause playback.
25
Slow
Press to play back in slow motion. Press the Play button to resume
regular playback.
26
Zoom
Press to zoom the image (photo or video).
27
Bookmark
Press to go to the bookmarks page.
28
TV Buttons
These buttons can be assigned to control TV functions.
29
Color
Buttons
These buttons may have different functions according to the current
menu.

iconBIT MOVIE3D PRO!English
7

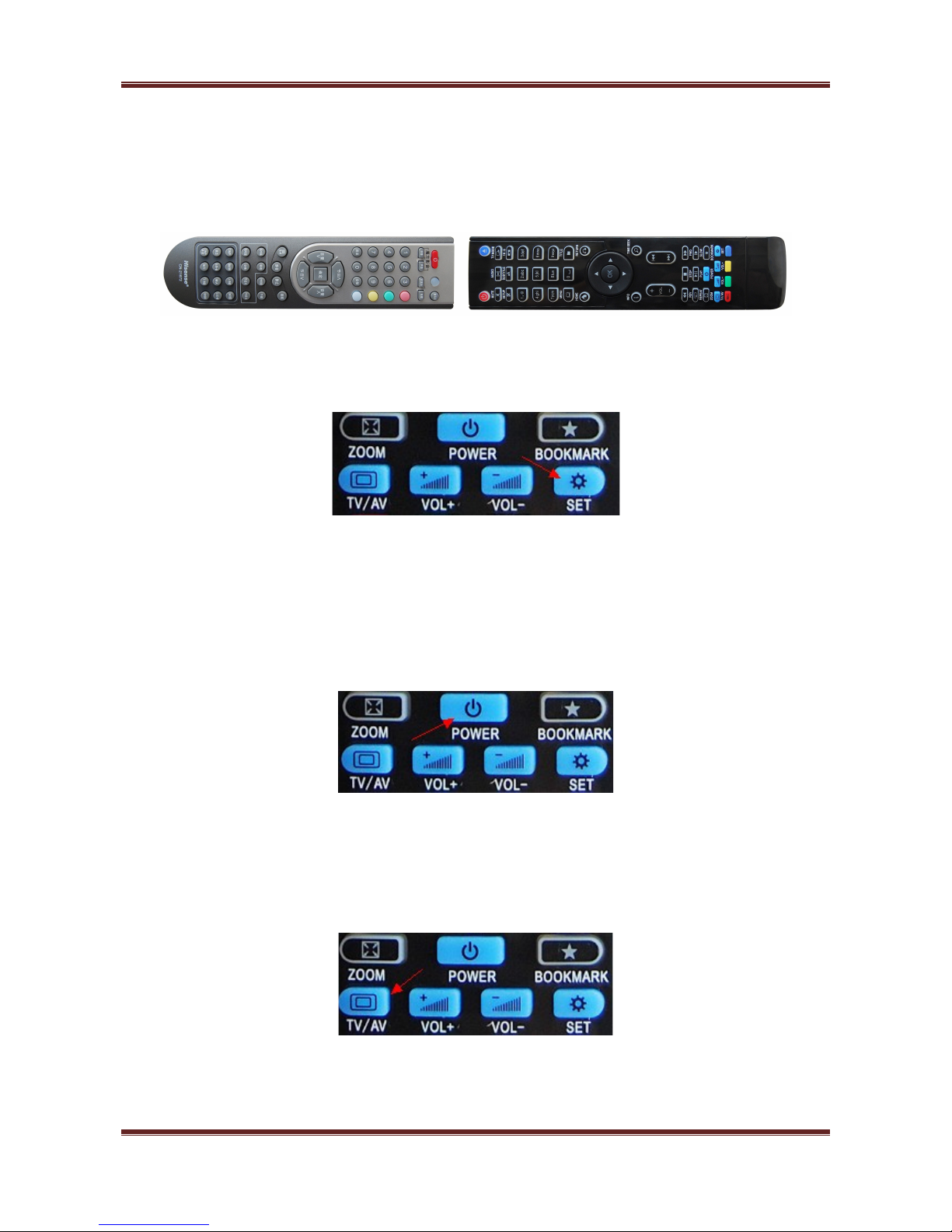

Using Universal Remote control
1. Please target the Universal Remote Control to the TV Remote Control.
TV R.C
Universal RC
2. Please press the SET button for long time (about 3 seconds), and wait and see the LED
light is ON, the Universal RC is copying the TV R.C code.
3. Then please press the button Power, and the Universal RC LED light will be flash for one
time, and then press the TV R/C Power button again, and the LED light will display to
Flash-light for 3 times. And the Universal RC is preparing for the code-reading status. And
at the moment, the TV remote Power code is coped by the Universal RC Power code.
4. At the Code-reading status, please press "AV/TV" button, the LED light flash by one time,
and then press TV remote control "Source/TV mode" button, the Universal RC LED light
will flash by 3 times. Then the TV/AV button code is coped by the Universal R/C.

iconBIT MOVIE3D PRO!English
8

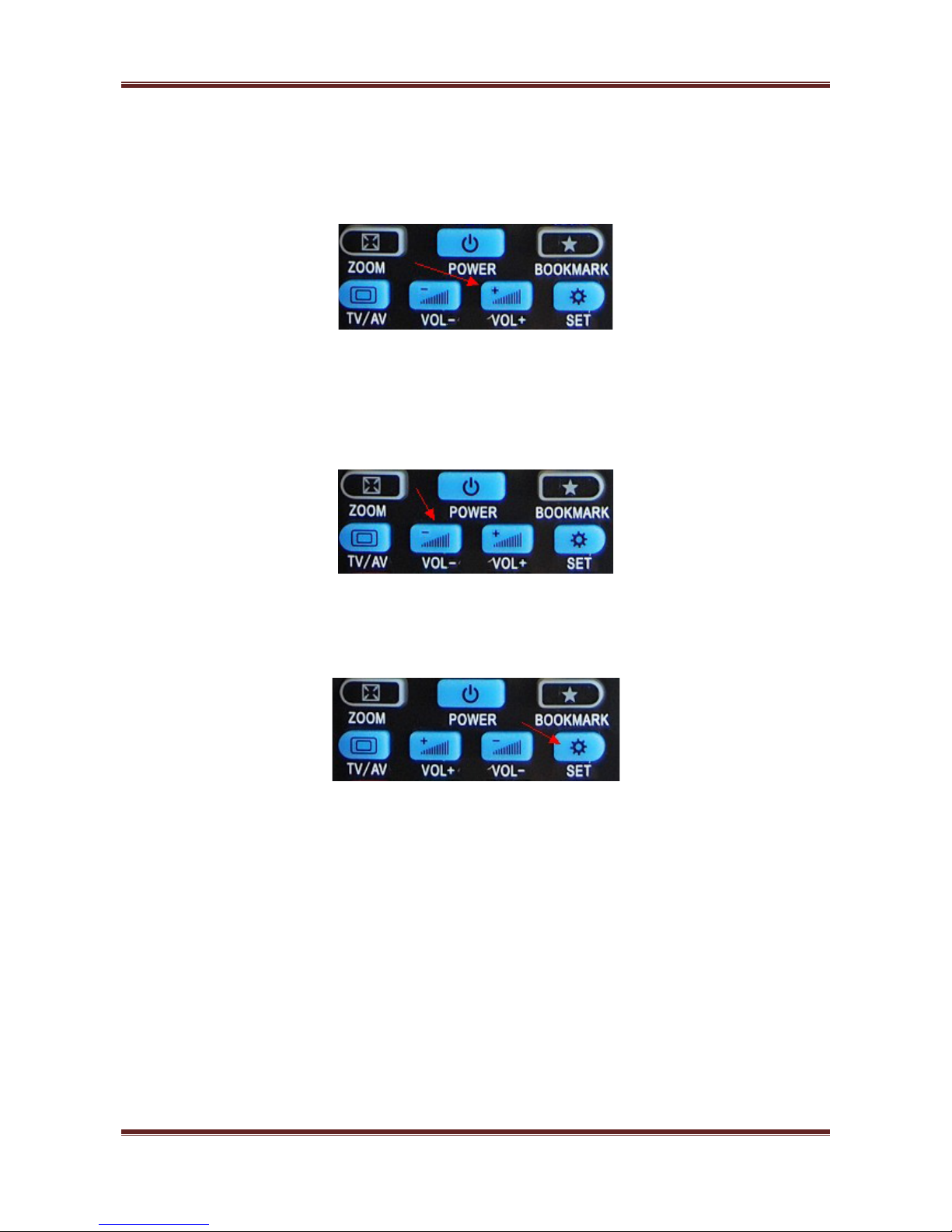

5. At the Code-reading status, please press "Vol+" button, the LED light flash by one time,
and then press TV remote control "Vol+" button, the Universal RC LED light will flash by 3
times. Then the "Vol+" button code is coped by the Universal R/C.
6. At the Code-reading status, please press "Vol-" button, the LED light flash by one time,
and then press TV remote control "Vol-" button, the Universal RC LED light will flash by 3
times. Then the "Vol-" button code is coped by the Universal R/C.
7. Last step is to press the button SET on the Universal RC is to save the setup for all buttons
code.
Note: For the special equipment RC code, this remote control cannot support and copy. And
for accurate and efficient code-reading, please make sure the RC Full battery charged.

iconBIT MOVIE3D PRO!English
9

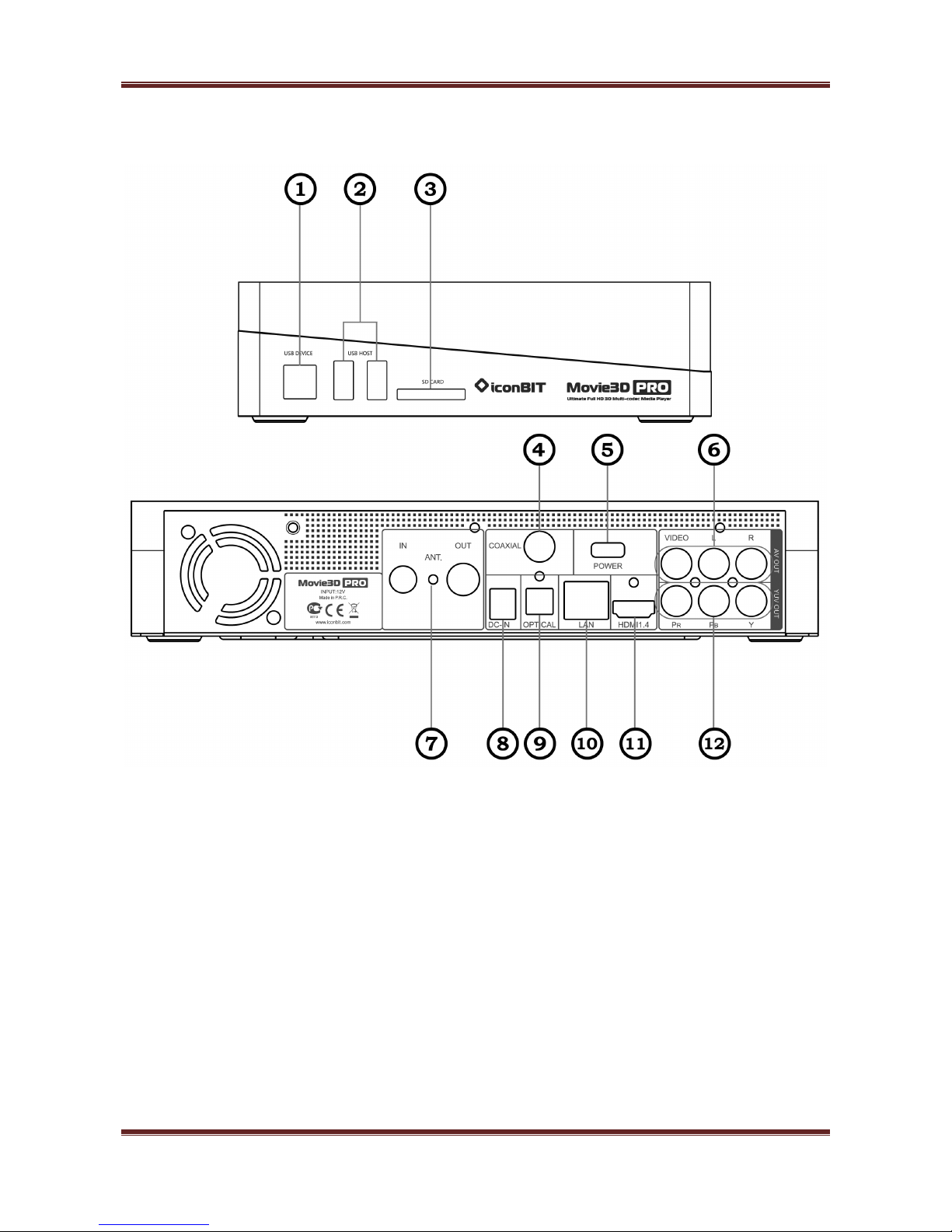

Side and Back Panel
1. USB 3.0 Device port
2. USB 2.0 HOST ports
3. Memory Card slot
4. S/PDIF Coaxial jack
5. Power Button
6. A/V OUT jack
7. ANT./RF IN and OUT sockets
8. Power input
9. S/PDIF Optical jack
10. Gigabit LAN socket
11. HDMI interface
12. Y/Pb/Pr OUT jack

iconBIT MOVIE3D PRO!English
10
Connection

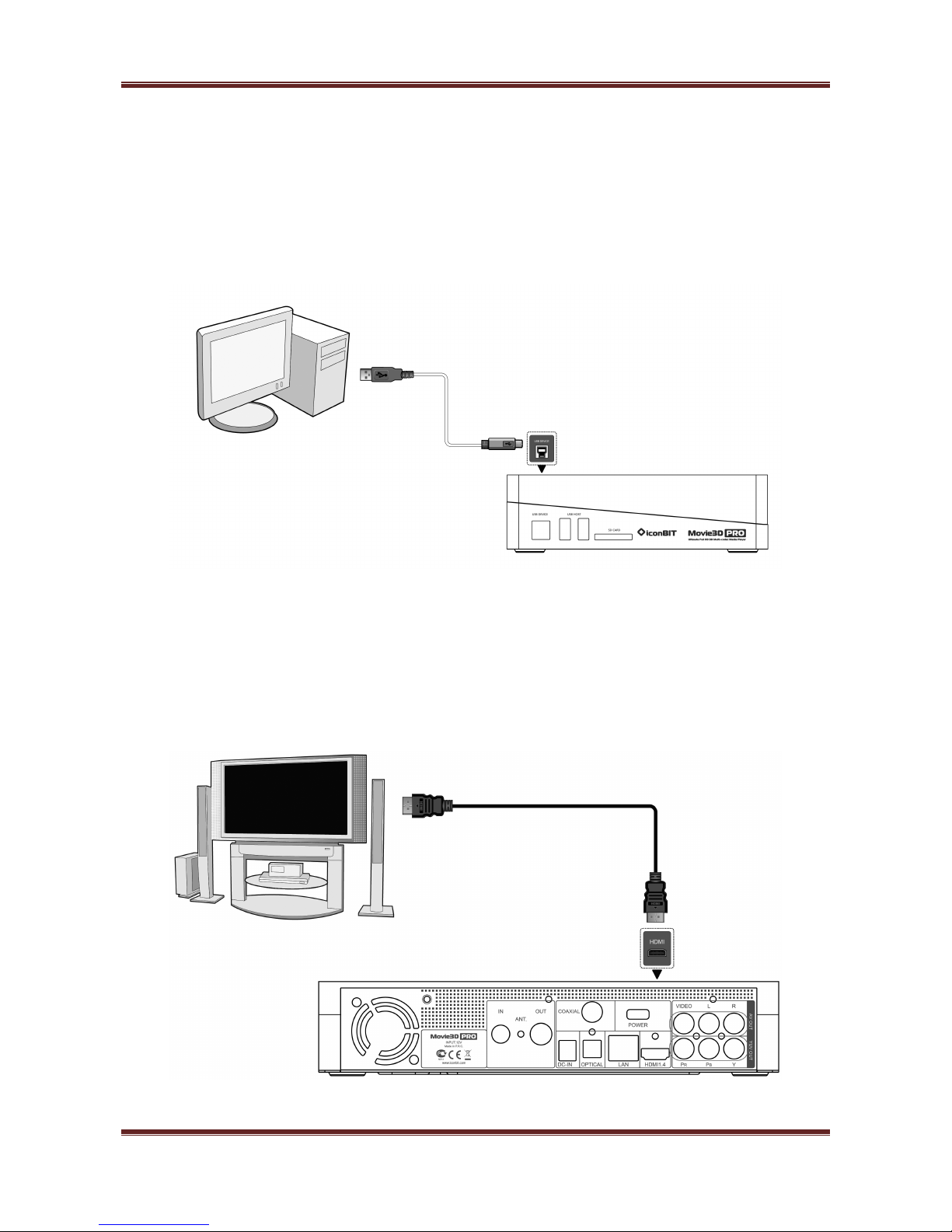

Connecting to a PC
This product can be used as a portable external storage device with its built-in SATA interface
and high-speed USB 3.0.
1. Make sure the player is powered on.
2. Connect the device to PC with the USB3.0 cable.
Note: A USB 3.0 cable is necessary to use this product as a portable external storage device.
USB 2.0 cable is useless.
TV Connection
Depending on the jacks on your TV, select the connection mode. We suggest you to use HDMI
output (High Definition, up to 1080p). Picture quality will be improved compared to using the
composite video output (Standard Definition, use A/V OUT jack).

iconBIT MOVIE3D PRO!English
11

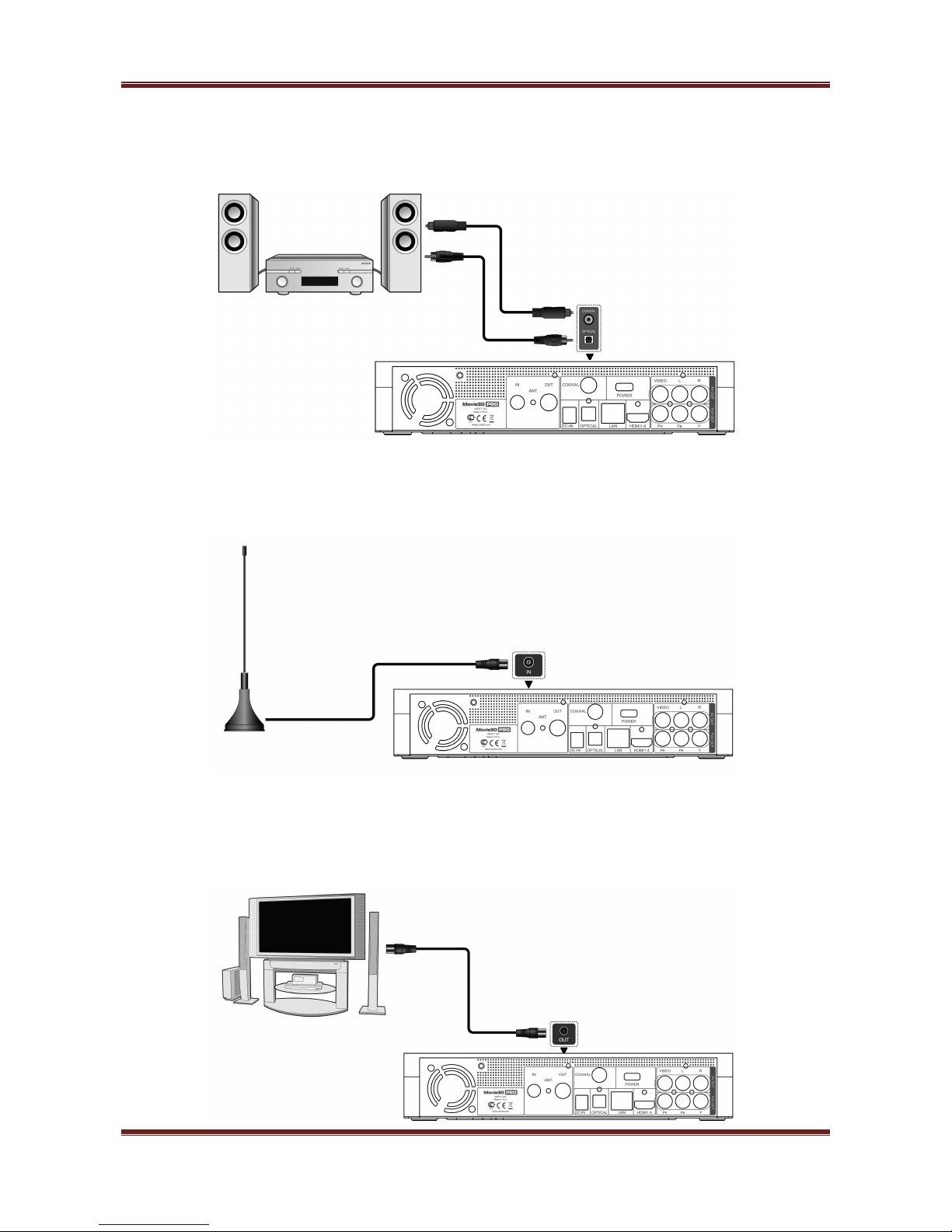

Digital Audio Device Connection
Except for HDMI interface, this player can output digital audio to amplifier through SPDIF
optical or coaxial jack.
DVB-T signal input
Follow the picture and plug a TV Aerial to the ANT. / RF IN socket;
DVB-T signal output
The player can loop out the DVB-T signal to other TV receiver device by following steps.
Plug in power adaptor to the player’s DC IN jack !Connect a TV aerial to the ANT. / RF IN
socket !Follow the picture and plug a TV cable to the ANT. / RF OUT socket then plug the
cable to a TV or other TV receiver.

iconBIT MOVIE3D PRO!English
12
Player Usage
Menu Language
The system language of this player can be set to English or other languages. Change the
language you wish in the setup menu, the selected language will take effect immediately.
HDD Format
For users who wish to install a new SATA HDD into the player, first you need format the hard
disk on the player before usage. Otherwise many functions can’t be used, such as BT download,
Transmission.
You can format your HDD via Setup !System !Format menu.
The formatting procedure will be finished within a few minutes. And then you can use the hard
disk properly on the player.
Note:
HDD format will remove all data stored on the hard disk drive. Please take care and backup
your data in advance!

iconBIT MOVIE3D PRO!English
13
Warranty Information
Obtaining Service
iconBIT values your business and always attempts to provide you the very best of service. If this Product
requires maintenance, either contact the dealer from whom you originally purchased the Product or visit
our product support Web site at www.iconbit.com. Your original box and packaging materials should be
kept for storing or shipping your iconBIT product. iconBIT shall have no liability for lost data regardless of
the cause, recovery of lost data, or data contained in any Product placed in its possession.
Limited Warranty
iconBIT warrants that the Product, in the course of its normal use, will for the term defined below, be free
from defects in material and workmanship and will conform to specification therefore. The term of your
limited warranty is 1 (one) year. The term of your limited warranty period shall commence on the
purchase date appearing on your purchase receipt. Subject to the limitations specified below, your sole
and exclusive warranty shall be, during the period of warranty specified above and at iconBIT’s option,
the repair or replacement of the Product.
Warranty does not cover:
- Acts of nature, such as fire, static discharge.
- Damage from unauthorized repair, alteration or accident.
- Damage from misuse or neglect.
- A unit that has been modified or incorporated into other products or is used for institutional or other
commercial purposes.
- Loss of customer’s software, firmware, information, or memory data.
- Improper handling or installation.
- The serial number of the product is defaced or missing.
The foregoing limited warranty is iconBIT’s sole warranty and is applicable only to products sold as new.
The remedies provided herein are in lieu of a) any and all other remedies and warranties, whether
expressed, implied or statutory, including but not limited to, any implied warranty of merchantability or
fitness for a particular purpose, and b) any and all obligations and liabilities of iconBIT for damages
including, but not limited to accidental, consequential, or special damages, or any financial loss, lost
profits or expenses, or lost data arising out of or in connection with the purchase, use, or performance of
the Product, even if iconBIT has been advised of the possibility of such damages.
GNU General Public License (“GPL”)
Firmware incorporated into this product may include third party copyrighted software licensed under the
GPL (“GPL Software”). The Free Software is copyrighted by Free Software Foundation, Inc. and the
program is licensed “As is” without warranty of any kind.
You may re-use, re-distribute, and modify the GPL Software. Users are free to download the base source
code of the iconBIT players at the following Address: www.iconbit.com. The source code can be sent to
your address via mail for a charge of actual expense executed. Please contact us at [email protected].
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public
License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.
This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You
can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that
you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can
get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these
things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

iconBIT MOVIE3D PRO!English
14
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you
have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their
rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free
software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the
original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that
any patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work
based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is
included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of
running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the
Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the
notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this
License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for
a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and
distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part
thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such
interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice
that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these
conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally
print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and
can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work
based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend
to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a
volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms
of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of
physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under
the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed
only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord
with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete
source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to
control compilation and installation of the executable. However, as a special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access
to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to
copy the source along with the object code.

iconBIT MOVIE3D PRO!English
15
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License.
However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as
such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or
distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the
original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to
this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do
not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent
license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you,
then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to
apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such
claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by
public license practices. Many people have made generous contributions to the wide range of software distributed through that system
in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software
through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates
the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new
versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and
"any later version", you have the option of following the terms and conditions either of that version or of any later version published by
the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever
published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the
author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all
derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO
THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE
COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER
PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED
BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR
OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS

iconBIT MOVIE3D PRO!English
16
Copyrights and Trademarks
Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks are property of their respective holders.
Manufactured under license under U.S. Patent
#’s:5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents issued &
pending. DTS and DTS 2.0 + Digital Out are registered
trademarks and the DTS logos and Symbol are trademarks
of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
Copyrights
All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any
means, whether by electronically or mechanically, without the express written permission from the
copyright holder. Copyrighted materials, such as software, music files, or movies, are protected by local
law, and may not be illegally copied or used without permission from the copyright owner.
Information furnished by iconBIT is believed to be accurate and reliable; however, no responsibility is
assumed by iconBIT for its use nor for any infringement of patents or other rights of third parties which
may result from its use. iconBIT reserves the right to change specifications at any time without notice.
iconBIT – trademark of iconBIT Limited.
© 2012 iconBIT Limited. All rights reserved.
iconBIT Limited.
Suite 1604-5, Wilson House, 19-27 Wyndham Street, Central, Hong Kong.
Phone: [phone], Fax: [phone]
www.iconbit.com

iconBIT MOVIE3D PRO!Deutsch
17
Liebe Kundin, lieber Kunde!
Vielen Dank, dass Sie sich für ein Gerät von iconBIT entschieden haben. Wir hoffen, dass Sie
mit seiner Verwendung als Unterhaltungsgerät zufrieden sind. Der HD – Multimediaplayer
iconBIT Movie3D PRO dient dem Abspielen von hochwertigen digitalen Filmen, Musik- und
Video-Dateien aus verschiedenen Quellen auf einem TV, HDTV (Fernseher/LCD mit hoher
Auslösung), Heimkinosystem und andere Geräten.
Hauptfunktionen
Dieser HD – Multimediaplayer iconBIT hat folgende Funktionen:
Audio-/Videoanschlüsse
•Anschluss HDMI V1.4 für die Übertragung eines hochwertigen Videosignals und des
digitalen Tons
•Komposit-, Component-Video-Anschlüsse und stereo Audio-Anschluss für analoge Geräte.
•Optisches und koaxiales S/PDIF-Interface für die Übertragung eines hochwertigen digitalen
Audio – Signals
•Auswahlmöglichkeit der gewünschten Auslösungen (NTSC, PAL, 480p, 576p, 720p, 1080i,
1080p)
Abspielen von Media-Dateien
•Unterstützung von vielen Audio-Videoformaten und Bildern (unterstützt werden dekodierte
Videos mit hoher Auflösung 1080p)
•Unterstützung folgender Video-Formate:
AVI/MKV/TS/MPG/MP4/MOV/VOB/ISO/IFO/DAT/WMV/RM/RMVB/BD ISO/BD MV
•Unterstützung folgender Audio-Formate: MP3/OGG/WMA/WAV/AAC/FLAC
•Unterstützung folgender Bildformate: HD JPEG/BMP/PNG
•Slideshow mit Musik im Hintergrund
Unterstützte Interfaces
•2 x USB 2.0 HOST (für das Anschließen externerUSB-Speicher)
•1 x USB 3.0 DEVICE (für den Anschluß an einen Computer)
•Einen Slot für Speicherkarten
Netzmöglichkeiten
•Streaming-Abspielen/Übertragung von Audio- und Videodateien durch das Internet
(10M/100M/1000M), Wi-Fi (802.11b/g/n)
•Streaming-Abspielen von Audio- und Videodateien durch einen UPnP Media Server
•Herunterladung durch das Programm BitTorrent (Kontrolle und Verwaltung durch einen
•Web-Server)
Datei - Operationen
•Unterstützung folgender Dateisysteme: FAT/FAT32/EXT2
•Unterstützt das Kopieren und Übertragung der Dateien zwischen Speicherkarten, Festplatte
und Netzgeräten
Anmerkung: Die Information in der Bedienungsanleitung ist zur Zeit der Veröffentlichung
aktuell. Unsere Ingenieure modernisieren und verbessern das Gerät, infolgedessen kann sich
die Software Ihres Geräts von dieser Bedienungsanleitung durch Funktionen und Aufmachung
unterscheiden.

iconBIT MOVIE3D PRO!Deutsch
18
Sicherheitshinweise
Lesen Sie die Sicherheitshinweise sorgfältig durch, bevor Sie den Mediaplayer in
Betrieb nehmen. Bewahren Sie die Bedienungsanleitung an zugänglicher Stelle auf,
um sie weiter zu verwenden.
Warnzeichen
Das Blitzzeichen im
Dreieck warnt den
Benutzer vor
Hochspannung und Gefahr
eines elektrischen Schlags
ACHTUNG: Um das Risiko eines elektrischen
Schlags zu vermeiden, öffnen Sie nicht das
Gehäuse(oder nehmen Sie die Unterschale ab).
Das Gerät enthält keine Komponenten, die vom
Benutzer bedient werden. Wenden Sie sich an
ein spezialisiertes Service-Zentrum, um das
Gerät zu reparieren.
Das Ausrufezeichen im Dreieck
weist auf spezielle Regeln des
Verbrauchs vom Gerät hin. Lesen
Sie die Bedienungsanleitung.
Hinweise zur Spannungsversorgung
- Schließen Sie nicht zu viele Geräte an eine Steckdose an. Zu viele Geräte können zu
Überlastung, Brand oder einem elektrischen Schlag führen.
- Niemals mit nassen Händen den Stecker anfassen, das kann zu einem elektrischen Schlag,
Kurzschluss oder Brand führen.
- Beim Anschliessen des elektrischen Kabels beachten Sie, dass es vor Verletzungen geschützt
und nicht unter Druck gesetzt wird.
- Nur empfohlene Netzanschlussgeräte mit den angegebenen Spezifikationen und
Charakteristiken verwenden.
- Den Mediaplayer aus Sicherheitsgründen von der Stromquelle abziehen, wenn dieser für
längere Zeit nicht benutzt wird. Vergessen Sie nicht, dass das Gerät sogar im Standby-Betrieb
mit Spannung versorgt wird.
- Das Gerät nicht gleich an das Netz anschließen, wenn dieses aus einer kalten Umgebung in
einen warmen Raum gebracht wird. Packen Sie das Gerät aus und lassen es für 2-3 Stunden in
einem warmen Raum, damit das Kondensat aus dem Innenraum verdampft.
Einflüsse von Funkstörungen und Magnetfeldern
- Fast alle elektronischen Geräte sind den Einflüssen von Funkstörungen ausgesetzt, wenn sie
nicht passend abgeschirmt werden.Unter Umständen können Funkstörungen auch den
Mediaplayer beeinflussen.
- Der Mediaplayer iconBIT wurde entsprechend dem FCC/CE-Standart und folgenden Sätzen
gebaut:
a. Der Player ist keine Quelle gefährlicher Strahlungen.
b. Der Player kann in der Nähe von Quellen starker Funkstörungen gestört werden.
- Das Gerät nicht in die Nähe von Quellen eines starken Magnetfeldes stellen. Es können
Dateien auf Ihrer Festplatte beschädigt werden. In diesem Fall tragen wir keine Verantwortung
für die Information auf Ihrer Festplatte.
Vorsicht bei der Aufstellung:
- Das Gerät nicht im Freien verwenden. Den Mediaplayer nicht direkter Sonneneinstrahlung
aussetzen oder in die Nähe von Wärmequellen, Heizbatterien, Heizkörpern, Kühlanlagen stellen.
Umgebungstemperatur soll +5°C - +35°C sein.
- Lassen Sie kein Wasser an das Gerät kommen, das kann zu Brand oder zu einem
elektrischem Schlag führen.
- Stellen Sie keine Objekte neben oder auf dem Gerät ab, die Flüssigkeiten enthalten.
- Das Gerät nicht in einem feuchten Raum benutzen(z.B. in einem Schwimmbad oder

iconBIT MOVIE3D PRO!Deutsch
19
Badezimmer).
- Vergewissern Sie sich, dass das Gerät so aufgestellt ist, dass genügend Raum für die Lüftung
vorhanden ist, um das Gerät durch freie Wärmeableitung zu kühlen. Blockieren Sie keine
Belüftungsöffnungen des Players, um den normalen Luftzugang zum Gehäuse zu sichern.
- Den Mediaplayer auf eine feste, ebene Fläche stellen. Lassen Sie das Gerät nicht fallen oder
andere Dinge auf das Gerät fallen.
Anmerkungen zur Arbeit mit der Fernbedienung
- Richten Sie die Fernbedienung direkt auf den Infrarotempfänger des Gerätes, sonst kann die
Fernbedienung nicht korrekt funktionieren.
- Bewahren Sie die Fernbedienung sorgsam auf. Wenn Sie die Fernbedienung verloren haben,
wenden Sie Sich an das Service-Zentrum, um sie zu ersetzen. Die meisten Funktionen des
Produkts stehen Ihnen nur per Fernbedienung zur Verfügung.
Vorsicht bei Verwendung:
- Das Gerät mit Audio-/Videokabel nur im ausgeschalteten Zustand anschließen.
- Verwenden Sie das Gerät nicht während eines Gewitters, um eine Beschädigung zu
vermeiden.
- Verwenden Sie keine Geräte, die mit dem Player nicht kompatibel sind. Das kann zu einer
Beschädigung des Players führen.
- Drücken Sie die Tasten nicht zu kräftig.
- Nutzen Sie beim Abklemmen eines USB-Gerätes die Funktion «USB-Gerät sicher entfernen»,
um die Beschädigung der Dateien zu vermeiden.
Vorsicht bei der Arbeit mit der Festplatte:
- Ist das Gerät mit einer internen Festplatte für die Datenspeicherung ausgestattet, setzen Sie
das Gerät nicht starken äußeren Einwirkungen aus. In diesem Fall könnte die Festplatte oder
das Gerät beschädigt werden.
- Bevor das LCD-Display ausgesteckt wird, überzeugen Sie sich, dass es abgekühlt ist. Die von
der Festplatte abgesetzte Wärme kann eine Verbrennung auslösen.
- Der Hersteller trägt keine Verantwortung, wenn auf Ihrer Festplatte gespeicherte private oder
vertrauliche Information infolge einer mechanischen Einwirkung, eines Elektroschocks, einer
Überspannung, einer Formatierung u.s.w. verloren gehen.
- Wir empfehlen eine regelmäßig Datensicherung Ihrer Daten zu machen, um Datenverlust zu
vermeiden.
- Wenn der Durchsatz der Festplatte gesunken ist oder im Fall anderer Probleme, empfehlen
wir Ihnen, die Festplatte auf beschädigte Sektoren zu prüfen und vollständig zu
defragmentieren.
Produktpflege
- Das Gehäuse des Mediaplayers mit einem weichen Tuch aus Baumvolle (oder aus einem
ähnlichen Stoff, so dass keine statische Entladung verursacht wird) reinigen.
- Verwenden Sie keine lösungsmittelhaltige Reinigungsmittel oder Benzin zur Reinigung.
- Ist das Gerät stark verschmutzt, verwenden Sie feuchte PC-Tücher.
Anmerkungen zum Reparieren des Gerätes:
- Es ist verboten, die Konstruktion des Gerätes selbst zu ändern. Zerlegen Sie das Gerät nicht.
Durch eigenhändige Reparatur oder Modifikation des Gerätes verursachten Schäden fallen
nicht unter die Garantie und Servicebedienung.
- Ist das Gerät beschädigt, bringen Sie es in ein autorisiertes Servicezentrum, damit eine
qualifizierte Diagnose und Reparatur durchgeführt werden kann.
Entsorgen Sie dieses Gerät nicht über den Hausmüll. Das Gerät kann
recycelt werden. Es ist notwendig, Entsorgungsregeln solcher Produkte
einzuhalten. In einigen Ländern ist die Entsorgung elektronischer
Geräte geregelt. Wenden Sie sich an dafür zuständige örtliche
Organisationen, um ergänzende Information zu erhalten.

iconBIT MOVIE3D PRO!Deutsch
20
Fernbedienung
Dieses Gerät wir mit einer Universalfernbedienung geliefert. Manche Tasten können
funktionslos sein.
1. Power
2. Eject
3. Mute
4. Audio
5. TV mode
6. Setup
7. Subtitle
8. Aspect Ratio
9. Digitale Tasten
10. Menu
11. Title
12. Home
13. Return
14. Navigationstasten
15. OK
16. Info
17. Time Seek
18. VOL+/-
19. Prev/Next
20. FR
21. Stop
22. FF
23. Repeat
24. Play/Pause
25. Slow
26. Zoom
27. Bookmark
28. TV Tasten
29. Farb-Tasten
No.
Taste
Funktion
1
Power
Standby-Modus ein/ausschalten.
2
Eject
Drücken Sie diese Taste um ein USB-Gerät sicher zu entfernen.
3
Mute
Schaltet Ton ein/aus.
4
Audio
Drücken Sie diese Taste, um den Audiokanal umzuschalten.
5
TV Mode
Wählt Auslösung NTSC, PAL, 480P, 576P, 720P, 1080I und 1080P
aus.
6
Setup
Ruft das Einstellungsmenü auf.
7
Subtitle
Drücken Sie diese Taste, um Untertitel auszuwählen. Sie können
Farbe, Größe, Kodierung und Stellung ändern.
