PDS Series User Manual ( V1.4, Oct. 2009) ----- 1
Programmable Device Server
(For PDS(M)-700, PPDS(M)-700-MTCP, DS-700, PPDS-700-IP67)
User Manual
Programmable Device Server New Features
1. Virtual COM Technology Your Powerful Tools
2. Virtual I/O Technology
3. Web-server Technology Create New Ideas
4. MiniOS7 & Xserver Inside
5. Programmable Solution Create New Applications
6. Industrial PoE Solution
7. Modbus/TCP to Modbus/RTU Gateway
Warranty
All products manufactured by ICP DAS are under warranty regarding defective materials for a
period of one year, starting from the date of delivery to the original purchaser.
Warning
ICP DAS assumes no liability for damages resulting from the use of this product. ICP DAS
reserves the right to change this manual at any time without notice. The information furnished
by ICP DAS is believed to be accurate and reliable. However, no responsibility is assumed by
ICP DAS for its use, nor for any infringements of patents or other rights of third parties
resulting from its use.
Copyright
Copyright 2008 by ICP DAS. All rights are reserved.
Trademark
The names used for identification only may be registered trademarks of their respective
companies.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 2
Table of Contents
1. INTRODUCTION 6
1.1. W HY E THERNET S OLUTIONS ?7
1.2. W HY V X C OMM T ECHNOLOGY ?8
1.3. W HY W EB S ERVER T ECHNOLOGY ?10
2. TYPICAL APPLICATIONS FOR THE PDS 11
2.1. RS-232/485/422 D EVICE N ETWORKING 11
2.2. E THERNET I/O A PPLICATIONS 12
2.3. L INKING I-7000 S ERIES M ODULES TO AN E THERNET N ETWORK 13
2.4. C ONFIGURABLE E THERNET D ATA L OGGER 13
3. HARDWARE INFORMATION 16
3.1. F EATURES 16
3.2. S PECIFICATIONS 17
3.3. PDS C OMPARISON T ABLE 25
3.4. P IN A SSIGNMENTS 29
3.5. PDS W IRING C ONNECTIONS 63
3.6. D IMENSIONS AND M OUNTING 65
3.7. PDS SERIES D IAGNOSTICS 70
4. SETTING UP THE PDS MODULE 74
5. CONFIGURATION WITH WEB BROWSER 81
5.1. C ONNECTING TO THE PDS S ERIES M ODULE 81
5.2. N ETWORK S ETTINGS 82
5.3. IP FILTER SETTING 85
5.4. COM P ORT S ETTINGS 86
5.5. P AIR C ONNECTION S ETTING ?92
5.6. M ISCELLANEOUS SETTINGS 94
6. MODBUS TESTING & PROTOCOL 96
6.1. M ODBUS /TCP TO M ODBUS /RTU G ATEWAY 97
6.2. T ESTING M ODBUS DEVICE THROUGH V IRTUAL COM P ORTS 100
7. VIRTUAL I/O 103
7.1. T ESTING THE V IRTUAL I/O 103
7.2. V IRTUAL I/O C OMMANDS T EST 107

PDS Series User Manual ( V1.4, Oct. 2009) ----- 3
7.3. P ROGRAMMING ON A PC CLIENT 109
8. VIRTUAL I/O COMMANDS 117
8.1. $AA5 119
8.2. $AA6 120
8.3. $AAC 121
8.4. $AAC N 122
8.5. $AAGCN 123
8.6. $AAL S 124
8.7. $AAF 125
8.8. $AAM 126
8.9. @AA 127
8.10. @AA(D ATA ) 128
8.11. #AA N 129
8.12. #AA00 DD 130
8.13. #AA1 NDD 131
8.14. ~** 132
8.15. ~AA0 133
8.16. ~AA1 134
8.17. ~AA2 135
8.18. ~AA3 EFF 136
8.19. ~AA4P 138
8.20. ~AA4S 139
8.21. ~AA5P 140
8.22. ~AA5S 141
8.23. A PPLICATION N OTES 142
9. CONSOLE / TELNET COMMANDS LIST 145
9.1. O PERATION F LOWCHART 145
9.2. R EGULATE I NIT /N ORMAL M ODE 146
9.3. C OMPARISON S HEET (I NIT /R UN /C ONSOLE M ODES ) 149
9.4. C OMMAND L IST 150
APPENDIX A: LINKING TO A DEVELOPMENT PC 172
APPENDIX B: FRAME GROUND 175
GLOSSARY 177
1. E THERNET 177
2. I NTERNET 177

PDS Series User Manual ( V1.4, Oct. 2009) ----- 4
3. TCP/IP 177
4. TCP (T RANSMISSION C ONTROL P ROTOCOL )177
5. UDP (U SER D ATAGRAM P ROTOCOL )177
6. G ATEWAY 177
7. IP (I NTERNET P ROTOCOL ) ADDRESS 178
8. MAC (M EDIA A CCESS C ONTROL ) ADDRESS 178
9. S UBNET M ASK 178
10. ARP (A DDRESS R ESOLUTION P ROTOCOL )178
11. RARP (R EVERSE A DDRESS R ESOLUTION P ROTOCOL )179
12. ICMP (I NTERNET C ONTROL M ESSAGES P ROTOCOL )179
13. P ING 179
14. P ACKET 179
15. S OCKET 179
16. C LIENTS AND S ERVERS 180
17. F IRMWARE 180
FAQ 181
1. H OW TO ACCESS THE REMOTE PDS THAT PLACED BEHIND AN NAT OR FIREWALL ? 181
2. H OW TO OPEN A VIRTUAL COM PORT THAT LARGER THAN "COM 9" BY CALLING C REATE F ILE () W IN 32 API? 182
3. D OES V X C OMM D RIVER (PC) V 2.00 WORK WITH V X C OMM S ERVER V 2.6.00? 183
4. D OES V X C OMM D RIVER (PC) SUPPORT AUTO - RECONNECTION AFTER FIXING A NETWORK BREAK ?183
5. W HY DOESN ' T THE V X C OMM D RIVER (PC) RECEIVE DATA FROM THE PDS SERIES MODULE ?184
6. D OES THE TRANSMISSION SPEED BECOME FASTER WHEN THE SERIAL DEVICE WORKING WITH S ERIAL TO E THERNET
DEVICE SERVERS ?185
7. W HY DOES THE PDS SERIES MODULE FAIL ON A ( PUBLIC ) I NTERNET CONNECTION ?187
8. C AN I USE THE S ET C OMM S TATE ( ) API TO CHANGES THE B AUD R ATE / DATA FORMAT SETTINGS OF A VIRTUAL COM
PORT ?189
9. H OW MANY PC S CAN BE CONNECTED TO A SINGLE PDS DEVICE ?189
10. C AN I SEARCH OR CONNECT TO PDS WHEN MY PC’ S IP ADDRESS IS NOT IN THE IP FILTER LIST OF PDS? H OW CAN I
SOLVE IT ?191

PDS Series User Manual ( V1.4, Oct. 2009) ----- 5
Packing List
The package includes the following items:
One (Programmable) Device Server hardware module
One companion DVD
One RS-232 download cable, CA-0910
(Only for PDS(M)-700(D), PPDS(M)-700(D)-MTCP )
One Quick Start Guide
Note:
If any of these items are missed or damaged, contact the local distributors for more
information. Save the shipping materials and cartons in case you want to ship in the future.
More Information:
Documentations
CD: Napdos\PDS\PDS-700\Document
http://ftp.icpdas.com/pub/cd/8000cd/napdos/pds/pds-700/document/
VxComm Driver (Virtual COM)
CD: \NAPDOS\ Driver\VxComm_Driver
http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/
Firmware
CD:\ Napdos\PDS\PDS-700\VxComm\Server(PDS)
http://ftp.icpdas.com/pub/cd/8000cd/napdos/pds/pds-700/vxcomm/server(pds)/
MiniOS7
CD:\NAPDOS\PDS\PDS-700\OS_image
http://ftp.icpdas.com/pub/cd/8000cd/napdos/pds/pds-700/os_image/
Quick Start
4.
1.
2.
3.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 6
1.Introduction
The PDS-700 series is a family of Programmable Device Servers, also known as
"Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to
an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily
turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC.
By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-
700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure
that allows you to design your robust Ethernet applications in one day. The built-in,
high-performance MiniOS7 boots the PDS-700 up in just one second and gives you
fastest responses.
The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification,
Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to
receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also
works as a Modbus/TCP to Modbus/RTU gateway that supports most SCADA/HMI
communications based on the Modbus/TCP protocol. The PDSM-700 is the PDS-700
with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with
Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700
and PPDS-700-MTCP.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 7

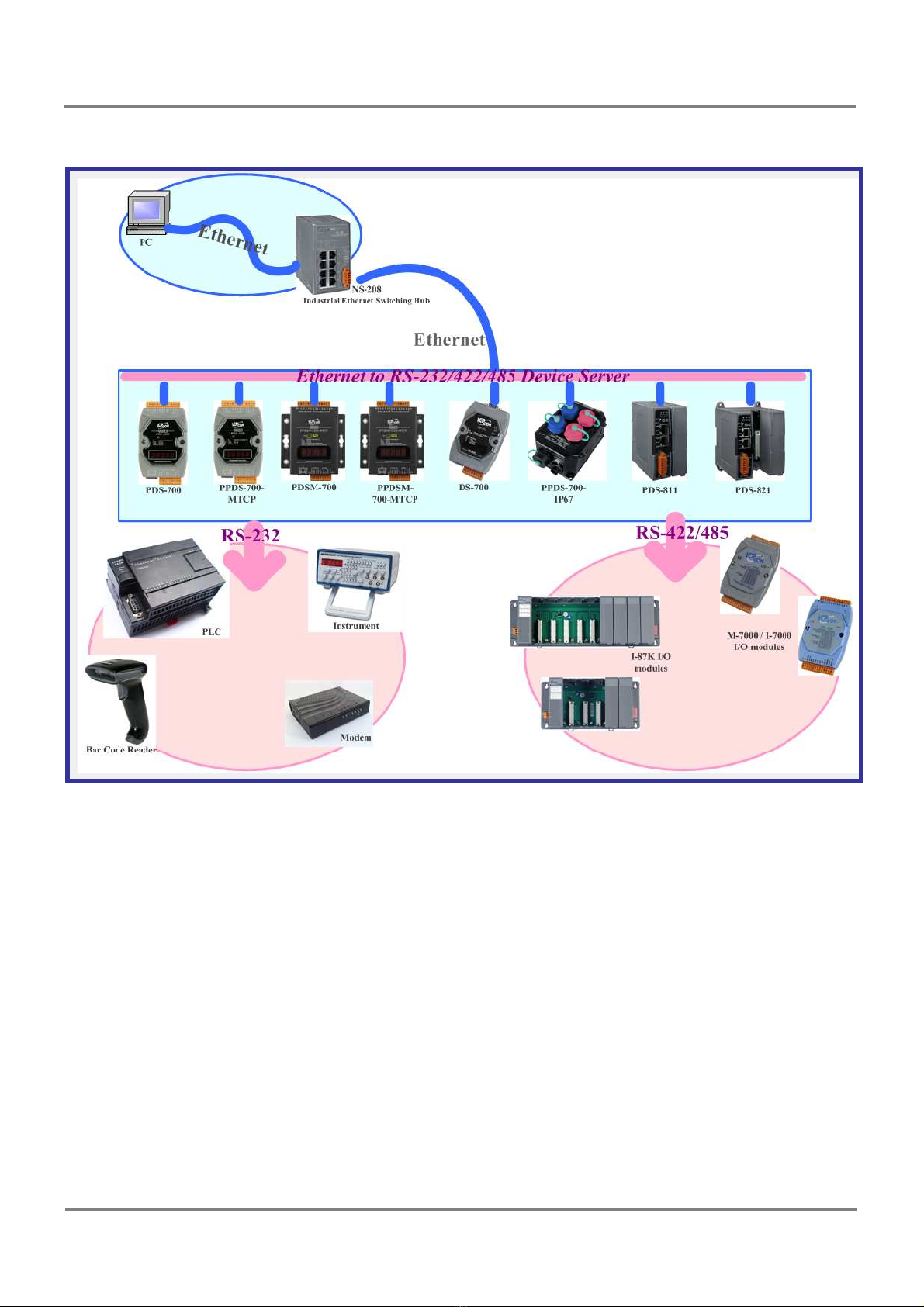

1.1. Why Ethernet Solutions?
Nowadays, the Ethernet protocol has become the de-facto standard for local area
networks. Via the Internet, connectivity is occurring everywhere, from home appliances, to
vending machines, to testing equipment, to UPS ...etc. An Ethernet network can link office
automation and industrial control networks, access remote systems and share data and
information between multivendor machines; it also provides a cost-effective solution for
industrial control networks.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 8
1.2. Why VxComm Technology?
In general, writing a TCP/IP program is more difficult than a COM port program, or the
COM port communication system was built many years ago.
As a result, a new technology, VxComm was developed to virtualize the COM ports
of the PDS to allow up to 256 COM Ports to be used on the central computer. The
VxComm driver saves time when accessing serial devices through the Ethernet without the
need for reprogramming the COM port software on the PC.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 9
The VxComm driver controls all the details of the Ethernet TCP/IP programming
technique; your COM port program will be able to access your serial devices through
Ethernet in the same way as through COM port with the assistance of PDS and VxComm
technology.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 10
1.3. Why Web Server Technology?
Web server technology enables configuration of the PDS via a standard web browser
interface, e.g. Internet Explorer, FireFox or Mozilla, etc. This means that it is easy to
check the configuration of the PDS via an Ethernet network without needing to install any
other software tools; thereby reducing the user’s learning carve.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 11
2.Typical Applications for the PDS
2.1.RS-232/485/422 Device Networking
--- Using Virtual COM Technology ---
The PDS series is designed to link RS-232/485/422 devices to an Ethernet network. The
VxComm utility allows the built-in PDS COM Port to be virtualized to a standard COM

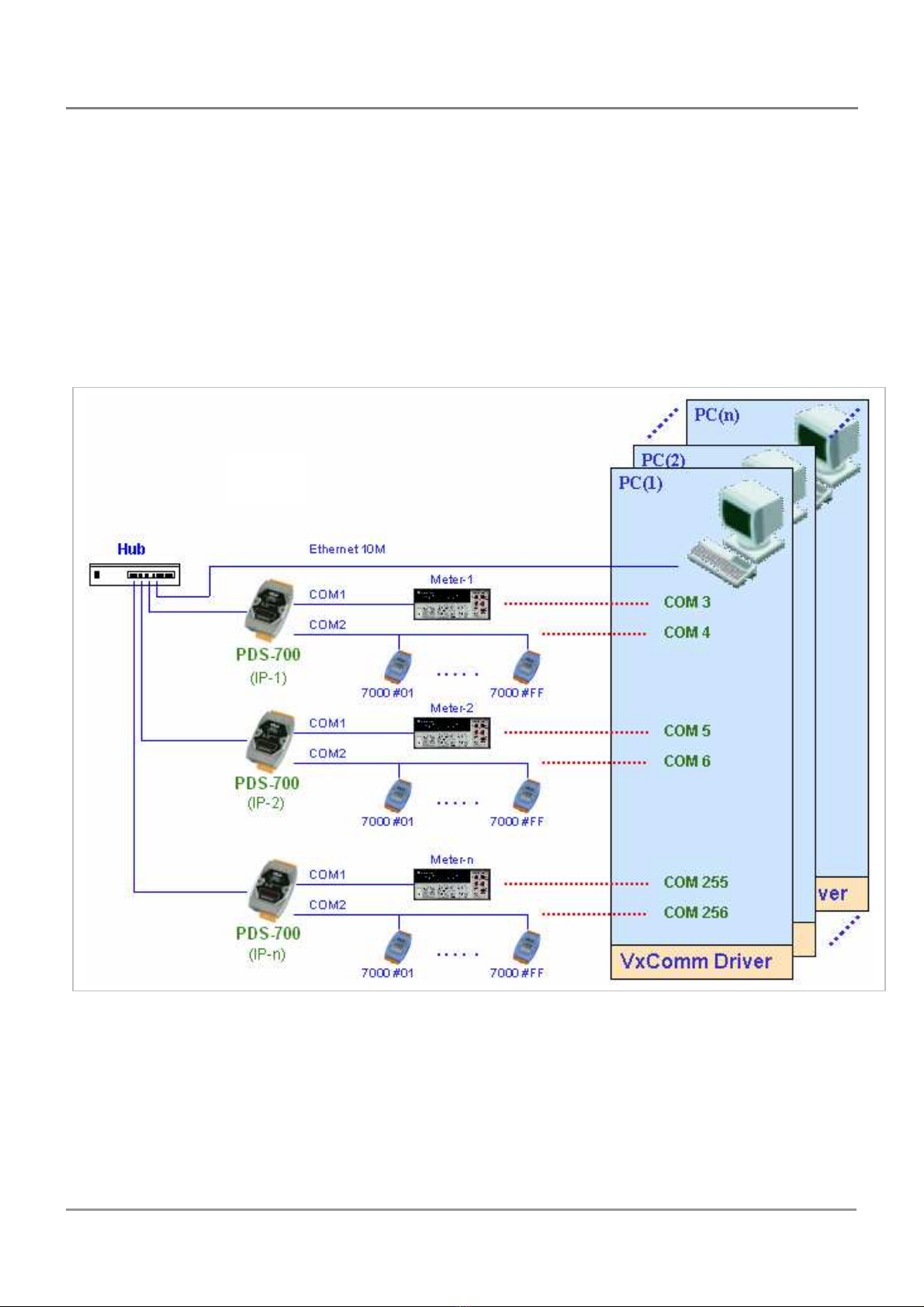

Port of the host PC as shown below:
In the configuration above, Meter-1 is virtualized to link to COM3 of the host PC.
Therefore a program original designed for the MS-COMM standard can access the meter
without any modification.
COM1/2 of the PDS-
700 is mapped to
COM3/4 of
the
host
PC
The original COM1/2
of the host PC
COM1/2 of the PDS-
700 is mapped to
COM5/6 of
the
host
PC

PDS Series User Manual ( V1.4, Oct. 2009) ----- 12
2.2. Ethernet I/O Applications
The PDS series provides 2 types of Ethernet I/O solutions:
1. Linking to I-7000 series modules
2. Built-in DIO (if the module supports the DIO function)
Linking to I-7000 series modules
The I-7000 series provides a variety of I/O operations, such as D/I, D/O, A/D, D/A,
Counter and Frequency Measurement, etc. The I-7000 series was originally designed to be
used with RS-485 networks, so COM2 on the PDS-700 can be used to link to I-7000 series
modules.
By using VxComm technology, programs that on the host PC support serial devices
can be upgraded from a RS-485 network to an Ethernet network without requiring any
modifications to the program. Refer to Sec. 2.1 for more information.
Built-in DIO
The DCON protocol is a request
/reply communication. Protocol that
is defined using a simple ASCII
format, such as $AAN, $AASi6,
#AAN, etc. and is used to access
PDS and I-7000/8000/ 87k series I/O
modules.
The DCON protocol command
set for the PDS is introduced in Sec.
7. The protocol allows access the
built-in I/O through the virtual COM Ports mapped to the Port I/O of the PDS in the
VxComm Utility.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 13
2.3. Linking I-7000 Series Modules to an Ethernet Network
The I-7000 family was originally designed for use with an RS-485 network. They are
very robust and work well under the harsh industrial environments.
The PDS enables I-7000 modules to be upgraded to an Ethernet solution. Linking I-
7000 modules to an Ethernet combines the advantages of both RS-485 and Ethernet
solutions and expands RS-485 applications to the whole world.
The VxComm approach provides an MS-COMM-compatible interface. Therefore,
previously developed programs should still function without the need for any
modifications.
2.4. Configurable Ethernet Data Logger
Using the VxComm driver, PDS + 7000 modules can be virtualized to become COM
Port + 7000 modules located on the host-PC, and then the Data Logger in the DCON
Utility can be used to access data of I-7000 from the Ethernet. Signal data originating from
the I-7000 modules can be analyzed using MS-Excel without the need to write any custom
programs

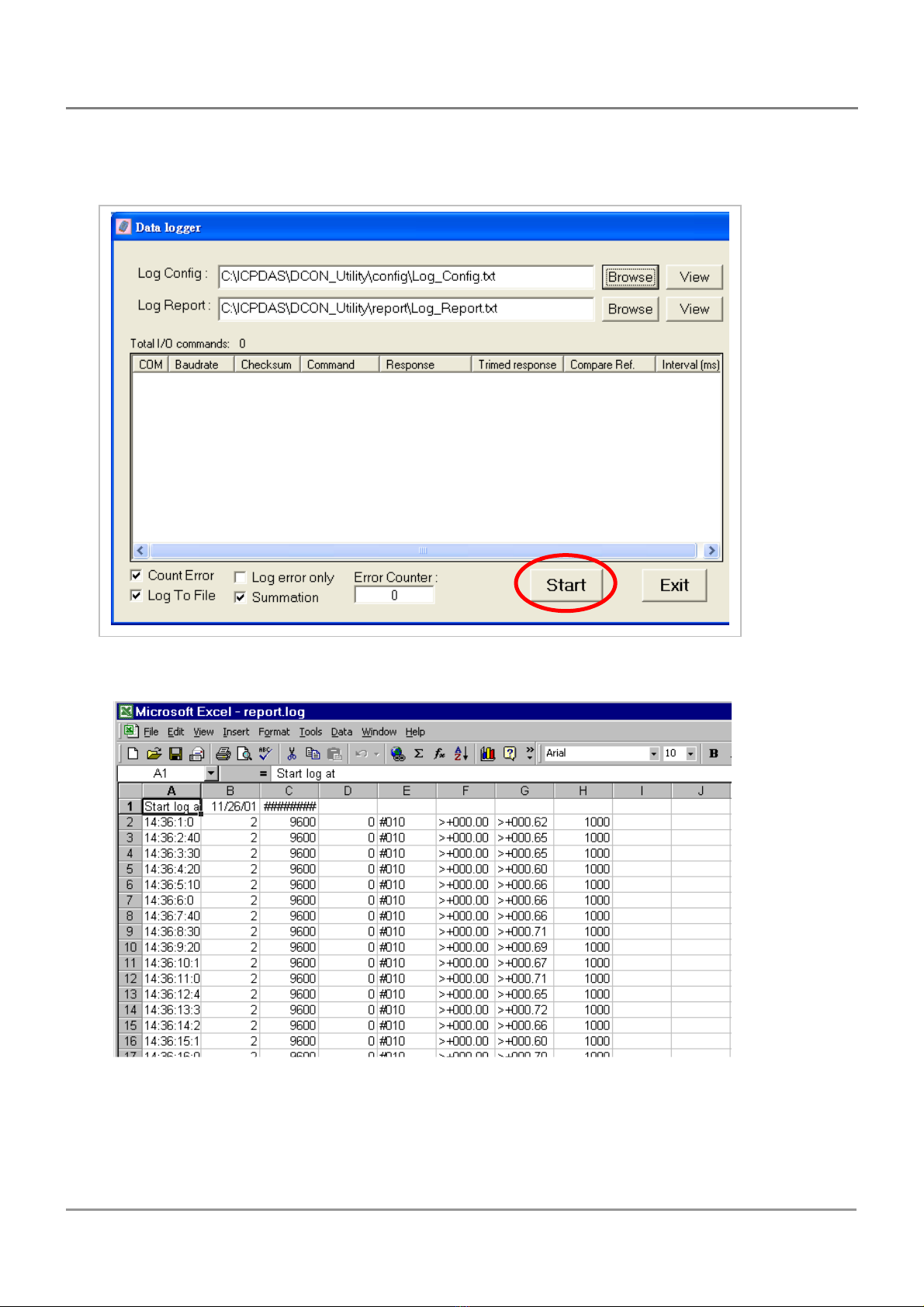

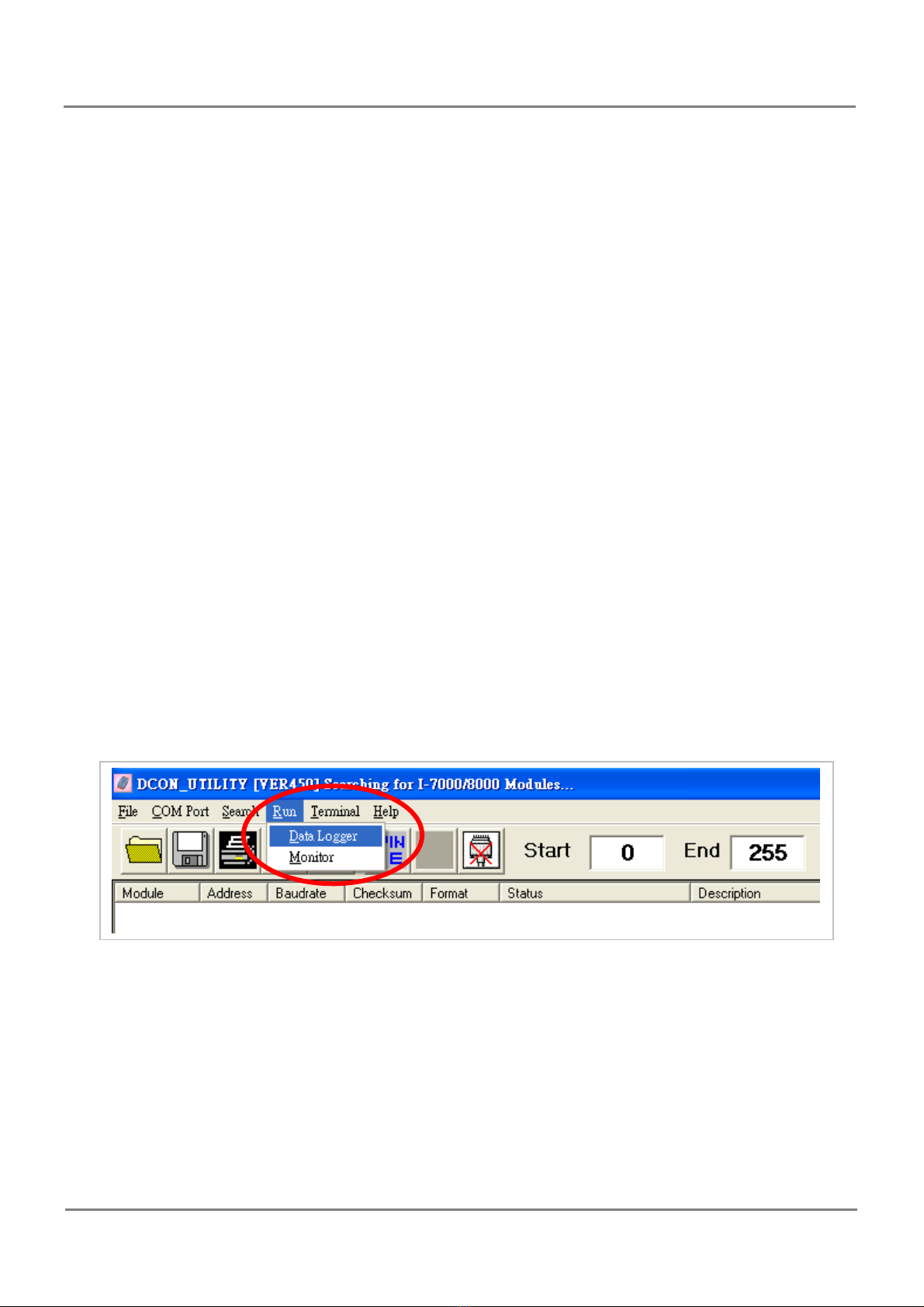

1: The DCON utility includes a log function, as show below:

PDS Series User Manual ( V1.4, Oct. 2009) ----- 14
2: Configure the system connection as shown below and click the “Start” button to begin
logging data.
3: Open the log file in Excel to read the log data as shown in the example below:

PDS Series User Manual ( V1.4, Oct. 2009) ----- 15
By using the I-7000 DCON utility and MS Excel in conjunction with the VxComm
technology, the signal data of I-7000 modules from the Ethernet network can be analyzed
without the need to write custom programs. For more information about the log function
refer to the online help feature (English and Traditional Chinese) of the DCON utility.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 16
3. Hardware information
3.1. Features
Incorporate Serial Devices in an Ethernet network
"Virtual COM" Extend COM Ports
Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
Watchdog Timer suitable for use in harsh environments
Power Reverse Polarity Protection
Serial Port +/-4 kV ESD Protection Circuit
Self-Tuner ASIC Controller on the RS-485 Port
RoHS Compliant with no Halogen
Built-in High Performance MiniOS7 from ICP DAS
10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
ODM Service Is Available
Low power consumption
Palm-Sized with multiple Serial Ports
Made from fire retardant materials (UL94-V0 Level)
(Metal for "M" versions)
Supports D/I, Latched D/I and Counter Functions on some models
High Performance Device Server
Powerful (Programmable) Device Server
Models PPDS(M)-700(D)-MTCP only
Supports Modbus/TCP and Modbus/RTU
Supports PoE (IEEE 802.3af, Clas s 1)
Models PDS(M)-700D/PPDS(M)-700D-MTCP only
5-digit LED Display

PDS Series User Manual ( V1.4, Oct. 2009) ----- 17
3.2. Specifications
System Specifications
PDS(M)-700(D)/PPDS(M)-700(D)-MTCP
CPU
CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB; Erase unit is one sector (64 KB); 1000,000 erase/write cycles
EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles
Built-in Watchdog Timer Yes
Communication Interface
Models PDS(M)-700(D) PPDS(M)-700(D)-MTCP
COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
Non-isolated COM2
RS-485 (D2+, D2-, GND)
Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE - IEEE 802.3af
COM Port Formats
Data Bit 7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM4
Parity None, Even, Odd, Mark, Space
Stop Bit 1: for COM1, COM2
1, 2: for COM3 ~ COM4
Baud Rate 115200 bps Max.
LED Indicators
Models PDS(M)-700(D) PPDS(M)-700(D)-MTCP
5-digit 7 Segment Yes (Display for "D" versions)
System Red
PoE - Green
Power
Models PDS(M)-700(D) PPDS(M)-700(D)-MTCP
Protection Power Reverse Polarity Protection
Required Supply Volatge +10 VDC ~ +30 VDC
(non-regulated)
+12 VDC ~ +48 VDC (non-regulated)
PoE (IEEE 802.3af, Class 1)
Power Consumption PDS(M)-700: 2.0 W
PDS(M)-700D: 2.7 W
PPDS(M)-700-MTCP: 2.2W
PPDS(M)-700D-MTCP: 2.9W

PDS Series User Manual ( V1.4, Oct. 2009) ----- 18
IO Specifications
Models PDS(M)-700(D) PPDS(M)-700(D)-MTCP
Digital Output
Output Type Open Collector (Sink/NPN)
Load Voltage 30 V
DC
, max.
Load Current 100mA, max.
Isolated Voltage Non-isolated
Digital Input
Input Type Source (Dry Type), Common Ground
Off Voltage Level +1 V max.
On Voltage Level +3.5 ~ +30 V
Isolated Voltage Non-isolated
Max. Count 16-bit (65535)
Max. Input Frequency 100 Hz
Counter
Min. Pulse Width 5 ms

PDS Series User Manual ( V1.4, Oct. 2009) ----- 19
DS-700/PPDS-712-MTCP/PPDS-715-MTCP
LED Indicators
Models DS-700 PPDS-712-MTCP PPDS-715-MTCP
L1 Run (Red)
L2 Link/Act (Red)
L3 10/100 M (Orange)
PoE - Green
Power
Models DS-700
Protection Power Reverse Polarity Protection
Required Supply Volatge +12 VDC ~ +48 VDC (non-regulated)
PoE (IEEE 802.3af, Class 1)
Power Consumption 2.0 W
CPU
CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB; Erase unit is one sector (64 KB); 1000,000 erase/write
cycles
EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles
Built-in Watchdog Timer Yes
Communication Interface
Models DS-712 PPDS-712-MTCP
Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE - IEEE 802.3af
Models DS-715 PPDS-715-MTCP
Isolated (2000Vrms) COM1
RS-422 (TxD+, TxD-, RxD+,RxD-)
RS-485(D2+,D2-)
Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE - IEEE 802.3af
COM Port Formats
Data Bit 7, 8
Parity None, Even, Odd, Mark, Space
Stop Bit 1
Baud Rate 115200 bps Max.

PDS Series User Manual ( V1.4, Oct. 2009) ----- 20
PPDS-700-IP67
CPU
CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB; Erase unit is one sector (64 KB); 1000,000 erase/write cycles
EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles
Built-in Watchdog Timer Yes
Communication Interface
COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
Non-isolated COM2
RS-485 (D2+, D2-, GND)
Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE IEEE 802.3af
COM Port Formats
Data Bit 7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM4
Parity None, Even, Odd, Mark, Space
Stop Bit 1: for COM1, COM2
1, 2: for COM3 ~ COM4
Baud Rate 115200 bps Max.
LED Indicators
Ethernet Green: Link/Act (E1)
Orange: 10/100 M (E1)
System Red: Sys
COM1 ~ COM4 Green: RxD
Orange: TxD
Power
Protection Power Reverse Polarity Protection
Required Supply Volatge +12 VDC ~ +48 VDC (non-regulated)
PoE (IEEE 802.3af, Class 1)
Power Consumption 2.2W
