IDEAL SecuriTEST User manual

www.vemco.pl


SECURITEST USER’S MANUAL
TABLE OF CONTENTS
SAFETY PRECAUTIONS..................…………….......... 1
1. SAFETY INFORMATION.................…………….......2
WARNINGS ................…………….................2
SAFETY INFORMATION ..………….................3
BATTERY PRECAUTIONS ...……….................5
2. INTRODUCTION ....................………………........... 7
FEATURES ...............……………...................7
MAIN FUNCTIONS ....…………...................... 7
STANDARD ACCESSORIES ....…………..........8
DESCRIPTION OF BUTTONS/PORTS .……….....9
3. SPECIFICATIONS ...……………........…………...... 14
GENERAL SPECIFICATIONS ……….................14
METER SPECIFICATIONS .......…………......... 15
4. FUNCTIONAL USE .............…………….................. 17
POWER ON/OFF ..........…………......…...........17
ON SCREEN DISPLAY .....…………................17
OPERATION MODES .......…………................ 18
VIDEO FUNCTION ........………….................19
DIGITAL MULTIMETER FUNCTION …….........22
WARNINGS .................……………................28
PTZ CONTROL ..........………….....................29
UTP CABLE TESTER ...…………................... 34
SYSTEM INFORMATION ......…………............ 35
MAIN SETTINGS ............………….................35
www.vemco.pl


BEFORE USING SECURITEST
WARNING
Read the “Safety Information” portion of the manual before
using the SecuriTEST CCTV tester.
This manual is for users of the IDEAL SecuriTEST multi-
function CCTV tester. The manual describes the operation and
function of the various features of SecuriTEST.
It is highly recommended that operators read the entire manual
before using SecuriTEST to prevent damage to the tester or
injury to the operator.
www.vemco.pl


WARNING
SECURITEST SAFETY PRECAUTIONS
When using the Digital MultiMeter function to measure
voltage or current, be sure that the input does not exceed the
capabilities of the tester. Overloading the tester can cause
damage or personal injury.
When measuring current of unknown values, always begin
with the 10A mode, then step down to the 400mA input if
necessary.
Environmental Limitations
Temperature: -10 to 50 degrees C
14 to 122 degrees F
Relative Humidity: 0-90%, non-condensing
DC input voltage: 12V +/-10%, 1A
www.vemco.pl



Do not use the unit in damp conditions or environments where
explosive gases may be present.
Do not handle the unit with wet hands.
Avoid dropping or causing mechanical shock to the unit.
Do not expose the ports to liquids and avoid exposure to dust.
Use only specified replacement fuses.
Do not use damaged test leads with the DMM function.
Do not measure resistance on powered circuits.
When using the DMM function, set the proper mode before
connecting to the circuit under test.
When measuring resistance, make certain that the circuit is de-
energized before connecting the test leads to the circuit.
www.vemco.pl


This page intentionally left blank.
www.vemco.pl



WARNING
BATTERY CHARGING PRECAUTIONS
SecuriTEST is capable of
recharging NiMH batteries
installed in its battery
compartment.
Attach the included 12V adapter to
the handset to charge the batteries.
Charging time takes 8 hours.
Operation time is approximately 3-
4 hours on a fully charged set of
batteries.
When using alkaline batteries the
tester can run for approximately 2
hours on a new set of batteries.
When using alkaline batteries, set
the switch inside the battery
compartment to OFF to prevent
accidental charging of alkaline
batteries.
www.vemco.pl


- Battery Precautions -
The following batteries can be used with SecuriTEST:
> AA size alkaline batteries
> AA size rechargeable nickel metal hydrogen
(Ni-MH) batteries
When charging batteries in SecuriTEST:
Place both the MAIN POWER and the CHARGE SWITCH to
the “ON” position. The charge LED will light when the
MAIN POWER SWITCH is in either position, but the
batteries will only charge when the switch is set to “ON”.

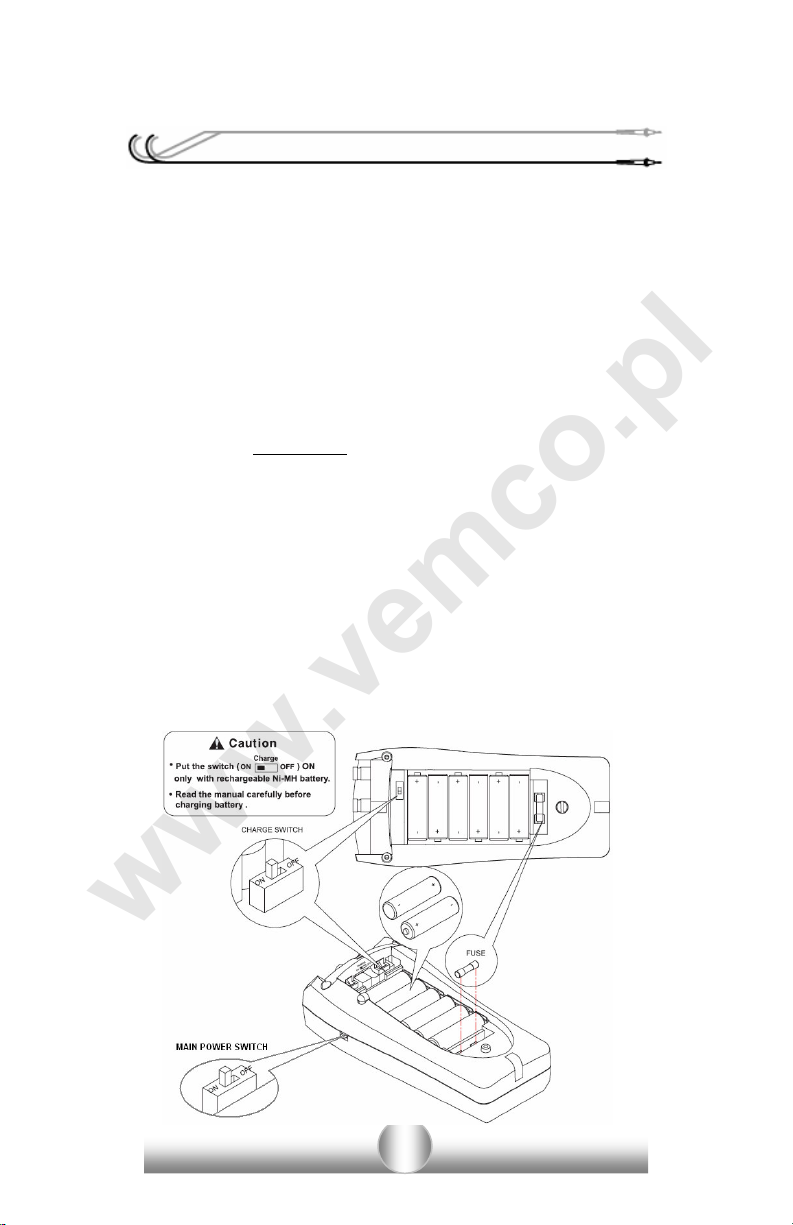

The CHARGE SWITCH is located on the upper part of
battery compartment. (Refer to the figure below)
The performance of batteries can be very different, depending
on manufacturers. Please use any reputable brand for best
performance. Do not mix batteries of different manufacturers
when charging batteries. Make sure not to reverse the
polarization of the batteries. Do not short-circuit or
disassemble batteries. Make sure to check the polarization
and the voltage and current ratings before charging batteries
and disconnect the charger immediately should an abnormal
situation arise.
www.vemco.pl



FEATURES
SecuriTEST is a portable device for testing and
troubleshooting various functions of CCTV cameras. It
includes functions to test video image quality, control PTZ
operation, analyzes various PTZ protocols, generates video
test patterns, test UTP cables and includes a full-function
Digital MultiMeter.
All functions are controlled through the front keypad and on-
screen display. For testing each function, set up modes and
capacities to be tested, using the keypad located on the front
part of SecuriTEST.
MAIN FUNCTIONS OF SECURITEST
Video Tester The video signal and the quality of
picture can be tested, and brightness,
color and focus can also be adjusted
while the image is being watched.
Video signal generator mode: Outputs
color bars, Red Blue and Green to allow
technicians to inspect video monitor or
DVR. Supports both PAL & NTSC
video signal formats.
Multimeter Voltage, current, resistance and
continuity can be tested.
PTZ Controller The PTZ controller tests the motor
control of the dome and the focus and
zoom functions of the camera. Supports
RS-485/422 communications protocols.
UPT Cable Tester The UTP cable check tests unshielded
cables for continuity, opens, shorts and
miswired pairs.
www.vemco.pl


STANDARD ACCESSORIES
The following items are included with the SecuriTEST CCTV
Tester.
•SecuriTEST Main Body
•User’s Manual
•Test Lead Set (Red, Black)
•AC Adapter
•Rechargeable AA Nickel Metal Hydrogen
(Ni-MH) Battery (6ea)
•Neck Strap
•UTP test Terminator
•BNC Video Cable
•Car Power Jack
www.vemco.pl




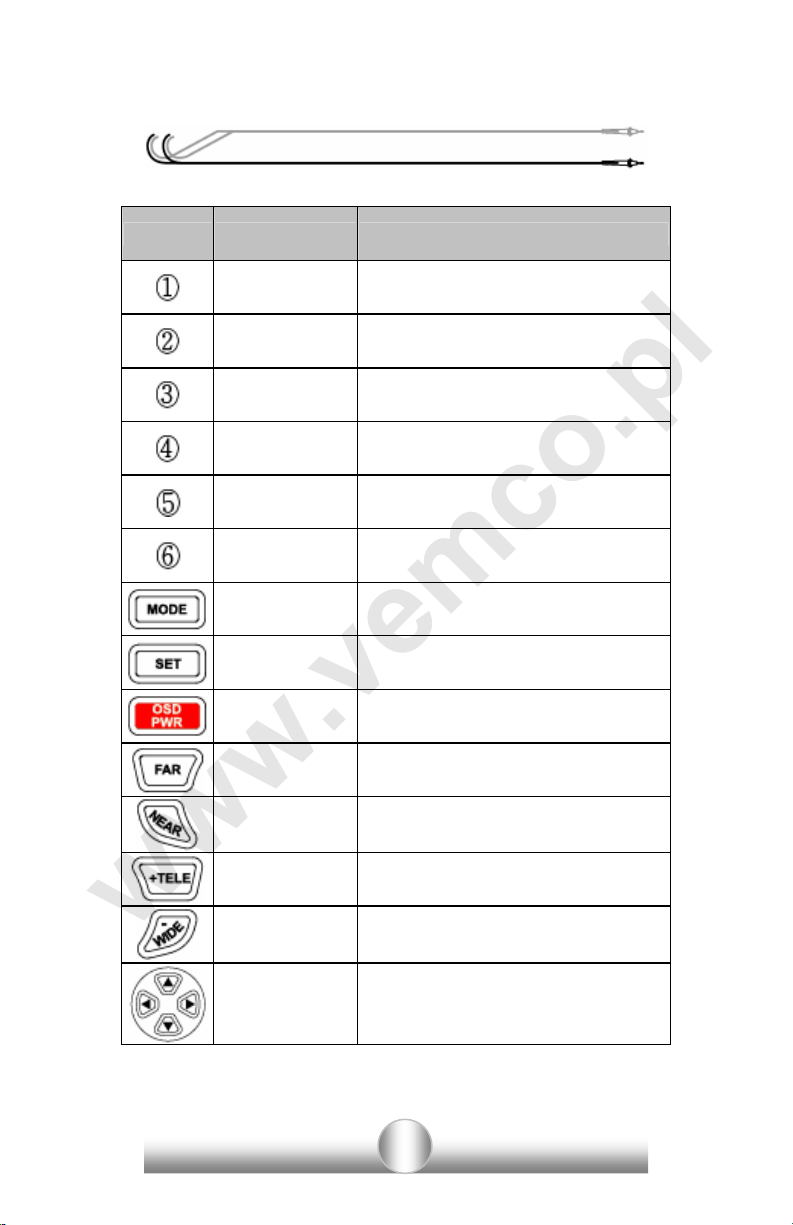

NAMES &FUNCTIONS
www.vemco.pl



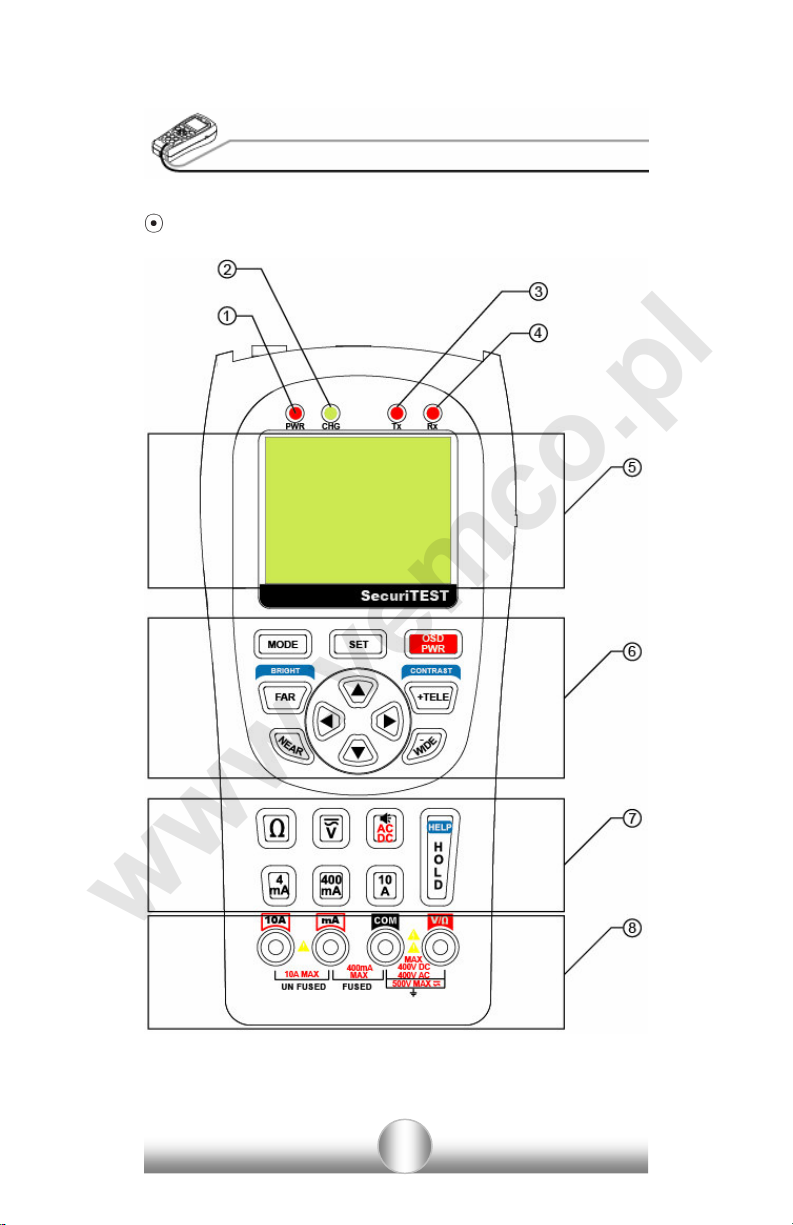

PART NAME FUNCTION
Power LED Red LED is on when the system is
switched on
Charge Indicating
LED Green LED is on when being charged
Data Transmitting
LED Red LED is on when PTZ data is transmitted
Data Receiving
LED Red LED is on when PTZ data is received
LCD 2.5” Color TFT LCD
Keypad Controls cameras connected to
SecuriTEST
MODE Button Mode Select (Video, MultiMeter, PTZ
Control, UTP Test)
SET Button Used when setup is changed, hold for
special functions
OSD Button It toggles OSD & POWER on/off
FAR Button Adjusts PTZ focus (far direction) &
Video Mode Brightness
NEAR Button Adjust PTZ focus (near direction) &
Video Mode Brightness
TELE Button Zoom PTZ (zoom in) &
Adjusts Video Mode Contrast
WIDE Button Zoom PTZ (zoom out) &
Adjusts Video Mode Contrast
Direction Keys Moves up, down, right, left for PTZ
& for menus and others
www.vemco.pl



PART NAME FUNCTION

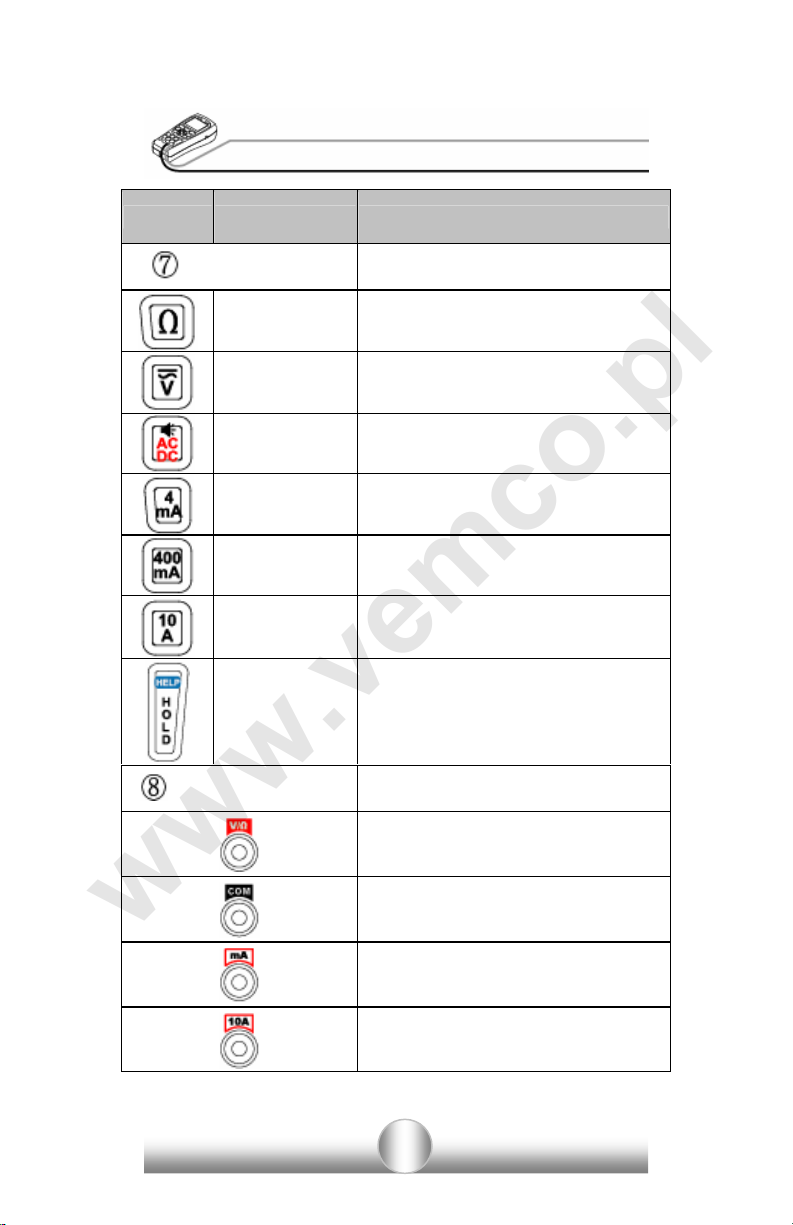

MultiMeter Keys Selects functions of Digital MultiMeter
Resistance Button
Selects Resistance Mode
Voltage Button Selects Voltage Mode
Setup Change
Button Toggles AC/DC Mode & Selects Continuity Test
Current Measuring
Button 1 Selects low Current (below 4mA) Mode
C
urrent Measuring
Button 2 Selects Current (below 400mA) Mode
Current Measuring
Button 3 Selects Current (up to 10A) Mode
HOLD, HELP
Button Locks Auto-Ranging Function. Hold for HELP
Test Lead Connection Ports for Digital MultiMeter
Voltage & Resistance Port
Common Port
Current Measurement below 400mA Port
Current Measurement up to 10A Port
www.vemco.pl



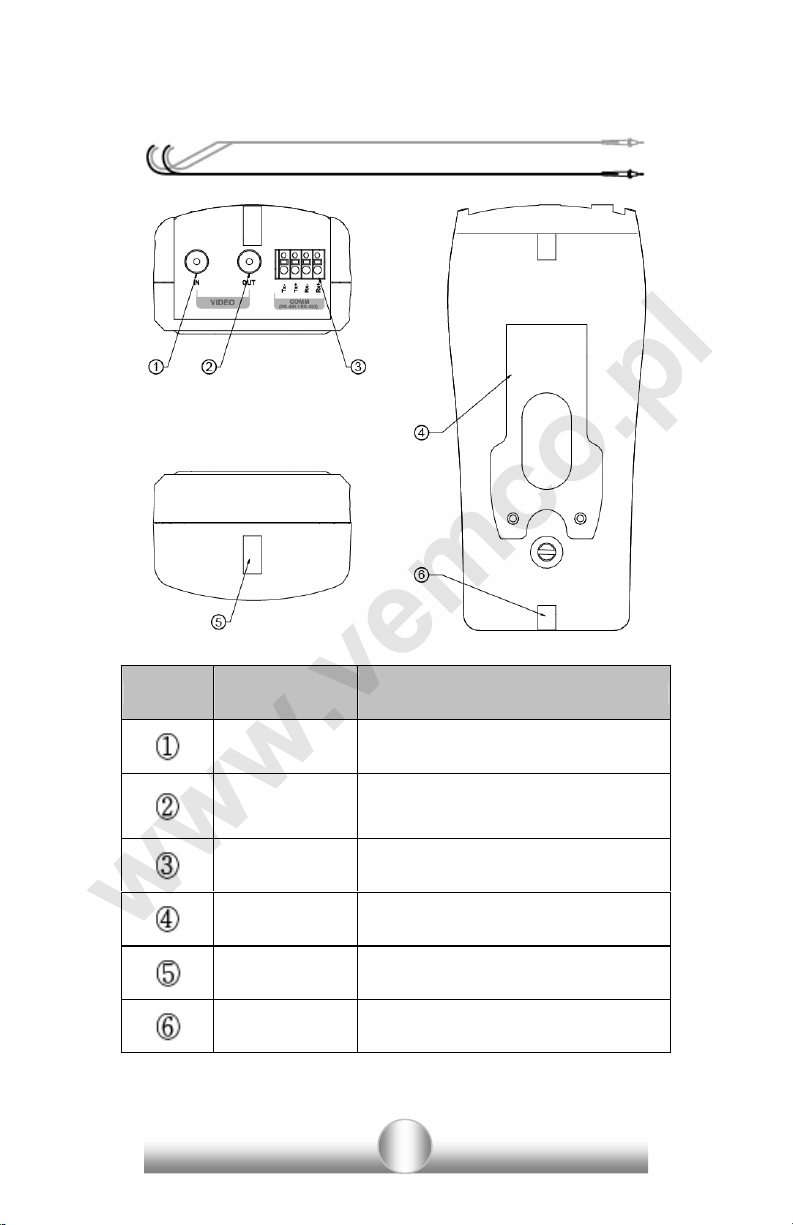

PART NAME FUNCTION
Input BNC Connect to camera output to display
image on screen
Output BNC Use as pass-through port for camera
image or to output video test signal to
external monitor
Communication
Port Input & Output of communications signals
Kickstand Hold unit upright when extended
Neck-strap Hook Connect neck-strap here to hang unit
Neck-strap Hook Can be used to hang the unit upside down
www.vemco.pl




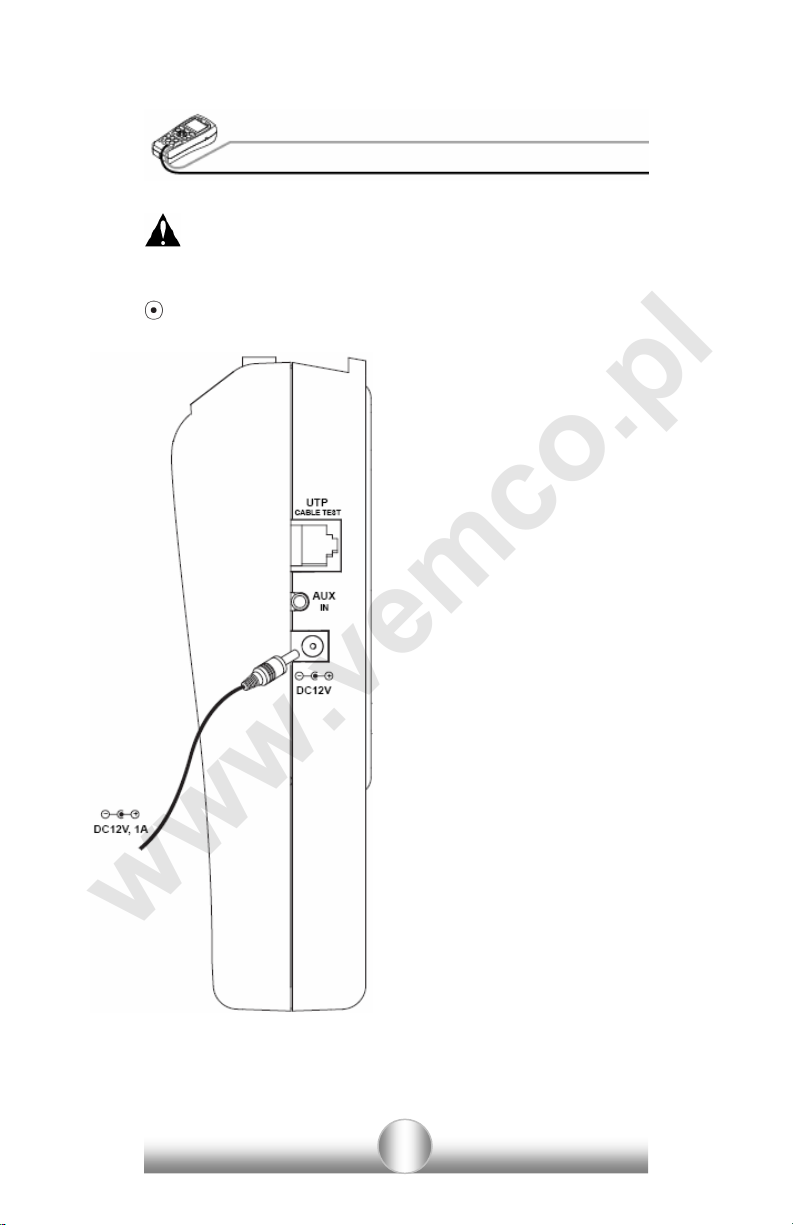

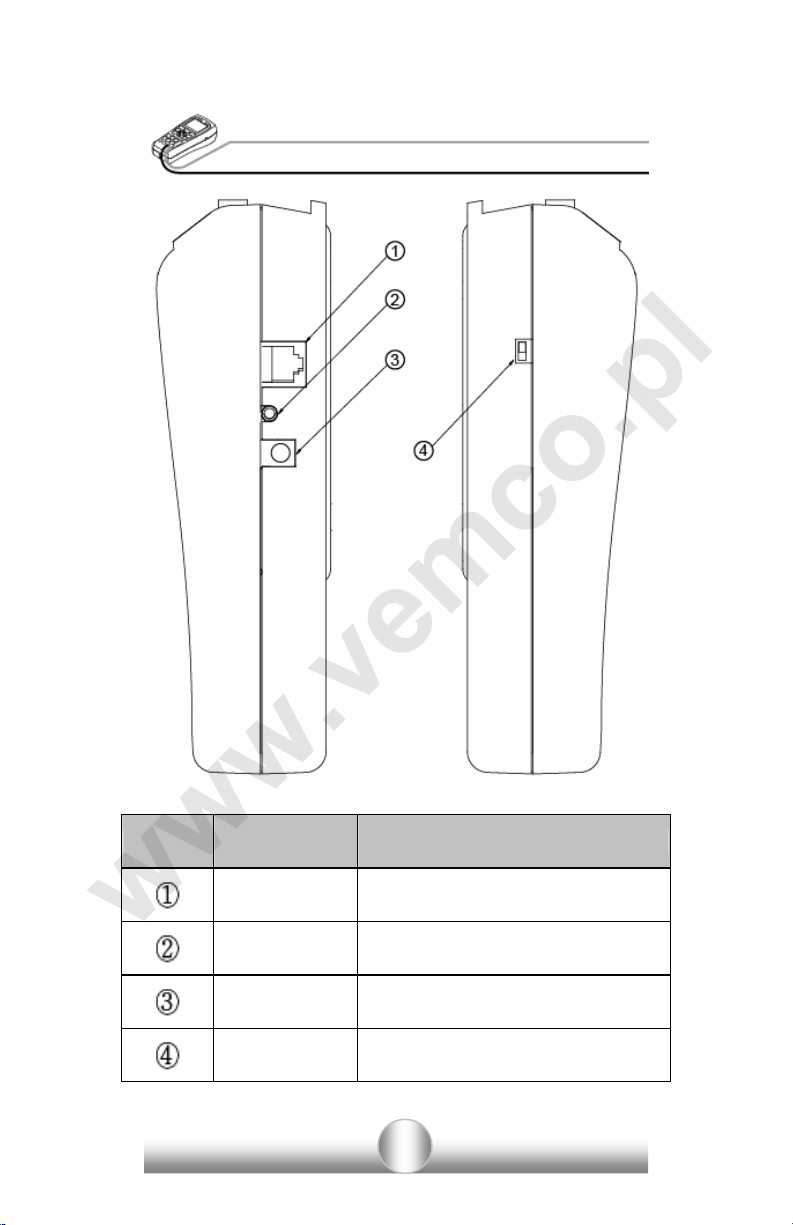

PART NAME FUNCTION
UTP Jack Test jack for UTP Cable
AUX Jack Audio, AUX Input Port
(for future use)
DC Power Jack DC Power Input Jack
(for over DC12V, 1A)
Power S/W Main Power Supply ON/OFF switch
www.vemco.pl



GENERAL SPECIFICATIONS
Input Voltage 12V ± 10% above 1A
Battery Rechargeable Ni-MH battery 6ea
(AAsize)
Charging
Time Above 8 hrs
Electric
Characteristics
Built-in Charger Operation
Time > 3 hrs
TV Type NTSC / PAL
Image Level 1 Vpp, 140IRE
Protocol Multi-Protocol support
Transmission
Speed 2400bps ~ 38400bps
PTZ Operation
Test
Transmission
Mode RS-422, RS-485
UTP Cable Test
Kinds of Test Direct / Cross Cable, and
Broken or Short-Circuit
Size W 3.5” (88mm) X L 7.9” (190mm) X H 2.3” (58mm)
www.vemco.pl



METER SPECIFICATIONS
Measuring
Item Measured Value
Minimum
Measuring
Accuracy
400mV 100uV ± (0.8% + 2dgts)
4V 1mV
40V 10mV
DC Voltage
400V 100mV
± (1.0% + 2dgts)
4V 1mV
40V 10mV
AC Voltage
400V 100mV
± (1.2% + 3dgts)
(40Hz ~ 500Hz)
400uA 0.2uA
4mV
4mA 2uA
± (1.0% + 2dgts)
40mA 20uA
400mV
400mA 200uA
± (1.5% + 2dgts)
DC Current
10A 10A 2mA ± (2.0% + 3dgts)
www.vemco.pl


Measuring
Item Measured Value
Minimum
Measuring
Accuracy
400uA 0.2uV
4mV
4mA 2uV
± (1.5% + 5dgts)
(40Hz ~ 500Hz)
40Hz ~ 500Hz
40mA 20uV
400mV
400mA 200uV
± (1.8% + 5dgts)
(40Hz ~ 500Hz)
40Hz ~ 500Hz
AC Current
10A 10A 2mV ± (3.0% + 4dgts)
40Hz ~ 500Hz
400 0.1 ± (1.0% + 4dgts)
4k 1 
40k 10 
400k 100 
± (1.0% + 2dgts)
4M 1k ± (2.0% + 4dgts)
Resistance
40M 10k ± (3.0% + 5dgts)
Continuity Beeper is activated when the resistance is below 80 
Rated Fuse 250 Volt 800 mA
www.vemco.pl



POWER ON/OFF
The Power slide switch is located on the side of the handset.
Turn the Power slide switch on, and press to start
SecuriTEST.
To turn off the system, press & hold more than 3
sec. Then, POWER OFF is displayed on the main screen
with a beep. Release the button. The power goes off.
A rechargeable battery should be plugged in over 8 hrs to
fully charge. The charged battery can operate for about 3
hours.
When the battery indicator shows below [][], recharge it for
use. (Full charge: [][][][])
OSD SETUP SCREEN WHEN POWER IS ON
When power is on, the OSD is displayed, and it enters
automatically to the video test mode after 3 ~ 5 sec.

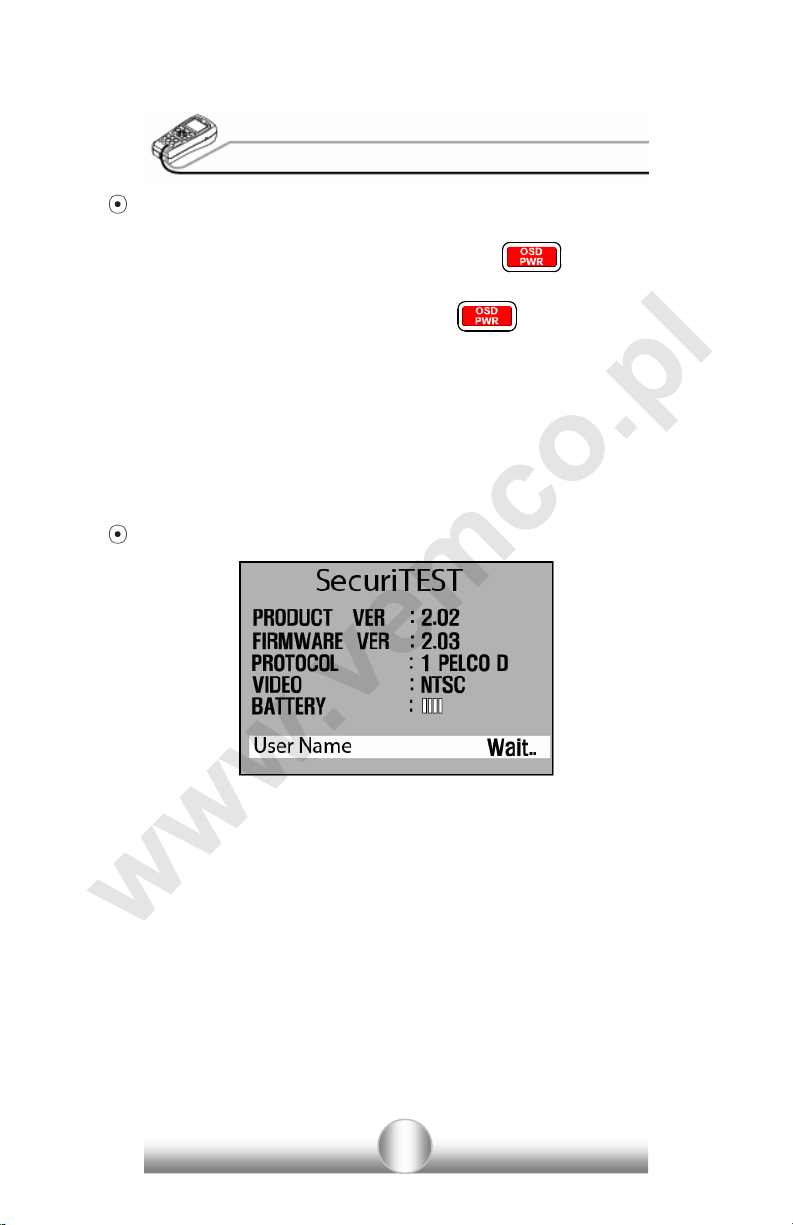

The initial OSD displays its SecuriTEST version and the initial
setup on the screen.
Product Version: 2.02
Firmware Version: 2.03
Initital Protocol: PELCO-D
TV Mode: NTSC / PAL automatic setup
Battery Indicator: [][][][]
User Name: User’s name (Name can be changed in
Main menu)
Model & Software versions are subject to be changed without notice.
www.vemco.pl


MODE SETUP
Pressing the key changes the operation mode
between VIDEO, METER, PTZ, and UTP.
To directly select a mode, press and hold the key
for 3 seconds then choose a mode and press the
key to select the mode.
Video Tester Mode:
In this mode, the image quality of the external input picture
signal is tested, or the monitor, etc. is tested by using the
picture signal that is output from PATTERN GENERATOR
mode.
Digital MultiMeter Mode:
In this mode, voltage, current, & continuity are tested.
PTZ Controller Mode:
In this mode, the basic movement of up, down, right, left for
PTZ cameras is controlled. Zooming and focus can also be
adjusted.
UTP Cable Test Mode:
UTP cables are tested for straight (direct), crossover, opens,
and shorts.
www.vemco.pl
