IDEAL Volt Sensor 61-063 User manual

Volt Sensor Pocket Tester
Catalog # 61-063
Features
●Checks non-contact voltage from 40 - 600 VAC
●CAT III - 600V
●Audible and visual indication
●Tests for energized circuits
●Over-molded rubber cushion grip
●Compact rugged housing
●1-year warranty

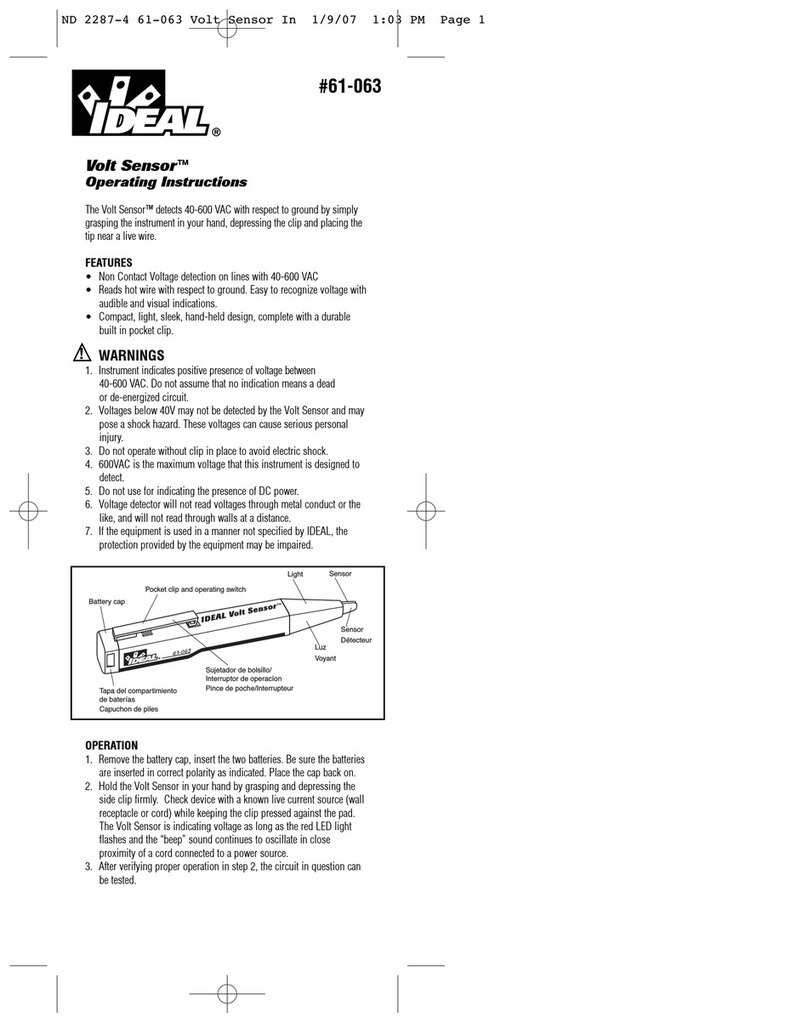

Volt Sensor™
Operating Instructions
The Volt Sensor™ detects 40-600 VAC with respect to ground by simply
grasping the instrument in your hand, depressing the clip and placing the
tip near a live wire.
FEATURES
• Non Contact Voltage detection on lines with 40-600 VAC
• Reads hot wire with respect to ground. Easy to recognize voltage with
audible and visual indications.
• Compact, light, sleek, hand-held design, complete with a durable
built in pocket clip.
WARNINGS
1. Instrument indicates positive presence of voltage between
40-600 VAC. Do not assume that no indication means a dead
or de-energized circuit.
2. Voltages below 40V may not be detected by the Volt Sensor and may
pose a shock hazard. These voltages can cause serious personal
injury.
3. Do not operate without clip in place to avoid electric shock.
4. 600VAC is the maximum voltage that this instrument is designed to
detect.
5. Do not use for indicating the presence of DC power.
6. Voltage detector will not read voltages through metal conduct or the
like, and will not read through walls at a distance.
7. If the equipment is used in a manner not specified by IDEAL, the
protection provided by the equipment may be impaired.
OPERATION
1. Remove the battery cap, insert the two batteries. Be sure the batteries
are inserted in correct polarity as indicated. Place the cap back on.
2. Hold the Volt Sensor in your hand by grasping and depressing the
side clip firmly. Check device with a known live current source (wall
receptacle or cord) while keeping the clip pressed against the pad.
The Volt Sensor is indicating voltage as long as the red LED light
flashes and the “beep” sound continues to oscillate in close
proximity of a cord connected to a power source.
3. After verifying proper operation in step 2, the circuit in question can
be tested.
Battery cap
Pocket clip and operating switch
Light
Luz
Voyant
Sujetador de bolsillo/
Interruptor de operacíon
Pince de poche/Interrupteur
Tapa del compartimiento
de baterías
Capuchon de piles
Sensor
Détecteur
Sensor
!
#61-063

LIFETIME LIMITED WARRANTY
Warranty limited solely to repair or replacement; no warranty of merchantability,
fitness for a particular purpose or consequential damages.
RATING & SPECIFICATIONS
Model: 61-063
Working Voltage Range: 40-600 VAC max to ground
Frequency: 50/60Hz
Dielectric Strength: 2000V, 1 minute, 100uA or less
during dielectric strength test
Safety: IEC61010-1 Cat III - 600V
Operating Environment: 32° to 104° F (0° to 40° C).
80% RH max. 50% RH above 31° C.
Operating Altitude: 2000m (6562 ft.)
Battery: Two (2) 1.5V button type batteries,
#61-201 (IEC #LR-44,
NEDA # 1166A)
Dimensions: 5.2”H x 1”W x .8”D
(130 x 26 x 20mm)
Weight: 1.4 oz (40g)
Instrument complies with insulation category (overvoltage category III).
Pollution degree 2 accordance with IEC-664. Indoor use. Industrial use.
CAT III equipment is designed to protect against the transients in the equipment
in fixed installations, such as distribution panels, feeders and short branch
circuits for lighting systems in large buildings.
Equipment protected by double insulation.
Maintenance
Do not attempt to repair this tester. It contains no user-serviceable parts. Repair
or serving should only be performed by qualified personnel.
Cleaning
• Remove grease and grime with a clean, dry cloth.
• Do not use abrasives or solvents.
Battery Replacement
Packaged complete with two button cell batteries and operating instructions. Install
batteries before use.
WARNING: DO NOT OPERATE WITHOUT BATTERY COVER IN
PLACE!
!
61-063
CUS
Tester
4D31
Listed Cat III - 600V
