IFM Electronic PDM360 NG User manual

Installation instructions
Process and dialogue module
PDM360 NG
CR1080 CR9223
CR1081 CR9224
CR1082 --
CR1084 CR9226
CR1085 CR9227
80232752 / 00 04 / 2021
UK

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
2
Contents
1 Preliminary note � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
1�1 Symbols used� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
1�2 Warning signs used � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
2 Safety instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�1 General� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�2 Target group � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�3 Electrical connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�4 Tampering with the device � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�5 Electromagnetic compatibility� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
3 Functions and features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
3�1 Application example � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
3�2 Overview of the common characteristics � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�3 Distinctive features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
4 Installation� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
4�1 Mounting accessory � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
4�2 General installation instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
4�2�1 Locator for mounting accessories � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
4�2�2 Orientation of the device with panel and surface mounting � � � � � � � 9
4�2�3 Light sensor � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
4�2�4 Protective film for the touch screen (CR1082) � � � � � � � � � � � � � � � � � � 9
4�3 Panel mounting using the mounting frame� � � � � � � � � � � � � � � � � � � � � � � � 10
4�3�1 Mounting steps� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
4�4 Surface mounting with RAM®mount system � � � � � � � � � � � � � � � � � � � � � � 13
4�4�1 Mounting steps� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
5 Electrical connection� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
5�1 Connection accessories � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
5�2 General electrical connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
5�2�1 Cover all unused connectors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
5�3 Operating voltage and fuses � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
5�3�1 Voltage supply of the switching output via clamp 30 � � � � � � � � � � � � 15
5�4 Ground connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
5�5 Ethernet interface � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
5�5�1 Ethernet cameras� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
5�6 Analogue video inputs (only CR1082/84/85) � � � � � � � � � � � � � � � � � � � � � � 17
5�7 USB interfaces � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
5�7�1 USB connection via M12 connector� � � � � � � � � � � � � � � � � � � � � � � � � 18
5�7�2 Short-circuit protection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
5�7�3 USB connection behind the service cover � � � � � � � � � � � � � � � � � � � � 19
6 Set-up � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
6�1 General� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
6�2 First steps� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
6�3 Set-up� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
3
This document is the original instructions�
Licences and trademarks
All trademarks and company names are subject to the copyright of the respective companies�
Validity of these instructions
These installation instructions are valid from the following device status:
CR1080AG, CR1081AF, CR1082AD, CR1084AE, CR1085AE, CR922xAA
6�4 Required documentation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
7 Technical data� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
7�1 CR1080 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
7�2 CR1081 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
7�3 CR1082 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30
7�4 CR1084 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 35
7�5 CR1085 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 40
8 Maintenance, repair and disposal� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
8�1 Battery change � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
8�2 Cleaning the display surface � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
8�3 Cleaning the housing surface� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46
8�4 Repair� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46
8�5 Disposal � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46
9 Approvals / standards � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
4
1 Preliminary note
This document applies to devices of the type "PDM360 NG"� These instructions
are part of the device�
This document is intended for specialists� These specialists are people who are
qualified by their appropriate training and their experience to see risks and to
avoid possible hazards that may be caused during operation or maintenance of
the device� The document contains information about the correct handling of the
device�
Read this document before use to familiarise yourself with operating conditions,
installation and operation� Keep this document during the entire duration of use of
the device�
Adhere to the safety instructions�
1.1 Symbols used
►Instructions
> Reaction, result
[…] Designation of pushbuttons, buttons or indications
→Cross-reference
Important note
Non-compliance can result in malfunction or interference�
Information
Supplementary note
1.2 Warning signs used
WARNING
Warning of serious personal injury�
Death or serious irreversible injuries may result�
CAUTION
Warning of personal injury�
Slight reversible injuries may result�
NOTE
Warning of damage to property�

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
5
2 Safety instructions
2.1 General
These instructions contain texts and figures concerning the correct handling of the
device and must be read before installation or use�
Observe the operating instructions� Non-observance of the instructions, operation
which is not in accordance with use as prescribed below, wrong installation or
incorrect handling can seriously affect the safety of operators and machinery�
2.2 Target group
These instructions are intended for authorised persons according to the EMC and
low-voltage directives� The device must only be installed, connected and put into
operation by a qualified electrician�
2.3 Electrical connection
Disconnect the unit externally before handling it� If necessary, also disconnect any
independently supplied output load circuits�
If the device is not supplied by the mobile on-board system (12/24 V battery
operation), it must be ensured that the external voltage is generated and supplied
according to the criteria for safety extra-low voltage (SELV) as this voltage is
supplied without further measures to the connected controller, the sensors and the
actuators�
The wiring of all signals in connection with the SELV circuit of the device must also
comply with the SELV criteria (safety extra-low voltage, safe electrical isolation
from other electric circuits)�
If the supplied SELV voltage is externally grounded (SELV becomes PELV), the
responsibility lies with the user and the respective national installation regulations
must be complied with� All statements in this document refer to the device the
SELV voltage of which is not grounded�
The connections may only be supplied with the signals indicated in the technical
data and/or on the device label and only the approved accessories of ifm
electronic gmbh may be connected�
2.4 Tampering with the device
In case of malfunctions or uncertainties please contact the manufacturer�
Tampering with the device can seriously affect the safety of operators and
machinery� It is not permitted and leads to the exclusion of any liability and
warranty claims�
2.5 Electromagnetic compatibility
This is a class A product� It can cause radio interference in domestic areas� In this
case the operator may be requested to take appropriate measures�

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
6
3 Functions and features
The PDM360 NG process and dialogue module is a programmable graphic display
for controlling, parameter-setting and operation of mobile machines and plants�
Communication with other system components, e�g� decentralised I/O modules, is
handled via a CAN interface using the CANopen protocol�
For service purposes, additional interfaces such as Ethernet, USB or 3 further
CAN interfaces are available� Together with the Linux operating system they form
a universal platform for networking and communication with other CAN devices,
networks or PCs�
WARNING
The PDM360 NG process and dialogue module is not approved for safety-
related tasks in the sense of the safety of persons�
3.1 Application example

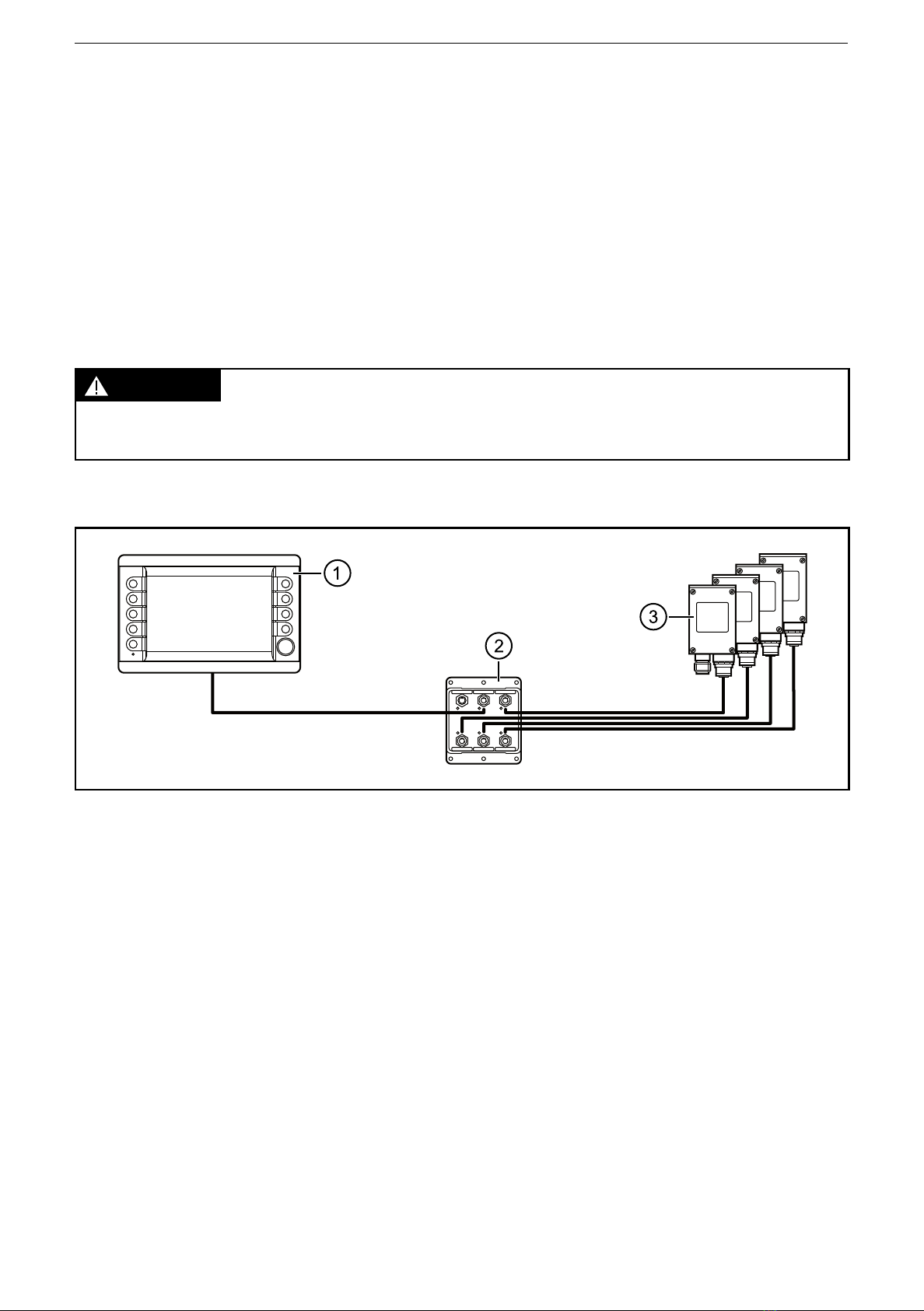

Networking of 4 Ethernet cameras with a PDM360 NG
1� PDM360 NG (e�g� CR1080)
2� Ethernet switch (e�g� EC2095)
3� Ethernet cameras (e�g� 4 x O2M11x)

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
7
3.2 Overview of the common characteristics
●7" Colour display
●Programmable backlit function keys
●Closed metal housing suitable for panel mounting and surface mounting
outside or in the cabin
●Freely programmable to IEC 61131-3 with target visualisation
●32-bit controller and Embedded Linux operating system
●CAN interfaces with CANopen and SAE J 1939 protocol�
●Ethernet and USB interfaces
●Multi-function input (digital/analogue)
●Switching output (digital)
3.3 Distinctive features

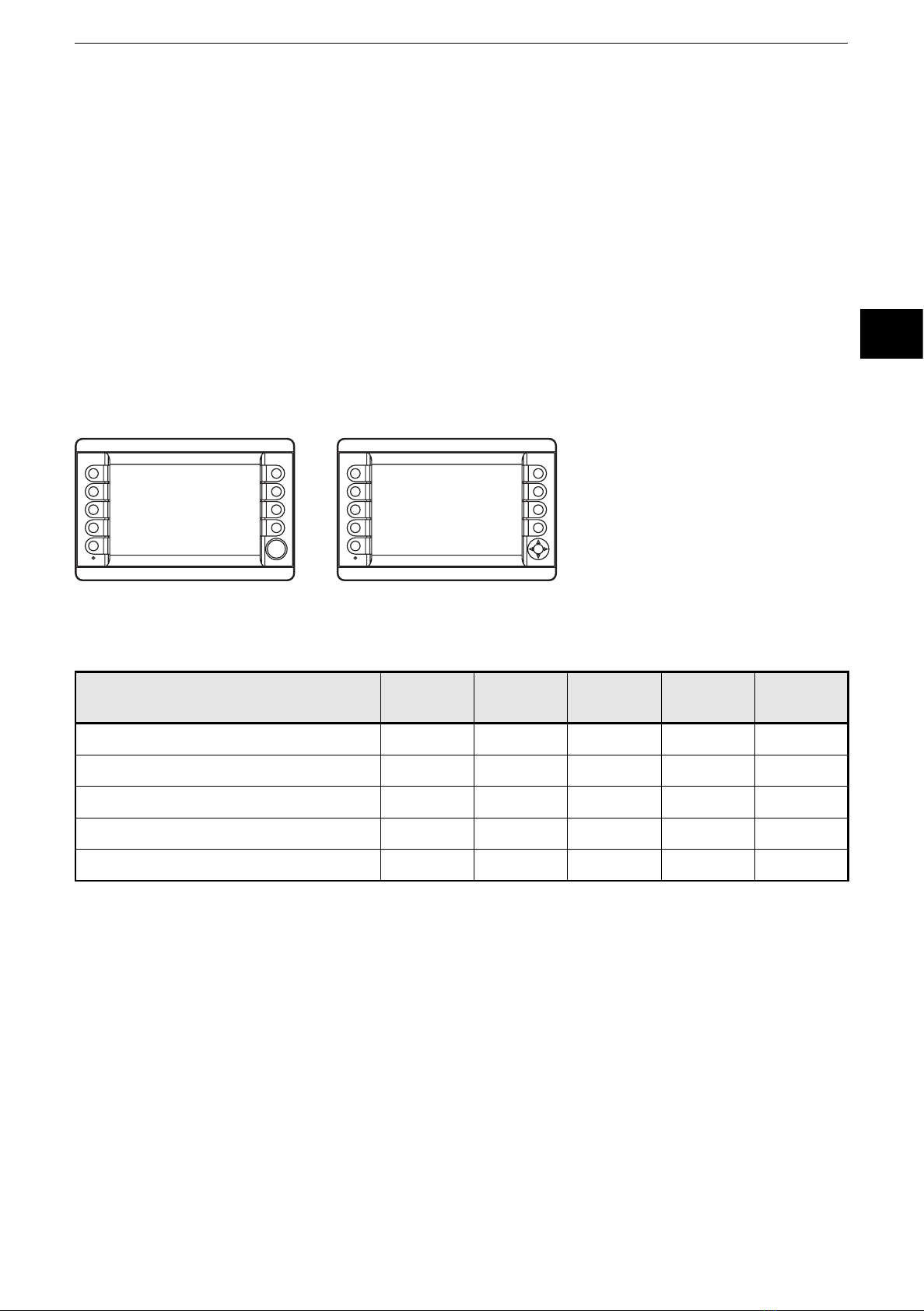

CR1080/84
9 function keys
1 encoder
CR1081/82/85
9 function keys
1 rocker switch
CR1080
CR9223*
CR1081
CR9224*
CR1082
--
CR1084
CR9226*
CR1085
CR9227*
Function keys 9 9 9 9 9
Encoder ● − − ● −
Rocker switch − ● ● − ●
Analogue video input − − ● ● ●
Touch screen − − ●** − −
● = available *) Version with optical bonding
**) Protective film for the touch screen supplied with the unit

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
8
4 Installation
4.1 Mounting accessory
The unit is supplied without mounting accessories�
Depending on the intended location and type of mounting the following mounting
accessories are available:
●EC2110, mounting frame for panel mounting incl� mounting material and seal
●EC1410��EC1414, RAM®mount system for surface mounting
You can find more information about the available accessories at:
www.ifm.com → data sheet search → e.g. CR1080 → Accessories
4.2 General installation instructions
4.2.1 Locator for mounting accessories

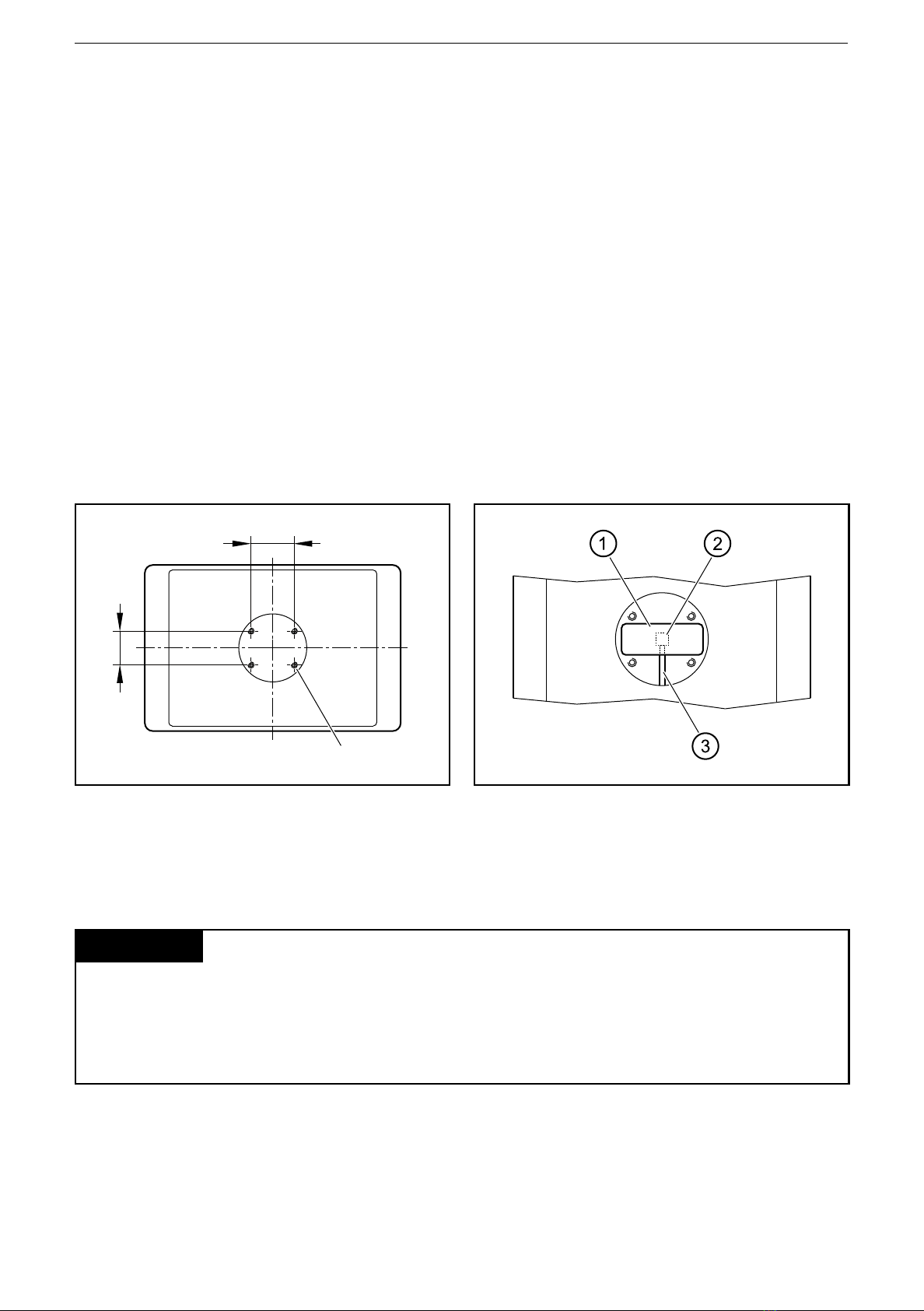

The back of the unit has been prepared for fixing the mounting accessories�
38,1
30
M5
Locator for mounting accessories
(back of the unit)
1: type label
2: pressure compensation element
3: ventilation duct
Usable M5 thread depth: ≤ 8 mm
The hole dimensions correspond to the RAM®mount mounting plate (→ 4.4)�
ATTENTION
A pressure compensation element is located under the type label� Use of elastic
materials to seal or close the associated ventilation duct may cause damage to
the device�
►Do not use sealing materials in the ventilation duct area�

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
9
4.2.2 Orientation of the device with panel and surface mounting
Horizontal orientation for panel and surface
mounting
4.2.3 Light sensor

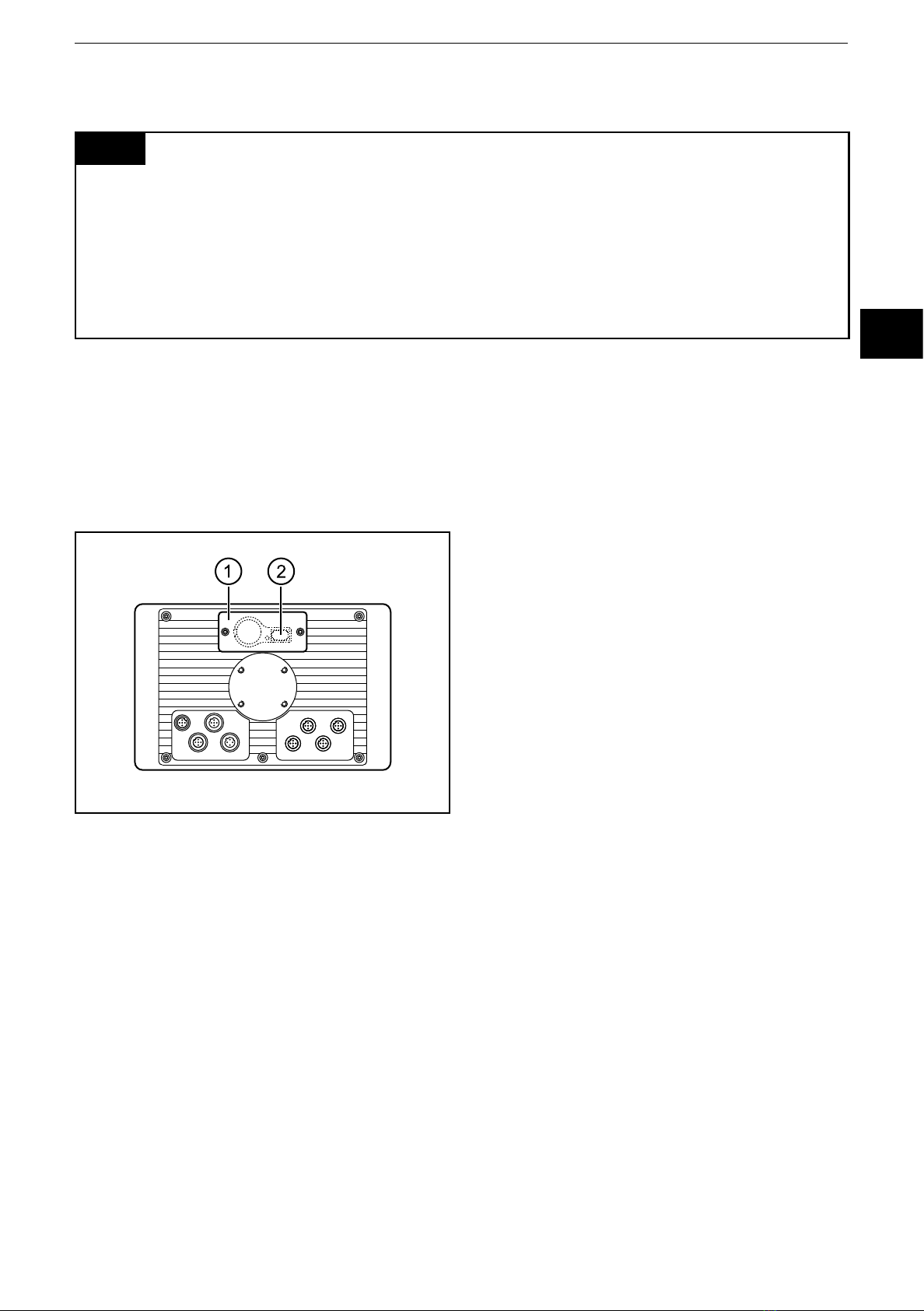

The device is equipped with a light sensor� It is used for automatic brightness
adaptation of the display and the operating elements to the ambient brightness�
1: Light sensor
►Do not cover up the light sensor by construction measures�
4.2.4 Protective lm for the touch screen (CR1082)
The unit is designed for use in harsh conditions in mobile machines�
Nevertheless, the integrated glass touch screen cannot be used under all
operating conditions�
Therefore, a protective film (type CR108x) is supplied that can be applied to the
front glass before the unit is put into operation� It supplies additional protection
for the touch screen in case of increased strain of the surface�
We recommend a timely replacement of the protective film in cases of
damage or heavy wear� Further protective films can be purchased at

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
10
www�Schutzfolien24�com by indicating the type of unit CR108x�
4.3 Panel mounting using the mounting frame

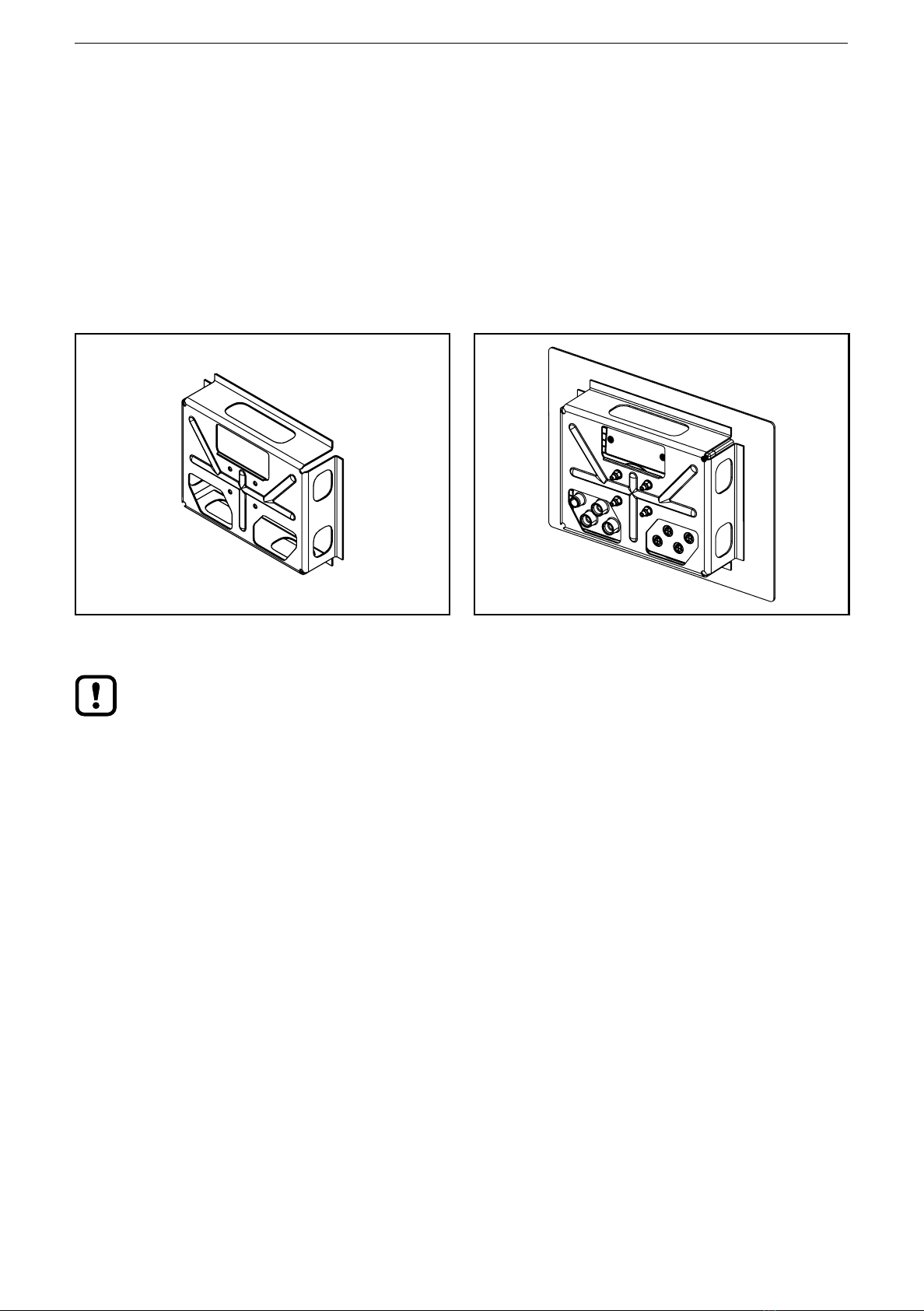

The mounting frame ensures horizontal, vertical or up-side down mounting of the
device in a panel cutout�
This type of mounting is suited for materials with a thickness from 1 to 10 mm�
The M5 hexagon nuts, washers, M5 set screws and a seal are supplied with the
device�
Mounting frame Dialogue module with mounted mounting frame
Only insert the mounting frame together with the seal�

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
11
4.3.1 Mounting steps
A
Mounting principle
1: mounting frame with M5 hexagon nuts (self-
locking) and washers
2: panel cutout
3: dialogue module with attached seal and screwed
set screws
Installation depth A: approx� 60���65 mm
(depending on the panel thickness and the length of
the set screws, without connector)
►Make a cut-out�
Cutout for panel mounting (→ 7 Technical data)

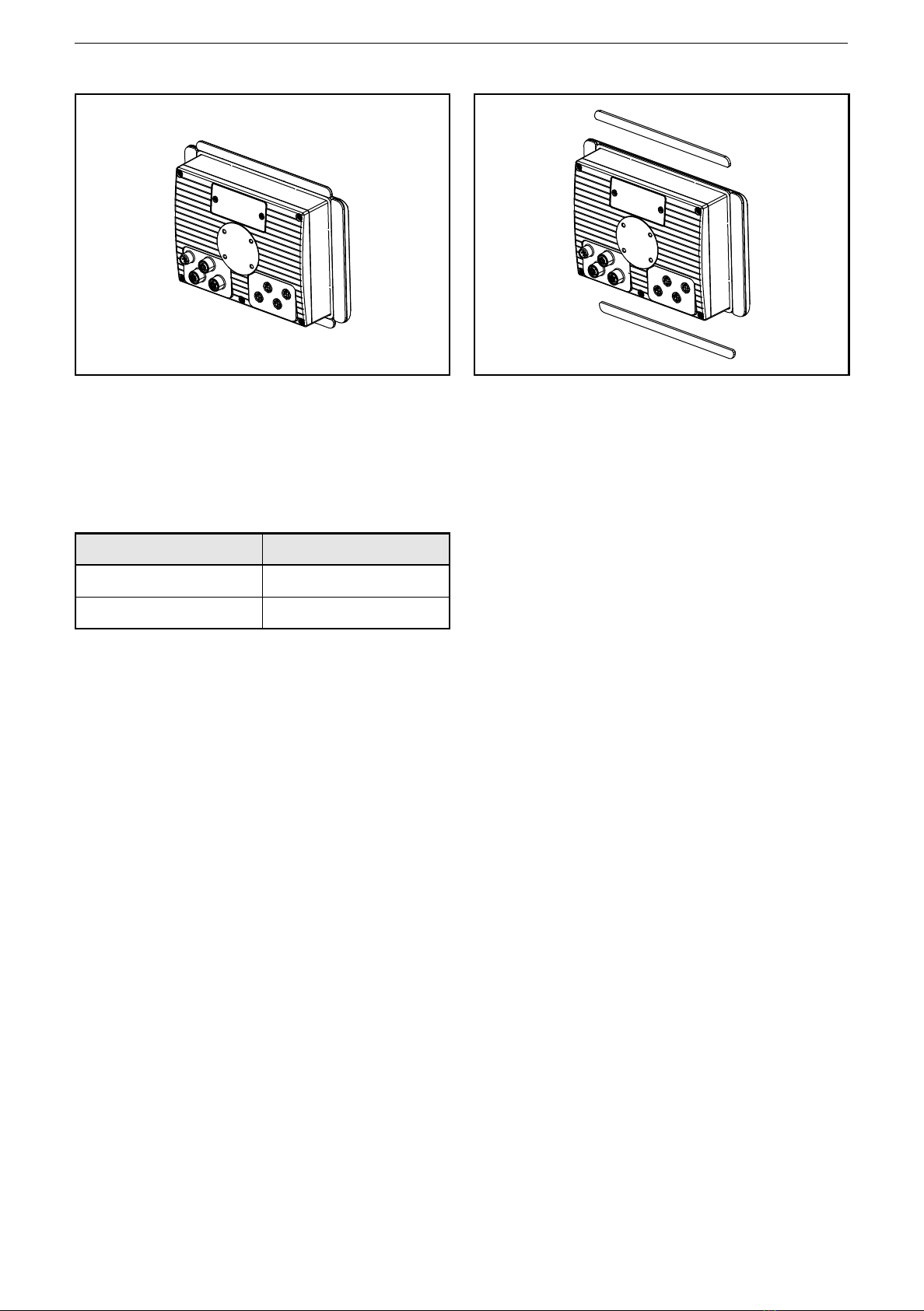

►Attaching the seal to the unit�
Procedure:
– Remove 3 protective films from the seal (2 short sides and 1 continuous,
narrow strip)�
The protective films on the two long sides remain on the seal�
– Place the seal onto the device from the back and attach it�
– Remove protruding long sides of the seal�
1� adhesive area
2� protective films remaining on the seal
Place the seal onto the device

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
12
Attached seal Removed long sides
►Screw the set screws into the M5 thread on the back of the device�
(→ 4.2.1 Locator for mounting accessories)
Select the set screws in accordance with the panel thickness�
Panel thickness Set screws
1��� 5 mm M5 x 25
> 5���10 mm M5 x 30
►Insert the device into the cutout�
►Screw the mounting frame to the back of the device�
Tightening torque of the M5 hexagon nuts: 5 ±0�5 Nm

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
13
4.4 Surface mounting with RAM®mount system
Using the RAM®mount components, available as accessories, the dialogue
unit can be used as a firmly mounted desktop unit� Two balls allow a variable
orientation of the unit�

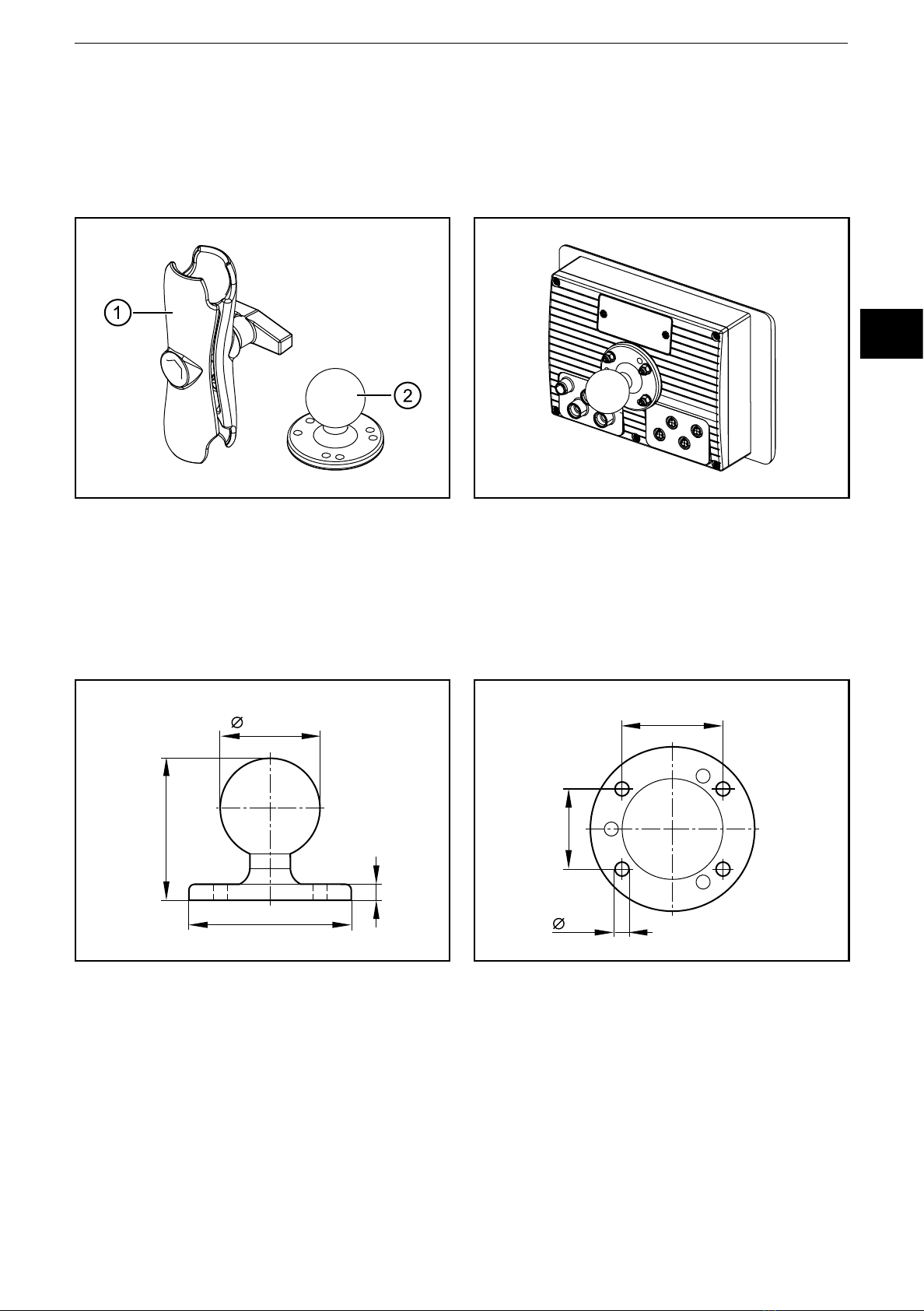

RAM®mount components
1: mounting arm with fastening screw
2: mounting plate with ball
Dialogue module with mounted RAM®mount
system
4.4.1 Mounting steps
►Screw the mounting plate onto an even surface�
38 (1,5")
56
62
6
38,1
30
5,3
Mounting plate with ball Hole dimensions
Tightening torque: 5 ±0�5 (Nm
►Screw the second mounting plate to the back of the device�
►Slightly loosen the fastening screw of the mounting arm�
►Place the mounting arm onto the balls and tighten the fastening screw�
You can find more information about the available RAM®mount components at:
www.ifm.com → data sheet search → CR1080 → Accessories

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
14
5 Electrical connection
5.1 Connection accessories
You can find more information about the available accessories at:
www.ifm.com → data sheet search → CR1080 → Accessories
or
www.ifm.com → Products → Accessories → Connection technology
5.2 General electrical connection

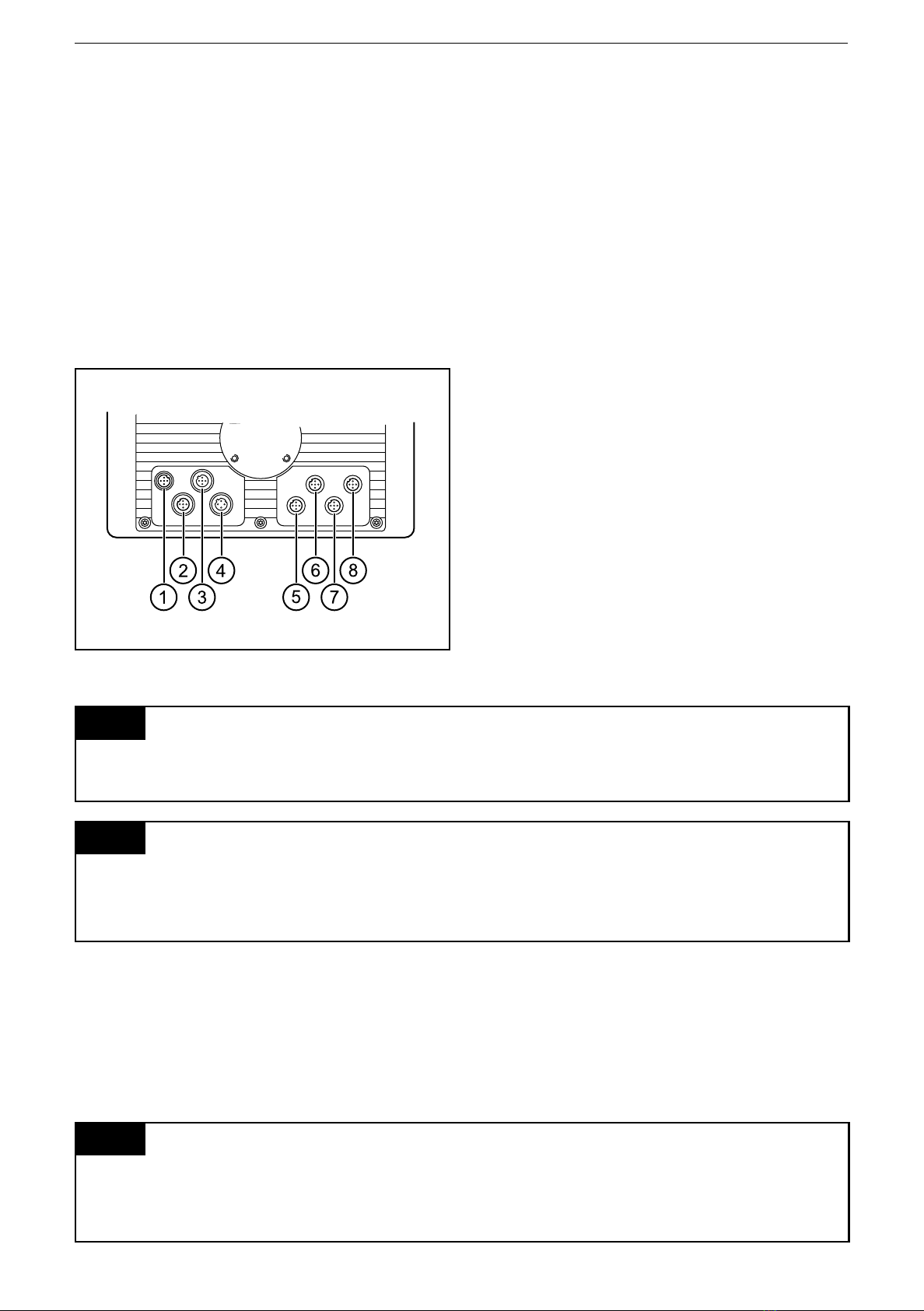

Wiring of the M12 connectors (→ 7 Technical data)
1: Supply, input/output
2: CAN1
3: USB
4: Ethernet
5: CAN2
6: CAN3/4
7: Analogue video input (CR1082/84/85 only)
8: N/A
M12 connector (back of the unit)
NOTE
Wrong connection may cause damage to the device�
►Observe the safety instructions�
NOTE
The short-circuit / reverse polarity protection of the device applies to the
operating voltage connections� A short circuit between operating voltage
(+24 V DC) and CAN_GND damage the device�
►Basically all supply and signal cables must be laid separately�
►Lay supply and signal cables away from the device using the shortest possible
route�
►All connected cables must be provided with a strain relief�
5.2.1 Cover all unused connectors
NOTE
Moisture penetrating through unused or unprotected connectors may destroy the
device�
►Cover unused connectors with protective caps�

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
15
5.3 Operating voltage and fuses
►To protect the device use fuses for the operating voltages�
Description Potential Connector 1 Fuse
Operating voltage
clamp 30
10…32 V DC
positive directly from the battery
pin 1 max� 5 A
Operating voltage
clamp 15
10…32 V DC
connected positive from the ignition-starter
switch
pin 5 max� 5 A
Terminal designation to DIN 72552
5.3.1 Voltage supply of the switching output via clamp 30
As from the following device statuses the switching output is supplied via clamp
30� The output can still switch even if the ignition voltage is switched off and the
latching function is activated�
Article no. Valid as from device status Introduction
CR1080 AE 01�05�2014
CR1081 AD 01�05�2014
CR1082 AB 27�04�2013
CR1084 AB 28�02�2014
CR1085 AB 28�02�2014
The device status is noted on the type label
For older device statuses the switching output was supplied via clamp 15�
If the ignition voltage is switched off (by turning the ignition key to OFF) the
output is switched off at the same time�
5.4 Ground connection
To ensure the protection of the device against electrical interference and to
ensure the safe function of the device, the housing has to be connected to
the body / GND of the supply using the shortest possible route�
►Establish the connection between the device and the ground of the vehicle
using the intended screw for RAM®Mount installation�

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
16
GND connection
To avoid contact corrosion on the shield connection of the device, do not
use any copper or nickel-plated materials for the bolting elements!
►In very corrosive environments such as extremely salty air, use screws with
surface finishing on a zinc/nickel basis with thick-film passivation and sealing�

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
17
5.5 Ethernet interface
►Use a shielded CAT5 cable�
STP, Shielded Twisted Pair, according to EIA/TIA-568�
Max� length 25 m
The max� cable length depends for example on the bus topology, the
selected operating mode (10/100 Mbits/s) or the quality of the connectors�
►Use screened connector housings and connect the screen of the Ethernet
cable to the connector housing�
►Do not lay the Ethernet cable in parallel to live cables�
Interference due to external influences
Faulty or insufficient radio interference suppressors in other electrical
equipment, such as inverters or generators, as well as voltage fluctuations
when switching on/off electric loads may lead to problems with the data
transmission�
5.5.1 Ethernet cameras
The device supports ifm Ethernet cameras (e�g� O2M110) firmware 5�1001 or
higher�
Networking example (→ 3.1 Application example)
5.6 Analogue video inputs (only CR1082/84/85)
►When using the analogue video inputs, please provide all connection cables
with ferrite sleeves�
Recommendation: impedance 321 Ω (100 MHz)
The ferrite sleeves ensure CE/E1 conformity and suppress conducted
interference�

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
18
5.7 USB interfaces
The USB interfaces are used for the temporary connection of an external
keyboard, a mouse or a USB memory stick�
They are not intended for actual operation�
►Remove the USB devices after their use�
5.7.1 USB connection via M12 connector
Wiring (→ 7 Technical data)
This USB interface is connected to a USB connector in the control panel or in the
dashboard�
It is used for the temporary connection of operating devices (USB mouse /
keyboard) and storage media (e�g� USB memory stick)�
≤ 3 m
USB connection via M12 connector
1: Dialogue module
2: USB connector, for example in the control panel or in the dashboard
3: USB keyboard, mouse or memory stick



 

Permanent connection: Dialogue module – USB connector
►Use prewired cable�
(e�g� art� no� EC2099, M12 connector, B-coded on USB socket, type A,
watertight, cable length 1�5 m, wires twisted and screened)
►Use only cables with twisted and screened wires for individual wiring�
Keep length "A" as short as possible and position the USB connector in
immediate vicinity to the dialogue module� The length "A" considerably
influences the quality of the USB data transmission�






Temporary connection: USB connector – USB device
►Use a connection cable with the designation "Full Speed/High Speed"
(= USB connection cable with twisted and screened cores).
►Do not make a connection using several USB connection cables�
►Remove connection cable after the programming or service works�

UK
PDM360 NG process and dialogue module (CR1080/81/82/84/85)
19
5.7.2 Short-circuit protection
NOTE
The USB interface (M12 connector) is not protected against short circuits with a
live wire outside the following voltage ranges:
–data 0�3���3�6 V DC (3: pin 2)
+data 0�3���3�6 V DC (3: pin 3)
ID 0�3���3�6 V DC (3: pin 4)
A short circuit will destruct the USB interface�
5.7.3 USB connection behind the service cover
►Remove the service cover on the back of the unit�
(2 M3 socket head screws)
►Connect the USB keyboard, mouse or memory stick with the USB interface�
►Remove the USB devices after their use and close the service cover again�
1: service cover
2: USB socket, type A

PDM360 NG process and dialogue module (CR1080/81/82/84/85)
20
6 Set-up
6.1 General
As delivered the device is prepared for programming with CODESYS version 2�3
or higher�
Factory setting:
IP address: 192�168�82�247
Subnet mask: 255�255�255�0
The user is responsible for the safe function of the application programs
which he created himself� If necessary, he must additionally have an
approval test carry out by corresponding supervisory and test organisations
according to the national regulations�
6.2 First steps
►Connect the device to the notebook/PC via the Ethernet interface�
►Switch on the notebook/PC; check the IP settings of the notebook/PC and
change them if necessary�
Internet protocol: TCP/IP:
IP address: 192�168�82�xxx (except for �247, s�a�)
Subnet mask: 255�255�255�0
Gateway IP address: 192�168�100�1
►Switch on the operating voltage of the dialogue module�
> Shortly after switch-on of the unit the start image is shown for approx� 10 to 15
seconds�
During this time booting is running in the background�
After booting the set-up program opens automatically�
6.3 Set-up
The set-up allows the setting of the device parameters�
The menu items are selected using the function keys or via a connected USB
keyboard�
Function keys USB keyboard Description
Left SELECT TAB select menu item
SAVE F3 save entries
Right UP arrow up increase value or variable
DOWN arrow down decrease value or variable
ENTER ENTER open selected menu item
EXIT ESC leave set-up
leave menu item
entries will not be saved
